WAC Pop-In R4DSDN-F9CS-WT 4 in. Square White New Construction Downlight 12W Selectable CCT
Available in stock (4339)
About this item
About this item
- Selectable CCT: Switchable between 2700K and 5000K
- Power: 12 Watts
- Dimming: ELV and TRIAC, 100-5%

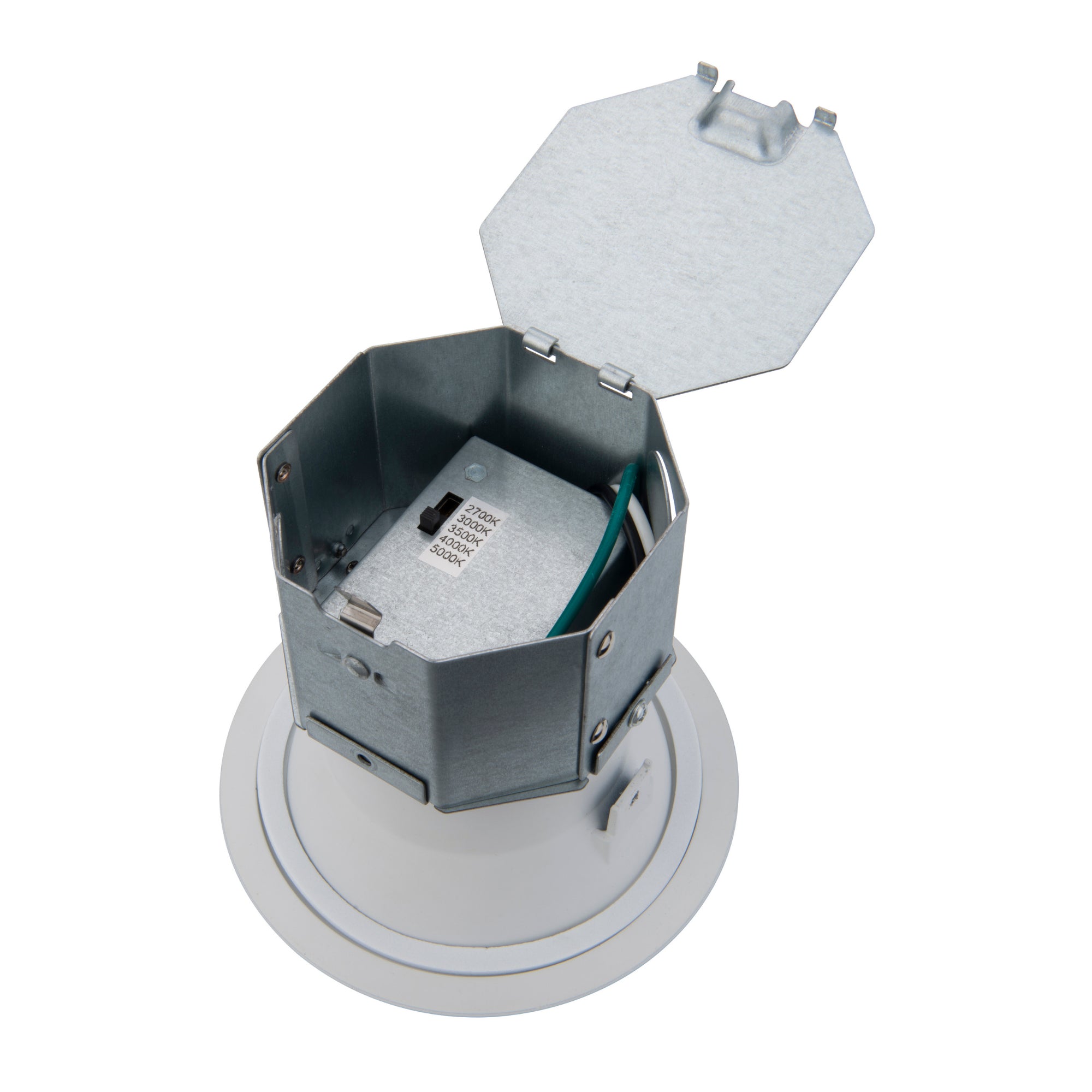

- Construction: Die-cast Aluminum with Cold Rolled Steel Junction Box
- Rated Life: 50,000 Hours
We process payments securely and do not store credit card information.
Description
Description

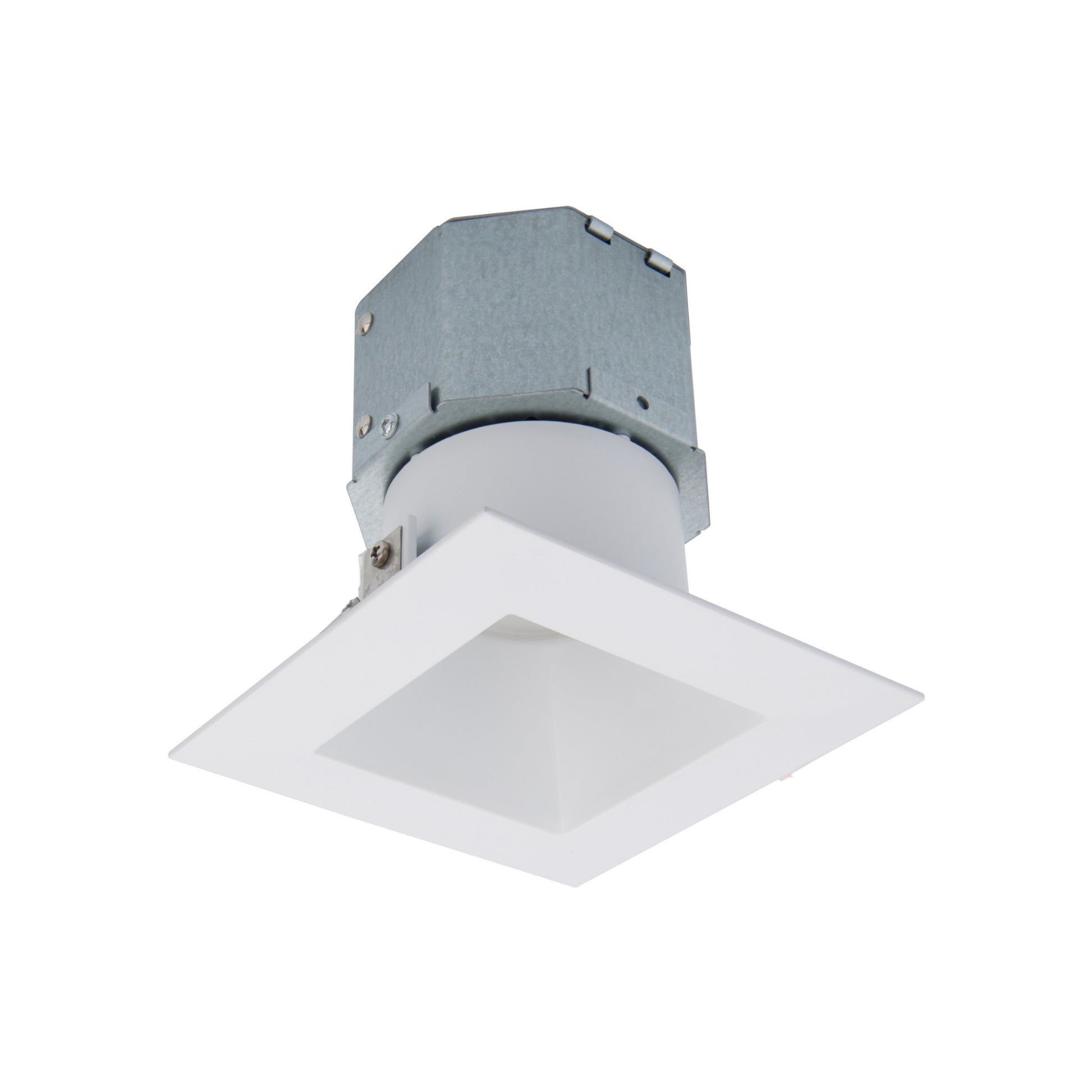

WAC Lighting Pop-In R4DSDN-F9CS-WT 4 in. Square Trim Downlight — 12W / Selectable CCT
The WAC Lighting R4DSDN-F9CS-WT is a versatile 4-inch square trim downlight designed for new construction applications. Delivering selectable color temperatures from 2700K to 5000K, this fixture uses 12 watts of power and features integrated LED technology for efficient lighting.
Key Features
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage: 120-277V
- Dimming: ELV and TRIAC, 100-5%
- Construction: Die-cast Aluminum with Cold Rolled Steel Junction Box
- Lens: Frosted TIR lens
- Rated Life: 50,000 Hours

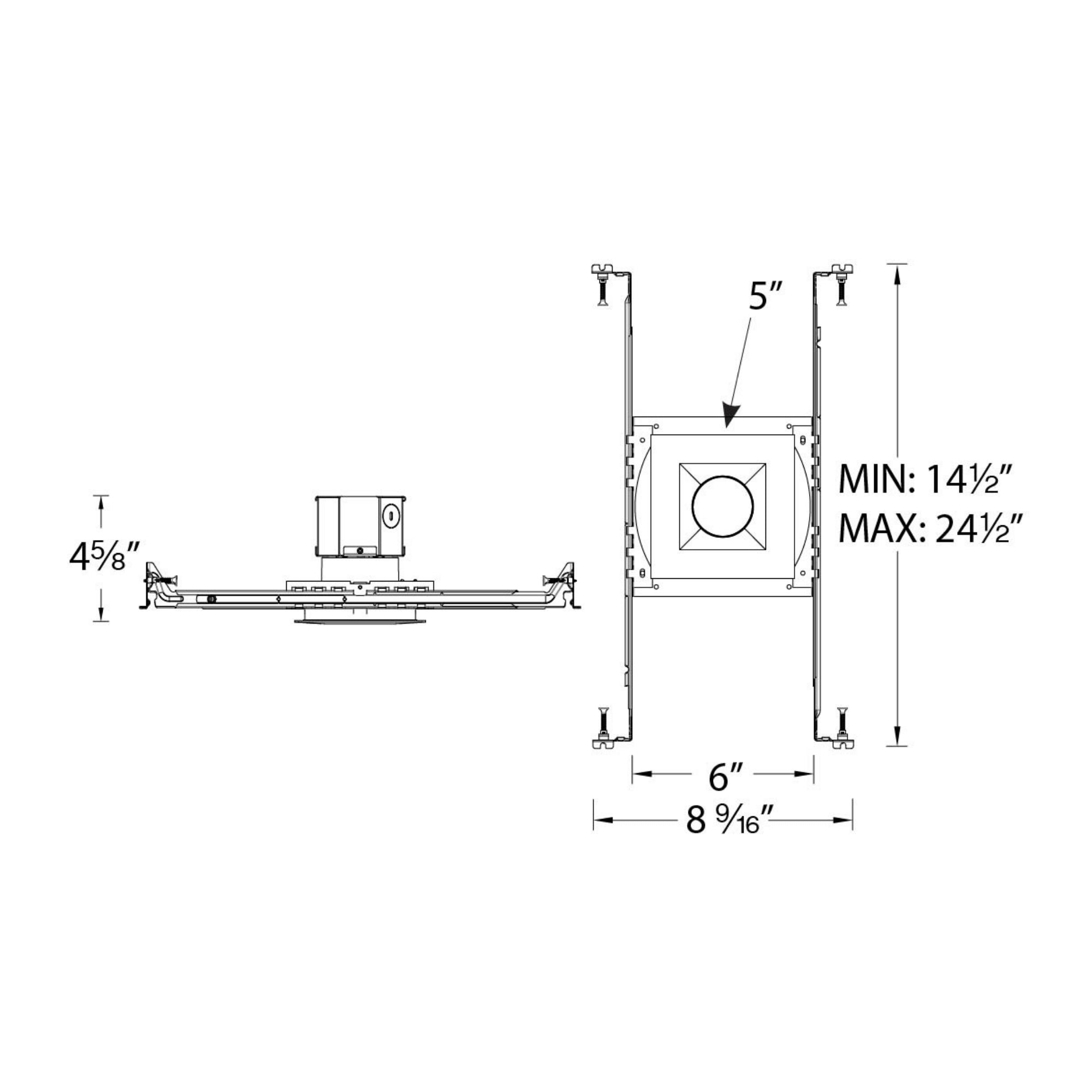

- Mounting: New construction housings with hanger bars
- Cut Out: 4 1/8 inches
- Finish: Electrostatically Powder Coated in White or Black
- Standards: ETL, cETL, Wet Location Listed, Title 24 JA8 Compliant, Airtight, IC
Construction & Aesthetics
This downlight features a die-cast aluminum construction with a cold rolled steel junction box, ensuring durability and reliability. The frosted TIR lens provides even light distribution, and the fixture is available in a white or black electrostatically powder-coated finish.
Electrical & Installation
Operating on 120-277V, this downlight supports ELV and TRIAC dimming from 100% to 5%. It includes new construction housings with hanger bars for easy installation and a cutout size of 4 1/8 inches.
Light Output & Performance
With a rated life of 50,000 hours, this fixture provides reliable performance. The selectable CCT feature allows for customization of the lighting environment to suit various needs.
Typical Applications
- Commercial Spaces
- Residential Areas
- Retail Environments
- Hospitality Venues
- Offices
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the cutout size for the WAC Lighting R4DSDN-F9CS-WT?
What is the cutout size for the WAC Lighting R4DSDN-F9CS-WT?
Can the WAC Lighting R4DSDN-F9CS-WT be used in wet locations?
Can the WAC Lighting R4DSDN-F9CS-WT be used in wet locations?
What dimming options are available for the WAC Lighting R4DSDN-F9CS-WT?
What dimming options are available for the WAC Lighting R4DSDN-F9CS-WT?
What is the lifespan of the WAC Lighting R4DSDN-F9CS-WT?
What is the lifespan of the WAC Lighting R4DSDN-F9CS-WT?
Is the WAC Lighting R4DSDN-F9CS-WT suitable for new construction?
Is the WAC Lighting R4DSDN-F9CS-WT suitable for new construction?
