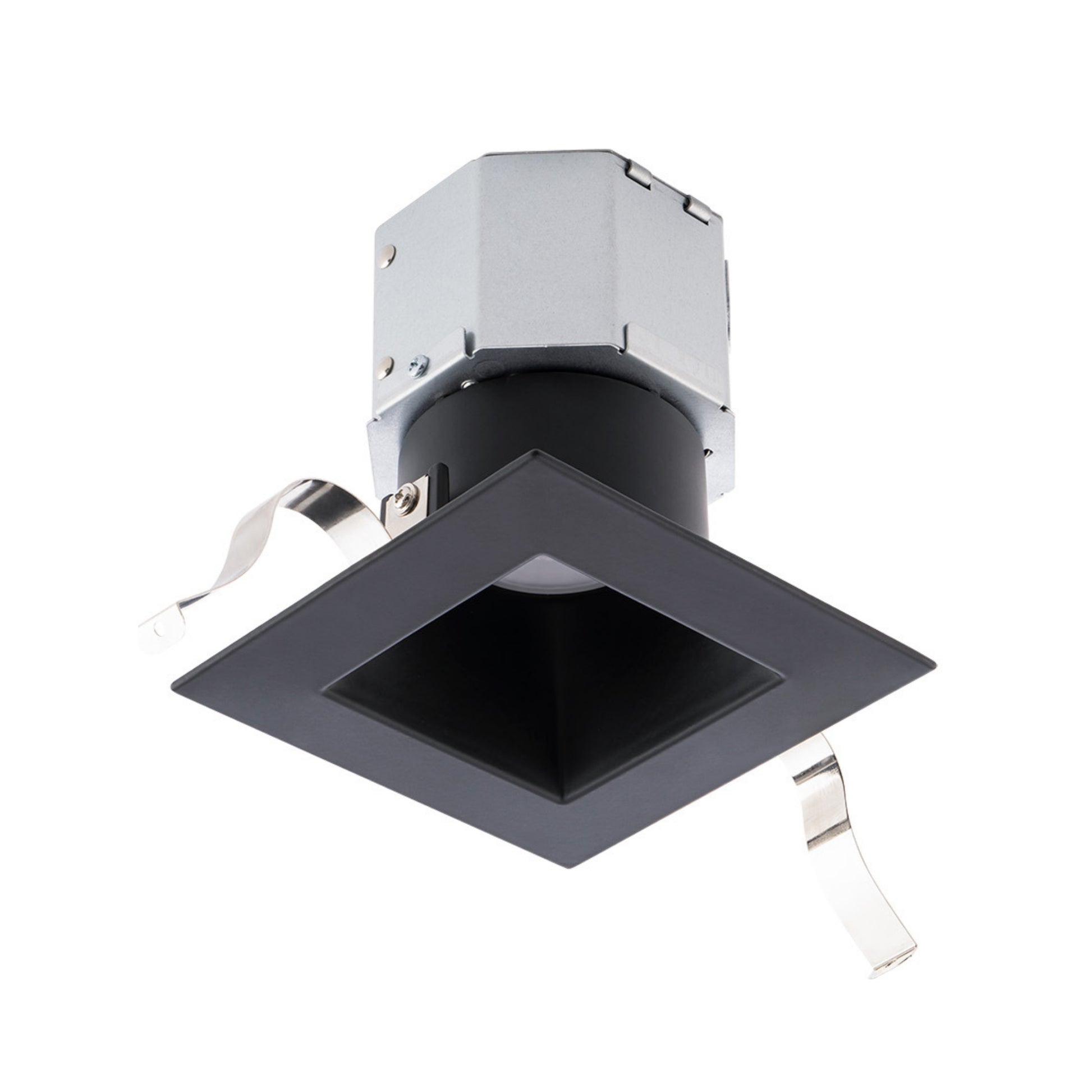

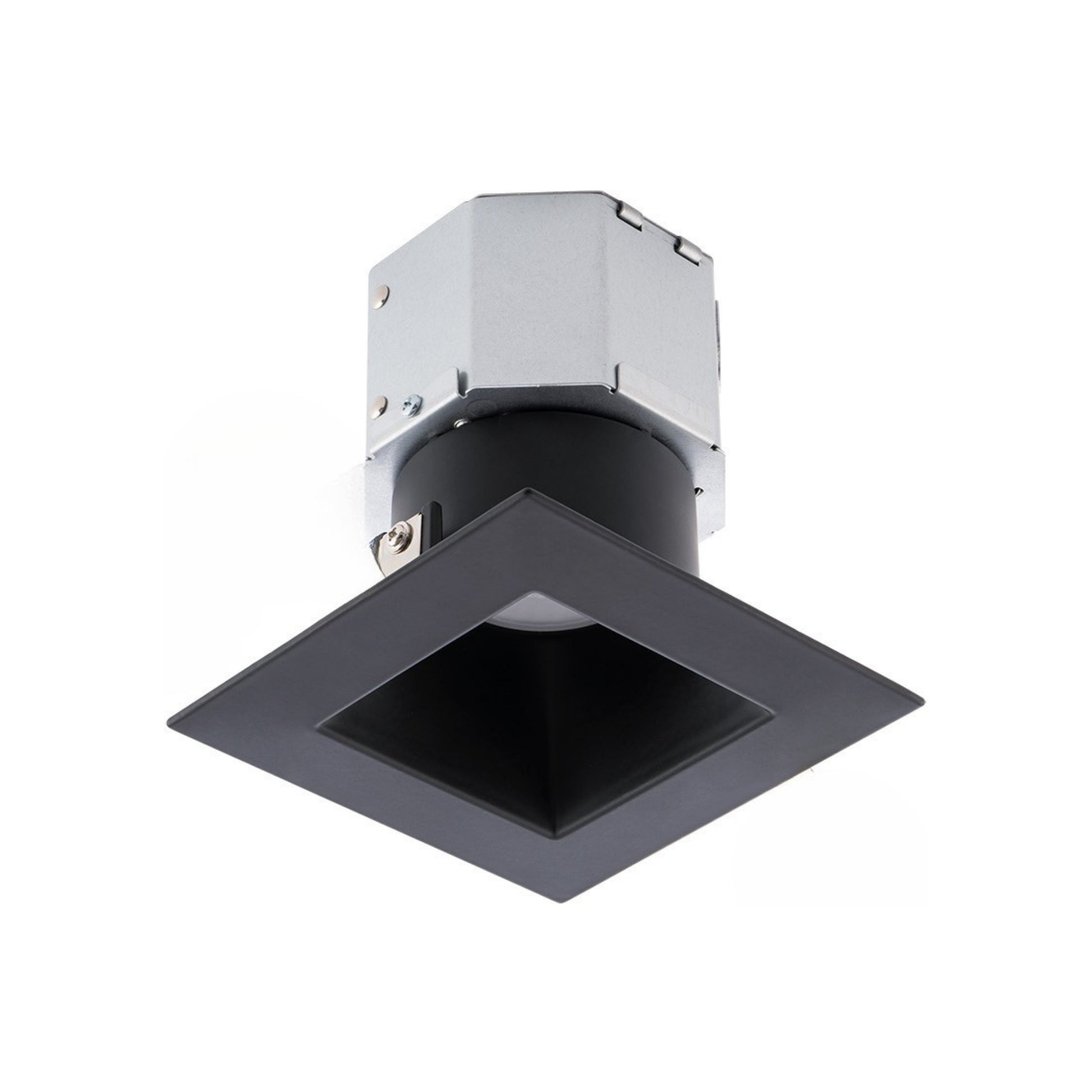

WAC Lighting Pop-In R4DSDN-F9CS-BK 4 in. Square New Construction Downlight — 12W / 5CCT

This square new-construction downlight combines selectable white light with an integrated housing, hanger bars, and a concealed driver for a clean ceiling installation. The black-finish fixture offers five CCT settings and may be field-configured for remodel use.

Key Features

• Five selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K, or 5000K.
• Color rendering: 90 CRI.
• Manufacturer-listed output: 790 and 1,000 lumens across the selectable CCT configurations; CBCP values listed are 1,207 and 1,256.
• Fixed beam: 45° beam angle.
• Integrated LED: 12W source with 50,000-hour rated life.
• Dimming: ELV or TRIAC dimming, each from 100% to 5%.
• Electrical input: 120–277VAC, 50/60Hz.
• Frosted TIR lens: Provides smooth light diffusion.
• Black finish: Die-cast aluminum with electrostatically powder-coated black finish and 20-gauge cold-rolled-steel junction box.
• New-construction mounting: Housing and hanger bars are included; manufacturer notes field configuration for remodel use.

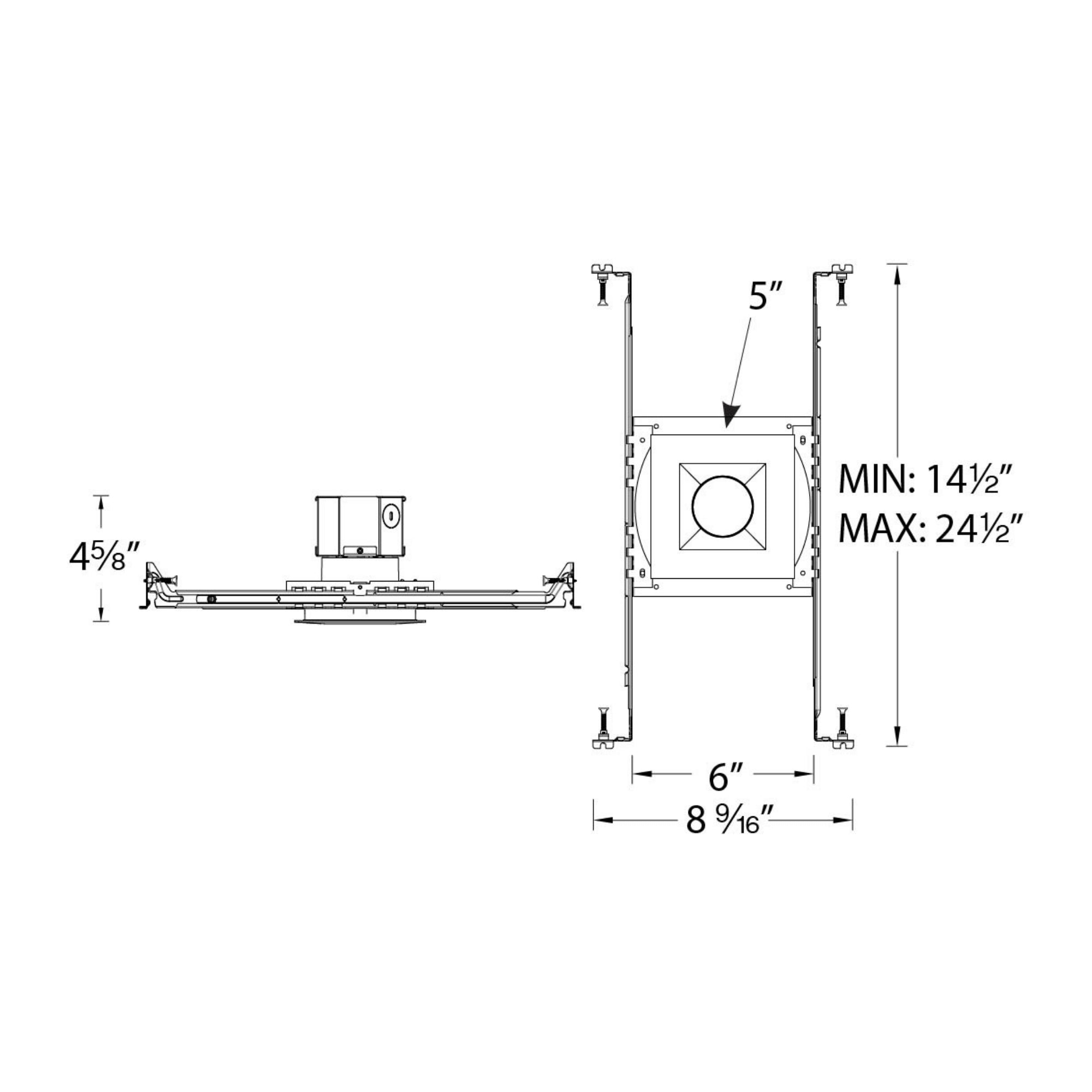

• Ceiling fit: 4 1/8 in. cutout and 1/2 in. to 1 1/2 in. ceiling thickness.
• Rated conditions: Operating temperature -4°F to 104°F (-20°C to 40°C); 5-year warranty.
• Listings: ETL and cETL listed, Wet Location Listed, Title 24 JA8 compliant, Airtight, and IC.

Construction & Design

The square downlight combines die-cast aluminum with a 20-gauge cold-rolled-steel junction box and frosted TIR lens. The black electrostatically powder-coated finish gives the fixture a clean, low-profile look, with the driver concealed within the assembly.

Light Output & Performance

The 12W integrated LED offers five selectable CCTs from 2700K to 5000K at 90 CRI. The manufacturer lists 790 and 1,000 lumens and CBCP values of 1,207 and 1,256 across the selectable CCT configurations. The fixed beam angle is 45°, and rated life is 50,000 hours.

Electrical & Installation

Connect to 120–277VAC, 50/60Hz. The fixture supports ELV or TRIAC dimming from 100% to 5%. New-construction housing and hanger bars are included, and the manufacturer notes that the fixture may be field-configured for remodel use. Provide a 4 1/8 in. cutout and accommodate ceiling thickness from 1/2 in. to 1 1/2 in.

Typical Applications

• Residential kitchens, living areas, and hallways.
• Commercial offices and retail interiors.
• Hospitality spaces.
• Bathrooms and other wet-location installations.
• New-construction projects needing square recessed lighting with selectable CCT.

What's Included

• One black 4 in. square downlight with integrated LED, concealed driver, new-construction housing, hanger bars, and electrical junction box.
