WAC Pop-In R4DRDR-F9CS-WT 4 in White Round Remodel Downlight 12W Selectable CCT
Available in stock (8848)
About this item
About this item
- Five Selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K, or 5000K at 90 CRI.
- Remodel-Ready Design: Back-mounted electrical box and heavy-gauge retention clips support straightforward ceiling installation.
- Light Output: Manufacturer lists 870 and 1,080 lumens across CCT configurations, with a fixed 45° beam.
- Integrated LED: 12W source with frosted TIR lens and 50,000-hour rated life.
- Dimming and Listings: ELV/TRIAC dimming from 100% to 5%; Wet Location Listed, Airtight, IC, and Title 24 JA8 compliant.
We process payments securely and do not store credit card information.
Description
Description
WAC Lighting Pop-In R4DRDR-F9CS-WT 4 in. Round Remodel Downlight — 12W / 5CCT
This round remodel downlight pairs selectable white light with a concealed driver and back-mounted electrical box for straightforward installation. The white electrostatically powder-coated finish and frosted TIR lens keep the recessed fixture clean and understated. A new-construction frame is available as an additional mounting option.
Key Features
- Five selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K, or 5000K.
- Color rendering: 90 CRI.
- Manufacturer-listed output: 870 and 1,080 lumens across selectable CCT configurations; CBCP values listed are 1,189 and 1,309.
- Fixed beam: 45° beam angle.
- Integrated LED: 12W source with 50,000-hour rated life.
- Dimming: ELV and TRIAC dimming, each from 100% to 5%.
- Electrical input: 120–277VAC, 50/60Hz.
- Lens: Frosted TIR for smooth light diffusion.
- Fixture construction: Die-cast aluminum with a 20-gauge cold-rolled-steel junction box.
- White finish: Electrostatically powder-coated white.
- Remodel mounting: Back-mounted electrical box and heavy-gauge retention clips secure the fixture.

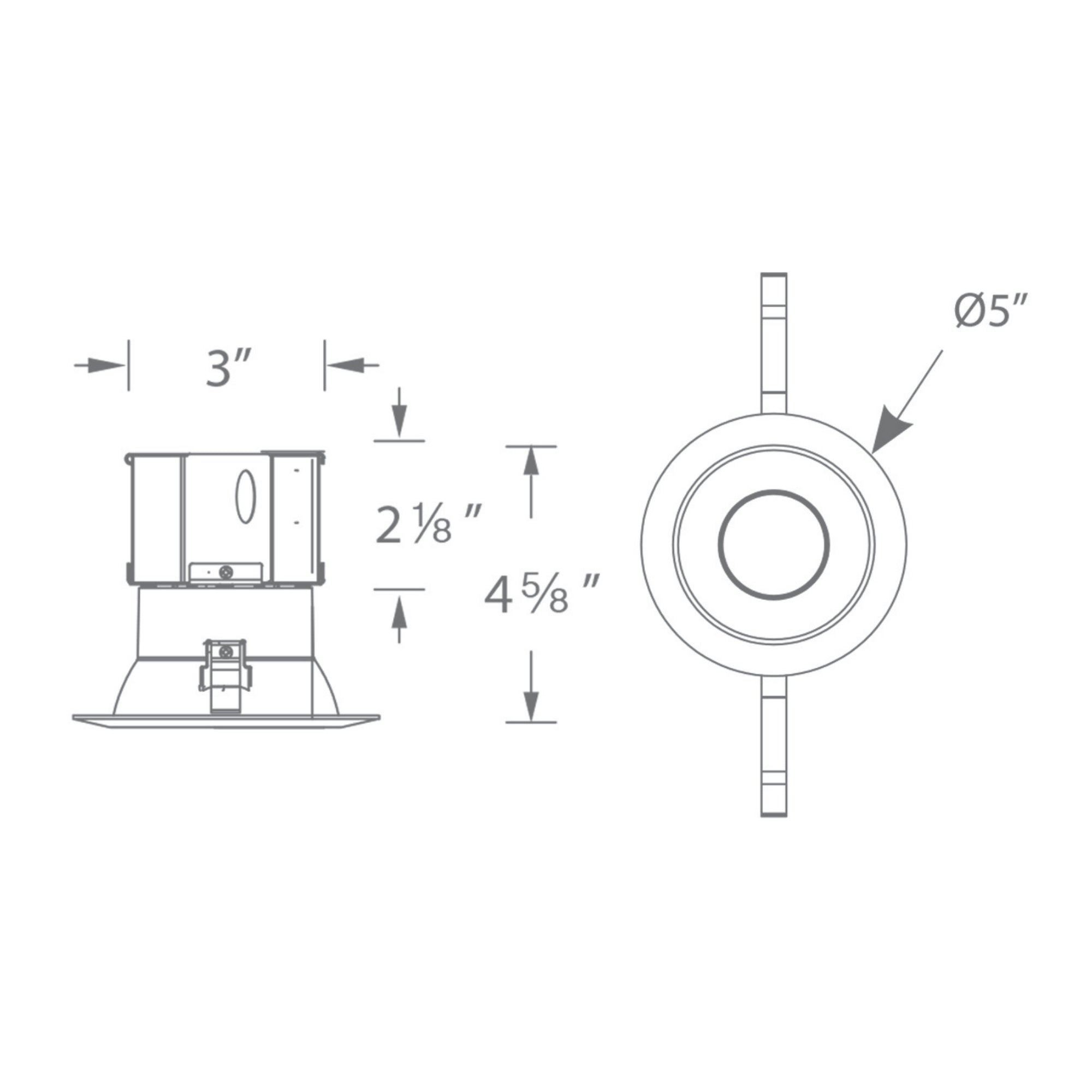

- Ceiling fit: 4 in. cutout and 1/2 in. to 1 1/2 in. ceiling thickness.
- Additional mounting option: A new-construction frame is available.
- Rated conditions and warranty: Operating temperature -4°F to 104°F (-20°C to 40°C); 5-year warranty.
- Listings: ETL and cETL listed, Wet Location Listed, Title 24 JA8 compliant, Airtight, and IC.
Construction & Design
The round fixture combines die-cast aluminum with a 20-gauge cold-rolled-steel junction box and a frosted TIR lens. Its electrostatically powder-coated white finish complements a range of interiors, while the driver remains concealed inside the assembly.
Light Output & Performance
The 12W integrated LED offers five selectable CCTs from 2700K to 5000K at 90 CRI. The manufacturer lists 870 and 1,080 lumens and CBCP values of 1,189 and 1,309 across the selectable CCT configurations. The fixed beam angle is 45°, and rated life is 50,000 hours.
Electrical & Installation
Connect to 120–277VAC, 50/60Hz. The fixture supports ELV and TRIAC dimming from 100% to 5%. For remodel installation, the electrical box is mounted on the back of the fixture and heavy-gauge retention clips secure it at the ceiling. Provide a 4 in. cutout and accommodate ceiling thickness from 1/2 in. to 1 1/2 in. A new-construction frame is available as an additional mounting option.
Typical Applications
- Residential kitchens, living areas, and hallways.
- Commercial offices and retail interiors.
- Hospitality spaces.
- Bathrooms and other wet-location installations.
- Remodel projects needing round recessed lighting with selectable CCT.
What's Included
- One white 4 in. round remodel downlight with integrated LED, concealed driver, back-mounted electrical box, and heavy-gauge retention clips.
