WAC Lighting Pop-In R4DRDR-F9CS-BK 4 in. Round Remodel Downlight — 12W / 5CCT

This 4 in. round remodel downlight pairs a concealed driver with a back-mounted electrical box for straightforward installation. Select from five color temperatures and enjoy a frosted TIR lens with a fixed 45° beam in a black finish. A new-construction frame is also available for projects that need it.

Key Features

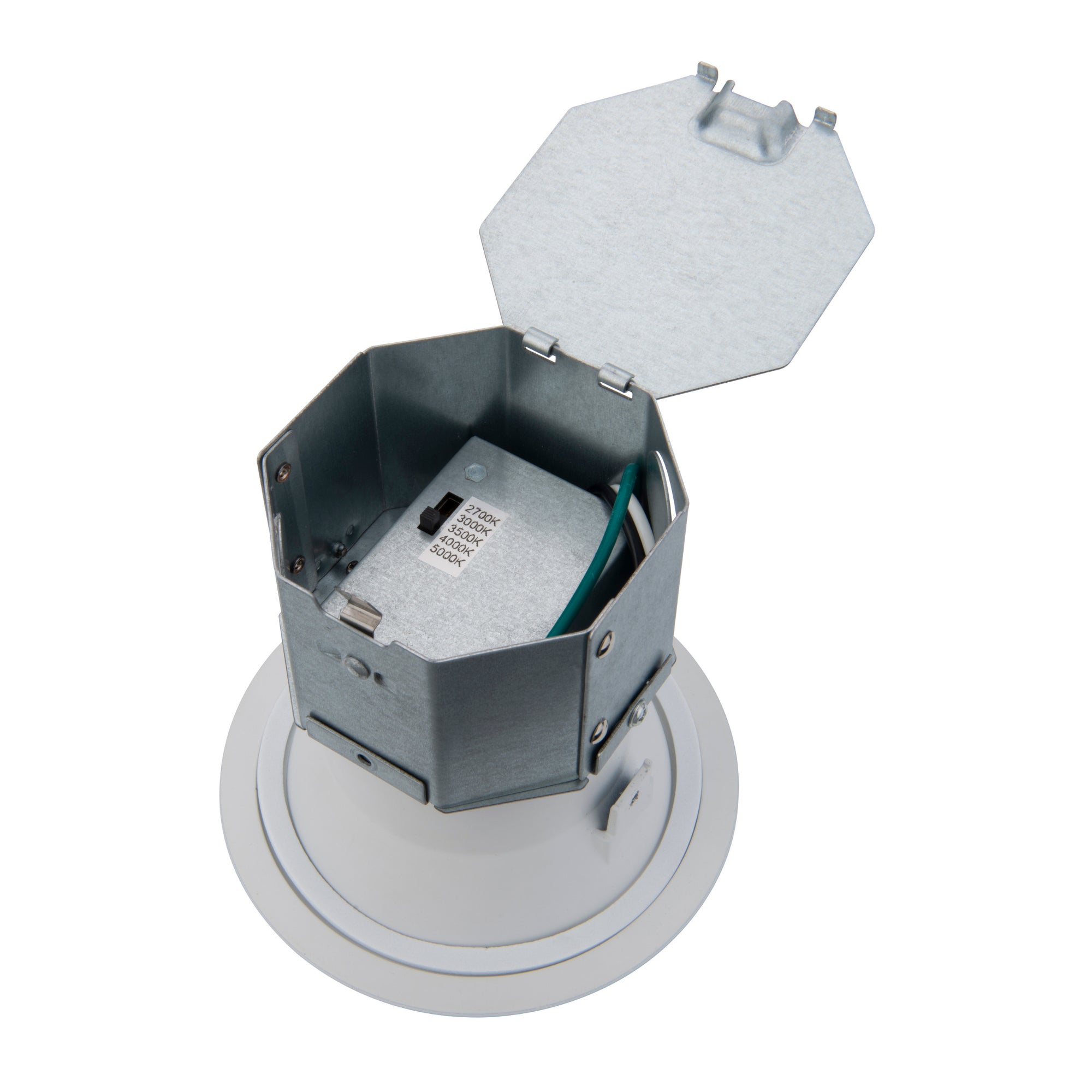

• Five selectable CCTs: 2700K, 3000K, 3500K, 4000K, or 5000K.
• Color rendering: 90 CRI.
• Manufacturer-listed output: 870 and 1,080 lumens across the selectable CCT configurations; CBCP values listed are 1,189 and 1,309.
• Fixed beam: 45° beam angle.
• Integrated LED: 12W source with 50,000-hour rated life.
• Dimming: ELV and TRIAC dimming, each from 100% to 5%.
• Electrical input: 120–277VAC, 50/60Hz.
• Lens: Frosted TIR for smooth light diffusion.
• Black construction: Die-cast aluminum with electrostatically powder-coated black finish and 20-gauge cold-rolled-steel junction box.
• Remodel installation: Back-mounted electrical box and heavy-gauge retention clips.

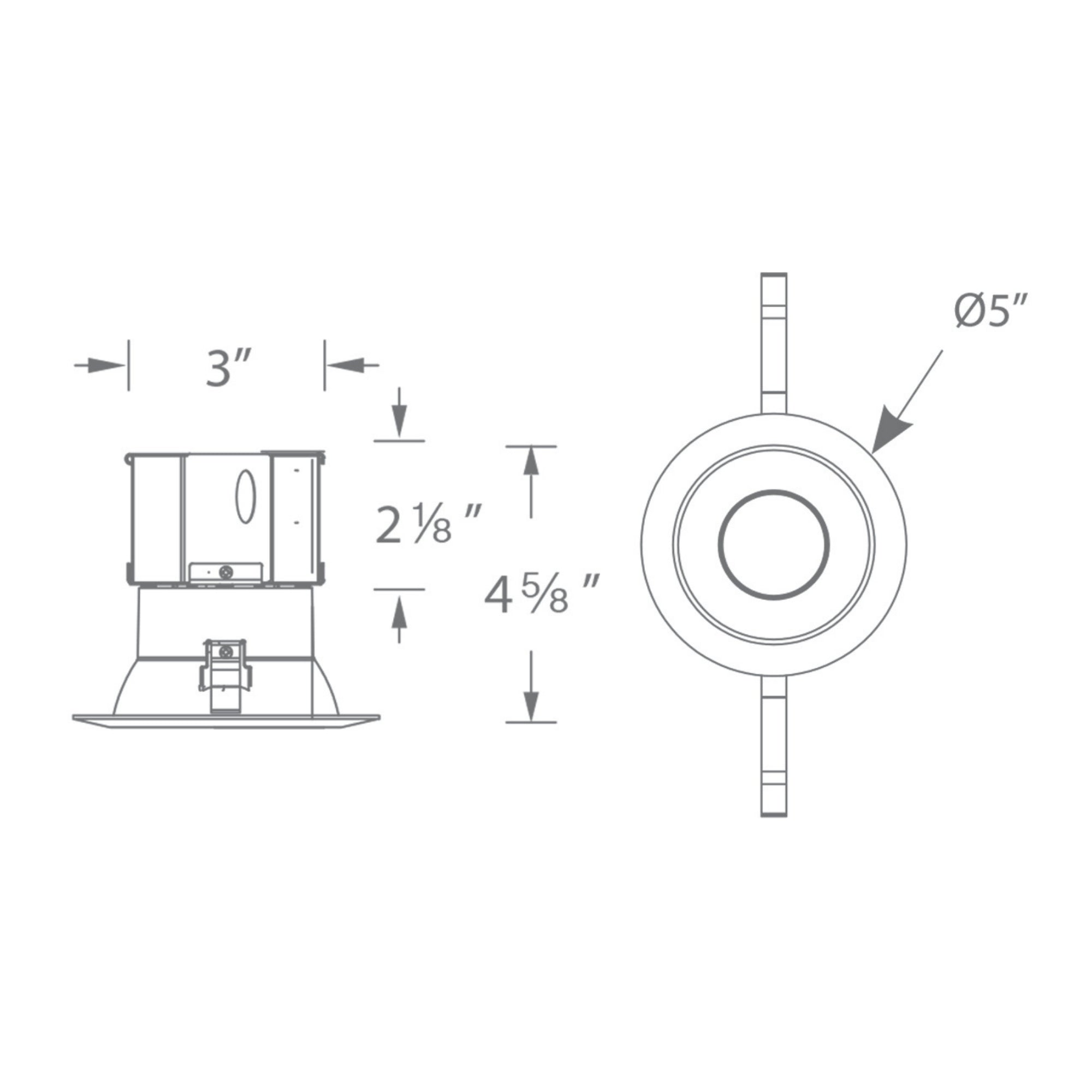

• Ceiling fit: 4 in. cutout and 1/2 in. to 1 1/2 in. ceiling thickness.
• Additional mounting option: New-construction frame is available.
• Rated conditions and warranty: -4°F to 104°F (-20°C to 40°C); 5-year warranty.
• Listings: ETL and cETL listed, Wet Location Listed, Title 24 JA8 compliant, Airtight, and IC.

Construction & Design

The round downlight combines die-cast aluminum with a 20-gauge cold-rolled-steel junction box and frosted TIR lens. The black electrostatically powder-coated finish complements the recessed profile, while the driver is concealed within the fixture.

Light Output & Performance

The 12W integrated LED offers five selectable CCTs from 2700K to 5000K at 90 CRI. The manufacturer lists 870 and 1,080 lumens and CBCP values of 1,189 and 1,309 across the selectable CCT configurations. The fixture has a fixed 45° beam and a 50,000-hour rated life.

Electrical & Installation

Connect to 120–277VAC, 50/60Hz. ELV and TRIAC dimmers each provide a 100% to 5% range. For remodel installation, the electrical box is mounted on the back of the fixture and heavy-gauge retention clips secure it at the ceiling. Provide a 4 in. cutout and 1/2 in. to 1 1/2 in. ceiling thickness. A new-construction frame is available as an additional mounting option.

Typical Applications

• Residential kitchens, living areas, and hallways.
• Commercial offices and retail interiors.
• Hospitality spaces.
• Bathrooms and other wet-location installations.
• Remodel projects requiring selectable-CCT recessed lighting.

What's Included

• One black 4 in. round remodel downlight with integrated LED, concealed driver, back-mounted electrical box, and heavy-gauge retention clips.
