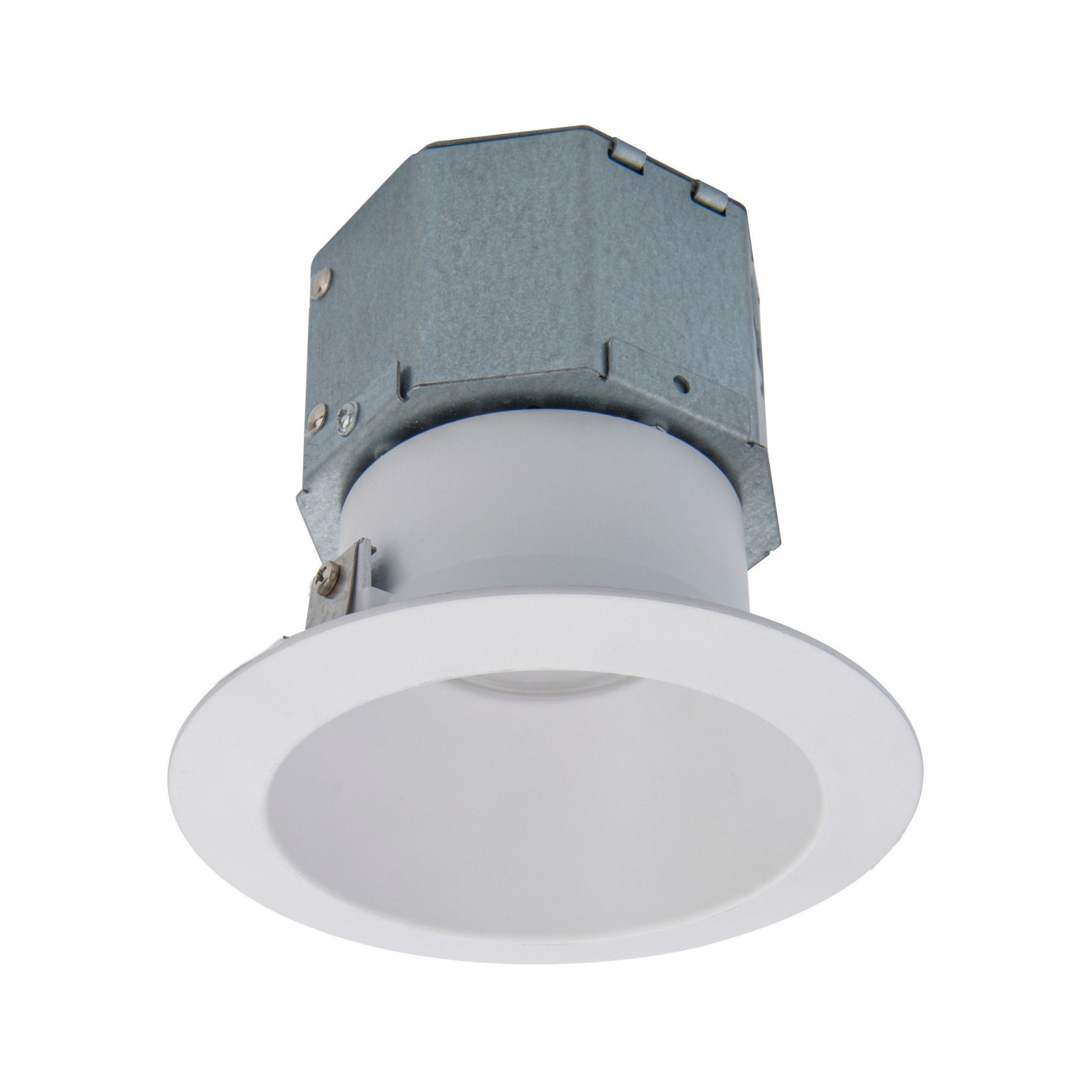

WAC Lighting Pop-In R4DRDN-F9CS-WT 4 in. Round New Construction Downlight — 12W / 5CCT

This round new-construction downlight pairs selectable white light with an included housing and hanger bars for a clean ceiling installation. The white-finish fixture uses a concealed driver and can be field-configured for remodel use.

Key Features

• Five selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K, or 5000K.
• Color rendering: 90 CRI.
• Manufacturer-listed output: 870 and 1,080 lumens across selectable CCT configurations; CBCP values listed are 1,189 and 1,309.
• Fixed beam: 45° beam angle.
• Integrated LED: 12W source with 50,000-hour rated life.
• Dimming: ELV or TRIAC dimming, each from 100% to 5%.
• Electrical input: 120–277VAC, 50/60Hz.
• Lens: Frosted TIR for smooth light diffusion.

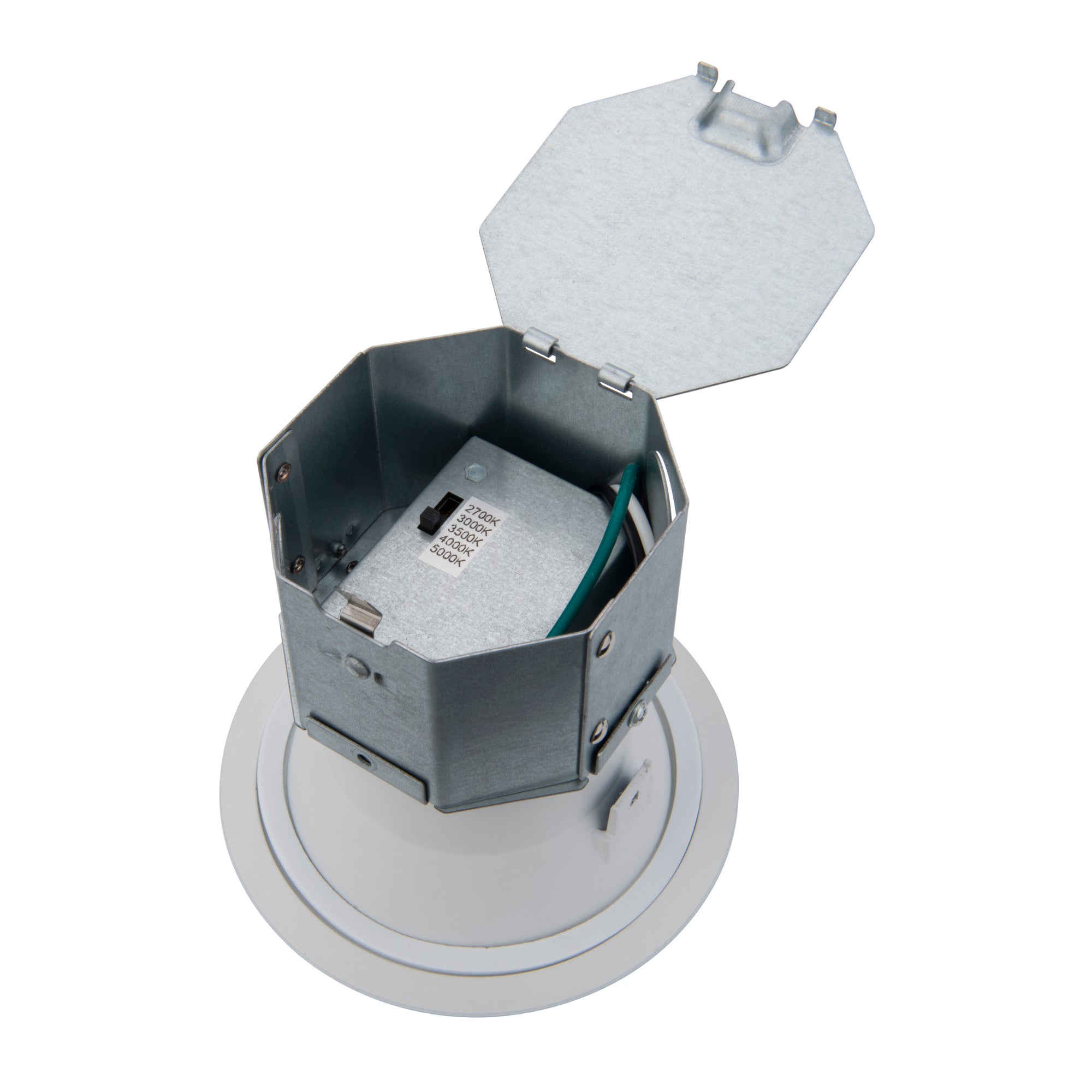

• Fixture construction: Die-cast aluminum with a 20-gauge cold-rolled-steel junction box.
• White finish: Electrostatically powder-coated white.

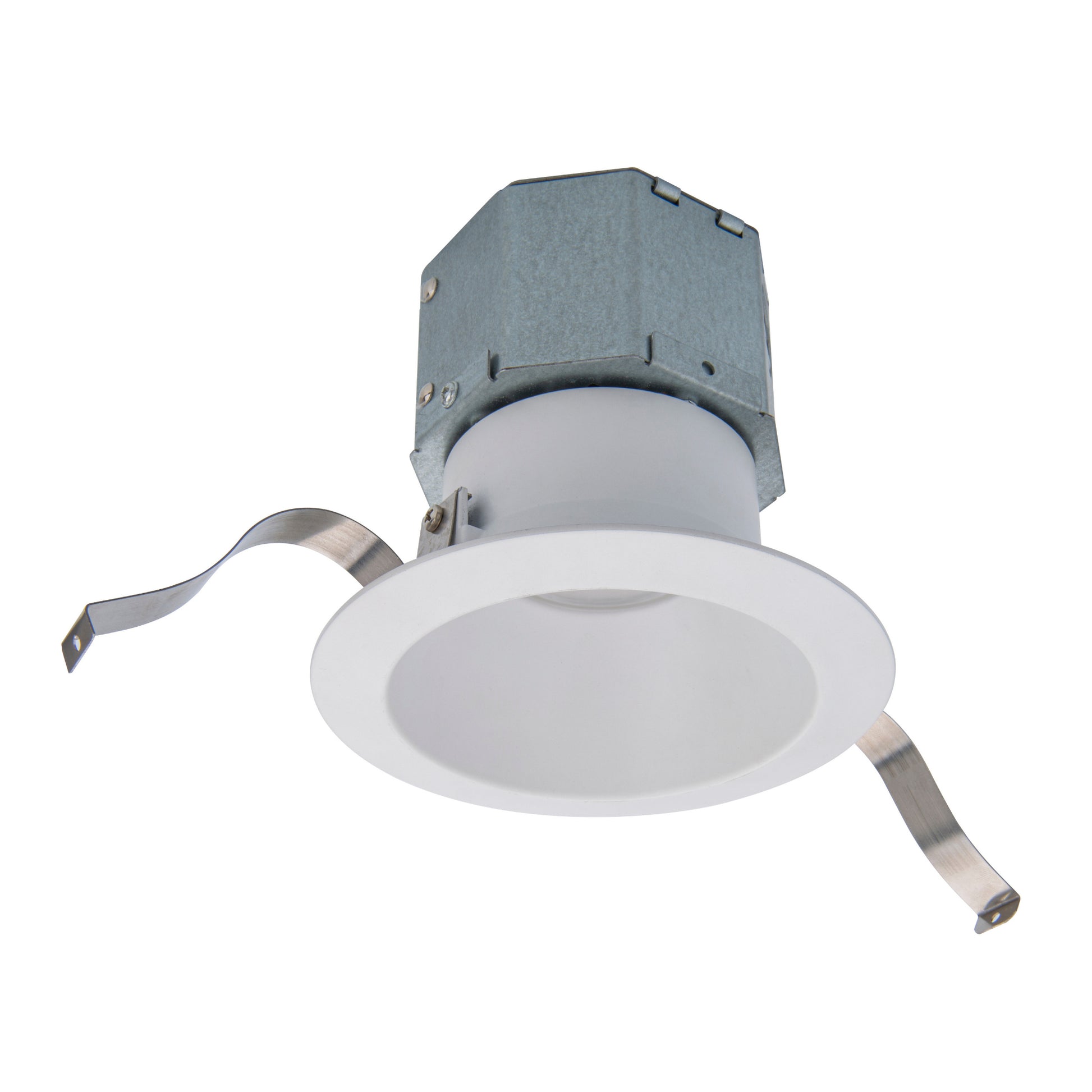

• New-construction mounting: Housing and hanger bars are included; the manufacturer notes field configuration for remodel use.

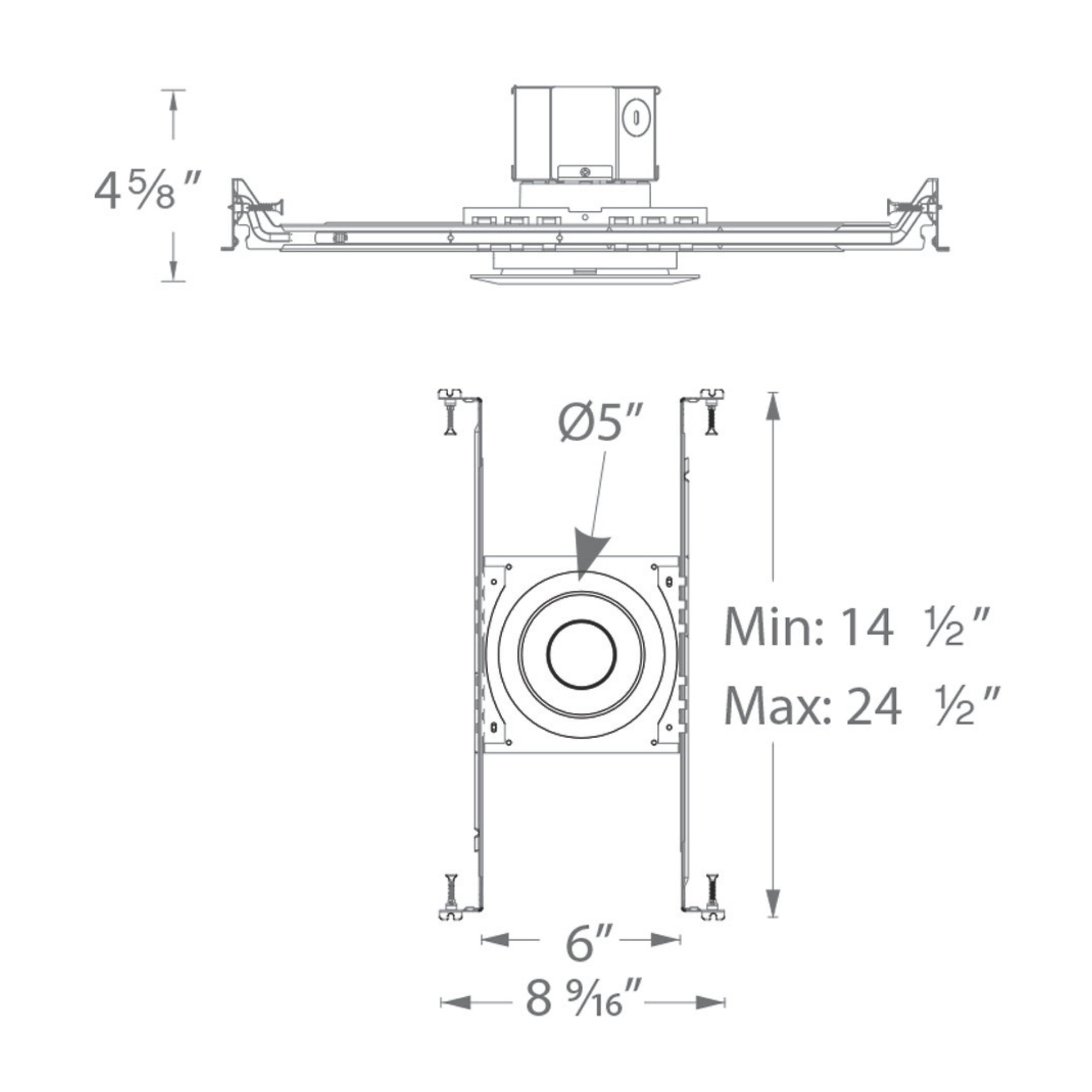

• Ceiling fit: 4 1/8 in. cutout and 1/2 in. to 1 1/2 in. ceiling thickness.
• Rated conditions and warranty: Operating temperature -4°F to 104°F (-20°C to 40°C); 5-year warranty.
• Listings: ETL and cETL listed, Wet Location Listed, Title 24 JA8 compliant, Airtight, and IC.

Construction & Design

The round fixture combines die-cast aluminum with a 20-gauge cold-rolled-steel junction box and frosted TIR lens. Its electrostatically powder-coated white finish keeps the recessed trim clean and understated, with the driver concealed inside the assembly.

Light Output & Performance

The 12W integrated LED offers five selectable CCTs from 2700K to 5000K at 90 CRI. The manufacturer lists 870 and 1,080 lumens and CBCP values of 1,189 and 1,309 across the selectable CCT configurations. The fixed beam angle is 45°, and rated life is 50,000 hours.

Electrical & Installation

Connect to 120–277VAC, 50/60Hz. The fixture supports ELV or TRIAC dimming from 100% to 5%. New-construction housing and hanger bars are included, and the manufacturer notes that the fixture may be field-configured for remodel use. Provide a 4 1/8 in. cutout and accommodate ceiling thickness from 1/2 in. to 1 1/2 in.

Typical Applications

• Residential kitchens, living areas, and hallways.
• Commercial offices and retail interiors.
• Hospitality spaces.
• Bathrooms and other wet-location installations.
• New-construction projects needing a round recessed downlight with selectable CCT.

What's Included

• One white 4 in. round downlight with integrated LED, concealed driver, new-construction housing, hanger bars, and electrical junction box.
