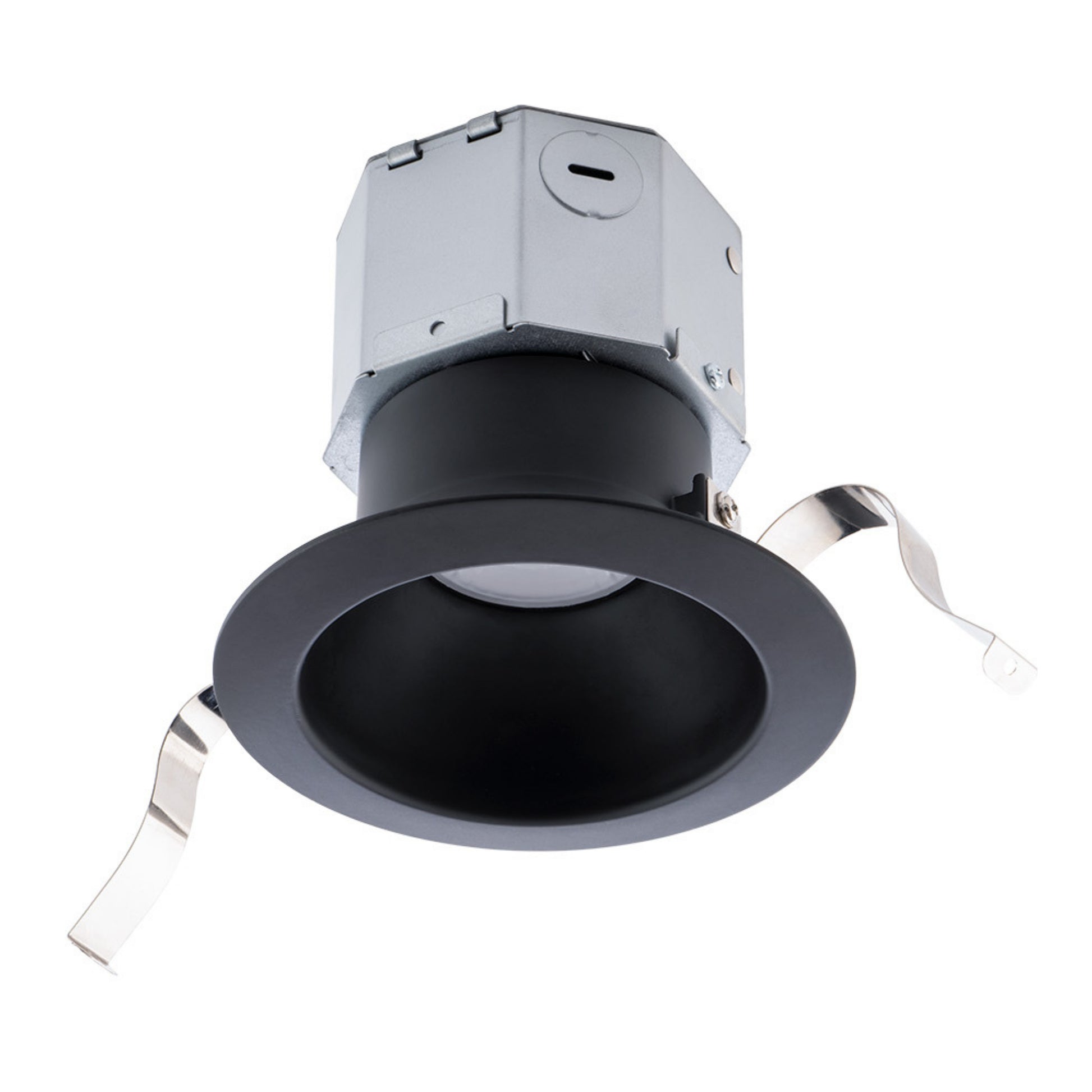

WAC Lighting Pop-In R4DRDN-F9CS-BK 4 in. Round New Construction Downlight — 12W / 5CCT

The WAC Lighting Pop-In 4 in. round downlight delivers selectable white light from a low-profile fixture with its driver concealed within the housing. This black-finish model is supplied for new construction and can be field-configured for remodel installation.

Key Features

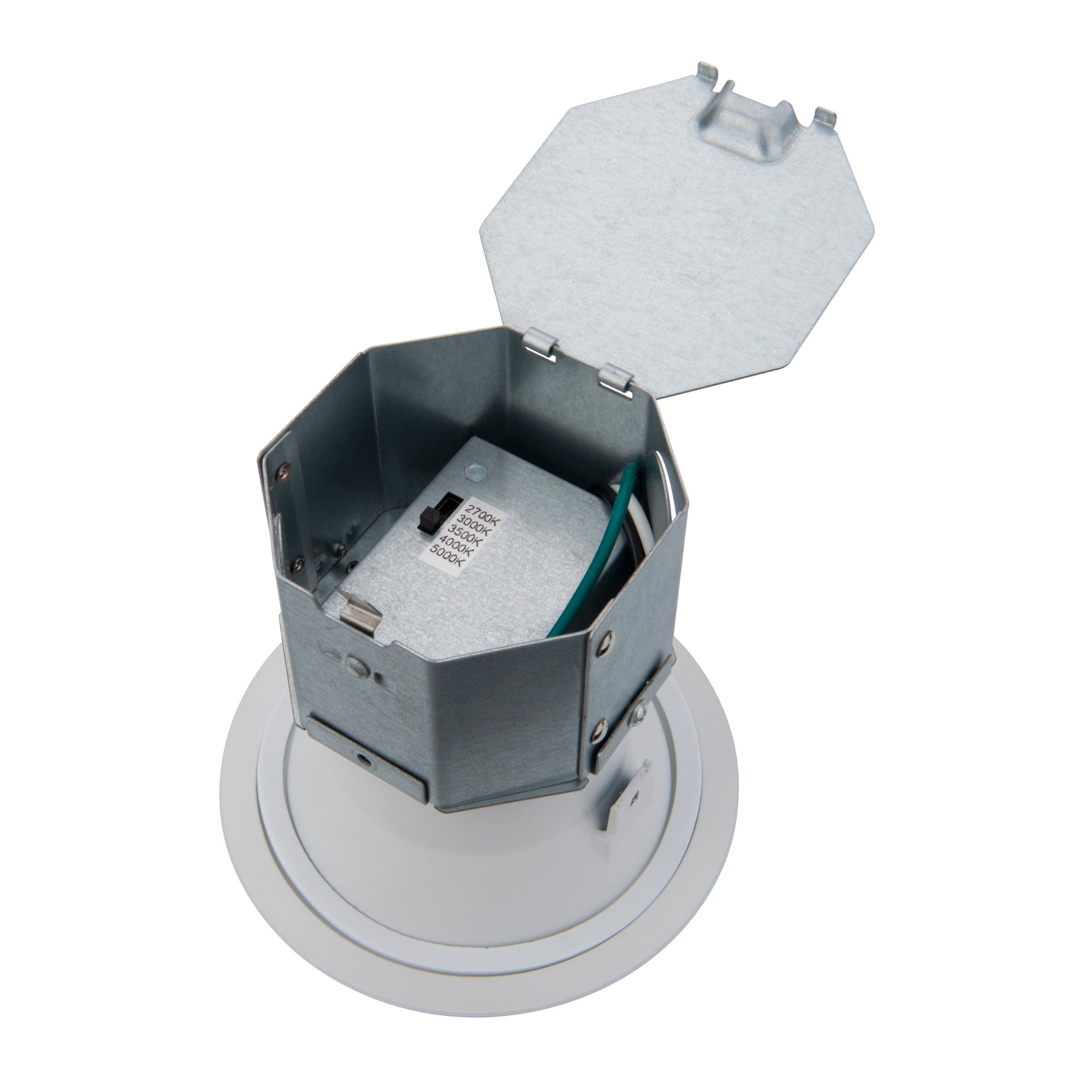

• Five selectable CCTs: Switch between 2700K, 3000K, 3500K, 4000K, and 5000K.
• Color rendering: 90 CRI for natural color appearance.
• Selectable-color output: Manufacturer lists 870 and 1,080 lumens across the selectable CCT configurations; CBCP values listed are 1,189 and 1,309.
• Beam: 45° beam angle.
• Integrated LED: 12W light source with a 50,000-hour rated life.
• Dimming: ELV or TRIAC, each with a 100% to 5% dimming range.
• Electrical input: 120–277VAC, 50/60Hz.
• Lens: Frosted TIR lens.
• Black finish: Die-cast aluminum construction with an electrostatically powder-coated black finish and 20-gauge cold-rolled-steel junction box.
• New-construction mounting: Housing and hanger bars are included; the fixture may be field-configured for remodel.

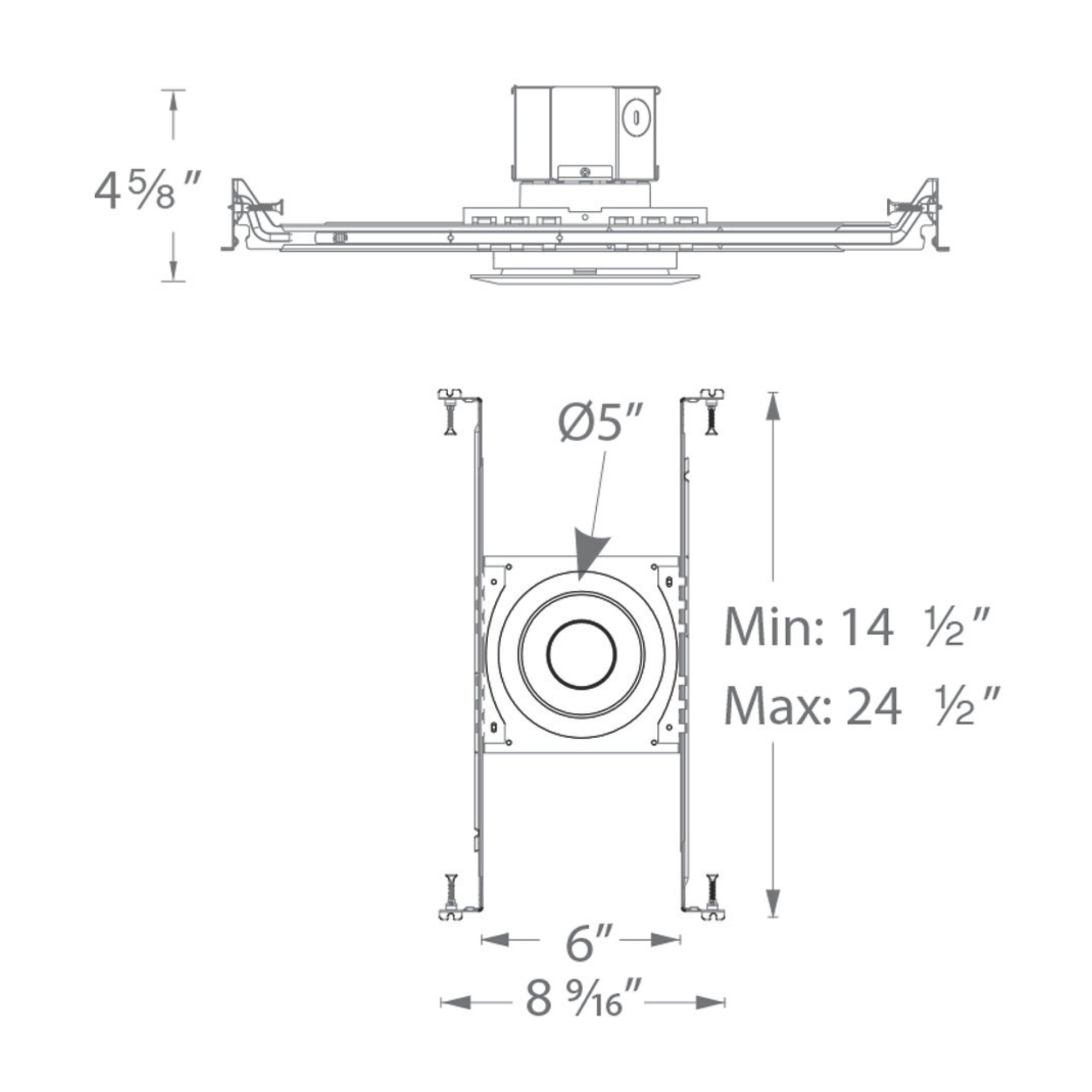

• Ceiling fit: 4 1/8 in. cutout; accommodates ceiling thicknesses from 1/2 in. to 1 1/2 in.
• Rated conditions: Operating temperature -4°F to 104°F (-20°C to 40°C); 5-year warranty.
• Listings: ETL and cETL listed, Wet Location Listed, Title 24 JA8 compliant, Airtight, and IC.

Construction & Design

The die-cast aluminum fixture uses a 20-gauge cold-rolled-steel junction box, frosted TIR lens, and electrostatically powder-coated black finish. Its driver is concealed within the fixture for a clean installation.

Light Output & Performance

The 12W integrated LED offers five CCT settings from 2700K to 5000K at 90 CRI and a 45° beam. The manufacturer lists 870 and 1,080 lumens and CBCP values of 1,189 and 1,309 across the selectable CCT configurations. Rated life is 50,000 hours.

Electrical & Installation

Connect to 120–277VAC, 50/60Hz. The fixture supports ELV or TRIAC dimming from 100% to 5%. New-construction housing and hanger bars are included, and the manufacturer notes the unit may be field-configured for remodel. Allow for a 4 1/8 in. cutout and ceiling thickness from 1/2 in. to 1 1/2 in.

Typical Applications

• Residential kitchens, living spaces, and hallways.
• Commercial offices and retail interiors.
• Hospitality spaces.
• Bathrooms and other wet-location installations.
• New-construction projects requiring a selectable-CCT recessed downlight.

What's Included

• One black 4 in. round Pop-In downlight with integrated LED and concealed driver.
• New-construction housing with hanger bars and electrical junction box.
