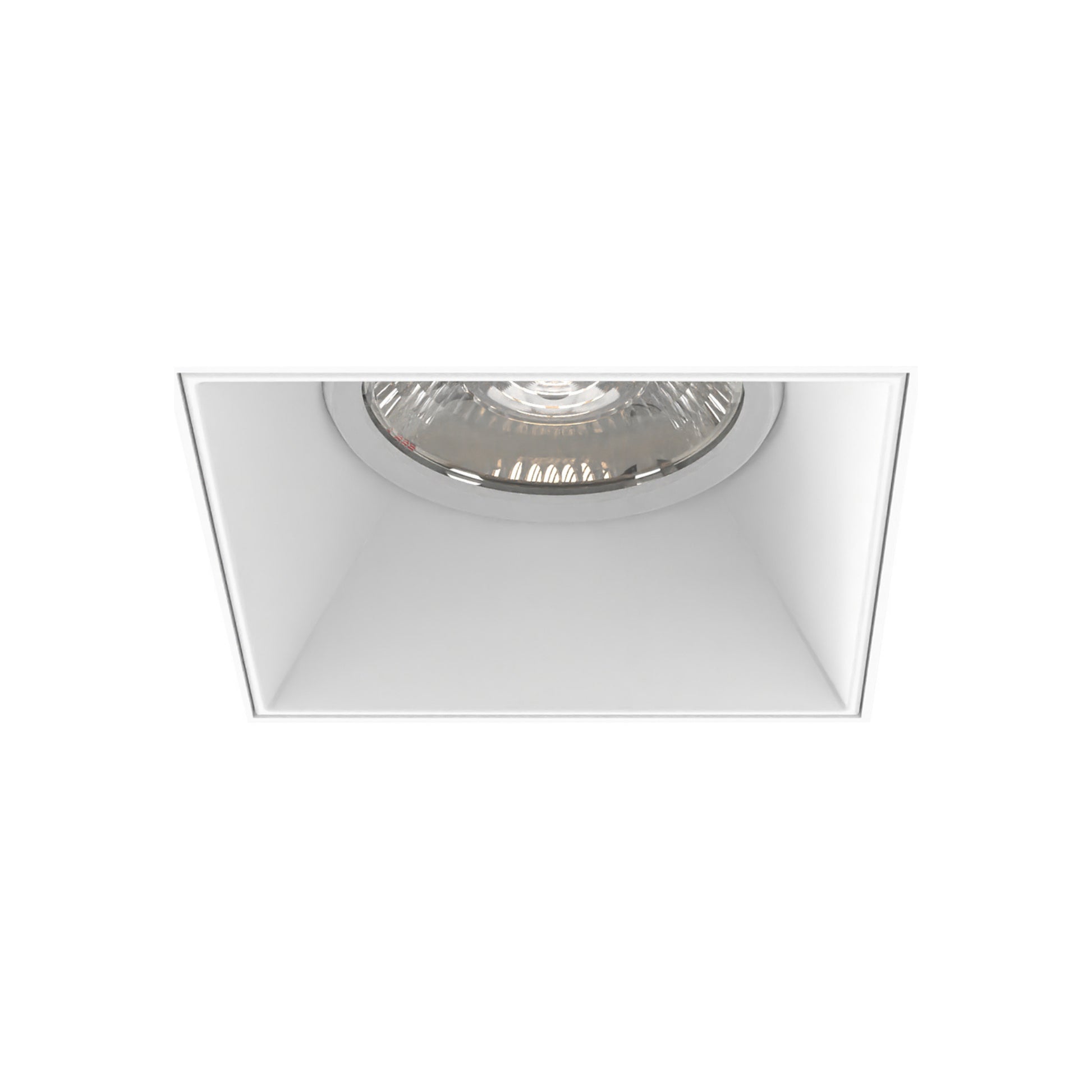

WAC Lighting Kenric R3JSAL-WCS-WT 3.5 in. Square Trimless Adjustable Downlight — 14.5W / 5CCT

The WAC Kenric R3JSAL-WCS-WT is a square, trimless adjustable downlight for remodel installation. Its integrated 14.5W LED delivers up to 1,450 lumens with five selectable CCTs from 2700K to 5000K and 90 CRI. Aim the light 360° horizontally and 30° vertically to direct illumination where you need it.

Key Features

• Square trimless profile: Designed for a clean ceiling appearance with a deeply recessed LED.

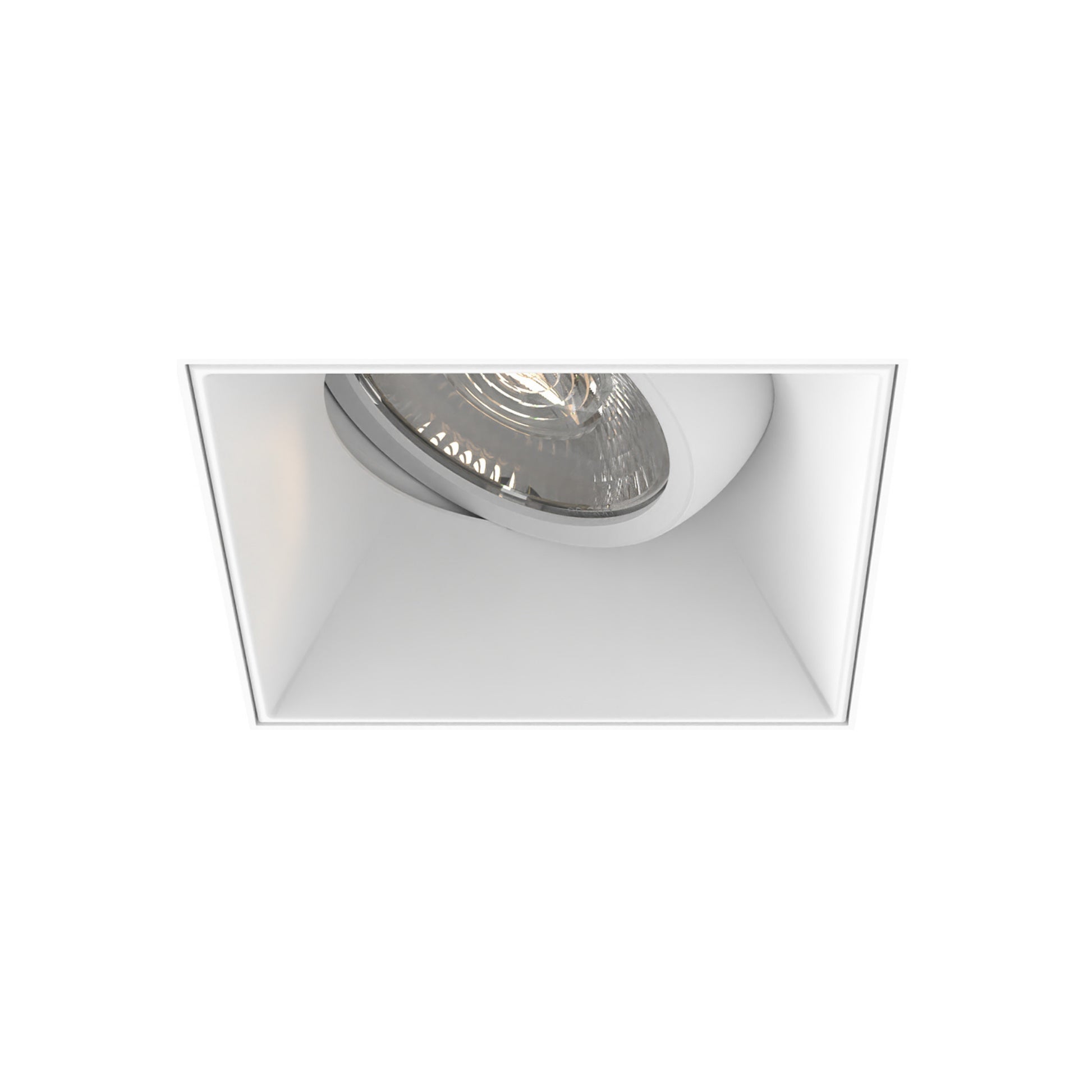

• Adjustable aim: Rotate 360° horizontally and tilt up to 30° vertically for directional lighting.
• Remodel installation: Stainless steel retention springs secure the fixture; a new-construction frame is available.

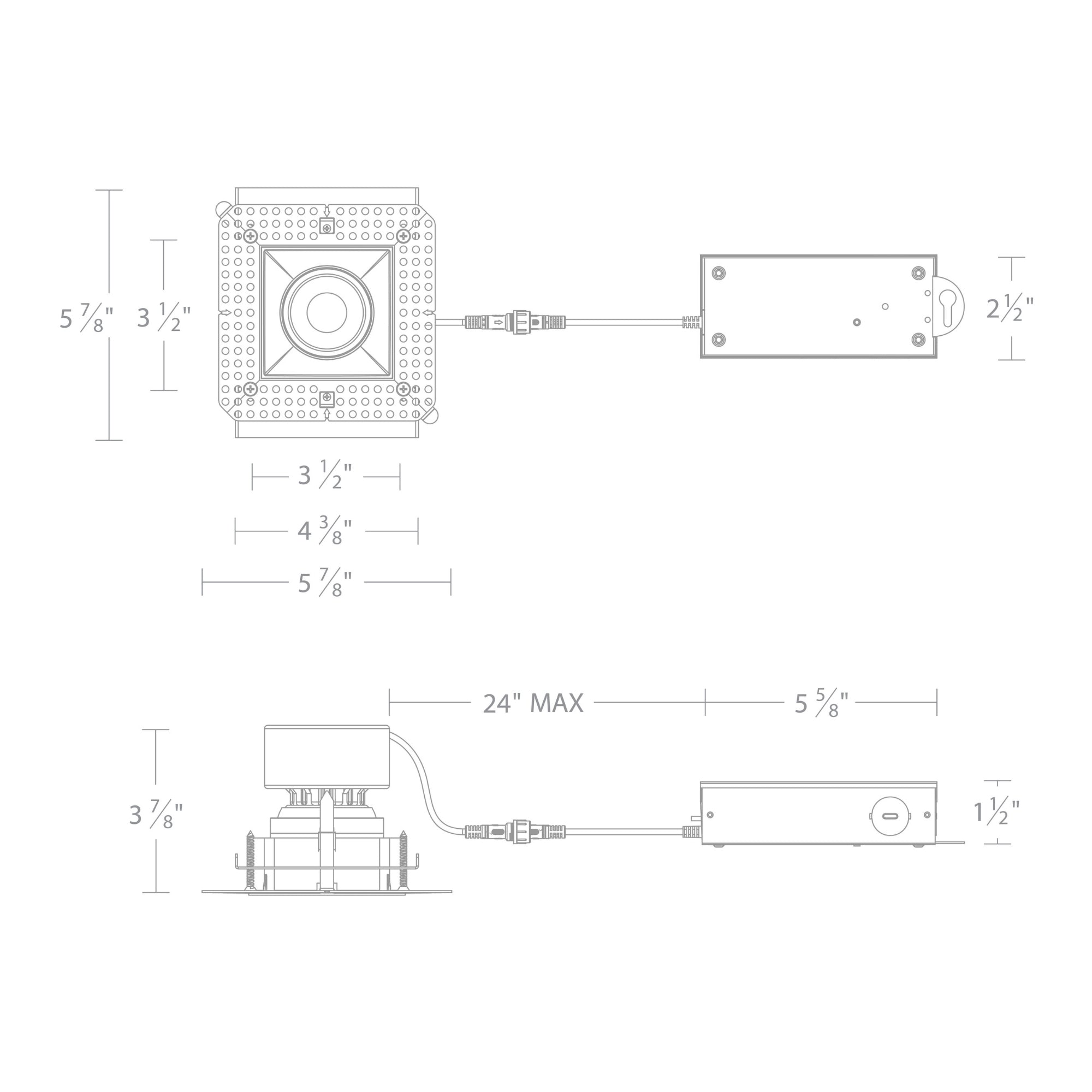

• Cutout and ceiling fit: Requires a 4.5 in. cutout and accommodates ceiling thicknesses from 1/2 in. to 1 1/2 in.
• Integrated LED: Uses 14.5W and delivers up to 1,450 lumens.
• Selectable white light: Choose 2700K, 3000K, 3500K, 4000K, or 5000K with 90 CRI.
• Beam performance: 36° beam angle and 3,430 CBCP.
• Dimming flexibility: ELV, 0–10V, or TRIAC dimming, each from 100% to 5%.
• Wide input range: 120–277VAC, 50/60Hz.
• Fixture construction: Die-cast aluminum with a TIR lens and a 20-gauge cold-rolled-steel driver box.
• White finish: Electrostatically powder-coated trim.
• Rated for demanding environments: Wet Location Listed, Airtight, IC, ETL and cETL listed, Energy Star 2.0 and Title 24 JA8 compliant; 50,000-hour rated life and 5-year warranty.

Construction & Design

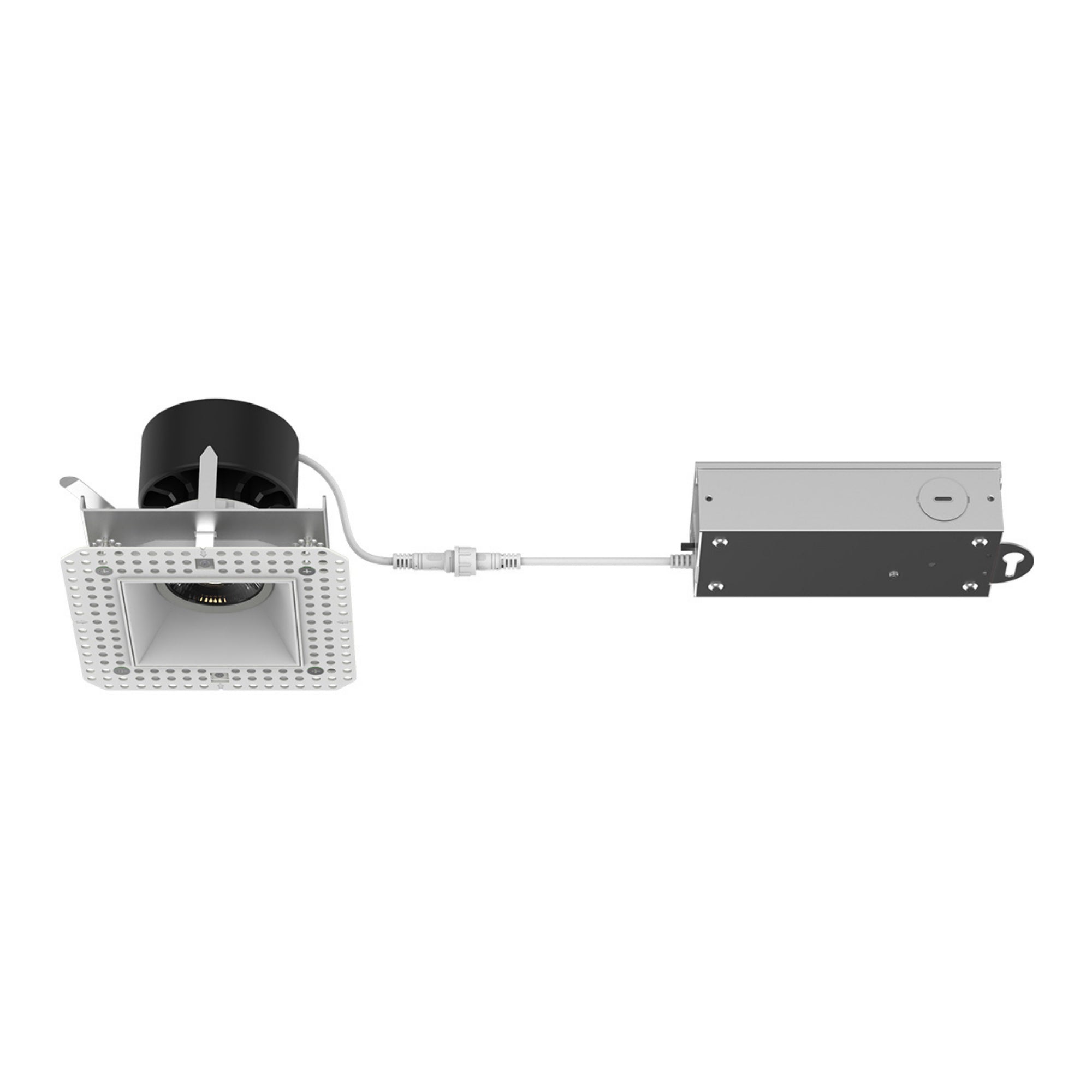

The square trimless fixture is built from die-cast aluminum with a white electrostatically powder-coated finish and TIR lens. Its stainless steel retention springs hold the remodel fixture in the ceiling, while the included driver sits in a 20-gauge cold-rolled-steel box.

Light Output & Performance

The 14.5W integrated LED delivers up to 1,450 lumens through a 36° beam, with 3,430 CBCP and 90 CRI. Select 2700K, 3000K, 3500K, 4000K, or 5000K to suit the space. Rated life is 50,000 hours.

Electrical & Installation

Connect to 120–277VAC, 50/60Hz. The fixture supports ELV, 0–10V, and TRIAC dimming from 100% to 5%. Provide a 4.5 in. cutout and confirm the ceiling is 1/2 in. to 1 1/2 in. thick. This SKU is sold as a remodel fixture and mounts with stainless steel retention springs.

Compatible Accessories

• New-construction frame: WAC R3JB-FRAME, specified for Kenric 3.5 in. 5CCT fixtures.

Typical Applications

• Wet-location installations requiring recessed ceiling lighting.
• Accent and directional lighting where adjustable horizontal and vertical aiming is useful.

What's Included

• One WAC Kenric R3JSAL-WCS-WT square trimless adjustable downlight and its driver.
• The R3JB-FRAME new-construction frame is listed as a compatible accessory.
