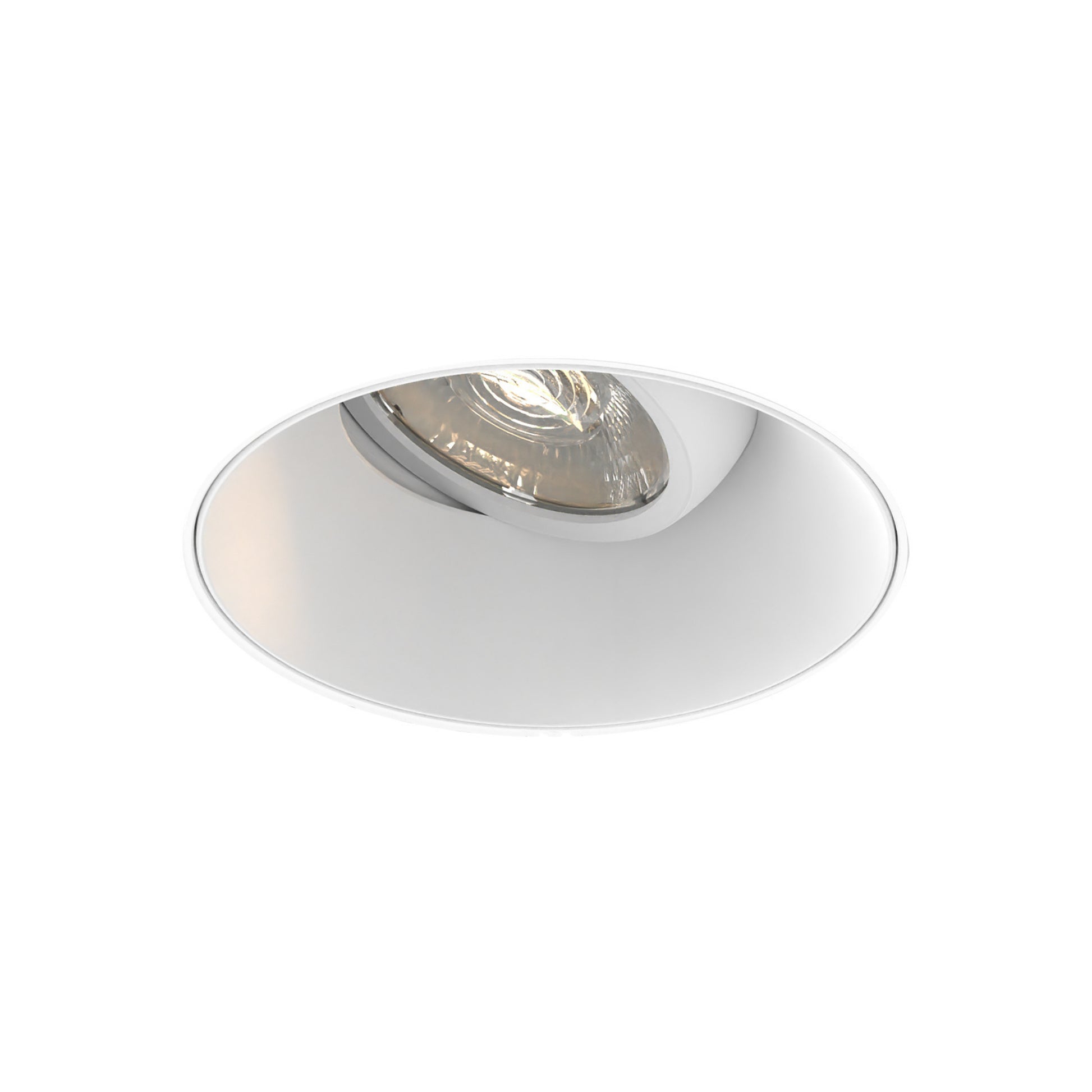

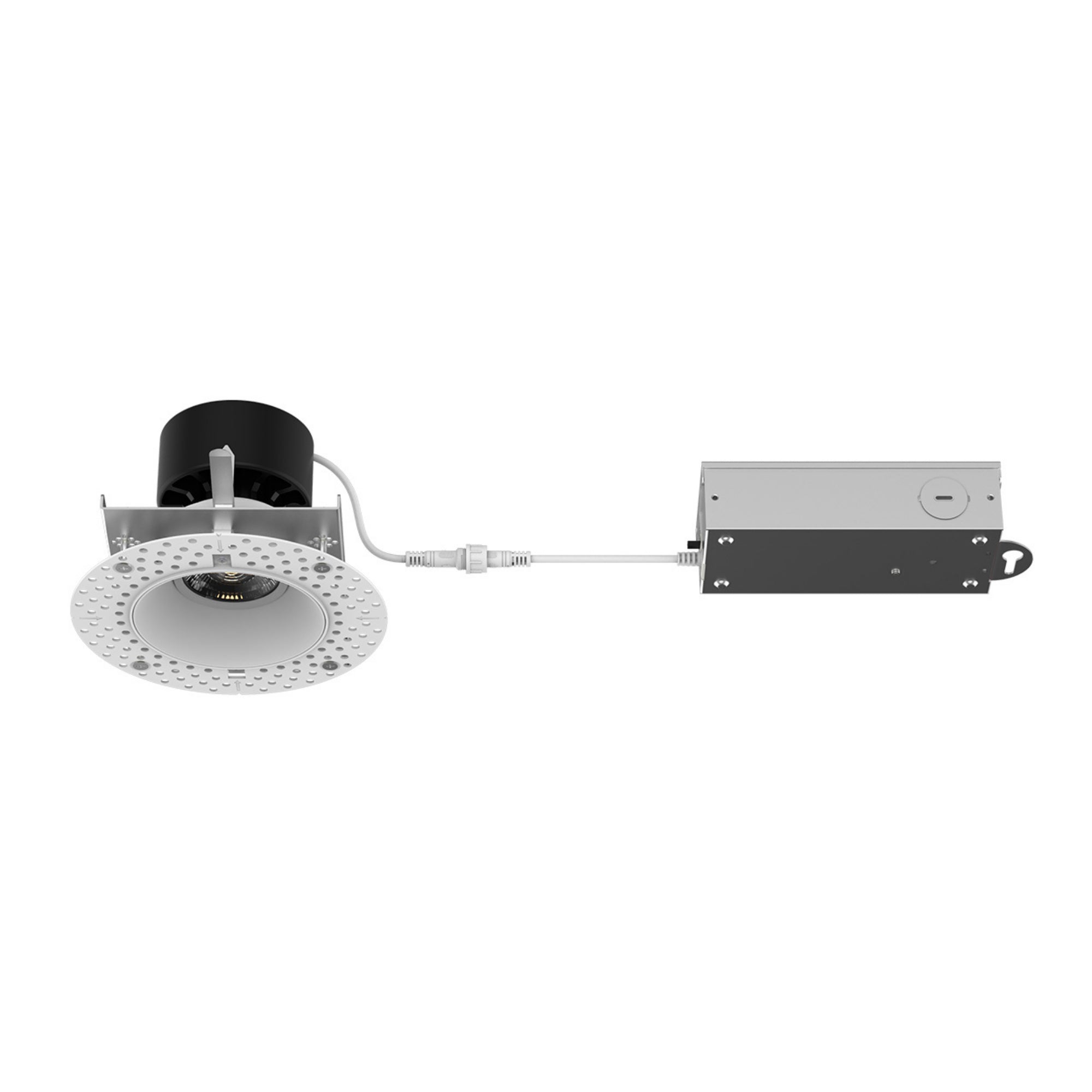

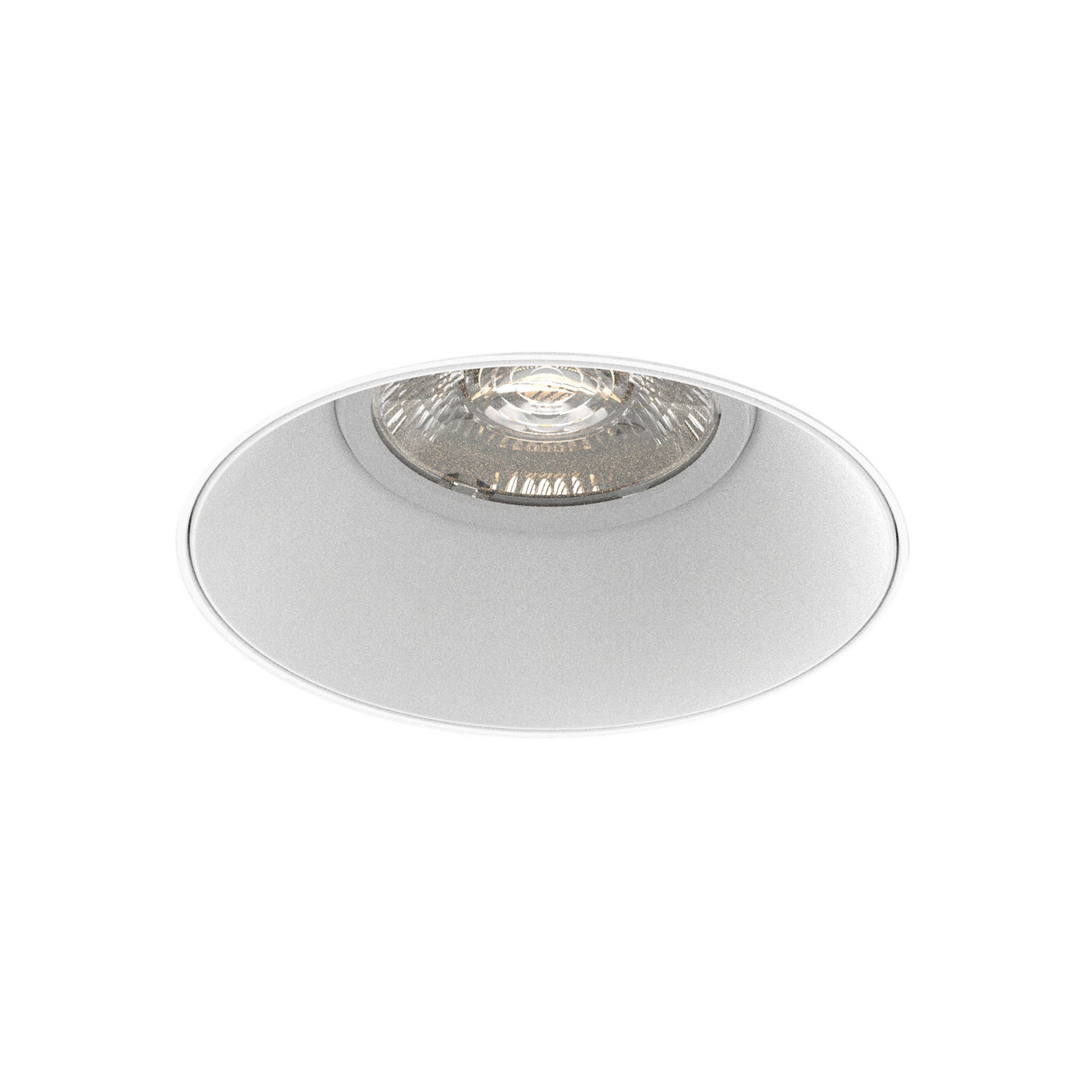

Kenric 3.5'' R3JRAL-WCS-WT Round Trimless Downlight — 15W / Selectable CCT

The Kenric R3JRAL-WCS-WT is a versatile 3.5-inch round trimless adjustable downlight, delivering up to 1450 lumens using 15W. This fixture features a selectable CCT range from 2700K to 5000K, allowing for customizable lighting environments. Designed for both downlight and adjustable functions, it offers 360-degree horizontal and 30-degree vertical aimability.

Key Features

• Power: 14.5W
• Input Voltage: 120-277 VAC, 50/60Hz
• Dimming: ELV, 0-10V, TRIAC (100-5%)
• Light Source: Integrated LED
• Lens: TIR Lens
• Rated Life: 50,000 Hours
• Mounting: Stainless steel retention springs

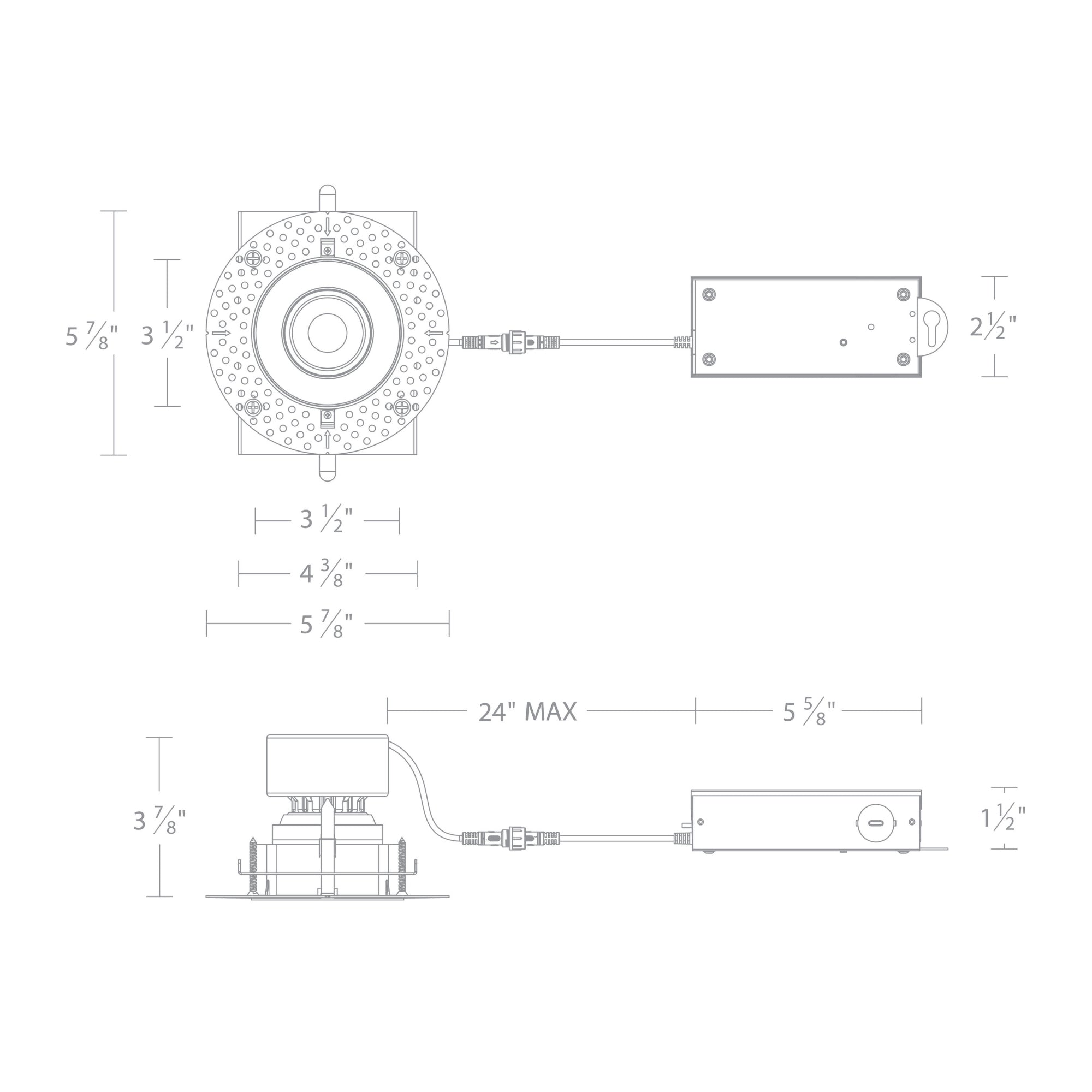

• Cut Out: 4.5''
• Finish: White powder coat
• Standards: ETL, cETL, Energy Star 2.0, Title 24 JA8, Airtight, IC

Construction & Aesthetics

Constructed with die-cast aluminum and a white powder coat trim, this fixture offers a sleek, modern look. It is available in both round and square trimless styles, with deeply regressed LEDs for superior glare control. Optional new construction frames are available for enhanced installation flexibility.

Electrical & Installation

Operating at 120-277V, this downlight supports multiple dimming systems including ELV, 0-10V, and TRIAC. It features a 4.5-inch cutout and is secured with stainless steel retention springs. Accessories such as new construction frames can be utilized for specific installation needs.

Light Output & Performance

With a light output of up to 1450 lumens and a high CRI of 90, this fixture ensures vibrant and accurate color rendering. It is designed to last with a rated life of 50,000 hours.

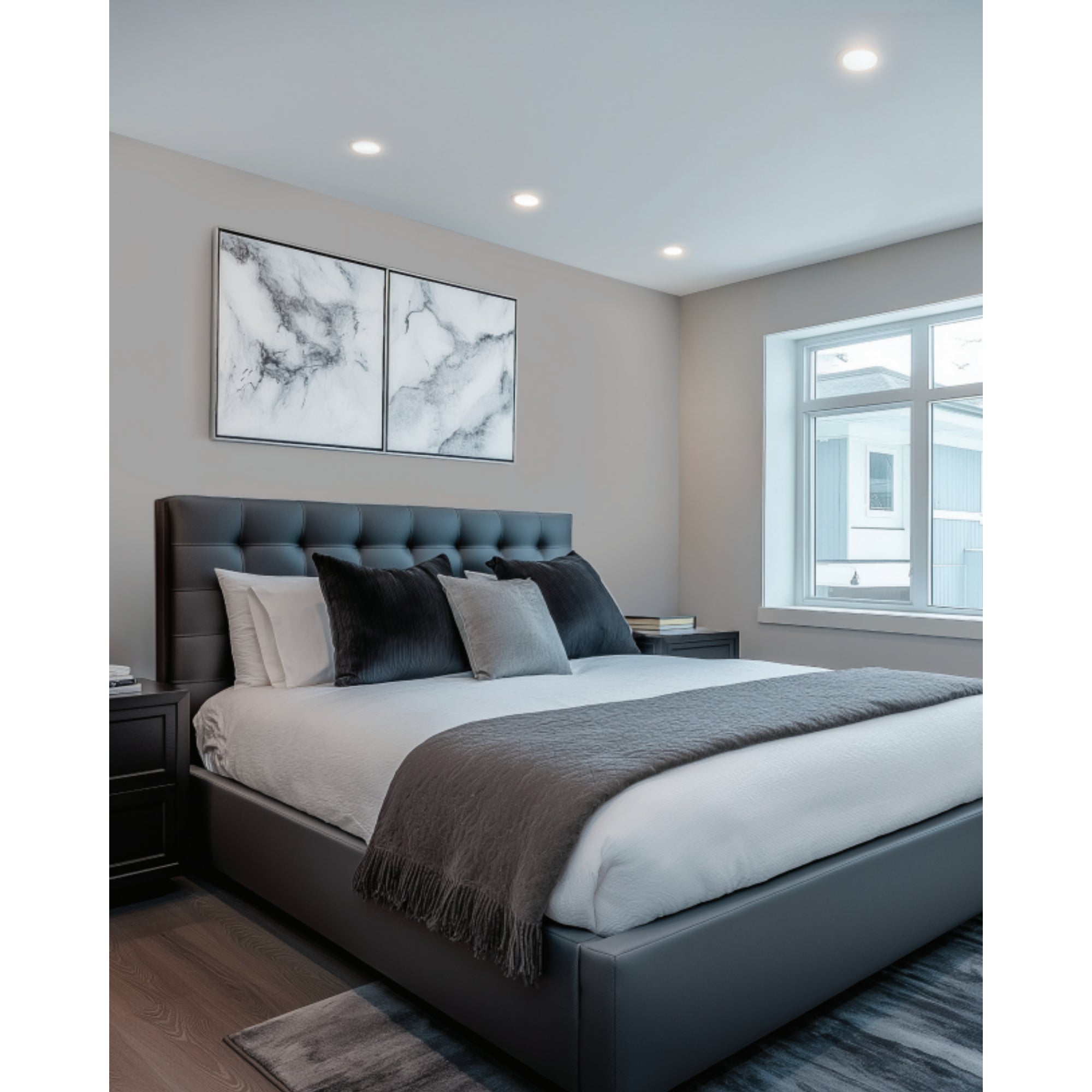

Typical Applications

• Residential Living Areas
• Commercial Offices
• Retail Spaces
• Hospitality Venues
• Bathrooms
