WAC Patriot R3HSDR-F9CS-WT 3 in Square Adjustable Downlight 12W Selectable CCT
Available in stock (547)
About this item
About this item
- Selectable Beam: Use the twist-on trim and removable film to choose a 25° or 45° beam.
- Five Selectable CCTs: 2700K, 3000K, 3500K, 4000K, or 5000K with 90 CRI.
- 12W LED Output: The spec sheet lists 1,000/1,035 lumens and 3,095/3,045 CBCP across the beam settings.
- Flexible Dimming: ELV or TRIAC dimming from 100% to 5%, with 120–277VAC, 50/60Hz input.
- Long-Service Construction: Wet Location Listed, Airtight, IC, ETL and cETL listed, Title 24 JA8 compliant; 50,000-hour rated life and 5-year warranty.
We process payments securely and do not store credit card information.
Description
Description

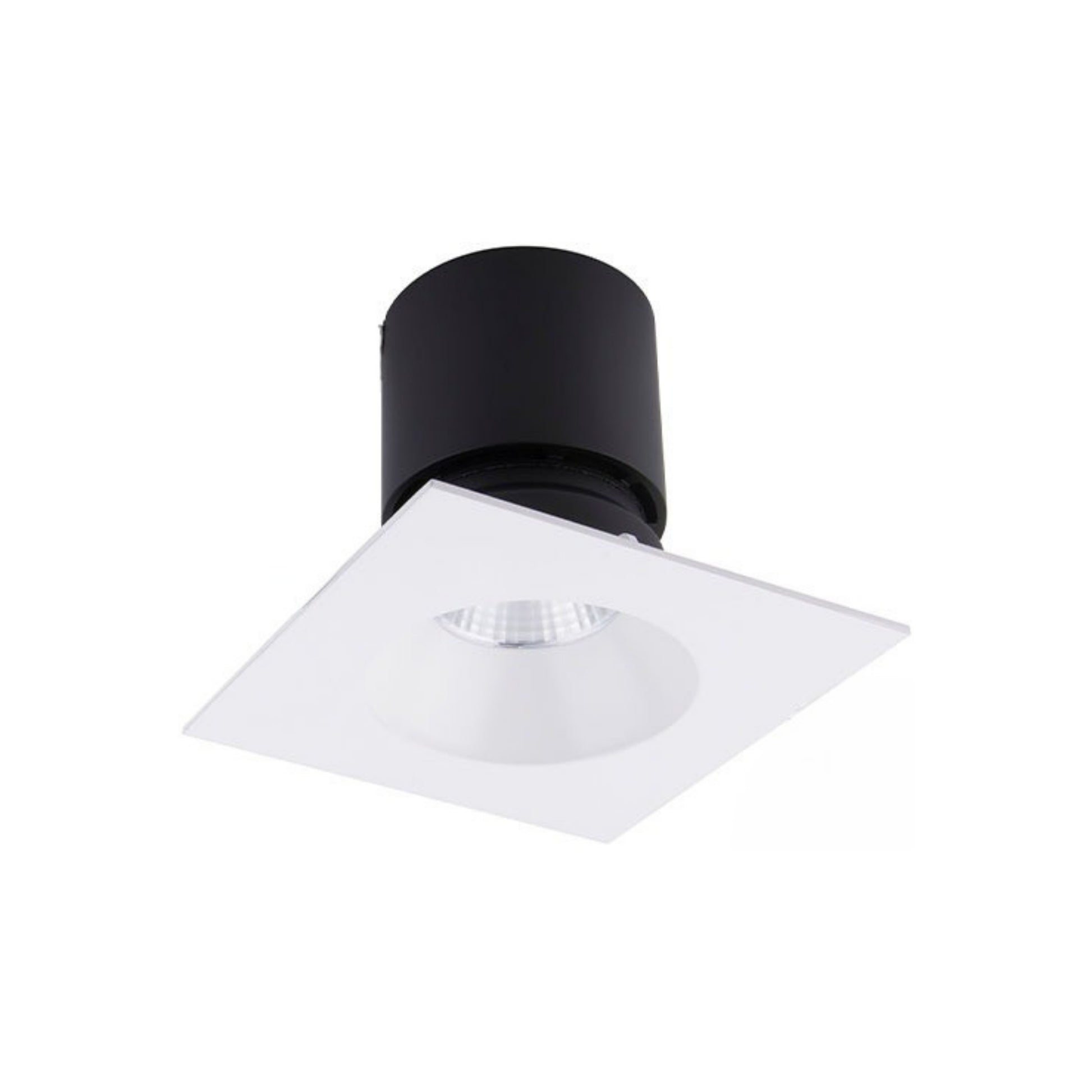

WAC Lighting Patriot R3HSDR-F9CS-WT 3 in. Square Recessed Downlight — 12W / 5CCT
The low-profile WAC Patriot R3HSDR-F9CS-WT is a square 3 in. recessed downlight for remodel or new-construction installation. Its 12W integrated LED provides five selectable CCT settings from 2700K to 5000K, while the twist-on trim and removable film allow selection of a 25° or 45° beam.
Key Features
- Square recessed profile: Low-profile 3 in. downlight for remodel or new-construction installation.
- Beam selection: Twist-on trim and removable film provide 25° or 45° beam settings.
- Output by beam configuration: The spec sheet lists 1,000 and 1,035 lumens with corresponding CBCP values of 3,095 and 3,045 across the two beam settings.
- Five selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K, or 5000K with 90 CRI.
- Integrated LED: 12W light source with 50,000-hour rated life.
- Dimming: ELV or TRIAC controls, each from 100% to 5%.
- Electrical input: 120–277VAC, 50/60Hz.
- Reflector and film: Reflector lens with removable film for changing beam distribution.
- Installation fit: 4 1/4 in. cutout, ceiling thickness from 1/2 in. to 1 1/2 in., and heavy-gauge retention clips.
- Fixture construction: Die-cast aluminum with an electrostatically powder-coated white finish.

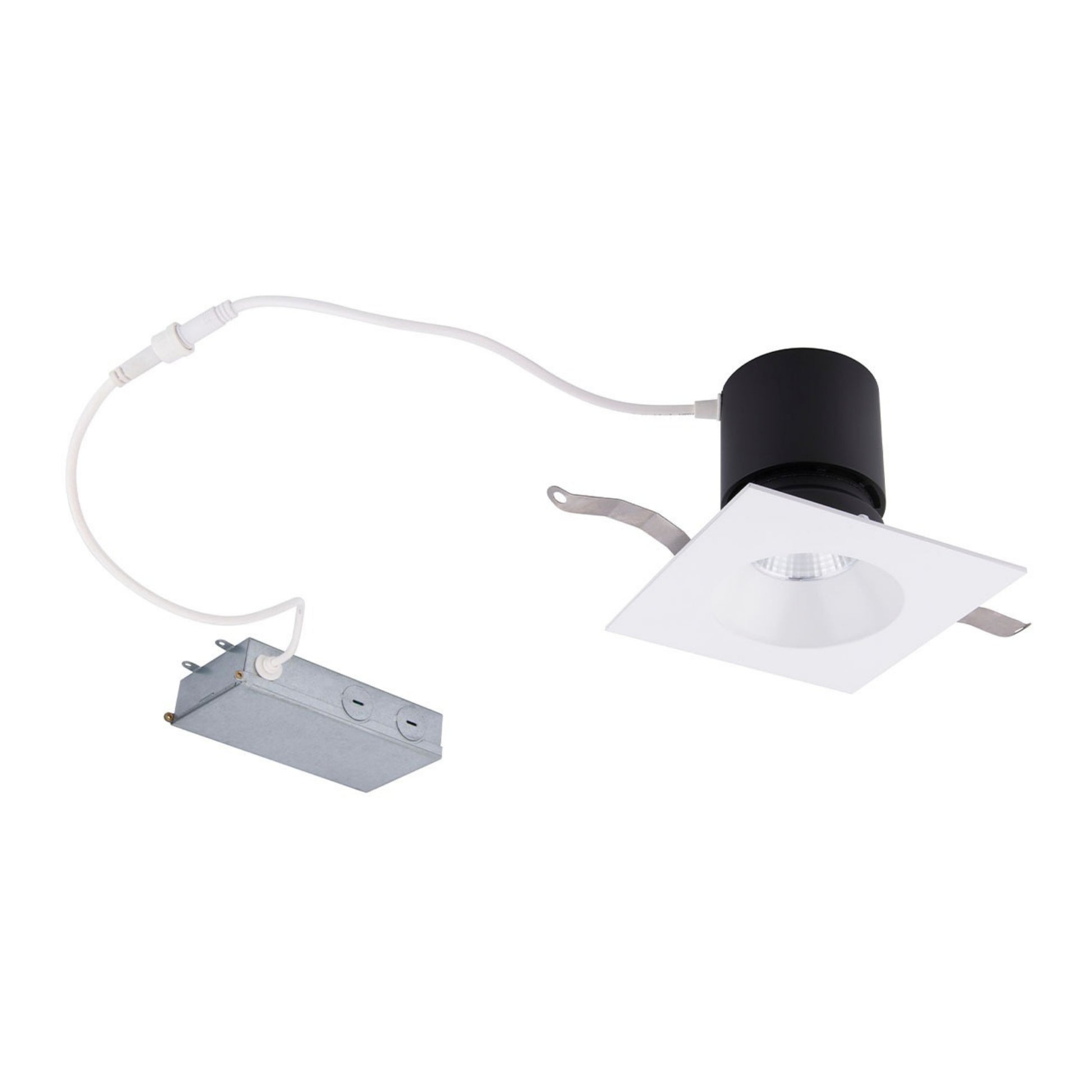

- Driver and connection: Driver and electrical connection box are attached to the fixture.
- Listed performance: Wet Location Listed, ETL and cETL listed, Title 24 JA8 compliant, Airtight, and IC; 50,000-hour rated life and 5-year warranty.
Construction & Design
The square downlight uses a die-cast aluminum body with a white electrostatically powder-coated finish. Its reflector lens and removable film work with the twist-on trim to select the beam distribution.
Light Output & Performance
The 12W integrated LED provides five CCT settings from 2700K to 5000K with 90 CRI. The sheet lists lumen/CBCP values of 1,000/3,095 and 1,035/3,045 across the 25° and 45° beam settings. Rated life is 50,000 hours.
Electrical & Installation
Connect to 120–277VAC, 50/60Hz. The downlight supports ELV and TRIAC dimming from 100% to 5%. Its attached driver and electrical connection box support remodel or new-construction installation. Provide a 4 1/4 in. cutout, allow for 1/2 in. to 1 1/2 in. ceiling thickness, and secure the fixture with its heavy-gauge retention clips.
Typical Applications
- Residential living areas.
- Commercial offices and retail spaces.
- Hospitality venues.
- Bathrooms and other wet-location installations.
- Directional accent lighting using the 25° or 45° beam setting.
What's Included
- One WAC Patriot R3HSDR-F9CS-WT 3 in. square recessed downlight with integrated LED, attached driver, and electrical connection box.
- Removable film for beam selection is included with the twist-on trim.
