WAC Lighting Patriot R3HSAR-F9CS-WT 3 in. Square Adjustable Recessed Downlight — 12W / 5CCT

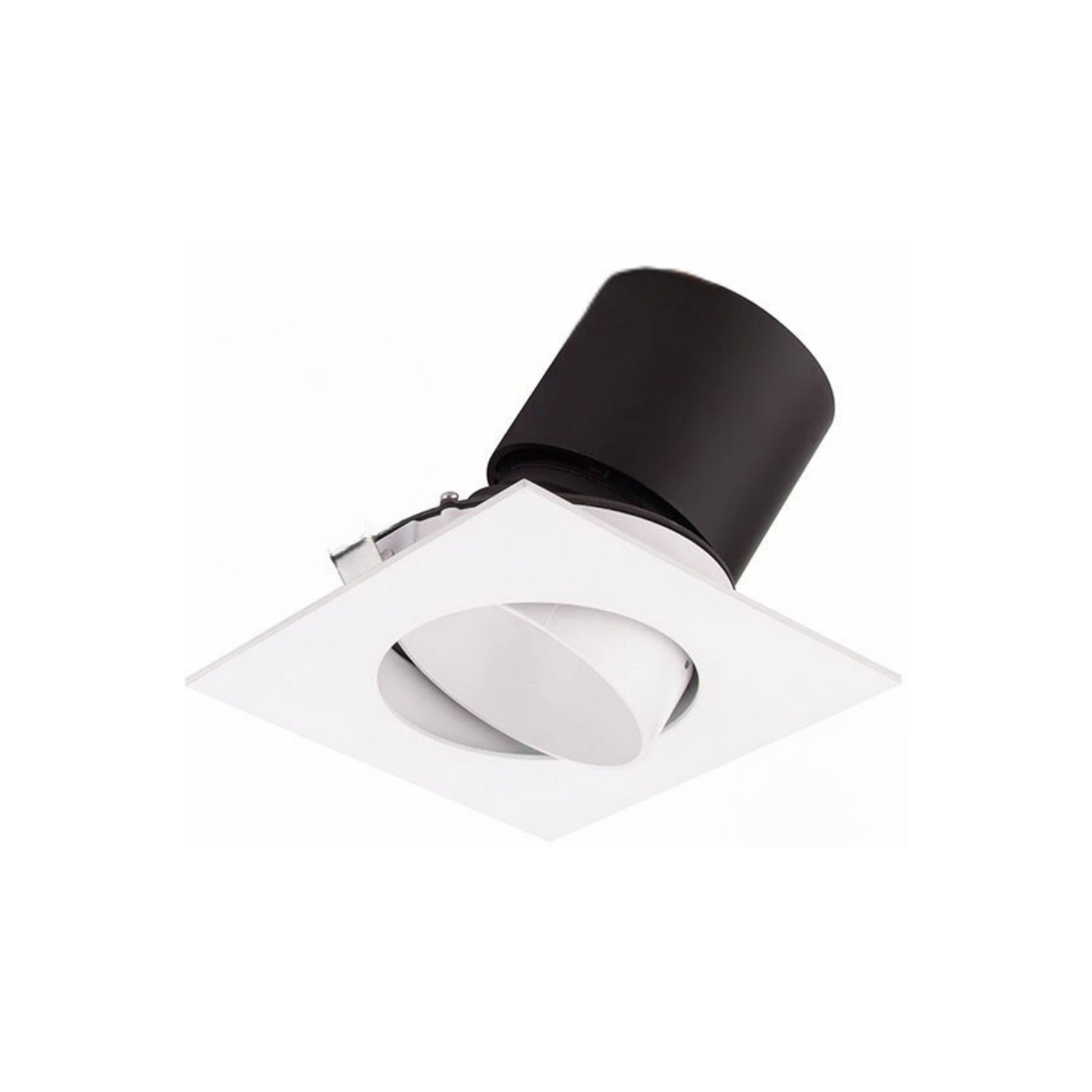

The WAC Patriot R3HSAR-F9CS-WT is a low-profile 3 in. square adjustable recessed downlight with its driver and electrical connection box attached to the fixture. Select from five color temperatures and use the twist-on trim with removable film to choose a 25° or 45° beam setting.

Key Features

• Square adjustable design: 3 in. recessed gimbal downlight with twist-on trim.
• Selectable beam: Removable film provides 25° or 45° beam settings.
• Selectable CCT: Choose 2700K, 3000K, 3500K, 4000K, or 5000K.
• Color quality: 90 CRI for clear, accurate color rendering.
• Light output: The manufacturer lists 1,000 and 1,035 lumens with CBCP values of 3,095 and 3,045 across the beam options.
• Integrated LED: 12W light source with a 50,000-hour rated life.
• Dimming: ELV or TRIAC dimming, each from 100% to 5%.
• Electrical input: 120–277VAC, 50/60Hz.
• Reflector and trim: Reflector with film; the adjustable model includes a silicone gasket to prevent visibility past the ceiling plane.
• Fixture construction: Die-cast aluminum with an electrostatically powder-coated white finish.
• Ceiling fit: 4 1/4 in. cutout and 1/2 in. to 1 1/2 in. ceiling thickness; heavy-gauge retention clips secure the fixture.

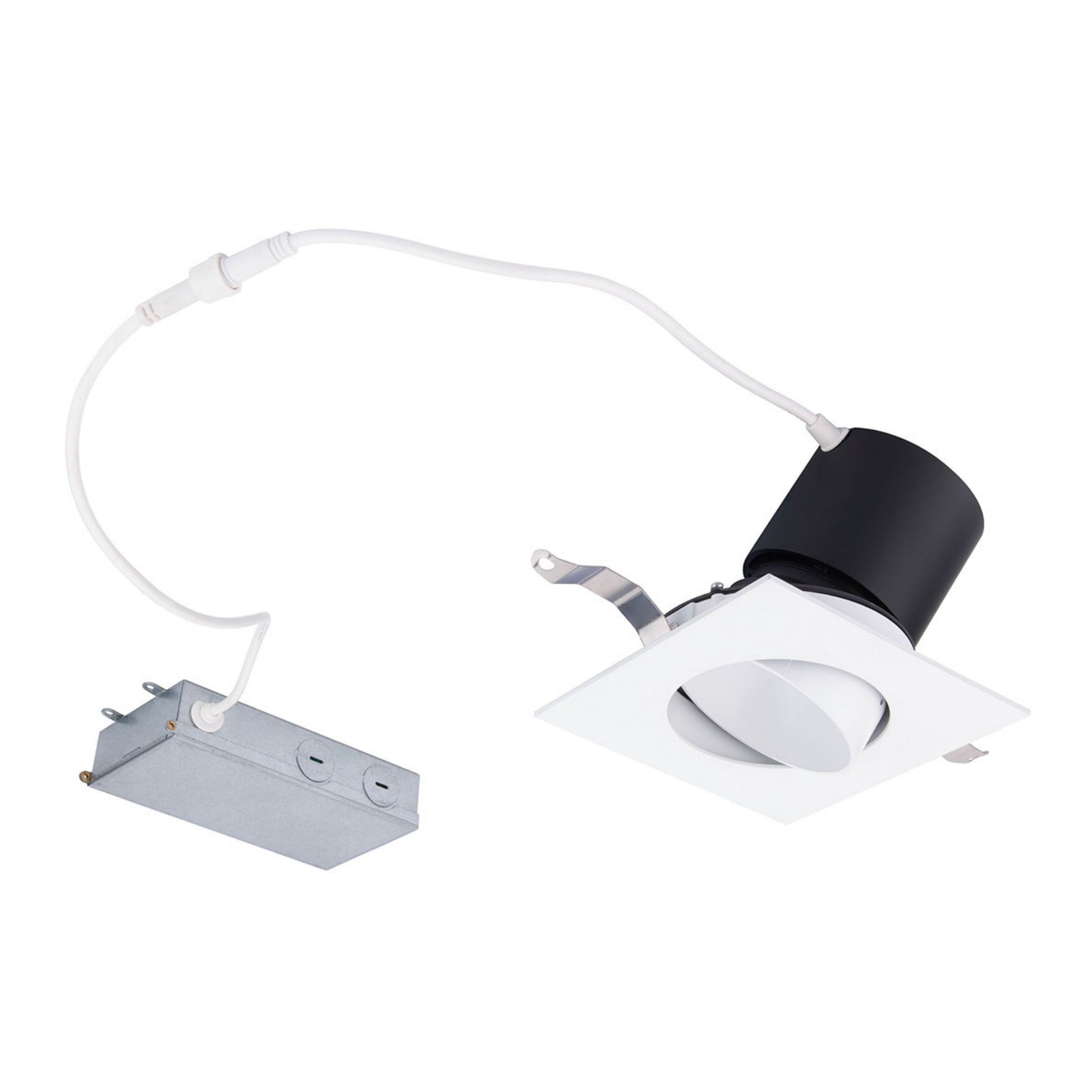

• Attached electrical components: Driver and electrical connection box are included with the fixture.
• Listings and warranty: ETL and cETL listed, Wet Location Listed, Title 24 JA8 compliant, Airtight, IC, and covered by a 5-year warranty.

Construction & Design

The square gimbal trim pairs with a reflector and removable film for beam selection. Die-cast aluminum construction, a white electrostatically powder-coated finish, and the adjustable model’s silicone gasket complete the low-profile ceiling installation.

Light Output & Performance

The 12W integrated LED offers five selectable CCTs from 2700K to 5000K and 90 CRI. The spec sheet lists 1,000 and 1,035 lumens, with CBCP values of 3,095 and 3,045 across the 25° and 45° beam settings. Rated life is 50,000 hours.

Electrical & Installation

The fixture operates on 120–277VAC, 50/60Hz, and supports ELV or TRIAC dimming from 100% to 5%. Its driver and electrical connection box are attached to the fixture. Provide a 4 1/4 in. cutout, accommodate ceiling thickness from 1/2 in. to 1 1/2 in., and secure it with the heavy-gauge retention clips.

Typical Applications

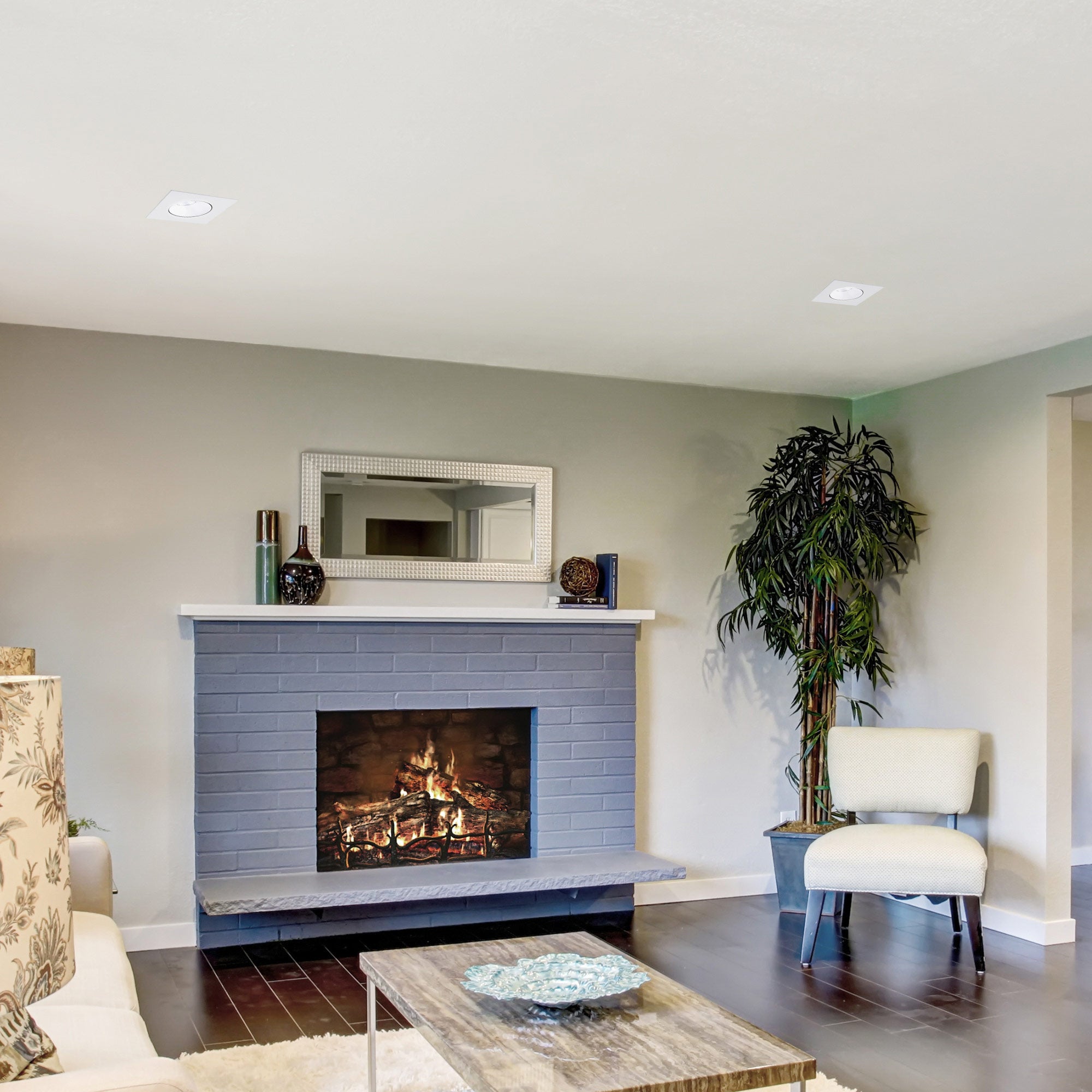

• Residential kitchens, living areas, and hallways.
• Commercial offices and retail spaces.
• Hospitality interiors.
• Bathrooms and other wet-location installations.
• Directional accent lighting using the selectable beam settings.

What's Included

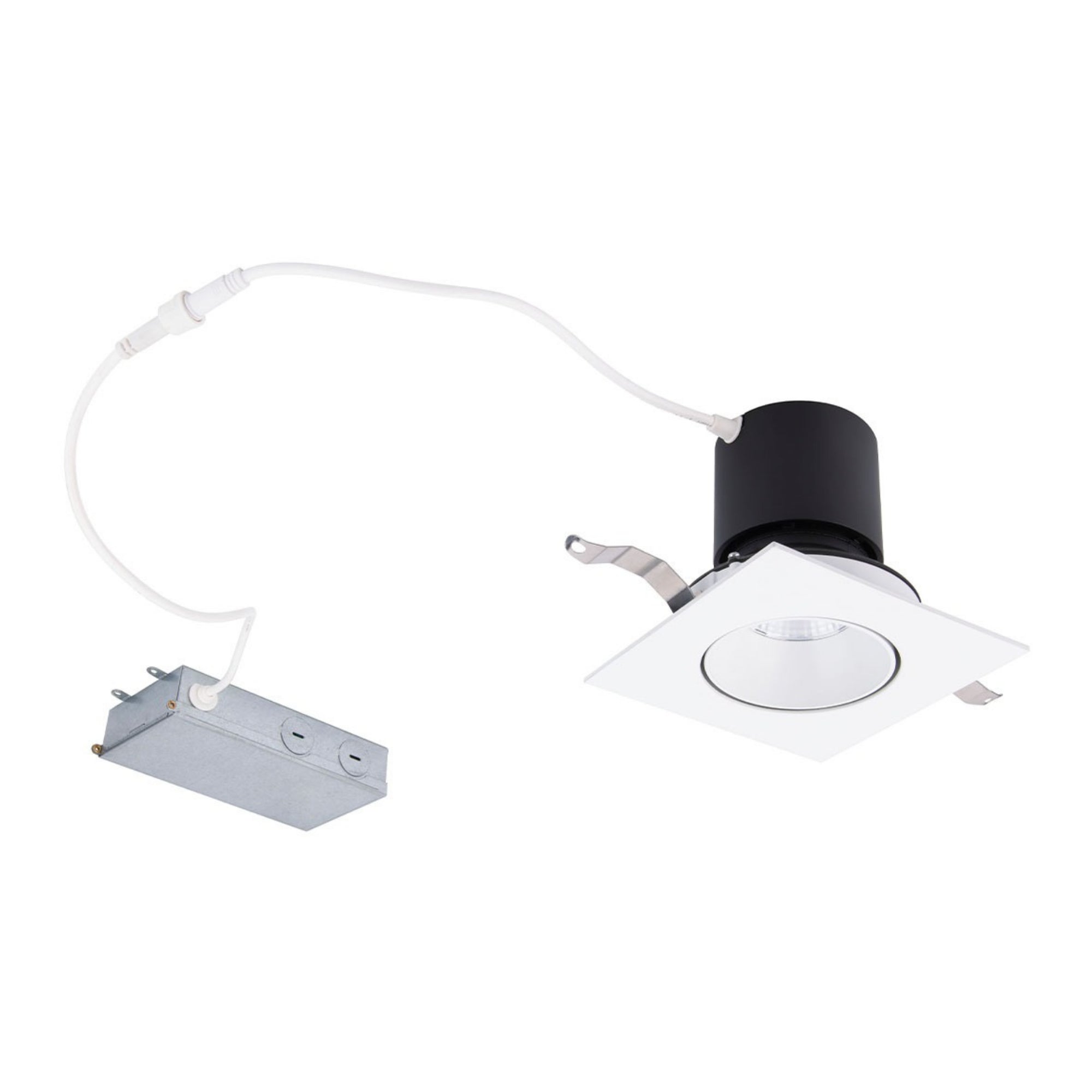

• One WAC Patriot R3HSAR-F9CS-WT square adjustable recessed downlight with integrated LED, attached driver, and electrical connection box.
• Twist-on trim and removable beam film.
