WAC Patriot R3HRAR-F9CS-WT 3 in Round Adjustable Downlight 12W Selectable CCT
Available in stock (1152)
About this item
About this item
- Adjustable Beam Control: Twist-on trim and removable film let you choose 25° or 45° beam distribution.
- Five Selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K, or 5000K with 90 CRI.
- 12W Integrated LED: The spec sheet lists 1,000/1,035 lumens and 3,095/3,045 CBCP across the beam settings.
- Flexible Dimming: ELV or TRIAC dimming from 100% to 5%, with 120–277VAC, 50/60Hz input.
- Built for Long Service: Wet Location Listed, Airtight, IC, ETL and cETL listed, Title 24 JA8 compliant; 50,000-hour rated life and 5-year warranty.
We process payments securely and do not store credit card information.
Description
Description

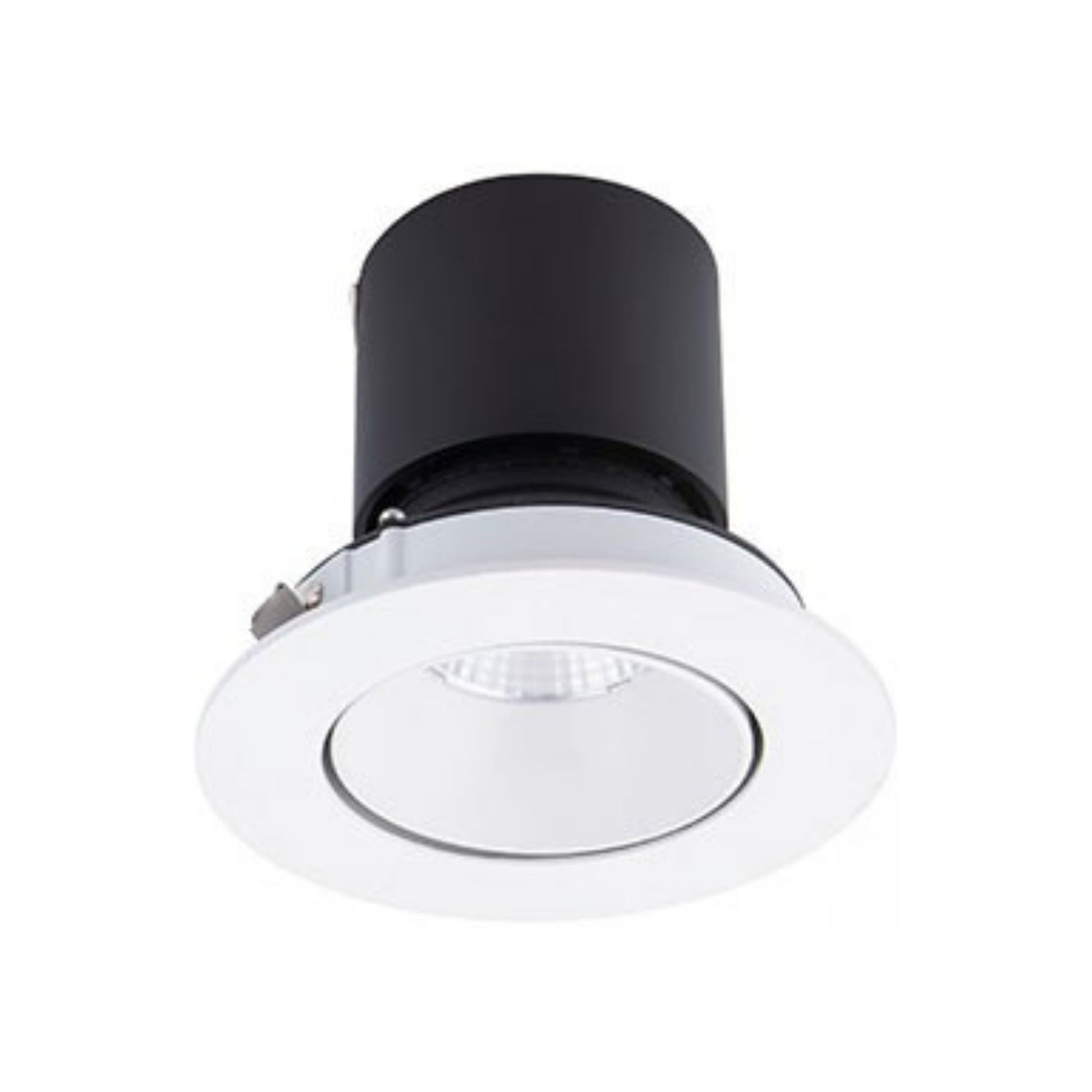

WAC Lighting Patriot R3HRAR-F9CS-WT 3 in. Round Adjustable Recessed Downlight — 12W / 5CCT
The low-profile WAC Patriot R3HRAR-F9CS-WT combines a round recessed downlight with adjustable beam control. Its integrated 12W LED offers five selectable CCTs from 2700K to 5000K; the twist-on trim and removable film let you change between 25° and 45° beam settings.
Key Features
- Round adjustable design: 3 in. low-profile recessed downlight for remodel or new-construction installation.

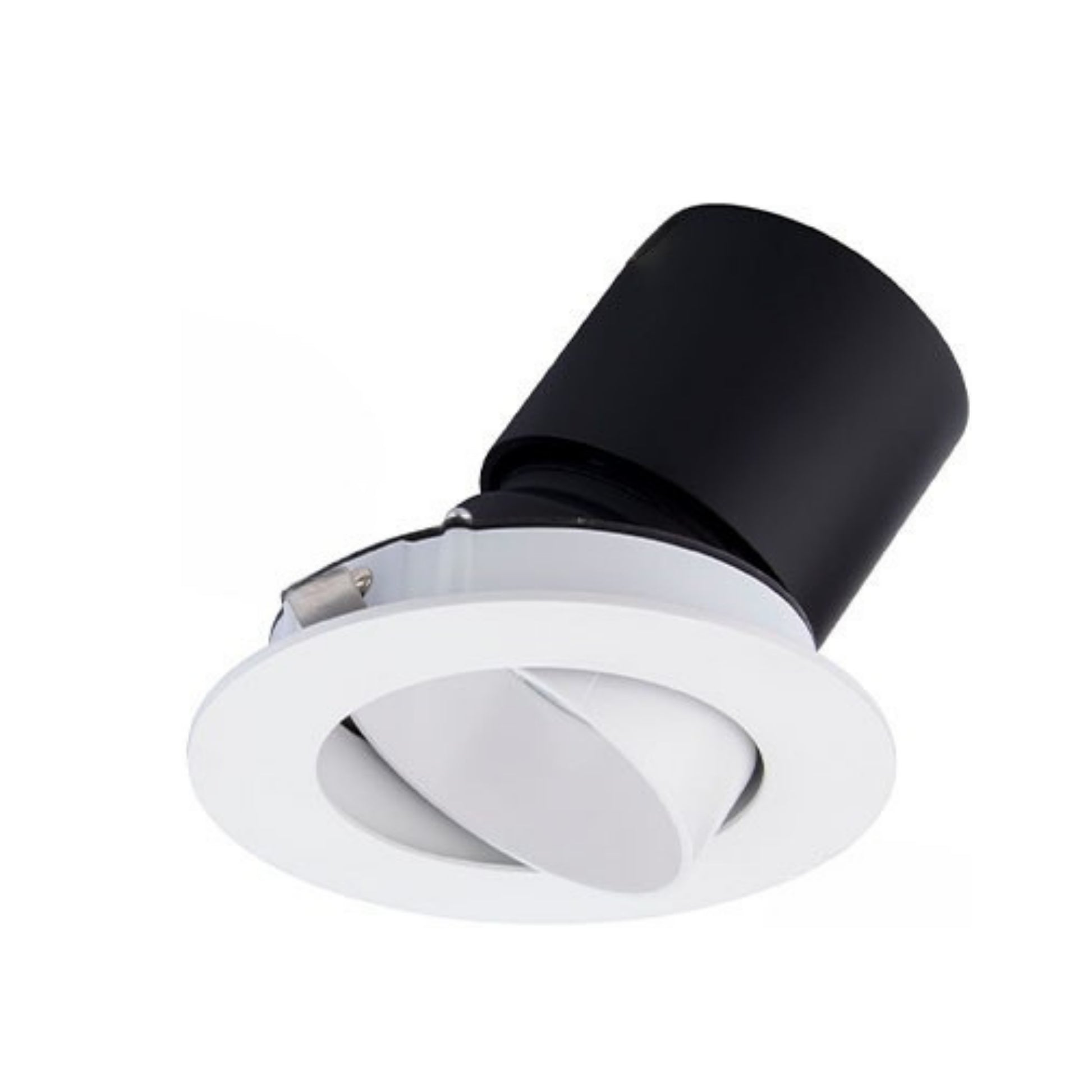

- Adjustable beam: Twist on the trim and use the removable film to select a 25° or 45° beam.
- Output by beam configuration: The spec sheet lists 1,000 and 1,035 lumens with corresponding CBCP values of 3,095 and 3,045 for the two beam settings.
- Five selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K, or 5000K with 90 CRI.
- Integrated LED: 12W light source with 50,000-hour rated life.
- Dimming: ELV or TRIAC control, each from 100% to 5%.
- Electrical input: 120–277VAC, 50/60Hz.
- Reflector and film: Reflector lens with removable film; a silicon gasket helps prevent visibility past the ceiling plane.

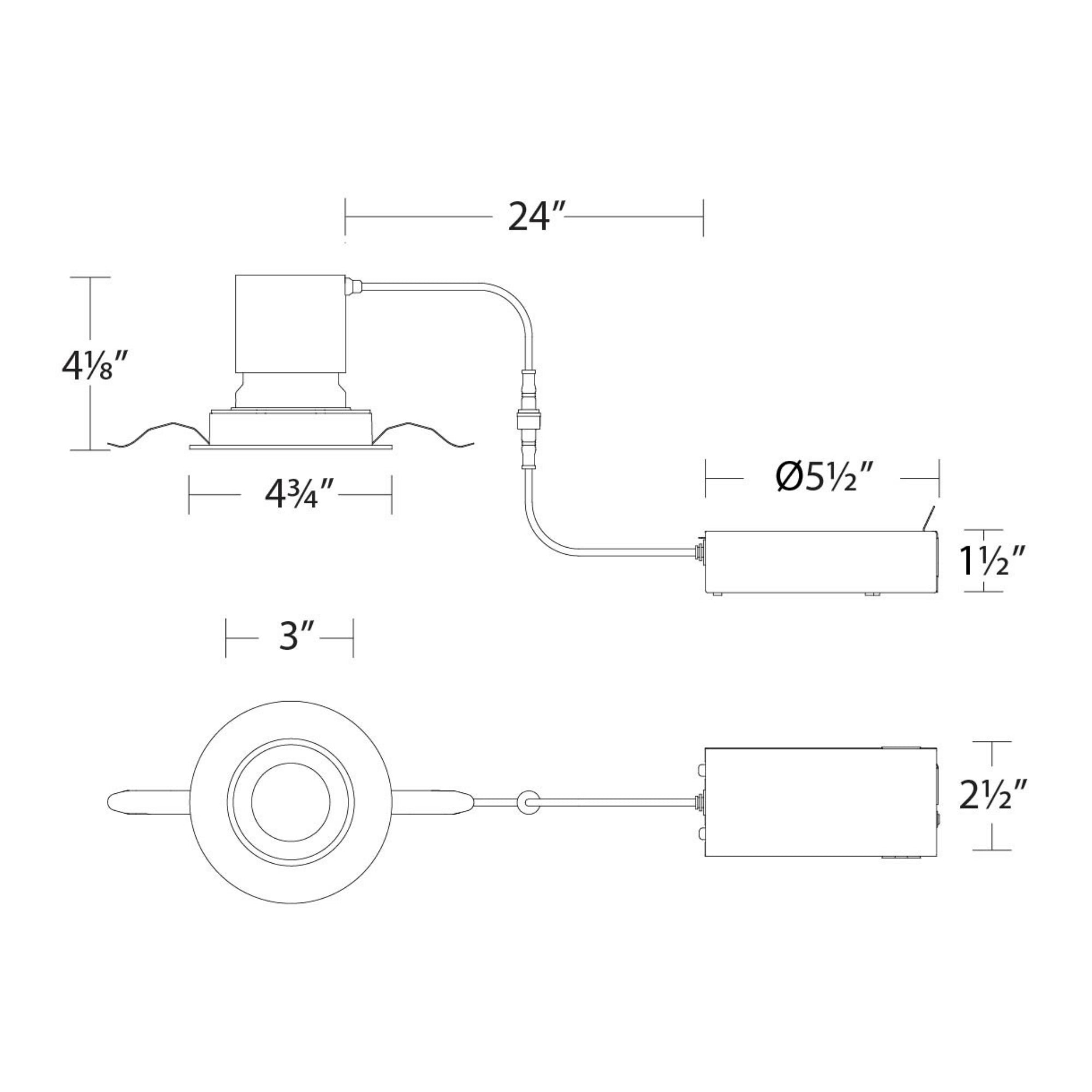

- Installation fit: 4 1/4 in. cutout, 1/2 in. to 1 1/2 in. ceiling thickness, and heavy-gauge retention clips.
- Fixture construction: Die-cast aluminum with an electrostatically powder-coated white finish.

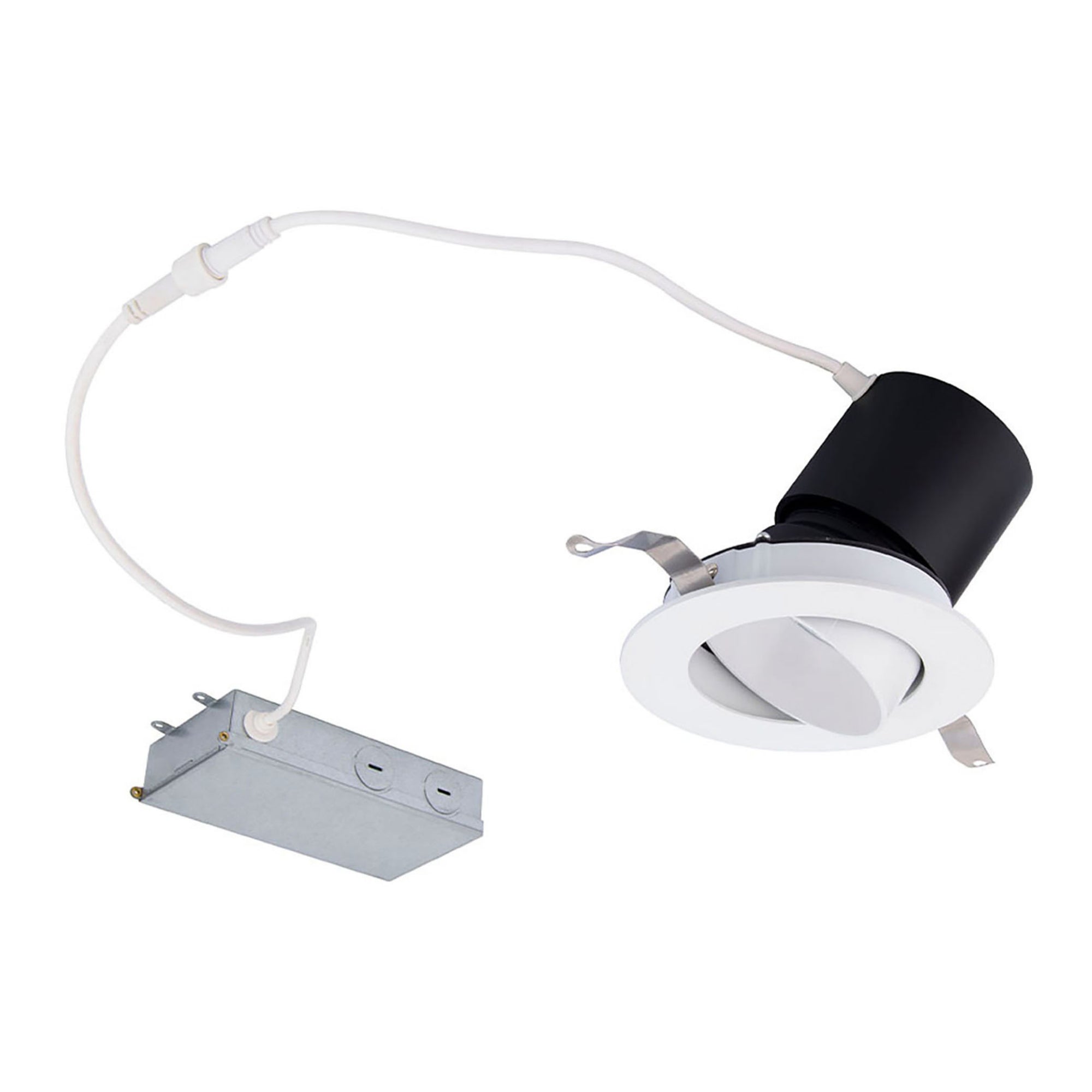

- Driver and connection: Driver and electrical connection box are attached to the fixture.
- Listed performance: Wet Location Listed, ETL and cETL listed, Title 24 JA8 compliant, Airtight, and IC; 5-year warranty and -4°F to 104°F (-20°C to 40°C) operating range.
Construction & Design
The low-profile round body is made of die-cast aluminum with a white electrostatically powder-coated finish. A reflector lens and removable film pair with the twist-on trim to adjust beam distribution, while the silicon gasket helps prevent sightlines past the ceiling plane.
Light Output & Performance
The 12W integrated LED offers five CCT settings from 2700K to 5000K and 90 CRI. The spec sheet lists lumen/CBCP values of 1,000/3,095 and 1,035/3,045 across the 25° and 45° beam configurations. Rated life is 50,000 hours.
Electrical & Installation
Connect to 120–277VAC, 50/60Hz. The fixture supports ELV and TRIAC dimming from 100% to 5%. Its attached driver and electrical connection box support remodel or new-construction installation. Provide a 4 1/4 in. cutout and confirm ceiling thickness is 1/2 in. to 1 1/2 in.; heavy-gauge retention clips secure the fixture.
Typical Applications

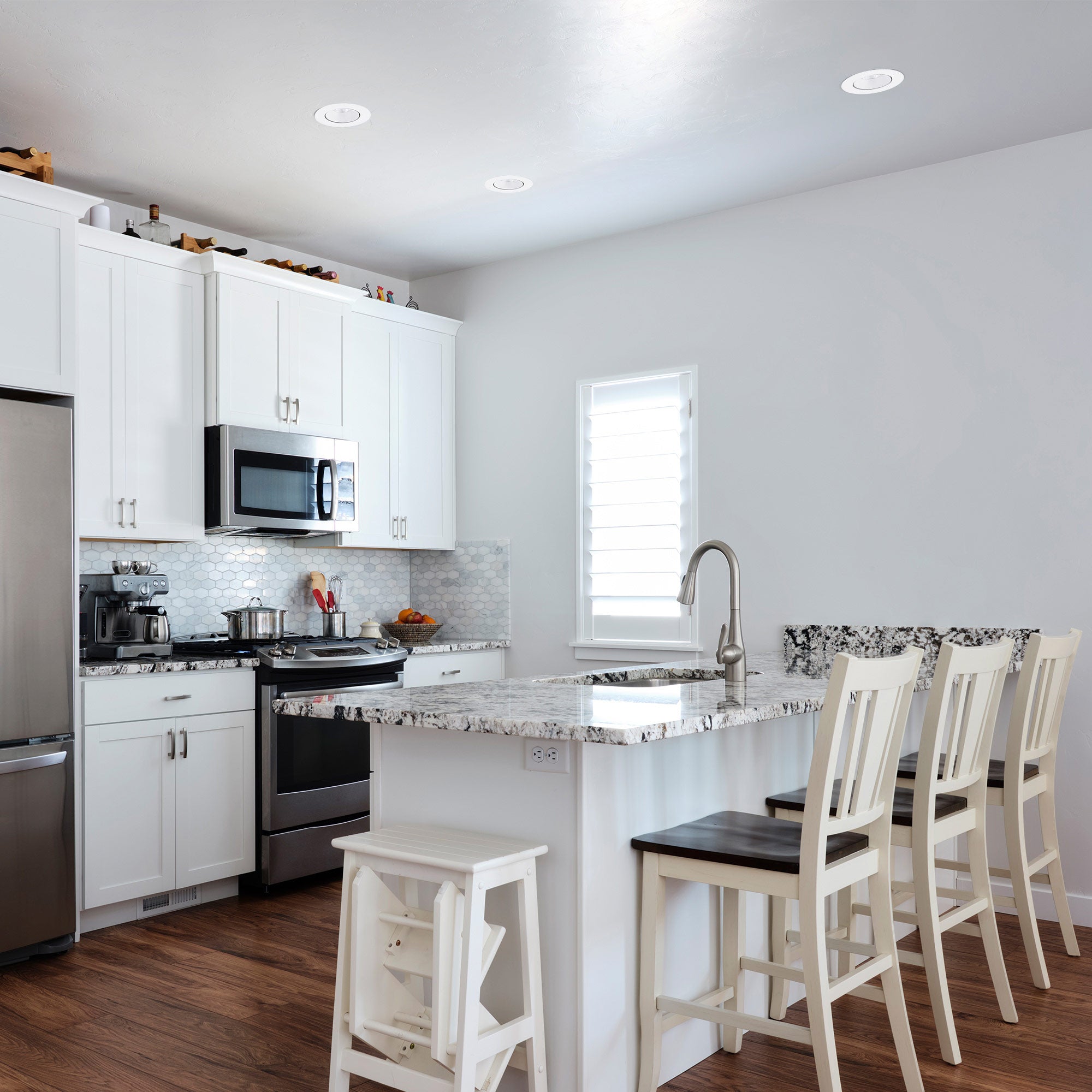

- Residential living areas
- Commercial offices and retail spaces
- Hospitality venues
- Bathrooms and other wet-location installations
- Directional accent lighting with a selectable 25° or 45° beam
What's Included

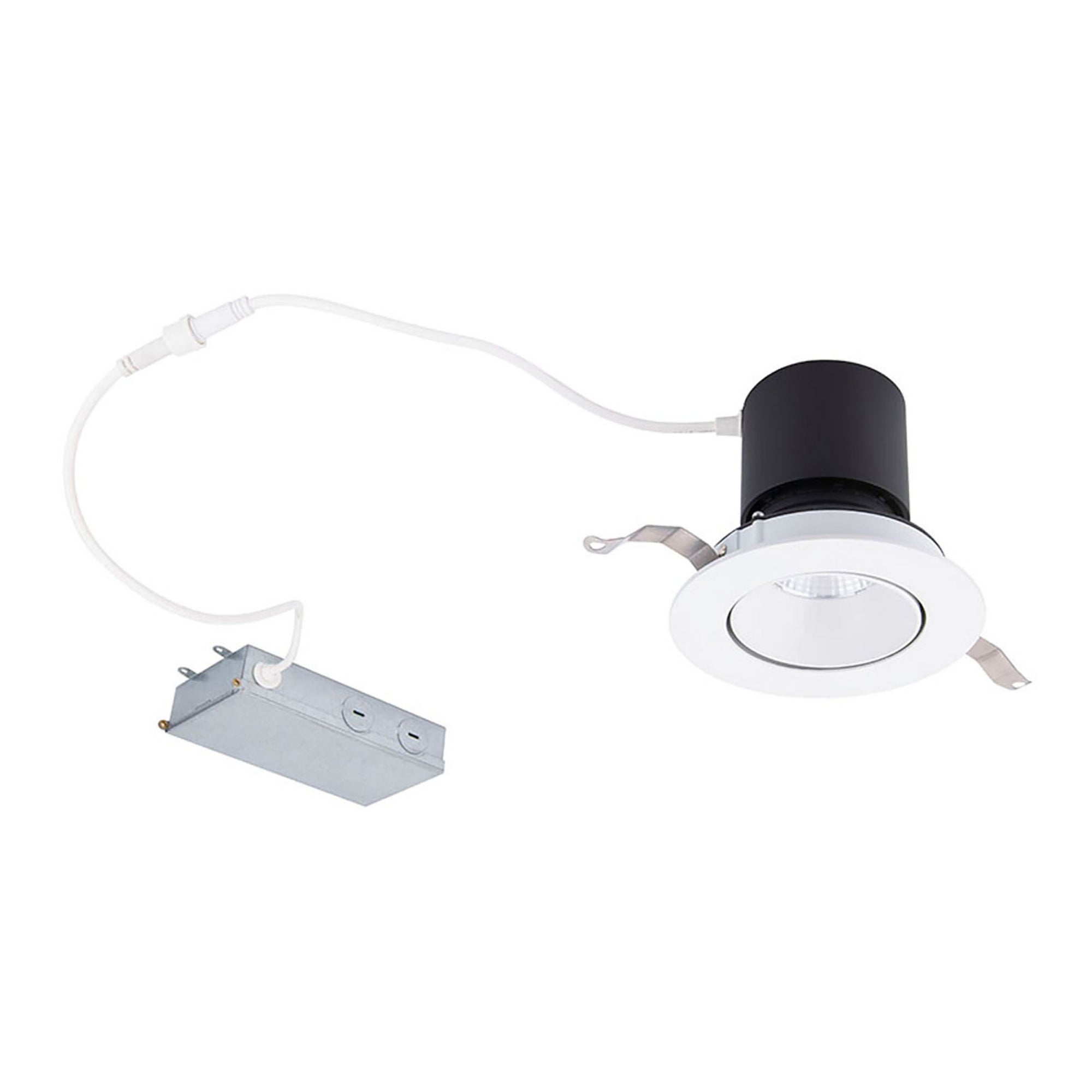

- One WAC Patriot R3HRAR-F9CS-WT 3 in. round adjustable recessed downlight with integrated LED, attached driver, and electrical connection box.
- Removable film for beam adjustment is included with the twist-on trim.
