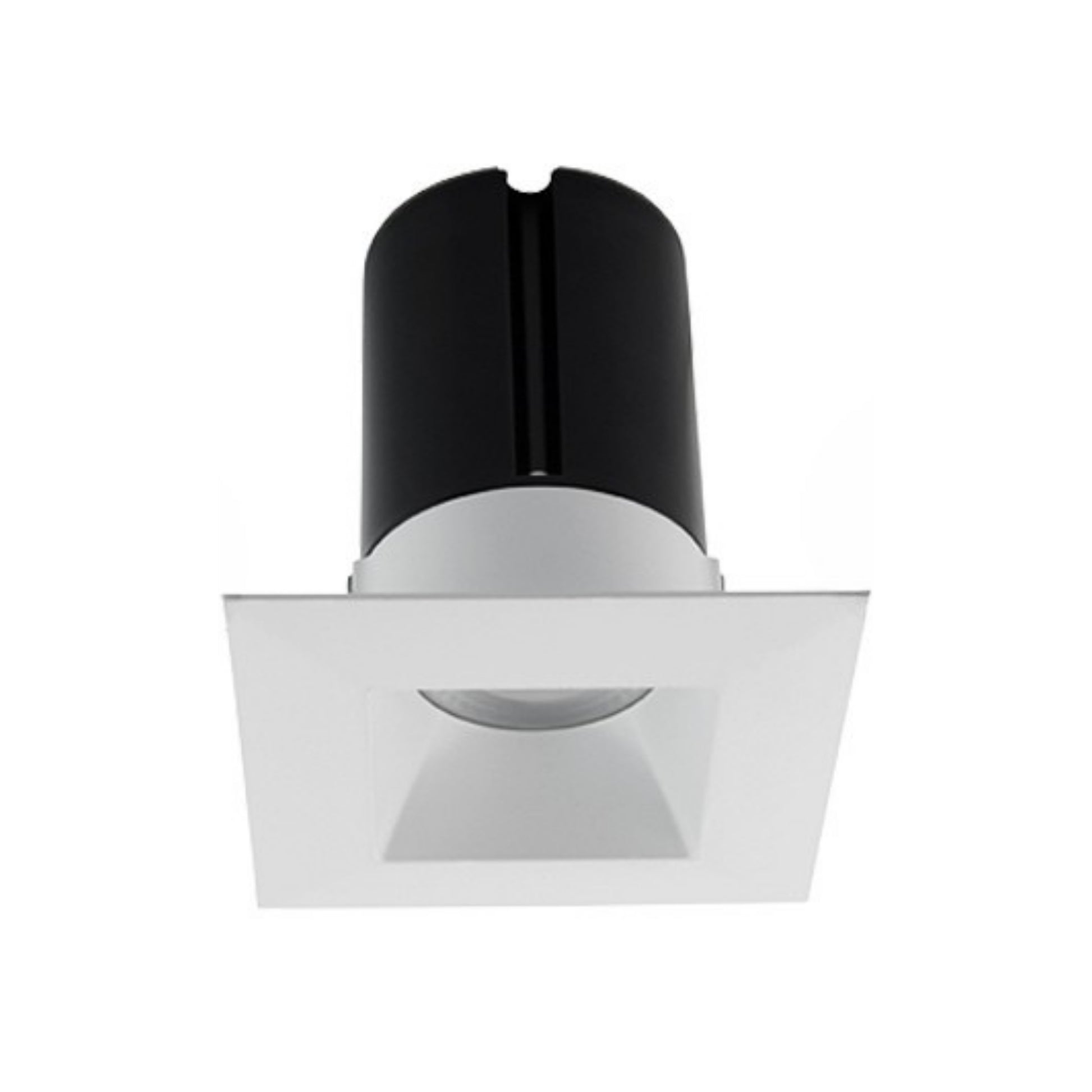

WAC Lighting Ion R2DSDR-F9CS-WT 2 in. Square Remodel Downlight — 9W / 5CCT

The WAC Lighting R2DSDR-F9CS-WT is a 2 in. square remodel downlight with an integrated 9W LED and included remote driver. Select from five color temperatures between 2700K and 5000K to set the preferred light tone, and use the available new-construction frame when planning a new build.

Key Features

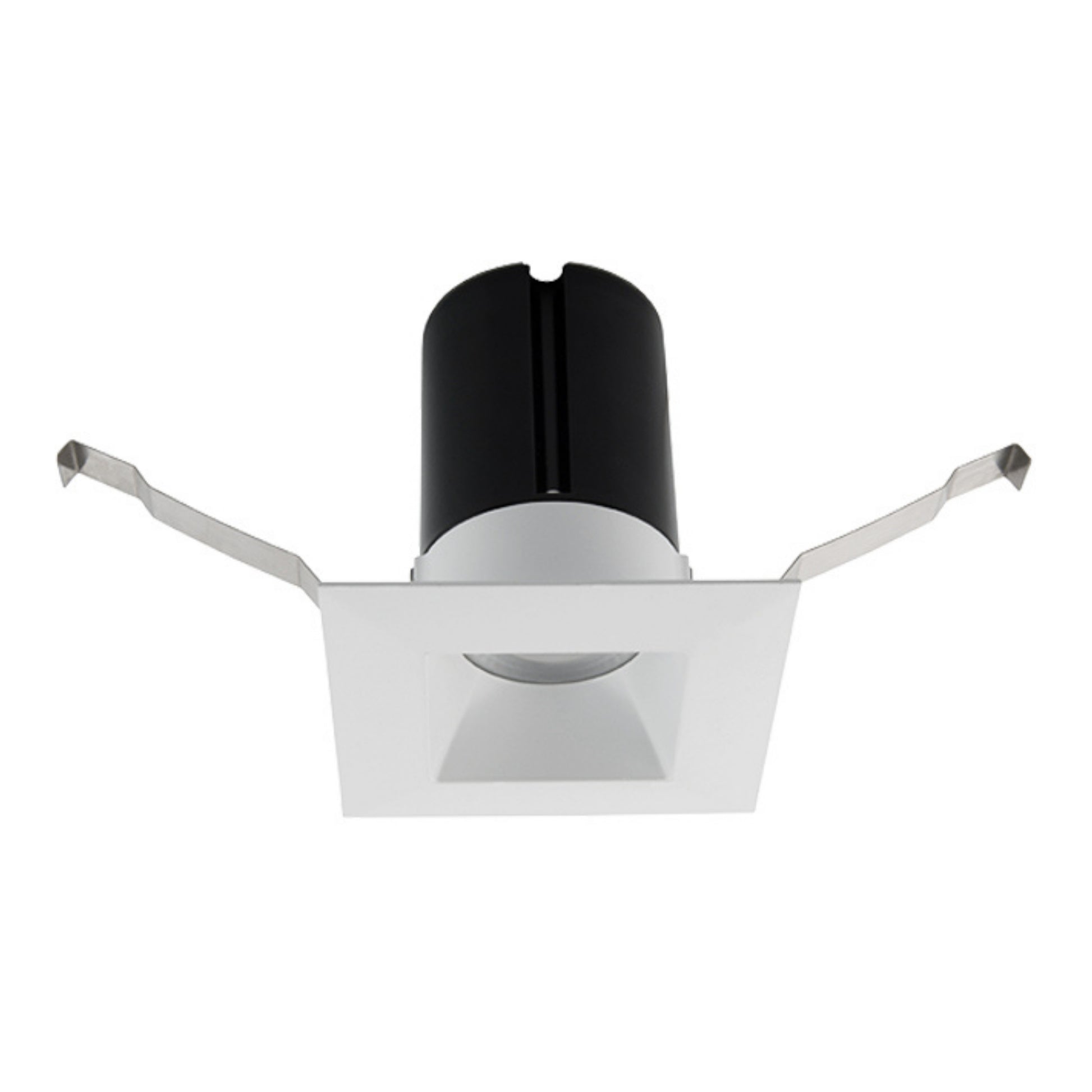

• Square remodel fit: 2 in. square downlight designed for a 3 in. cutout, secured with heavy-gauge retention clips.
• New-build option: Sold as a remodel fixture, with a new-construction frame available for new installations.
• Integrated LED: 9W light source produces 695 lumens.
• Focused beam: 35° beam angle and 2,140 CBCP.
• Selectable white light: Choose 2700K, 3000K, 3500K, 4000K, or 5000K; 90 CRI.
• Frosted TIR lens: Diffuses the integrated LED output.
• Input power: 120VAC, 50/60Hz with remote driver included.
• Dimming: ELV dimming from 100% to 10%, or Triac dimming from 100% to 5%.
• Construction: Die-cast aluminum fixture with a 20-gauge cold-rolled steel driver box.
• White finish and ceiling fit: Electrostatically powder-coated white; accommodates ceiling thicknesses from 1/2 in. to 1 1/2 in.
• Listings: ETL and cETL listed, Title 24 JA8 compliant, IC, and Airtight.
• Service life and warranty: Rated for 50,000 hours with a 5-year warranty; operating range -4°F to 104°F (-20°C to 40°C).

Construction & Design

This low-profile square remodel downlight pairs a die-cast aluminum fixture with a frosted TIR lens and a remote driver in a 20-gauge cold-rolled steel box. Its white electrostatic powder-coated finish blends into the ceiling, while heavy-gauge retention clips secure the fixture.

Electrical & Installation

Install as a remodel fixture through a 3 in. cutout and connect the included driver to 120VAC, 50/60Hz. The fixture accommodates ceiling thicknesses from 1/2 in. to 1 1/2 in. Compatible dimming options are ELV to 10% and Triac to 5%. A new-construction frame is available for new-build installations.

Light Output & Performance

The 9W integrated LED delivers 695 lumens, 90 CRI, a 35° beam, and 2,140 CBCP. Select 2700K, 3000K, 3500K, 4000K, or 5000K at installation. Rated life is 50,000 hours.

Compatible Accessories

• New-construction frame for new-build installations.

Typical Applications

• Remodel installations using a 3 in. cutout and heavy-gauge retention clips.
• New-construction installations with the available new-construction frame.

What’s Included

• WAC Ion 2 in. square remodel downlight.
• Remote driver.
