WAC Ion R2DSDN-F9CS-WT 2 in New Construction Downlight 9W Selectable CCT
Available in stock (179)
About this item
About this item
- New-Construction Ready: 2 in. square downlight supplied with housing and hanger bars; may be configured in the field for remodel use.
- Five Selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K, or 5000K with 90 CRI.
- Focused LED Output: 9W integrated LED delivers 695 lumens, 35° beam, and 2,140 CBCP.
- Dimmable Performance: 120VAC, 50/60Hz; ELV dimming to 10% or Triac dimming to 5%.
- Built for Long Service: Die-cast aluminum, frosted TIR lens, 50,000-hour rated life, 5-year warranty, ETL/cETL listed, Title 24 JA8 compliant, Airtight, and IC.
We process payments securely and do not store credit card information.
Description
Description

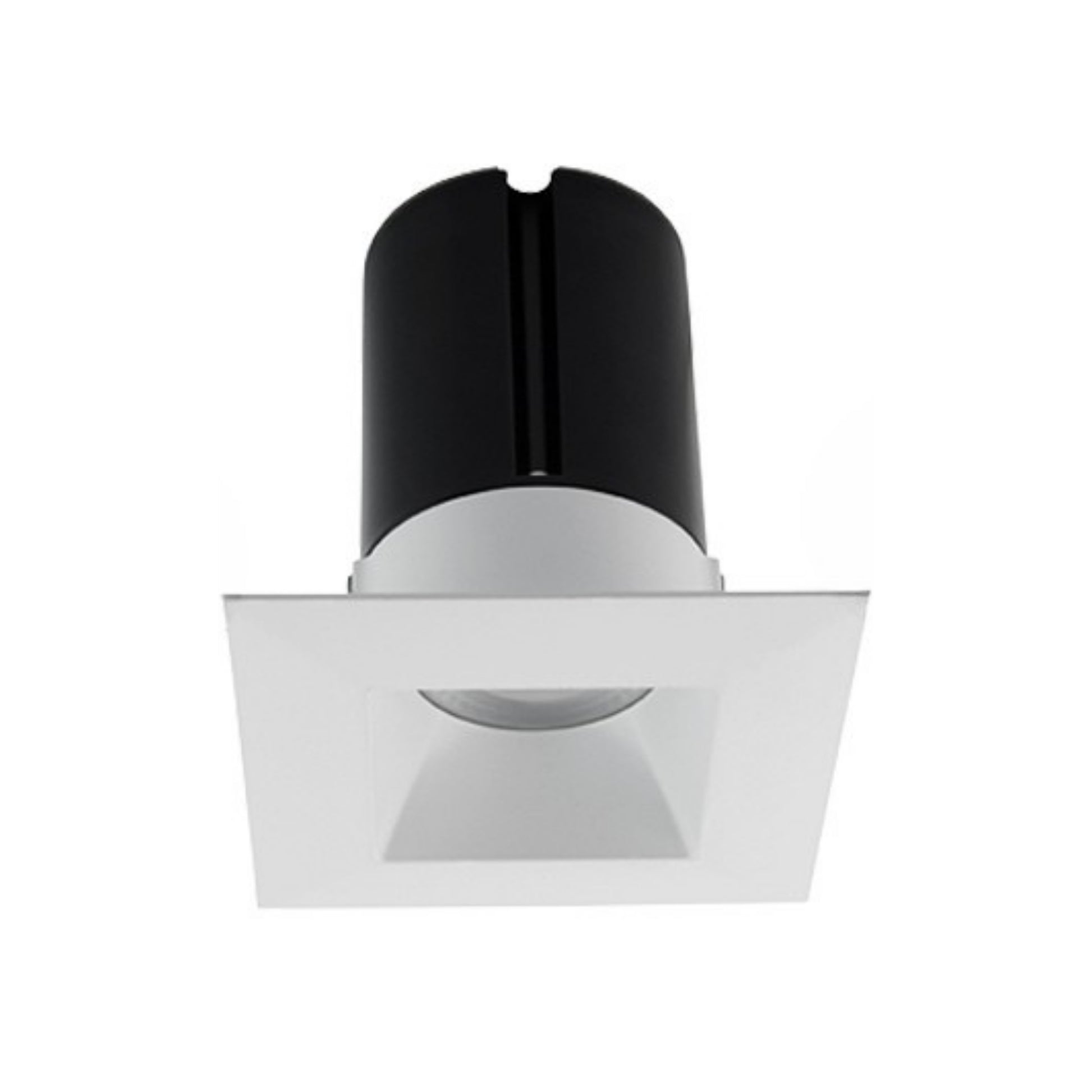

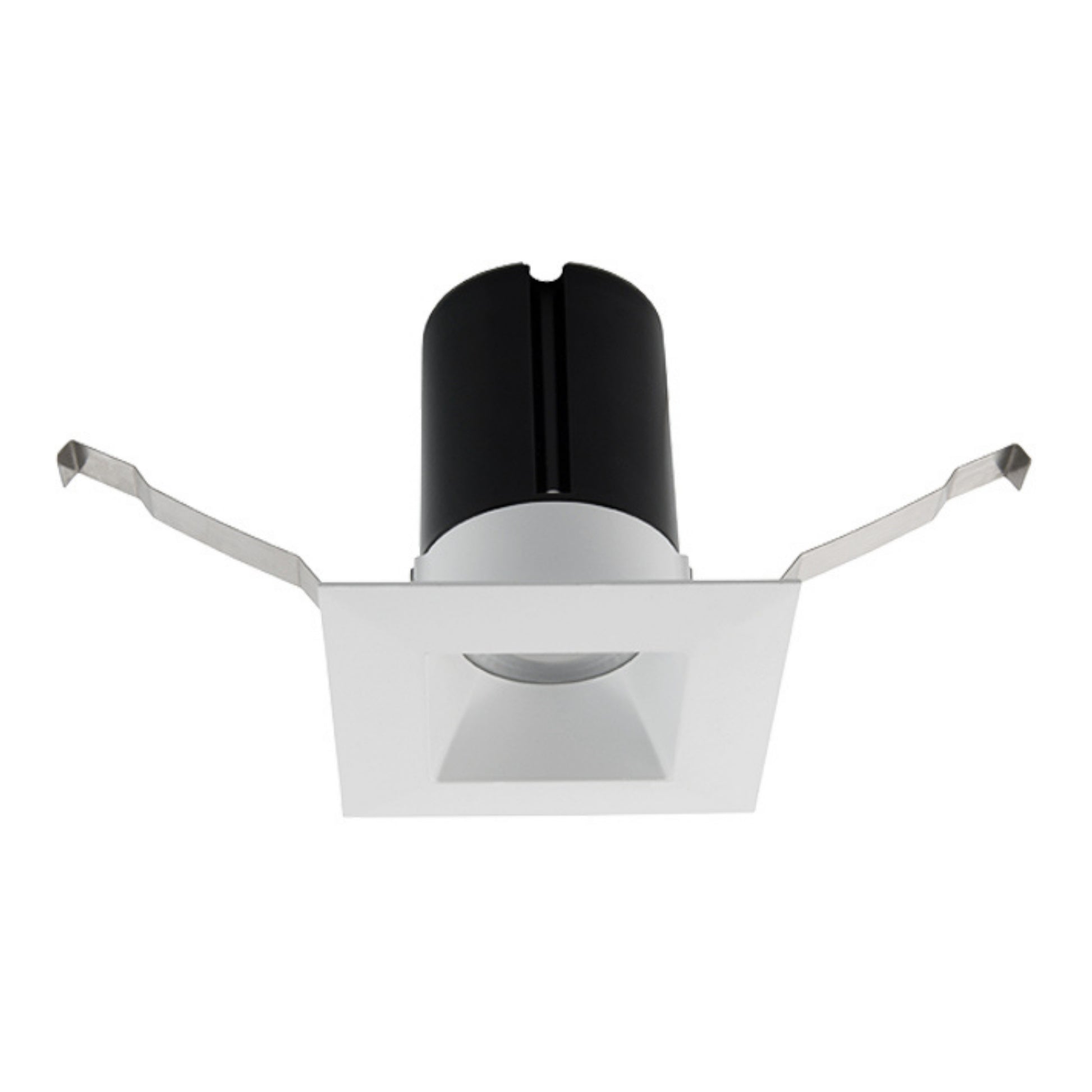

WAC Lighting Ion R2DSDN-F9CS-WT 2 in. Square New-Construction Downlight — 9W / 5CCT
The WAC Lighting R2DSDN-F9CS-WT is a 2 in. square downlight sold for new-construction installations and supplied with its housing, hanger bars, and remote driver. It uses a 9W integrated LED with five selectable white color temperatures from 2700K to 5000K, and may be configured in the field for remodel use.
Key Features
- Square format: 2 in. square new-construction downlight with a 3 in. cutout.
- Housing included: New-construction housing with hanger bars; sheet notes field configuration for remodel use.
- Integrated LED: 9W source delivers 695 lumens.
- Focused optics: 35° beam angle and 2,140 CBCP.
- Five selectable CCTs: 2700K, 3000K, 3500K, 4000K, or 5000K; 90 CRI.
- Frosted TIR lens: Provides diffused LED output.
- Electrical input: 120VAC, 50/60Hz with remote driver included.
- Dimming: ELV from 100% to 10% or Triac from 100% to 5%.
- Construction: Die-cast aluminum fixture with a 20-gauge cold-rolled steel driver box.
- White finish and ceiling fit: Electrostatically powder-coated white; fits ceiling thicknesses from 1/2 in. to 1 1/2 in.
- Listings: ETL and cETL listed, Title 24 JA8 compliant, Airtight, and IC.
- Rated life and warranty: 50,000 hours, 5-year warranty, operating range -4°F to 104°F (-20°C to 40°C).
Construction & Design
Die-cast aluminum construction, a frosted TIR lens, and a white electrostatically powder-coated finish give this low-profile square fixture a clean ceiling appearance. The remote driver is housed in 20-gauge cold-rolled steel.
Electrical & Installation
Install the included new-construction housing and hanger bars at a 3 in. cutout; the fixture accommodates ceiling thicknesses from 1/2 in. to 1 1/2 in. Connect the remote driver to 120VAC, 50/60Hz. Choose ELV dimming to 10% or Triac dimming to 5%. The manufacturer notes that the fixture may be configured in the field for remodel installation.
Light Output & Performance
The 9W integrated LED produces 695 lumens with 90 CRI, a 35° beam, and 2,140 CBCP. Select 2700K, 3000K, 3500K, 4000K, or 5000K to suit the space. Rated life is 50,000 hours.
Typical Applications
- New-construction ceilings using the included housing and hanger bars.
- Remodel projects where the fixture is configured in the field for that installation.
What’s Included
- WAC Ion 2 in. square downlight.
- New-construction housing with hanger bars.
- Remote driver.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the WAC Ion R2DSDN-F9CS-WT IC rated and Airtight?
Is the WAC Ion R2DSDN-F9CS-WT IC rated and Airtight?
What dimmer types work with the WAC Ion square downlight?
What dimmer types work with the WAC Ion square downlight?
What light output and color temperatures does R2DSDN-F9CS-WT offer?
What light output and color temperatures does R2DSDN-F9CS-WT offer?
Does this downlight work for new construction and remodel projects?
Does this downlight work for new construction and remodel projects?
What is included, and what is the warranty?
What is included, and what is the warranty?
