WAC Ion R2DRDR-F9CS-WT 2 in. Round Remodel Downlight 9W Selectable CCT
Available in stock (295)
About this item
About this item
- Selectable CCT: 2700K to 5000K for versatile lighting options
- Wattage: Consumes only 9 watts
- Dimming Capability: ELV and TRIAC dimming from 100% to 5%
- Construction: Die-cast aluminum with cold rolled steel driver box
- Installation: Remodel installation with heavy gauge retention clips
We process payments securely and do not store credit card information.
Description
Description

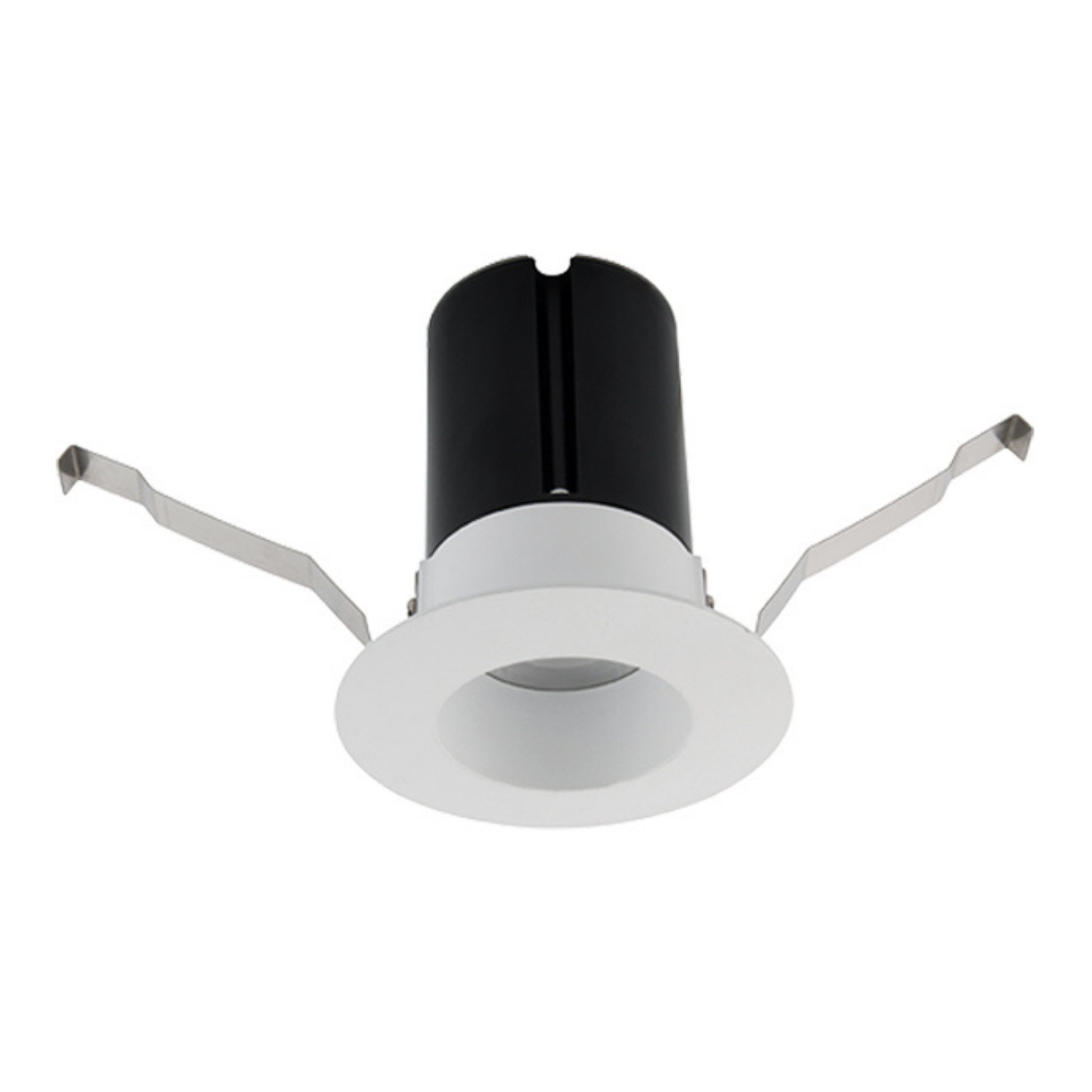

WAC Lighting Ion R2DRDR-F9CS-WT 2 in. Round Trim Downlight — 9W / Selectable CCT
The WAC Lighting R2DRDR-F9CS-WT is a 2-inch round remodel downlight featuring a selectable CCT range from 2700K to 5000K, delivering versatile lighting solutions. This downlight consumes only 9 watts and includes a remote driver for easy installation in both remodel and new construction settings.
Key Features
- Selectable CCT: 2700K to 5000K
- Wattage: 9W
- Voltage: 120 VAC, 50/60Hz
- Dimming: ELV: 100-10%, TRIAC: 100-5%
- Light Source: Integrated LED
- Lens: Frosted TIR Lens
- Rated Life: 50000 Hours
- Mounting: Heavy gauge retention clips
- Cut Out: 3 inches
- Finish: Electrostatically Powder Coated White
- Standards: ETL, cETL, Title 24 JA8 Compliant, IC, Airtight
Construction & Aesthetics
The downlight is constructed with die-cast aluminum and a 20-gauge cold rolled steel driver box, finished in electrostatically powder-coated white. It features a frosted TIR lens for optimal light diffusion.
Electrical & Installation
Designed for 120V input, this fixture supports ELV and TRIAC dimming. It is suitable for remodel installations with a 3-inch cutout and includes heavy gauge retention clips for secure mounting.
Light Output & Performance
With a lumen output of 695 lumens and a CRI of 90, this downlight provides high-quality illumination with a beam angle of 35 degrees and a rated life of 50,000 hours.
Typical Applications
- Residential living areas
- Commercial offices
- Retail spaces
- Hospitality environments
- Educational facilities
Specifications
