WAC Ion R2DRDN-F9CS-WT 2 in Round New Construction Downlight 9W 5CCT
Available in stock (1568)
About this item
About this item
- Low-Profile Round Downlight: 2 in. aperture, 3 in. cutout, with new-construction housing and hanger bars included.
- Five Selectable CCTs: 2700K, 3000K, 3500K, 4000K, or 5000K at the driver switch.
- Focused LED Output: 9W, 695 lumens, 35° beam, 90 CRI, and 2,140 CBCP.
- Flexible Dimming: 120VAC, 50/60Hz; ELV dimming to 10% or Triac dimming to 5%.
- Reliable Construction: Die-cast aluminum, 50,000-hour rated life, 5-year warranty, ETL/cETL listing, Title 24 JA8 compliance, Air-Tight, and IC rated.
We process payments securely and do not store credit card information.
Description
Description
WAC Ion R2DRDN-F9CS-WT 2 in. Round 5CCT New-Construction Downlight — 9W / 695 lm / 120VAC

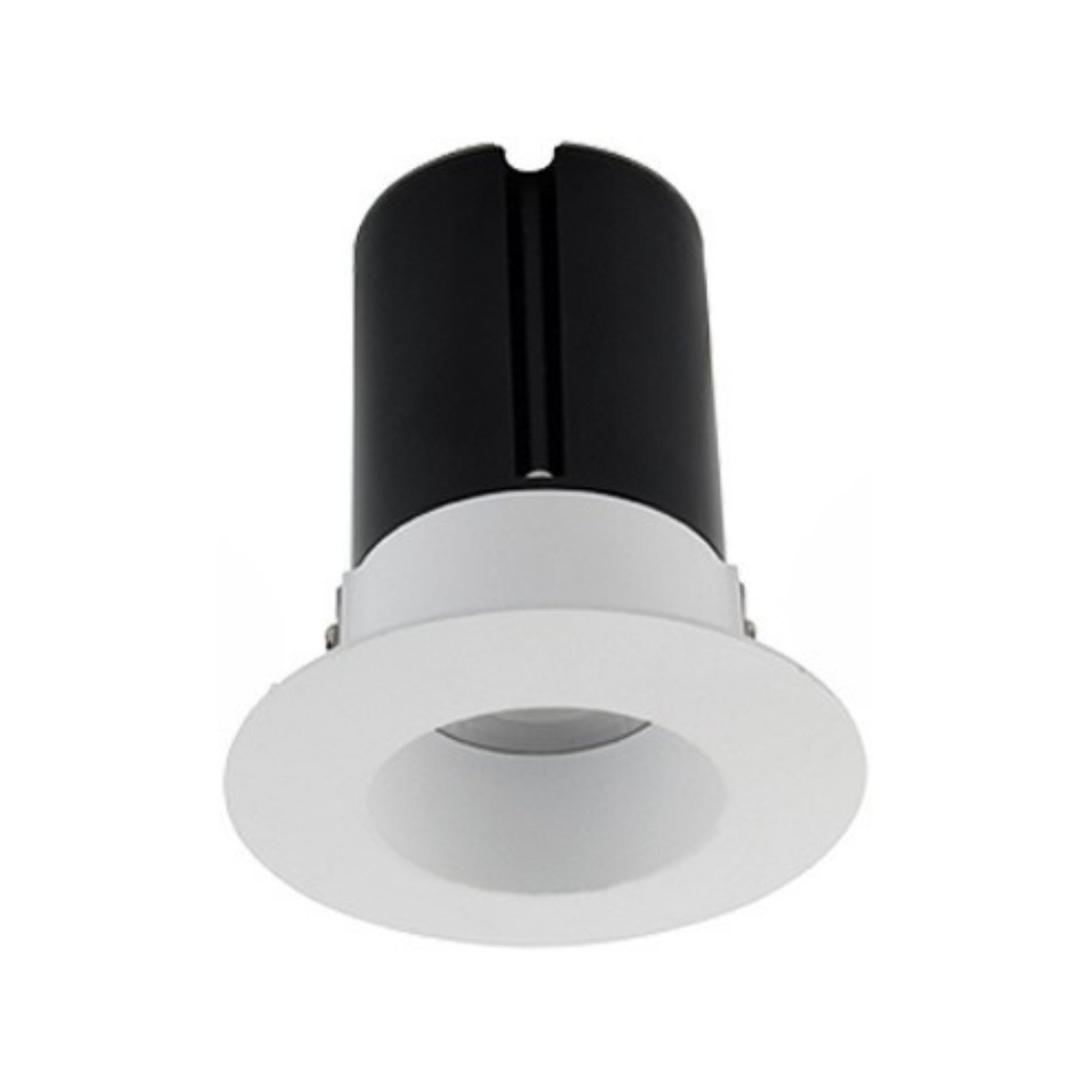

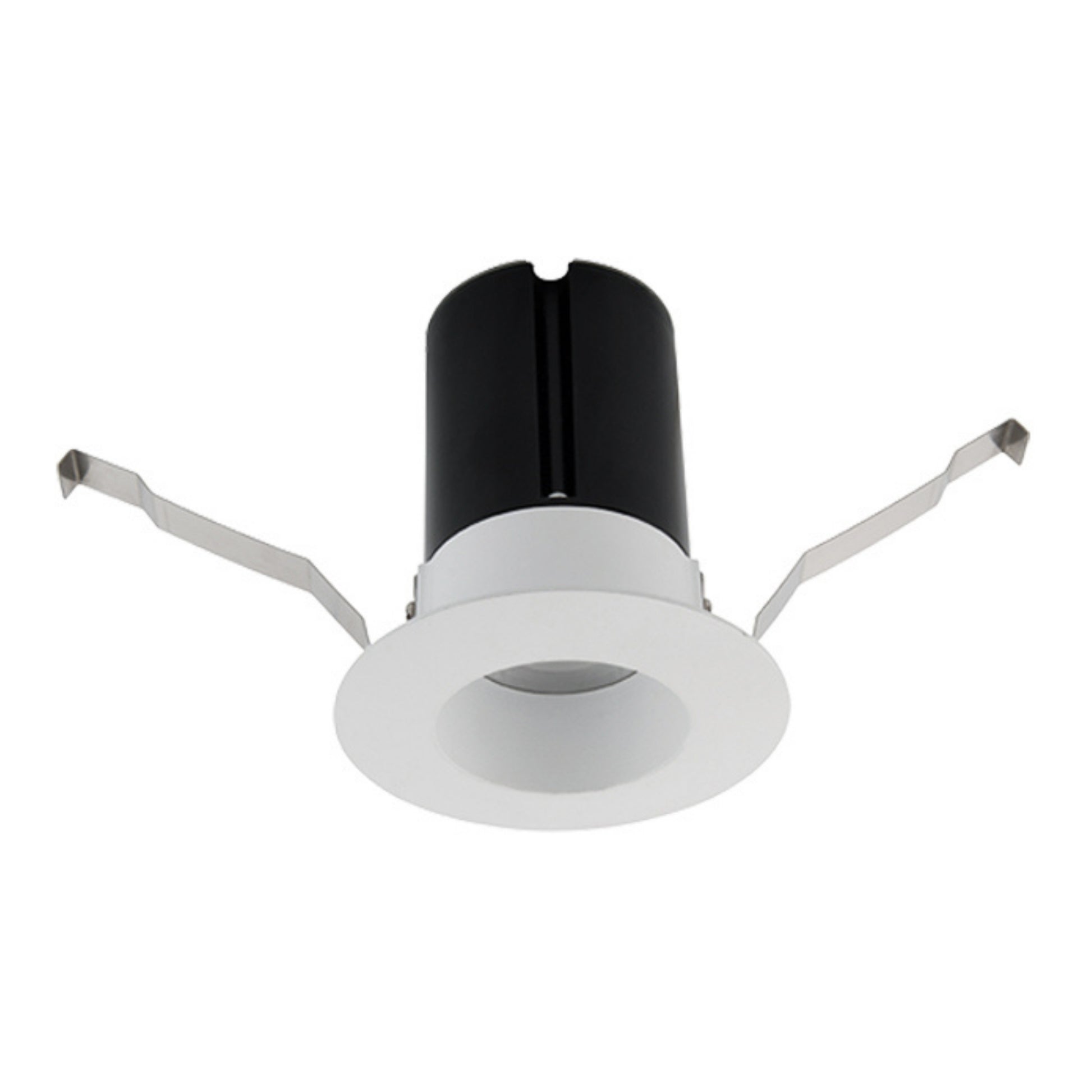

The WAC Ion R2DRDN-F9CS-WT is a low-profile 2 in. round LED downlight with a remote driver for new-construction installations. Its five-position CCT switch lets you choose the preferred white tone during installation; the included housing and hanger bars support a clean, secure ceiling fit.
Key Features
- Compact round aperture: 2 in. round downlight with a 3 in. cutout; new-construction housing and hanger bars are included.
- Remodel flexibility: Supplied for new construction and may be configured in the field for remodel installation.
- Selectable white light: Choose 2700K, 3000K, 3500K, 4000K, or 5000K using the CCT switch at the driver.
- 9W integrated LED: Produces 695 lumens with a 35° beam, 90 CRI, and 2,140 CBCP.
- Remote driver included: Driver box uses 20-gauge cold-rolled steel; the round luminaire is constructed from die-cast aluminum.
- Frosted optical lens: TIR lens provides a softly diffused appearance.
- Dual dimming options: ELV dimming from 100% to 10%; Triac dimming from 100% to 5% with compatible controls.
- Electrical input: 120VAC, 50/60Hz.
- Ceiling fit: Accommodates ceiling thicknesses from 1/2 in. to 1 1/2 in.
- Listings: ETL and cETL listed, Title 24 JA8 compliant, Air-Tight, and IC rated.
- Rated life and warranty: 50,000 hours and a 5-year warranty.
- Operating range: -4°F to 104°F (-20°C to 40°C).
Construction & Design
The Ion combines a die-cast aluminum round luminaire with a frosted TIR lens and a remote driver housed in 20-gauge cold-rolled steel. Its low-profile form and included hanger-bar housing make it suitable for planned new-construction ceiling layouts, with field configuration available for remodel work.
Light Output & Performance
The integrated 9W LED delivers 695 lumens, 90 CRI, a 35° beam, and 2,140 CBCP. Set the five-position CCT switch to 2700K, 3000K, 3500K, 4000K, or 5000K to match the space. Rated life is 50,000 hours.
Electrical & Installation
Connect the included remote driver to 120VAC, 50/60Hz. Use compatible ELV controls for dimming from 100% to 10% or Triac controls for dimming from 100% to 5%. The fixture is supplied for new construction with housing and hanger bars, and the manufacturer notes it may be configured in the field for remodel. Provide a 3 in. cutout and verify that ceiling thickness is between 1/2 in. and 1 1/2 in.
Typical Applications
- New-construction ceiling installations.
- Remodel projects configured in the field for this housing system.
What’s Included
One WAC Ion 2 in. round LED downlight, remote driver, and new-construction housing with hanger bars.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the WAC Ion R2DRDN-F9CS-WT suitable for insulated ceilings and Air-Tight installations?
Is the WAC Ion R2DRDN-F9CS-WT suitable for insulated ceilings and Air-Tight installations?
What dimmer types work with the WAC Ion downlight?
What dimmer types work with the WAC Ion downlight?
What light output and CCT settings does R2DRDN-F9CS-WT offer?
What light output and CCT settings does R2DRDN-F9CS-WT offer?
Does this downlight include a housing, and what cutout is needed?
Does this downlight include a housing, and what cutout is needed?
What is included, and what is the warranty?
What is included, and what is the warranty?
