WAC Lighting Ocularc 22W LED Monopoint Track Light 5CCT Wall Wash White
Available in stock (23)
About this item
About this item
- Even Wall Illumination: Asymmetric wall-wash optics, up to 1150 delivered lumens, 22W integrated LED.
- Five Color Choices: Toolless 2700K, 3000K, 3500K, 4000K and 5000K selector, 90+ CRI, 3-step MacAdam consistency.
- Flexible Aiming: 350° horizontal rotation and 90° vertical aiming, ceiling or wall mounting in all orientations.
- Complete Monopoint: White powder-coated die-cast aluminum fixture, canopy included, concealed driver, 120–277VAC input.
- Dimmable Performance: Compatible ELV or TRIAC dimming from 100% to 10%, 50,000-hour L70 life, damp-location listed.
Description
Description

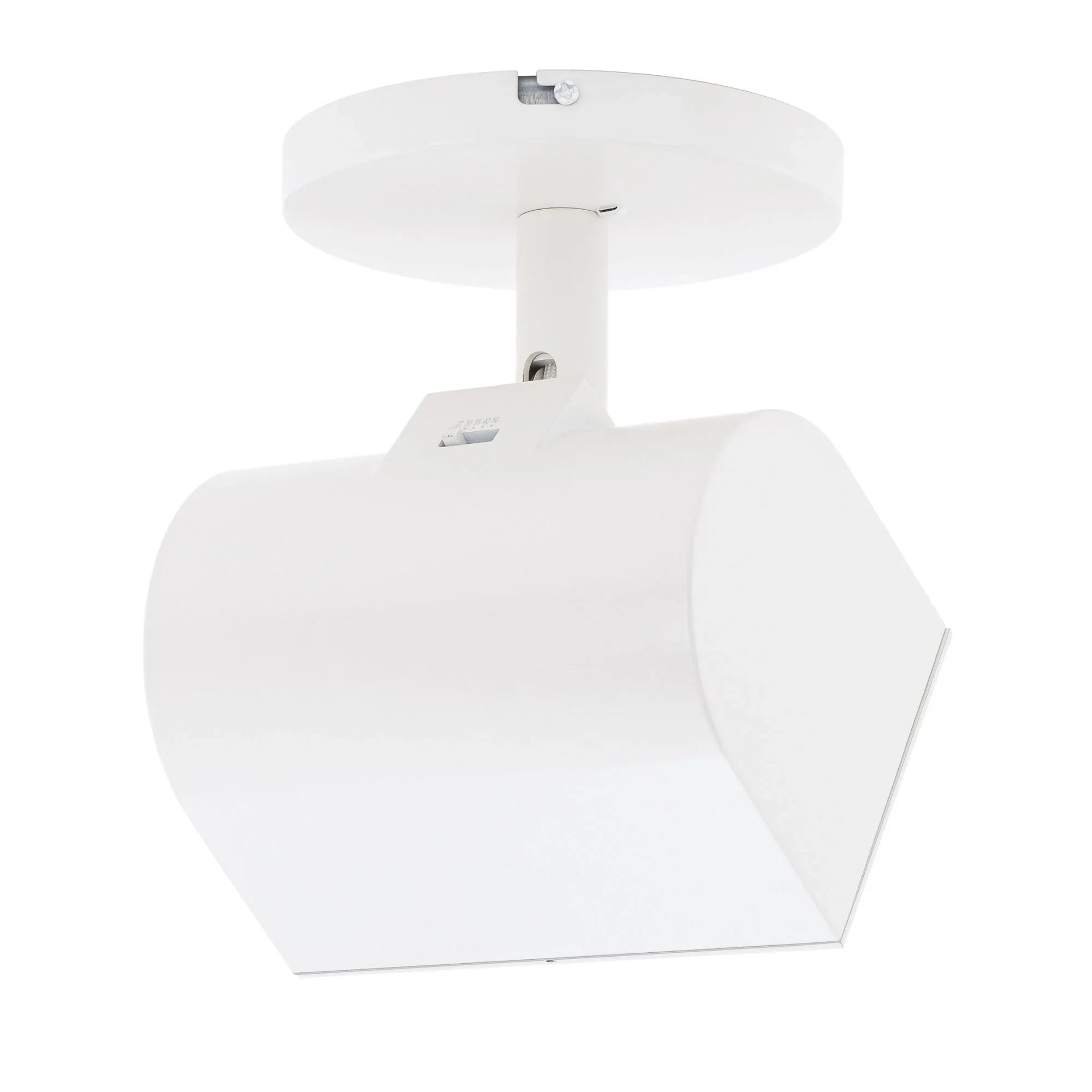

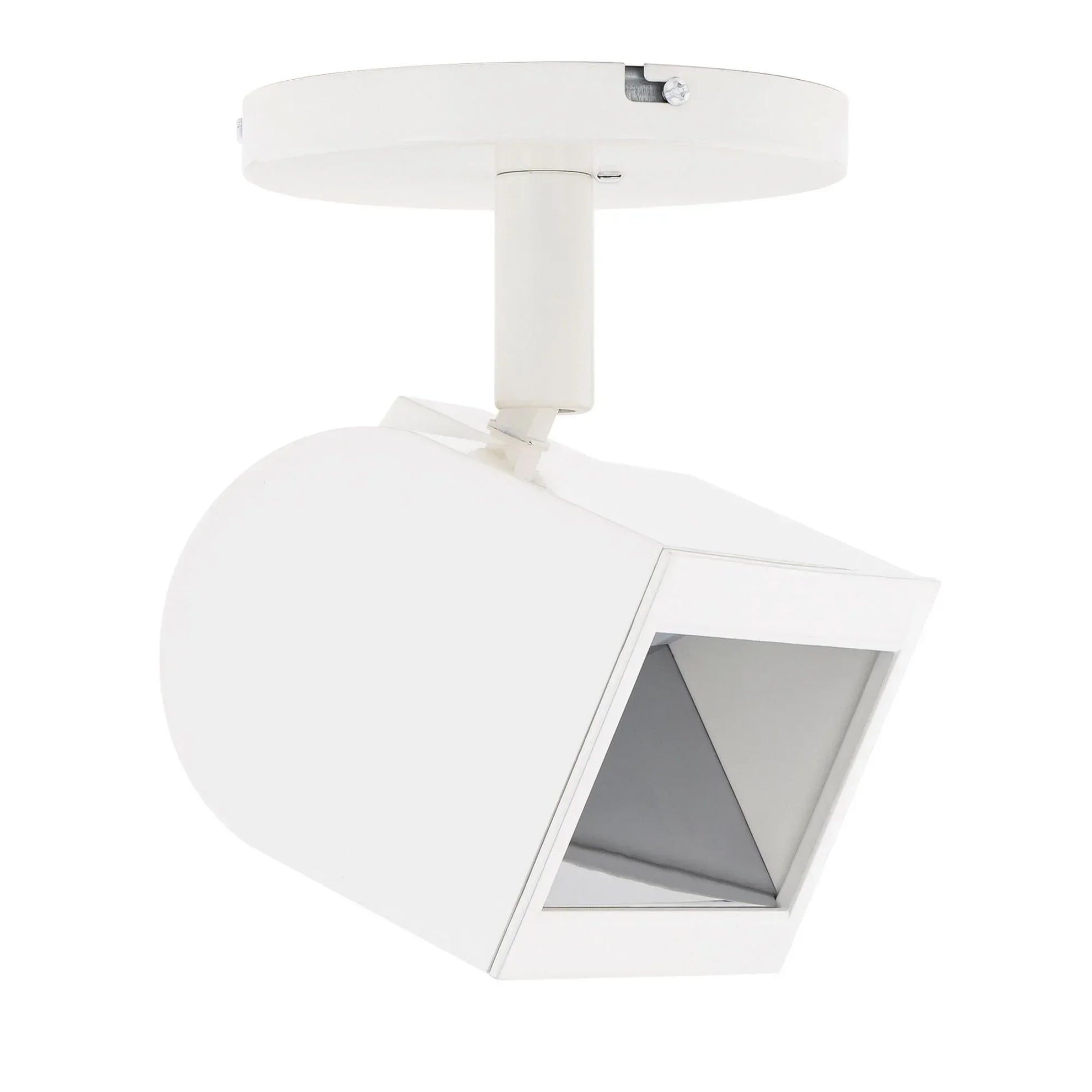

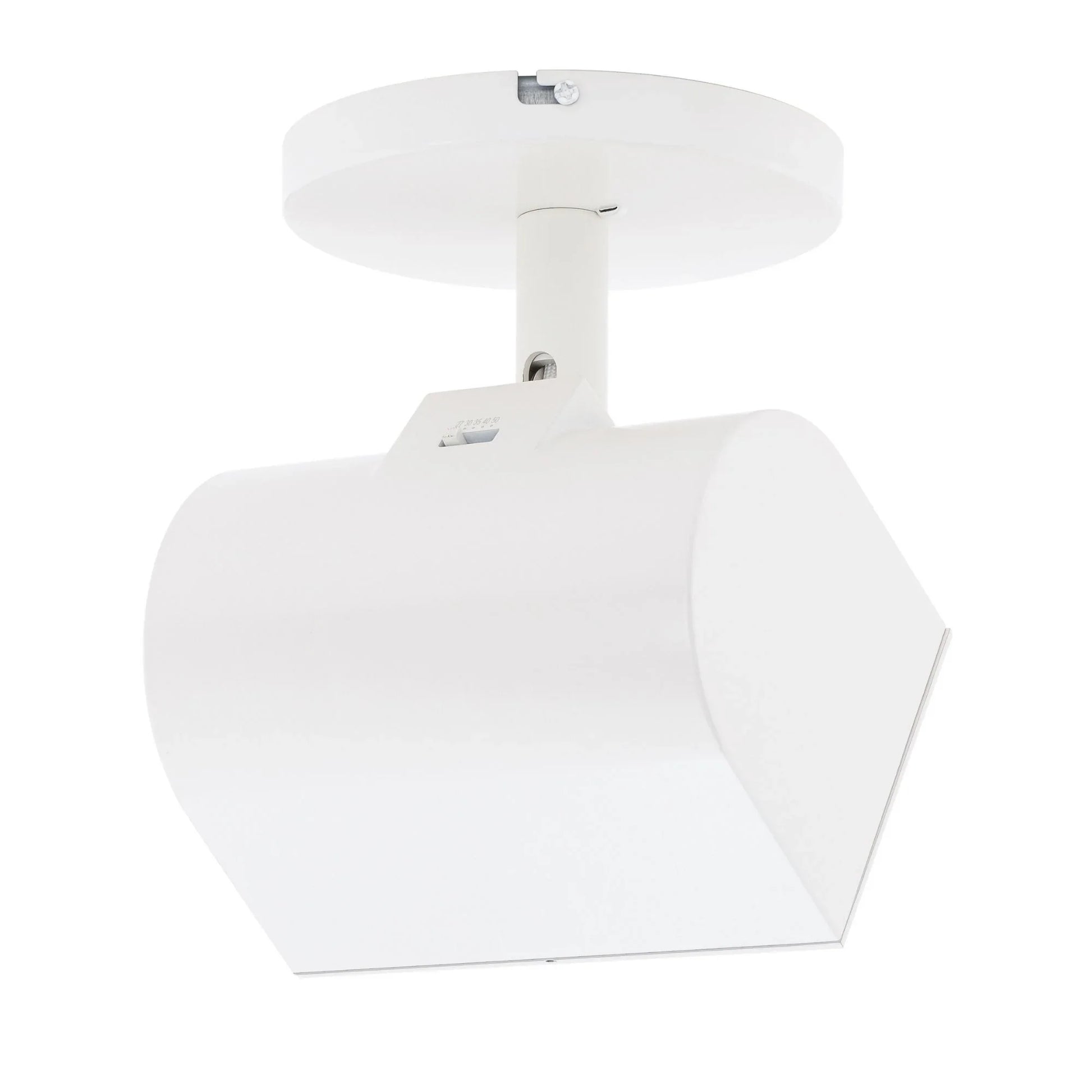

WAC Lighting Ocularc MO-3020W-CS-WT LED Monopoint Wall Wash in White

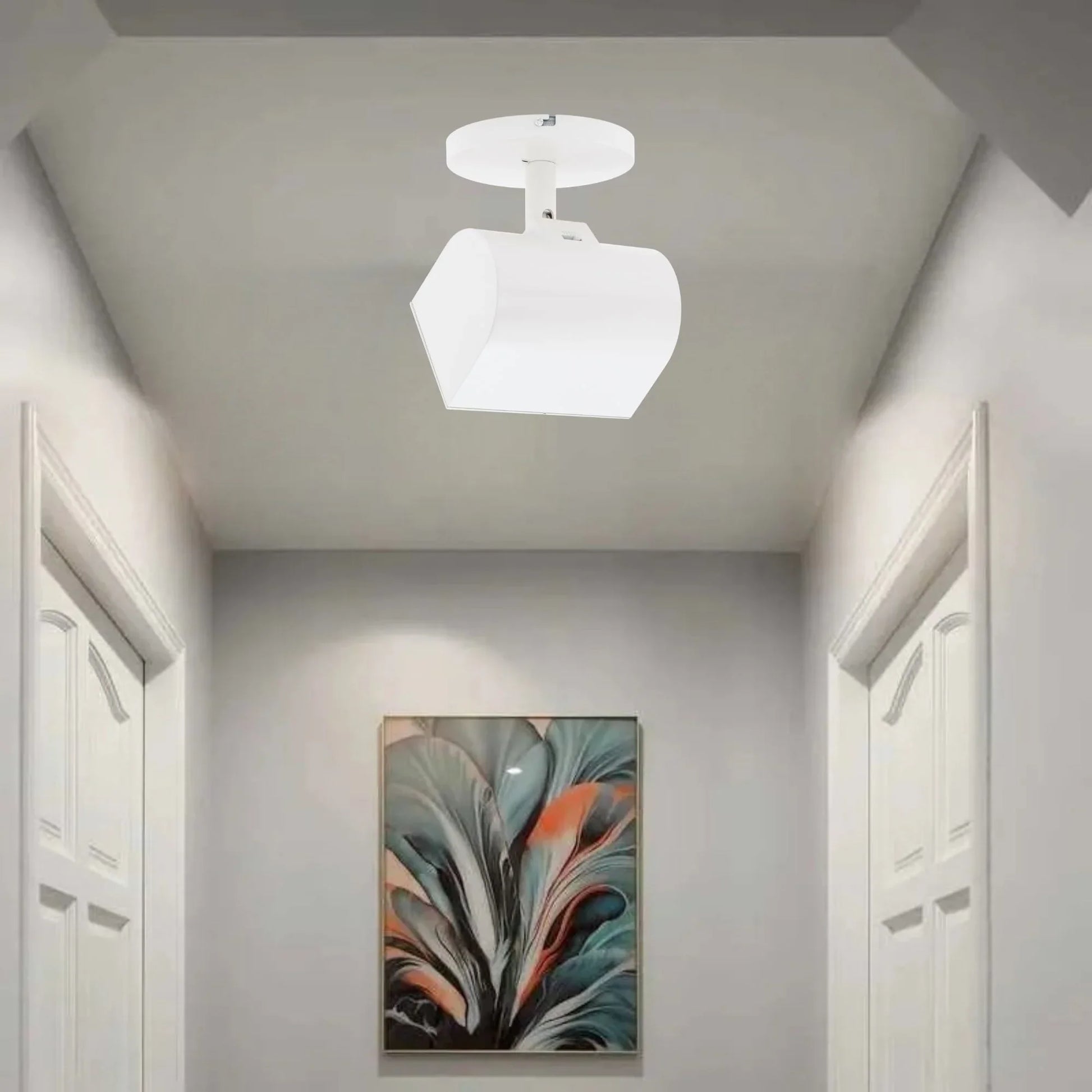

The WAC Lighting MO-3020W-CS-WT is a complete 22W Ocularc LED monopoint fixture with canopy included. Its asymmetric optical distribution spreads light evenly across walls for residential spaces and lower-mounted commercial installations. With 1150 delivered lumens, 90+ CRI and five selectable color temperatures, it highlights artwork, merchandise and architectural surfaces. The White powder-coated die-cast aluminum housing offers 350° horizontal rotation and 90° vertical aiming.
Key Features
- Configuration: Complete monopoint wall-wash luminaire, canopy included, integrated LED and concealed driver.
- Power & Output: 22W, up to 1150 delivered lumens.
- Selectable CCT: Toolless integrated switch, 2700K, 3000K, 3500K, 4000K and 5000K.
- Color Quality: 90+ CRI, 3-step MacAdam ellipse SMD LEDs.
- Optics: Asymmetric distribution for even wall illumination.
- Aiming: 350° horizontal rotation, 90° vertical adjustment.
- Dimming: Compatible ELV or TRIAC systems, 100%–10%.
- Electrical: 120–277VAC, 50/60Hz, power factor 0.93 at 120V and 0.91 at 277V, current THD below 15%.
- Construction: Die-cast aluminum, electrostatically powder-coated White finish.
- Dimensions: Head 5 in wide, 3 5/16 in face height, 3 5/8 in body depth, 6 7/8 in overall height as shown in the angled position.
- Mounting & Rating: Ceiling or wall mounting in all orientations, ETL and cETL damp-location listed, Title 24 JA8 compliant.
- Life & Temperature: 50,000-hour L70 rated life, -4°F to 104°F operating range.
Construction & Design

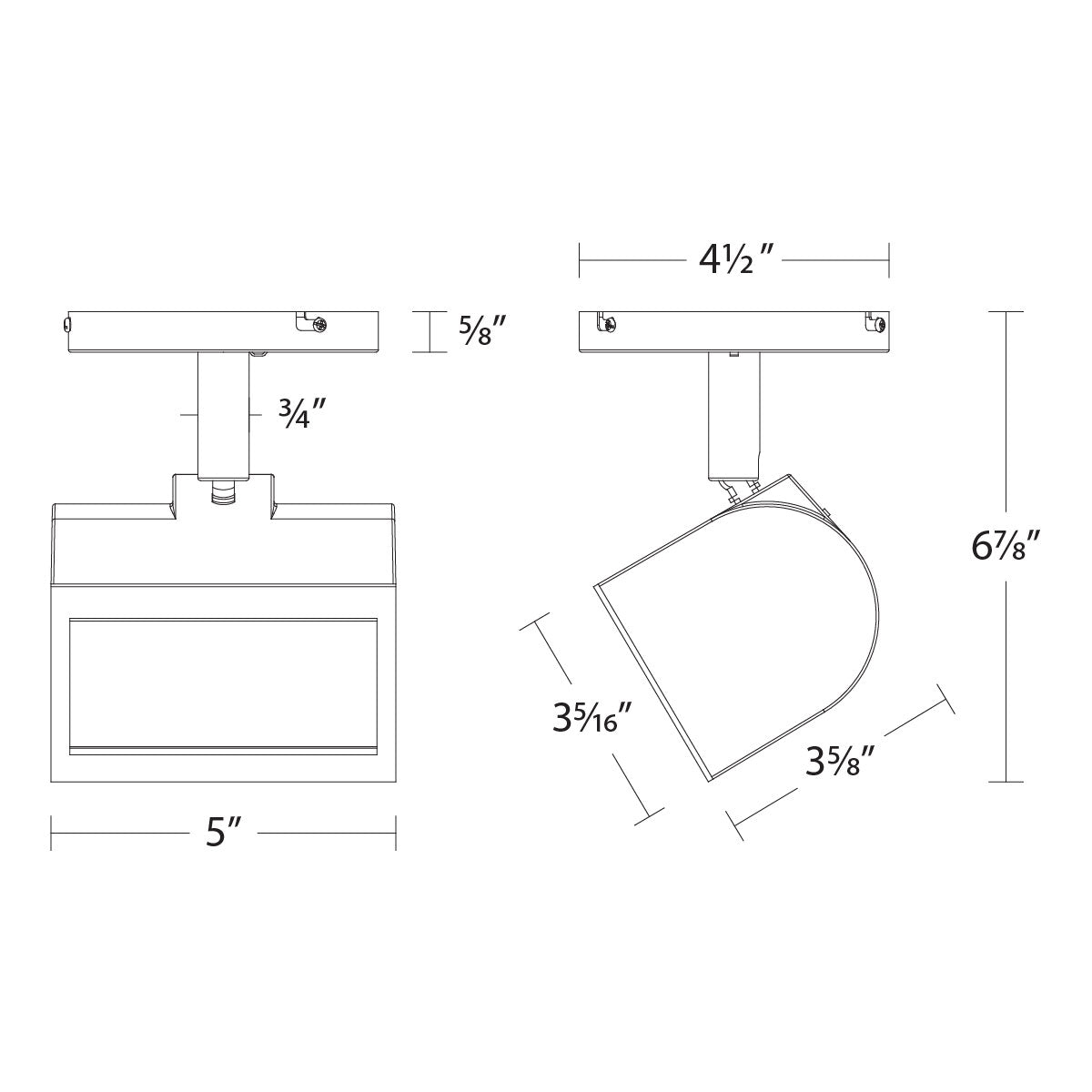

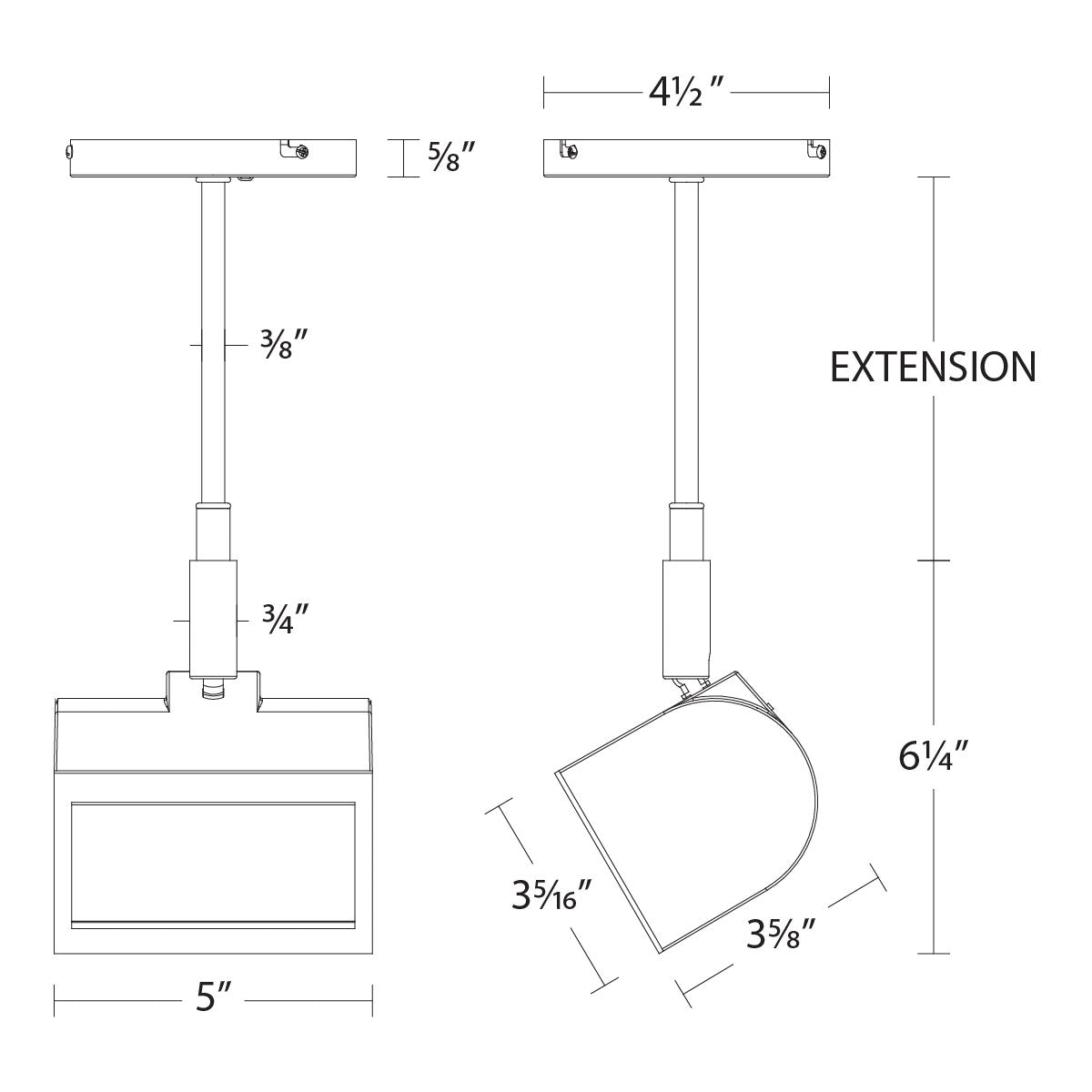

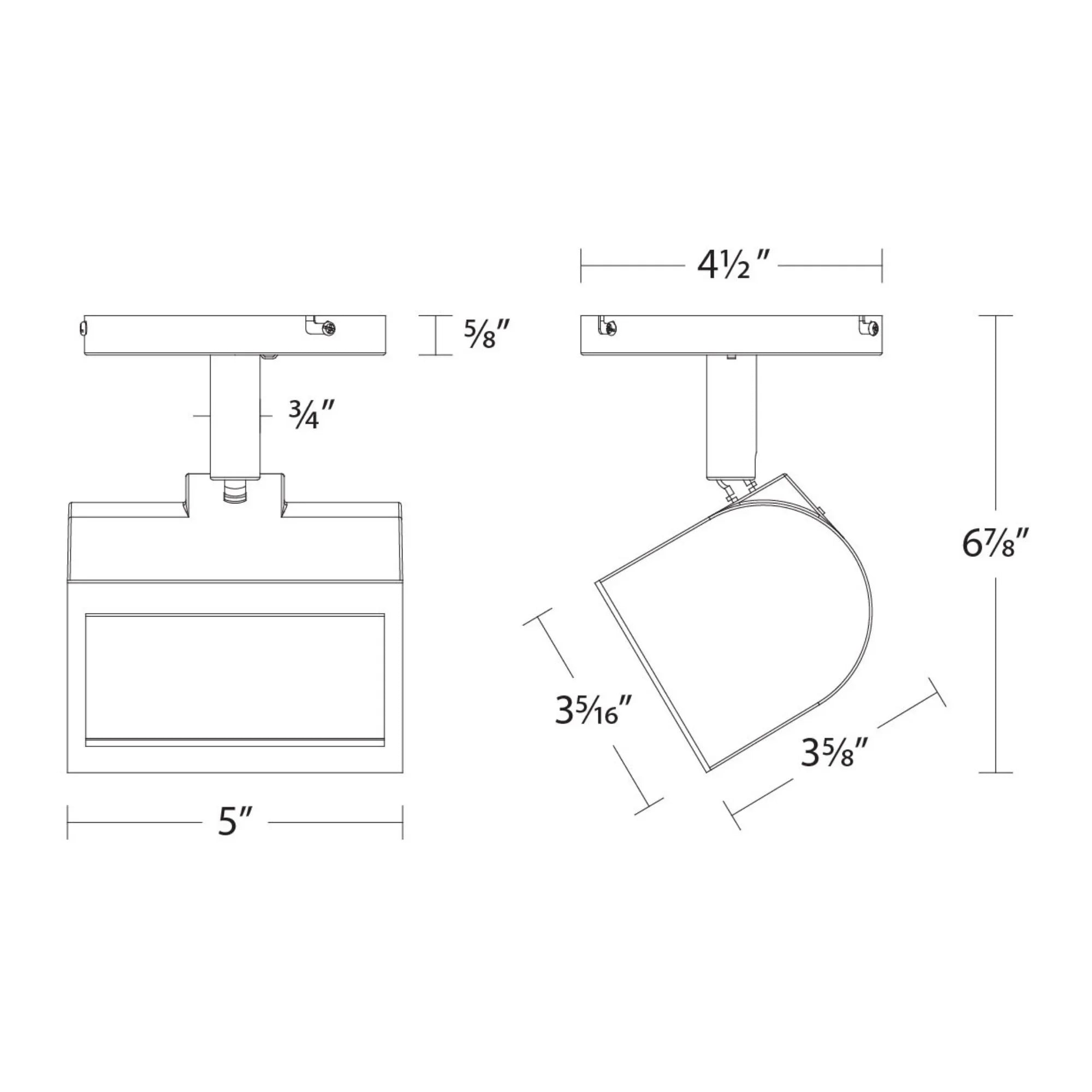

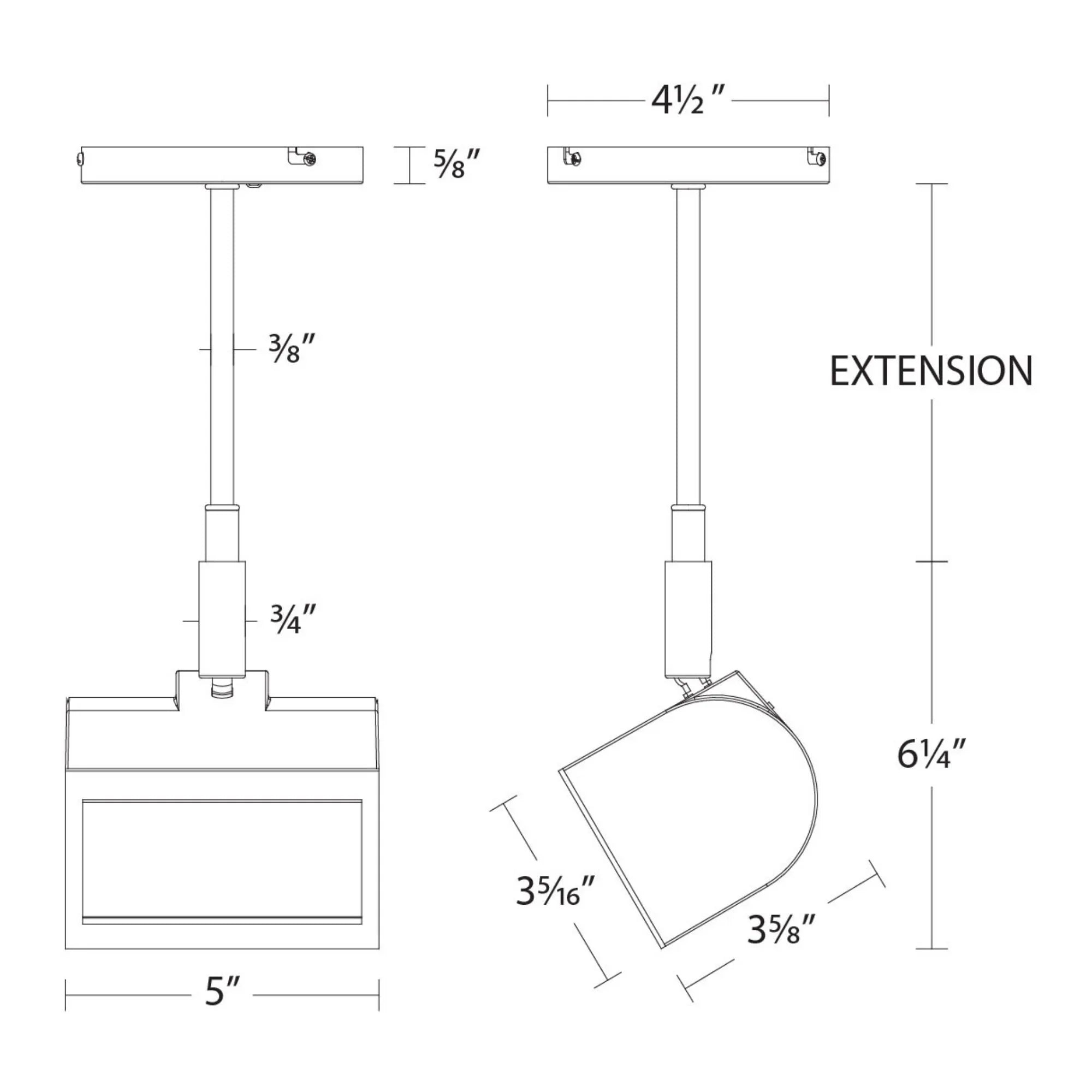

A White electrostatically powder-coated finish covers the die-cast aluminum housing, with the driver concealed within the fixture. The head measures 5 in wide by 3 5/16 in across its front face vertically and 3 5/8 in deep. The included canopy measures 4 1/2 in across and 5/8 in thick. Overall height is 6 7/8 in in the angled position. Adjust the head through 350° horizontal rotation and 90° vertical aiming to direct its wall-wash distribution.
Light Output & Performance
The 22W integrated SMD LED source provides up to 1150 delivered lumens with 90+ CRI and 3-step MacAdam color consistency. A discreet, toolless 5CCT switch selects 2700K, 3000K, 3500K, 4000K or 5000K. Its asymmetric optics provide even wall illumination rather than a conventional spot beam. Rated life is 50,000 hours at L70, with compatible ELV or TRIAC dimming from 100% to 10%.
Electrical & Installation
This complete canopy-mounted monopoint fixture operates on 120–277VAC, 50/60Hz with an integrated concealed driver; a track rail is not required. It supports ceiling or wall mounting in all orientations. For an even wall-wash effect, position fixtures 3–5 ft from the wall and 3–5 ft on center. Use a compatible ELV or TRIAC dimming system. Power factor is 0.93 at 120V and 0.91 at 277V, with current THD below 15%. The fixture is ETL and cETL listed for damp locations and Title 24 JA8 compliant, with an operating range of -4°F to 104°F.
Typical Applications
- Residential artwork and feature walls
- Retail merchandise wall displays
- Gallery wall illumination
- Lower-mounted commercial interiors
- Hospitality architectural accents
What's Included
- One MO-3020W-CS-WT White Ocularc monopoint wall-wash fixture with integrated SMD LED source, concealed driver and integrated toolless 5CCT selector switch
- Matching monopoint canopy
