Description

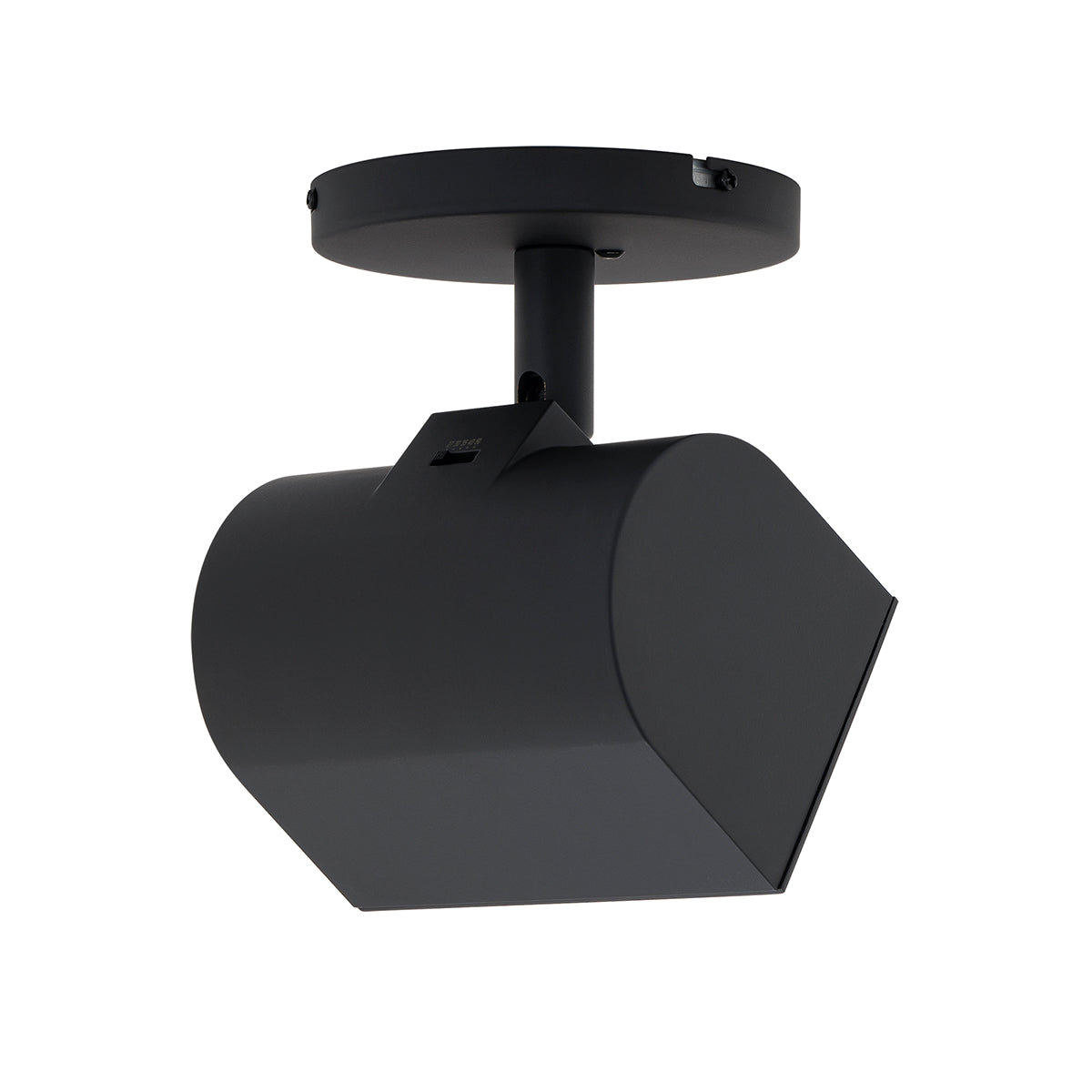

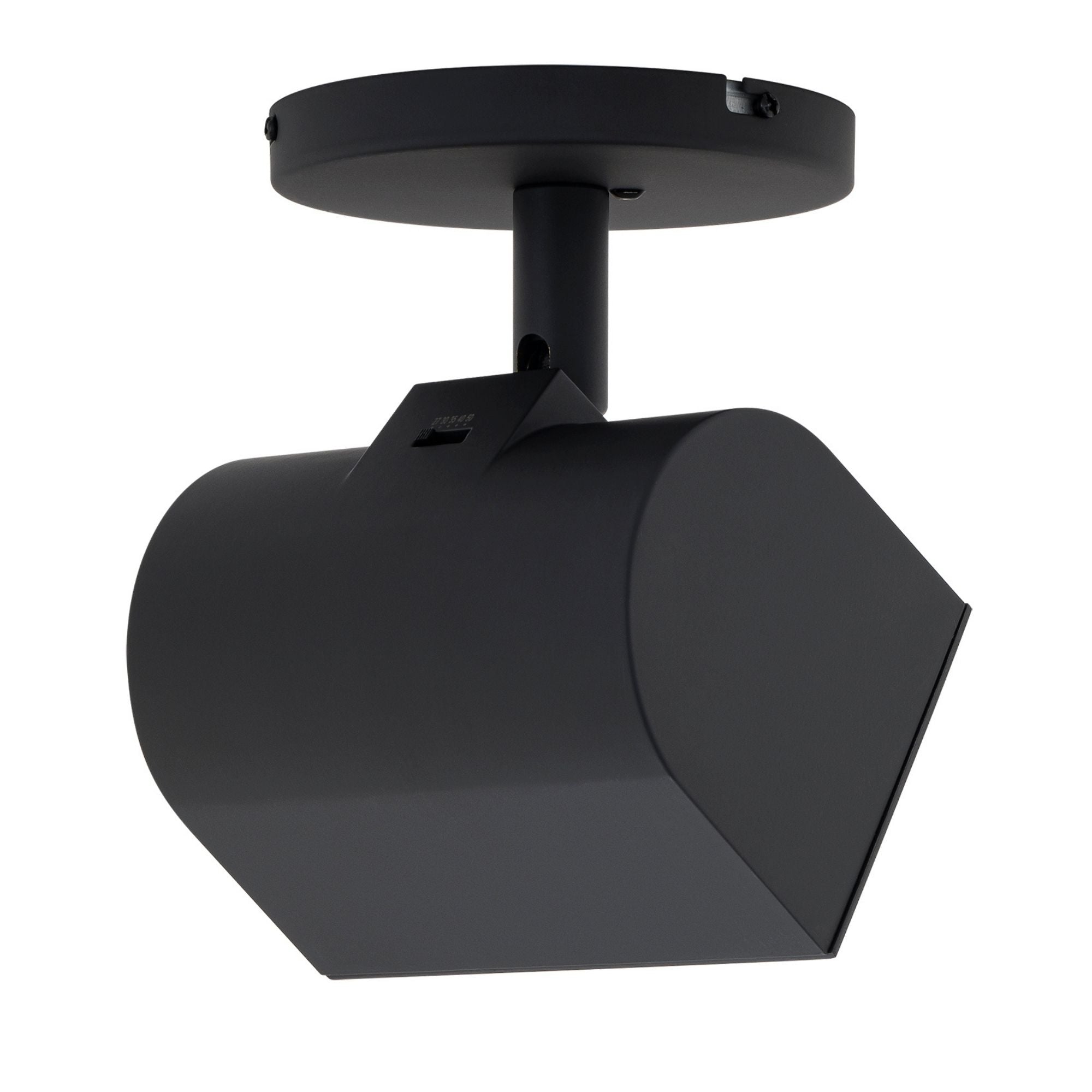

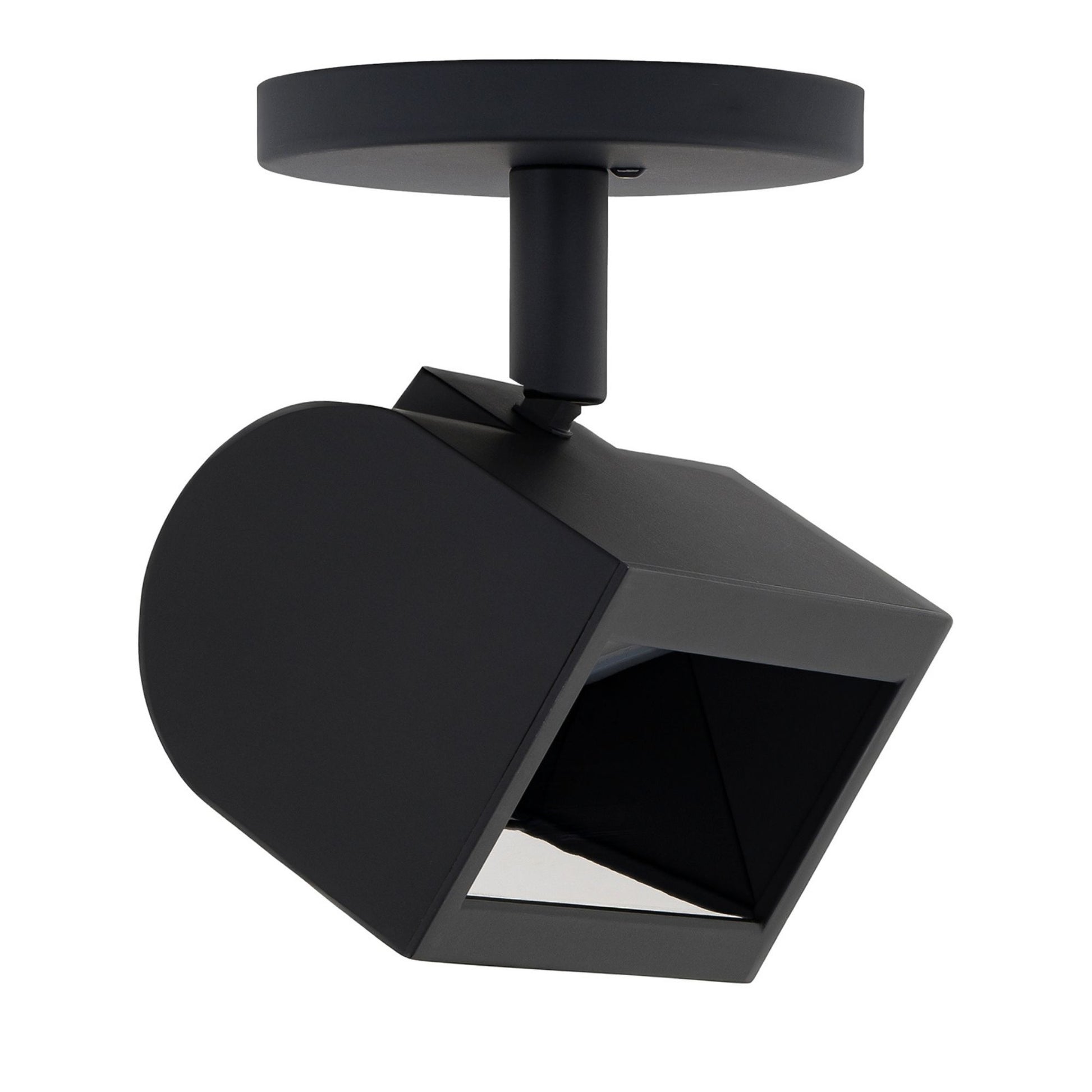

WAC Lighting Ocularc MO-3020W-CS-BK LED Monopoint Wall Wash in Black

The WAC Lighting MO-3020W-CS-BK is a complete 22W Ocularc LED monopoint fixture with canopy included. Its asymmetric optical distribution spreads light evenly across walls for residential spaces and lower-mounted commercial installations. With 1150 delivered lumens, 90+ CRI and five selectable color temperatures, it highlights artwork, merchandise and architectural surfaces. The Black powder-coated die-cast aluminum housing offers 350° horizontal rotation and 90° vertical aiming.

Key Features

  • Configuration: Complete monopoint wall-wash luminaire, canopy included, integrated LED and concealed driver.
  • Power & Output: 22W, up to 1150 delivered lumens.
  • Selectable CCT: Toolless integrated switch, 2700K, 3000K, 3500K, 4000K and 5000K.
  • Color Quality: 90+ CRI, 3-step MacAdam ellipse SMD LEDs.
  • Optics: Asymmetric distribution for even wall illumination.
  • Aiming: 350° horizontal rotation, 90° vertical adjustment.
  • Dimming: Compatible ELV or TRIAC systems, 100%–10%.
  • Electrical: 120–277VAC, 50/60Hz, power factor 0.93 at 120V and 0.91 at 277V, current THD below 15%.
  • Construction: Die-cast aluminum, electrostatically powder-coated Black finish.
  • Dimensions: Head 5 in wide, 3 5/16 in face height, 3 5/8 in body depth, 6 7/8 in overall height as shown in the angled position.
  • Mounting & Rating: Ceiling or wall mounting in all orientations, ETL and cETL damp-location listed, Title 24 JA8 compliant.
  • Life & Temperature: 50,000-hour L70 rated life, -4°F to 104°F operating range.

Construction & Design

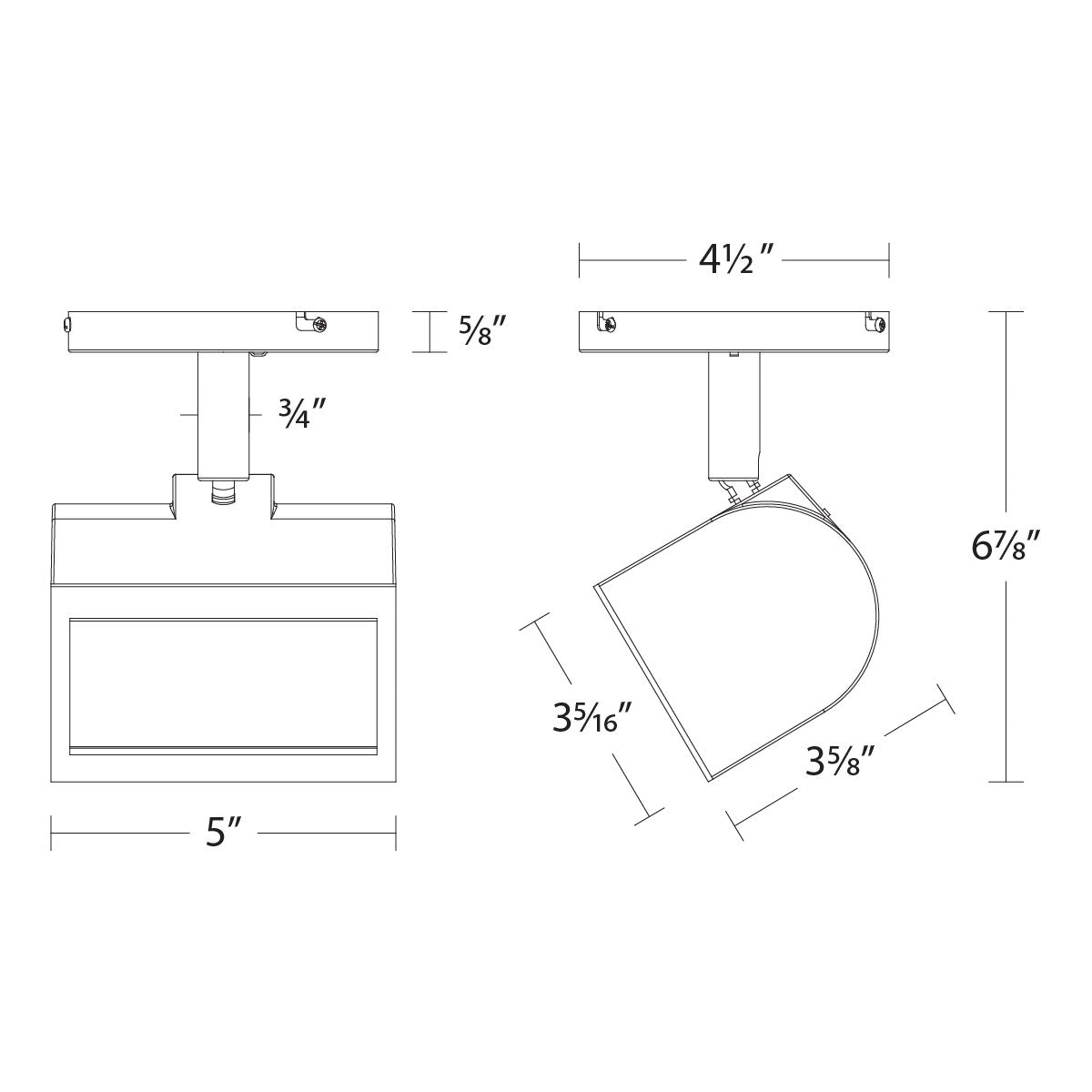

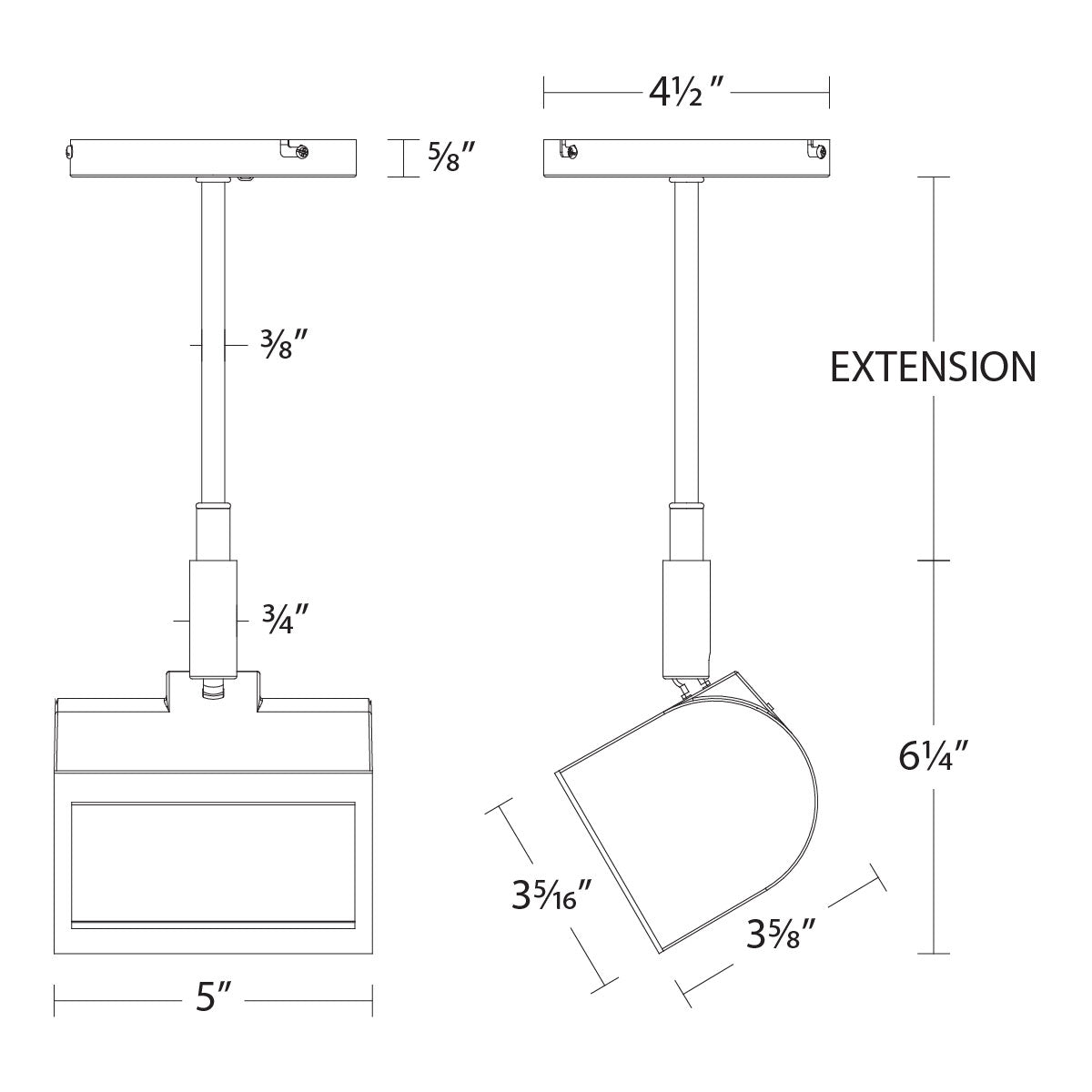

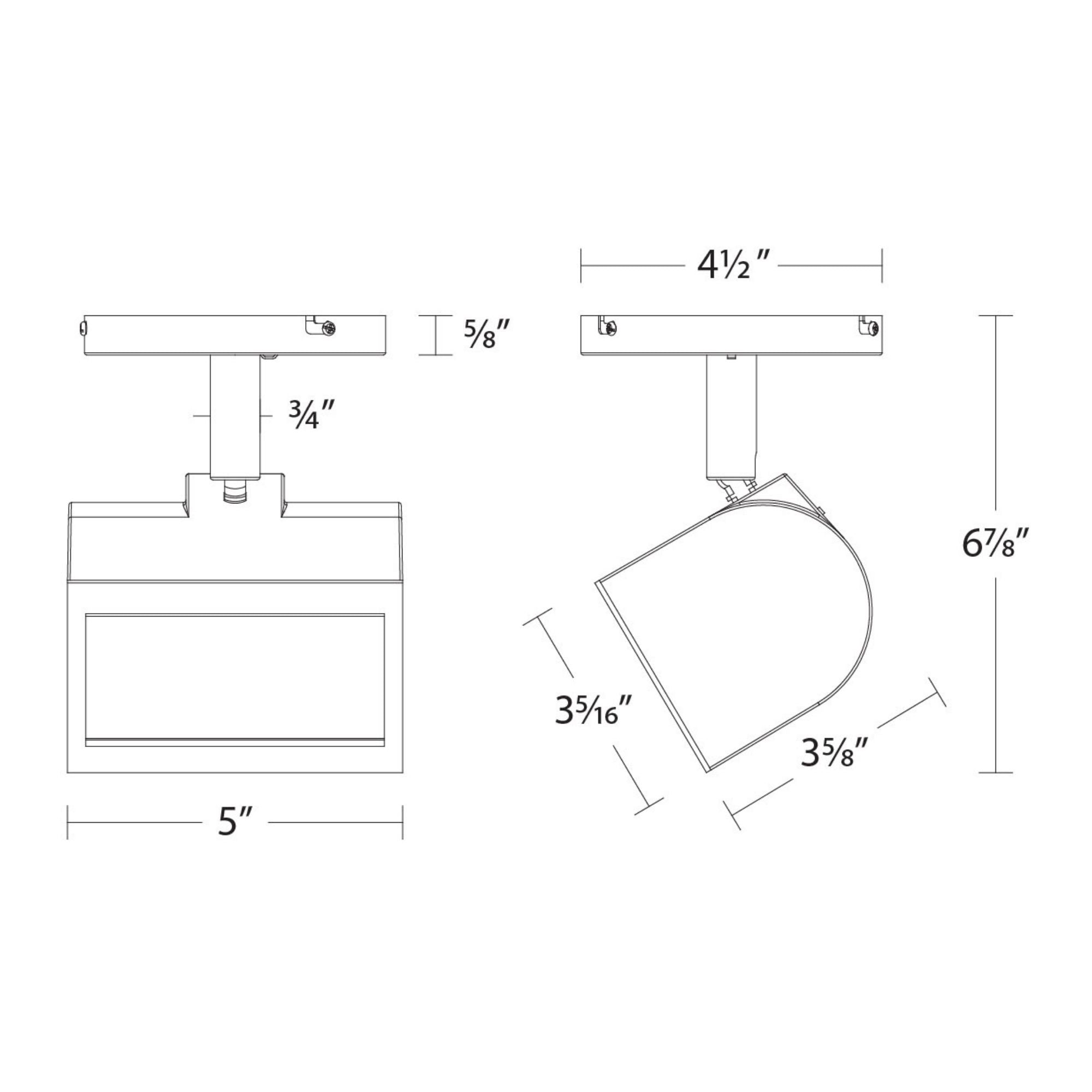

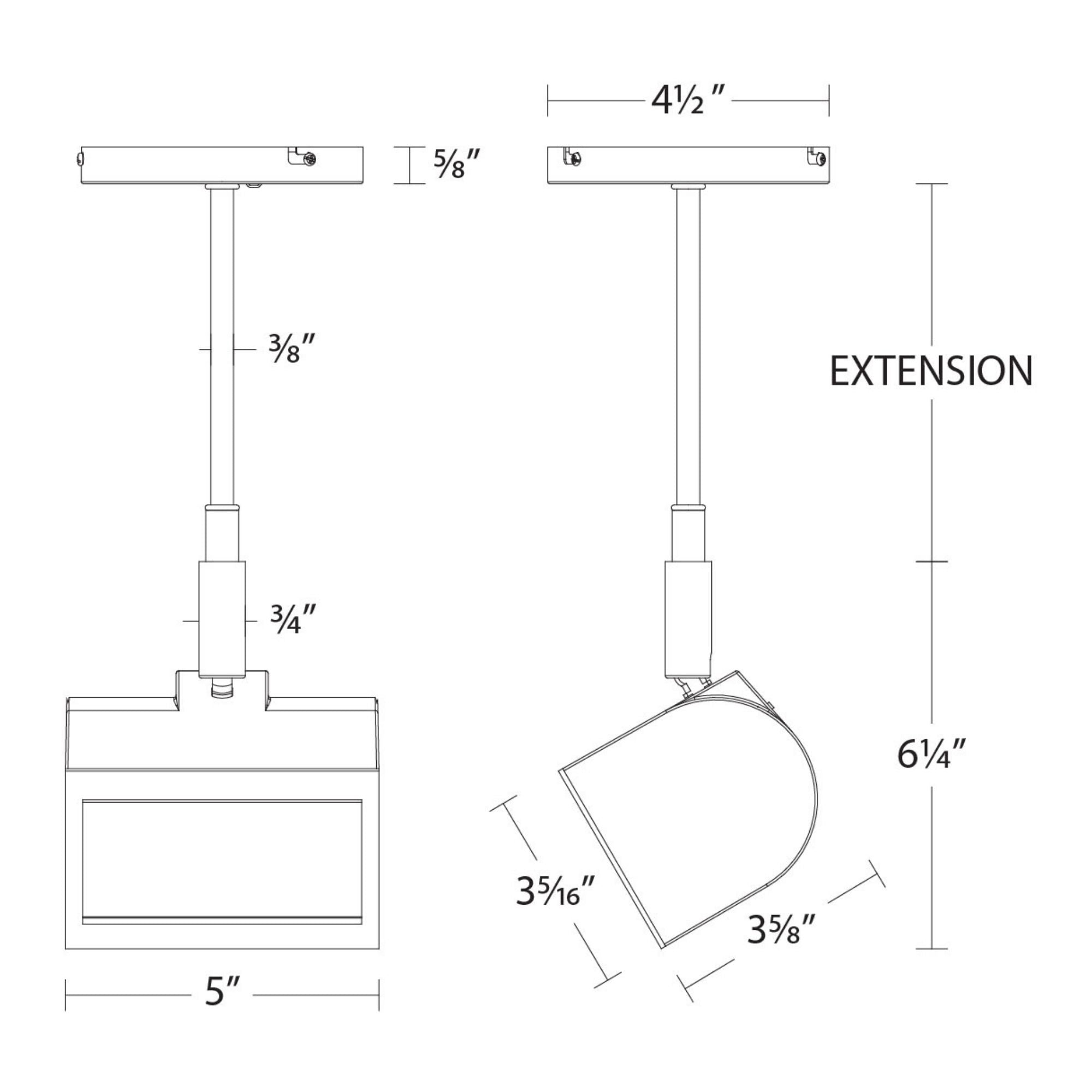

A Black electrostatically powder-coated finish covers the die-cast aluminum housing, with the driver concealed within the fixture. The head measures 5 in wide by 3 5/16 in across its front face vertically and 3 5/8 in deep. The included canopy measures 4 1/2 in across and 5/8 in thick. Overall height is 6 7/8 in in the angled position. Adjust the head through 350° horizontal rotation and 90° vertical aiming to direct its wall-wash distribution.

Light Output & Performance

The 22W integrated SMD LED source provides up to 1150 delivered lumens with 90+ CRI and 3-step MacAdam color consistency. A discreet, toolless 5CCT switch selects 2700K, 3000K, 3500K, 4000K or 5000K. Its asymmetric optics provide even wall illumination rather than a conventional spot beam. Rated life is 50,000 hours at L70, with compatible ELV or TRIAC dimming from 100% to 10%.

Electrical & Installation

This complete canopy-mounted monopoint fixture operates on 120–277VAC, 50/60Hz with an integrated concealed driver; a track rail is not required. It supports ceiling or wall mounting in all orientations. For an even wall-wash effect, position fixtures 3–5 ft from the wall and 3–5 ft on center. Use a compatible ELV or TRIAC dimming system. Power factor is 0.93 at 120V and 0.91 at 277V, with current THD below 15%. The fixture is ETL and cETL listed for damp locations and Title 24 JA8 compliant, with an operating range of -4°F to 104°F.

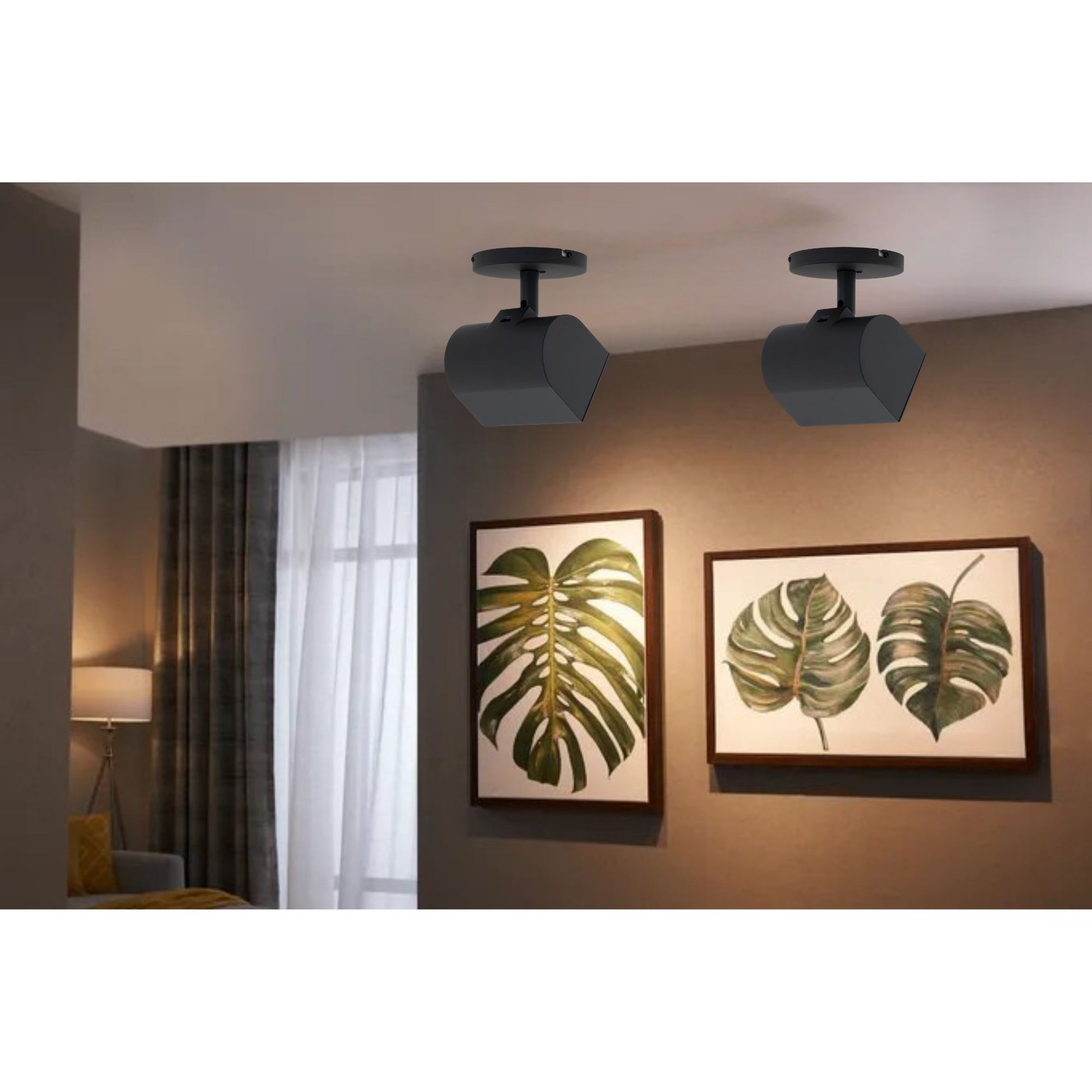

Typical Applications

  • Residential artwork and feature walls
  • Retail merchandise wall displays
  • Gallery wall illumination
  • Lower-mounted commercial interiors
  • Hospitality architectural accents

What's Included

  • One MO-3020W-CS-BK Black Ocularc monopoint wall-wash fixture with integrated SMD LED source, concealed driver and integrated toolless 5CCT selector switch
  • Matching monopoint canopy

Specifications

Dimensions

Length/Depth
4.5 in
Width/Diameter
5 in
Height
6.75 in
Weight
2.64 lb

Style & Materials

Finish
Black
Material
Aluminum
Style
Contemporary Modern
Shape
Heads, Directional

Characteristics & Features

Lamp Source
LED
Base Type
Integrated
Bulb Included
Yes
Integrated LED
Yes
Bulb
Integrated LED
Number of Lights
1
Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
22W
Bulb Wattage
22W

Item Details

MPN
MO-3020W-CS-BK
Brand
WAC Lighting
Family
Ocularc
UPC
197179072089

Warranty & Certifications

Product Warranty
5 year
Lamp Life
50000 hours
Safety Listing
ETL, cETL

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the WAC Lighting MO-3020W-CS-BK a complete monopoint fixture?

Yes, the WAC Lighting MO-3020W-CS-BK includes the Black monopoint luminaire, matching canopy, integrated LED source, concealed driver and toolless 5CCT selector. It does not require a track rail.

Can the WAC Lighting MO-3020W-CS-BK change color temperature and dim?

Yes, the WAC Lighting MO-3020W-CS-BK has a toolless switch for 2700K, 3000K, 3500K, 4000K or 5000K. Compatible ELV or TRIAC dimming systems adjust output from 100% to 10%.

What output and beam distribution does the WAC Lighting MO-3020W-CS-BK provide?

The WAC Lighting MO-3020W-CS-BK delivers up to 1150 lumens from a 22W SMD LED source with 90+ CRI and 3-step MacAdam color consistency. Its asymmetric distribution is designed for even wall washing. Rated LED life is 50,000 hours at L70.

What are the dimensions and aiming range of the WAC Lighting MO-3020W-CS-BK?

The WAC Lighting MO-3020W-CS-BK has a 5 in wide head with a 3 5/16 in face height and 3 5/8 in body depth. Its canopy measures 4 1/2 in across by 5/8 in thick; overall height is 6 7/8 in in the angled position. It offers 350° horizontal rotation and 90° vertical aiming.

Where and how can the WAC Lighting MO-3020W-CS-BK be installed?

The WAC Lighting MO-3020W-CS-BK supports ceiling or wall mounting in all orientations and operates on 120–277VAC, 50/60Hz. For optimal wall washing, install 3–5 ft from the wall and 3–5 ft on center. It is ETL and cETL damp-location listed, Title 24 JA8 compliant and rated for -4°F to 104°F.
