WAC Lighting Ocularc 7030 29W L-Type LED Track Head 5CCT Beam Adjustable White
Available in stock (97)
About this item
About this item
- Three Included Beam Options: Pre-installed 55° flood film, supplied 40° narrow-flood film, 20° spot with film removed.
- High-Output Performance: 29W, up to 2255 lumens at 20°, 2095 lumens at 40°, 2065 lumens at 55°.
- Selectable Color Quality: Toolless 5CCT switch from 2700K to 5000K, 90+ CRI, 3-step MacAdam consistency.
- Directional & Dimmable: 350° horizontal and 90° vertical aiming, ELV or TRIAC dimming from 100% to 10%.
- Glare-Control Design: White powder-coated die-cast aluminum, baffled front cover, concealed driver, L-Type (Lightolier) track.
Description
Description

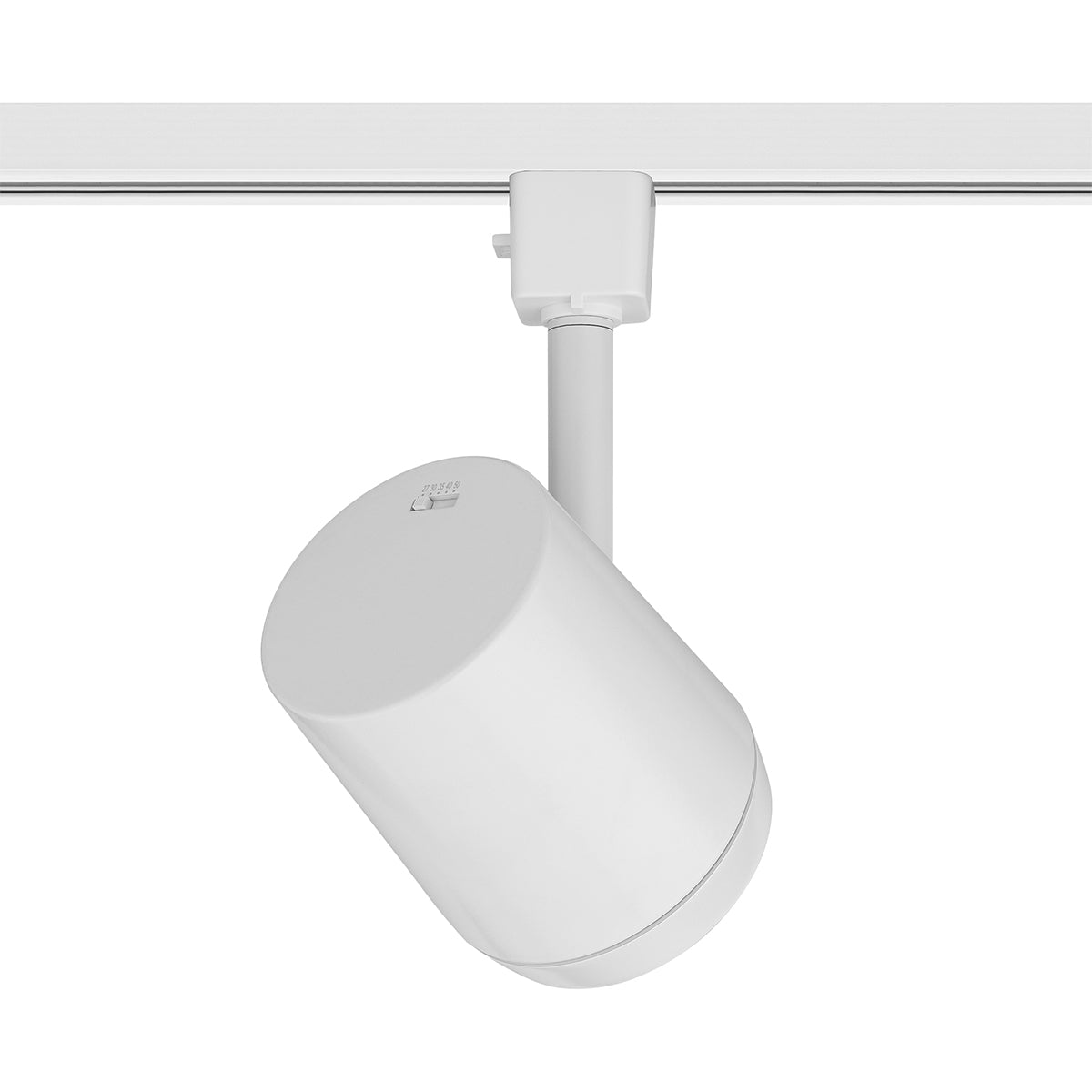

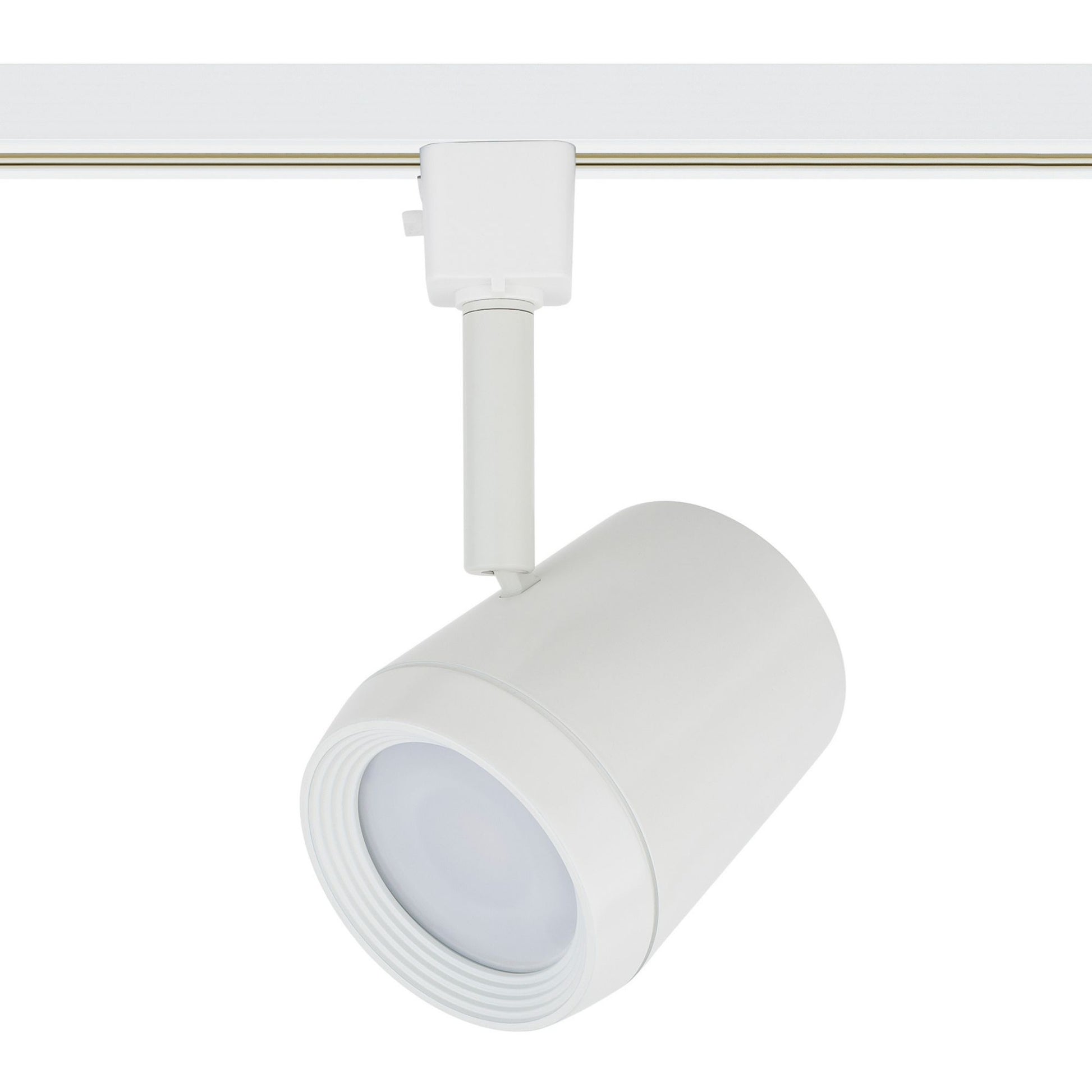

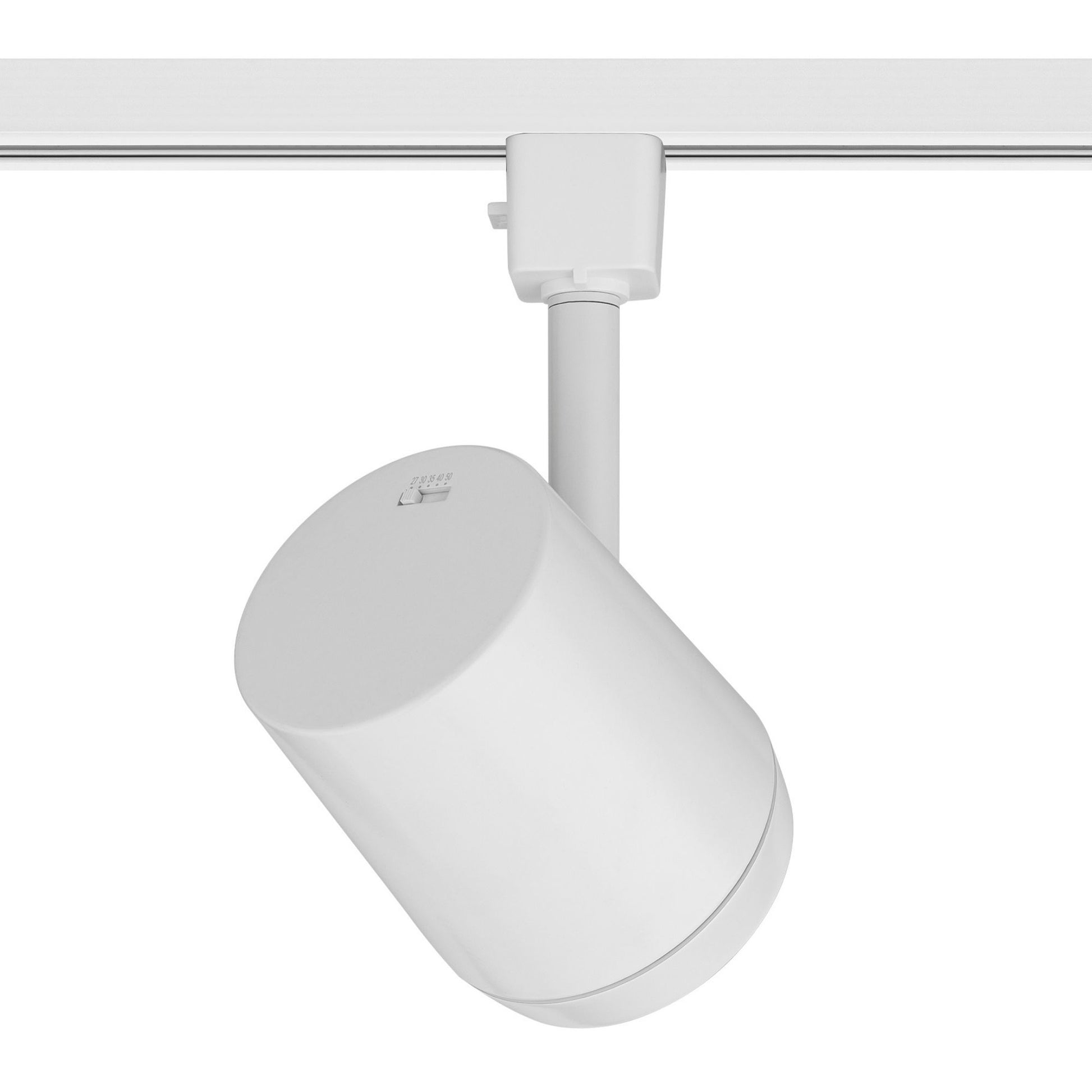

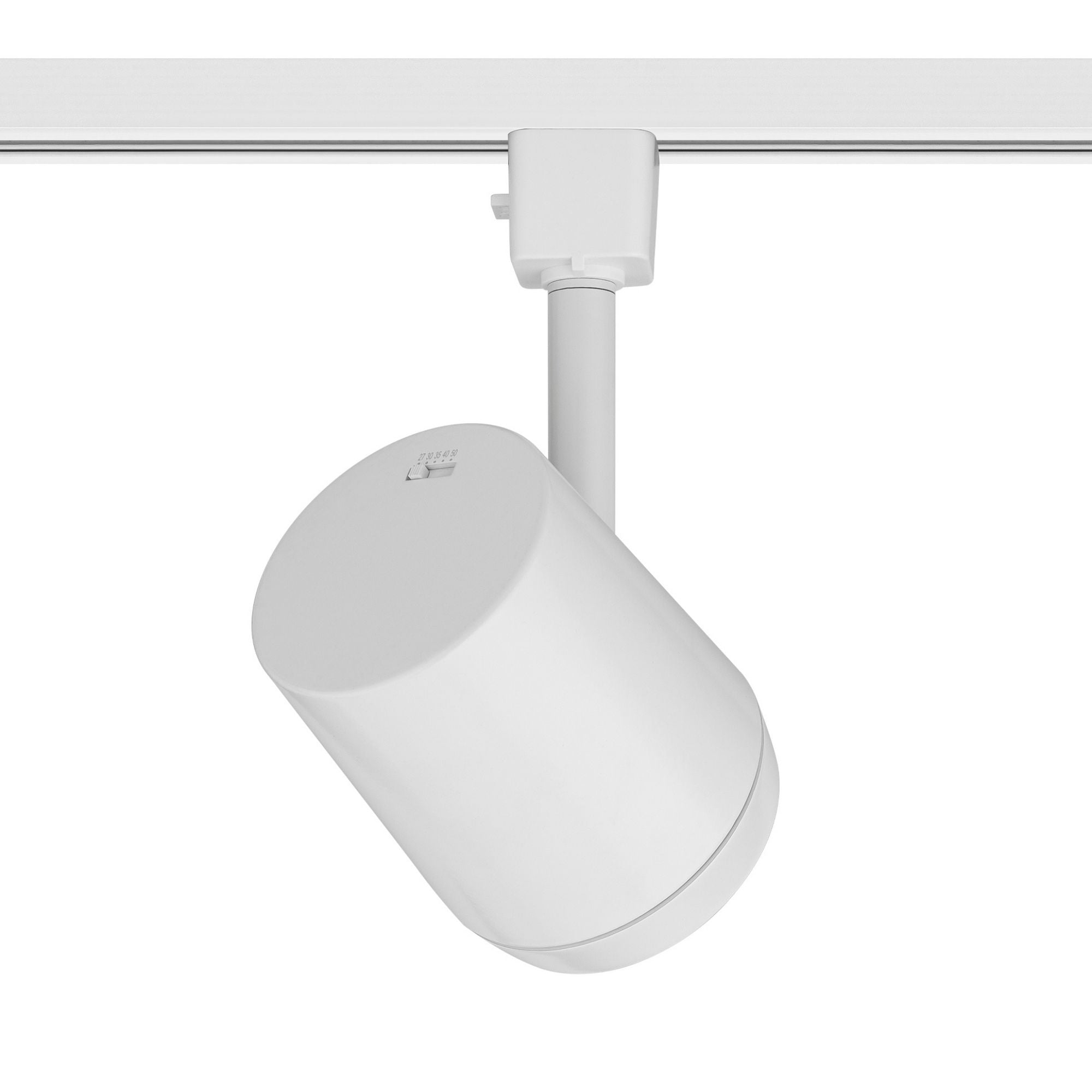

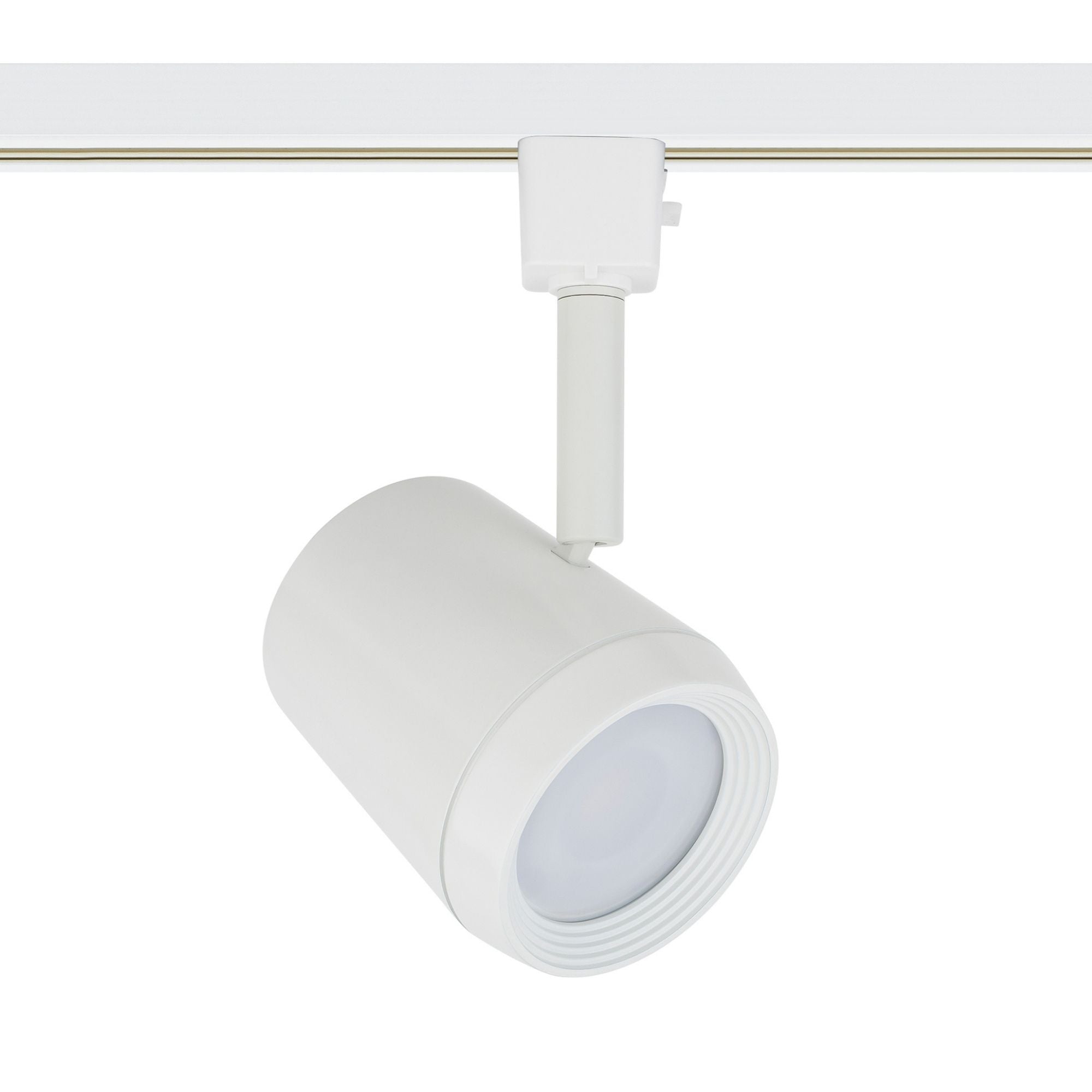

WAC Lighting Ocularc L-7030-CS-WT LED Track Head
The WAC Lighting Ocularc L-7030-CS-WT combines a 29W high-output COB LED with three included beam options for retail and higher-mounted residential installations. Use the 55° flood for broader coverage, the 40° narrow flood for more concentrated lighting, or the 20° spot for focused accents. Maximum output reaches 2255 lumens in the 20° configuration. Its White die-cast housing includes a baffled front cover for glare control, and five selectable color temperatures help coordinate the light with the space. This version fits L-Type (Lightolier) track.
Key Features
- Track Type: L-Type (Lightolier).
- Power: 29W, integrated high-output COB LED.
- Included Beam Options: 55° film pre-installed, interchangeable 40° film supplied, remove film for a 20° spot.
- Maximum Output by Beam: 20°, 2255 lumens; 40°, 2095 lumens; 55°, 2065 lumens.
- Color Selection: Toolless switch, 2700K, 3000K, 3500K, 4000K or 5000K.
- Color Quality: 90+ CRI, 3-step MacAdam ellipse.
- Aiming: 350° horizontal, 90° vertical.
- Glare Control: Die-cast aluminum, baffled front cover.
- Finish: Electrostatically powder-coated White.
- Dimming: ELV or TRIAC, 100% to 10% with a compatible dimmer.
- Electrical: 120V AC, 50/60Hz, integral driver, 0.98 power factor, less than 15% current THD.
- Life & Location: 50,000 hours at L70, dry locations, -4°F to 104°F.
Construction & Design

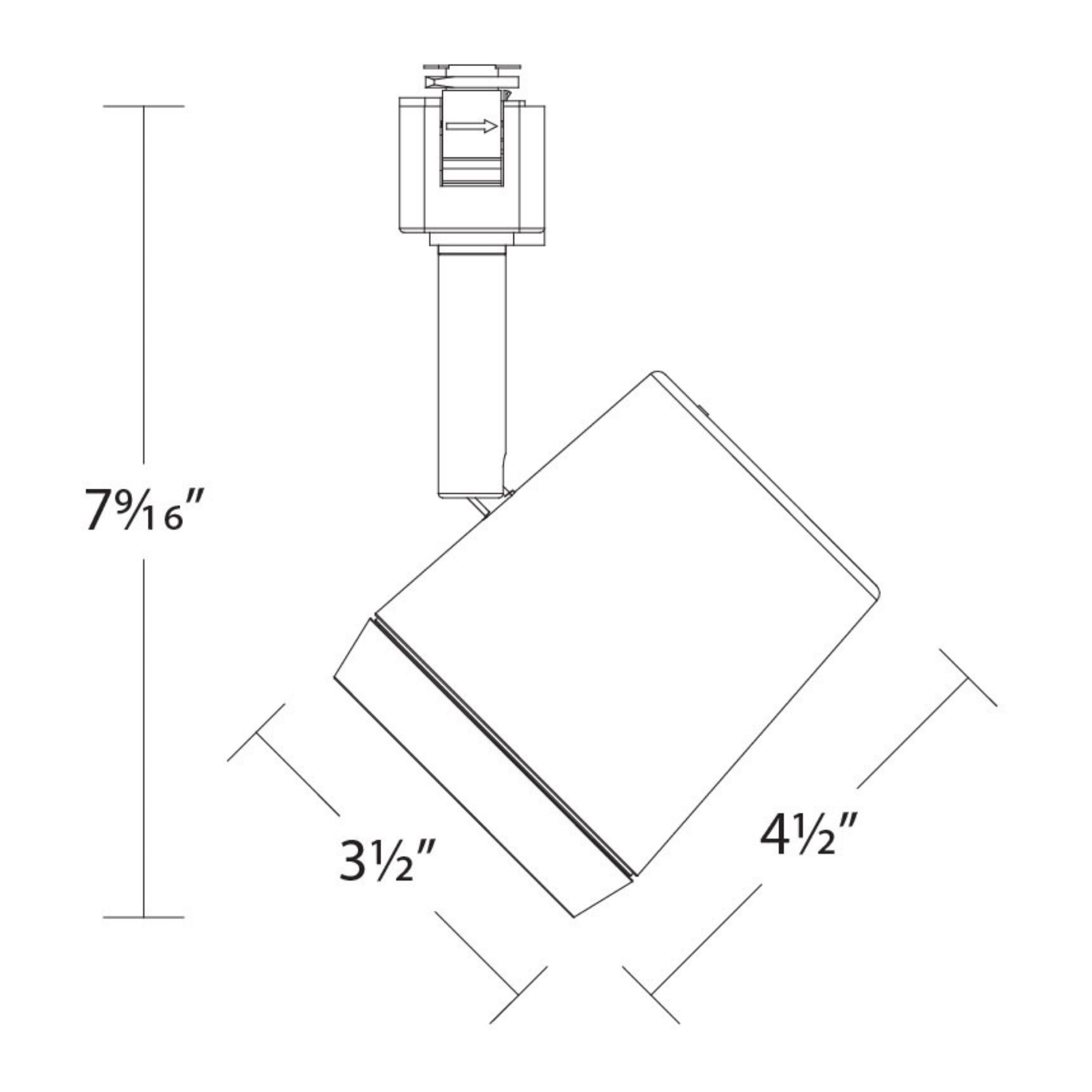

The die-cast aluminum housing features a baffled front cover for glare control and an electrostatically powder-coated White finish. A concealed integral driver keeps the fixture self-contained. The head measures 3.5 in across and 4.5 in body length, with an overall height of 7.5625 in in the illustrated angled position. Its adjustable base and 350° horizontal and 90° vertical aiming allow light to be directed toward displays and architectural features.
Light Output & Performance
The 55° flood film comes pre-installed. Exchange it for the included 40° narrow-flood film, or remove the film to use the 20° spot beam. Maximum output and center-beam intensity vary with the selected optic:
- 20° Spot: 2255 lumens, 9300 CBCP.
- 40° Narrow Flood: 2095 lumens, 2830 CBCP.
- 55° Flood: 2065 lumens, 1875 CBCP.
A toolless integrated 5CCT switch selects 2700K, 3000K, 3500K, 4000K or 5000K. The COB LED provides 90+ CRI and 3-step MacAdam color consistency. Compatible ELV or TRIAC dimmers adjust brightness from 100% to 10%. Rated life is 50,000 hours at L70.
Electrical & Installation
The WAC Lighting L-7030-CS-WT operates at 29W, 120V AC, 50/60Hz, with an integral driver, 0.98 power factor and less than 15% current THD. It fits L-Type (Lightolier) track; choose the matching track version rather than an H-Type or J-Type model. Install in dry locations within the -4°F to 104°F operating range. The luminaire is ETL and cETL listed and Title 24 JA8 compliant.
Typical Applications
- Retail merchandise lighting.
- Showroom display lighting.

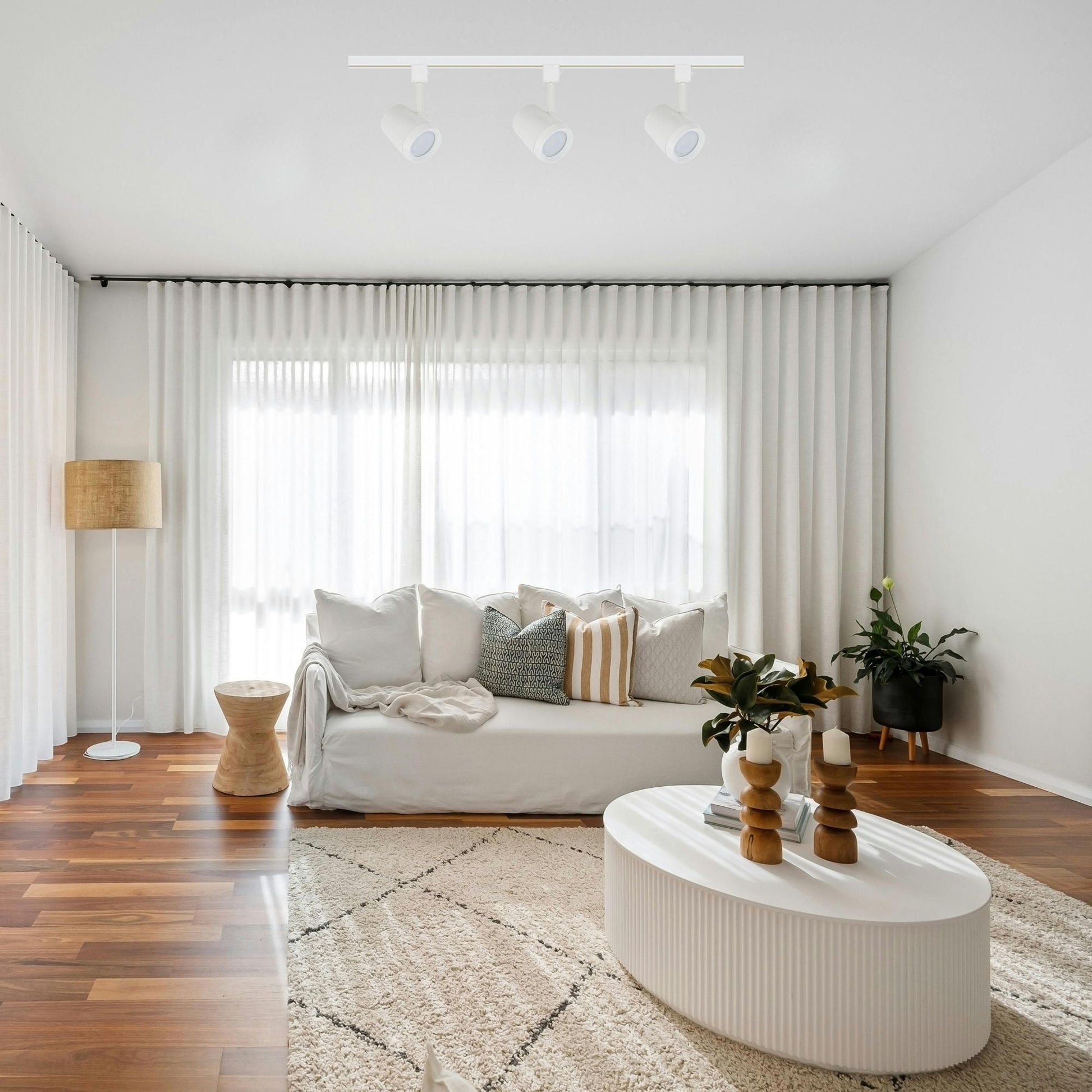

- Higher-mounted residential accent lighting.
- Commercial architectural feature lighting.
What's Included
- One WAC Lighting Ocularc L-7030-CS-WT White track head with integrated COB LED and integral driver.
- Included optics: 20° spot lens, pre-installed 55° flood film and interchangeable 40° narrow-flood film; remove the beam film to use the 20° spot.
