WAC Lighting Ocularc Track Head, L-Type, Black, Selectable CCT, 2255 Lumens, 20°/40°/55° Beam Angle
Available in stock (142)
About this item
About this item
- System Compatibility: Compatible with L-Type track systems for versatile installations.
- Beam Angle Options: Offers 20°, 40°, and 55° beam angles for customized lighting effects.
- Selectable CCT: Features a discrete 5-CCT switch for 2700K to 5000K color temperatures.
- High Lumen Output: Delivers up to 2255 lumens, outperforming 100W halogen PAR38 lamps.
- Adjustable Aiming: Provides 350° horizontal and 90° vertical aiming for precise light placement.
We process payments securely and do not store credit card information.
Description
Description

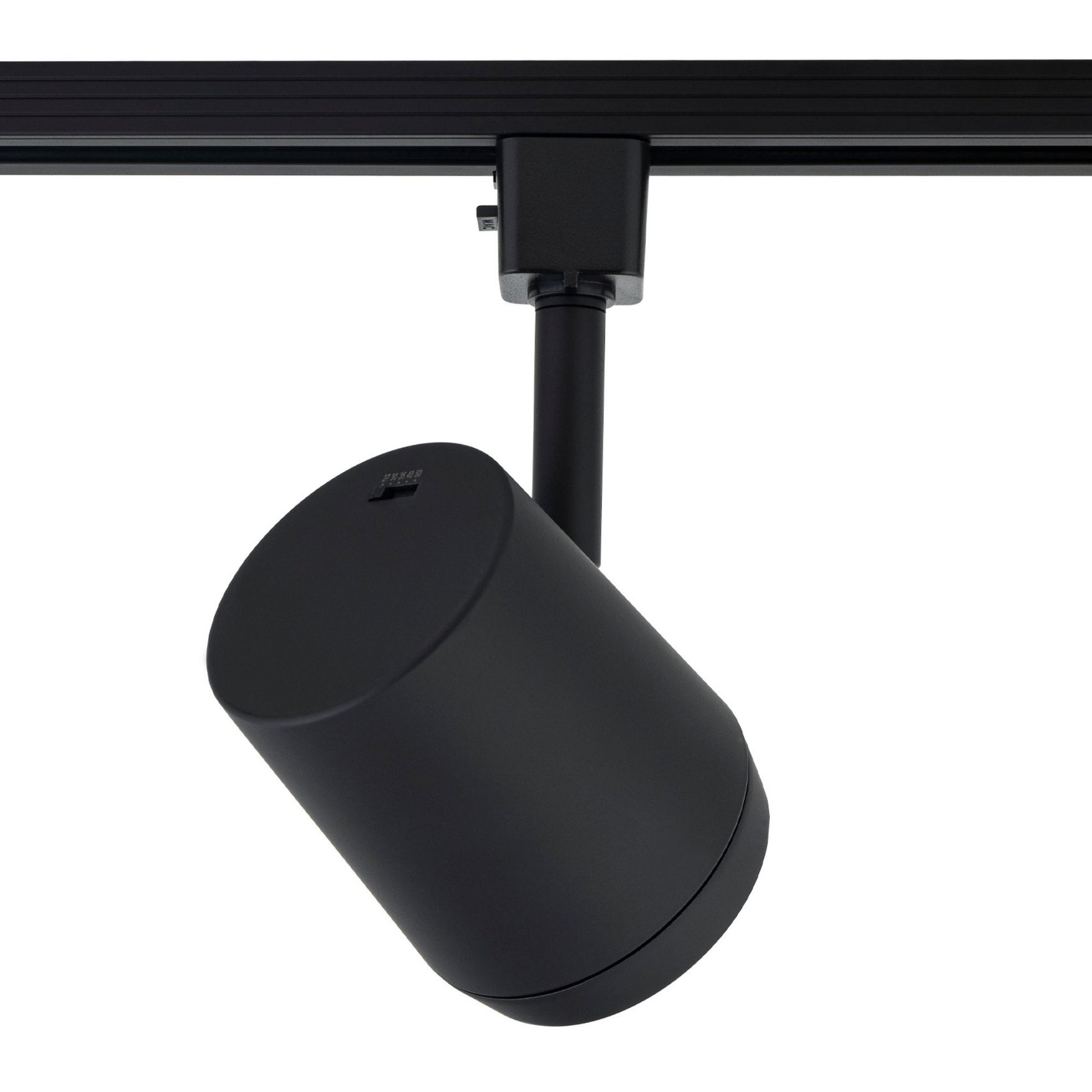

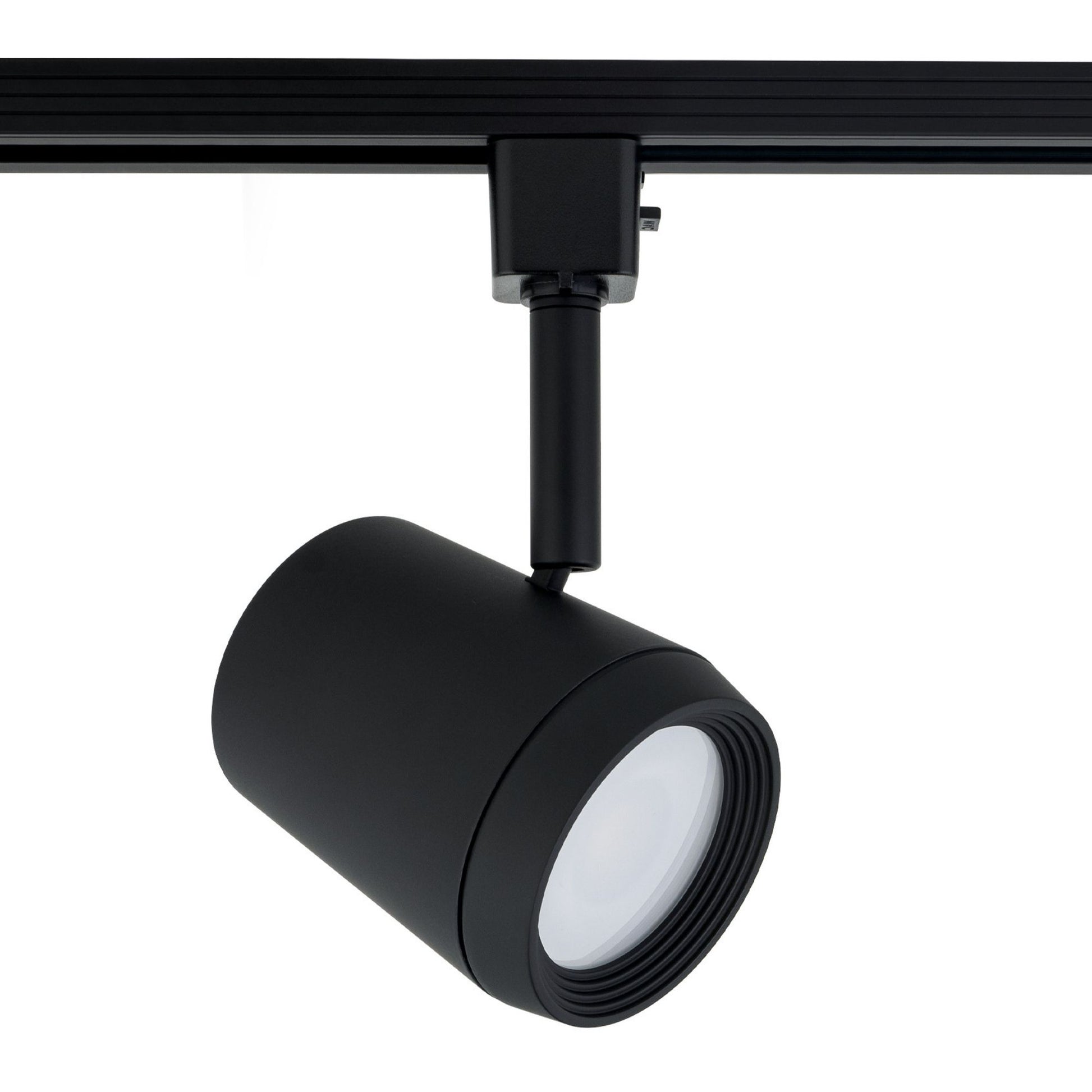

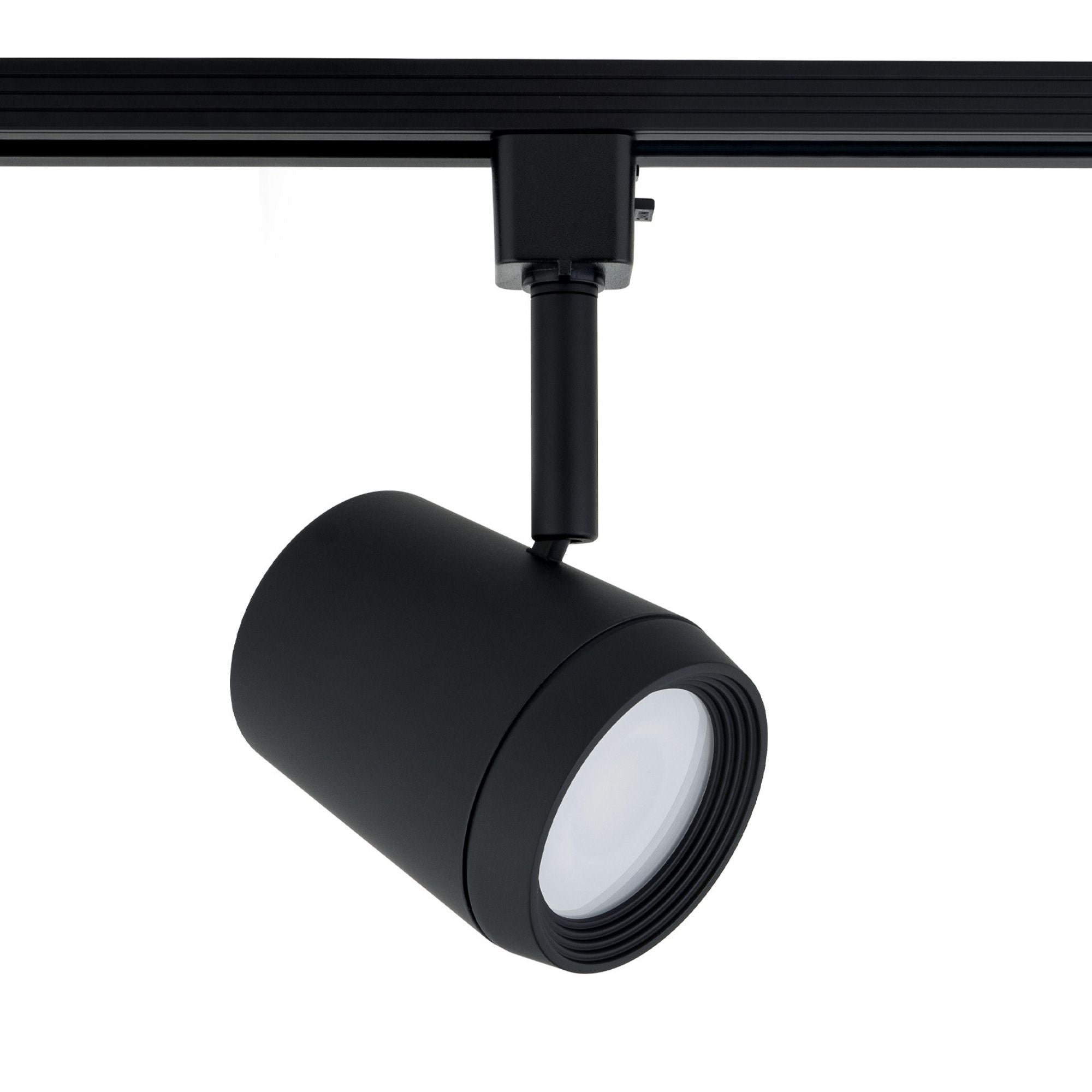

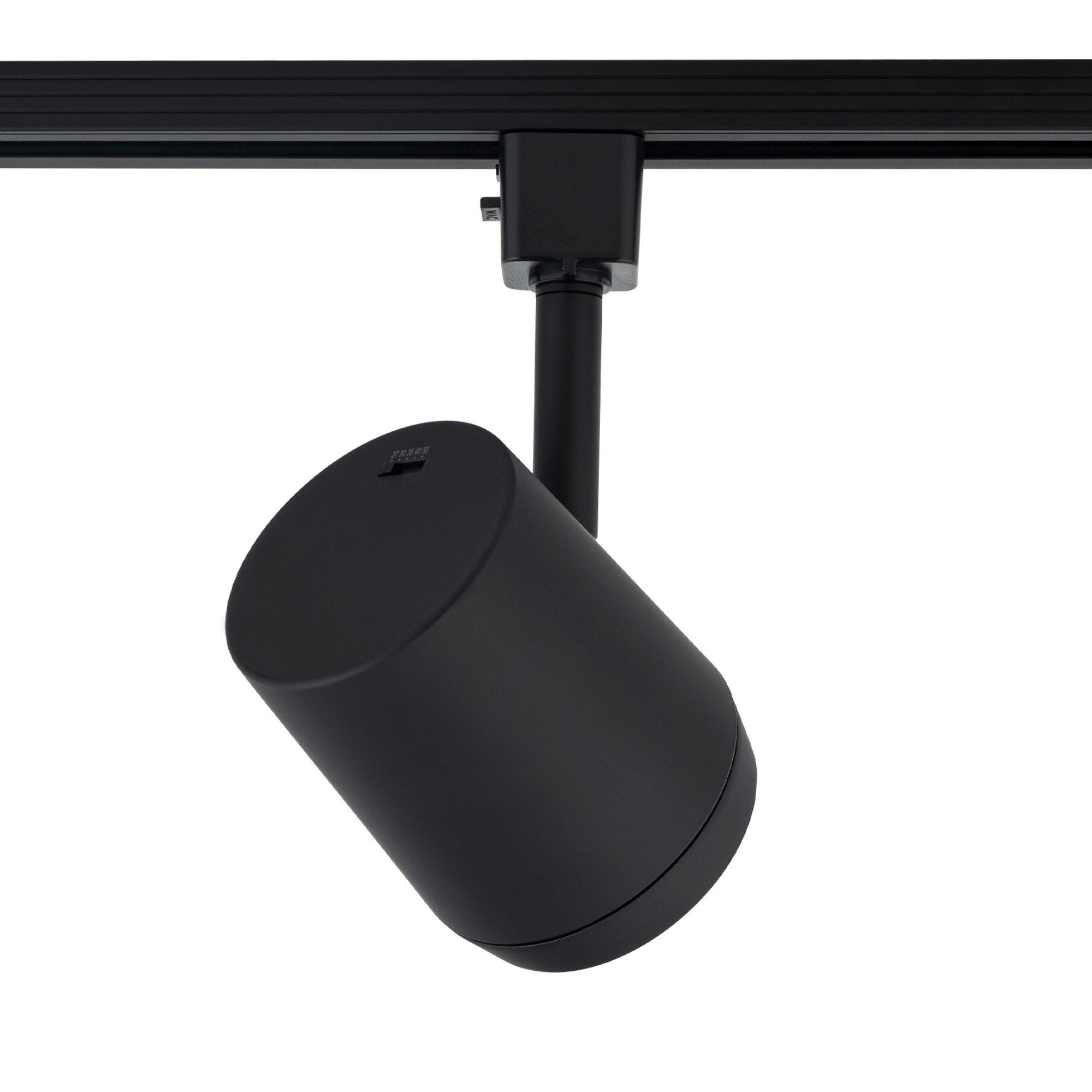

WAC Lighting Ocularc Track Head — Black & Selectable CCT
The WAC Lighting L-7030-CS-BK track head in black finish is a versatile L-Type track head designed for precise lighting applications. It operates at 120V and features a selectable CCT for adaptable lighting environments.
Key Features
- Voltage: Operates at 120V with a power factor of 0.98 for efficient energy use.
- Wattage: Consumes 29 watts, providing high efficiency.
- Lumens: Outputs up to 2255 lumens for bright illumination.
- CCT: Selectable color temperatures from 2700K to 5000K for versatile lighting.
- Aiming: 350° horizontal and 90° vertical aiming for flexible light direction.
- Beam Angles: Includes 20°, 40°, and 55° beam angles for tailored lighting effects.
- CRI: High CRI of 90+ for accurate color rendering.
- Certifications: ETL & cETL listed, Title 24 JA8 compliant for dry locations.
- Track Compatibility: Specifically designed for L-Type track systems.
Core Design & Adjustability
Constructed from die-cast aluminum with a baffled front cover for glare control, this track head is finished in electrostatically powder-coated black. It offers 350° horizontal and 90° vertical aiming for optimal adjustability.
LED Illumination & Performance
Featuring a high output COB LED with a rated life of 50,000 hours at L70, this track head provides up to 2255 lumens with selectable CCT from 2700K to 5000K, ensuring excellent illumination and performance.
Power, Wiring & Compatibility
This track head is compatible with L-Type track systems and supports electronic low voltage (ELV) or TRIAC dimming from 100% to 10%.

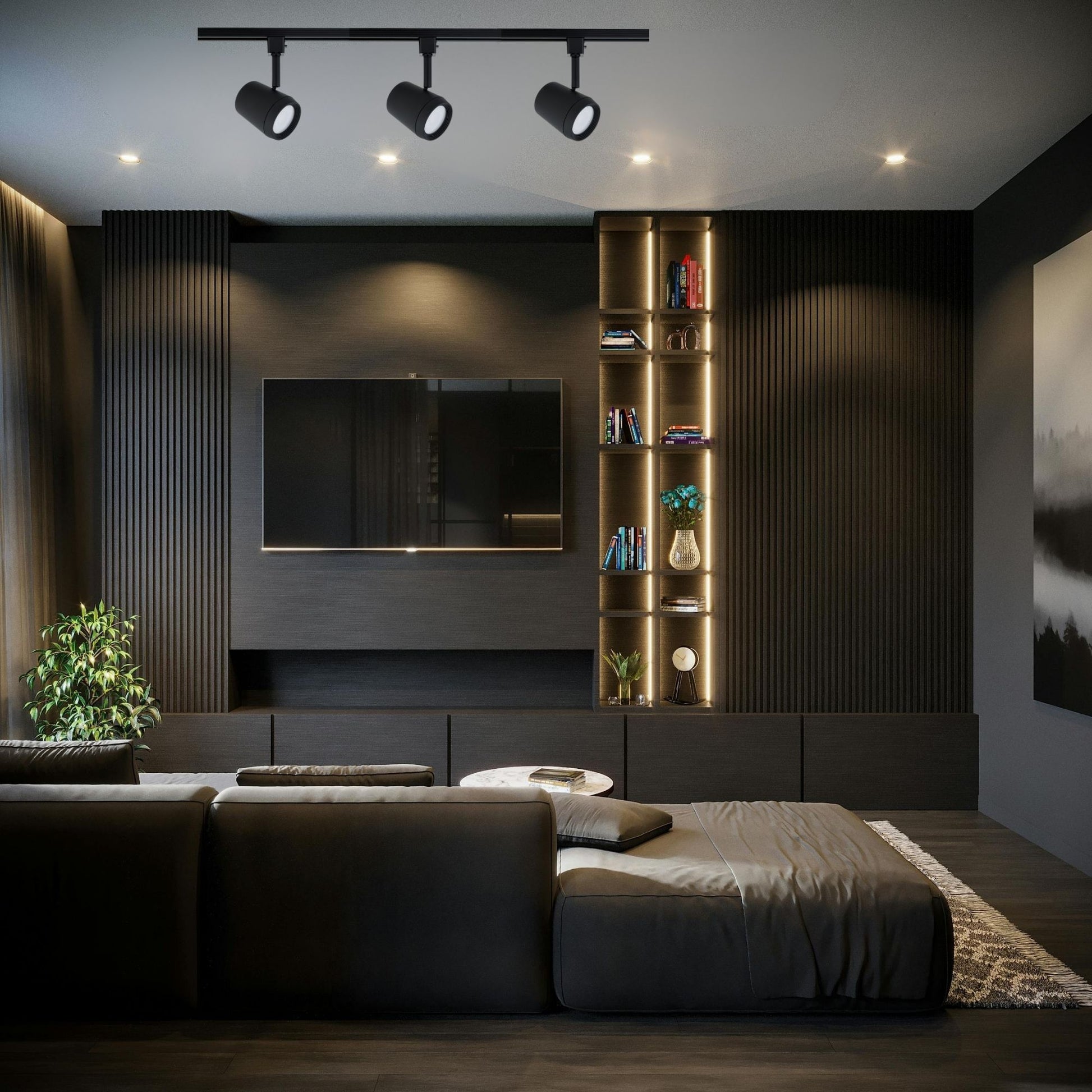

Where This Fixture Works Best
- Retail environments
- Residential spaces
- Art galleries
- Commercial offices
- Showrooms
What's Included
- Track head with pre-installed 55° beam film
- Interchangeable 40° beam film
Specifications
Specifications

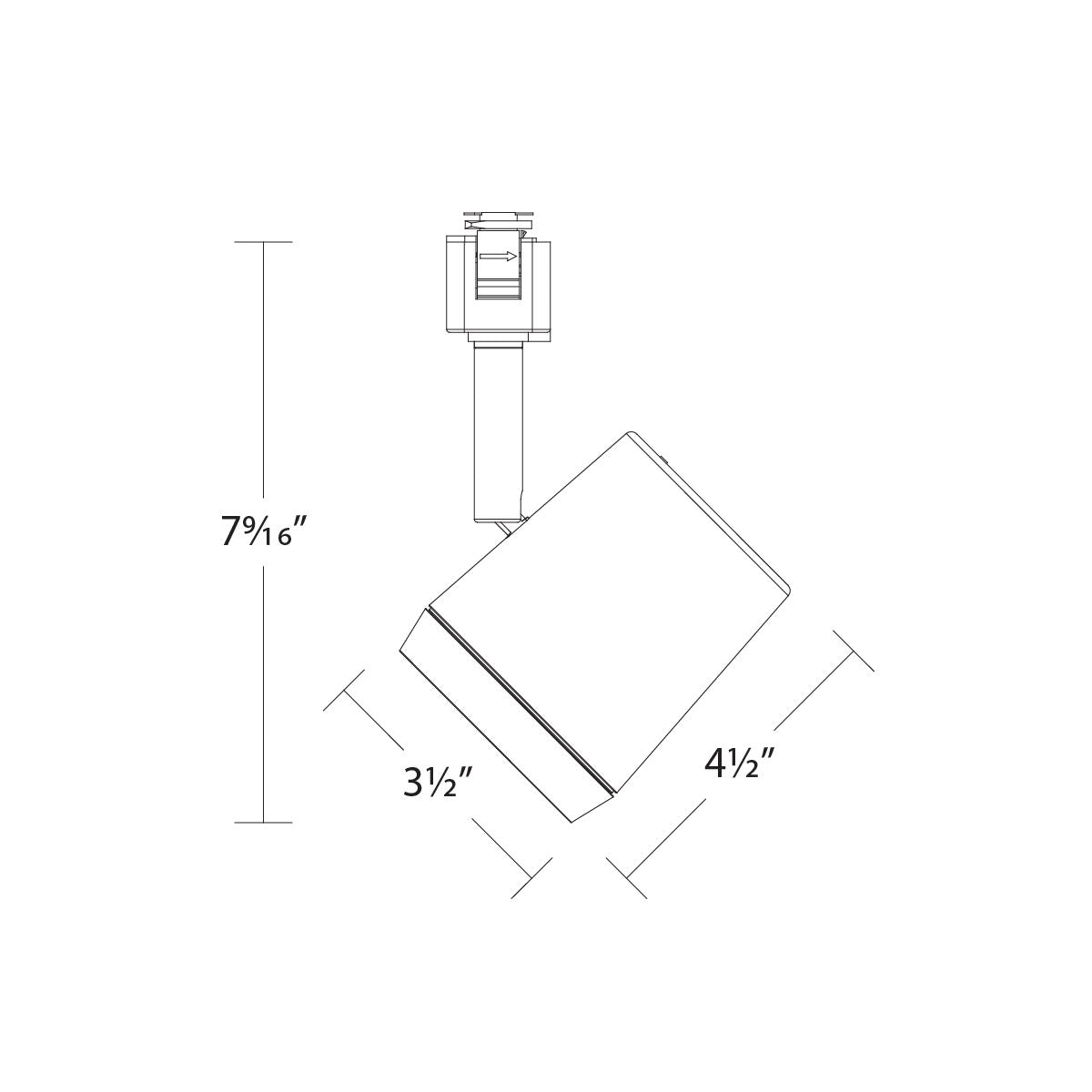

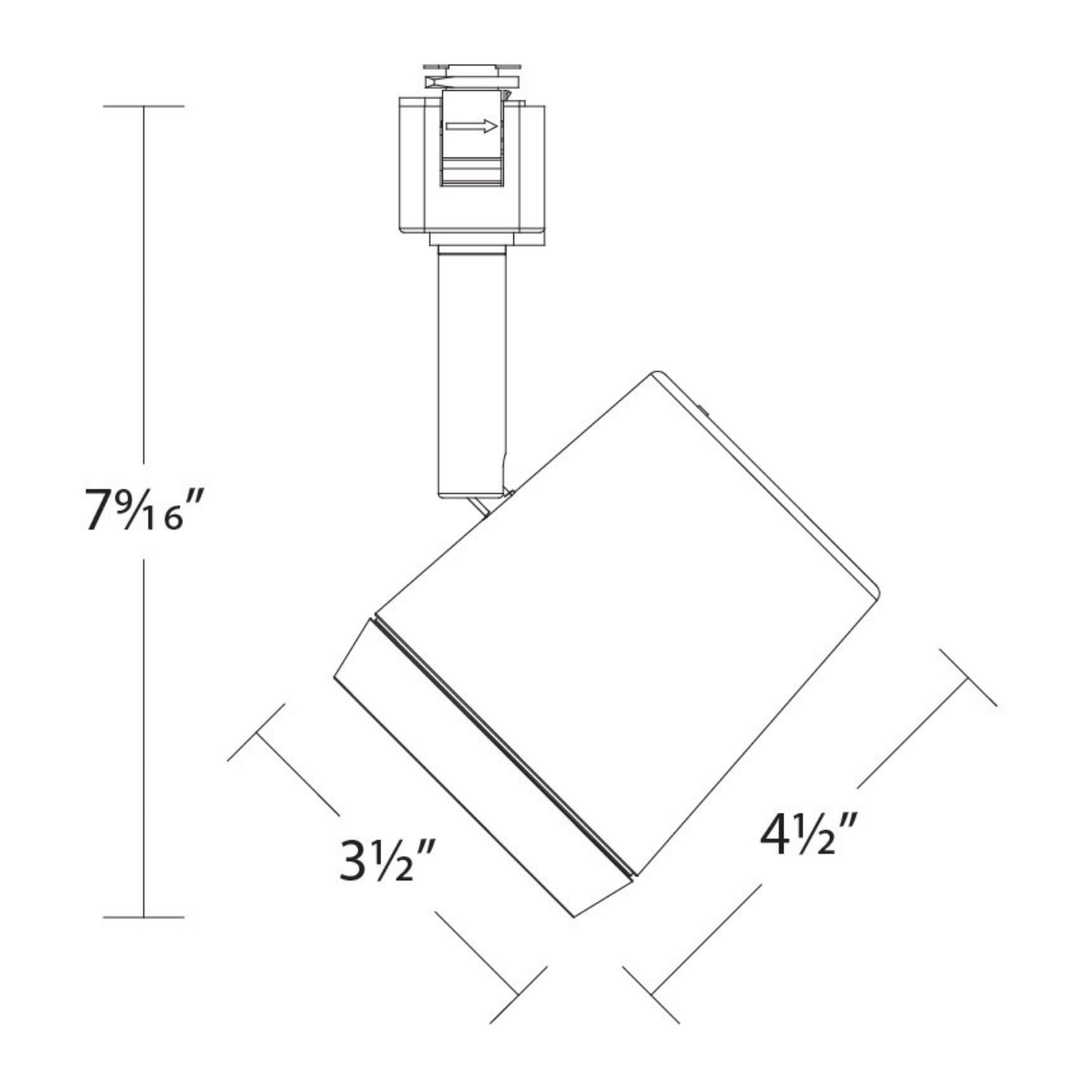

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can this track head be used on a Halo track system?
Can this track head be used on a Halo track system?
Is the color temperature adjustable?
Is the color temperature adjustable?
What is the beam angle of this track head?
What is the beam angle of this track head?
Is this track head dimmable?
Is this track head dimmable?
What is included with the track head?
What is included with the track head?
