WAC Lighting Cct Puck 2.75in Puck Light Kit, Black, Selectable CCT, 290 Lumens, 120V
Available in stock (117)
About this item
About this item
- Selectable CCT: Switch between 2700K, 3000K, and 3500K for versatile lighting applications.
- Dimming Capability: ELV dimming from 100% to 10% for customizable brightness levels.
- Construction: Die-cast aluminum with an acrylic diffuser for durability and even light distribution.
- Installation Options: Recessed or surface mounting for flexible installation.
- Linkability: Connect up to 20 puck lights per run for extended coverage.
We process payments securely and do not store credit card information.
Description
Description
WAC Lighting Cct Puck Light Kit — Black & Selectable CCT
The WAC Lighting HR-AC73-CS-BK in Black is a versatile puck light kit designed for undercabinet task lighting. This kit includes two double wire lights and one single wire light, each measuring 2.75 inches in diameter. The integrated LED technology provides a selectable color temperature of 2700K, 3000K, or 3500K, operating at 120V.
Key Features

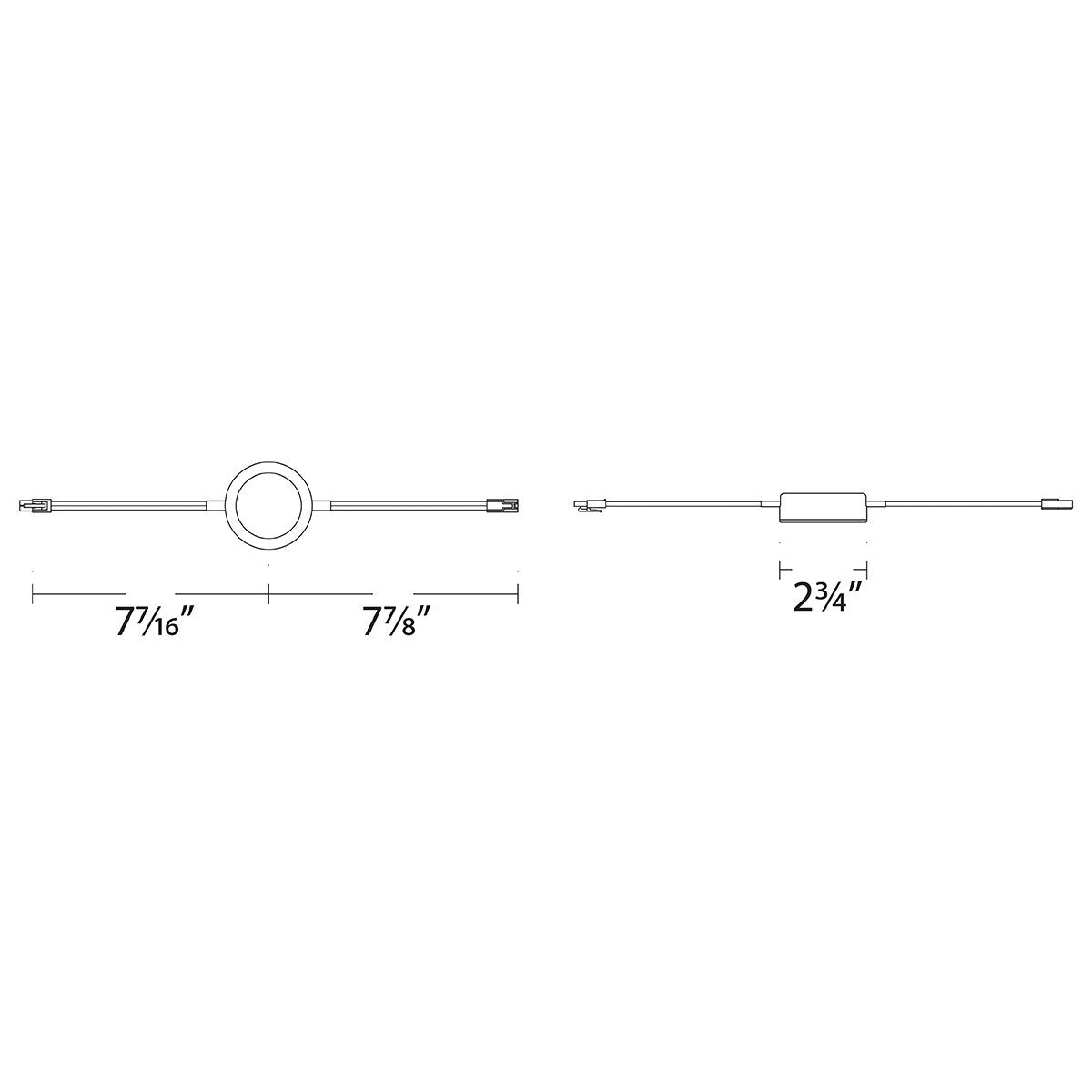

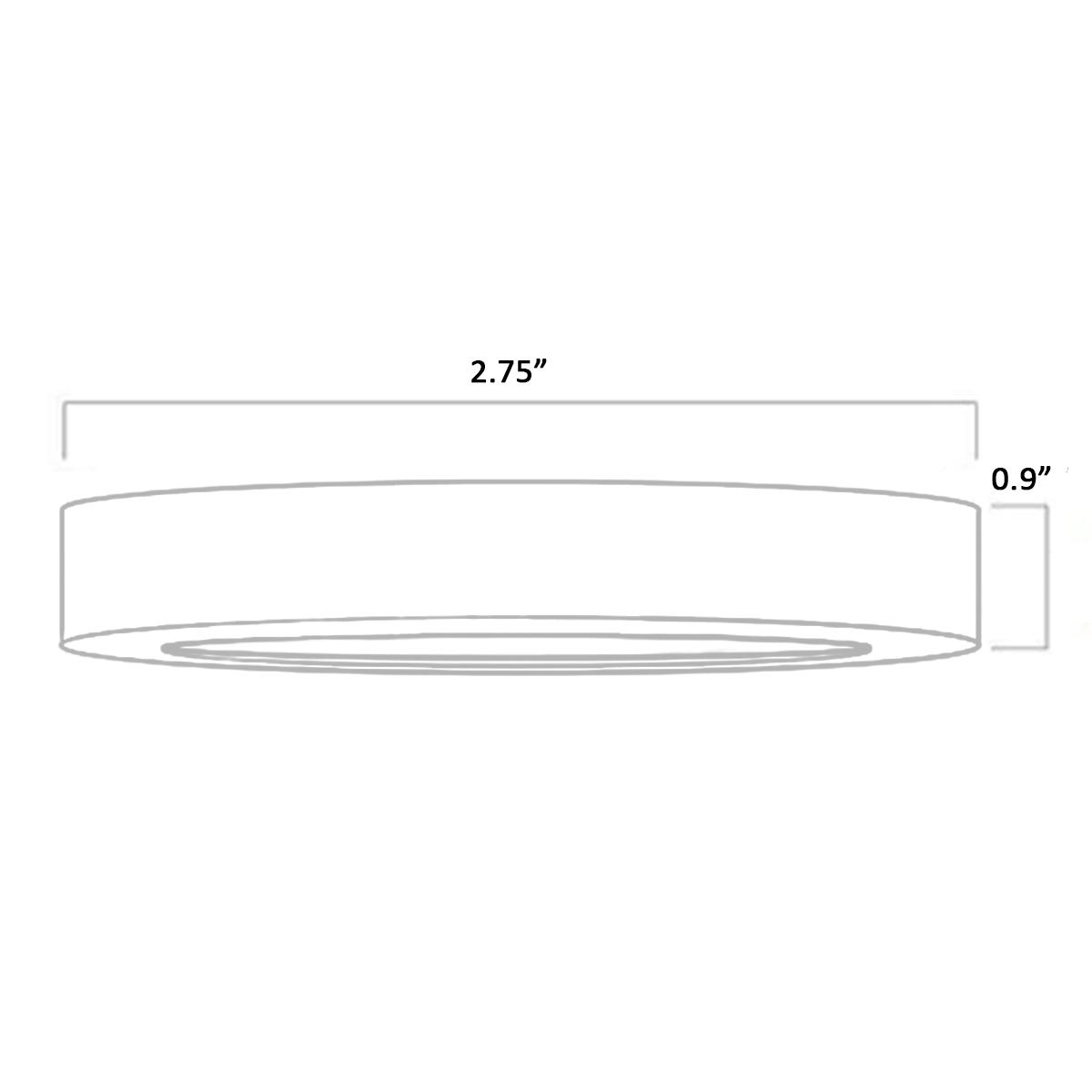

- Dimensions: Each puck light measures 2.75 inches in diameter and 0.90 inches in height.
- Voltage: Operates at 120 VAC, 50/60Hz.
- Wattage: Consumes 4 watts per puck light.
- Lumens: Delivers 290 lumens per puck light.

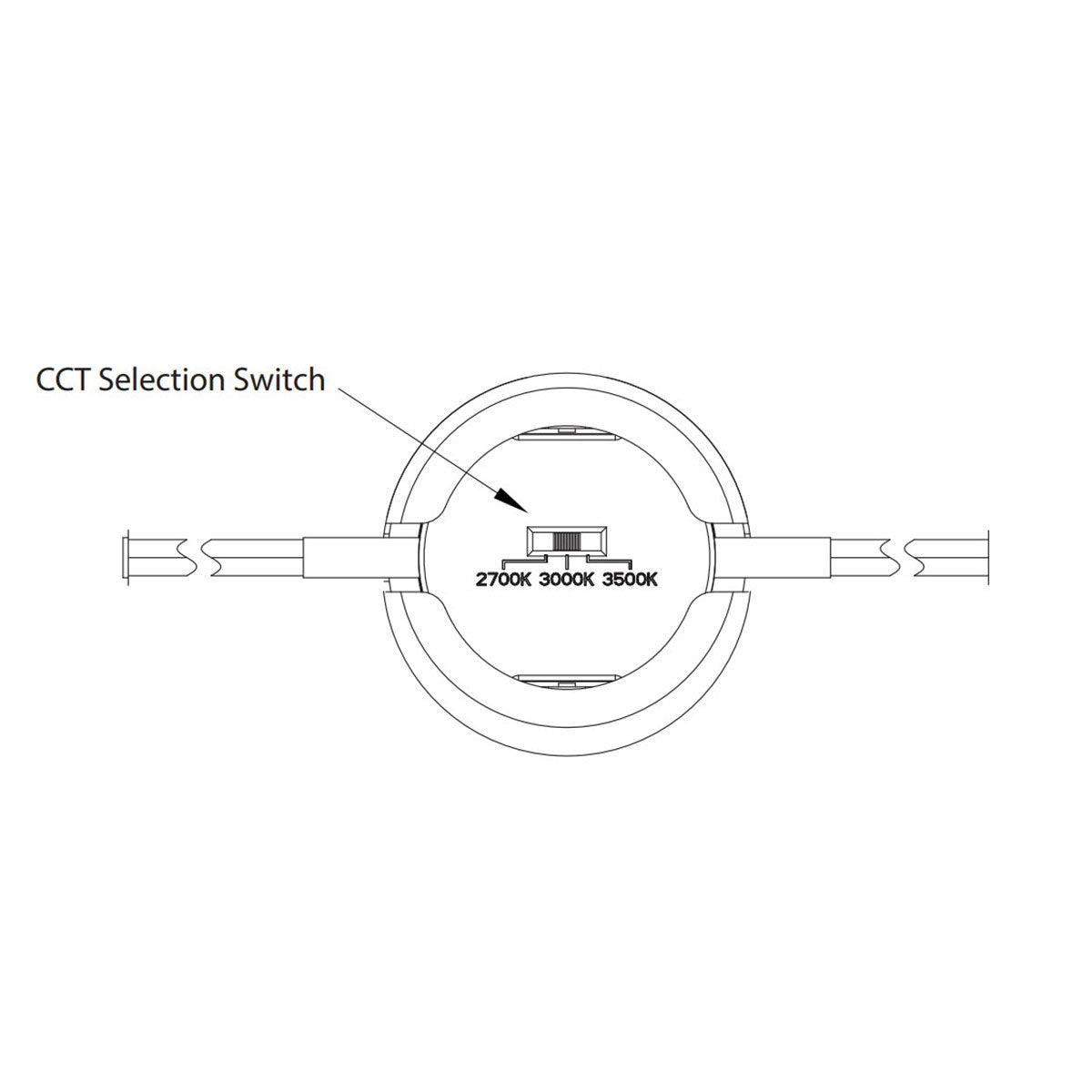

- Color Temperature: Selectable between 2700K, 3000K, and 3500K.
- CRI: High color rendering index of 90 for accurate color representation.
- Lifespan: Rated for 50,000 hours of use.
- Mounting: Can be recessed or surface mounted.
- Dimming: Compatible with ELV dimmers, dimmable from 100% to 10%.
- Linkability: Connect up to 20 puck lights in a single run.
- Construction: Made from die-cast aluminum with an acrylic diffuser.
- Standards: ETL, cETL, and Title 24 JA8 compliant, suitable for damp locations.
Core Design & Profile
The puck lights feature a slim profile with a die-cast aluminum housing and an acrylic diffuser, available in Black, Brushed Nickel, and White finishes. They are damp location listed, making them suitable for various environments.
LED Illumination & Performance
Each puck light delivers 290 lumens with a power consumption of 4 watts, offering a high CRI of 90. The selectable CCT allows for tailored lighting from 2700K to 3500K, ensuring optimal illumination for any task.
Power, Wiring & Linkability
This kit operates at 120V and includes both single and double wire lights with a cord for easy installation. It supports linking up to 20 puck lights per run, providing extensive coverage for larger areas.

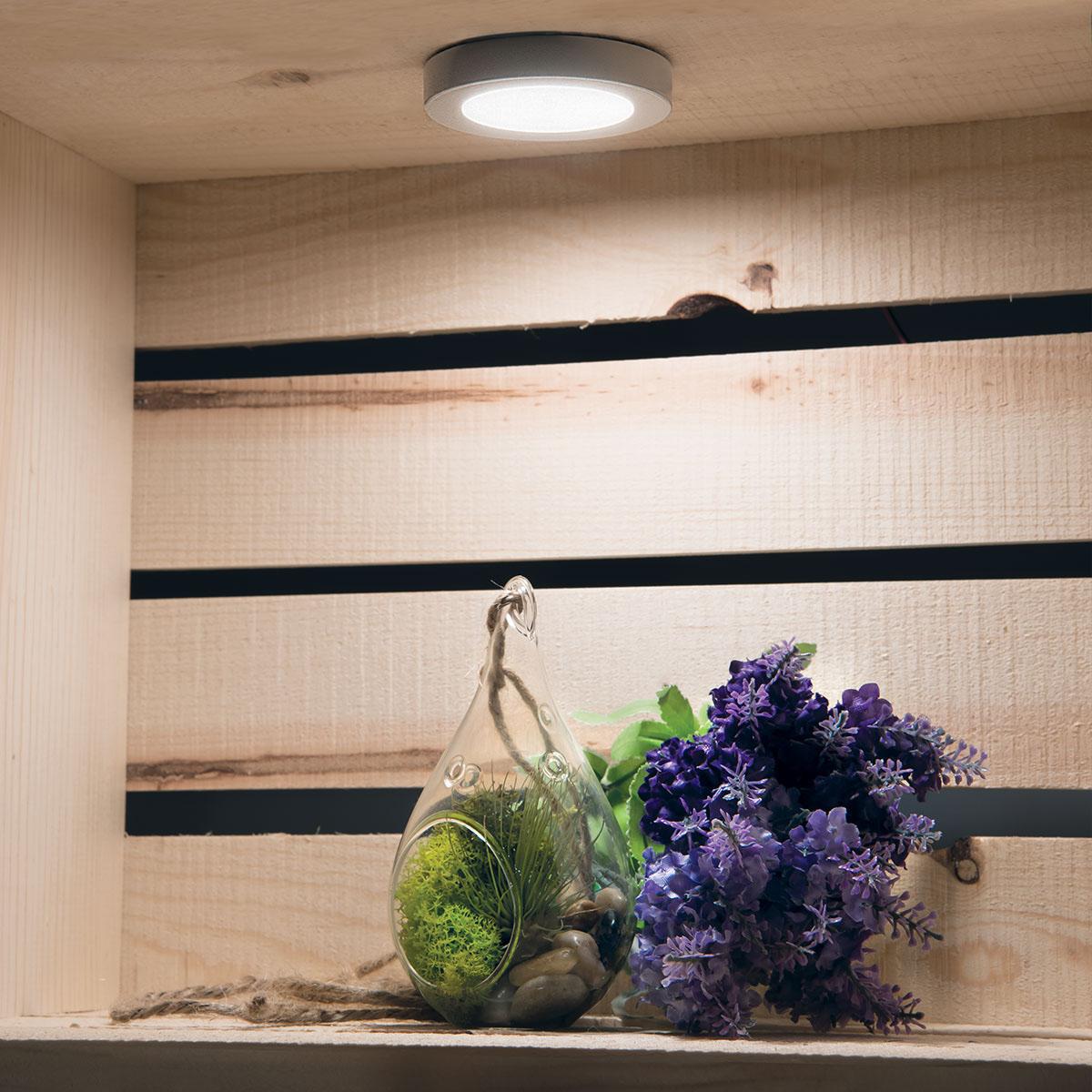

Where This Fixture Works Best
- Under kitchen cabinets
- Display cases
- Workstations
- Bookshelves
- Accent lighting

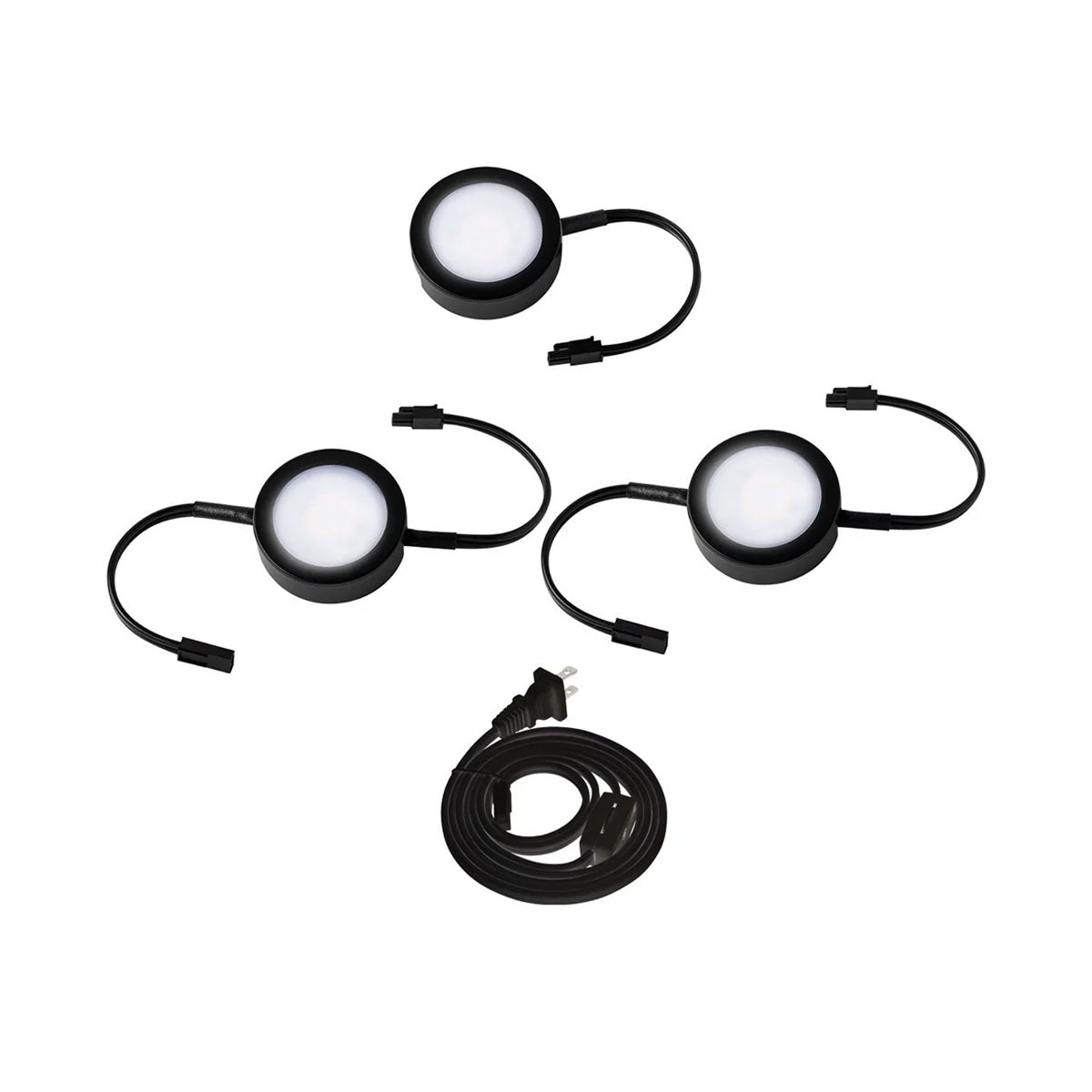

What's Included
- Two double wire puck lights
- One single wire puck light
- Installation cord
