WAC Lighting Cct Puck Light — Brushed Nickel & Selectable CCT

The WAC Lighting HR-AC71-CS-BN is a versatile puck light in a brushed nickel finish, designed for undercabinet task lighting. With a compact diameter of 2.75 inches, this fixture provides efficient illumination with its integrated LED technology. Operating at 120V, it offers selectable color temperatures of 2700K, 3000K, and 3500K and delivers 290 lumens.

Key Features

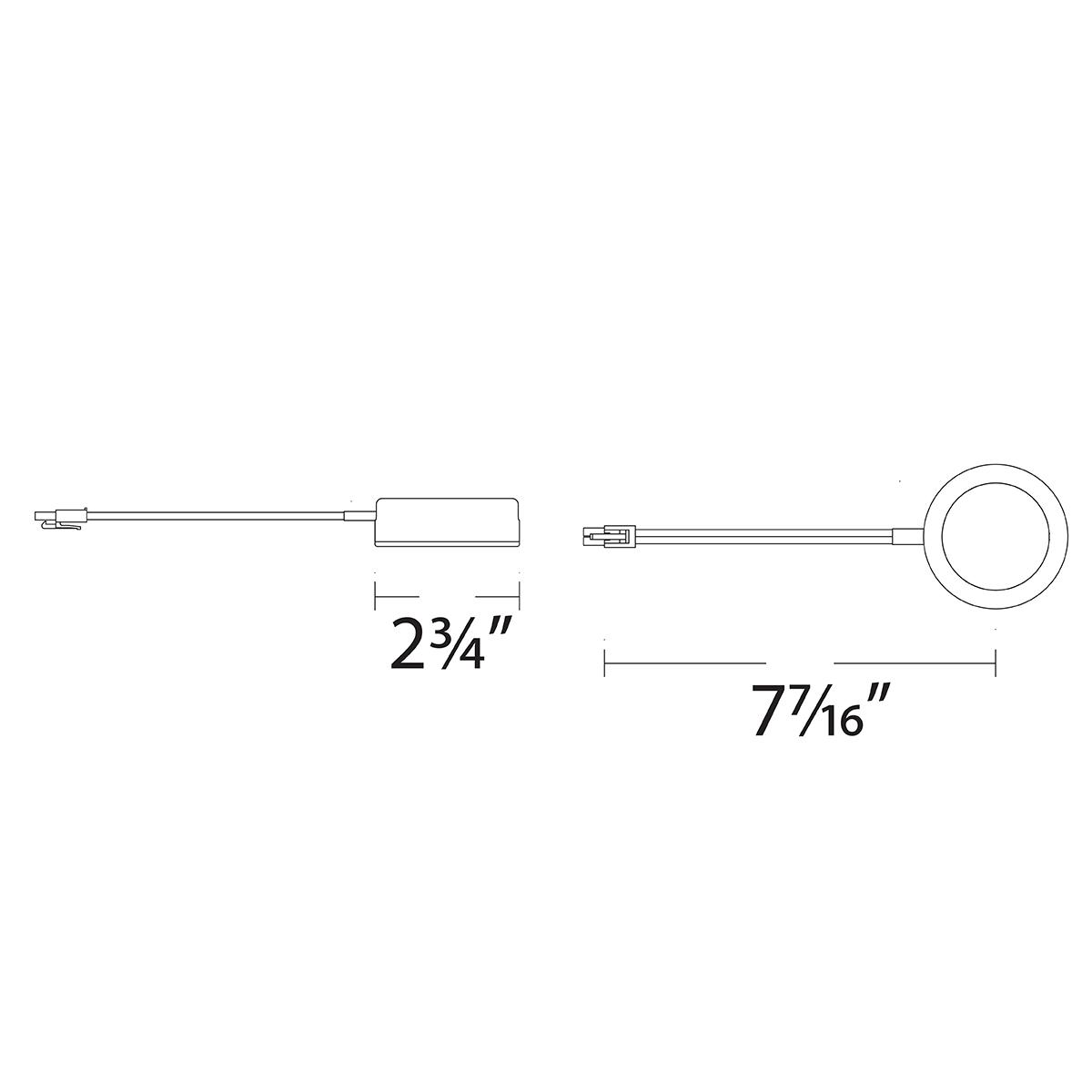

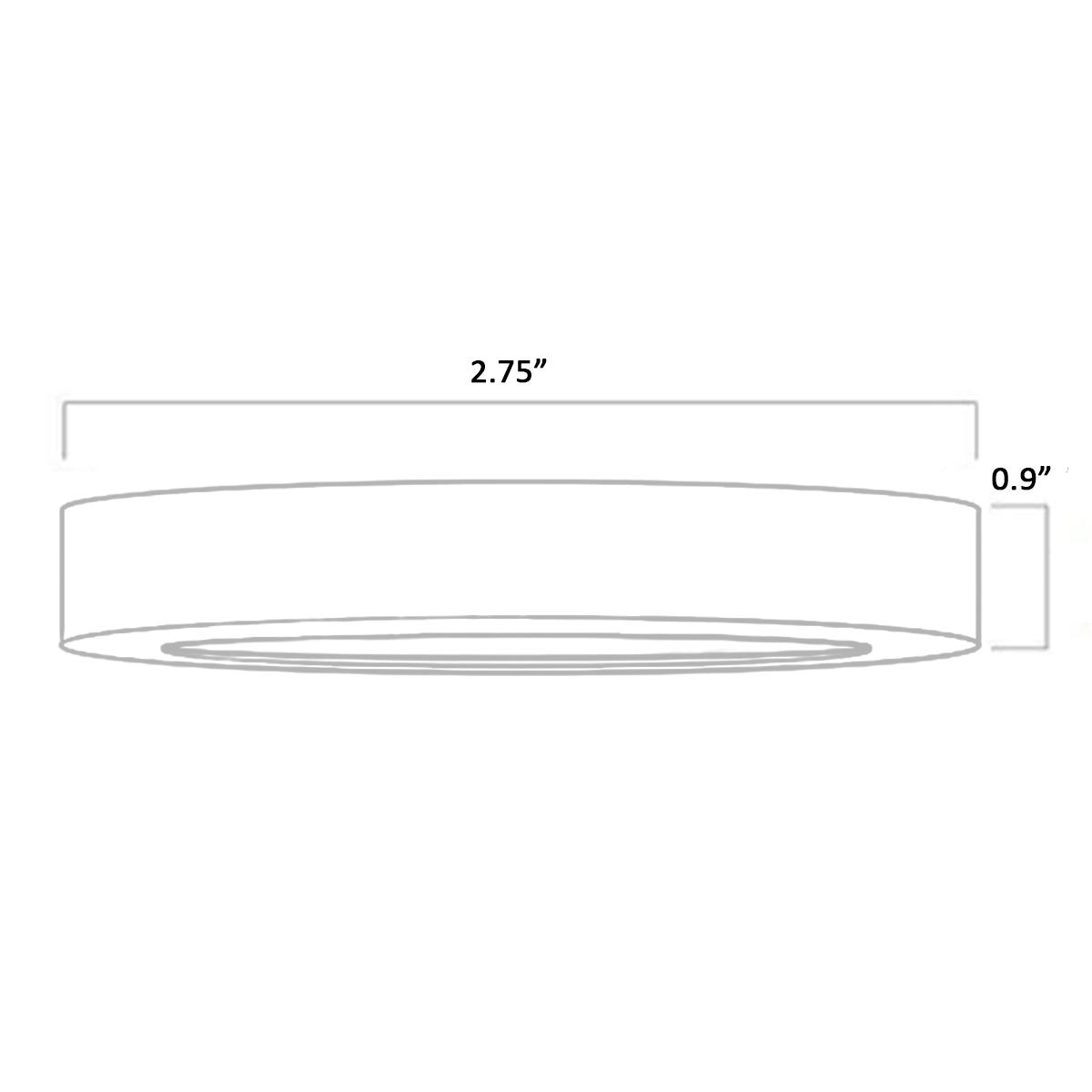

• Dimensions: 2.75 in. diameter and 0.90 in. height for a sleek profile.
• Voltage: Operates on 120 VAC, 50/60Hz for standard installations.
• Wattage: Consumes only 4 watts for energy efficiency.
• Lumens: Provides 290 lumens of bright task lighting.
• Color Temperature: Switchable between 2700K, 3000K, and 3500K for customizable ambiance.
• CRI: High CRI of 90 ensures accurate color rendering.
• Lifespan: Rated for 50,000 hours of maintenance-free operation.
• Mounting: Offers both recessed and surface mounting options.
• Dimming: Compatible with ELV dimmers, dimmable from 100% to 10%.
• Linkability: Connect up to 20 puck lights per run for extended coverage.
• Construction: Die-cast aluminum with acrylic diffuser for durability and even light distribution.
• Warranty: Backed by a 5-year warranty for peace of mind.

Core Design & Profile

This puck light features a slim profile with a brushed nickel finish, making it a stylish addition to any space. Constructed from die-cast aluminum with an acrylic diffuser, it is designed for durability and even light distribution. Suitable for damp locations, it meets ETL, cETL, and Title 24 JA8 standards.

LED Illumination & Performance

Delivering 290 lumens with a power consumption of just 4 watts, this puck light offers efficient LED illumination. With a high CRI of 90, it ensures accurate color rendering, while the selectable CCT feature allows for customization between 2700K, 3000K, and 3500K.

Power, Wiring & Linkability

This fixture operates on 120V and features ACLED driverless technology for easy installation. It can be linked with up to 20 puck lights per run, providing flexibility for larger installations. The fixture is designed for both recessed and surface mounting, offering versatile installation options.

Where This Fixture Works Best

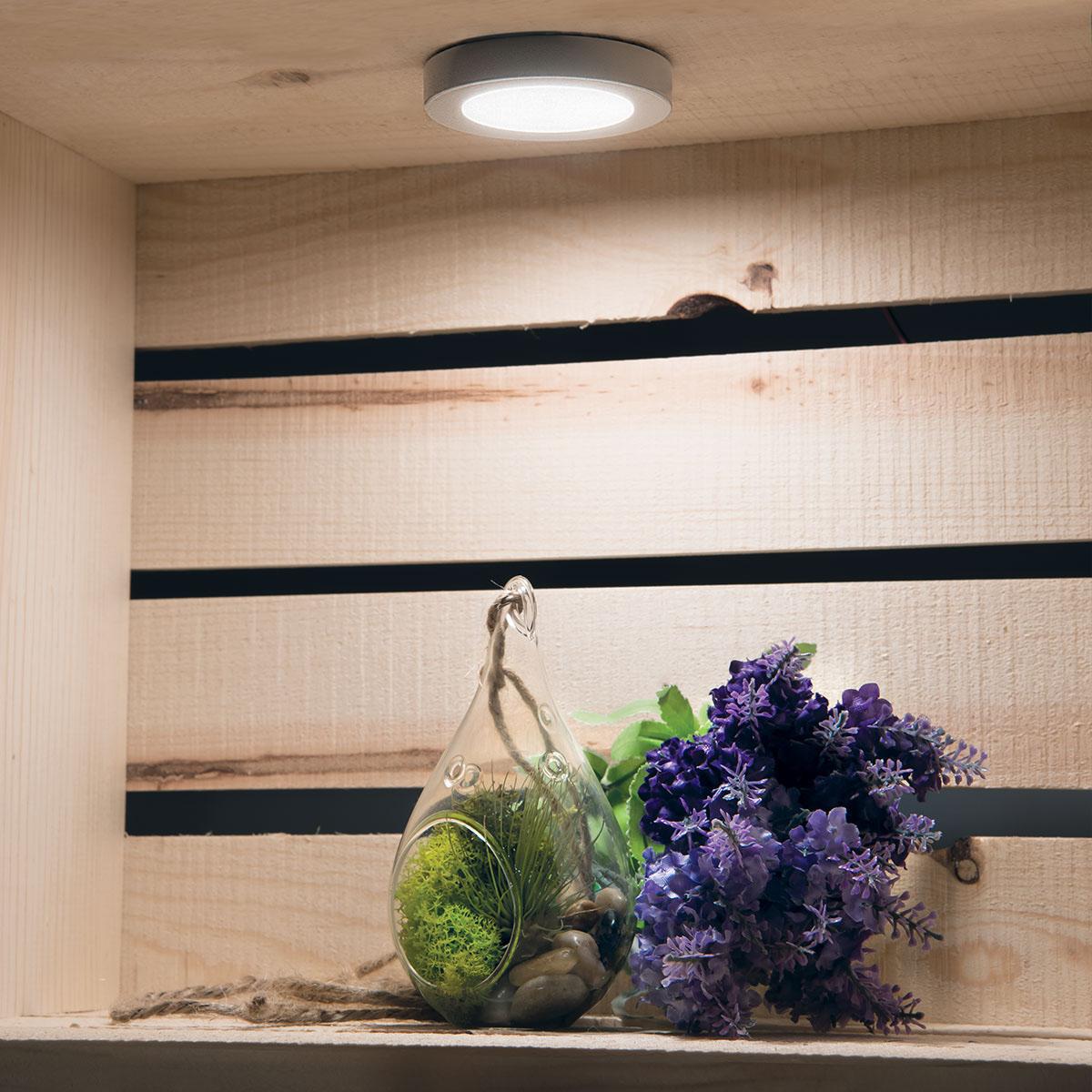

• Under kitchen cabinets
• Display shelving
• Workstations
• Retail displays
• Accent lighting

What's Included

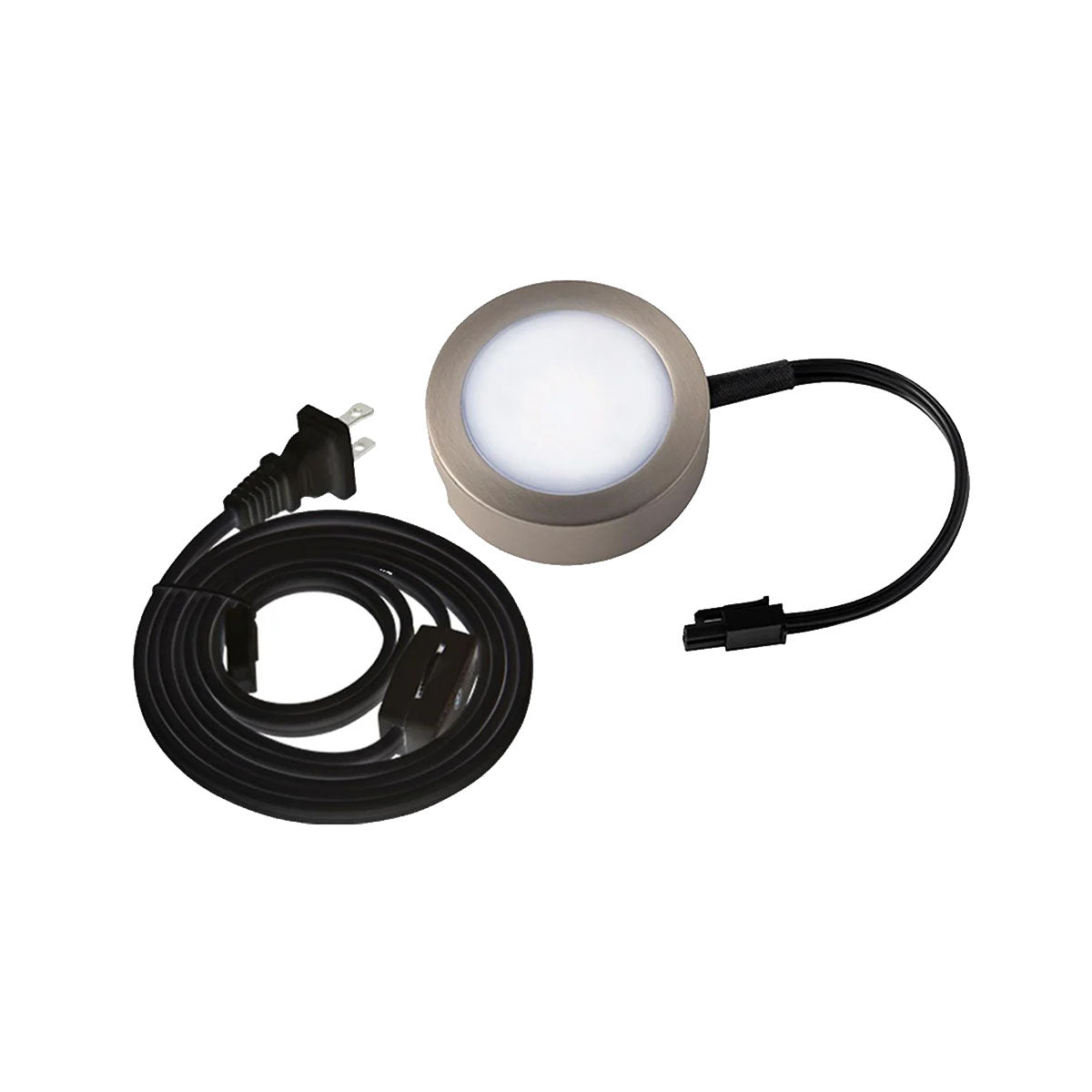

• One HR-AC71-CS-BN puck light
• Installation instructions
