WAC Lighting Cct Puck 2.75 in. Puck Light, White, Selectable CCT, 290 Lumens, 120V
Available in stock (1608)
About this item
About this item
- Selectable CCT: Switch between 2700K, 3000K, and 3500K for versatile lighting options.
- Dimmable: Compatible with ELV dimmers, offering 100-10% dimming range.
- Construction: Made from die-cast aluminum with an acrylic diffuser for durability and even light distribution.
- Installation: Can be recessed or surface mounted for flexible installation.
- Linkability: Connect up to 20 puck lights per run for extended lighting solutions.
We process payments securely and do not store credit card information.
Description
Description

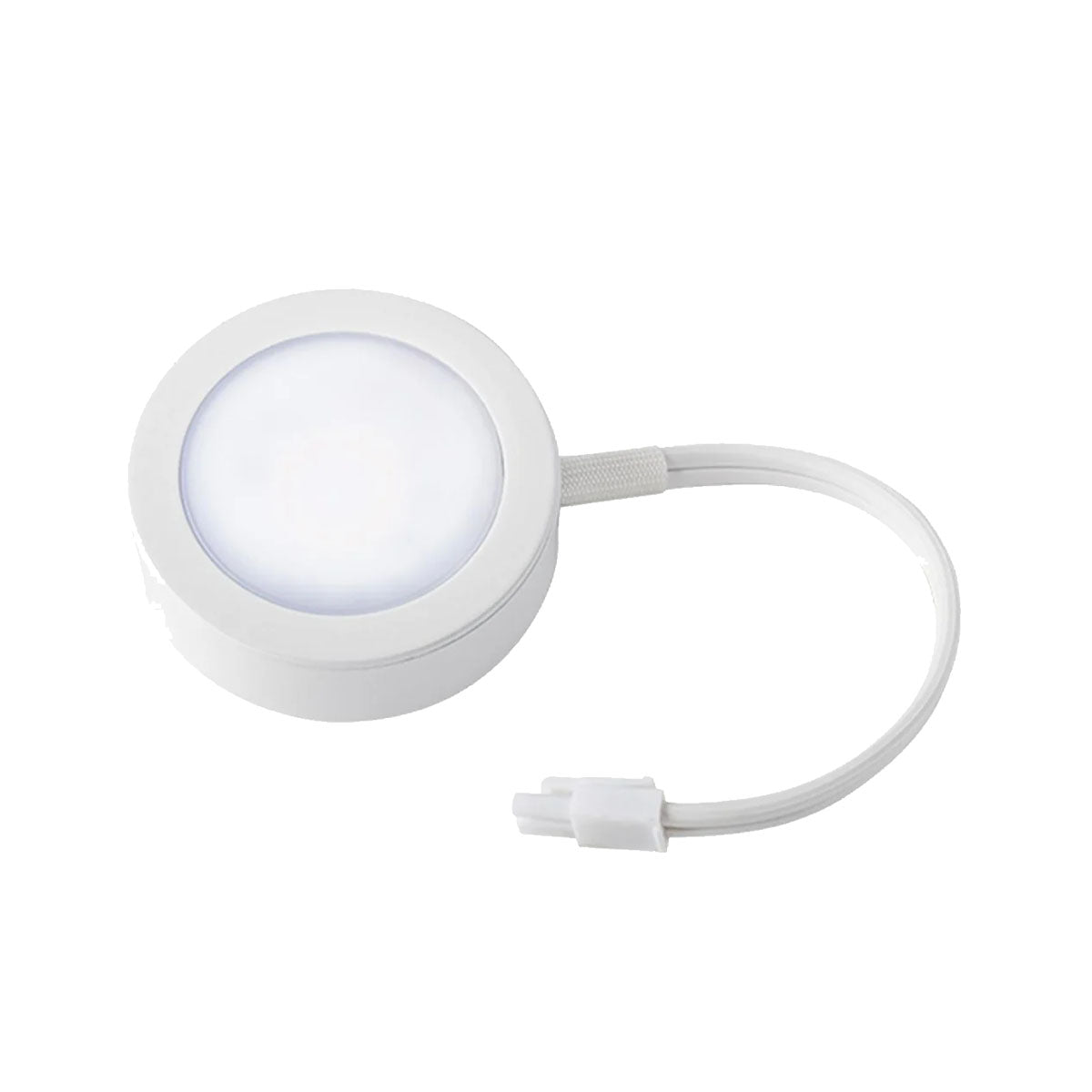

WAC Lighting Cct Puck Light — White & Selectable CCT
The WAC Lighting HR-AC70-CS-WT is a versatile White puck light designed for undercabinet task lighting. Constructed from die-cast aluminum with an acrylic diffuser, this fixture measures 2.75 in. in diameter and 0.90 in. in height. It operates on 120V and features an integrated LED light source with selectable color temperatures of 2700K, 3000K, and 3500K.
Key Features

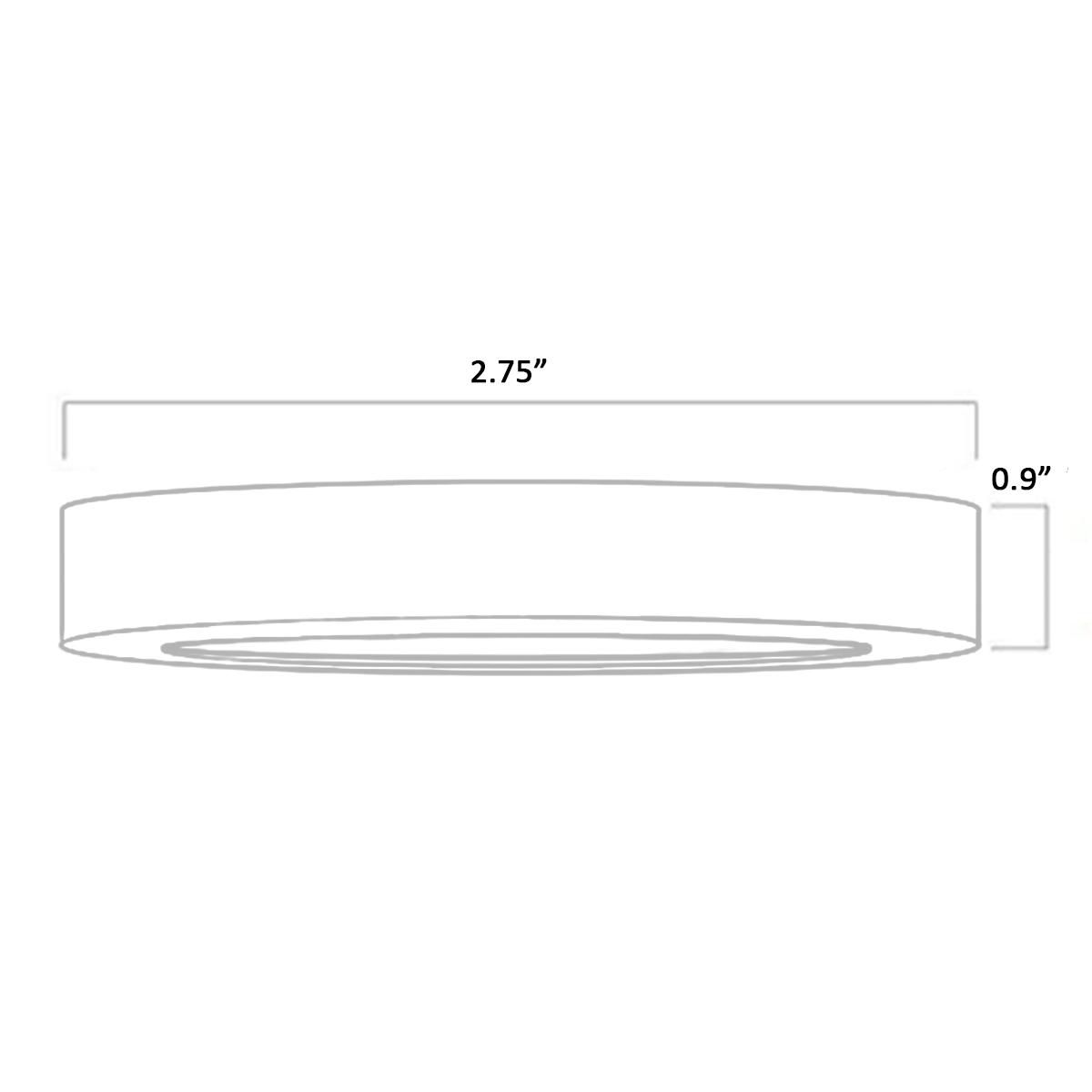

- Dimensions: 2.75 in. diameter, 0.90 in. height.
- Voltage: 120V AC, 50/60Hz.
- Wattage: 4 watts.
- Lumens: 290 lumens output.
- Color Temperature: Selectable 2700K, 3000K, 3500K.
- CRI: 90 for excellent color rendering.
- Lifespan: Rated for 50,000 hours of use.
- Mounting Options: Recessed or surface mount.
- Linkability: Connect up to 20 puck lights per run.
- Dimming: ELV dimming from 100% to 10%.
- Finish: Available in White, Black, and Brushed Nickel.
- Standards: ETL, cETL, Title 24 JA8 compliant, Damp Location Listed.
Core Design & Profile
This puck light features a slim profile with a durable die-cast aluminum housing and an acrylic diffuser. Available finishes include White, Black, and Brushed Nickel, all suitable for damp locations.
LED Illumination & Performance
Delivering 290 lumens with a power consumption of 4 watts, this puck light offers a high CRI of 90 and selectable CCT options for tailored lighting performance.
Power, Wiring & Linkability
This fixture is designed for direct wiring and operates on 120V. It features ACLED driverless technology and can link up to 20 puck lights per run.
Where This Fixture Works Best

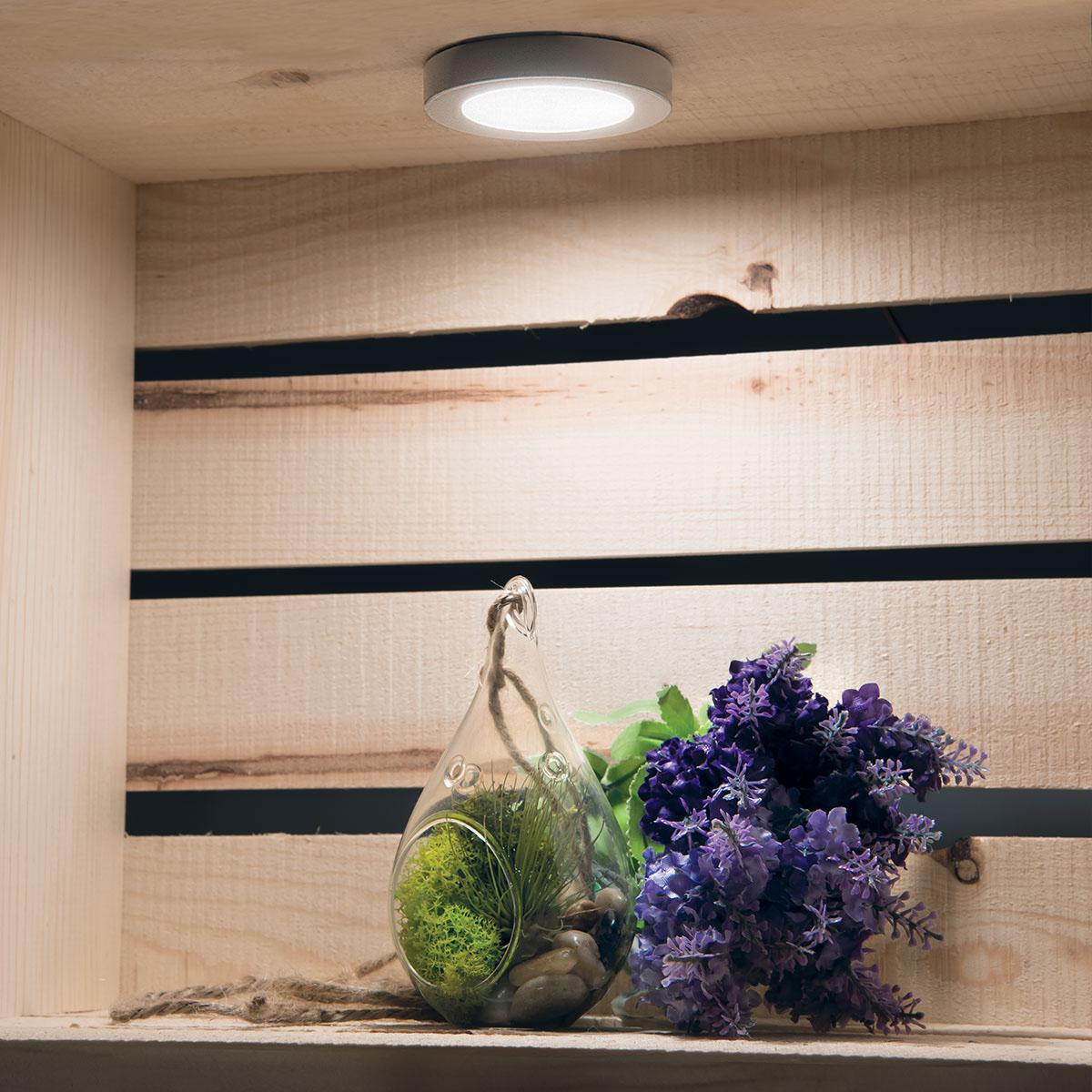

- Under kitchen cabinets
- Display shelves
- Workstations
- Retail displays
- Accent lighting
What's Included
- 1 Single Wired Puck Light
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the WAC Lighting HR-AC70-CS-WT puck light?
What is the wattage of the WAC Lighting HR-AC70-CS-WT puck light?
Can the WAC Lighting HR-AC70-CS-WT be dimmed?
Can the WAC Lighting HR-AC70-CS-WT be dimmed?
What are the dimensions of the WAC Lighting HR-AC70-CS-WT?
What are the dimensions of the WAC Lighting HR-AC70-CS-WT?
How many puck lights can be linked together?
How many puck lights can be linked together?
What finishes are available for the WAC Lighting HR-AC70-CS-WT?
What finishes are available for the WAC Lighting HR-AC70-CS-WT?
