WAC Lighting Cyn 8110 10W H-Type LED Track Head 5CCT 35 Degree White
Available in stock (2115)
About this item
About this item
- Focused Accent Output: 10W, 710 delivered lumens, fixed 35° beam, 1567 CBCP.
- Selectable White Light: Five settings from 2700K to 5000K, 90 CRI, 3-step MacAdam color consistency.
- Directional Flexibility: 350° horizontal and 90° vertical aiming for artwork, shelving and displays.
- Dimmable Performance: ELV and TRIAC dimming from 100% to 10%, 50,000-hour rated life.
- Compact White Design: Powder-coated die-cast aluminum, frosted TIR lens, concealed driver, H-Type (Halo) track.
Description
Description

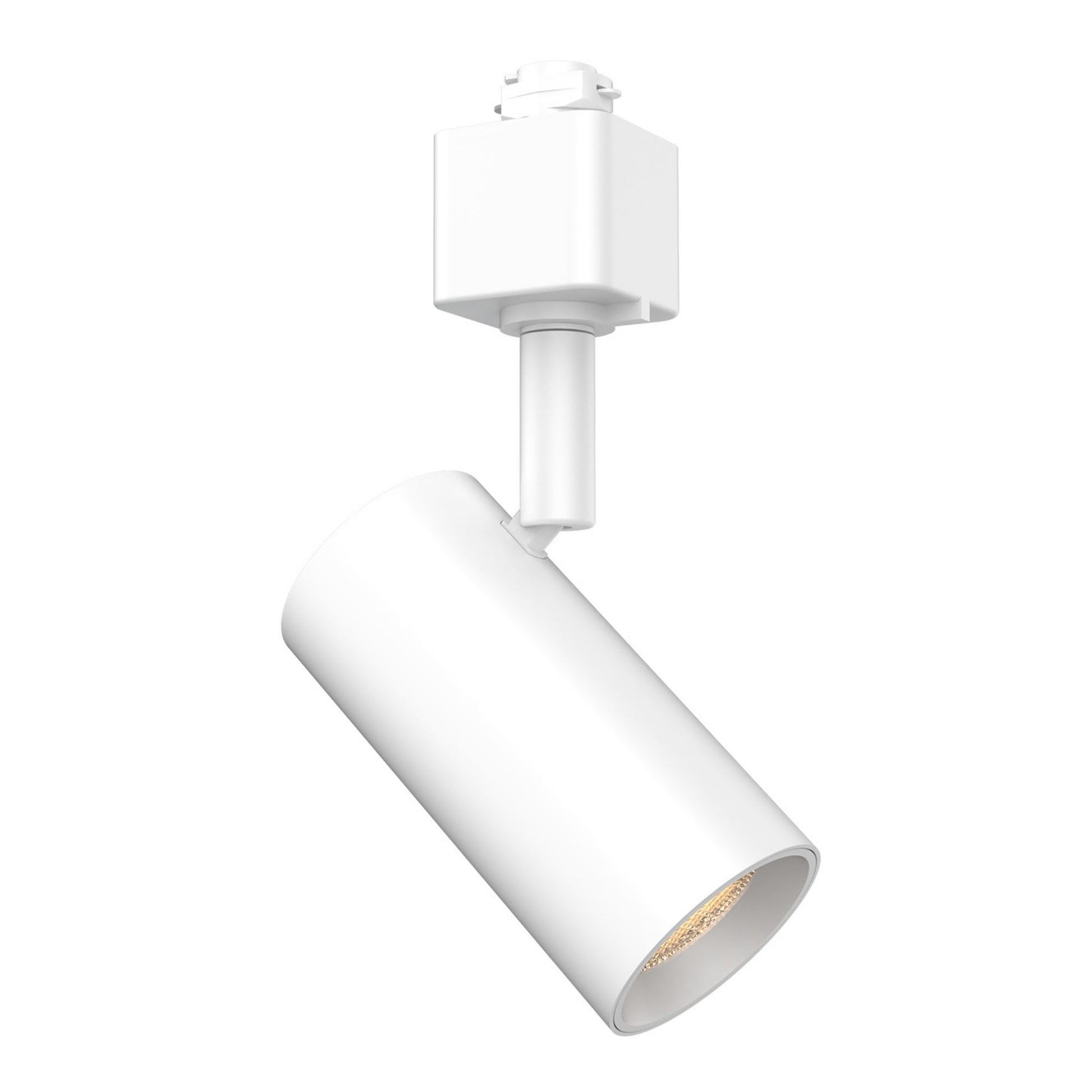

WAC Lighting Cyn H-8110-CS-WT LED Track Head
The WAC Lighting Cyn H-8110-CS-WT delivers 710 lumens at 10W in a compact White cylindrical housing for residential spaces and lower-mounted commercial applications. Its fixed 35° beam concentrates light on artwork, shelving and display details, while 350° horizontal and 90° vertical aiming lets you direct the beam. Five selectable color temperatures help coordinate accent lighting with the surrounding interior. This version fits H-Type (Halo) track.
Key Features
- Track Type: H-Type (Halo).
- Output: 10W, 710 delivered lumens.
- Color Selection: 2700K, 3000K, 3500K, 4000K or 5000K.
- Color Quality: 90 CRI, 3-step MacAdam ellipse.
- Beam Angle: Fixed 35° spread.
- Aiming: 350° horizontal, 90° vertical.
- Center Beam Candlepower: 1567 CBCP.
- Construction: Die-cast aluminum, frosted TIR lens.
- Finish: Electrostatically powder-coated White.
- Dimming: ELV and TRIAC, 100% to 10% with a compatible dimmer.
- Electrical: 120V AC, 50/60Hz, concealed driver.
- Life & Location: 50,000 hours, dry locations, -4°F to 104°F.
Construction & Design

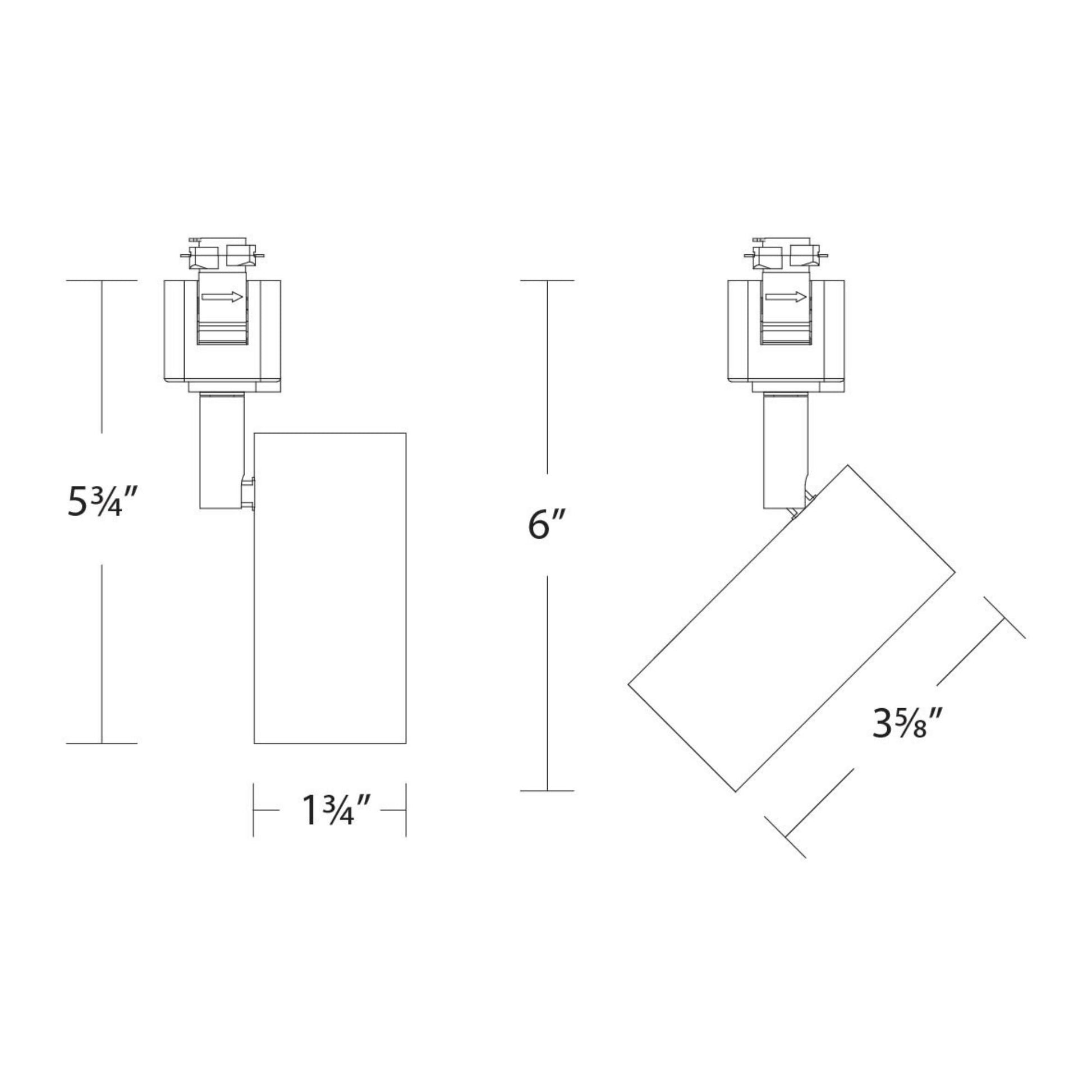

The die-cast aluminum housing features an electrostatically powder-coated White finish and a frosted TIR lens. The concealed driver maintains the compact profile. The cylindrical head measures 1.75 in across and 3.625 in body length. Overall height is 5.75 in with the head pointing straight down and 6 in in the illustrated angled position; installed height varies with aiming.
Light Output & Performance
The integrated LED produces 710 delivered lumens at 10W, with 90 CRI, 3-step MacAdam color consistency and 1567 CBCP. Choose 2700K, 3000K, 3500K, 4000K or 5000K for the space. Its 35° optical beam remains fixed when you reposition the head. Compatible ELV and TRIAC dimmers adjust brightness from 100% to 10%. Rated LED life is 50,000 hours.
Electrical & Installation
The WAC Lighting H-8110-CS-WT operates at 120V AC, 50/60Hz and fits H-Type (Halo) track. Match the head to the installed track system; this is the H-Type version rather than the J-Type or L-Type model. The driver is concealed within the fixture. Install in dry locations within the -4°F to 104°F operating range. The luminaire is ETL and cETL listed and Title 24 JA8 compliant.
Typical Applications

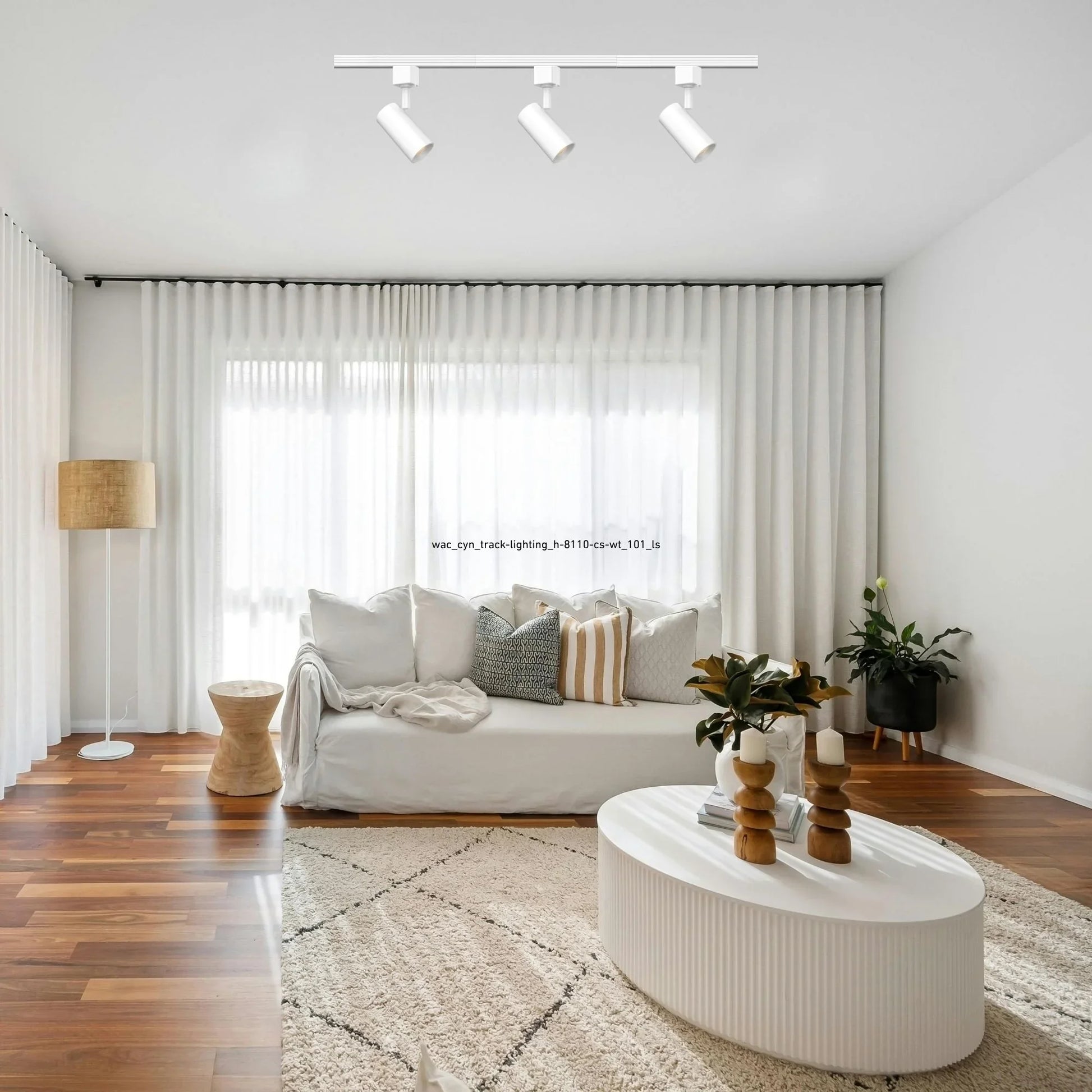

- Residential accent lighting.
- Retail display lighting.
- Artwork and decorative feature lighting.
- Hospitality and reception spaces.
What's Included
- One WAC Lighting Cyn H-8110-CS-WT White track head with integrated LED, frosted TIR lens and concealed driver.
