WAC Lighting Charge 8020 16W H-Type LED Track Head 5CCT 55 Degree Black
Available in stock (1113)
About this item
About this item
- Accent Lighting Output: 16W, 1330 delivered lumens, fixed 55° beam, 1154 CBCP.

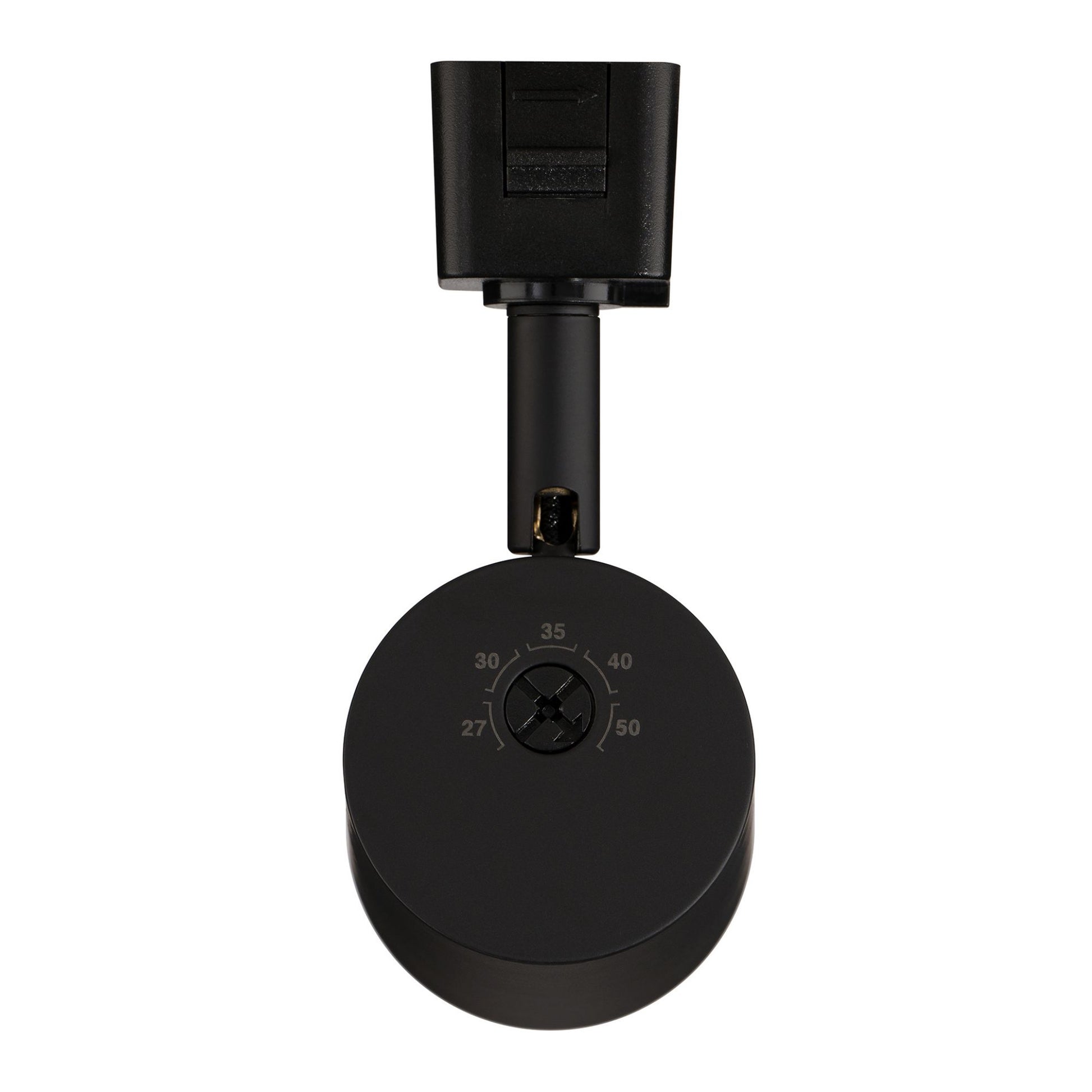

- Selectable White Light: Five settings from 2700K to 5000K, 90 CRI, 3-step MacAdam color consistency.
- Flexible Direction: 350° horizontal and 90° vertical aiming for artwork, shelving and displays.
- Dimmable Performance: ELV and TRIAC dimming from 100% to 10%, 50,000-hour rated life.
- Black H-Type Design: Powder-coated die-cast aluminum, frosted TIR lens, concealed driver, Halo track, dry locations.
Description
Description

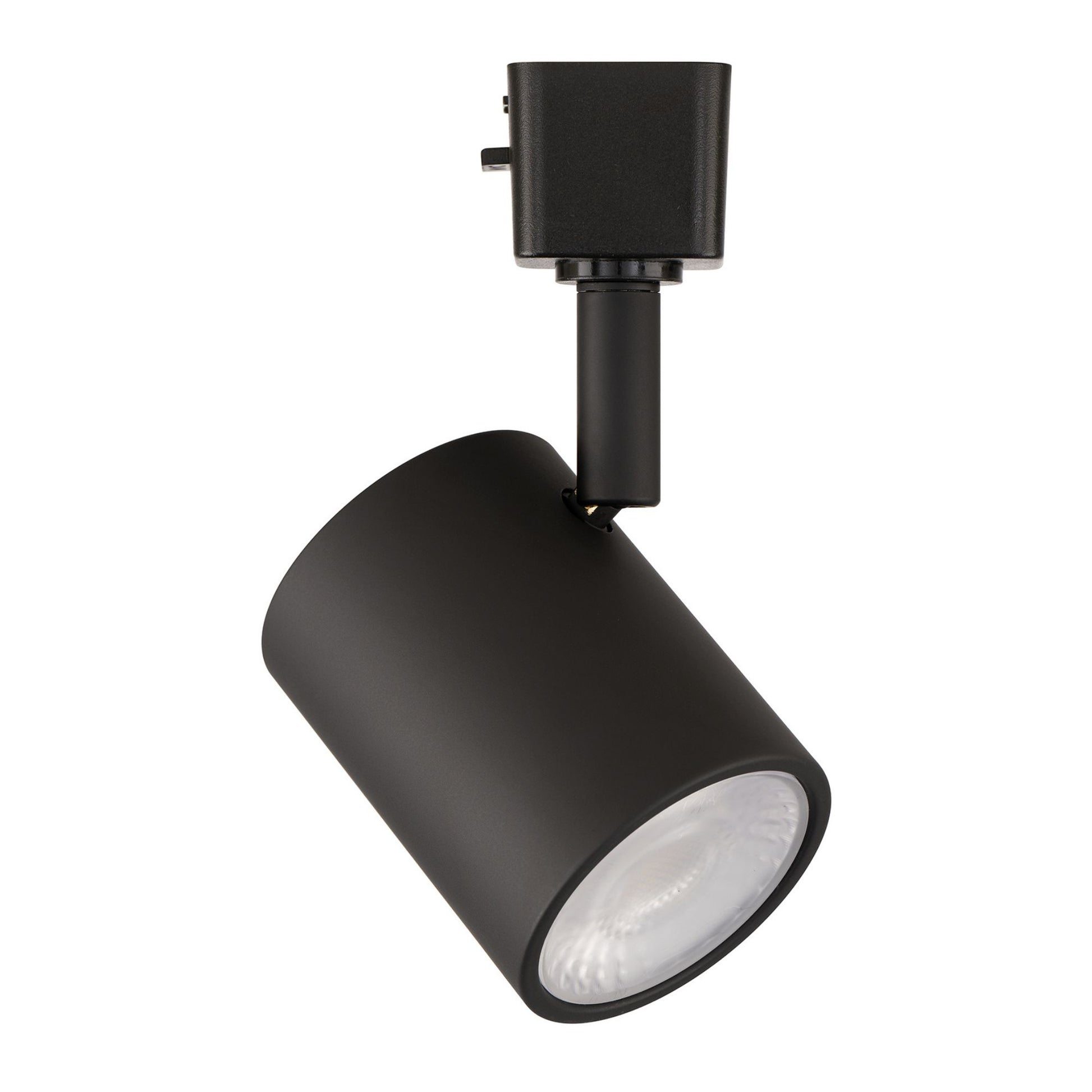

WAC Lighting Charge H-8020-CS-BK LED Track Head
The WAC Lighting Charge H-8020-CS-BK delivers 1330 lumens at 16W in a compact Black housing designed for residential spaces and lower-mounted commercial applications. Five selectable white-light settings help coordinate artwork, shelving and merchandise with the surrounding interior. Its fixed 55° beam combines with 350° horizontal and 90° vertical aiming for directional accent lighting. This version fits H-Type (Halo) track.
Key Features
- Track Type: H-Type (Halo).
- Output: 16W, 1330 delivered lumens.
- Color Selection: 2700K, 3000K, 3500K, 4000K or 5000K.
- Color Quality: 90 CRI, 3-step MacAdam ellipse.
- Beam Angle: Fixed 55° spread.
- Aiming: 350° horizontal, 90° vertical.
- Center Beam Candlepower: 1154 CBCP.
- Construction: Die-cast aluminum, frosted TIR lens.
- Finish: Electrostatically powder-coated Black.
- Dimming: ELV and TRIAC, 100% to 10% with a compatible dimmer.
- Electrical: 120V AC, 50/60Hz, concealed driver.
- Life & Location: 50,000 hours, dry locations, -4°F to 104°F.
Construction & Design

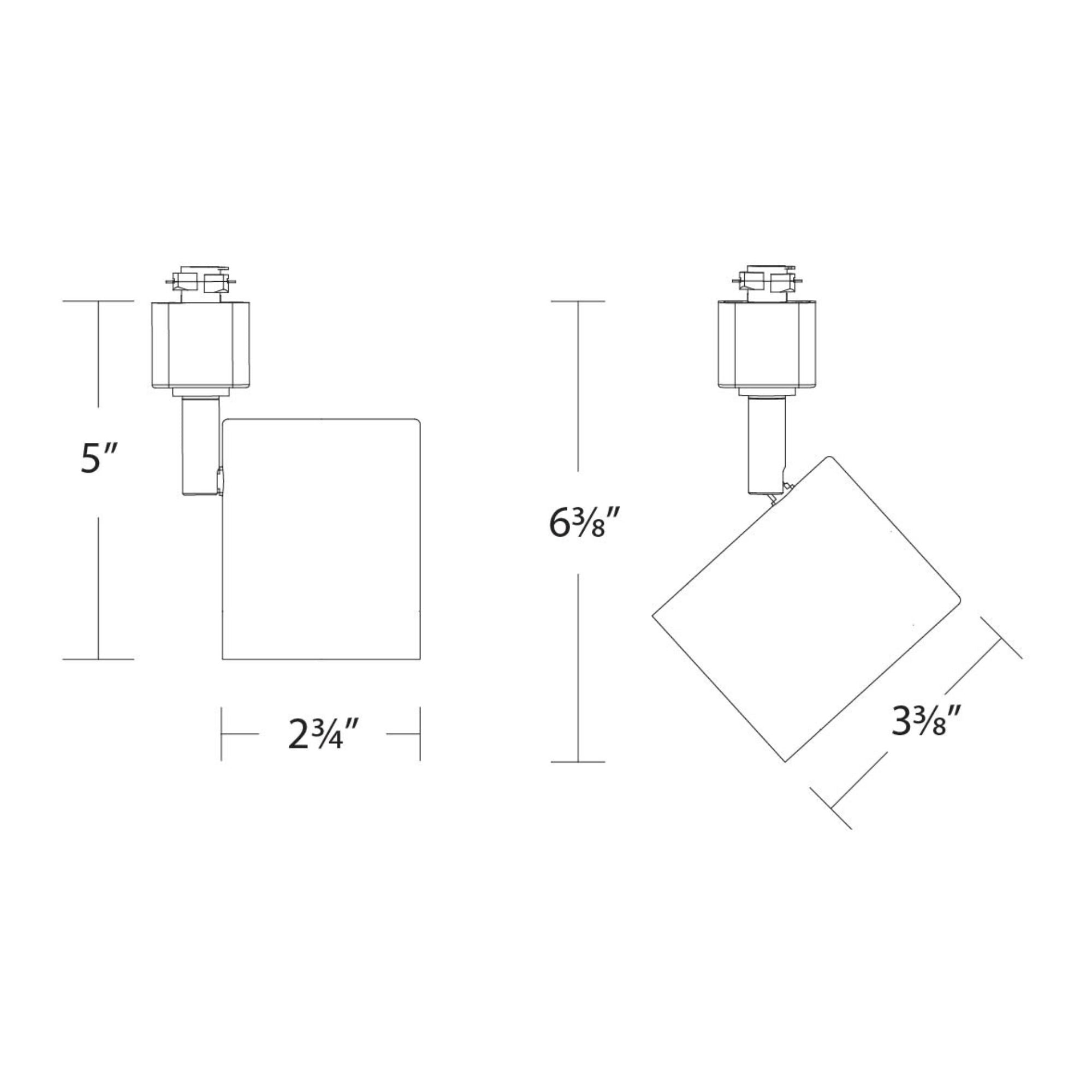

The die-cast aluminum housing has an electrostatically powder-coated Black finish and a frosted TIR lens. A concealed driver keeps the fixture profile compact. The head measures 2.75 in across and 3.375 in body length. Overall height is 5 in in the illustrated horizontal position and 6.375 in in the illustrated angled position; installed height varies with aiming.
Light Output & Performance
The integrated LED provides 1330 delivered lumens at 16W, 90 CRI, 3-step MacAdam color consistency and 1154 CBCP. Choose 2700K, 3000K, 3500K, 4000K or 5000K to suit the space. The 55° optical beam remains fixed as you reposition the head. Compatible ELV and TRIAC dimmers adjust brightness from 100% to 10%. Rated LED life is 50,000 hours.
Electrical & Installation
The WAC Lighting H-8020-CS-BK operates at 120V AC, 50/60Hz and fits H-Type (Halo) track. Match the head to the installed track system; this is the H-Type version rather than the J-Type or L-Type model. The driver is concealed within the fixture. Install in dry locations within the -4°F to 104°F operating range. The luminaire is ETL and cETL listed and Title 24 JA8 compliant.
Typical Applications

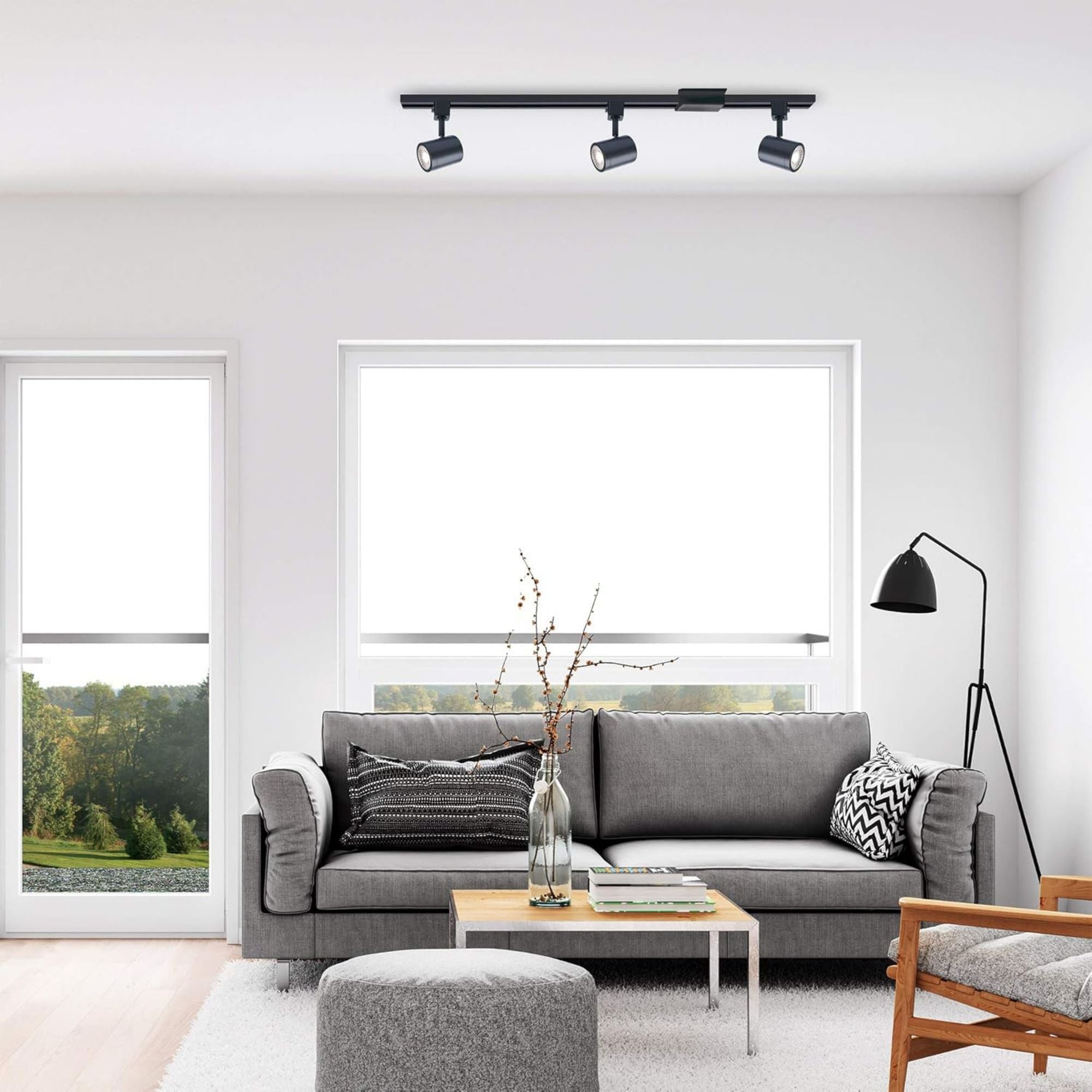

- Residential artwork and shelving.
- Lower-mounted retail displays.
- Gallery accent lighting.
- Hospitality interior feature lighting.
What's Included
- One WAC Lighting Charge H-8020-CS-BK Black track head with integrated LED, frosted TIR lens and concealed driver.
