WAC Lighting Charge 3 Light H-Type LED Track Kit White

The WAC Lighting H-8010/3-CS-WT brings adjustable accent lighting to living spaces and lower-mounted commercial displays. This White Charge kit includes three 10W LED heads, a 48 in H-Type Halo track and a floating canopy. Its 30W total input produces 2595 delivered lumens combined, with five selectable CCT settings to coordinate the lighting with your space.

Key Features

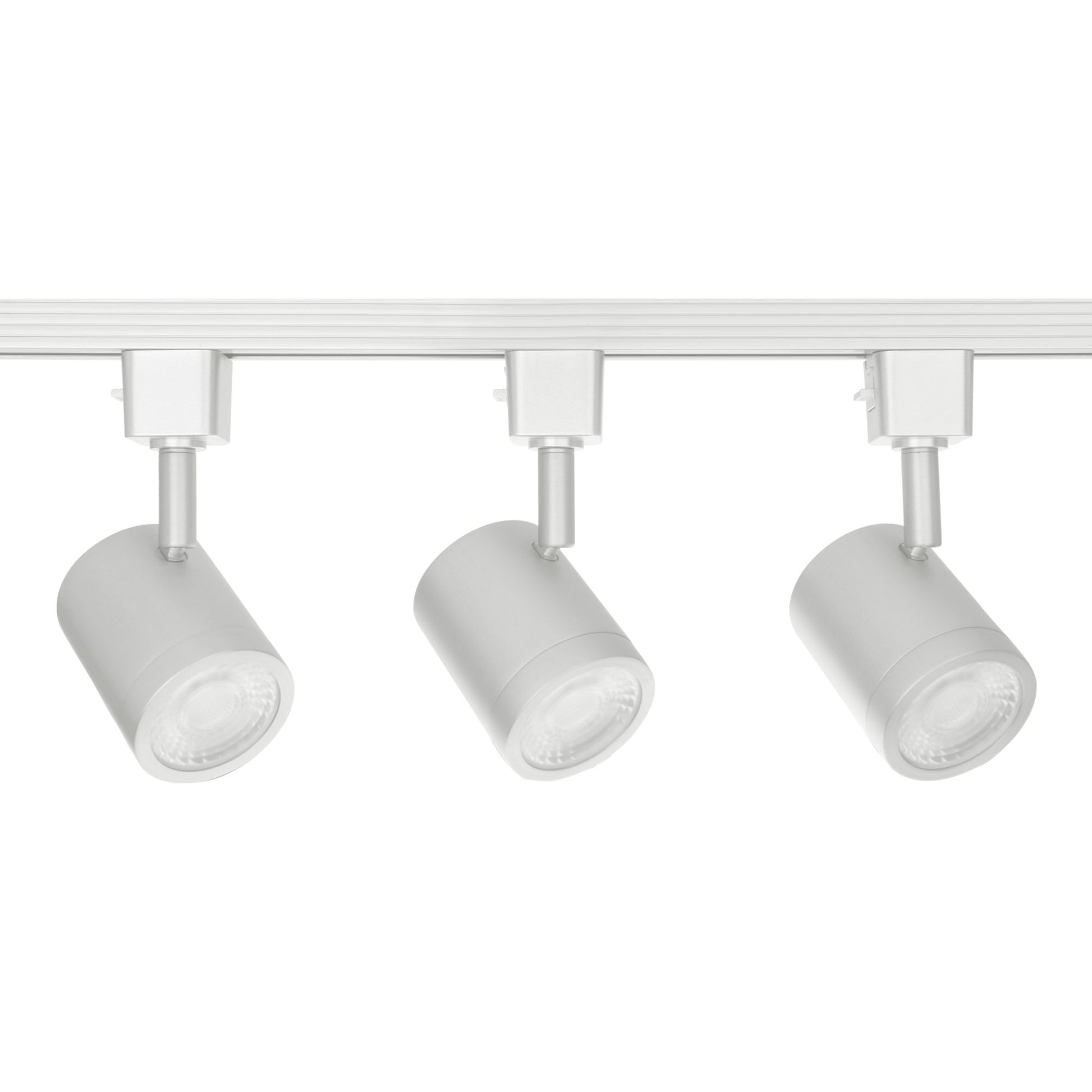

• Complete Kit: Three Charge 8010 LED heads, 48 in H-Type Halo track and floating canopy.
• Power: 10W per head, 30W total, 120VAC, 50/60Hz.
• Delivered Output: 865 lumens per head, 2595 lumens combined.
• Beam Performance: 45° per head, 1006 CBCP per head.
• Selectable CCT: 2700K, 3000K, 3500K, 4000K and 5000K.
• Color Quality: 90 CRI, 3-step MacAdam ellipse.
• Aiming: 350° horizontal rotation, 90° vertical adjustment.
• Optics: Frosted TIR lenses.
• Dimming: Compatible ELV or TRIAC dimmers, 100%–10% range.
• Construction: Die-cast aluminum, concealed drivers, electrostatically powder-coated White finish.
• Rated Life: 50,000 hours.
• Location & Standards: ETL and cETL dry-location listed, Title 24 JA8 compliant, -4°F to 104°F operating range.

Construction & Design

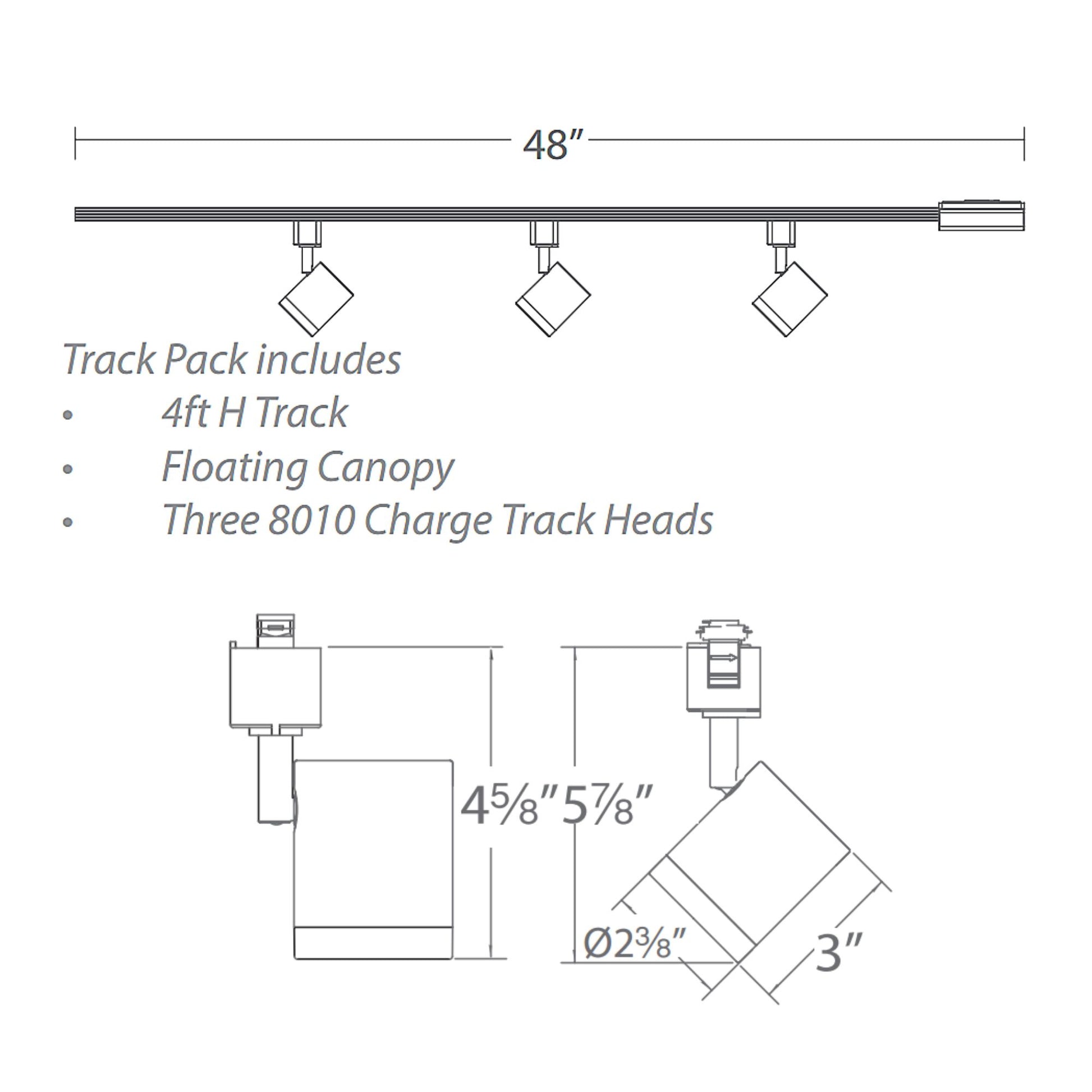

The compact die-cast aluminum heads feature frosted TIR lenses and drivers concealed within the fixtures. An electrostatically powder-coated White finish coordinates the kit. Each head offers 350° horizontal and 90° vertical aiming for directing light toward artwork, shelving or displays. The track measures 48 in long. Each head has a 2 3/8 in diameter and 3 in body length, with a 4 5/8 in straight height and 5 7/8 in angled overall height.

Light Output & Performance

Each integrated LED head delivers 865 lumens through a 45° beam with 1006 CBCP. The three included heads provide 2595 delivered lumens combined. Select 2700K, 3000K, 3500K, 4000K or 5000K to suit warm residential accents or cooler display lighting. 90 CRI supports color rendering, while the LEDs feature a 3-step MacAdam ellipse and 50,000-hour rated life.

Electrical & Installation

The H-8010/3-CS-WT operates on 120VAC at 50/60Hz. Each head uses 10W, for 30W total with the three supplied heads. The included floating canopy feeds the H-Type Halo track. Compatible ELV or TRIAC dimmers provide a 100%–10% dimming range. Install in dry indoor locations within the -4°F to 104°F operating range. H-Type heads are not interchangeable with J-Type Juno or L-Type Lightolier adapters.

Compatible Accessories

Matching Charge heads can be purchased separately as an option to add lighting positions to the included track, within the track, feed, circuit and dimmer load limits.

• H-8010-CS-WT: Matching White 10W H-Type Charge LED track head, five selectable CCT settings and 45° beam, sold separately.

Typical Applications

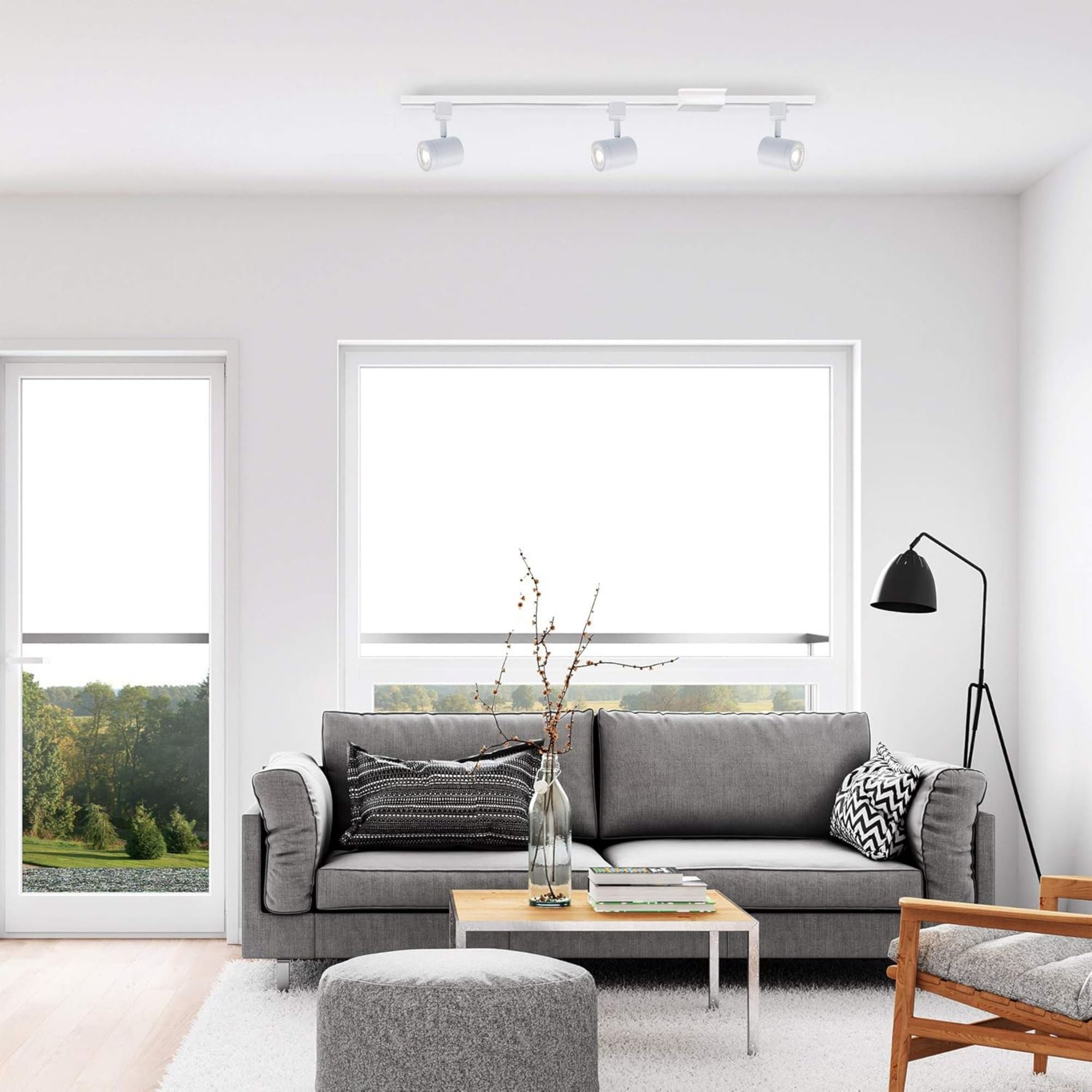

• Living-room artwork and accent lighting.
• Lower-mounted retail displays.
• Gallery walls and shelving.
• Indoor workspaces with selectable white light.

What's Included

• Three White Charge 8010 LED track heads.
• One matching 48 in H-Type track.
• One matching floating canopy.
