WAC Lighting Ocularc 7012 11W H-Type LED Track Head 5CCT Beam Adjustable Black
Available in stock (1421)
About this item
About this item
- Three Included Beam Options: Pre-installed 60° flood film, supplied 30° narrow-flood film, 17° spot with film removed.
- Beam-Specific Output: 11W, up to 1025 lumens at 17°, 955 lumens at 30°, 920 lumens at 60°.
- Selectable Color Quality: Toolless 5CCT switch from 2700K to 5000K, 90+ CRI, 3-step MacAdam consistency.
- Directional & Dimmable: 350° horizontal and 90° vertical aiming, ELV or TRIAC dimming from 100% to 10%.
- Glare-Control Design: Black powder-coated die-cast aluminum, baffled front cover, integral driver, H-Type (Halo) track.
Description
Description

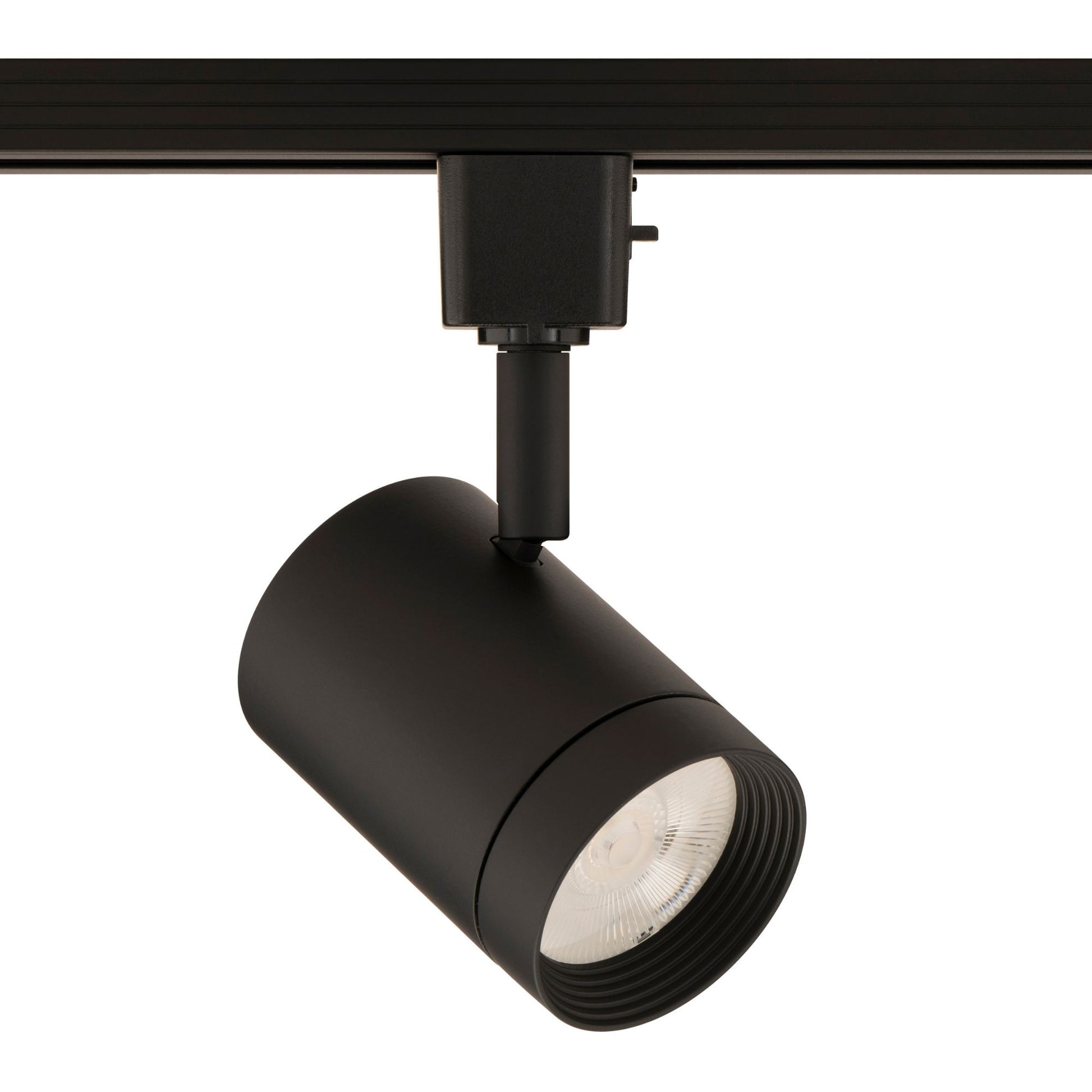

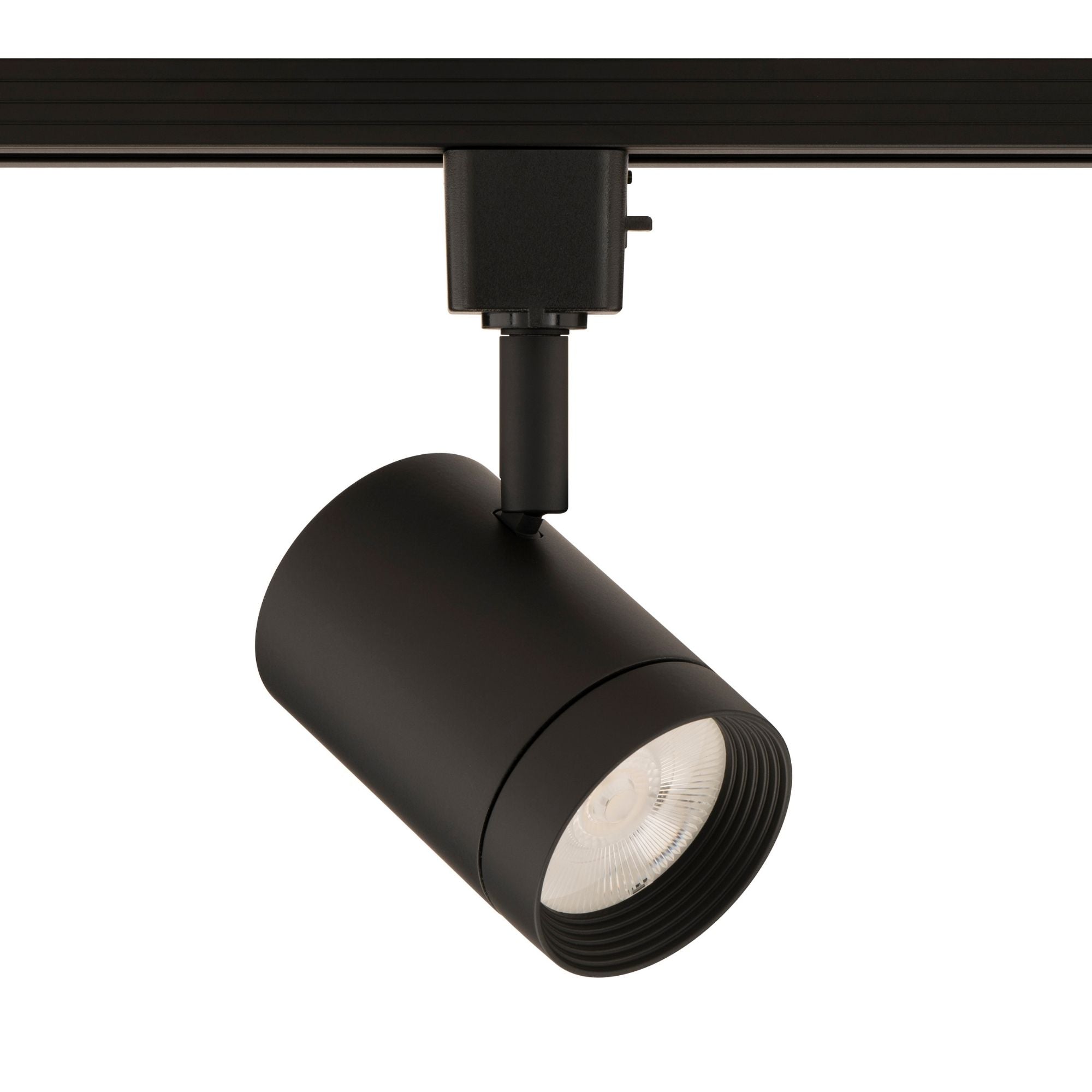

WAC Lighting Ocularc H-7012-CS-BK LED Track Head
The WAC Lighting Ocularc H-7012-CS-BK combines an 11W COB LED with three included beam options for residential spaces and lower-mounted commercial installations. Change from a broad 60° flood to a 30° narrow flood or 17° spot to suit the display. Output reaches 1025 lumens in the 17° configuration. A Black die-cast housing with a baffled front cover helps control glare, while five selectable color temperatures coordinate the light with the interior. This version fits H-Type (Halo) track.
Key Features
- Track Type: H-Type (Halo).
- Power: 11W, integrated high-output COB LED.
- Included Beam Options: 60° film pre-installed, interchangeable 30° film supplied, remove film for a 17° spot.
- Maximum Output by Beam: 17°, 1025 lumens; 30°, 955 lumens; 60°, 920 lumens.
- Color Selection: Toolless switch, 2700K, 3000K, 3500K, 4000K or 5000K.
- Color Quality: 90+ CRI, 3-step MacAdam ellipse.
- Aiming: 350° horizontal, 90° vertical.
- Glare Control: Die-cast aluminum, baffled front cover.
- Finish: Electrostatically powder-coated Black.
- Dimming: ELV or TRIAC, 100% to 10% with a compatible dimmer.
- Electrical: 120V AC, 50/60Hz, integral driver, 0.98 power factor, less than 15% current THD.
- Life & Location: 50,000 hours at L70, dry locations, -4°F to 104°F.
Construction & Design

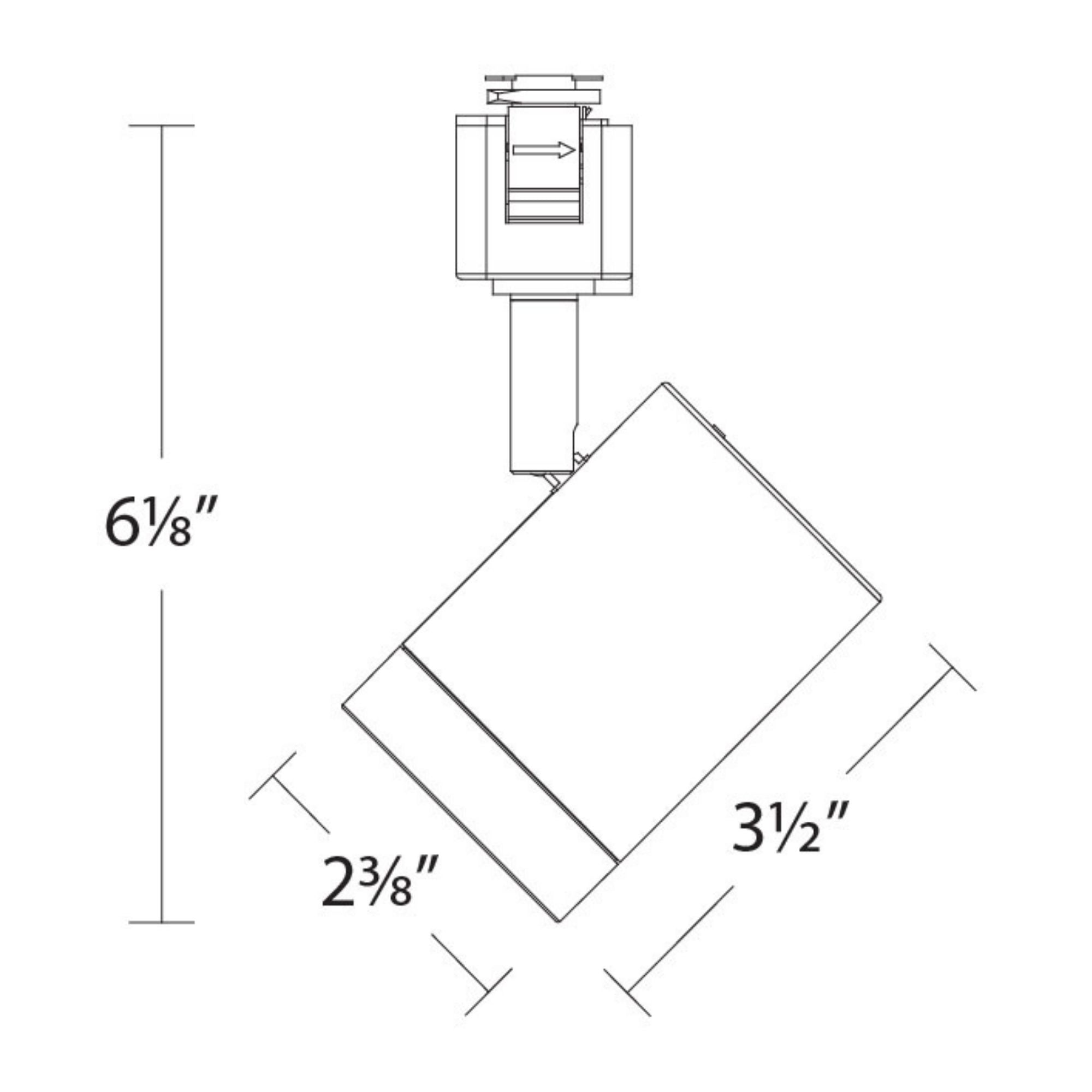

The die-cast aluminum housing incorporates driver, thermal and optical management in a compact design. Its baffled front cover helps control glare, and the electrostatically powder-coated Black finish provides a clean appearance. The head measures 2.375 in across and 3.5 in body length, with an overall height of 6.125 in in the illustrated angled position. The adjustable base and 350° horizontal and 90° vertical aiming help direct light toward the intended feature.
Light Output & Performance
The 60° beam film comes pre-installed; exchange it for the included 30° film, or remove the film for a 17° spot beam. Maximum output and center-beam intensity vary with the selected optic:
- 17° Spot: 1025 lumens, 3935 CBCP.
- 30° Narrow Flood: 955 lumens, 1520 CBCP.
- 60° Flood: 920 lumens, 670 CBCP.

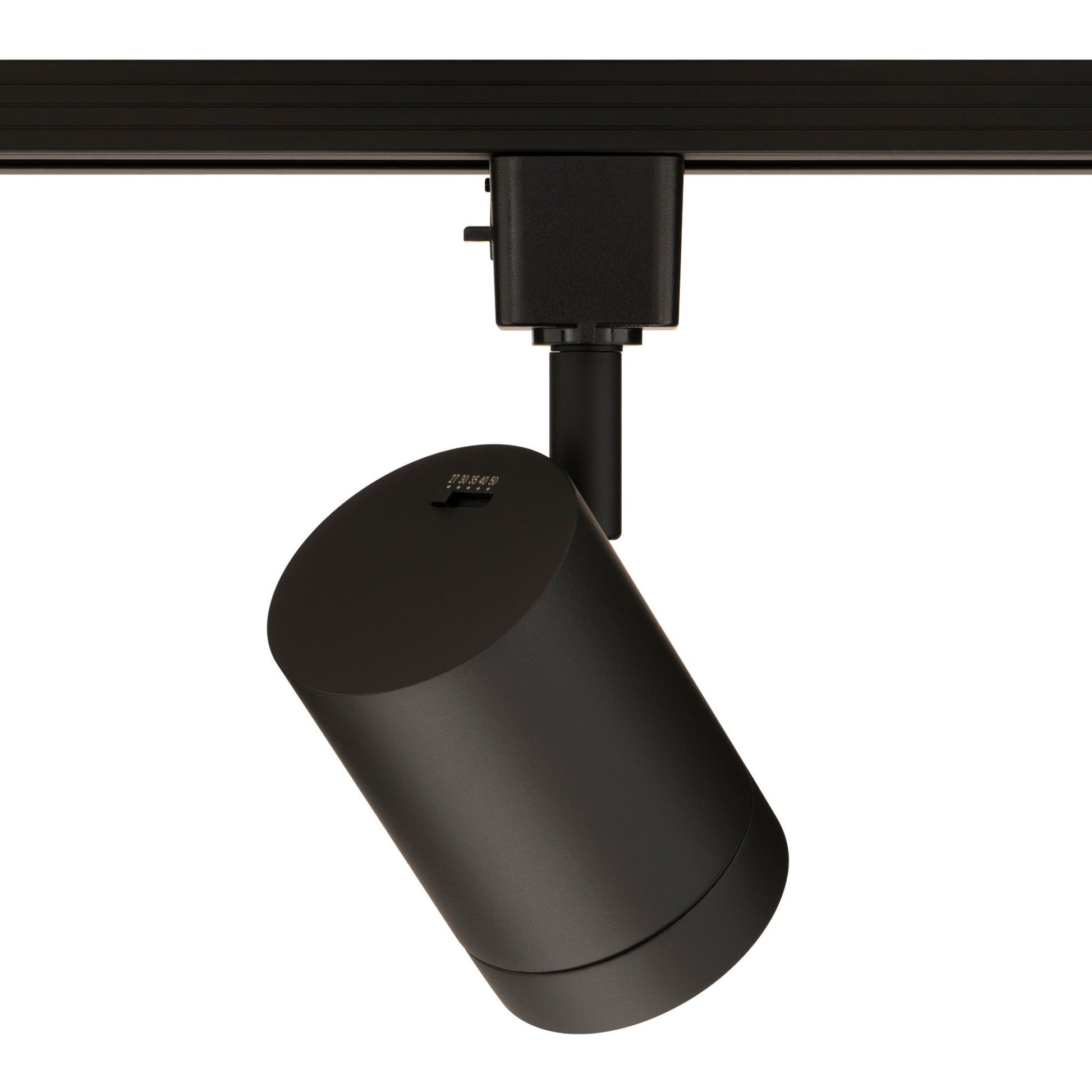

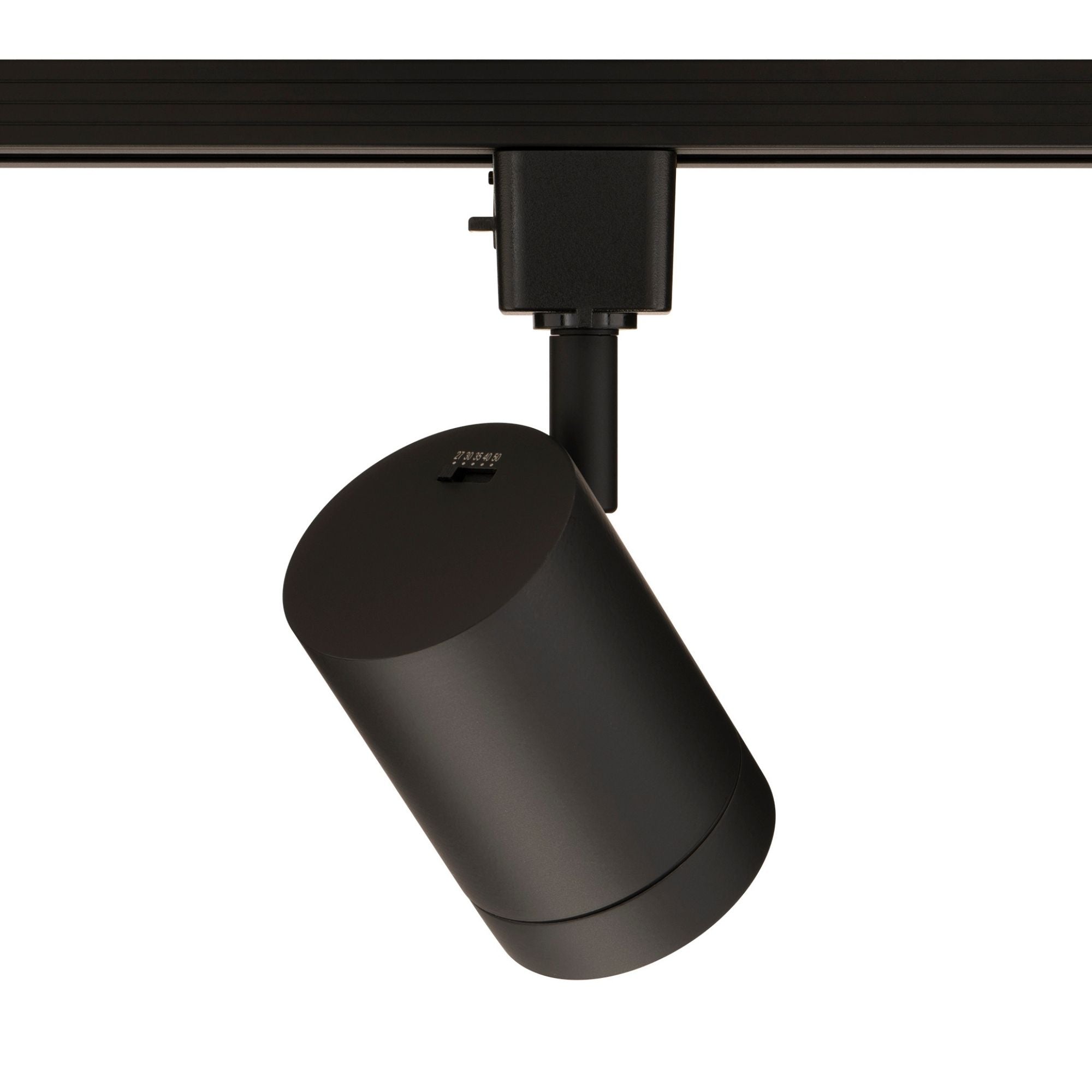

A toolless integrated switch selects 2700K, 3000K, 3500K, 4000K or 5000K. The COB LED provides 90+ CRI and 3-step MacAdam color consistency. Compatible ELV or TRIAC dimmers adjust brightness from 100% to 10%. Rated life is 50,000 hours at L70.
Electrical & Installation
The WAC Lighting H-7012-CS-BK operates at 11W, 120V AC, 50/60Hz with an integral driver, 0.98 power factor and less than 15% current THD. It fits H-Type (Halo) track; select the matching track version rather than a J-Type or L-Type model. Install in dry locations within the -4°F to 104°F operating range. The luminaire is ETL and cETL listed and Title 24 JA8 compliant.
Typical Applications
- Retail and showroom lighting.
- Gallery and exhibition lighting.

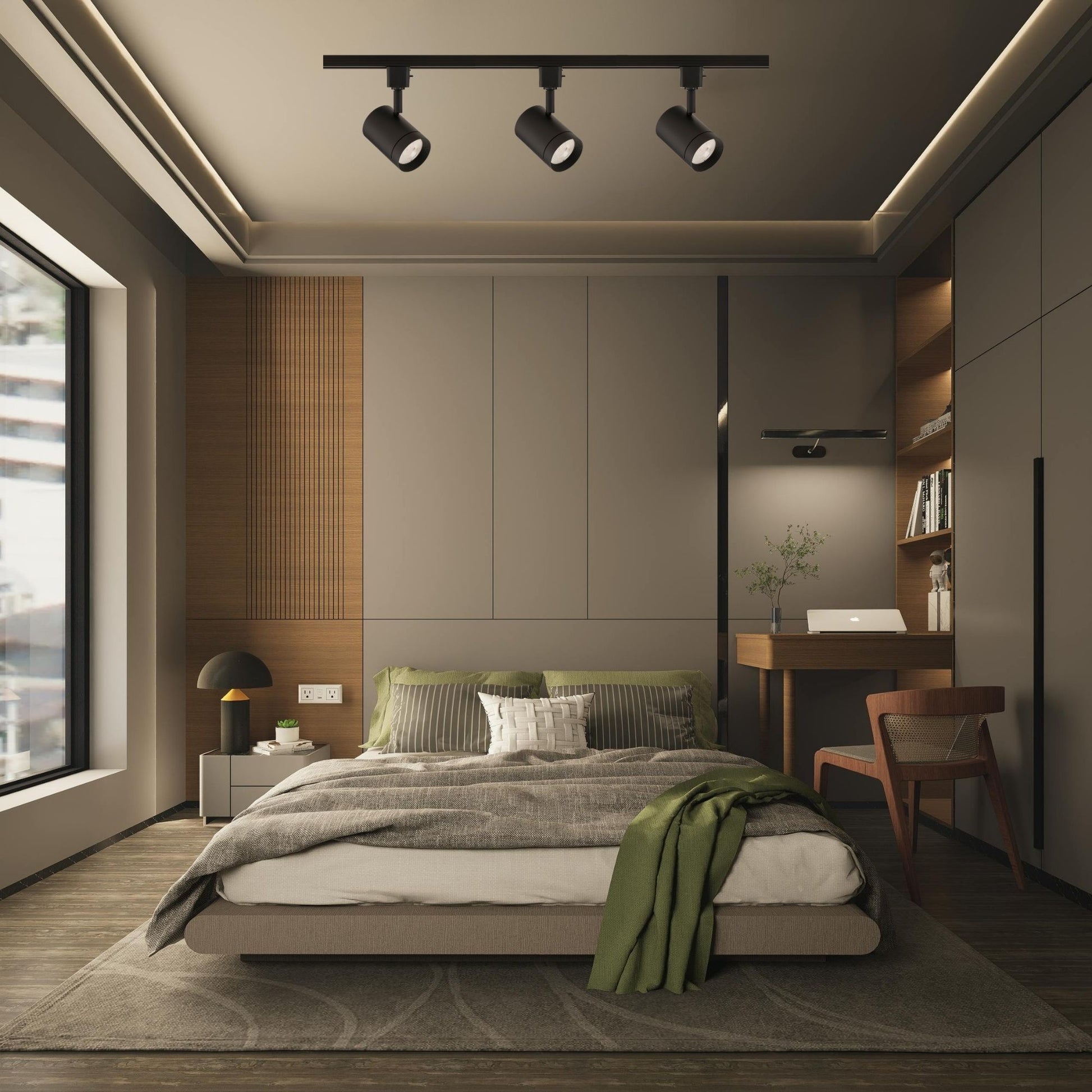

- Residential feature lighting.
- Commercial interior accent lighting.
What's Included
- One WAC Lighting Ocularc H-7012-CS-BK Black track head with integrated COB LED and integral driver.
- Included optics: 17° spot lens, pre-installed 60° flood film and interchangeable 30° narrow-flood film; remove the beam film to use the 17° spot.
