WAC Lighting Ocularc 7011 11W H-Type LED Track Head 5CCT Beam Adjustable White
Available in stock (2355)
About this item
About this item
- Three Included Beam Options: Pre-installed 60° flood film, supplied 30° narrow-flood film, 17° spot with film removed.
- Compact Accent Performance: 11W, up to 1025 lumens at 17°, 955 lumens at 30°, 920 lumens at 60°.
- Selectable Color Quality: Toolless 5CCT switch from 2700K to 5000K, 90+ CRI, 3-step MacAdam consistency.
- Directional & Dimmable: 350° horizontal and 90° vertical aiming, ELV or TRIAC dimming from 100% to 10%.
- Glare-Control Design: White powder-coated die-cast aluminum, baffled front cover, concealed driver, H-Type (Halo) track.
Description
Description

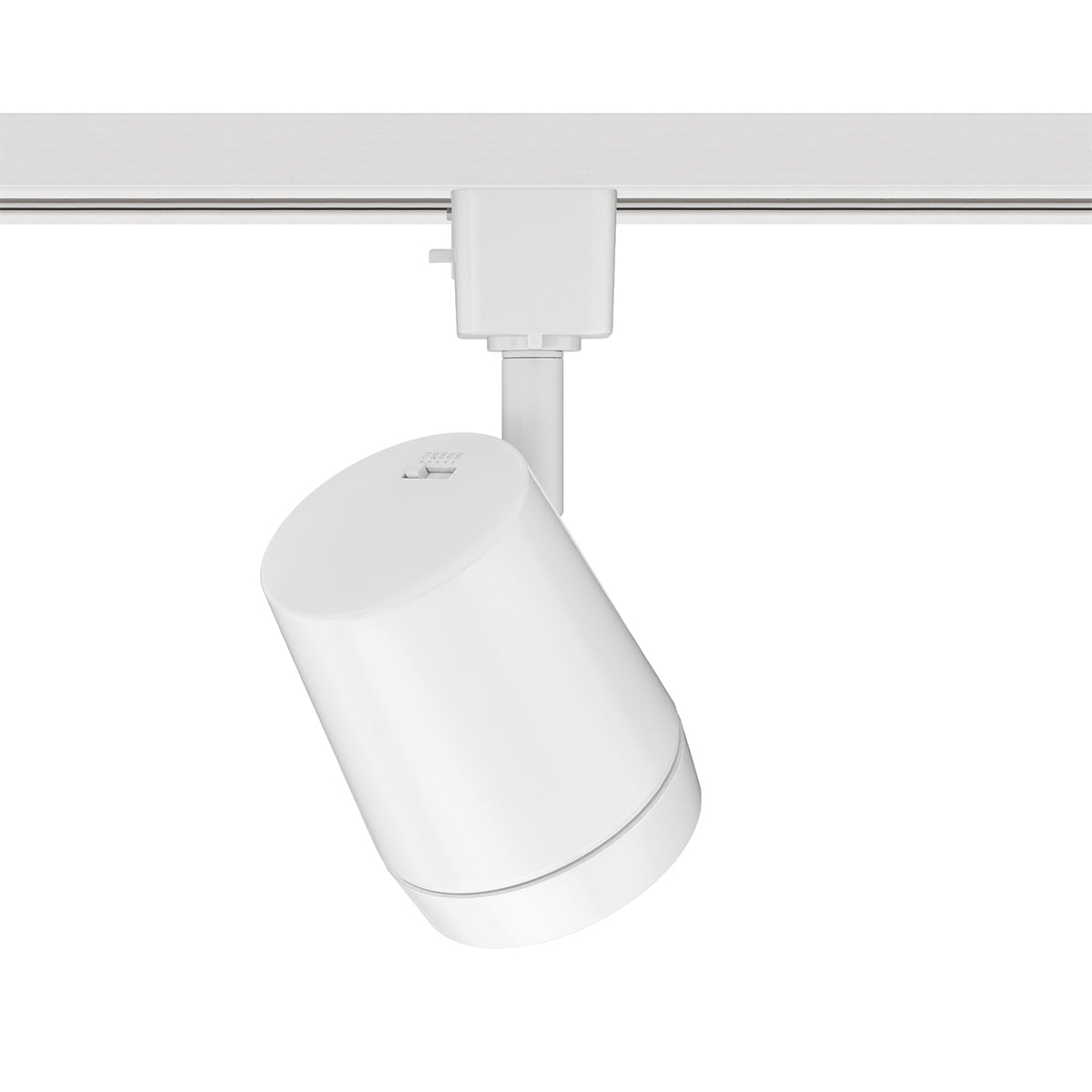

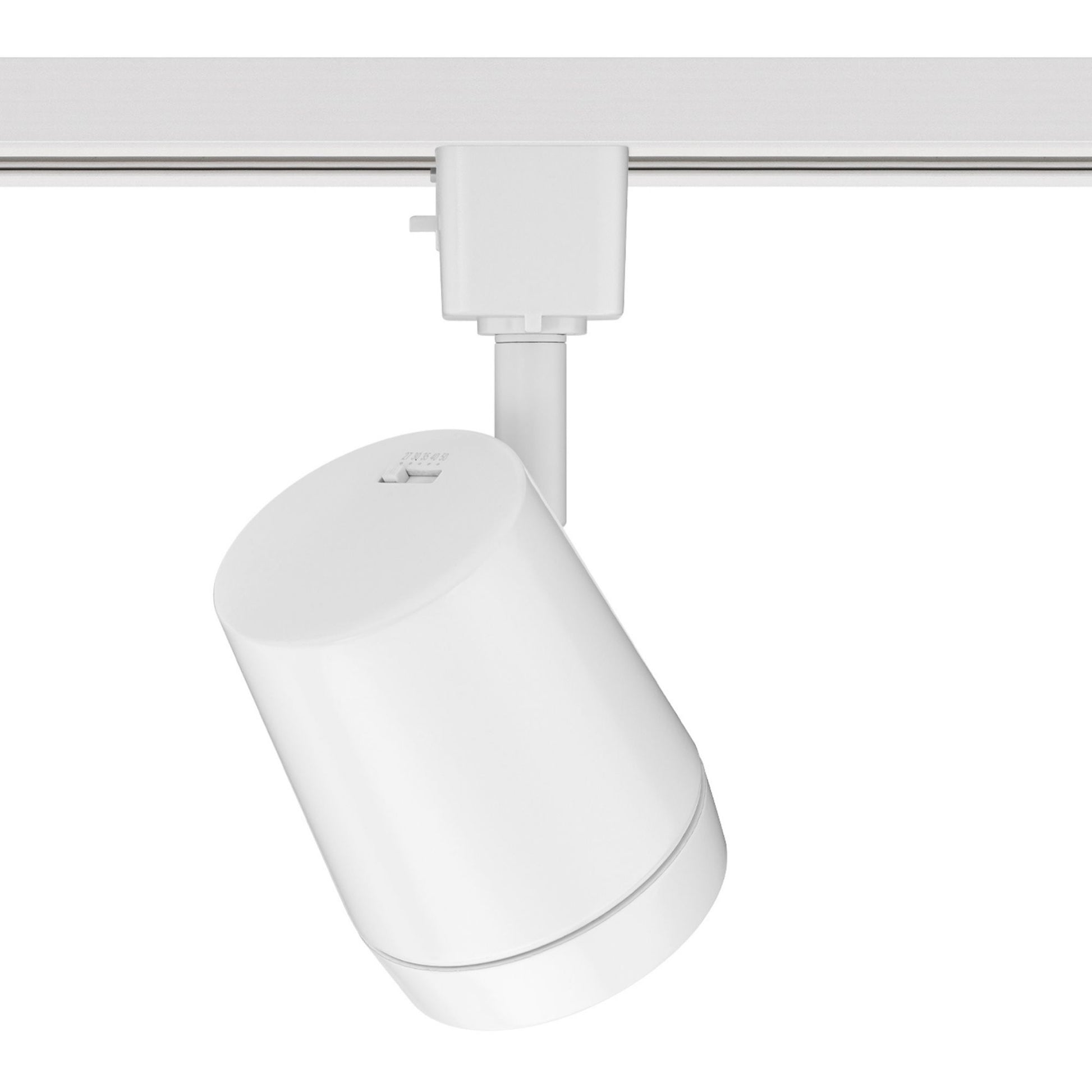

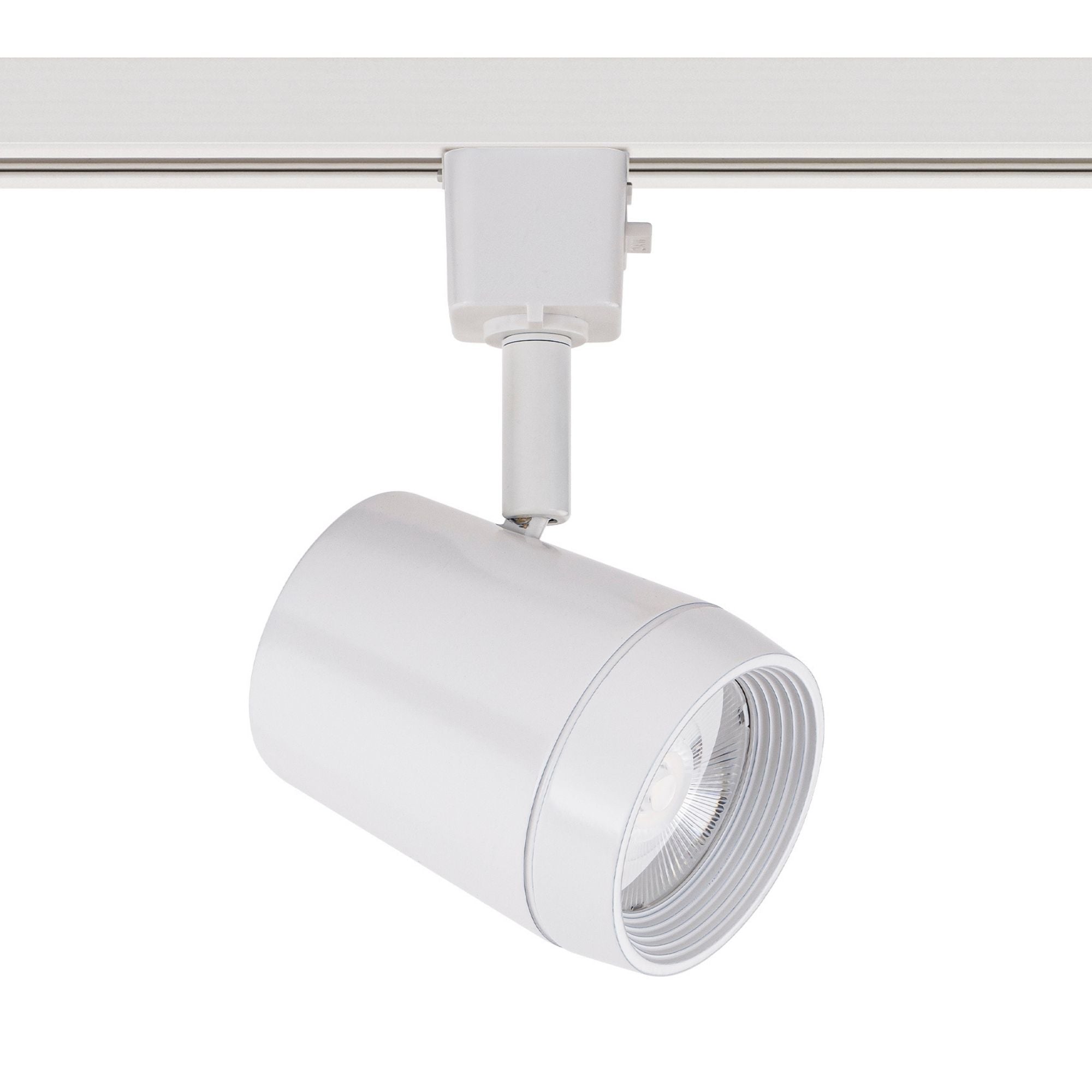

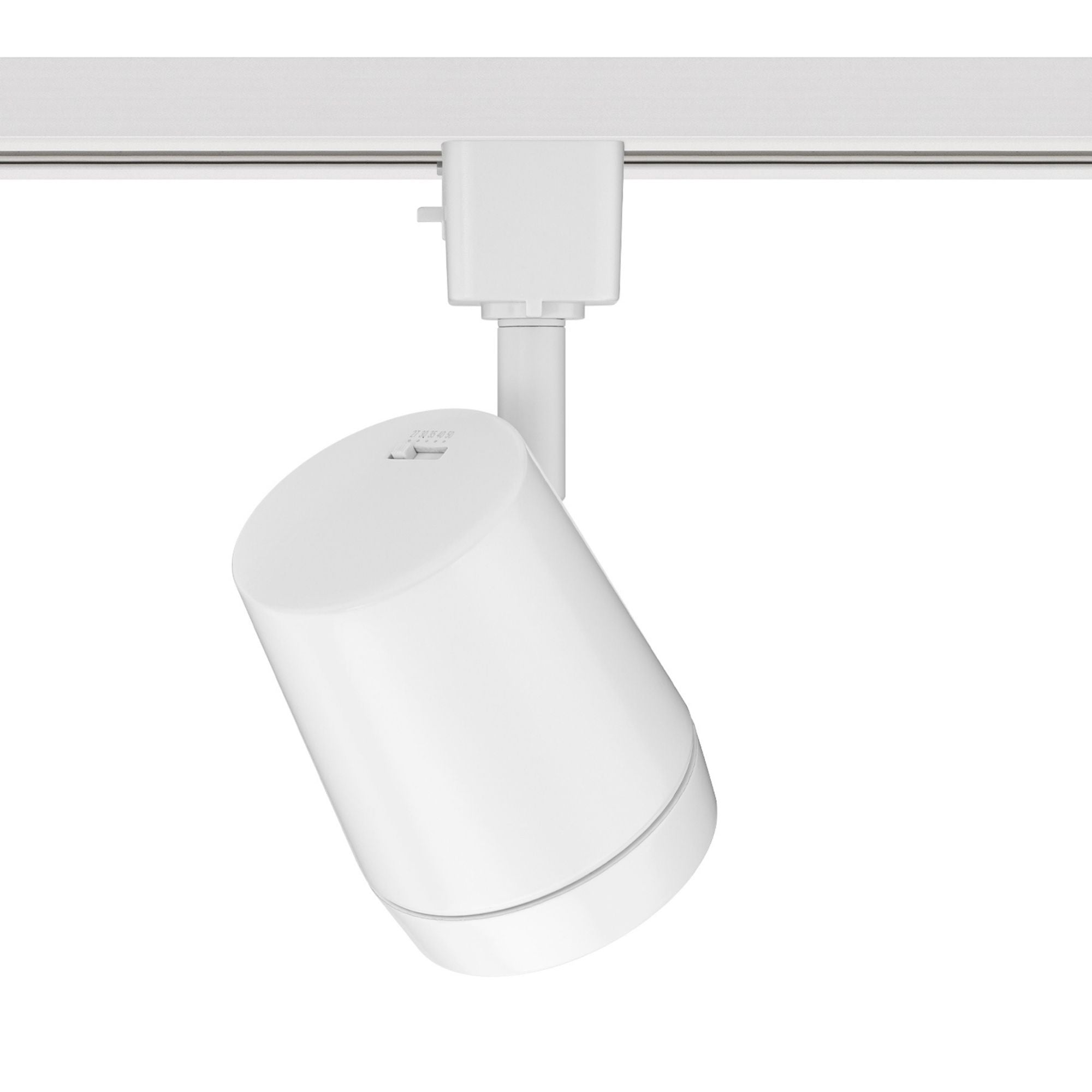

WAC Lighting Ocularc H-7011-CS-WT LED Track Head
The WAC Lighting Ocularc H-7011-CS-WT brings flexible accent lighting to residential spaces and lower-mounted commercial installations. Its 11W COB LED delivers up to 1025 lumens with the 17° spot beam, while included films provide 30° narrow-flood and 60° flood options. Select one of five color temperatures to coordinate displays, artwork and interior finishes. A compact White die-cast aluminum housing with a baffled front cover helps control glare. This version fits H-Type (Halo) track.
Key Features
- Track Type: H-Type (Halo).
- Power: 11W, integrated high-output COB LED.
- Included Beam Options: 60° film pre-installed, interchangeable 30° film supplied, remove film for a 17° spot.
- Maximum Output by Beam: 17°, 1025 lumens; 30°, 955 lumens; 60°, 920 lumens.
- Color Selection: Toolless integrated switch, 2700K, 3000K, 3500K, 4000K or 5000K.
- Color Quality: 90+ CRI, 3-step MacAdam ellipse.
- Aiming: 350° horizontal, 90° vertical.
- Construction: Die-cast aluminum, baffled front cover for glare control.
- Finish: Electrostatically powder-coated White.
- Dimming: ELV or TRIAC, 100% to 10% with a compatible dimmer.
- Electrical: 120V AC, 50/60Hz, integral driver, 0.98 power factor, less than 15% current THD.
- Life & Location: 50,000 hours at L70, dry locations, -4°F to 104°F.
Construction & Design

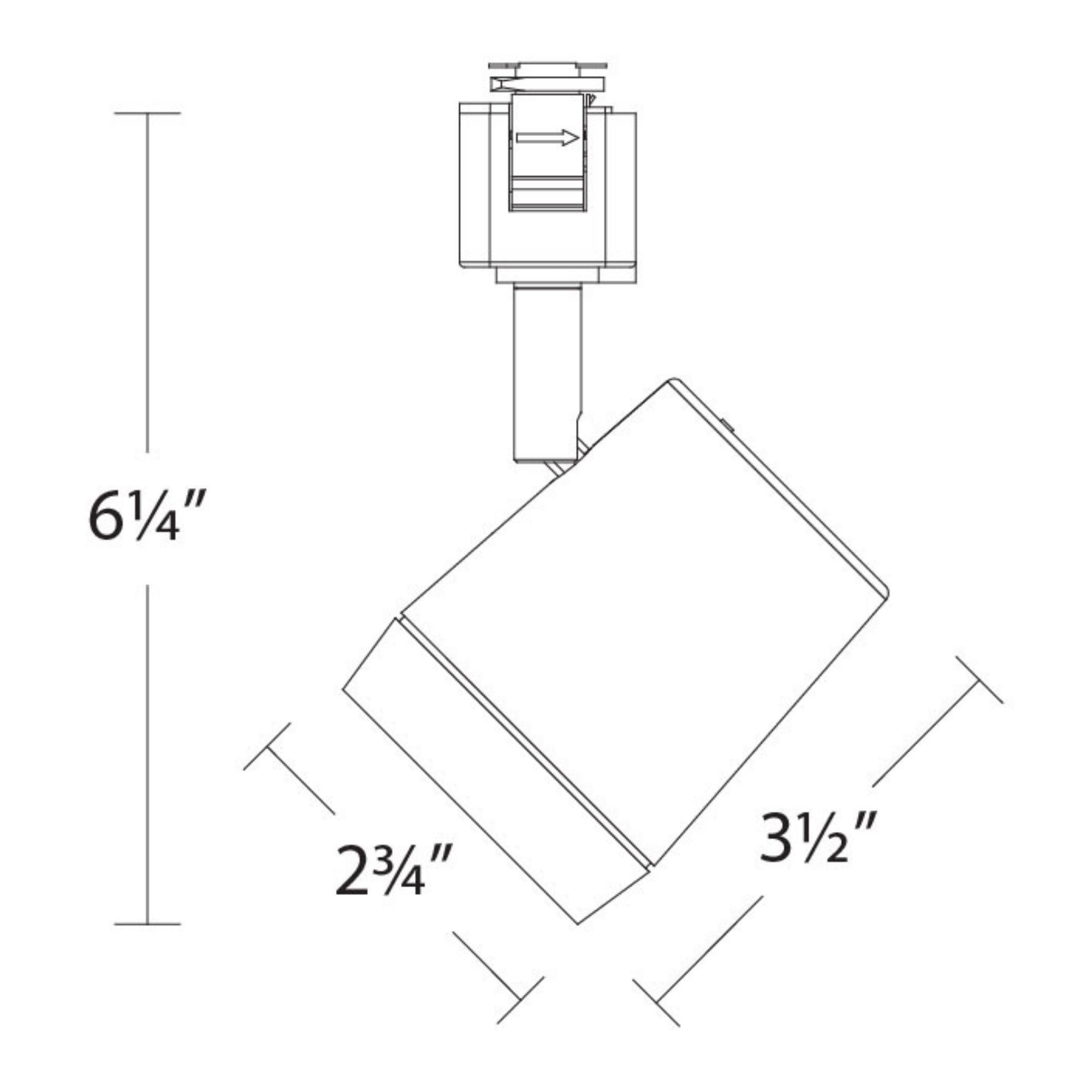

The die-cast aluminum housing pairs an electrostatically powder-coated White finish with a baffled front cover for glare control. The driver is concealed within the fixture for a self-contained design. The head measures 2.75 in across and 3.5 in body length, with an overall height of 6.25 in in the illustrated angled position. Its adjustable base provides 350° horizontal and 90° vertical aiming to direct light toward the intended feature.
Light Output & Performance
The 60° flood film comes pre-installed. Exchange it for the included 30° narrow-flood film for a more concentrated beam, or remove the film to use the 17° spot. Maximum output and center-beam intensity vary by optic:
- 17° Spot: 1025 lumens, 3935 CBCP.
- 30° Narrow Flood: 955 lumens, 1520 CBCP.
- 60° Flood: 920 lumens, 670 CBCP.
A discrete, toolless integrated 5CCT switch selects 2700K, 3000K, 3500K, 4000K or 5000K. The COB LED provides 90+ CRI and 3-step MacAdam color consistency. Compatible ELV or TRIAC dimmers adjust brightness from 100% to 10%. Rated life is 50,000 hours at L70.
Electrical & Installation
The WAC Lighting H-7011-CS-WT operates at 11W, 120V AC, 50/60Hz, with an integral driver, 0.98 power factor and less than 15% current THD. It fits H-Type (Halo) track; choose the matching track version rather than a J-Type or L-Type model. Install in dry locations within the -4°F to 104°F operating range. The luminaire is ETL and cETL listed and Title 24 JA8 compliant.
Typical Applications

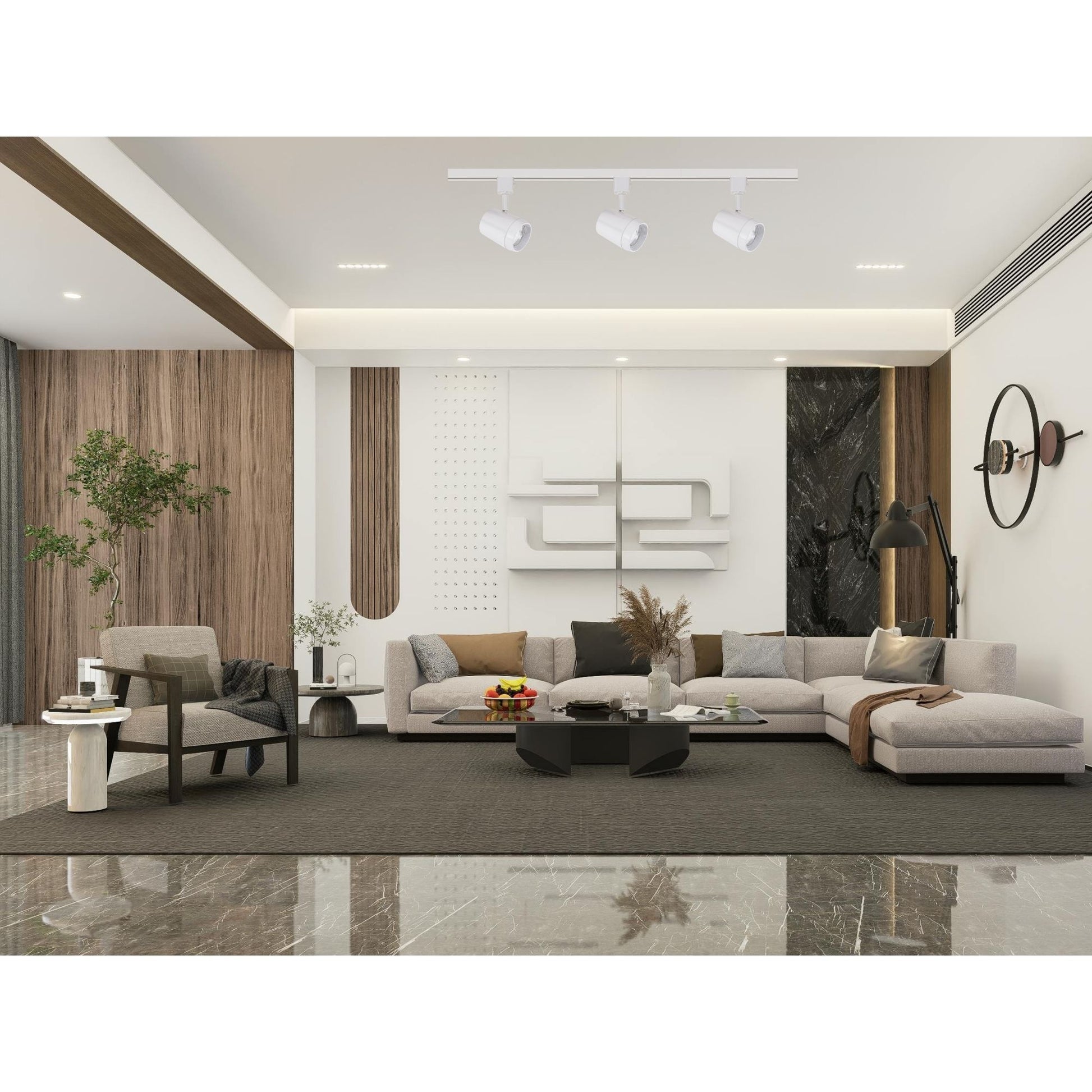

- Residential accent lighting.
- Lower-mounted retail display lighting.
- Artwork and decorative feature lighting.
- Hospitality interior lighting.
What's Included
- One WAC Lighting Ocularc H-7011-CS-WT White track head with integrated COB LED and integral driver.
- Included optics: 17° spot lens, pre-installed 60° flood film and interchangeable 30° narrow-flood film; remove the beam film to use the 17° spot.
