WAC Lighting OCULARC Track Head, H-Type, Black, Selectable CCT, 1025 Lumens, 17°/30°/60° Beam Angles
Available in stock (2360)
About this item
About this item
- Track System Compatibility: Designed for H-Type tracks, ensuring seamless integration.
- Selectable CCT: Offers 2700K to 5000K color temperatures for versatile lighting applications.
- Beam Angle Options: Includes 17°, 30°, and 60° beam angles for tailored illumination.
- Adjustability: Features 350° horizontal and 90° vertical aiming for precise light direction.
- Construction: Die-cast aluminum housing with a baffled front cover for glare control.
We process payments securely and do not store credit card information.
Description
Description

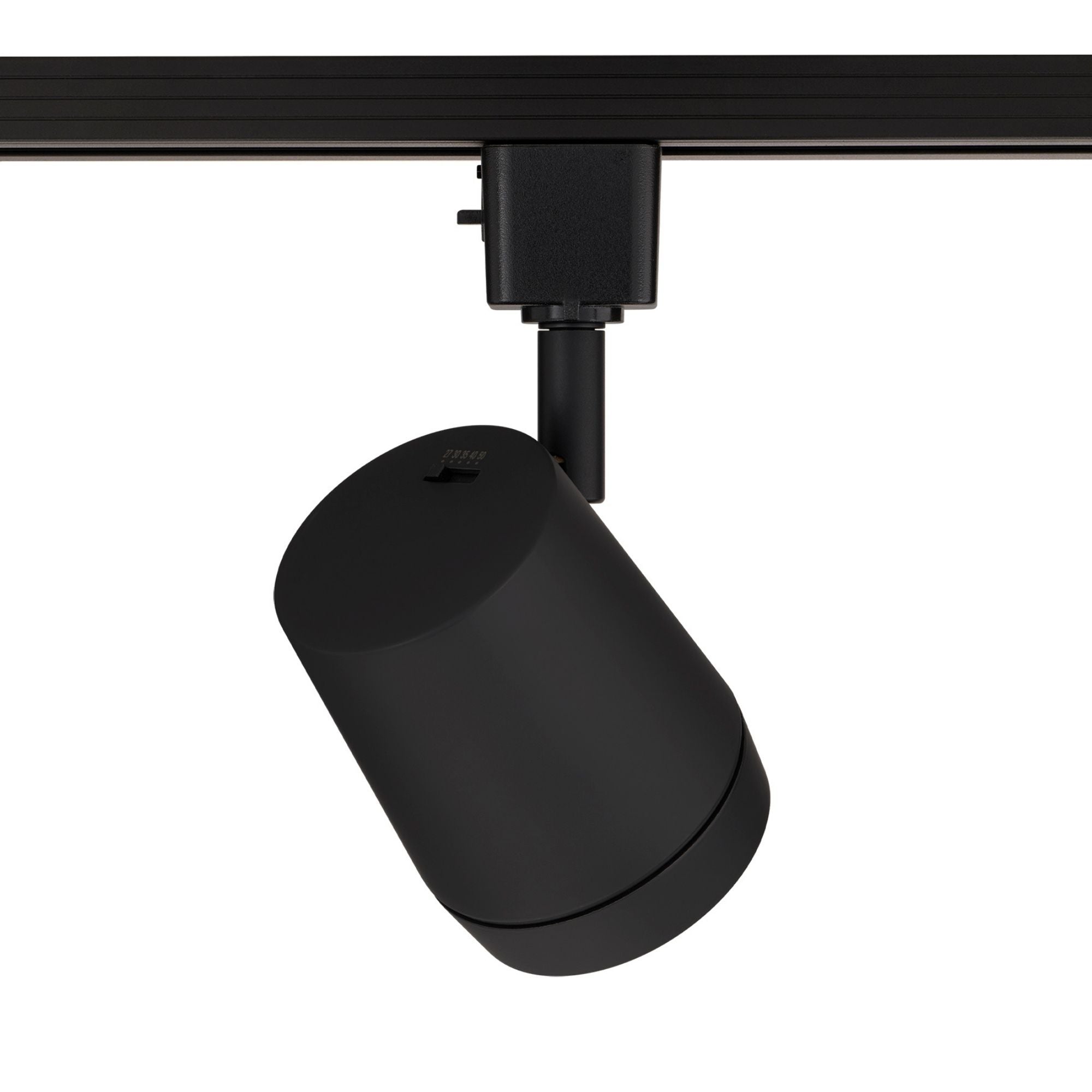

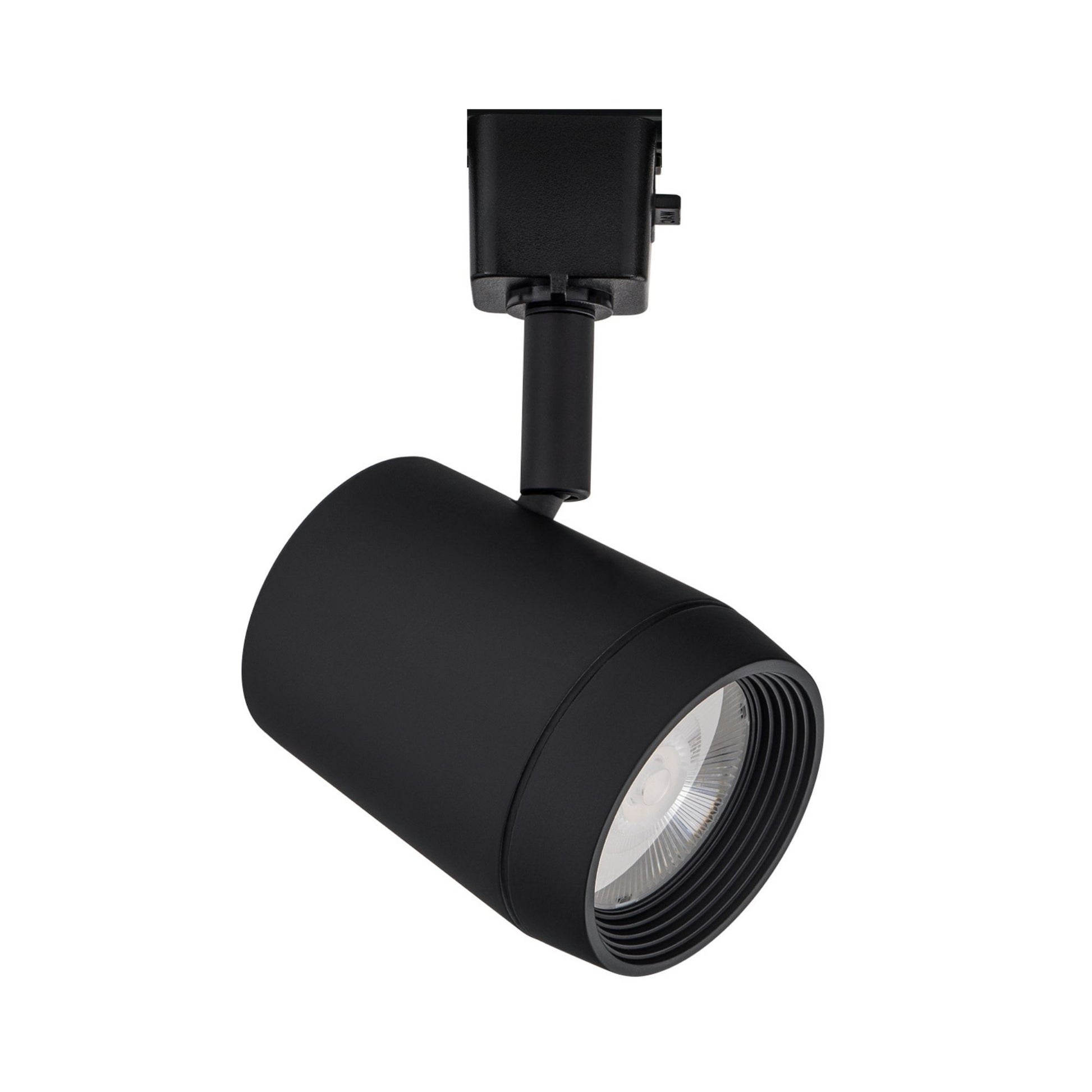

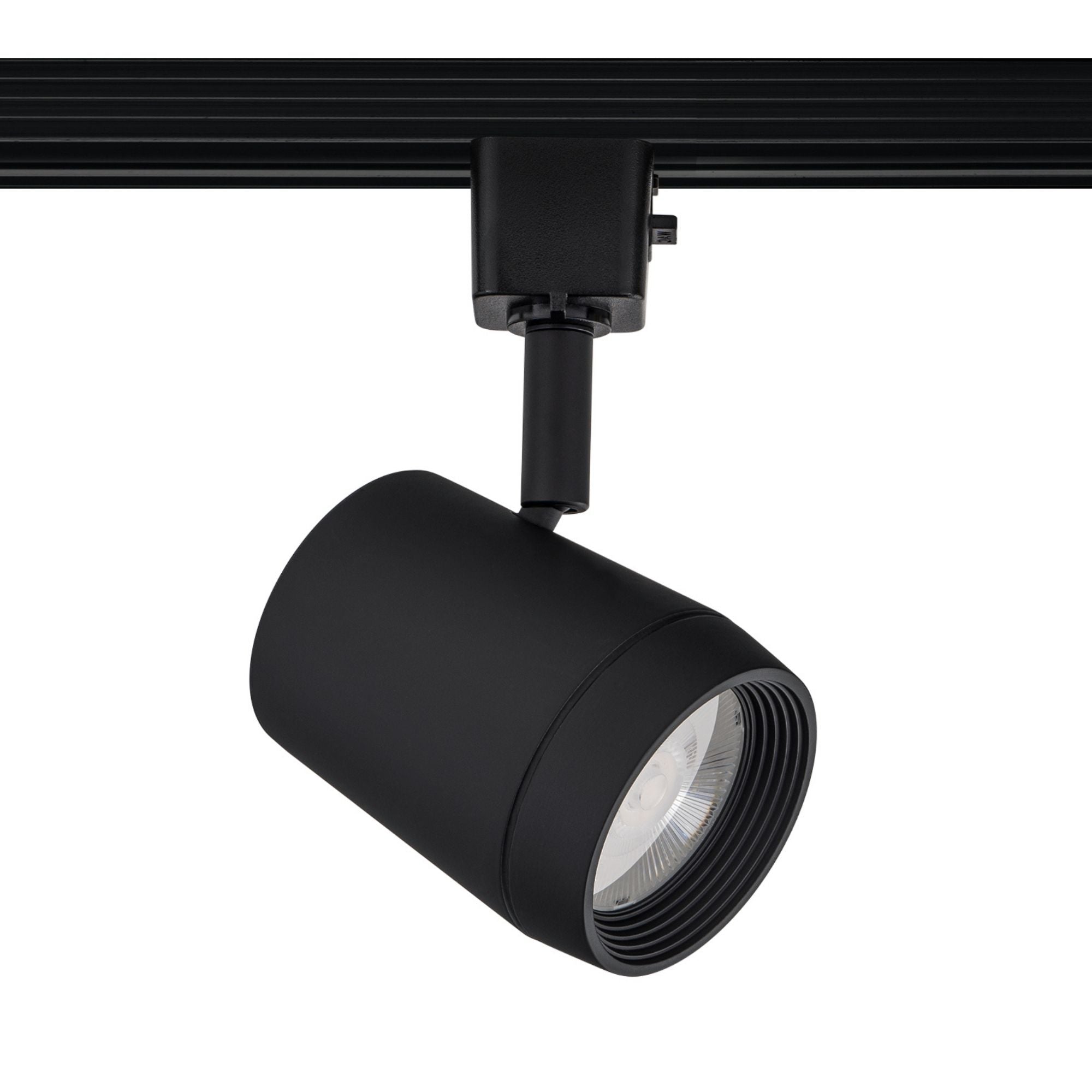

WAC Lighting OCULARC Track Head — Black & Selectable CCT
The WAC Lighting H-7011-CS-BK track head in black is a versatile fixture designed for H-Type track systems. Constructed from die-cast aluminum, it features a baffled front cover to minimize glare. Operating at 120V, this track head is equipped with a high output COB LED, offering a selectable CCT range from 2700K to 5000K.
Key Features
- Voltage: Operates at 120V, suitable for standard residential and commercial applications.
- Wattage: Consumes 11W, providing energy-efficient lighting.
- Lumens: Delivers up to 1025 lumens for bright illumination.
- CCT: Selectable color temperatures from 2700K to 5000K for customizable ambiance.
- Beam Angles: Offers 17°, 30°, and 60° beam angles for flexible lighting design.
- CRI: High CRI of 90+ ensures accurate color rendering.
- Dimming: Compatible with ELV and TRIAC dimmers for adjustable light levels.
- Certifications: ETL & cETL Dry Location Listed, Title 24 JA8 Compliant.
- System Compatibility: Specifically designed for H-Type track systems.
Core Design & Adjustability
The track head features a sleek black finish, with 350° horizontal and 90° vertical aiming capabilities, allowing for precise light placement. Its die-cast aluminum construction ensures durability and efficient thermal management.
LED Illumination & Performance
Equipped with a high output COB LED, this track head provides up to 1025 lumens while consuming only 11W. The selectable CCT feature allows for a range of color temperatures, enhancing the versatility of the lighting design.
Power, Wiring & Compatibility
This track head is compatible with H-Type track systems, ensuring easy installation and integration. It operates on 120V and supports dimming via ELV and TRIAC dimmers.
Where This Fixture Works Best

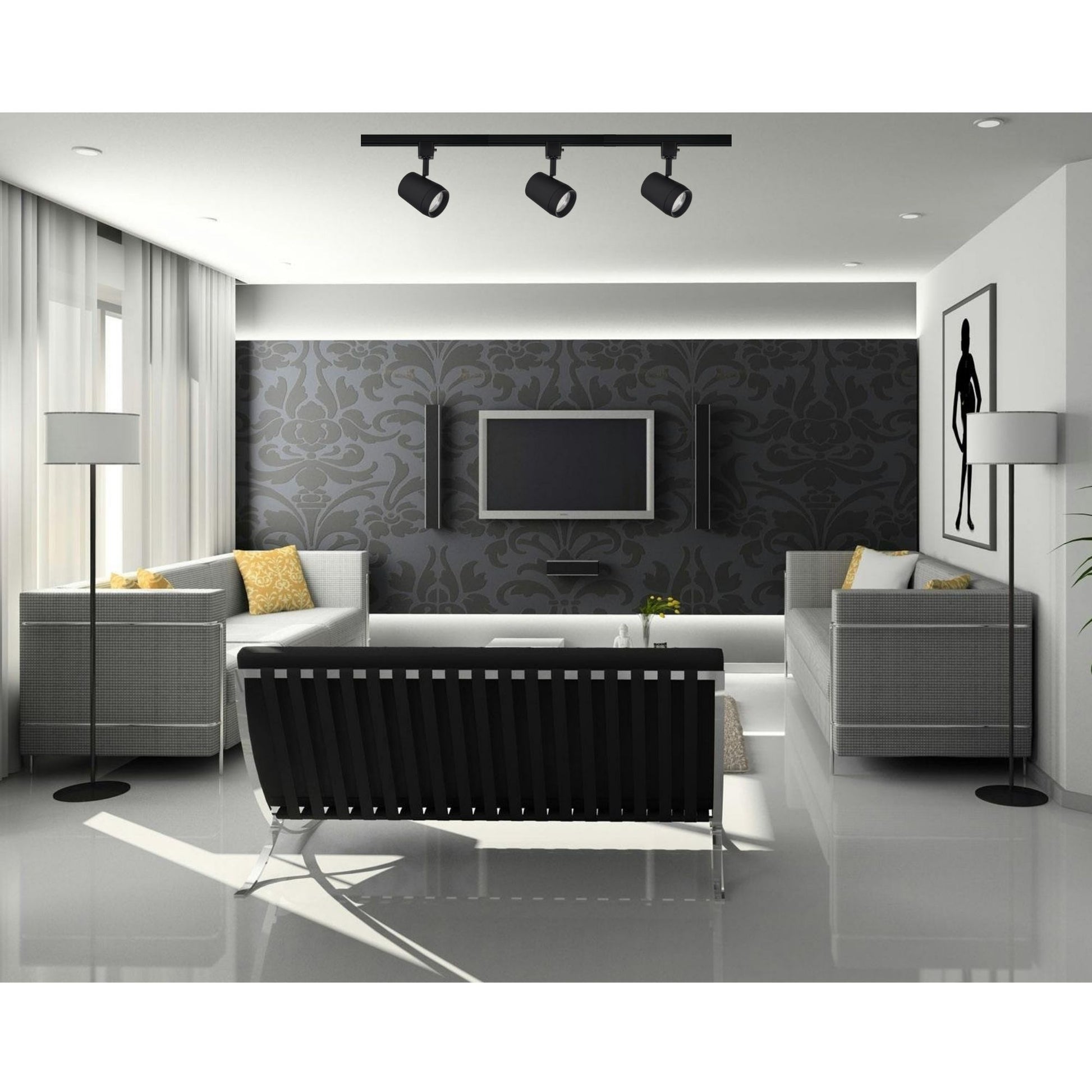

- Residential living rooms
- Commercial retail spaces
- Art galleries
- Office environments
- Hospitality settings
What's Included
- Track head with pre-installed 60° beam film
- Interchangeable 30° beam film
Specifications
Specifications

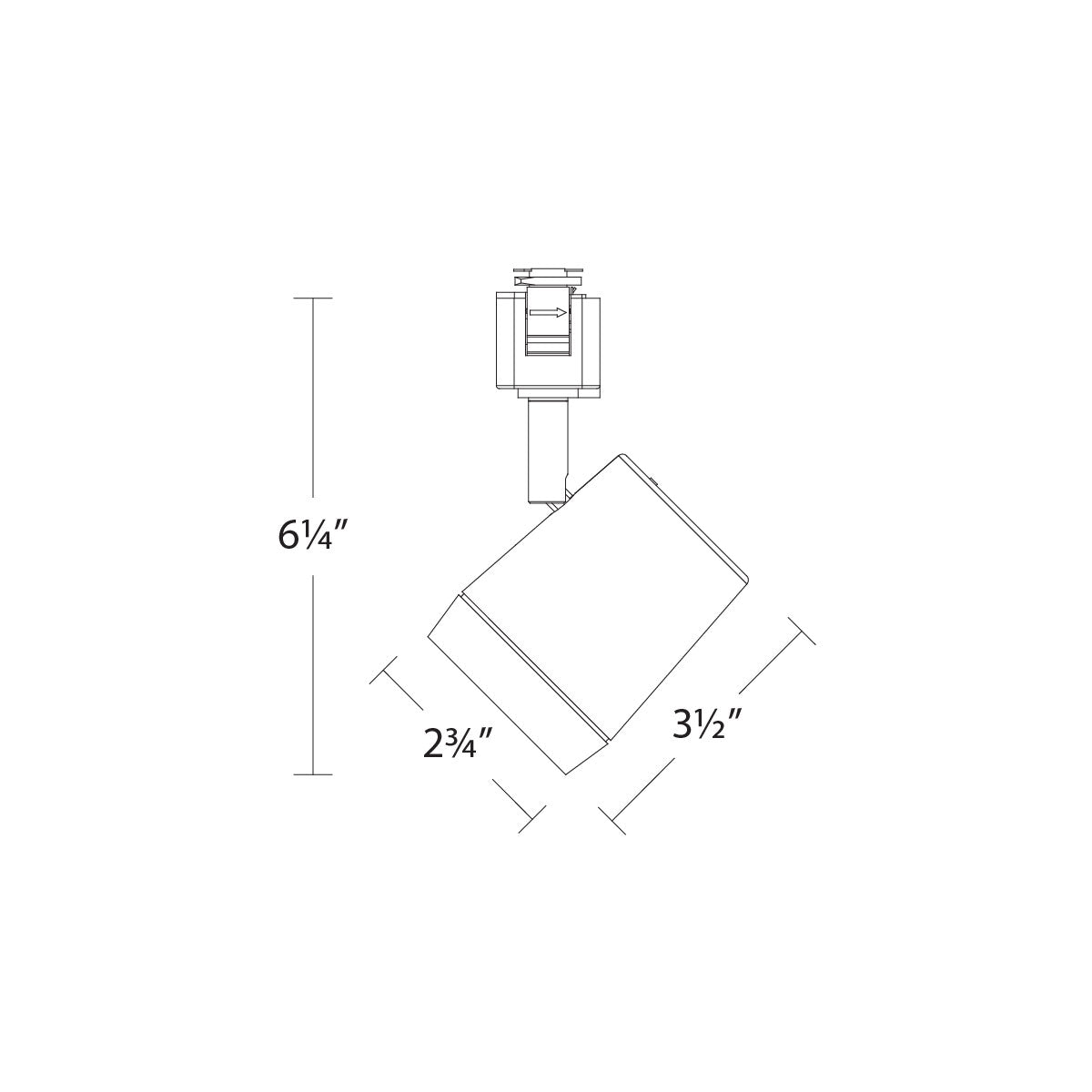

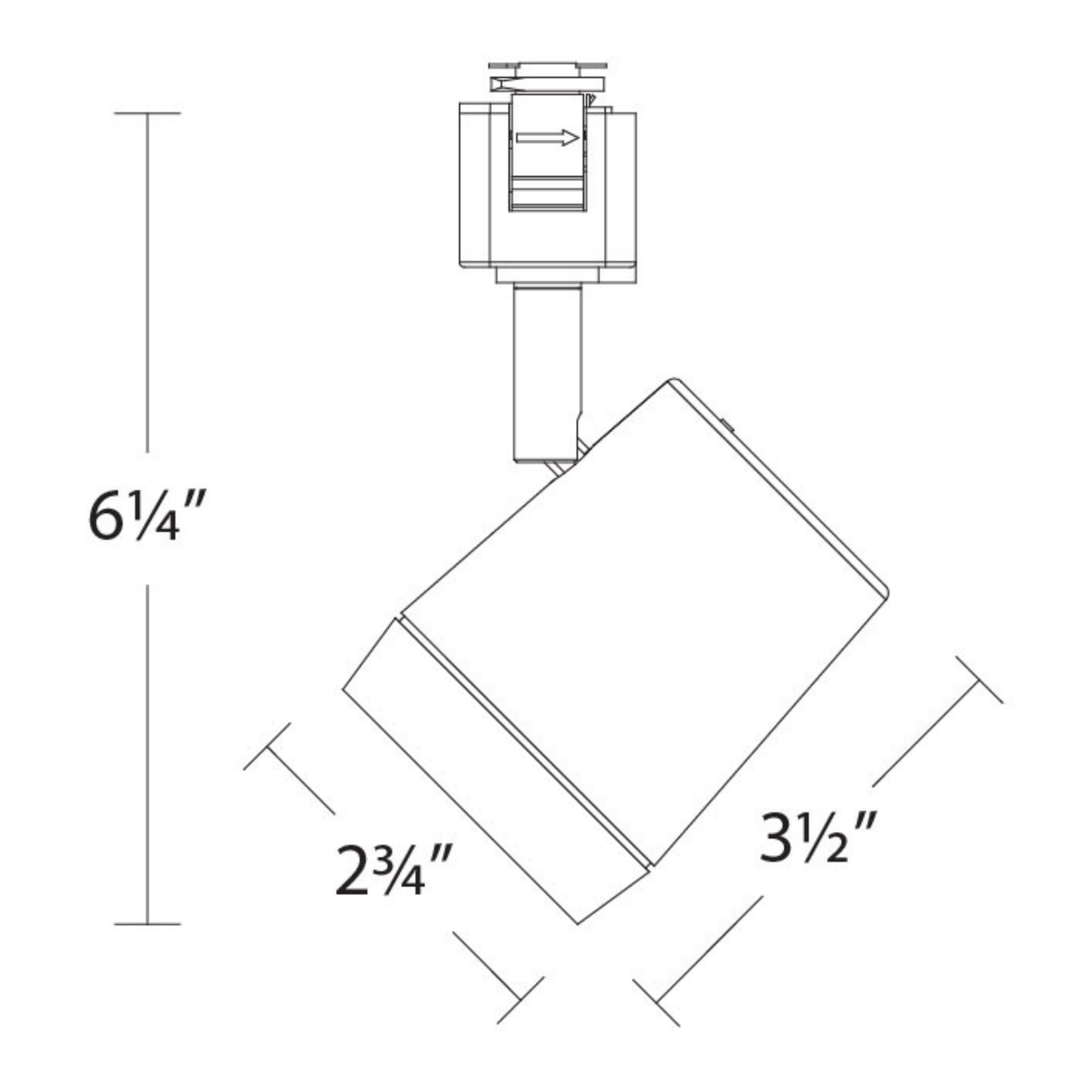

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
