WAC Lighting Ocularc 33W 3 Light H-Type LED Track Kit 5CCT Black
Available in stock (11)
About this item
About this item
- Complete H-Type Kit: Three 11W heads, 48 in Halo track with two end caps and floating canopy connector.
- Selectable White Light: Five settings from 2700K to 5000K, 90+ CRI COB LEDs.
- Three Beam Options: 17° spot without film, supplied 30° film and preinstalled 60° film.
- Precise Aiming: 350° horizontal and 90° vertical adjustment, baffled fronts for glare control.
- Dimmable Output: ELV or TRIAC dimming from 100%–10%, up to 3075 combined lumens at the 17° beam.
Description
Description

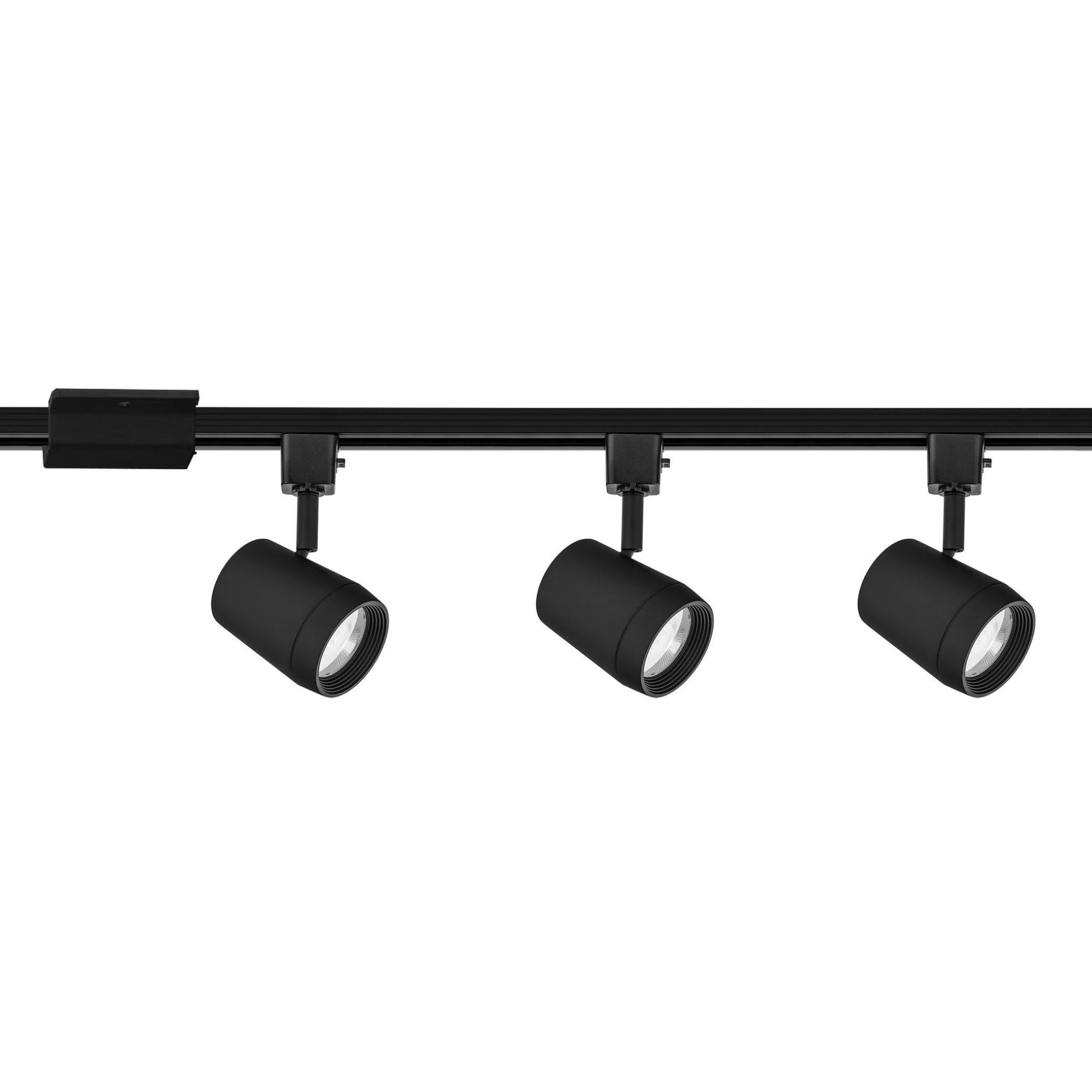

WAC Lighting Ocularc 3 Light H-Type LED Track Kit Black
The WAC Lighting H-7011/3-CS-BK combines three adjustable Ocularc COB LED heads with a 48 in H-Type Halo track and floating canopy connector. Each 11W head offers five selectable color temperatures and three beam options, letting you tailor illumination for artwork, displays and everyday living spaces. The three-head kit uses 33W total and provides up to 3075 lumens with all heads configured for the 17° spot beam.
Key Features
- Complete Kit: Three LED heads, 48 in H-Type Halo track and floating canopy connector.
- Power: 33W total, three 11W heads, 120VAC, 50/60Hz.
- Selectable CCT: 2700K, 3000K, 3500K, 4000K and 5000K.
- Color Quality: 90+ CRI COB LEDs, 3-step MacAdam ellipse.
- Beam Options: 17° spot, 30° and 60° distributions.
- Beam Films: 60° film preinstalled, interchangeable 30° film supplied, remove film for 17° spot.
- Output Per Head: Maximum 1025 lumens at 17°, 955 lumens at 30°, 920 lumens at 60°.
- Adjustable Aiming: 350° horizontal rotation, 90° vertical adjustment.
- Dimming: Compatible ELV or TRIAC dimmers, 100%–10% range.
- Construction: Die-cast aluminum, baffled front cover, electrostatically powder-coated Black finish.
- Rated Life: 50,000 hours at L70.
- Location & Standards: ETL and cETL dry-location listed, Title 24 JA8 compliant, operating range -4°F to 104°F.
Construction & Design

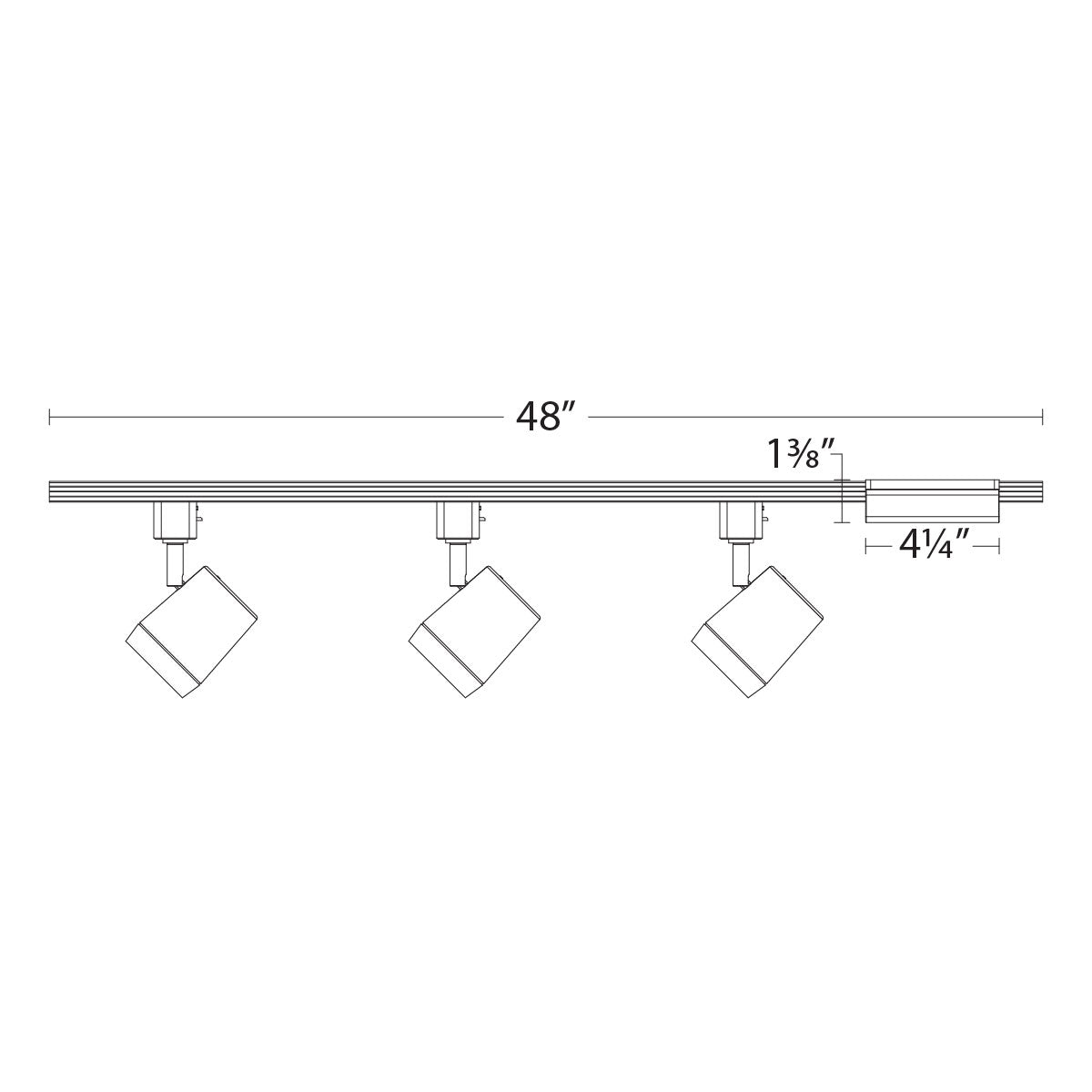

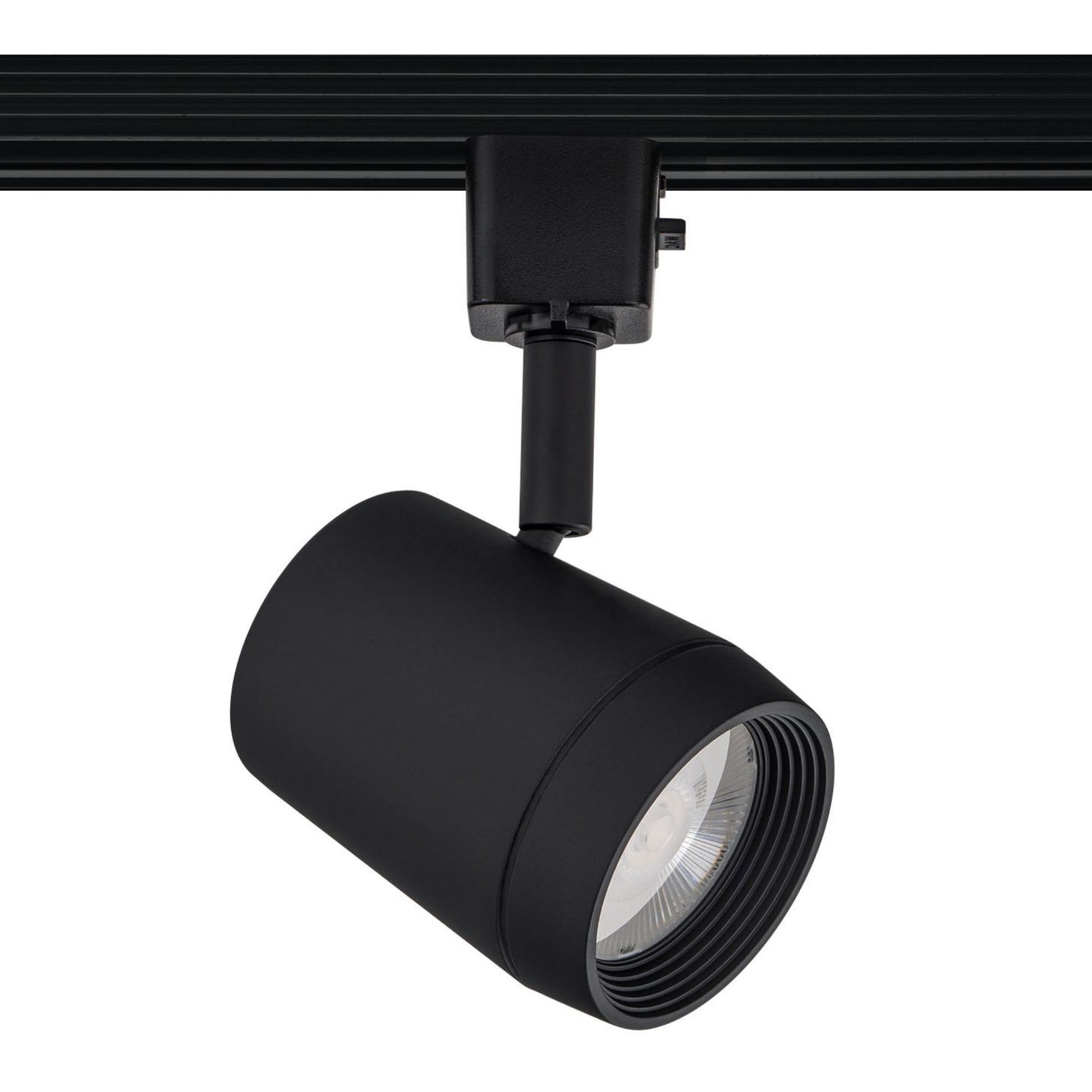

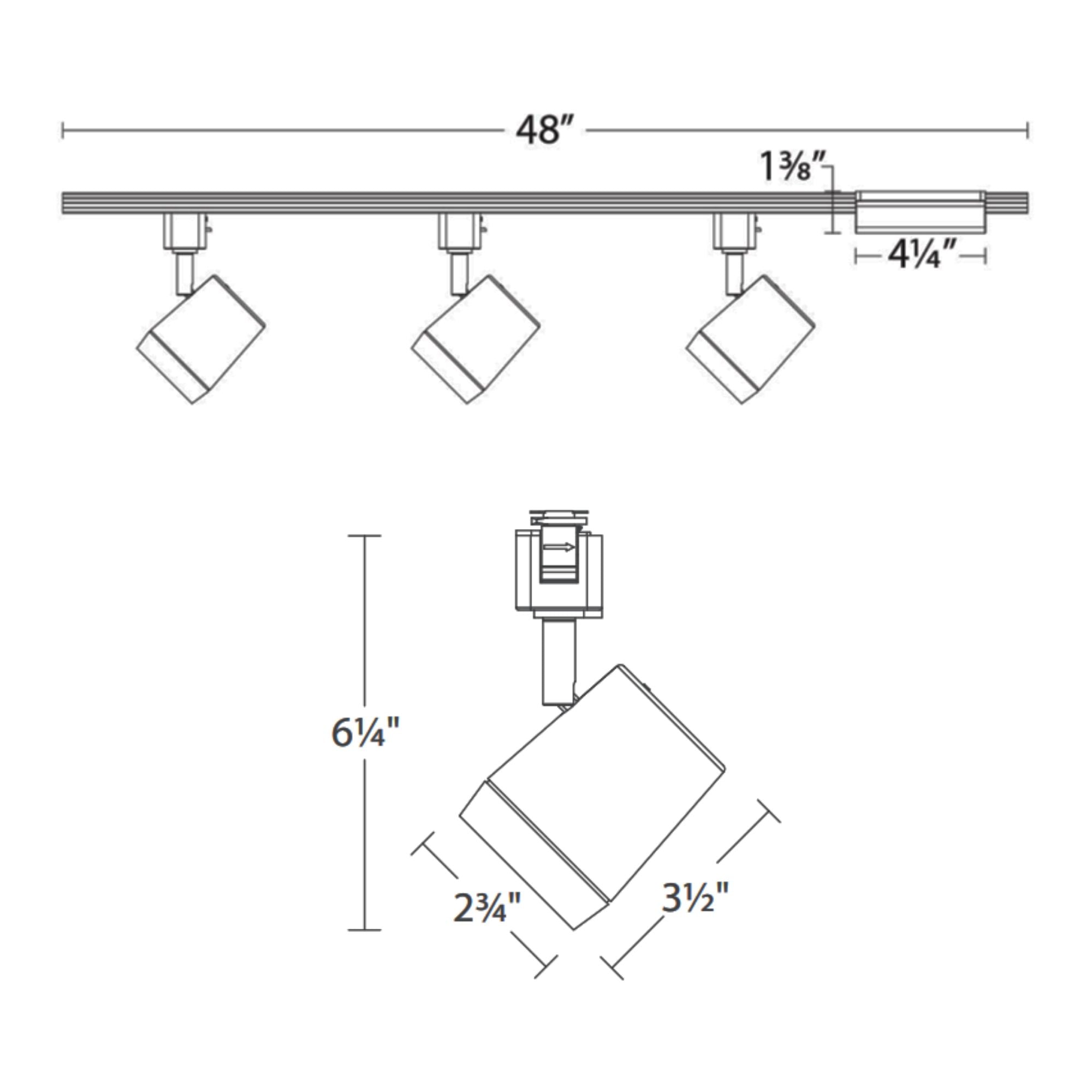

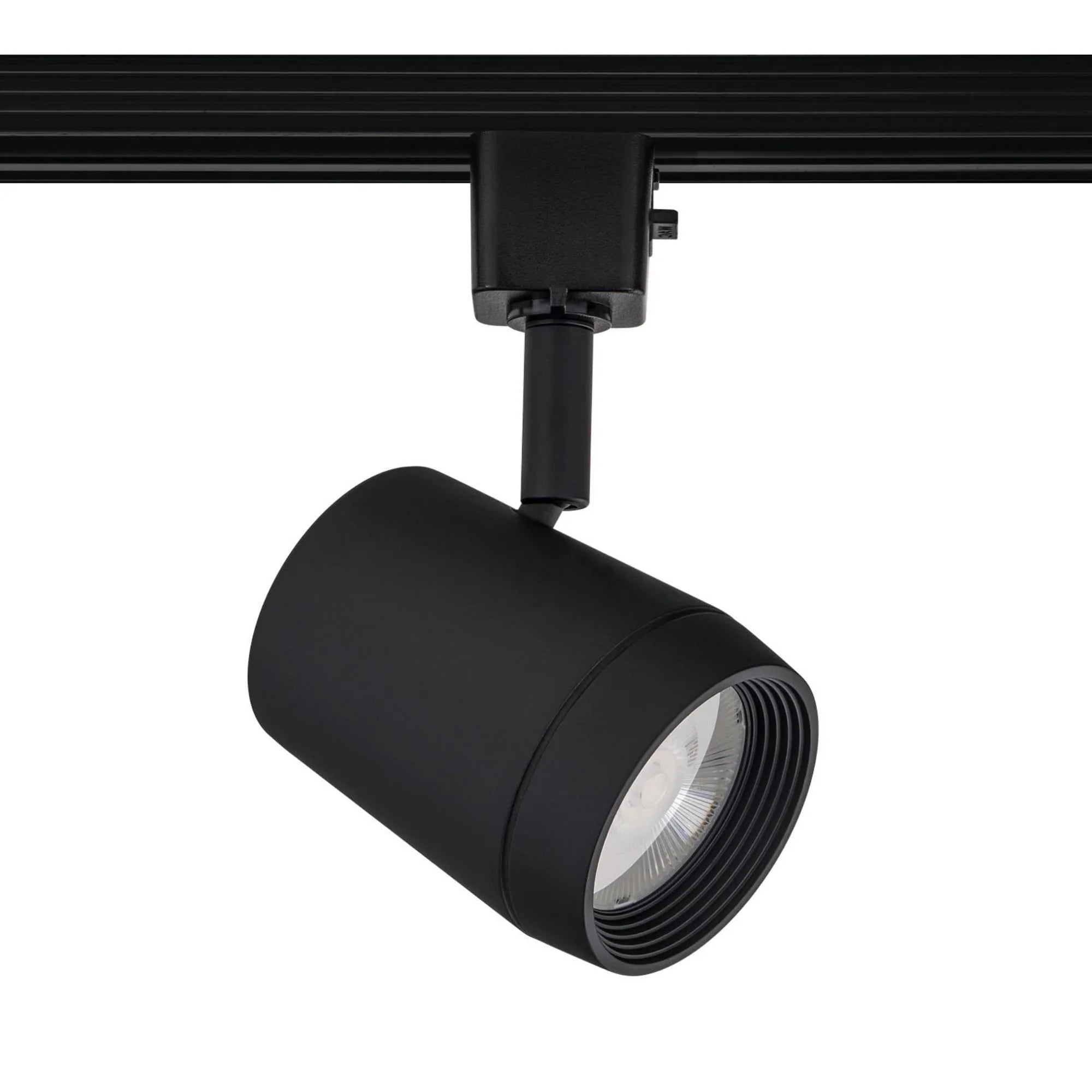

Die-cast aluminum housings enclose the integrated drivers and thermal/optical management components. Baffled front covers help control glare, while the Black powder-coated finish coordinates the heads, track and canopy connector. The supplied track measures 48 in long; the floating canopy connector measures 4 1/4 in long with a 1 3/8 in dimension. Each head measures 2 3/4 in across with a 3 1/2 in body and a 6 1/4 in angled overall height.
Light Output & Performance
Each COB LED head offers selectable 2700K, 3000K, 3500K, 4000K or 5000K light with 90+ CRI. Maximum performance is beam-dependent: 17° delivers 1025 lumens and 3935 CBCP per head; 30° delivers 955 lumens and 1520 CBCP; 60° delivers 920 lumens and 670 CBCP. With all three heads set to the same beam, the corresponding combined maximum outputs are 3075, 2865 and 2760 lumens. The LEDs have a 50,000-hour rated life at L70.
Electrical & Installation
The H-7011/3-CS-BK operates on 120VAC at 50/60Hz, using three 11W heads for 33W total. The included HFC floating canopy connector supplies the H-Type Halo track. Use compatible ELV or TRIAC dimmers for a 100%–10% dimming range. Per-head electrical specifications include a 0.98 power factor and less than 15% current total harmonic distortion. Install in dry indoor locations within the -4°F to 104°F operating range. The H-Type heads are not interchangeable with J-Type Juno or L-Type Lightolier adapters.
Compatible Accessories
Matching Ocularc heads are available separately to add lighting positions to the included H-Type track. Added heads must remain within the track, feed, circuit and dimmer load limits.
- H-7011-CS-BK: Matching Black 11W Ocularc H-Type LED track head with five selectable CCT settings and 17°, 30° and 60° beam options, sold separately.
Typical Applications

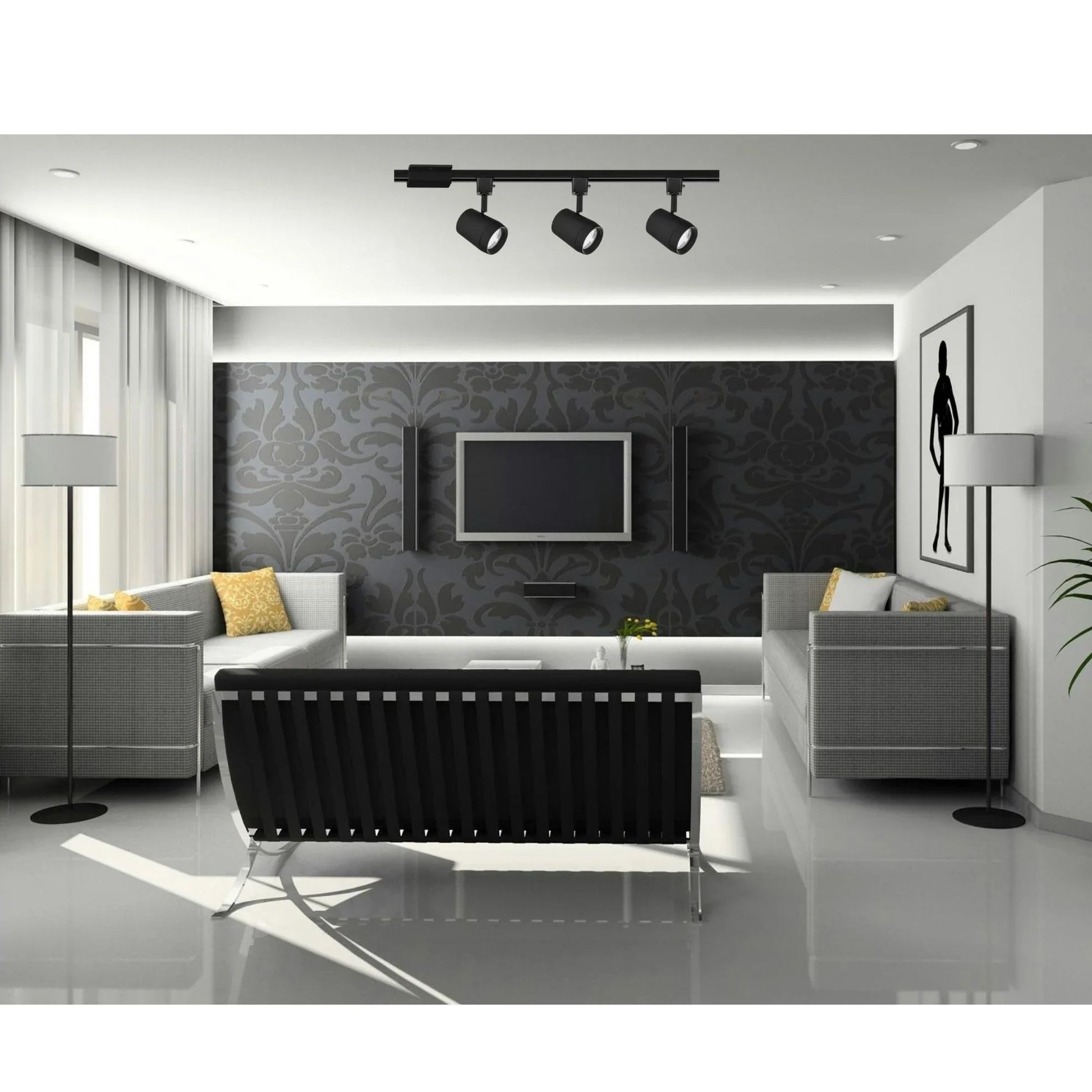

- Living rooms with artwork and accent lighting.
- Lower-mounted retail displays.
- Gallery walls requiring adjustable spotlighting.
- Indoor workspaces with selectable white light.
What's Included
- Three Black H-7011-CS Ocularc LED track heads.
- One Black HT4 48 in H-Type track with two end caps.
- One Black HFC floating canopy connector.
- Preinstalled 60° beam films and supplied interchangeable 30° beam films.
