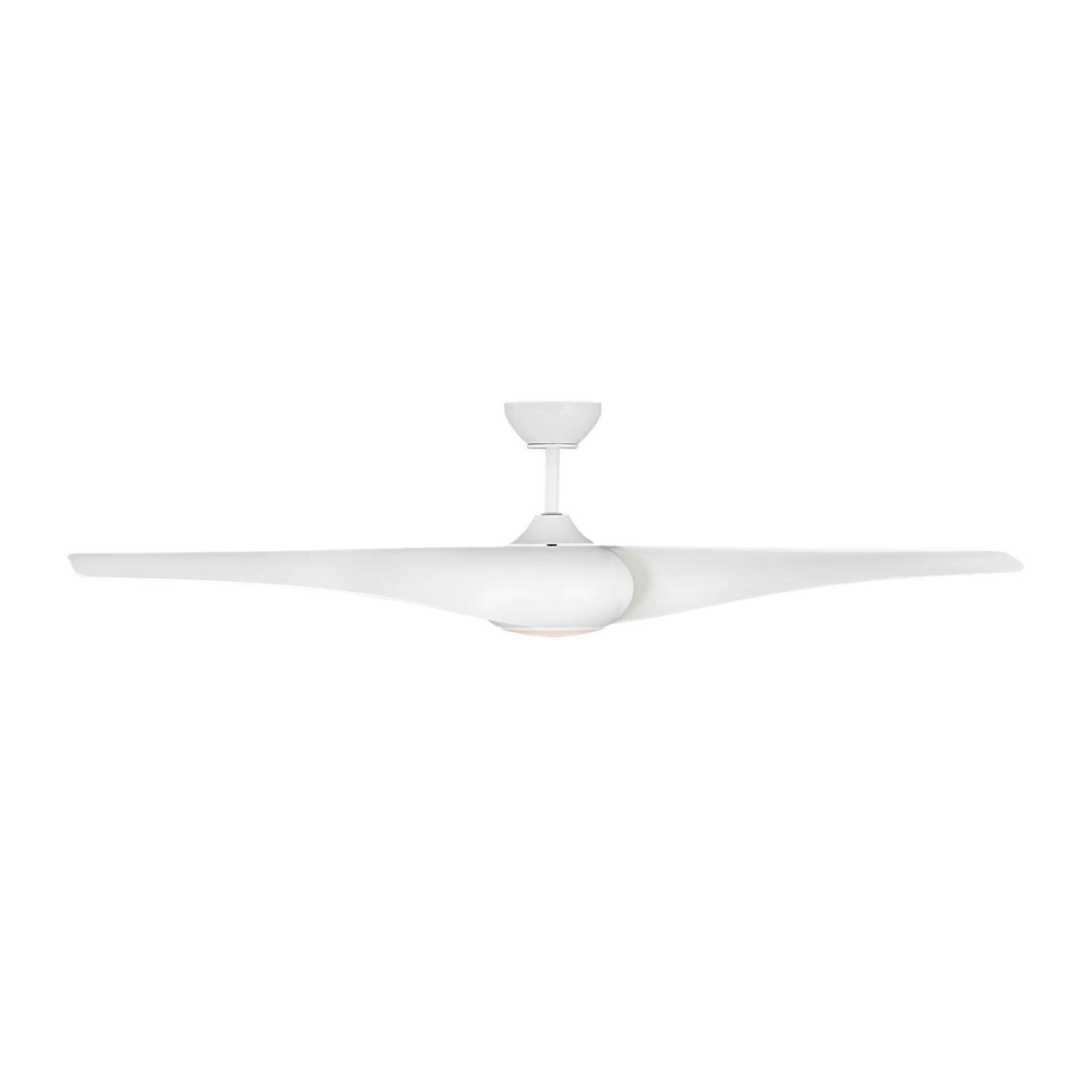

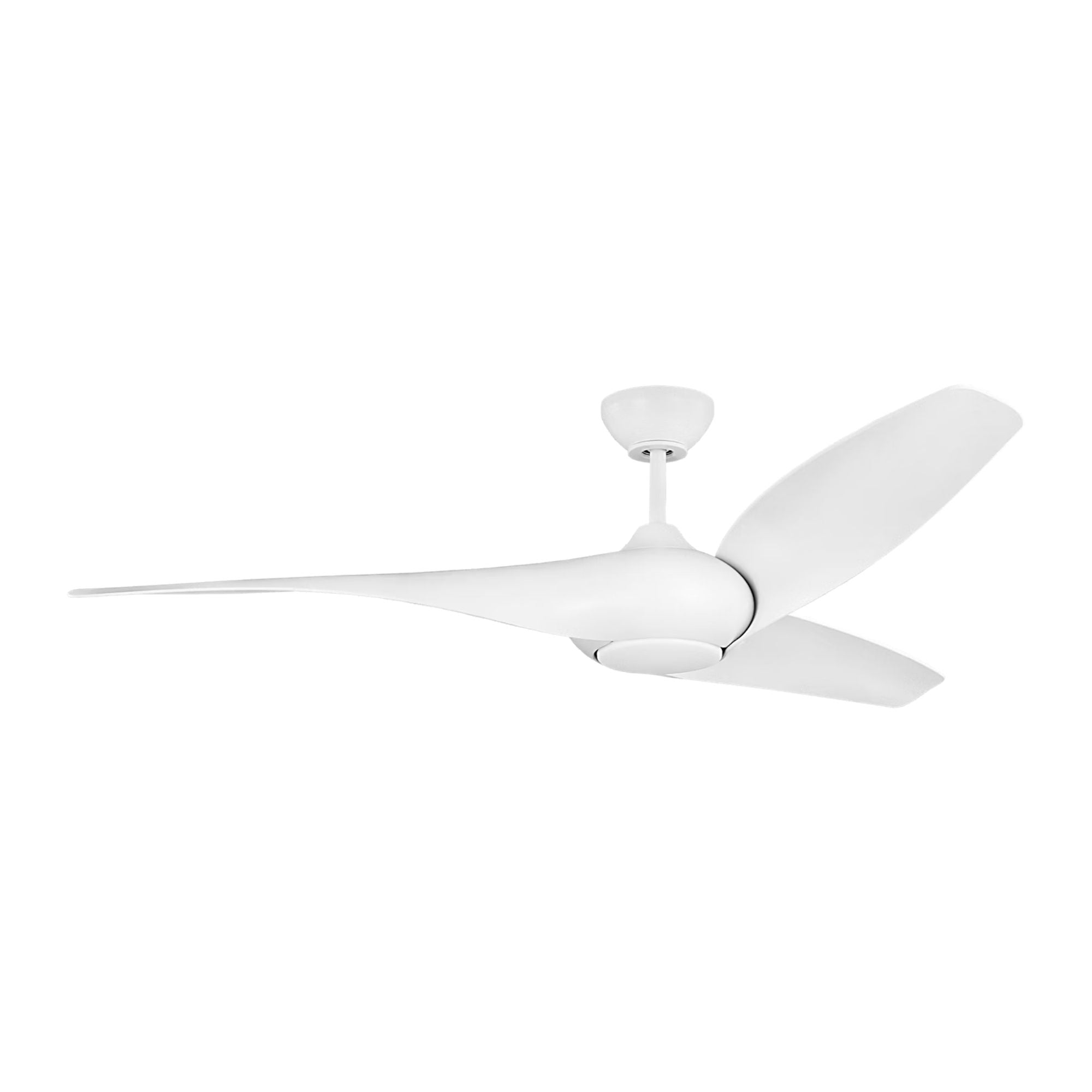

Visual Comfort Fan Topan Smart 60 in Indoor Outdoor LED Ceiling Fan DC — Matte White

Visual Comfort Fan Topan Smart model 3TNSM60RZWD has a 60 in sweep with three wrapped ABS blades and a DC motor, delivering 6,314 CFM at high speed and 166 CFM/W efficiency. Its integrated dedicated LED provides 850 delivered lumens at 3000K with CRI 90. This Damp Rated fan is designed for indoor and covered outdoor locations.

Key Features

• Blade Sweep: 60 in with 3 wrapped Matte White ABS blades and 21° blade pitch
• Motor: 155 x 12 mm energy-efficient DC motor with 6 speeds and remote-controlled reverse
• Airflow: 6,314 CFM high at 38W and 2,422 CFM low at 5W, with 166 CFM/W high-speed efficiency and 484 CFM/W low-speed efficiency
• Location Rating: Damp Rated, UL Listed, and ENERGY STAR Qualified for indoor and covered outdoor locations
• Smart Controls: Included handheld remote works without Wi-Fi; connect to Wi-Fi for Bond Home App features, plus Alexa and Google Home voice control
• Integrated LED: Dedicated 38W dimmable LED with 850 delivered lumens, 3000K color temperature, and CRI 90
• LED Compliance: High-efficacy LED meeting California Title 24 standards and listed in the California Energy Commission database
• Mounting: Includes a 6 in x 0.81 in downrod and supports ceiling slopes up to 20°
• Clearance and Height: 14 in overall height; blade-to-ceiling clearance ranges from 8.4 in to 13.3 in
• Weight and Warranty: 15 lb; 5-year warranty

Smart & Control Features

The included hand-held transmitter operates the fan without a Wi-Fi connection, with 6-speed operation, remote-controlled reverse, and LED dimming. When connected to Wi-Fi, the fan adds scheduling, Dusk to Dawn, and Natural Breeze features through the Bond Home App. Voice control is available through the Bond Home skill for Amazon Alexa and Bond Home Action for Google Home, with additional integrations including SmartThings, Control4, ELAN, and Hubitat.

Construction and Design

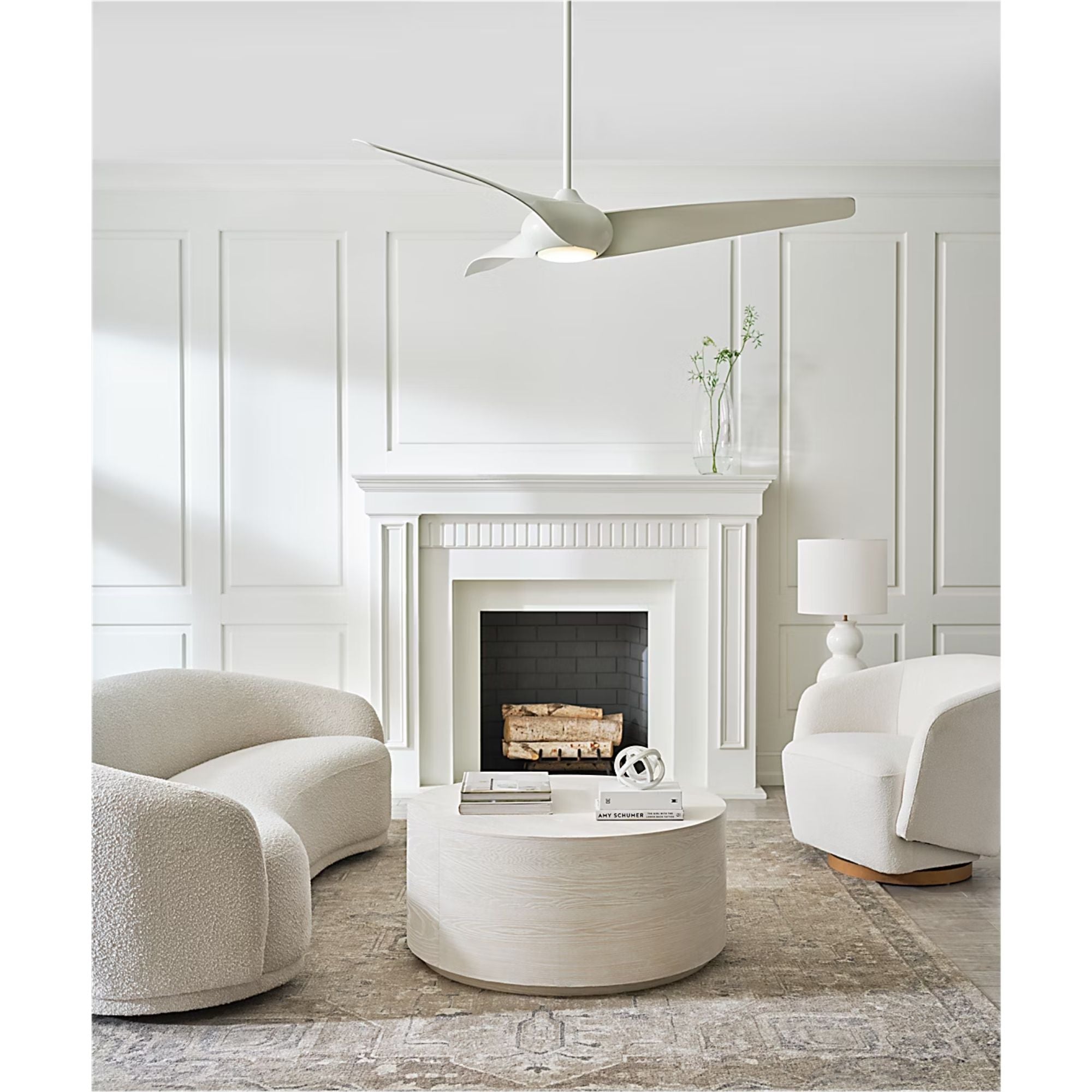

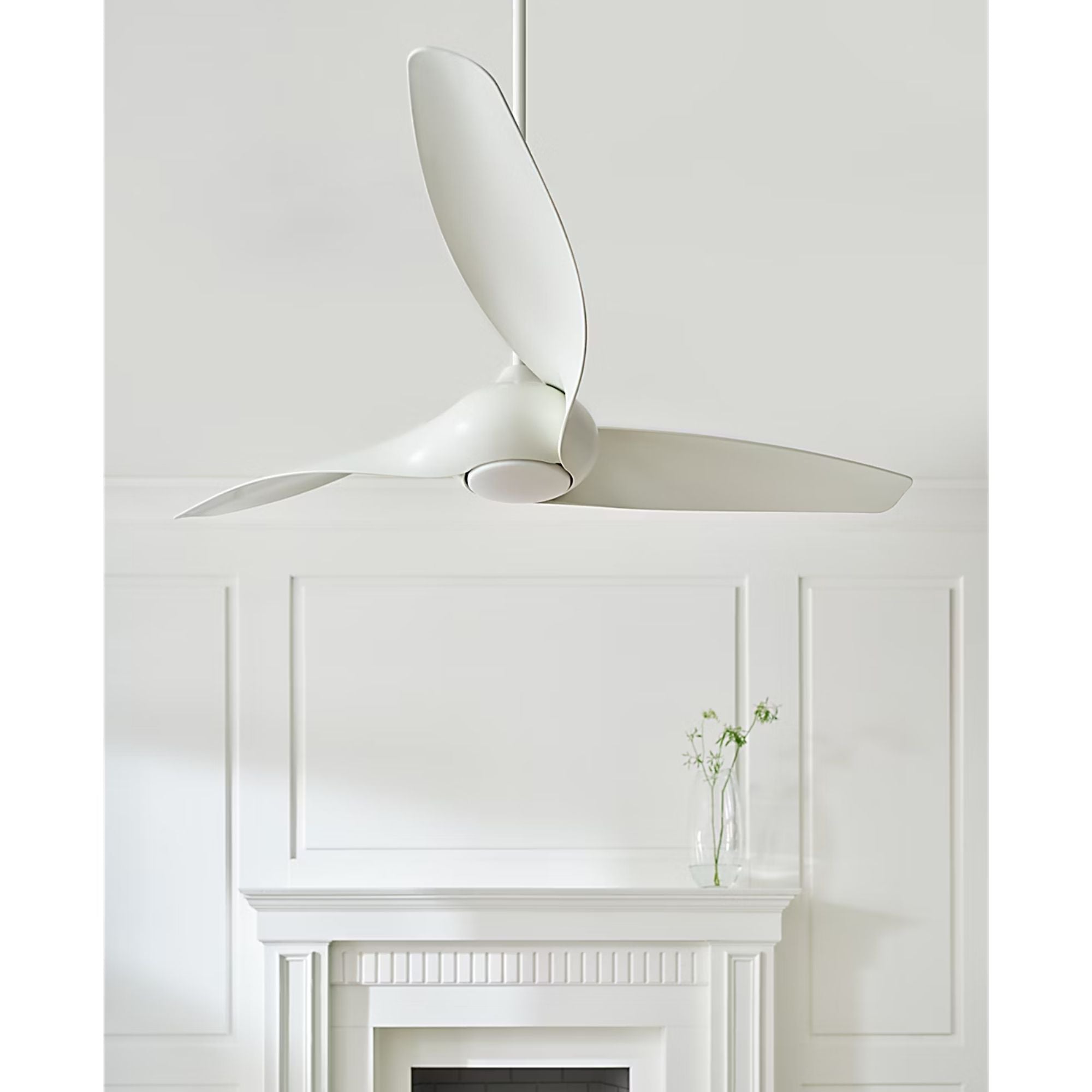

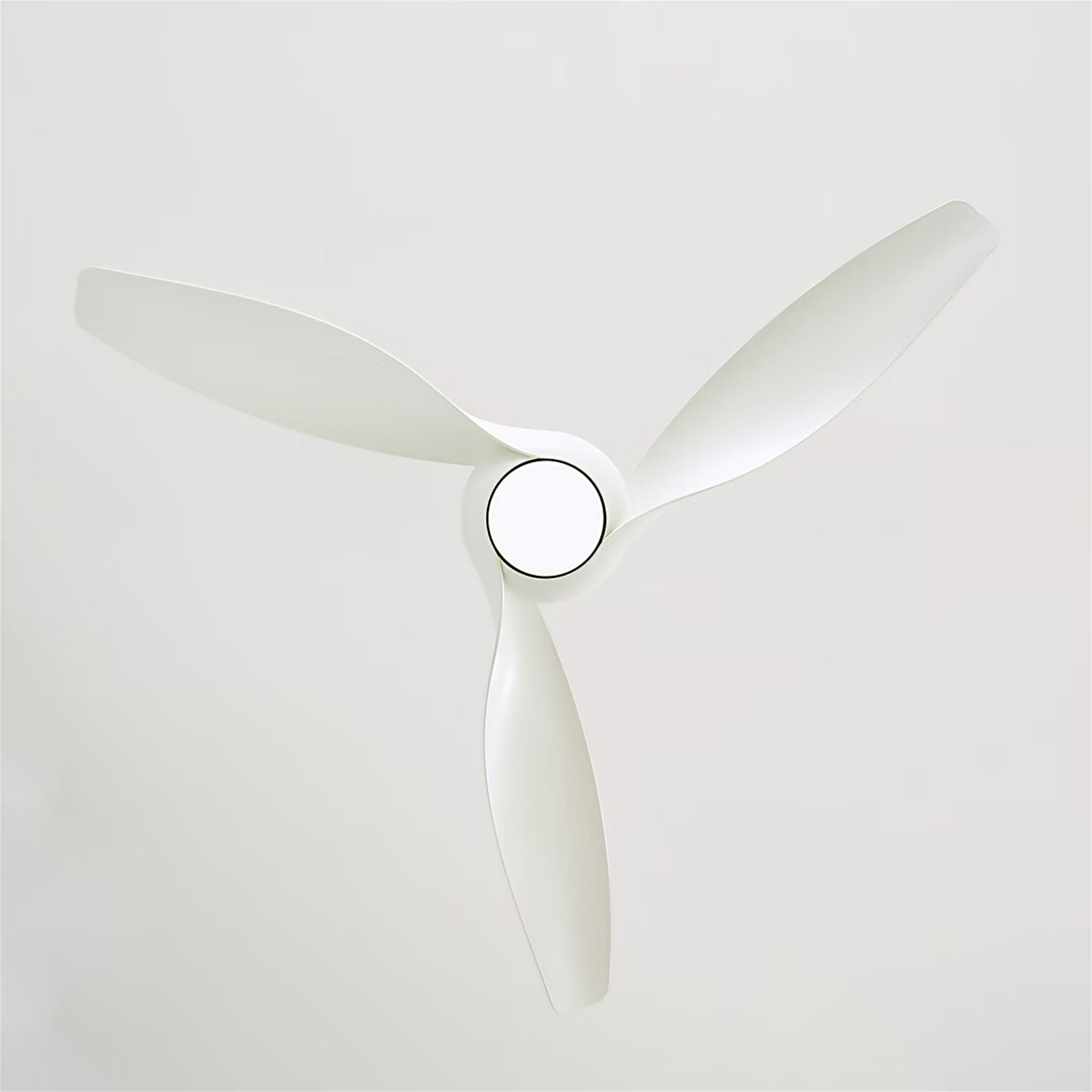

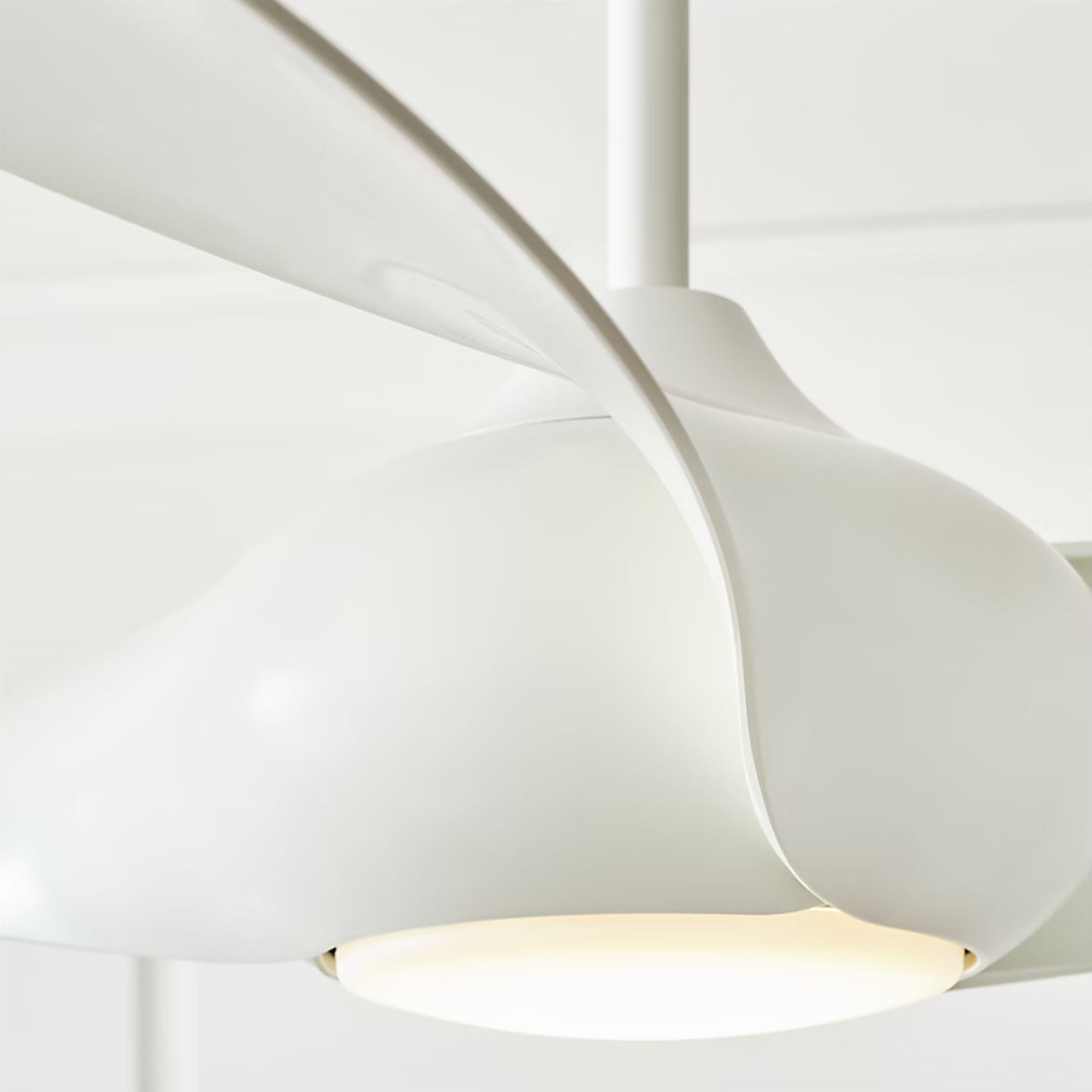

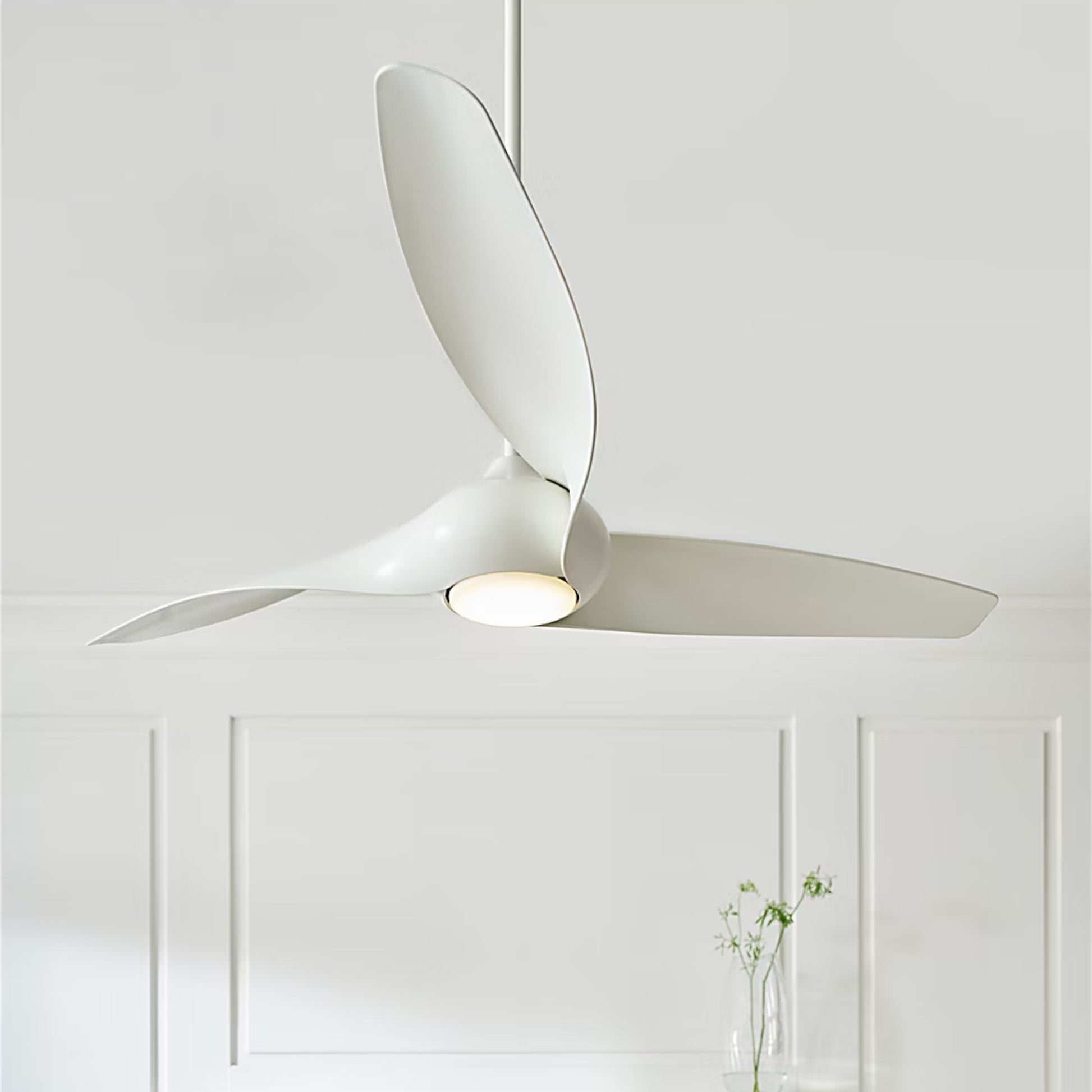

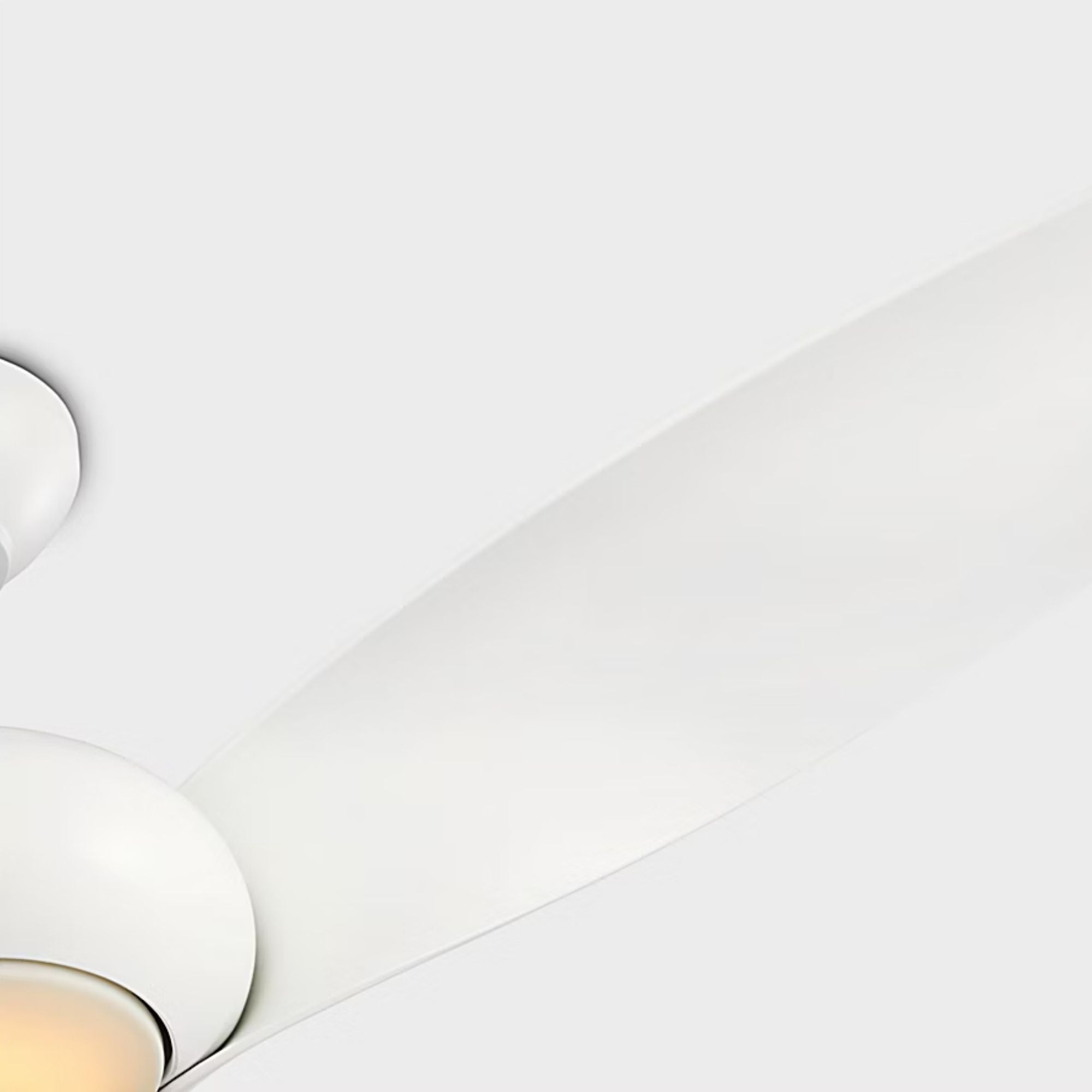

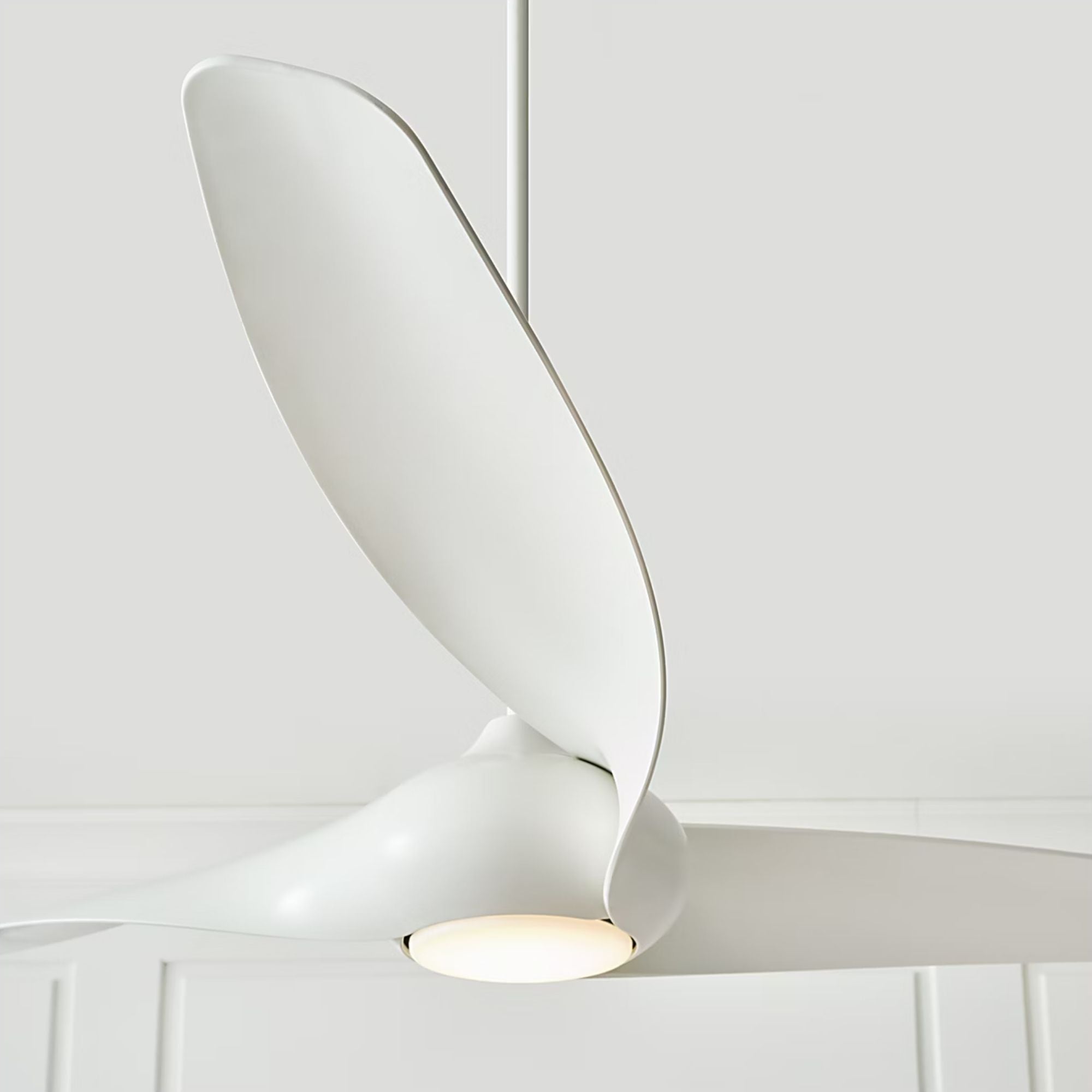

Designed by Sean Lavin, Topan Smart's three gracefully twisted wrapped blades create a pinwheel-like focal point beneath a classic steel housing in Matte White, paired with three Matte White ABS blades. A white-lens LED adds soft ambient light, while the sculptural form brings a crisp, modern accent to indoor and covered outdoor spaces.

Light Output & Performance

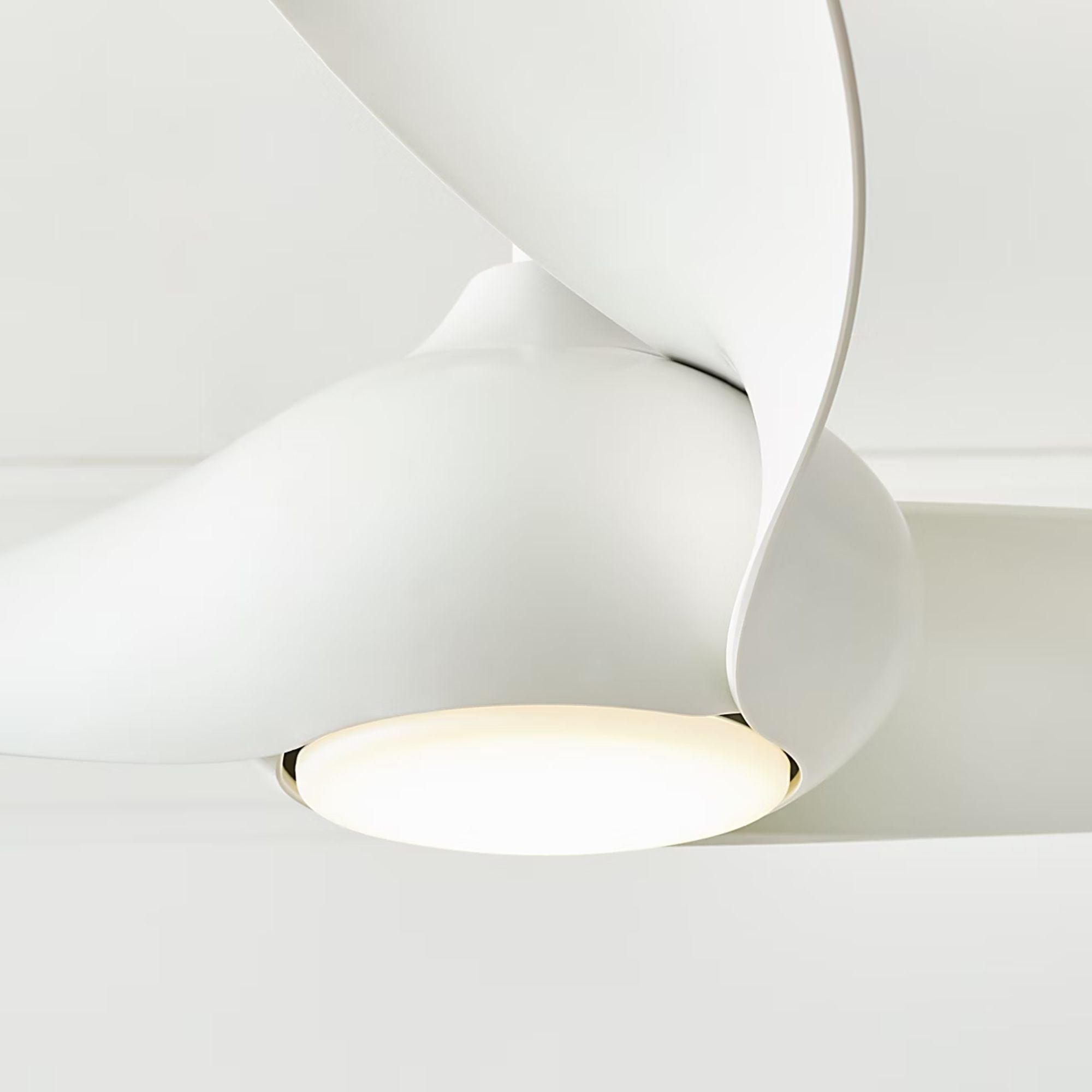

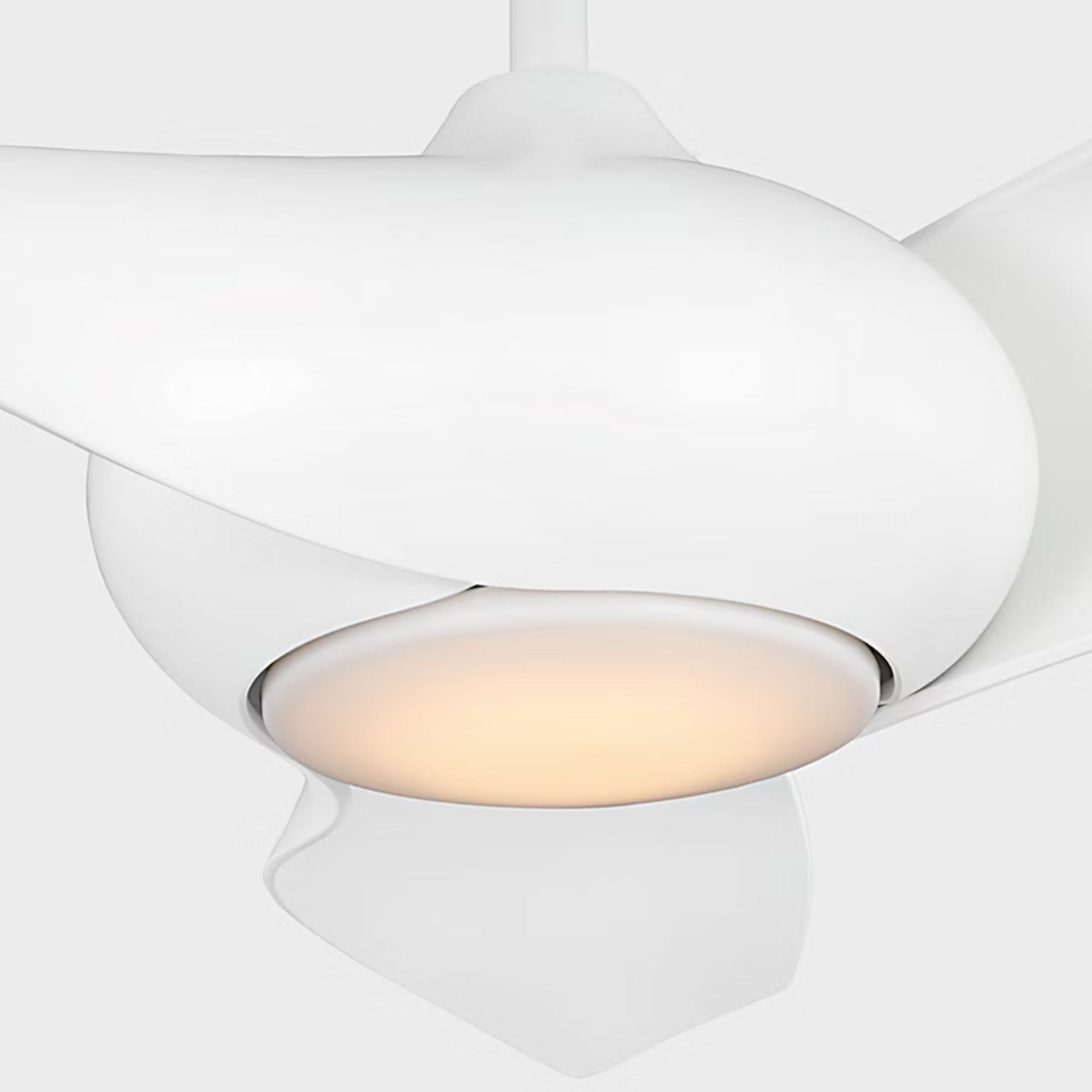

The integrated dedicated 38W LED with a white lens delivers 850 lumens at 3000K with CRI 90 for soft ambient illumination. The light is dimmable from the included remote and meets California Title 24 high-efficacy standards. The fan moves 6,314 CFM at high speed and 2,422 CFM at low speed, with efficiencies of 166 CFM/W high and 484 CFM/W low. A 60 in sweep and airflow align with Visual Comfort's 125–300 sq. ft. room-sizing guidance for 52–60 in fans.

Electrical & Installation

Designed for 120V power, the motor uses 38W at high speed and 5W at low speed, and the integrated LED is rated at 38W, for combined draw up to 76W with fan and light at high speed. The handheld remote controls direction reversal and light dimming. The included 6 in x 0.81 in downrod supports ceilings with slopes up to 20°. Overall height is 14 in, with blade-to-ceiling clearance from 8.4 in minimum to 13.3 in maximum.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. Ensure at least 7 ft of clearance between the floor and fan blades.

• 8 ft ceiling: Hugger/flush-mount fans are recommended.
• 8–10 ft ceilings: Close-to-ceiling installation uses a 4–8 in downrod.
• 10 ft and higher: 12, 18, 24, 36, 48, 60, and 72 in length downrods are recommended.

What's Included

• Topan Smart 60 ceiling fan with 3 Matte White wrapped ABS blades
• Integrated dedicated LED light with white lens
• Handheld transmitter
• 6 in downrod
