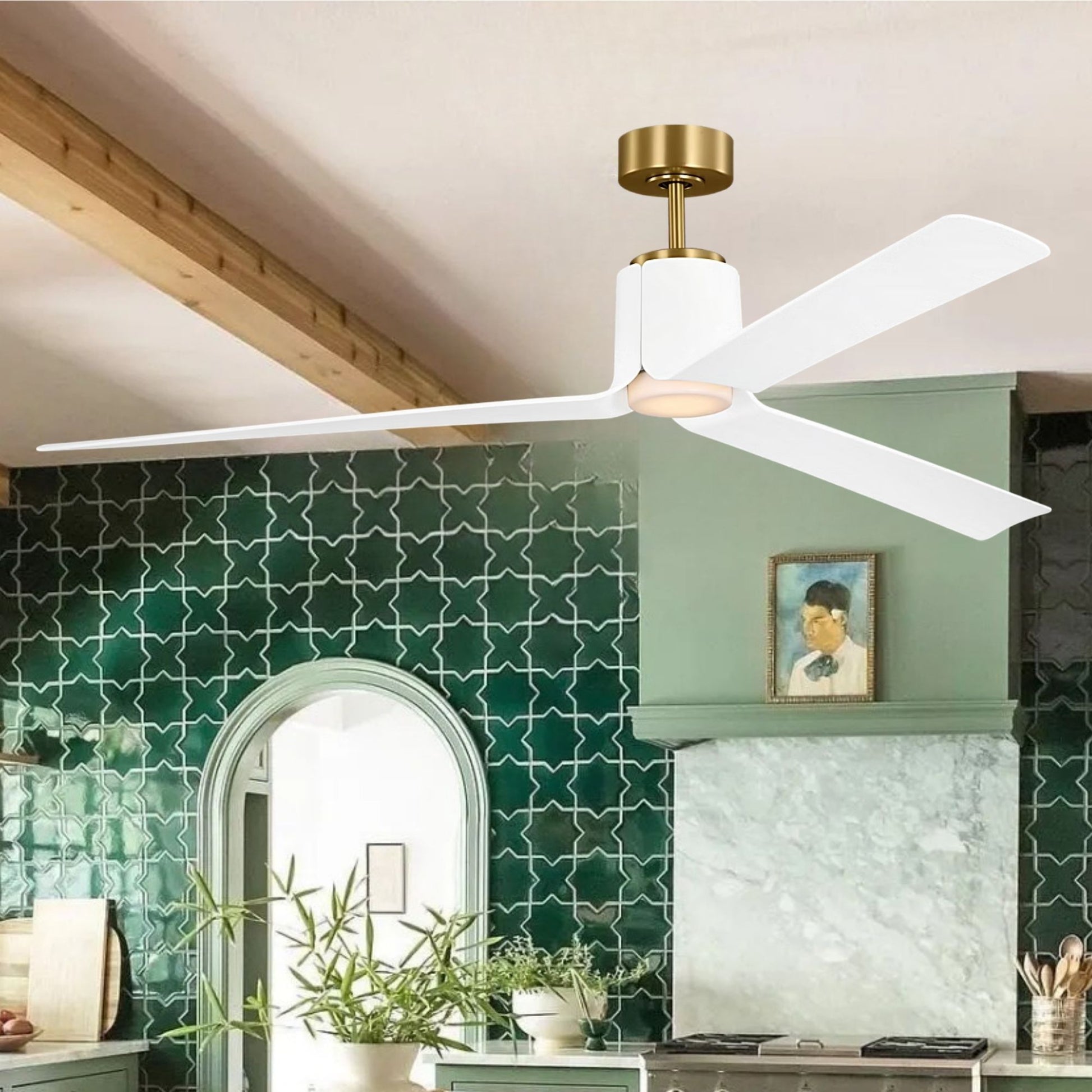

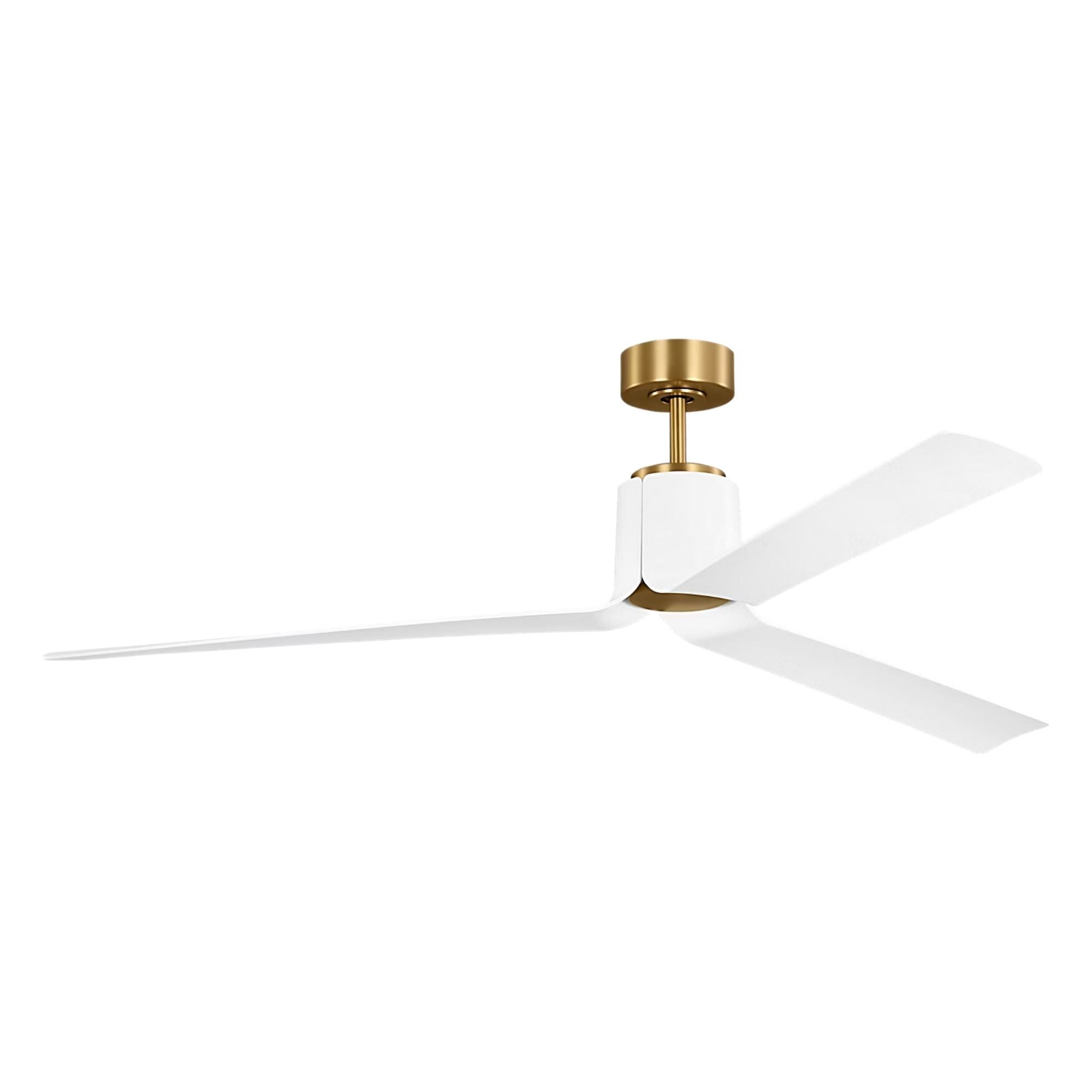

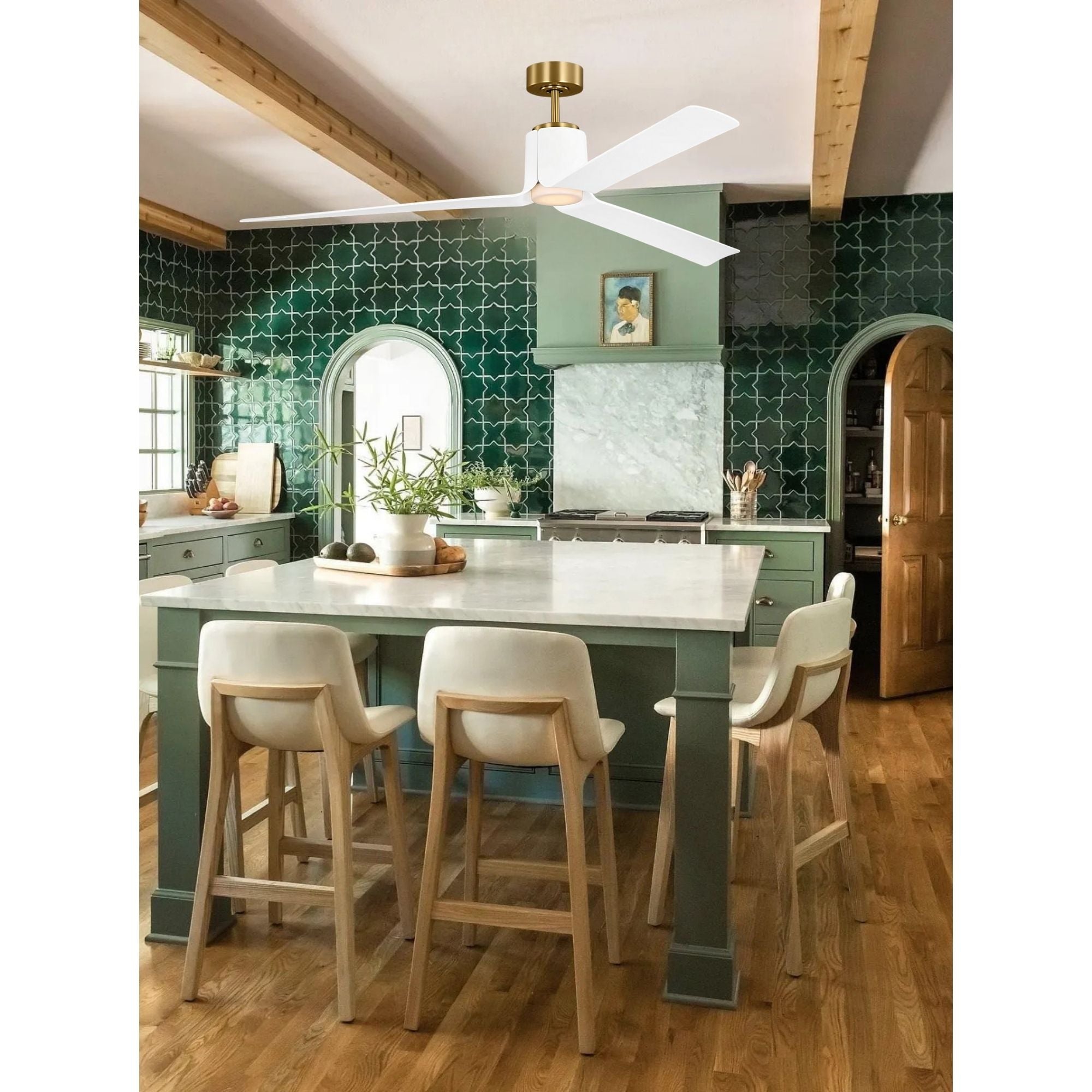

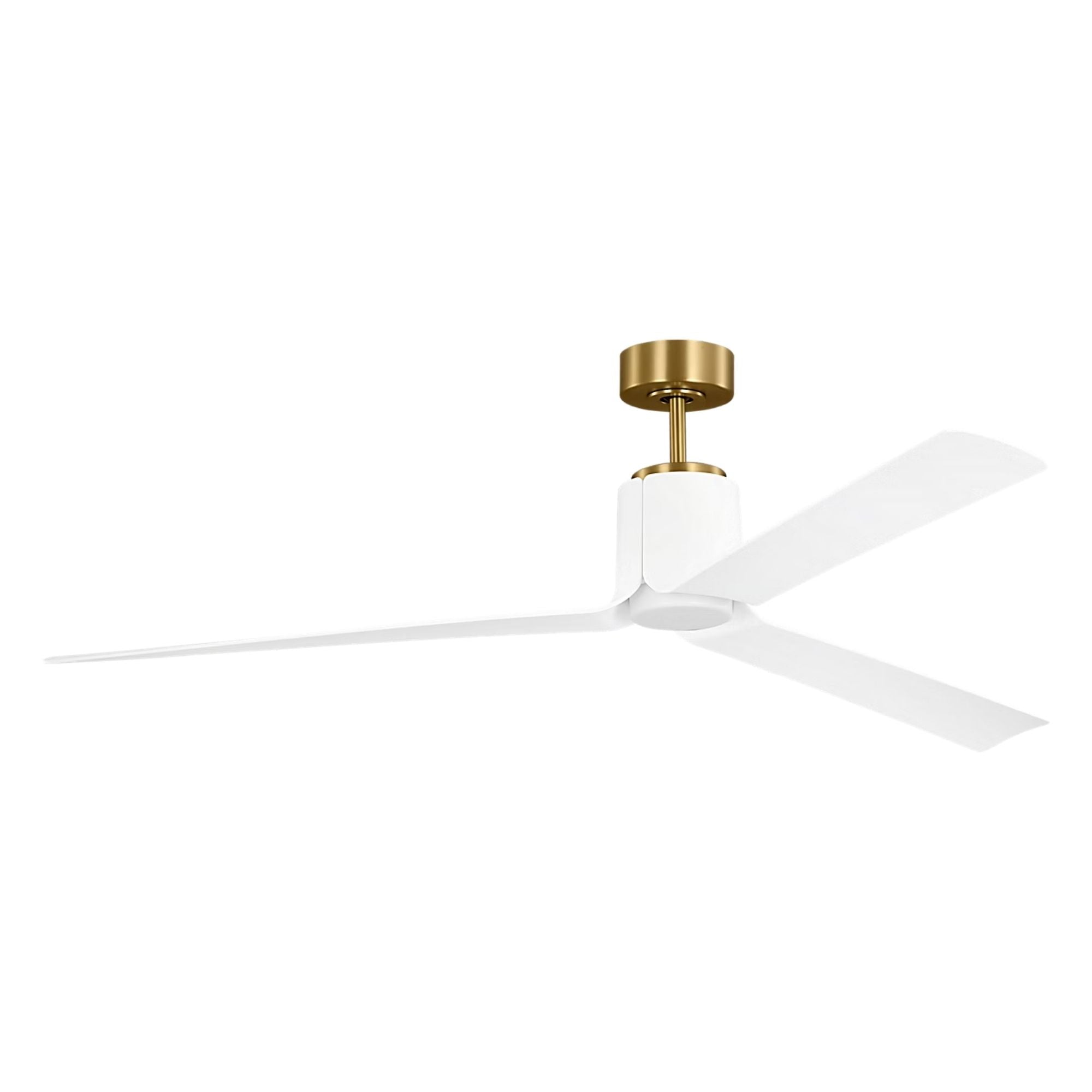

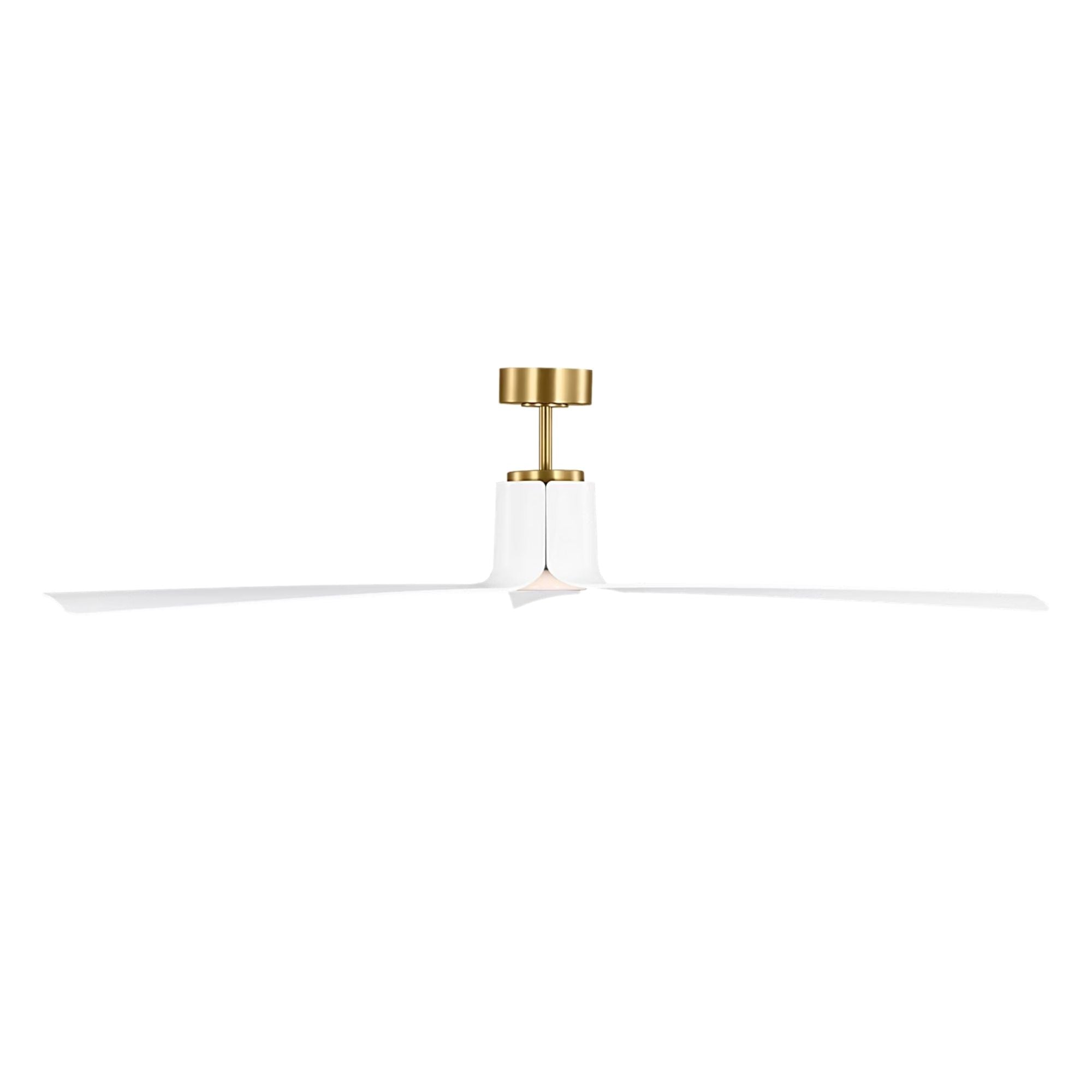

Visual Comfort Fan Peel Smart 66 in Indoor Outdoor LED Ceiling Fan DC — Burnished Brass

Visual Comfort Fan Peel Smart model 3PESM66BBSD is a 66 in three-blade fan powered by a DC motor, delivering 7,700 CFM at high speed and 350 CFM/W efficiency. Its integrated LED provides 1,200 lumens at 3000K with CRI 90, and the fan is Damp Rated for indoor and covered outdoor locations.

Key Features

• Blade Sweep: 66 in with 3 ABS blades and 12° blade pitch
• Motor: 131 x 30 mm energy-efficient DC motor with 6 speeds and remote-controlled reverse
• Airflow: 7,700 CFM high at 22W and 3,328 CFM low at 4W; 350 CFM/W high-speed efficiency and 832 CFM/W low-speed efficiency
• Location Rating: Damp Rated for indoor and covered outdoor locations
• Certification: UL Listed and ENERGY STAR Qualified

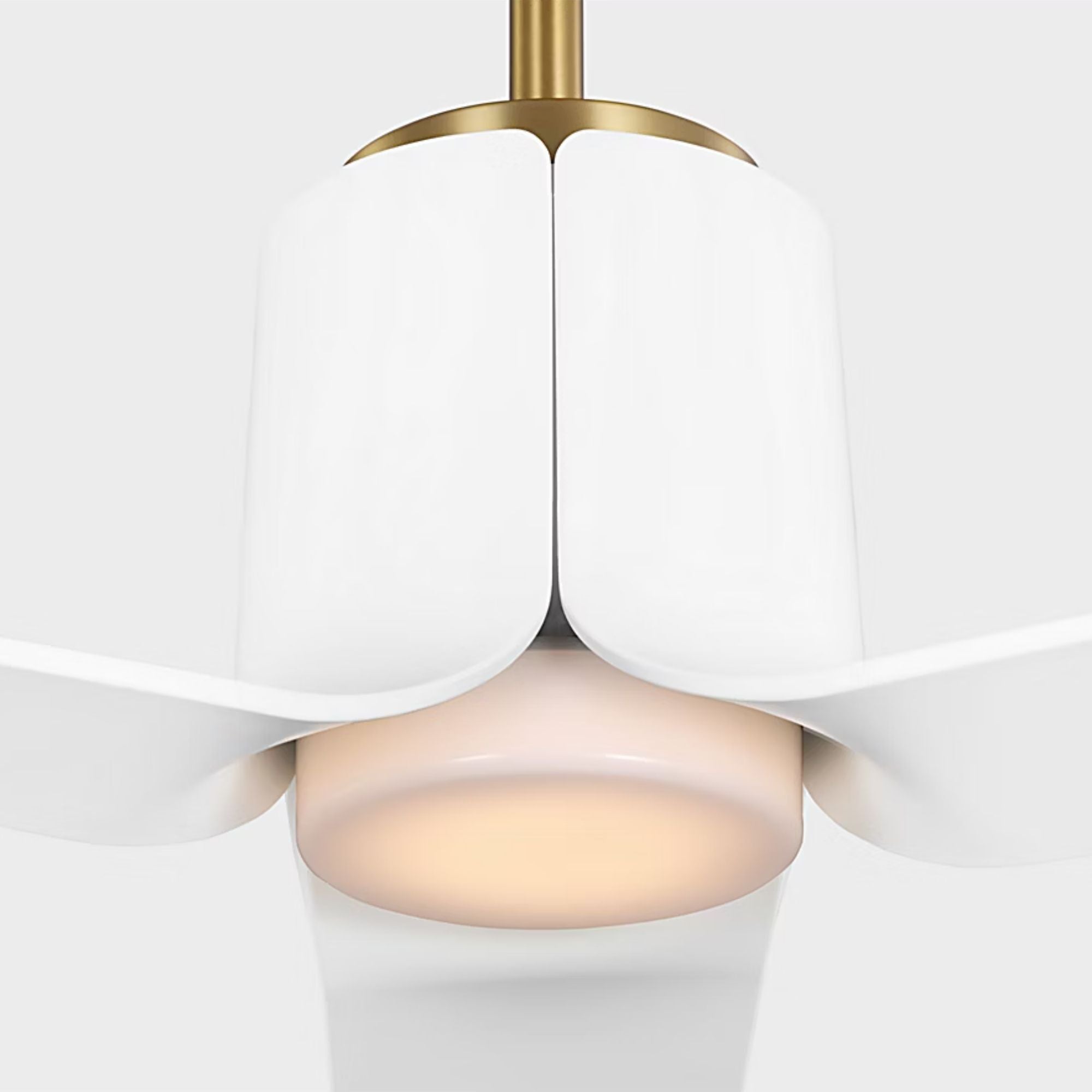

• Integrated LED: Dedicated 22W LED array, 1,200 delivered lumens, 3000K, CRI 90
• Smart Controls: Included handheld transmitter, Bond Home App control, scheduling, Dusk to Dawn, and Natural Breeze, plus Alexa and Google Home voice control
• Mounting: Includes 6 in downrod and mounting hardware; documented slope-ceiling compatibility up to 20°
• Warranty: 5 years

Smart & Control Features

The included hand-held transmitter operates the fan even without a Wi-Fi connection, with 6-speed fan control, reverse, and remote-controlled LED dimming. When connected to Wi-Fi, the fan adds scheduling, Dusk to Dawn, and Natural Breeze functions through the Bond Home App. Voice control is available through the Bond Home skill for Amazon Alexa and Bond Home Action for Google Home. Additional smart-home integrations include SmartThings, Control4, ELAN, and Hubitat.

Construction and Design

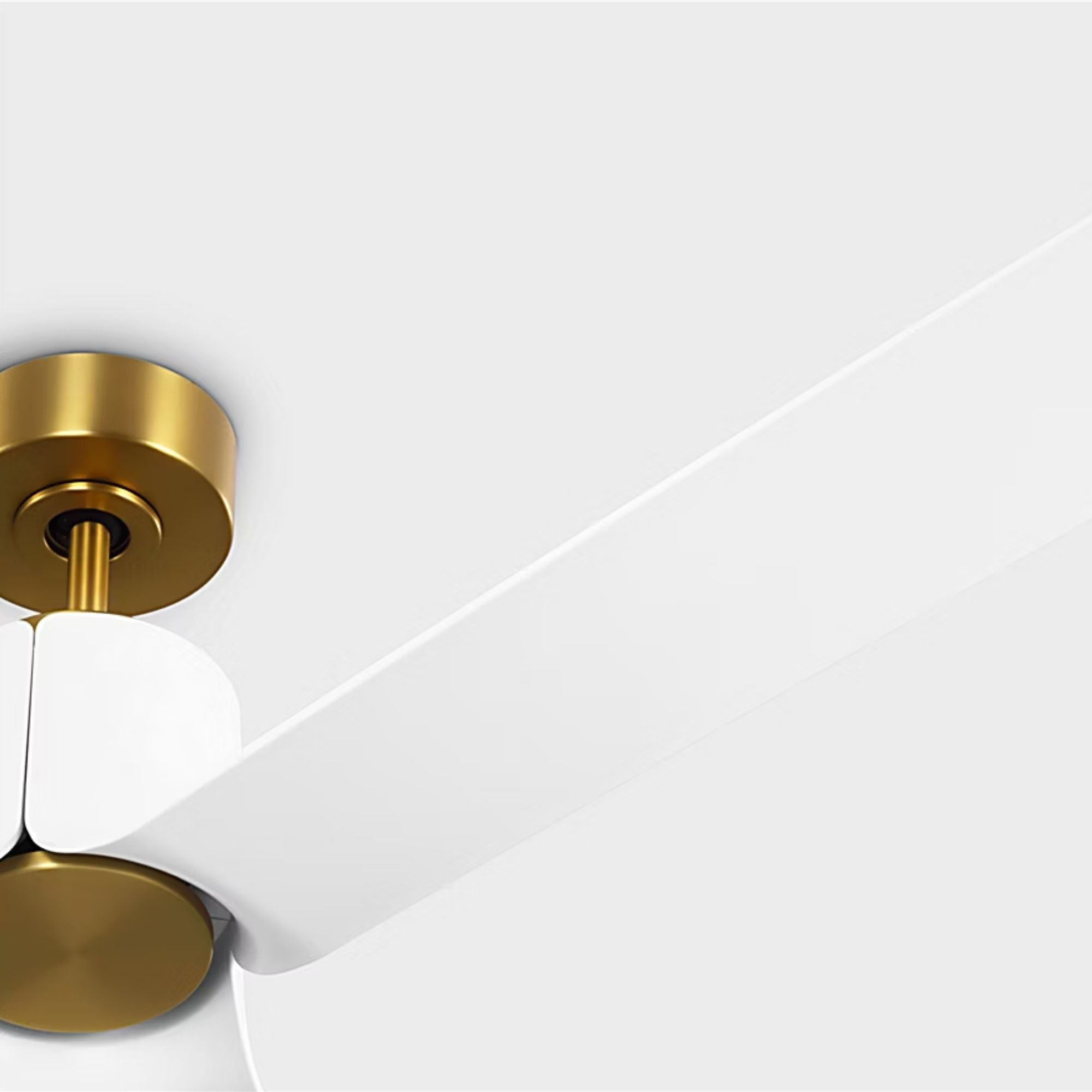

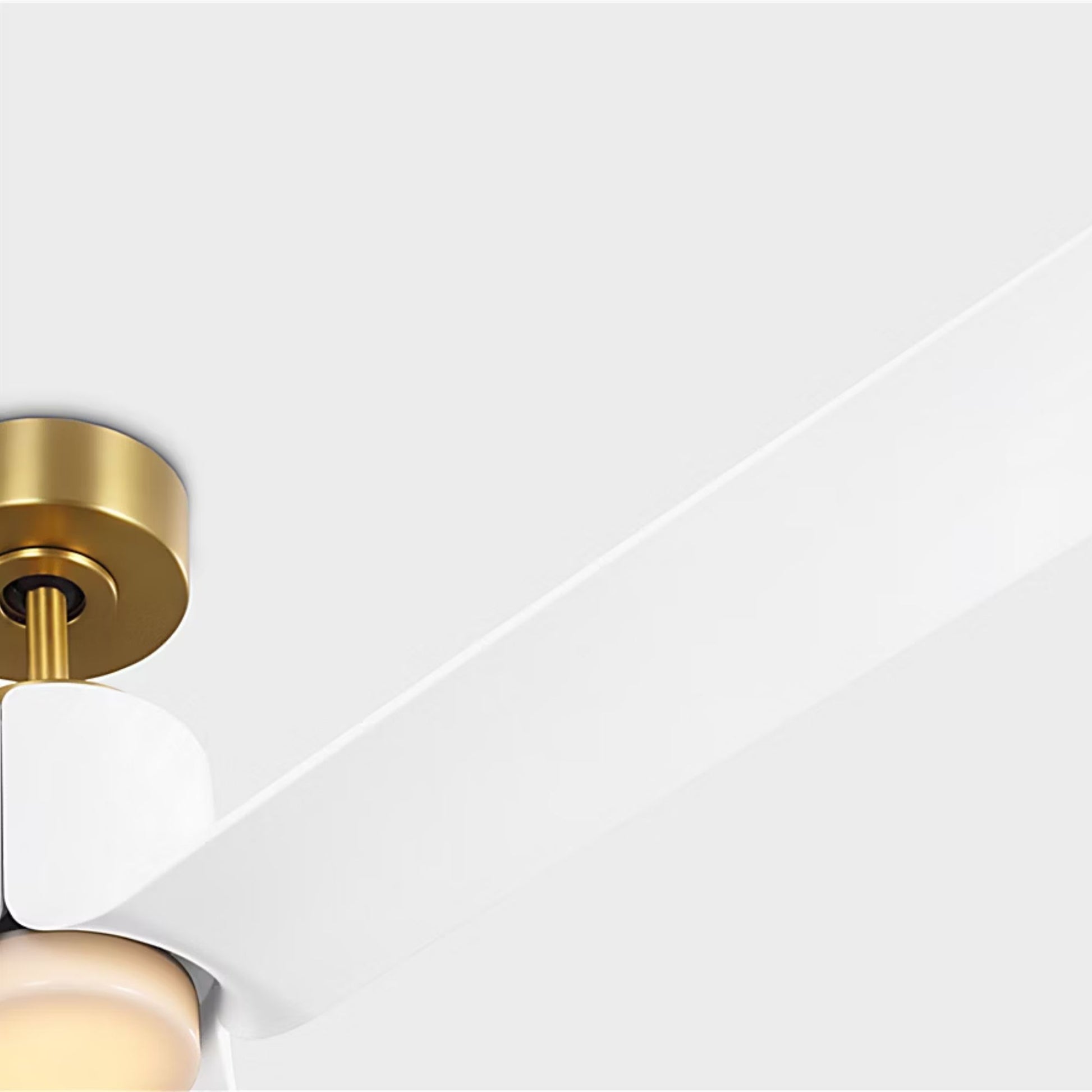

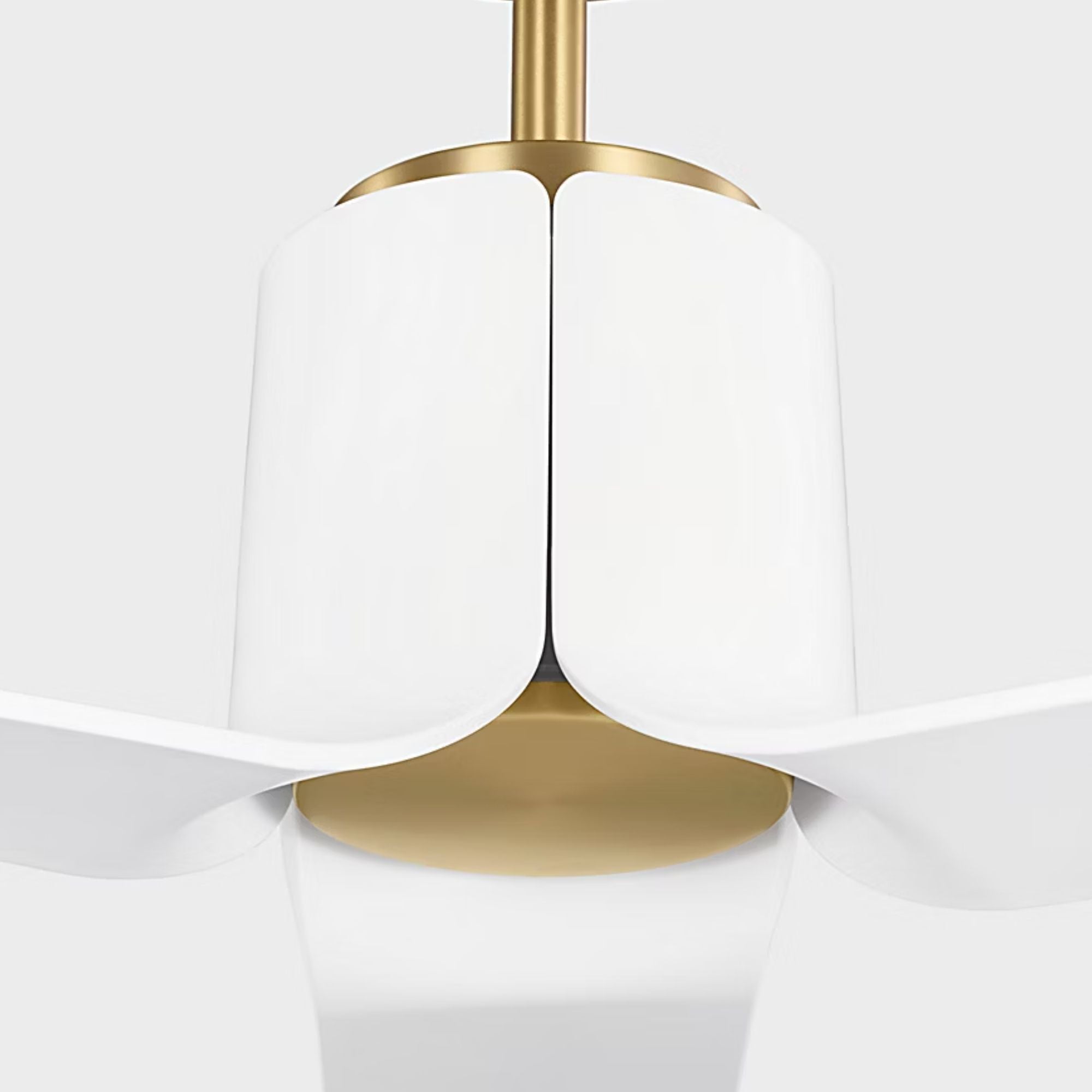

Designed by Peter Bristol, Peel Smart pairs a clean, modern silhouette with three sculptural ABS blades. The steel housing is finished in Burnished Brass, complemented by three Matte White blades. A dedicated integrated LED and 12° blade pitch complete the streamlined design.

Light Output & Performance

The integrated 22W LED array delivers 1,200 lumens with CRI 90 at 3000K and is dimmable from the included remote. The 66 in fan delivers 7,700 CFM at high speed using 22W of motor power and 3,328 CFM at low speed using 4W, with high-speed efficiency of 350 CFM/W. Its broad sweep and airflow suit rooms 350 sq. ft. and larger.

Electrical & Installation

Designed for 120V power, the motor uses 22W at high speed and 4W at low speed, and the integrated LED is rated at 22W. At high speed with the light on, combined draw is up to 44W. The motor reverses by remote. An included 6 in x 0.81 in downrod and mounting hardware support installation on ceilings with slopes up to 20°. Overall height is 14.3 in, with blade-to-ceiling height ranging from 13.8 in minimum to 14.5 in maximum.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. Ensure at least 7 ft of clearance between the floor and fan blades.

• 8 ft ceiling: Hugger/flush-mount fans are recommended.
• 8–10 ft ceilings: Close-to-ceiling installation uses a 4–8 in downrod.
• 10 ft and higher: 12, 18, 24, 36, 48, 60, and 72 in length downrods are recommended.

What's Included

• Peel Smart 66 ceiling fan with 3 Matte White ABS blades
• Integrated dedicated LED light
• Handheld transmitter
• 6 in downrod
• Mounting hardware
