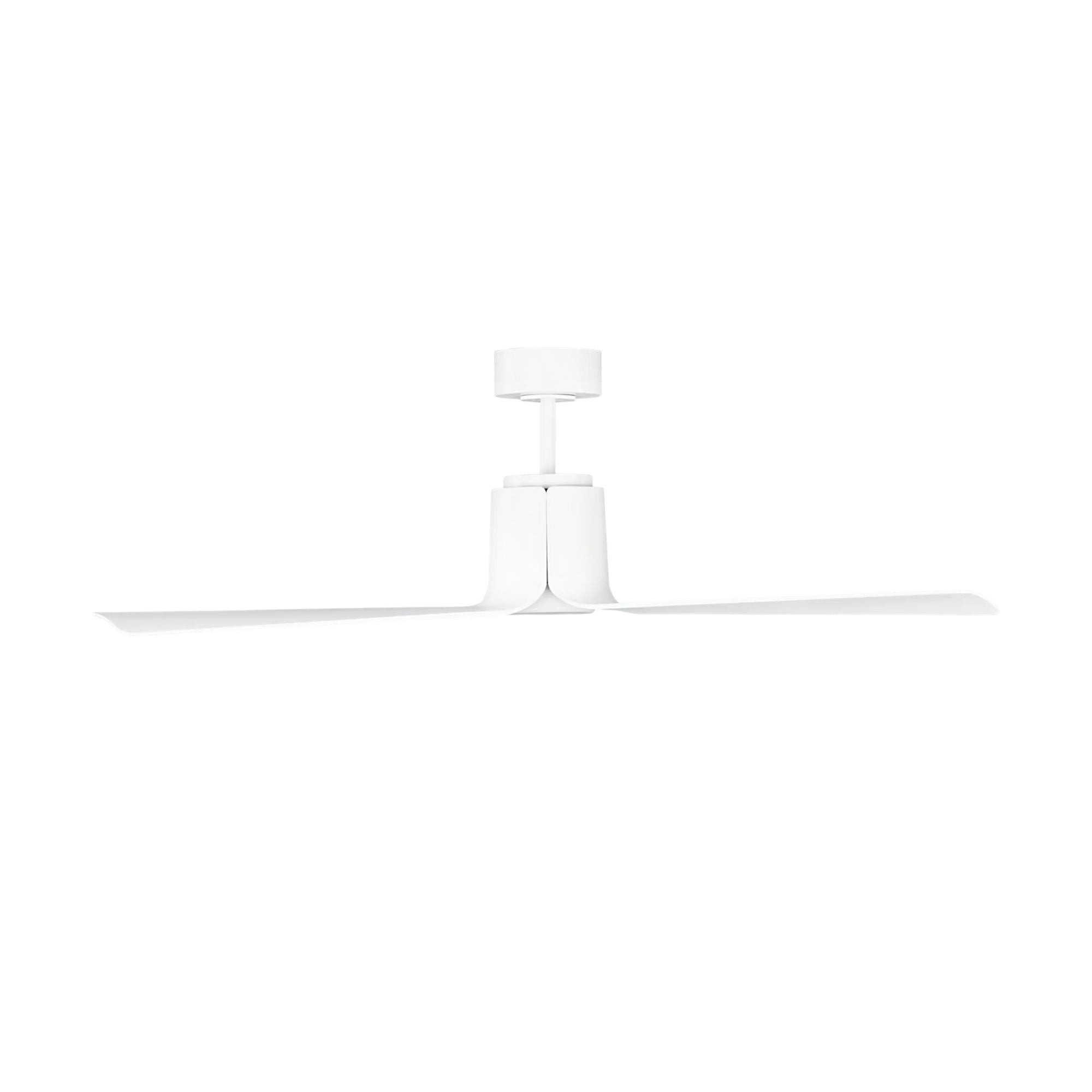

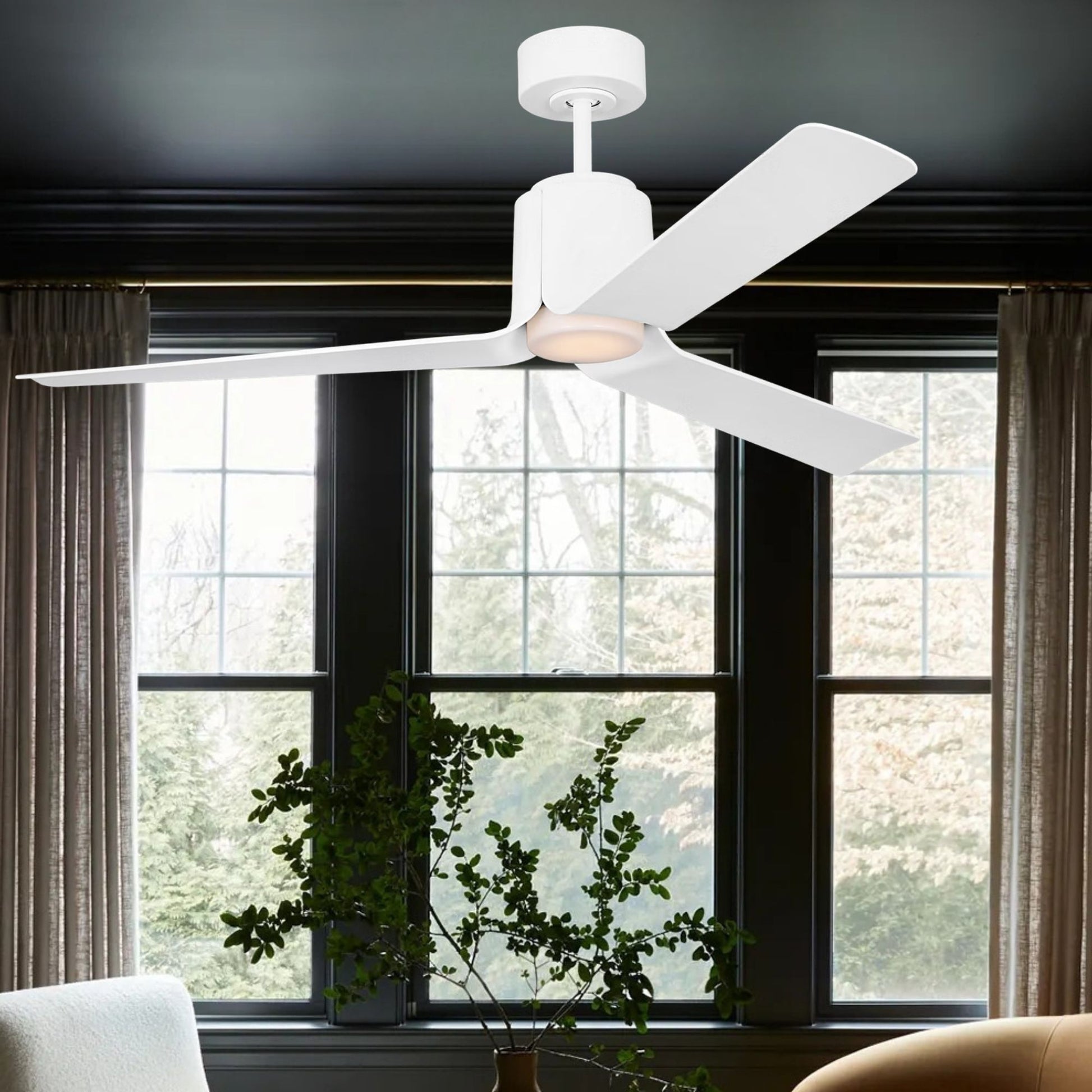

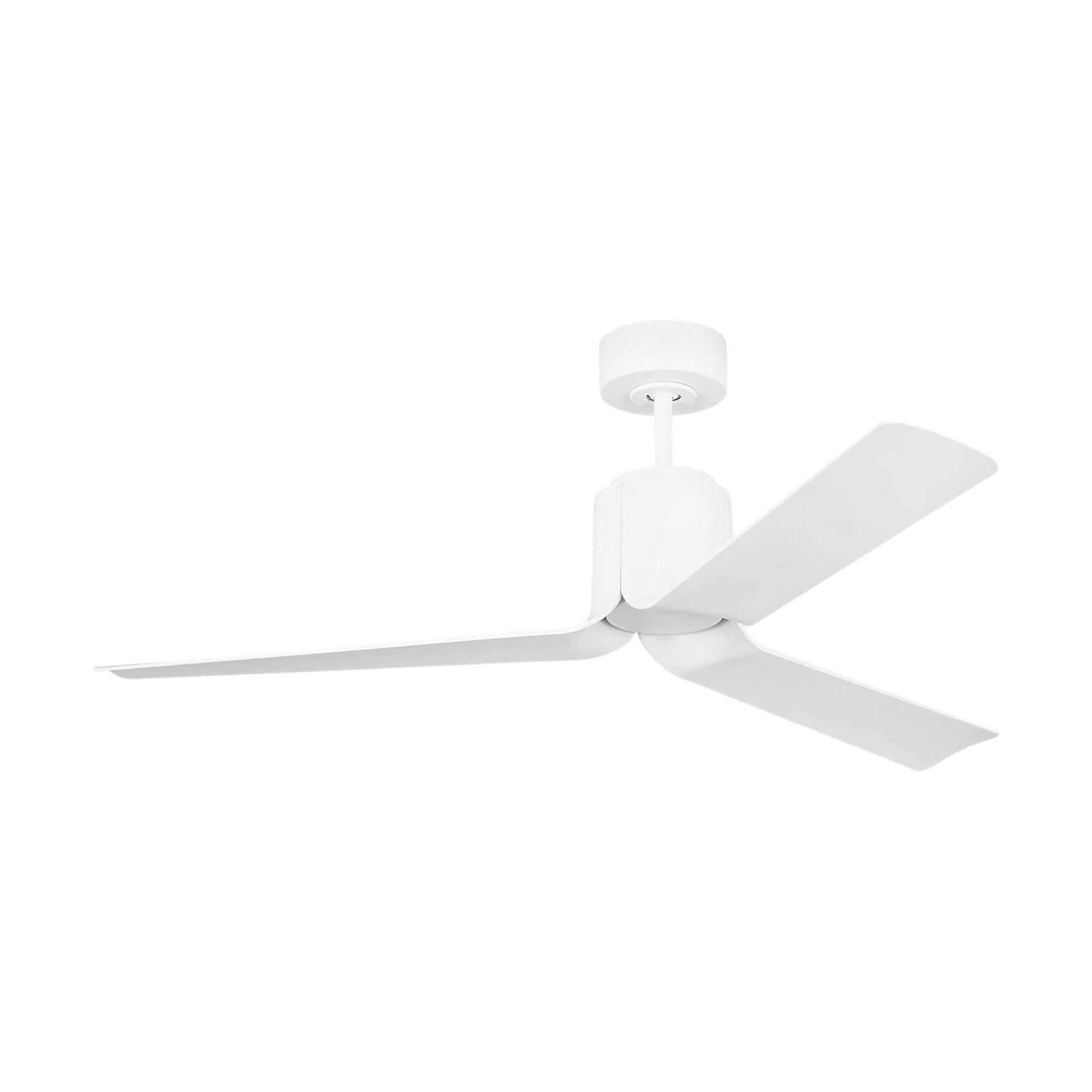

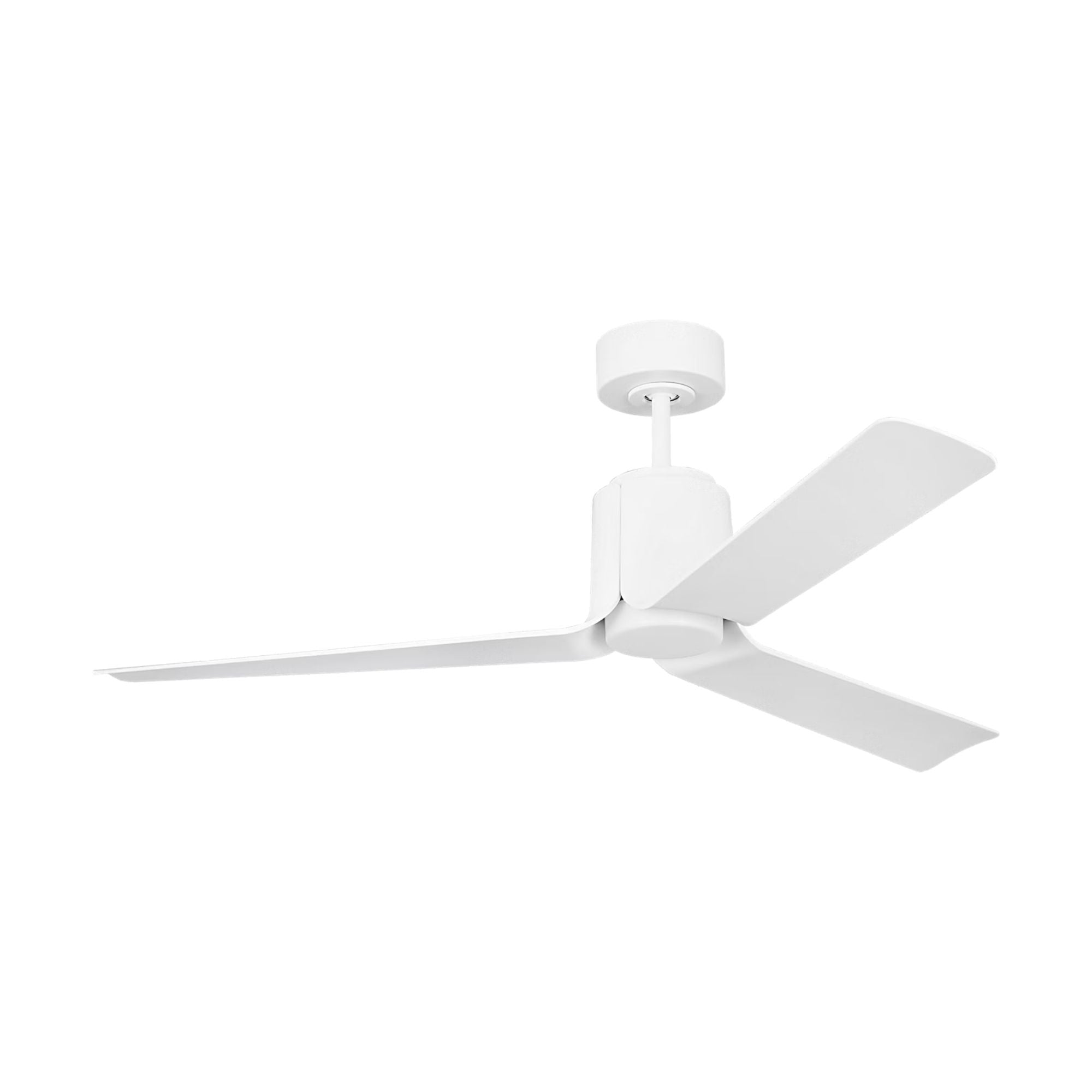

Visual Comfort Fan Peel Smart 52 in Indoor Outdoor LED Ceiling Fan DC — Matte White

Visual Comfort Fan Peel Smart model 3PESM52RZWD has a 52 in sweep with three ABS blades and a DC motor, delivering 5,014 CFM at high speed and 218 CFM/W efficiency. Its integrated dedicated LED provides 1,200 delivered lumens at 3000K with CRI 90. This Damp Rated fan is designed for indoor and covered outdoor locations.

Key Features

• Blade Sweep: 52 in with 3 ABS blades and 16° blade pitch
• Motor: 131.0 x 15.0 mm DC motor with 6 speeds and remote-controlled reverse
• Airflow: 5,014 CFM high at 23W and 1,786 CFM low at 3W, with 218 CFM/W high-speed efficiency and 595 CFM/W low-speed efficiency
• Location Rating: Damp Rated for indoor and covered outdoor locations
• Certifications: UL Listed and ENERGY STAR Qualified
• Smart Controls: Included handheld transmitter works without Wi-Fi; connect to Wi-Fi for Bond Home App features and Alexa or Google Home voice control
• Integrated LED: Dedicated 23W LED with 1,200 delivered lumens, 3000K color temperature, and CRI 90
• Installation: Includes a 6 in x 0.81 in downrod and supports ceiling slopes up to 20°
• Dimensions: 15.1 in overall height; blade-to-ceiling distance ranges from 13.6 in to 15.1 in
• Weight and Warranty: 17 lb; 5-year warranty

Smart & Control Features

The included hand-held transmitter operates the fan without a Wi-Fi connection, with 6-speed control and remote-controlled direction reversal. When connected to Wi-Fi, the fan adds scheduling, Dusk to Dawn, and Natural Breeze features through the Bond Home App. Voice control is available through the Bond Home skill for Amazon Alexa and Bond Home Action for Google Home. Additional smart-home integrations include SmartThings, Control4, ELAN, and Hubitat.

Construction and Design

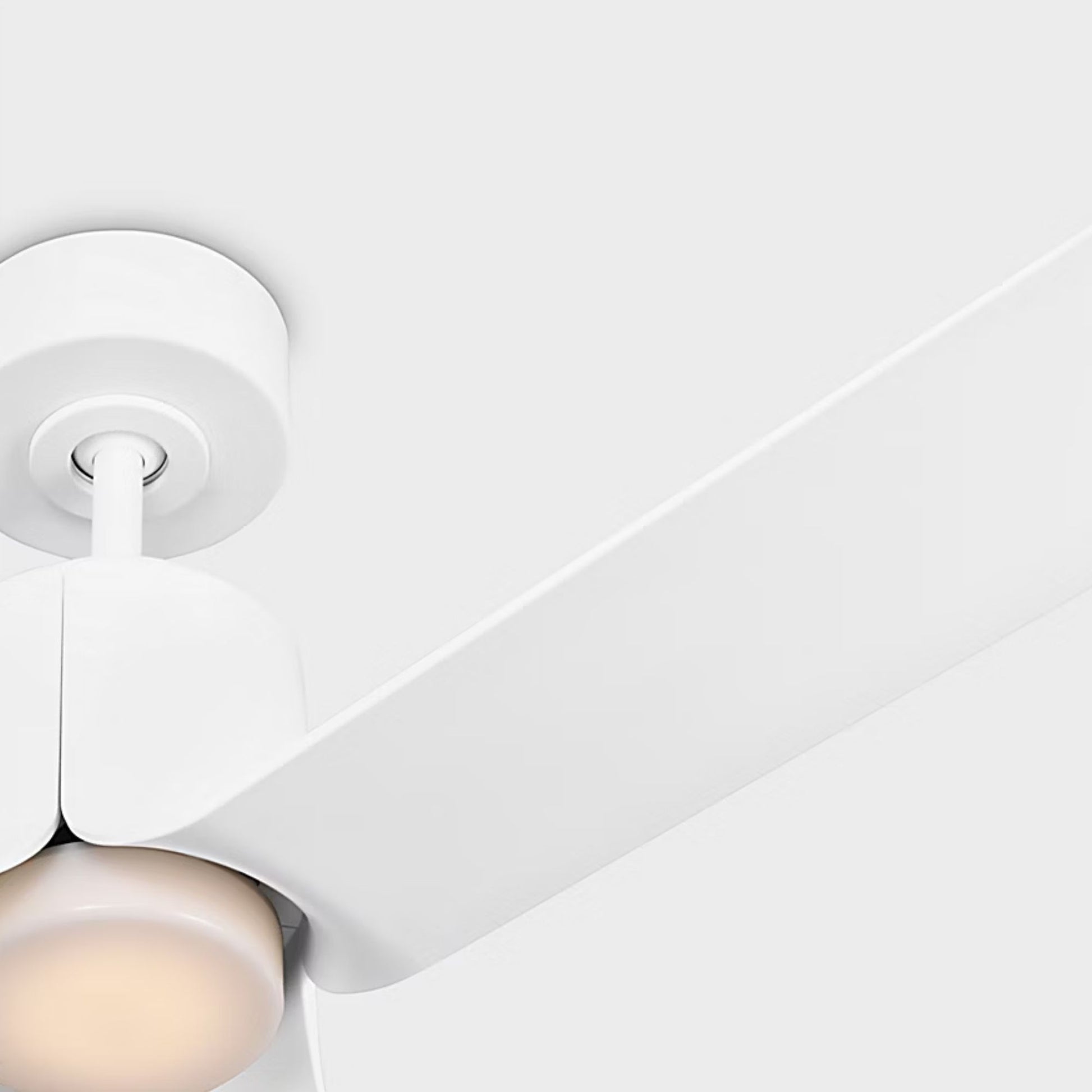

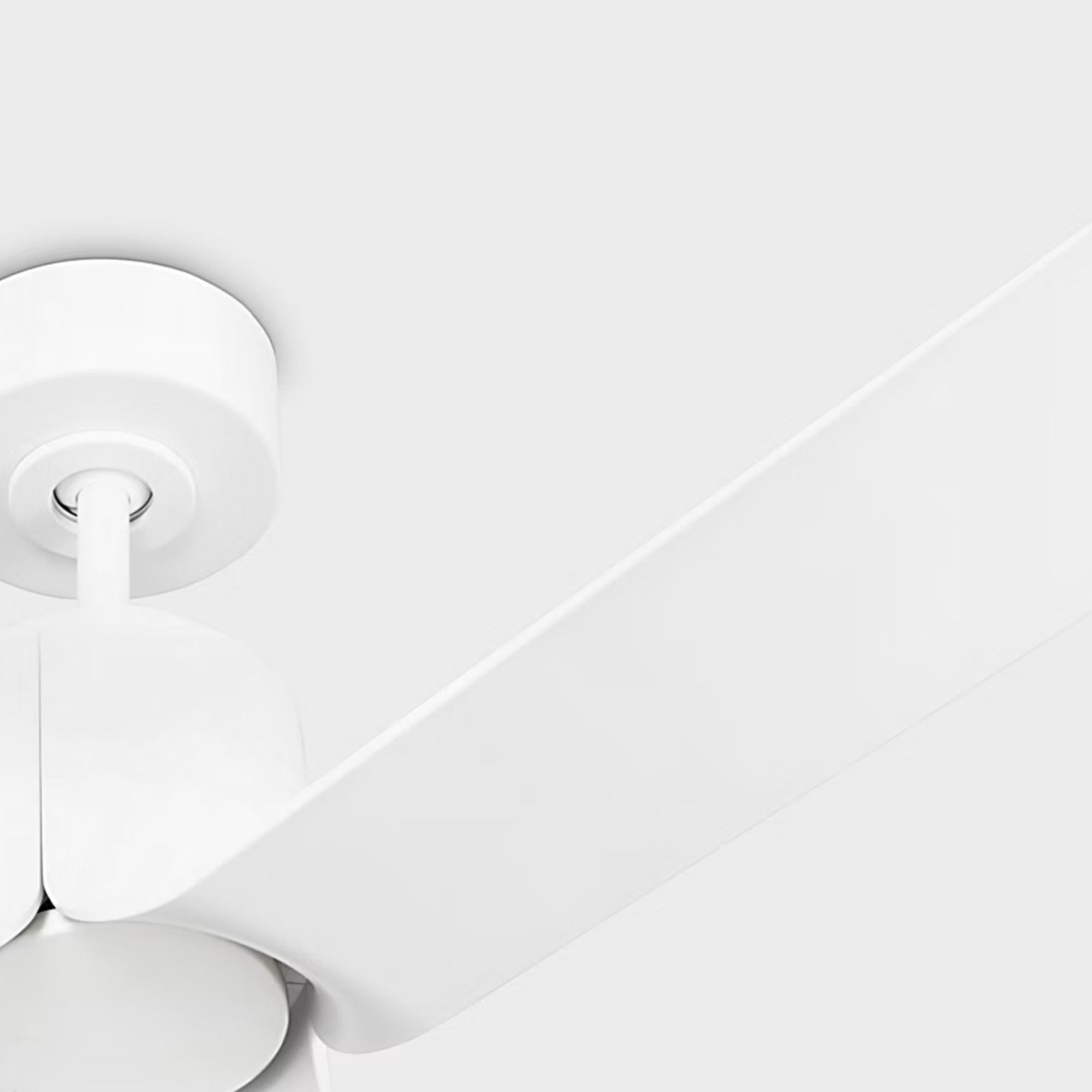

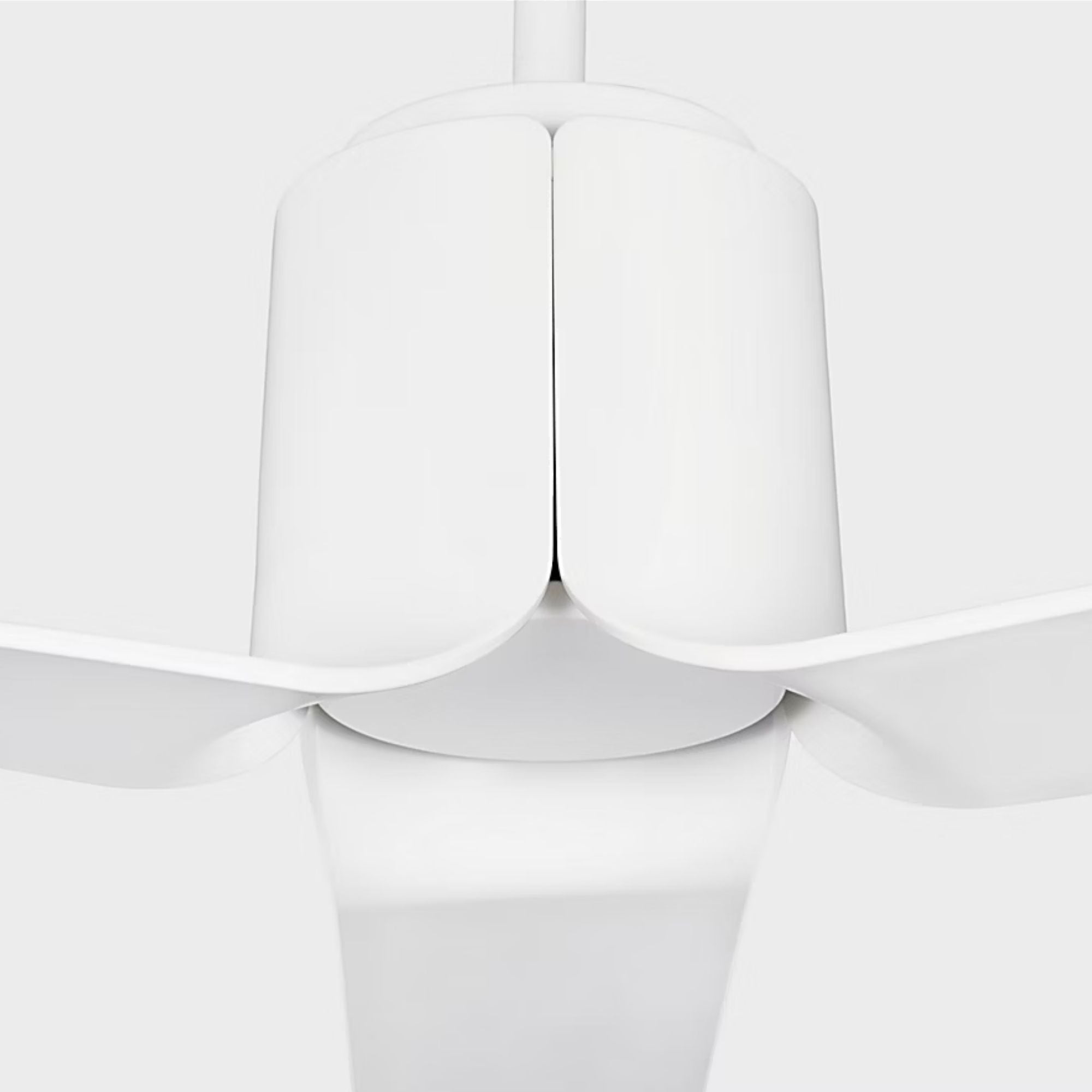

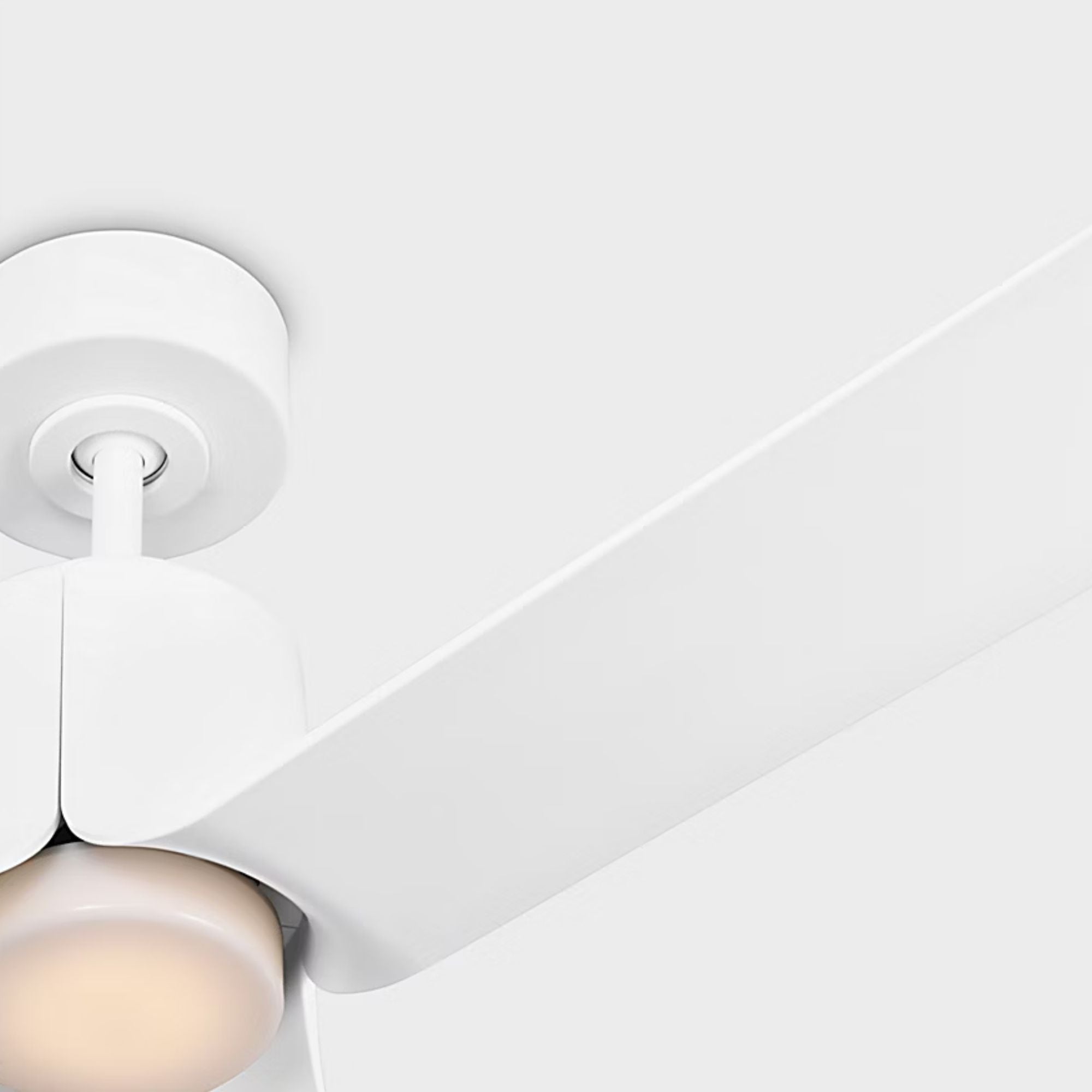

Designed by Peter Bristol, Peel Smart has a clean three-blade profile with a steel housing in Matte White and three Matte White ABS blades. Its 16° blade pitch and streamlined design bring a crisp, modern look to indoor and covered outdoor spaces.

Light Output & Performance

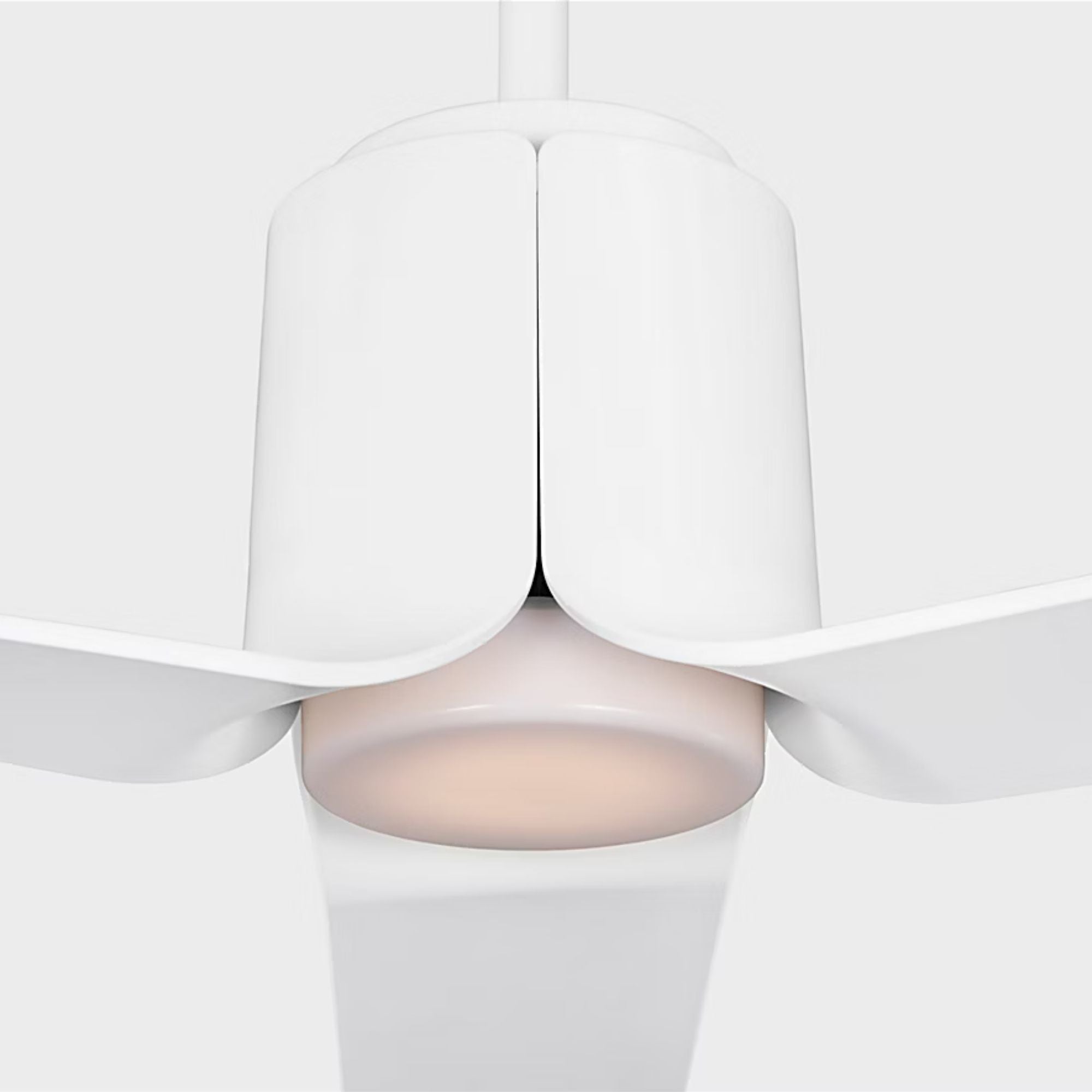

The integrated dedicated 23W LED delivers 1,200 lumens at 3000K with CRI 90. The fan moves 5,014 CFM at high speed and 1,786 CFM at low speed, with efficiencies of 218 CFM/W high and 595 CFM/W low. Its 52 in sweep and airflow fit the 125–300 sq. ft. room range in Visual Comfort's sizing guide.

Electrical & Installation

Designed for 120V power, the motor uses 23W at high speed and 3W at low speed, and the integrated LED is rated at 23W, for combined draw up to 46W with the fan and light at high speed. Direction reversal is controlled from the remote. The included 6 in x 0.81 in downrod supports ceilings with slopes up to 20°. Overall height is 15.1 in, and blade-to-ceiling distance ranges from 13.6 in minimum to 15.1 in maximum.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. Ensure at least 7 ft of clearance between the floor and fan blades.

• 8 ft ceiling: Hugger/flush-mount fans are recommended.
• 8–10 ft ceilings: Close-to-ceiling installation uses a 4–8 in downrod.
• 10 ft and higher: 12, 18, 24, 36, 48, 60, and 72 in length downrods are recommended.

What's Included

• Peel Smart 52 ceiling fan with 3 Matte White ABS blades
• Integrated dedicated LED light
• Handheld transmitter
• 6 in downrod
