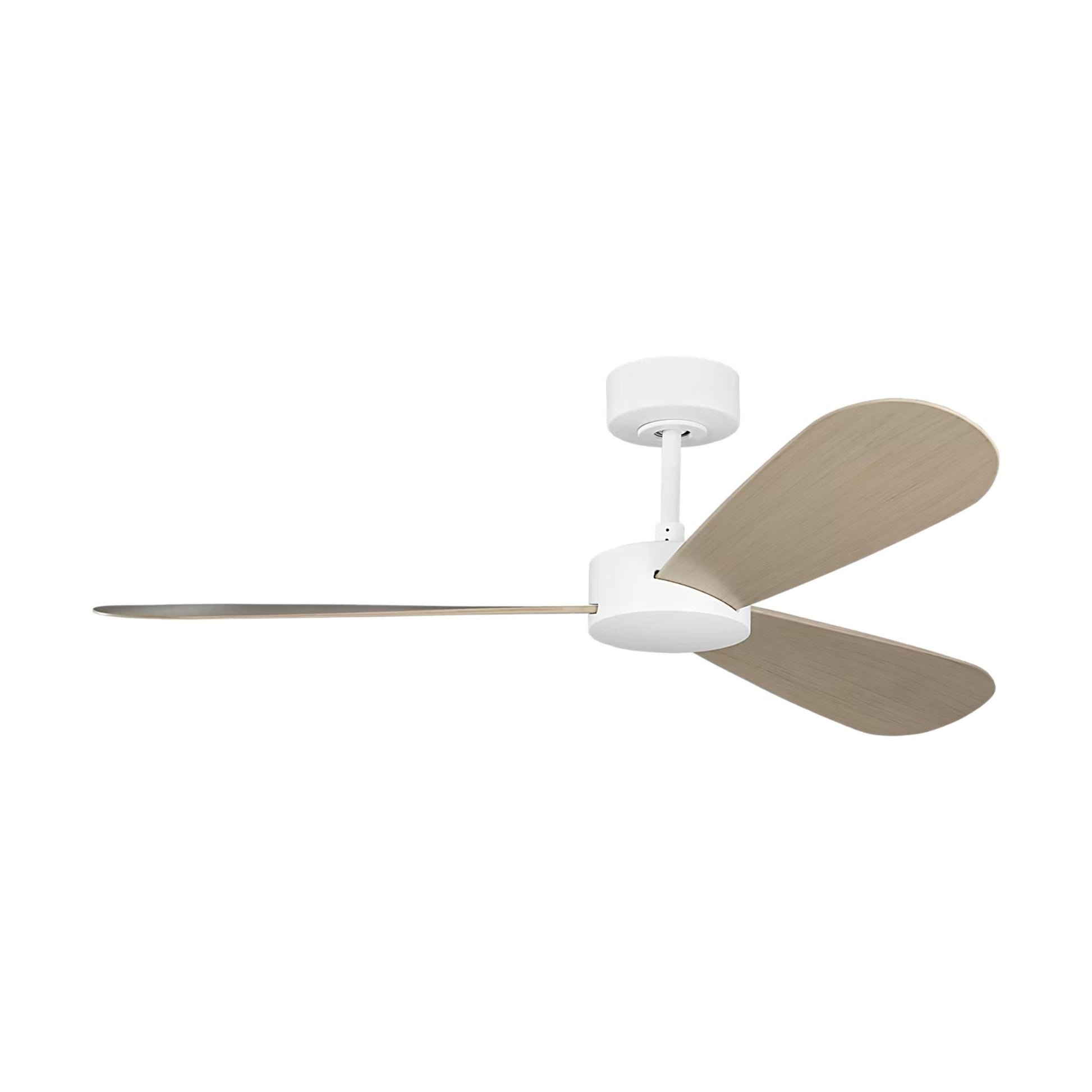

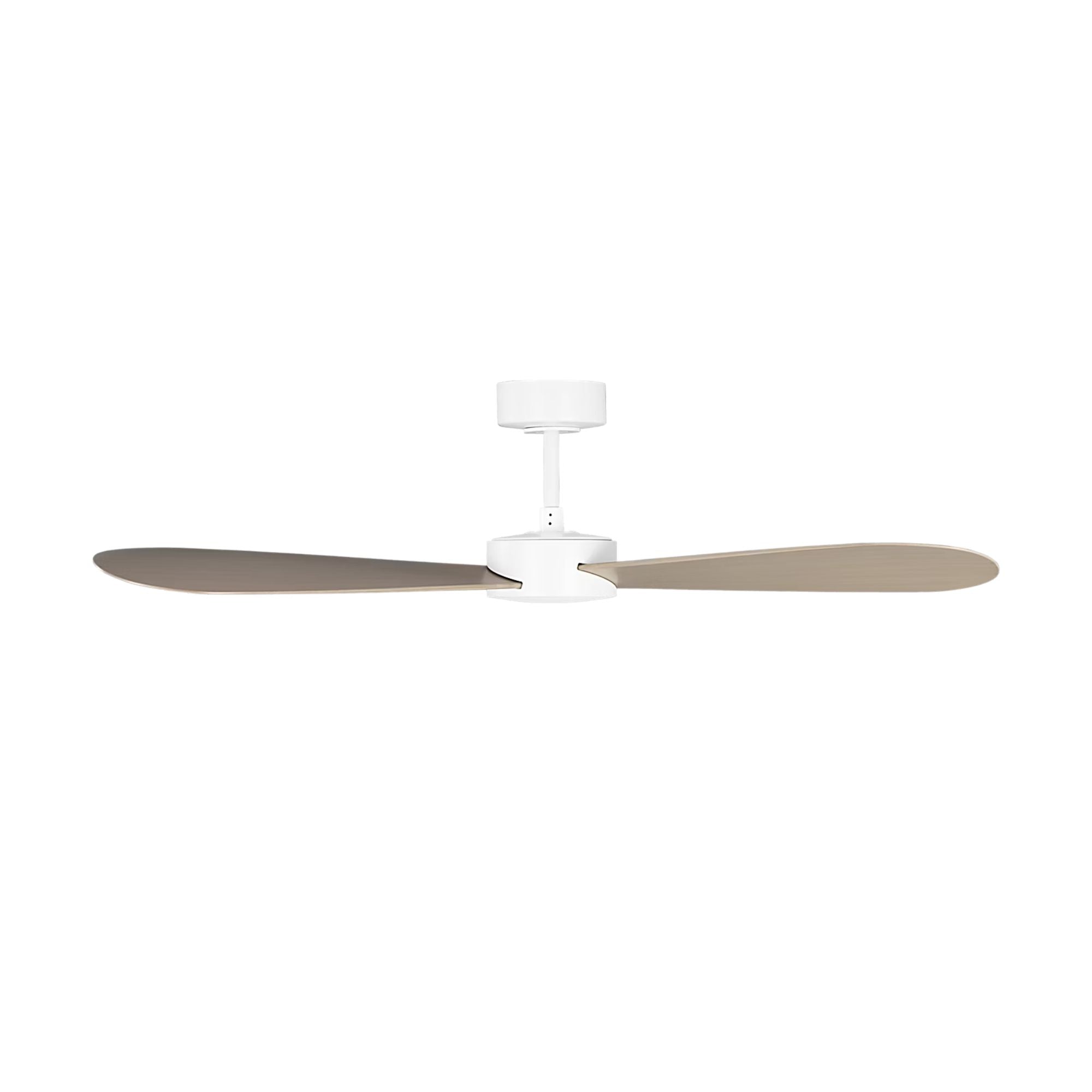

Visual Comfort Fan Paddle Smart 52 in Indoor Outdoor Smart Ceiling Fan DC — Matte White

Visual Comfort Fan Paddle Smart model 3PDSM52RZW is a 52 in three-blade fan powered by a DC motor, delivering 4,940 CFM at high speed and 134 CFM/W efficiency. Its Damp Rated design is suited to indoor and covered outdoor spaces.

Key Features

• Blade Sweep: 52 in with 3 ABS blades in White Cerused Oak and 15° blade pitch
• Motor: 125 x 16 mm energy-efficient DC motor with 6 speeds and remote-controlled reverse
• Airflow: 4,940 CFM high at 37W and 2,065 CFM low at 4W; 134 CFM/W high-speed efficiency
• Location Rating: Damp Rated for indoor and covered outdoor locations
• Certification: UL Listed and ENERGY STAR Qualified
• Smart Control: Wi-Fi-connected control through the Bond Home App, with scheduling, Dusk to Dawn, and Natural Breeze functions
• Controls: Included handheld transmitter operates the fan without Wi-Fi; voice control through Alexa and Google Home
• Mounting: Includes 6 in downrod; documented slope-ceiling tolerance up to 20°
• Warranty: 3 years

Smart & Control Features

The included hand-held transmitter controls the fan even without a Wi-Fi connection, with 6-speed operation and remote-controlled direction reversal for seasonal airflow. When connected to Wi-Fi, the fan adds scheduling, Dusk to Dawn, and Natural Breeze functions through the Bond Home App. Voice control is available through the Bond Home skill for Amazon Alexa and Bond Home Action for Google Home. Additional smart-home integrations include SmartThings, Control4, ELAN, and Hubitat.

Construction and Design

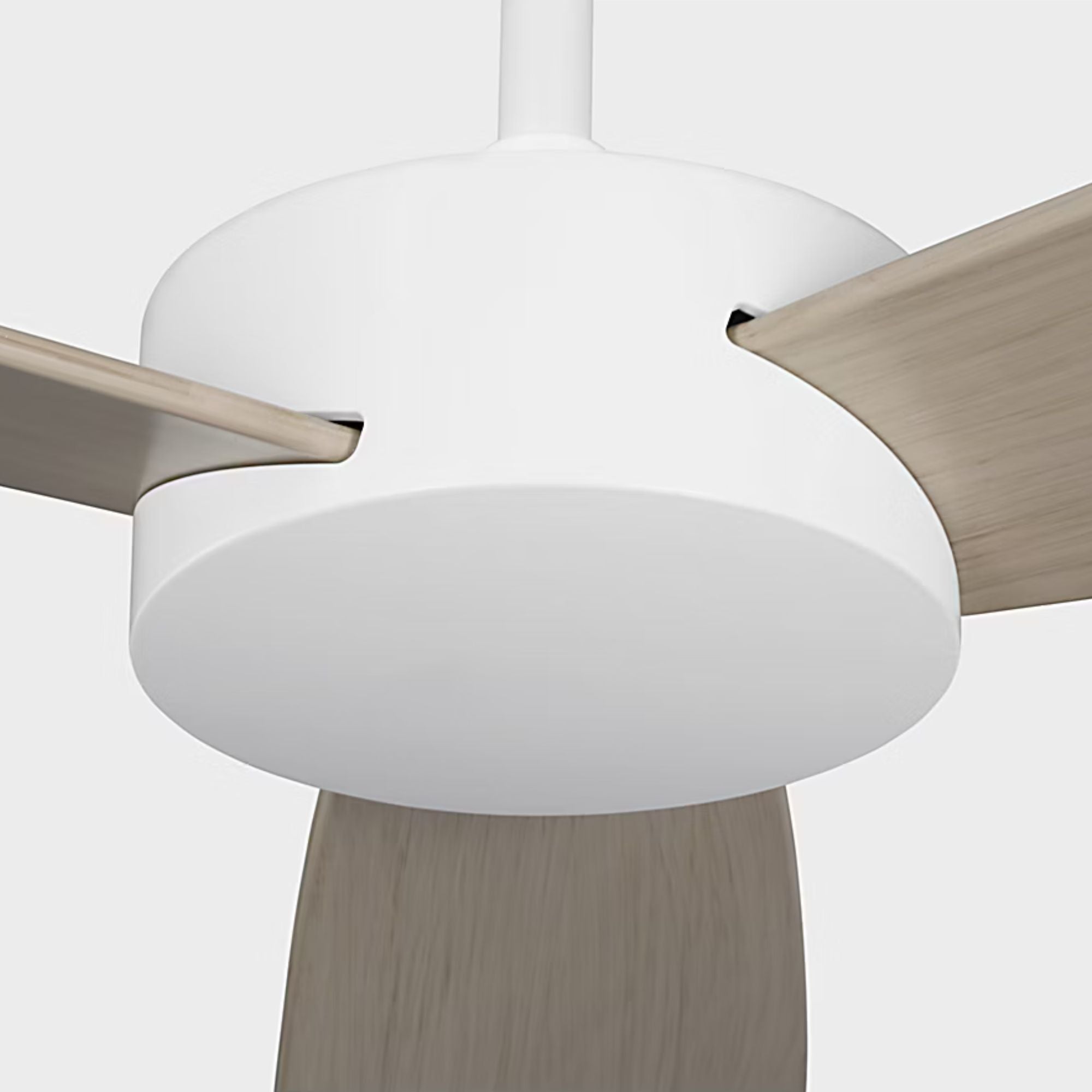

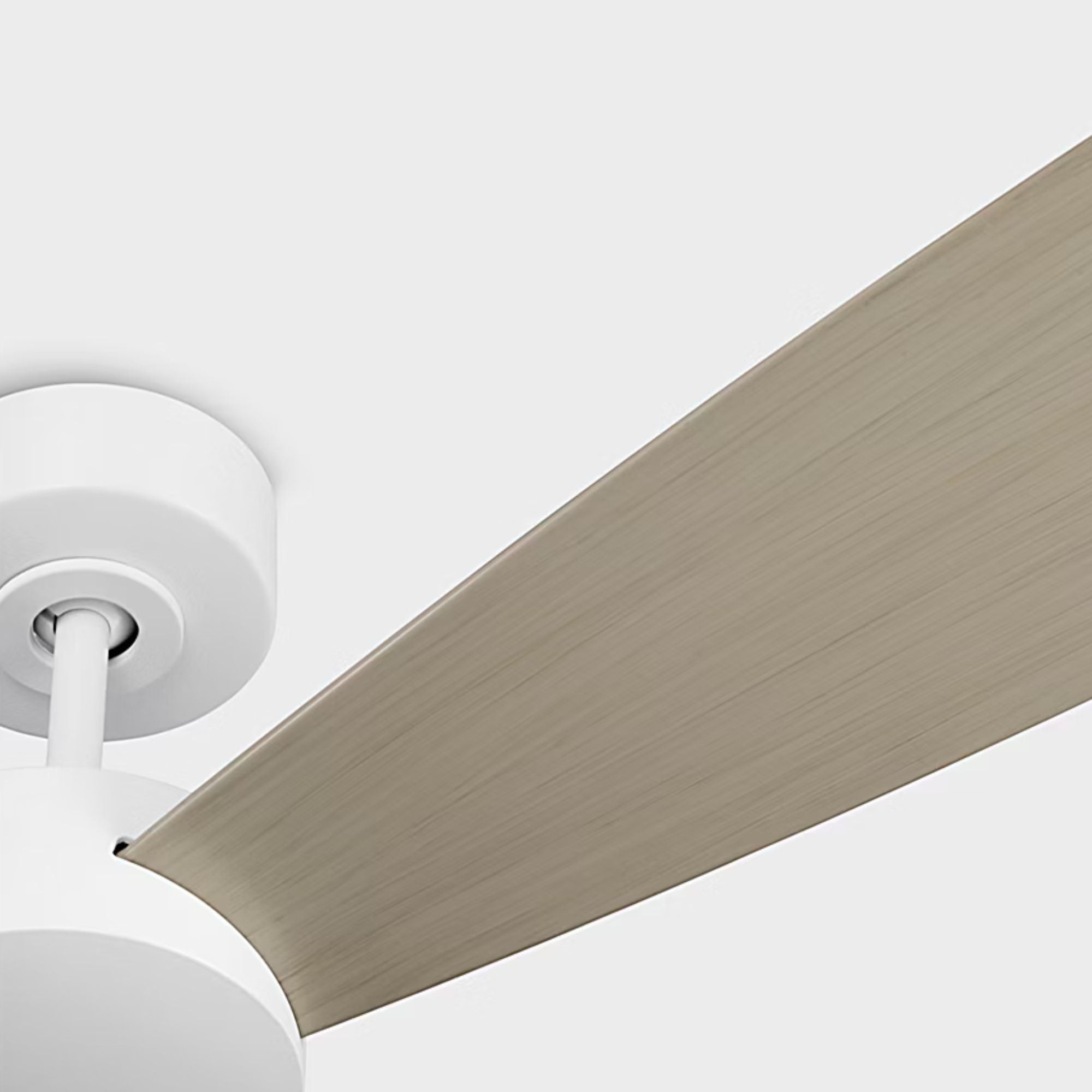

Designed by Barbara Barry, Paddle Smart pairs a clean, modern profile with three sculptural ABS blades. The steel housing is finished in Matte White, complemented by three White Cerused Oak blades with a warm wood-grain look. The 15° blade pitch and streamlined three-blade design create a distinctive focal point while moving air through smaller rooms.

Fan Performance

The 52 in Paddle Smart delivers 4,940 CFM at high speed with 134 CFM/W efficiency, plus 2,065 CFM at low speed. Its 52 in sweep and airflow suit rooms around 90–120 sq. ft.

Electrical & Installation

Designed for 120V power, the fan uses 37W at high speed and 4W at low speed. The DC motor supports remote-controlled direction reversal. An included 6 in x 0.81 in downrod and hardware accommodate ceiling slopes up to 20°. Overall height is 11.8 in, with a blade-to-ceiling distance ranging from 9 in minimum to 11.7 in maximum.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. Ensure at least 7 ft of clearance between the floor and fan blades.

• 8 ft ceiling: Hugger/flush-mount fans are recommended.
• 8–10 ft ceilings: Close-to-ceiling installation uses a 4–8 in downrod.
• 10 ft and higher: 12, 18, 24, 36, 48, 60, and 72 in length downrods are recommended.

What's Included

• Paddle Smart 52 ceiling fan with 3 White Cerused Oak ABS blades
• Handheld transmitter
• 6 in downrod
