Visual Comfort Fan Drape Smart 3DPSM58RZWD, 58 in Indoor Outdoor Smart Ceiling Fan, DC Motor, Matte White, Integrated LED

Visual Comfort Fan Drape Smart model 3DPSM58RZWD pairs a 58 in span and 3 ultra-thin ABS blades with a graceful, sculptural profile. Its DC motor moves 6,143 CFM on high with 176 CFM/W efficiency. The dedicated LED pendant delivers 1,900 lumens at 3500K, and the fan is Damp Rated for indoor and covered outdoor spaces. Visual Comfort's sizing guide places fans with a 52–60 in span and 5,000–8,000 CFM in the 125–300 sq. ft. room category; this model's span and high-speed airflow fall within that range.

Key Features

• Blade Span: 58 in, 3 ultra-thin ABS blades, Matte White housing and blades
• Motor: 125 x 30 mm DC motor, 6 speeds, remote-controlled reverse
• Airflow: 6,143 CFM high at 35W, 2,394 CFM low at 5W, 176 CFM/W high and 479 CFM/W low; Visual Comfort sizing guide range: 125–300 sq. ft.
• Location Rating: Damp rated for indoor and covered outdoor spaces
• Certification: ENERGY STAR Qualified and UL Listed

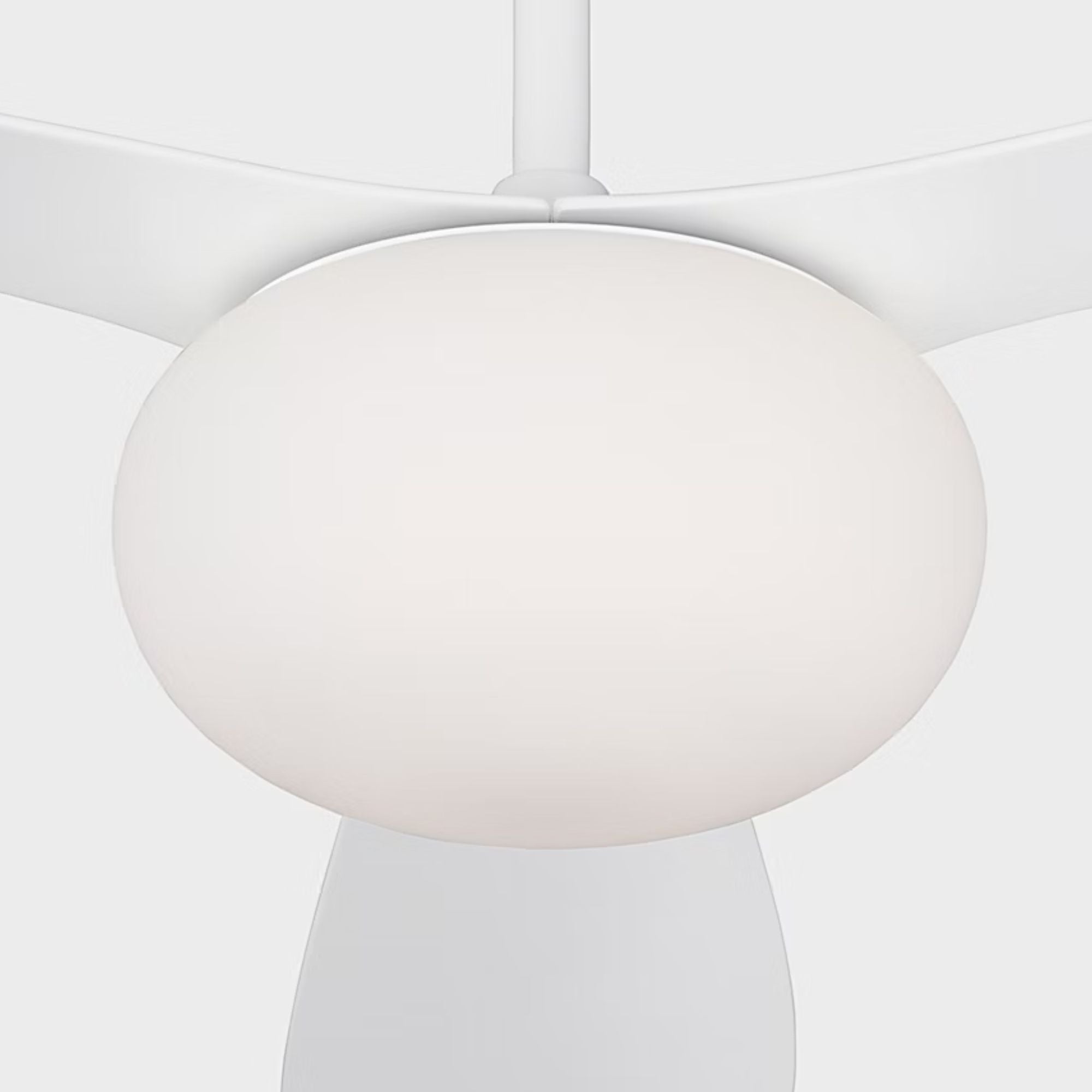

• Integrated LED: Dedicated LED pendant, 1,900 lumens, 3500K, CRI 90
• Smart Controls: Bond Home app and Wi-Fi features, Alexa and Google Home voice control, plus supported smart-home integrations
• Mounting: Includes 18 in downrod, sloped-ceiling compatible up to 20 degrees
• Overall Height: 25.6 in
• Weight: 17 lbs

Smart & Control Features

The included handheld transmitter operates the fan without Wi-Fi, with six speeds, reverse, and LED dimming. For summer, counter-clockwise rotation viewed from below pushes air down; for winter, clockwise rotation helps recirculate warm air. Connect the fan to Wi-Fi for scheduling, Dusk to Dawn, and Natural Breeze features in the Bond Home App. Voice control works through the Bond Home skill for Amazon Alexa and Bond Home Action for Google Home; additional integrations include SmartThings, Control4, ELAN, and Hubitat.

Construction and Design

Designed by Peter Bristol, Drape Smart has a uniquely soft, light silhouette. Three ultra-thin blades seem to drape around the ceiling while the LED pendant conceals the motor for a streamlined profile. The steel housing and ABS blades share a Matte White finish.

Light Output & Performance

The dedicated integrated LED produces 1,900 lumens at 3500K with a CRI of 90. It is dimmable from the included handheld transmitter. The fan moves 6,143 CFM on high at 35W and 2,394 CFM on low at 5W, with listed efficiency of 176 CFM/W on high and 479 CFM/W on low.

Electrical & Installation

Input voltage: 120V AC. Maximum wattage: 35W. The motor is reversible, with reverse controlled by the remote. The fan includes an 18 in x 0.81 in downrod and supports sloped-ceiling installation up to 20 degrees. Overall height is 25.6 in, with blade-to-ceiling clearance ranging from 20 to 23.6 in. Maintain at least 7 ft from the floor to the lowest fan blade and allow 18–24 in clearance on all sides.

Suggested Downrod by Ceiling Height

Ships with an 18 in downrod. Ensure at least 7 ft of clearance between the floor and fan blades.

• 8 ft ceiling: Hugger/flush-mount fans are recommended.
• 8–10 ft ceilings: Close-to-ceiling installation uses a 4–8 in downrod, where the fan model supports it.
• 10 ft and higher: An extended downrod is recommended. Visual Comfort lists 12, 18, 24, 36, 48, 60, and 72 in lengths.

What's Included

• 3DPSM58RZWD fan with Matte White finish
• 3 Matte White ABS blades
• Dedicated integrated LED pendant
• Handheld transmitter
• 18 in downrod
• Installation instructions
