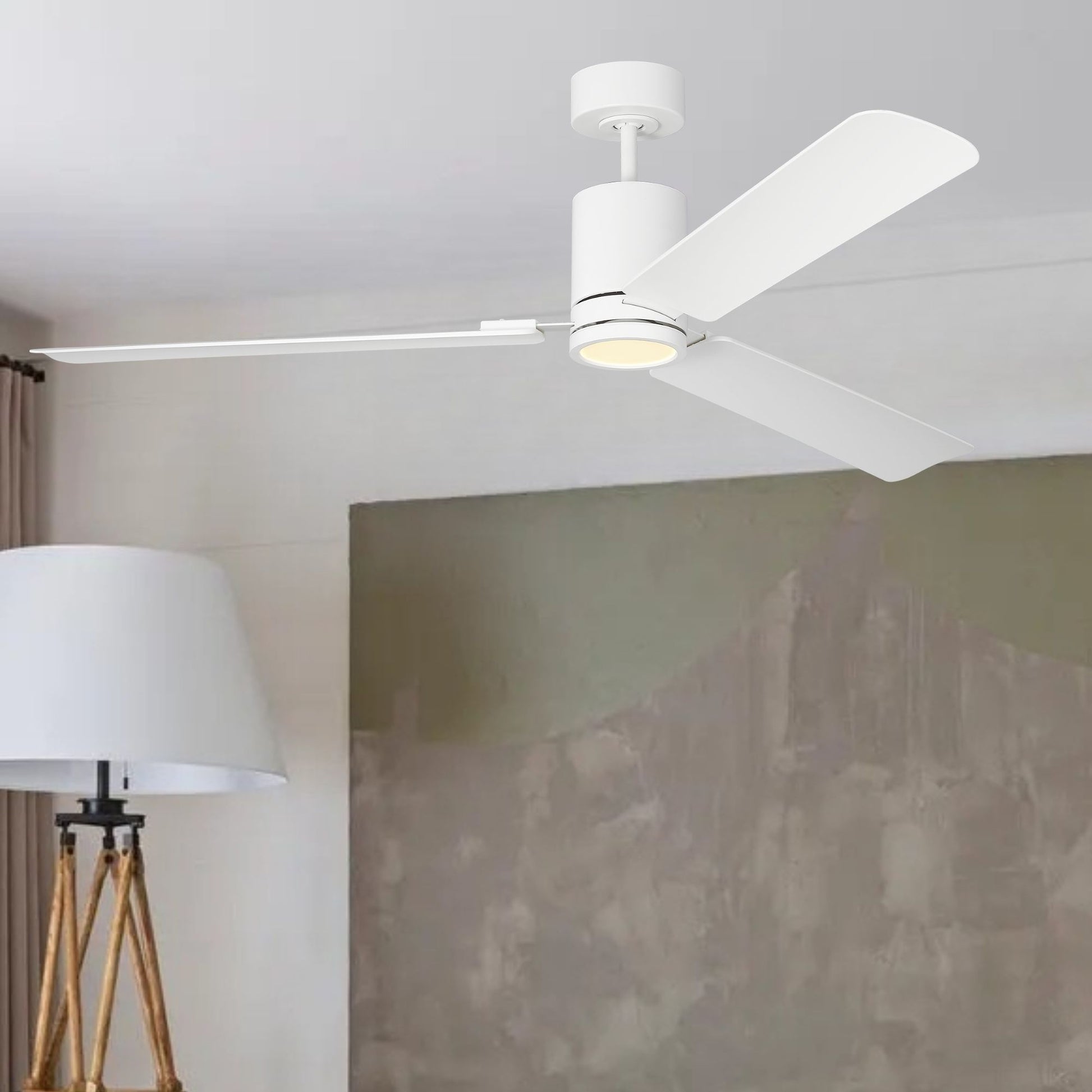

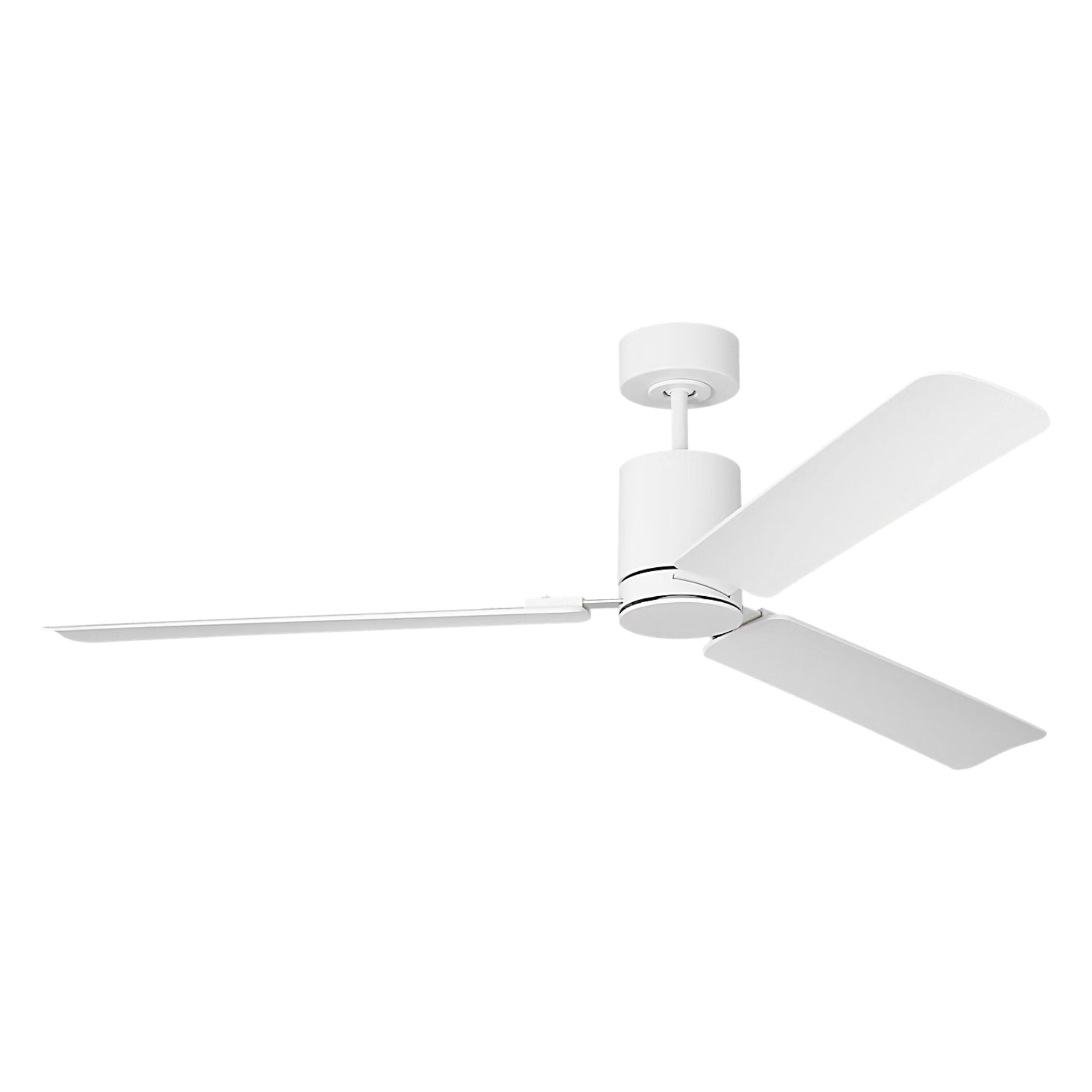

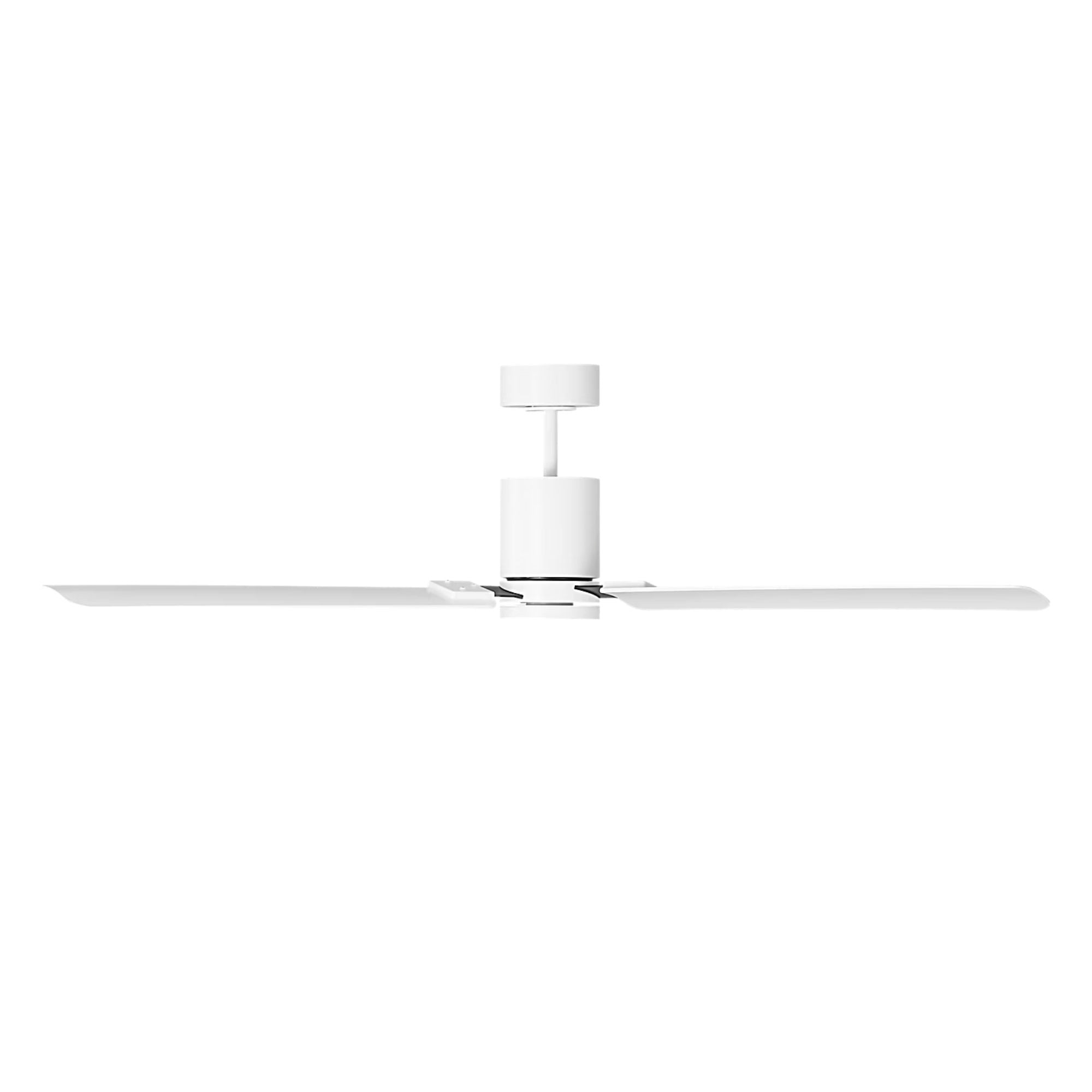

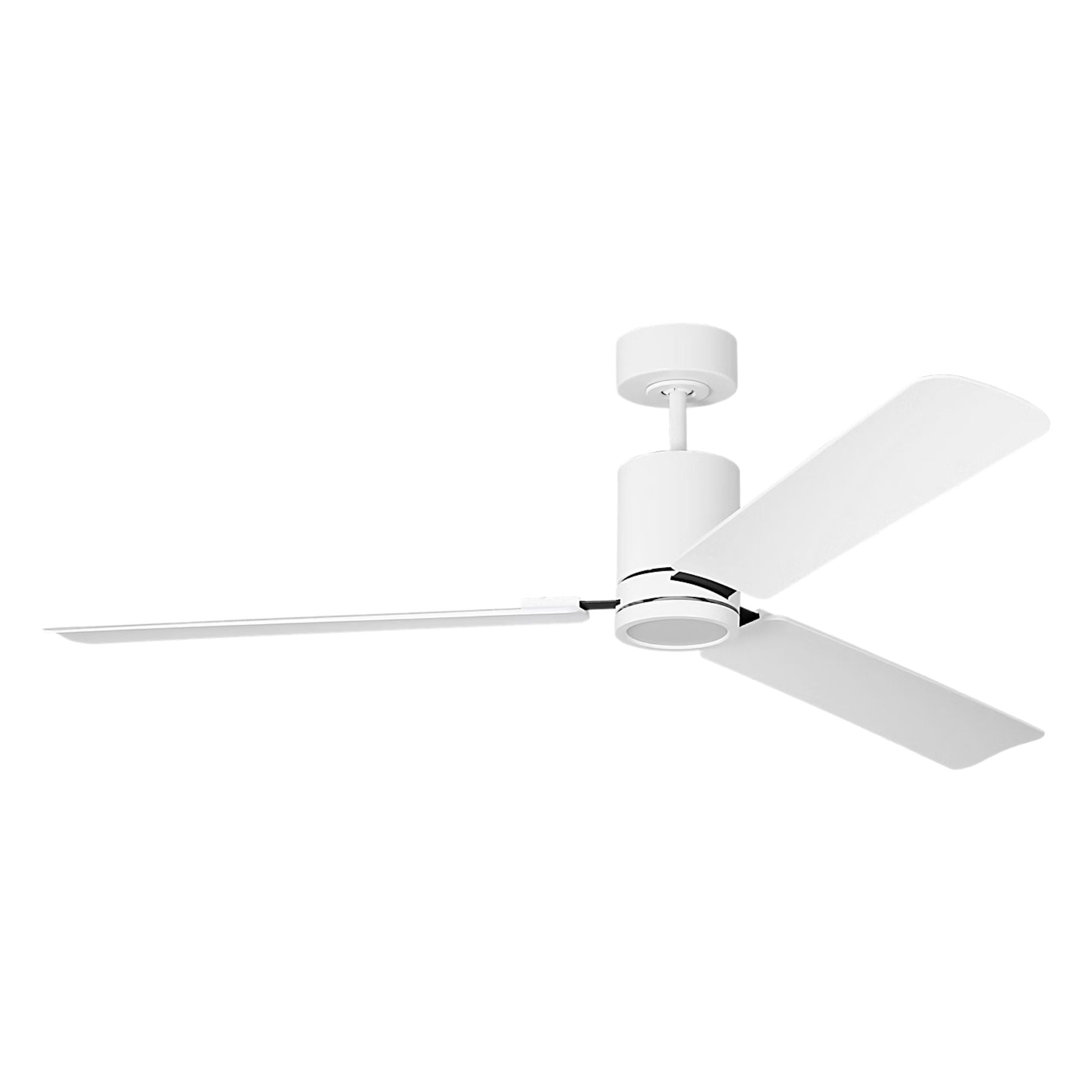

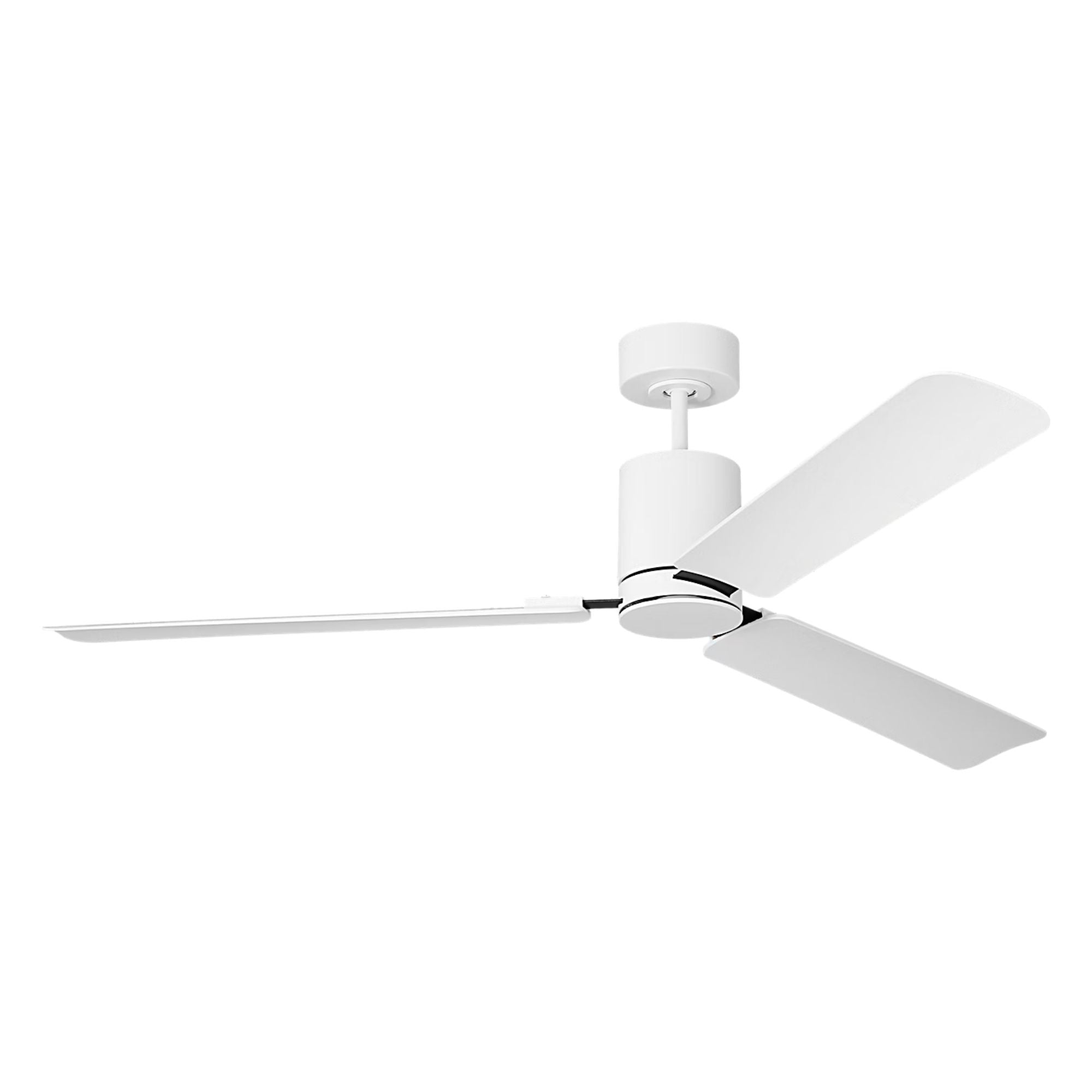

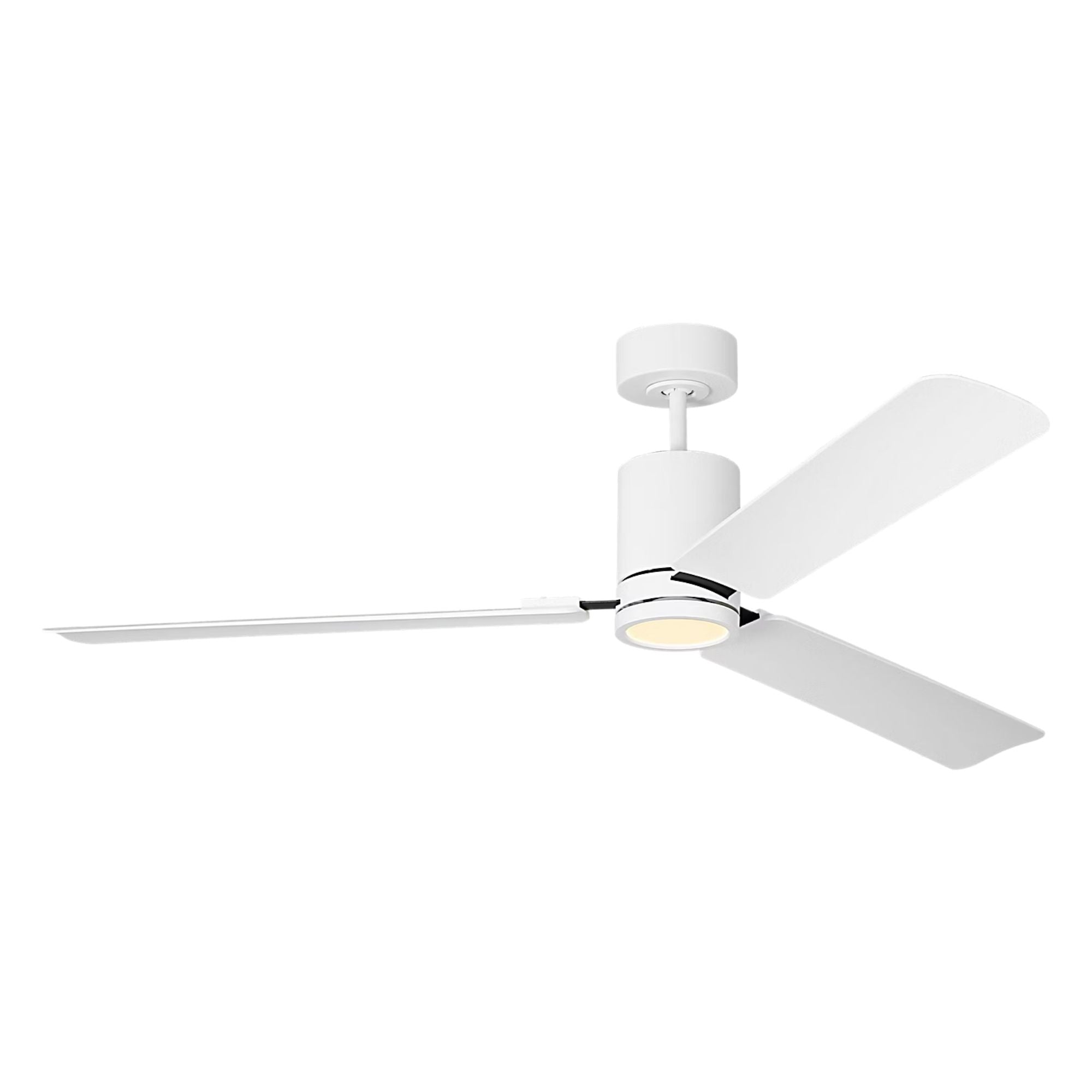

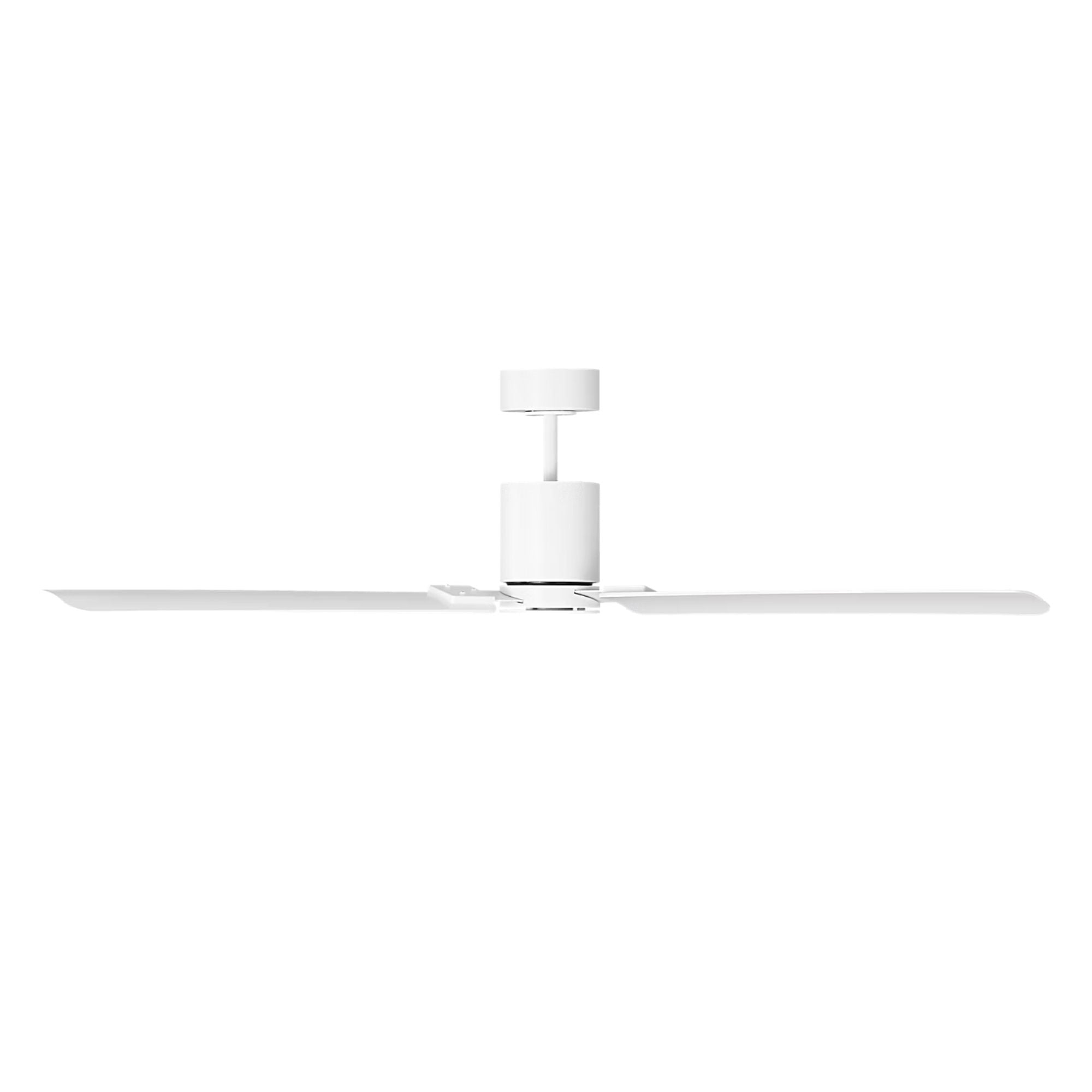

Visual Comfort Fan Cleancut Smart, model 3CCSM62RZWD, features a 62 in span with 3 ABS blades and a DC motor rated at 125 x 16. It delivers 7,966 CFM at high speed at 27.2W, with 293 CFM/W efficiency. The integrated LED array is rated at 19.2W maximum on 120V, and the fan is Damp Rated for indoor and covered outdoor spaces.

• Blade Span: 62 in, 3 ABS blades, Matte White finish
• Motor: 125 x 16 DC motor, 6 speeds, remote-controlled reverse
• Airflow: 7,966 CFM high at 27.2W, 3,156 CFM low at 3.95W
• Location Rating: Damp rated for indoor and covered outdoor spaces
• Certification: ENERGY STAR Qualified
• Integrated LED: 19.2W maximum, 120V, included
• Controls: Handheld remote included, Bond Home App control, Wi-Fi features, voice control and smart-home integrations
• Mounting: Sloped ceiling compatible with included 6 in downrod
• Canopy: 5.5 in diameter, 2.25 in height
• Weight: 15.4 lbs

The included hand-held transmitter works without Wi-Fi and provides six speeds and reverse. Connect to Wi-Fi to use scheduling, Dusk to Dawn, and Natural Breeze with the Bond Home App. Voice control works through the Bond Home skill for Alexa and Bond Home Action for Google Home. Additional smart-home integration includes SmartThings, Control4, ELAN, Hubitat, and others.

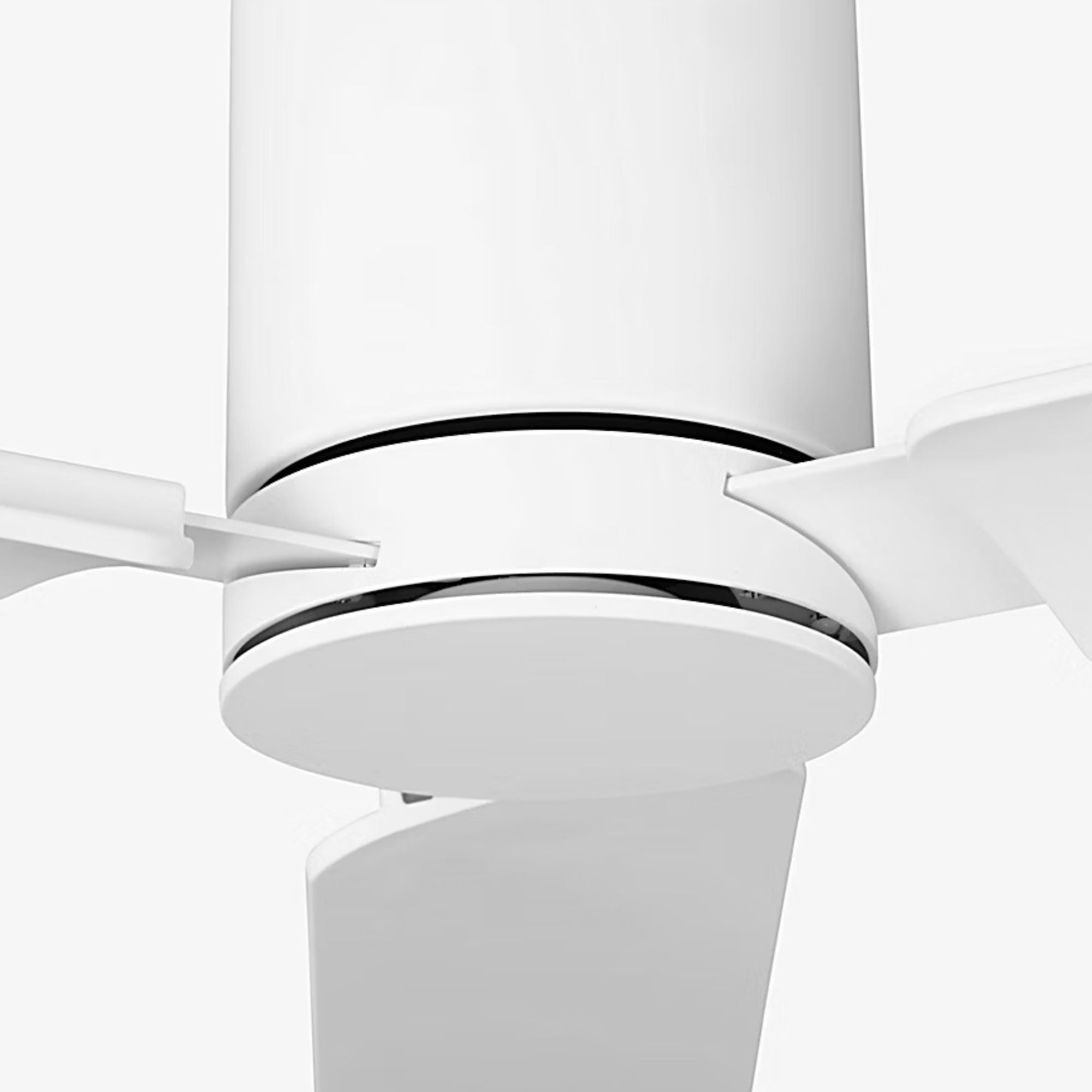

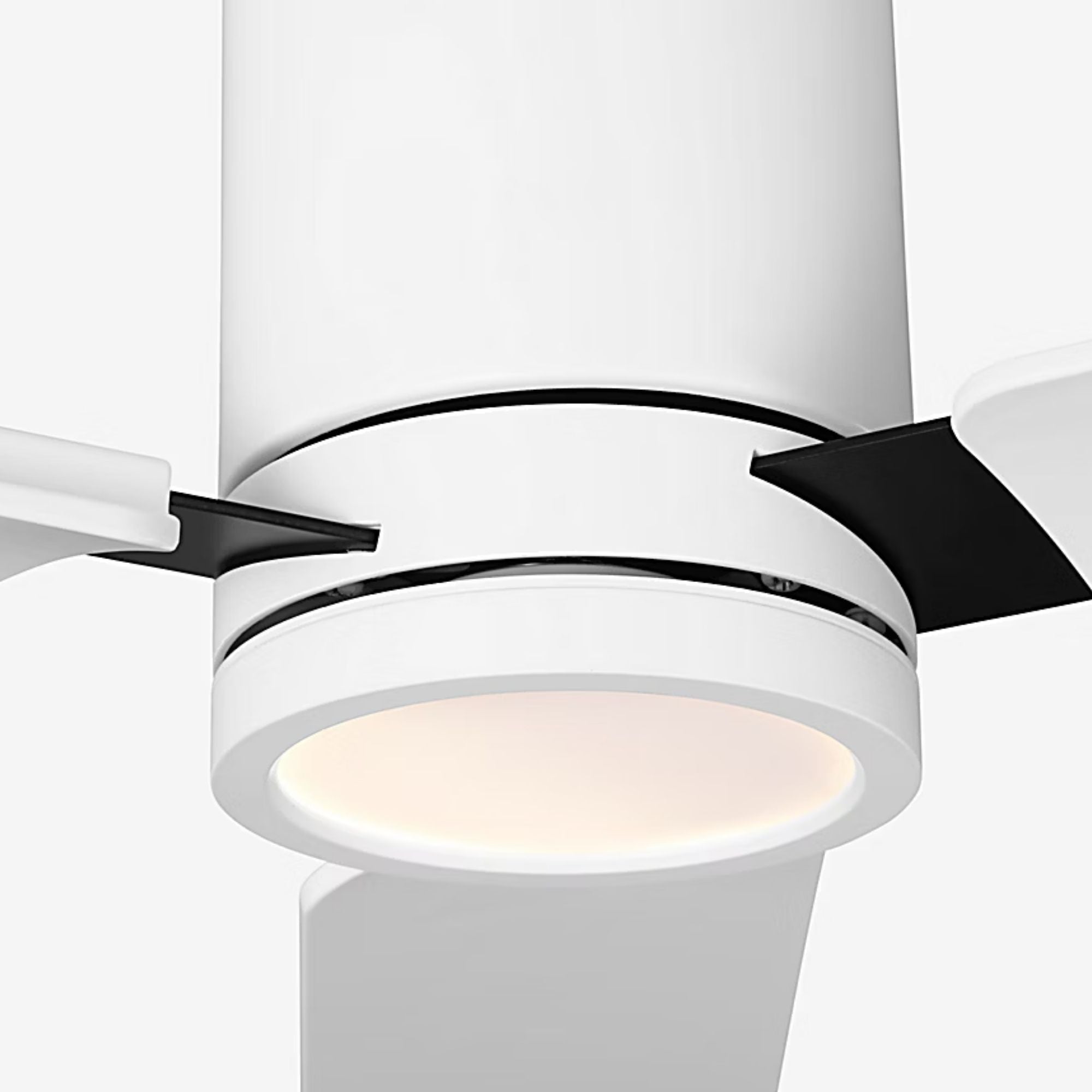

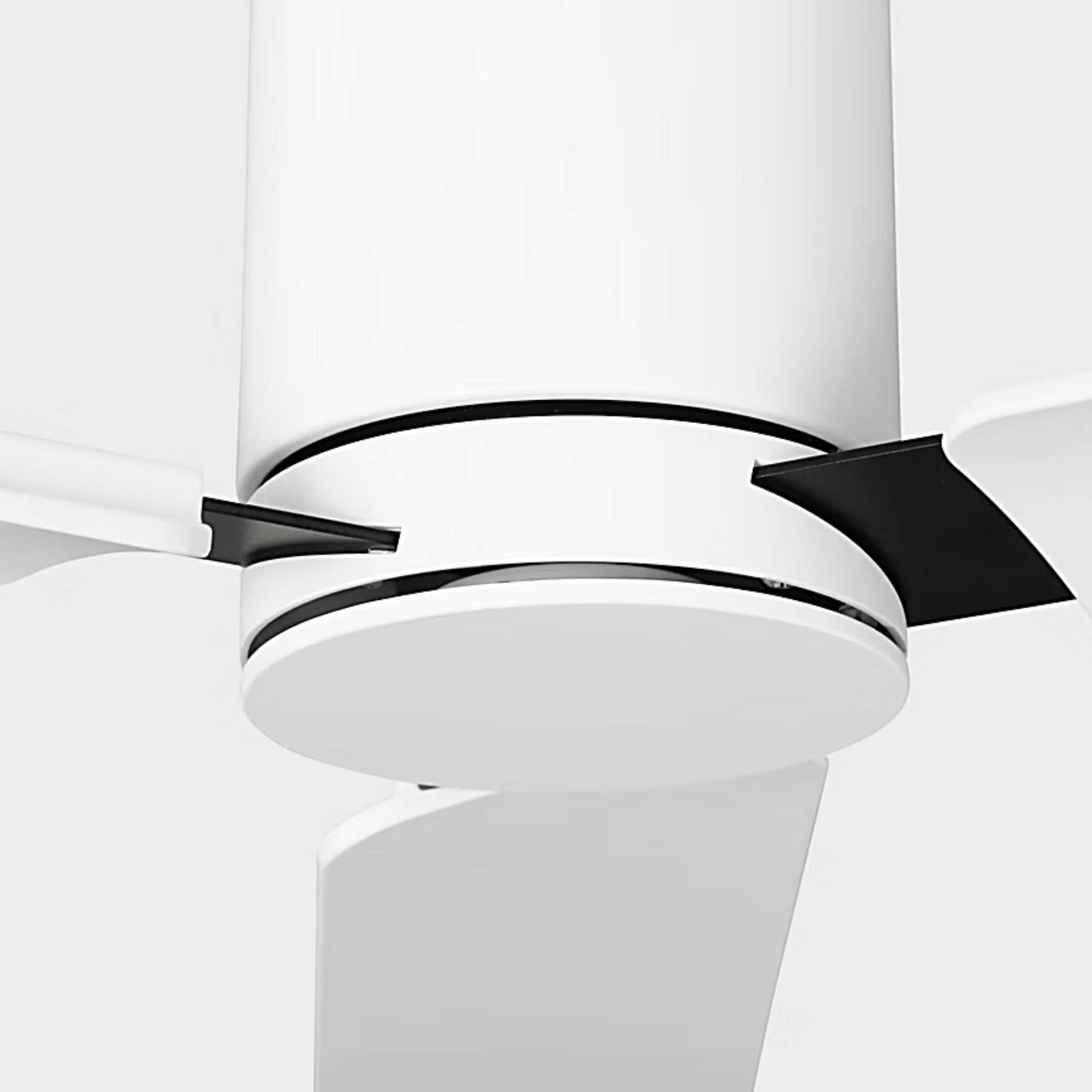

Barbara Barry's sharp, clean lines create a crisp architectural accent with a minimal silhouette. The all Matte White finish keeps the look light, and the blade irons may be installed in black or white to create an intentional contrast.

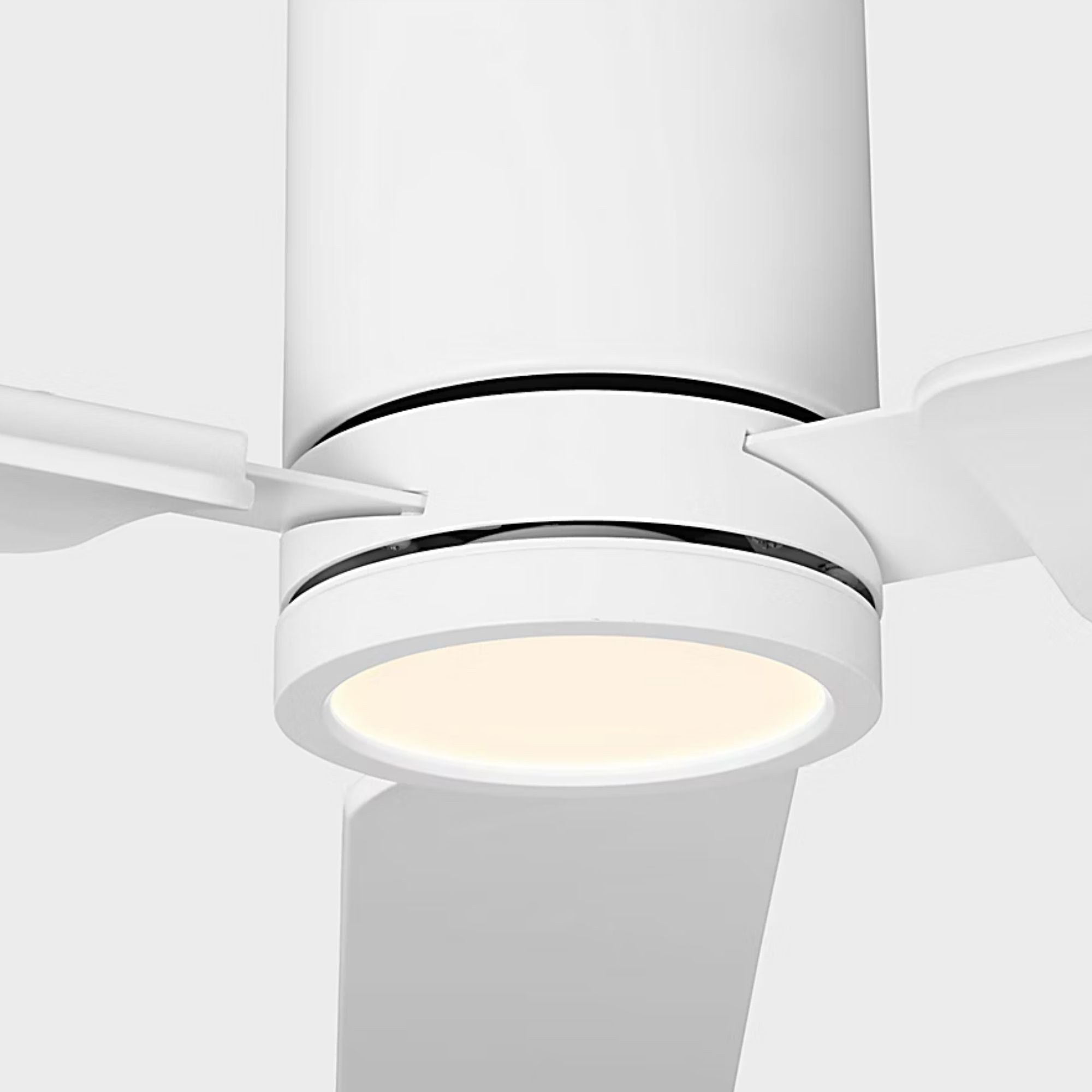

The integrated LED array is rated at 19.2W maximum on 120V and pairs with a frosted acrylic diffuser. The fan delivers 7,966 CFM on high at 27.2W and 3,156 CFM on low at 3.95W, with approximately 293 CFM/W efficiency on high.

Input voltage: 120V AC, 60Hz. Total wattage: up to 46.4W at high fan speed with the LED at maximum, combining 27.2W fan motor and 19.2W LED. Reversible motor: yes, remote-controlled reverse. Included downrod: 6 in x 0.5 in. The fan supports sloped-ceiling mounting. Canopy: 5.5 in diameter x 2.25 in high. Lead wire: 78 in. Minimum ceiling height is 8.23 ft, with 14.8 in from ceiling to blade and at least 7 ft floor-to-blade clearance.

The fan includes a 6 in downrod. Minimum floor-to-blade clearance is 7 ft.

• 8 ft ceiling, flush mount or hugger recommended
• 8 to 10 ft ceiling, 4 to 8 in downrod for a close-to-ceiling installation
• 10 ft and above, extended downrod recommended, available in 12, 18, 24, 36, 48, 60, and 72 in

• 3CCSM62RZWD fan with Matte White finish
• 3 Matte White ABS blades
• Integrated LED array and frosted acrylic diffuser
• Handheld remote
• 6 in downrod
• Mounting hardware
