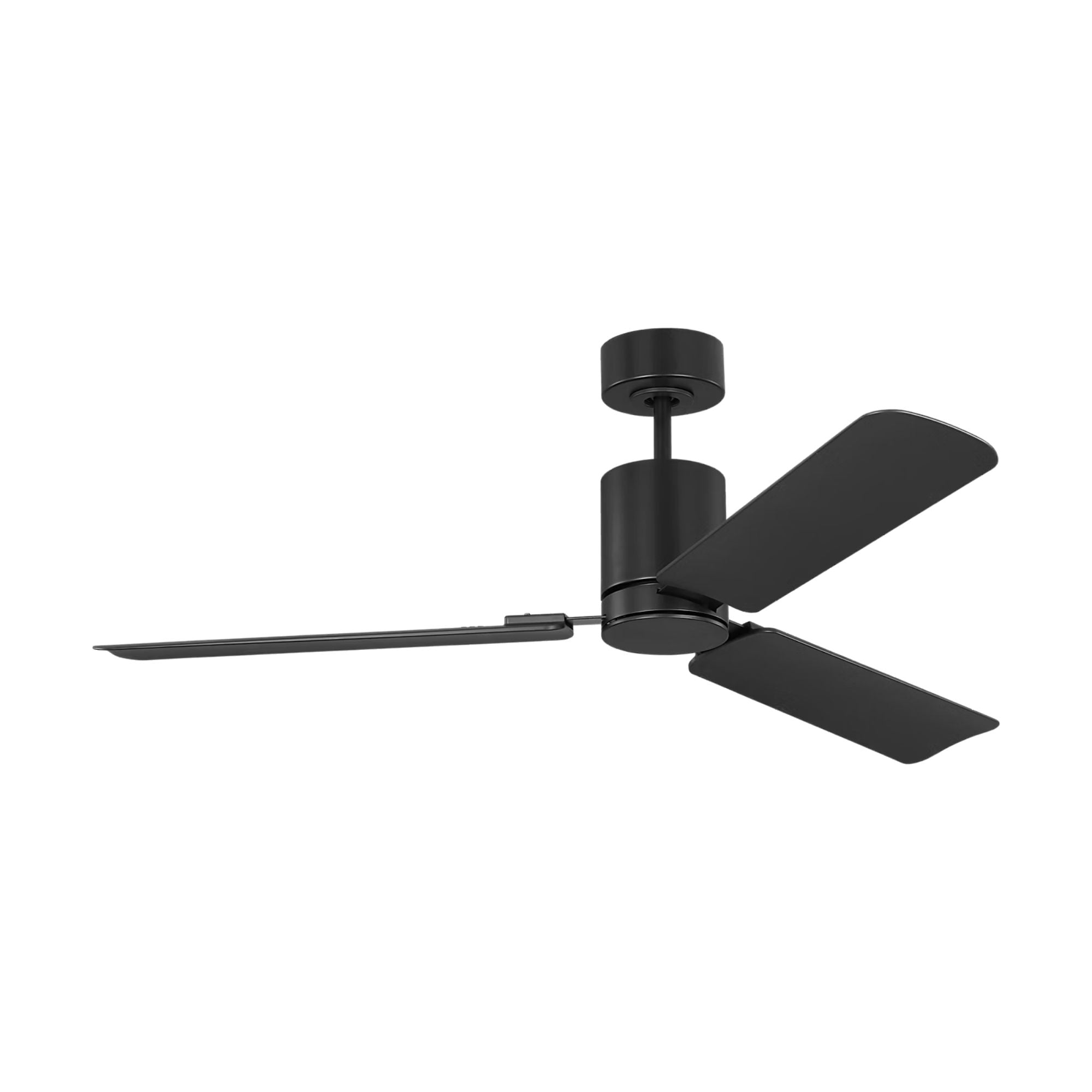

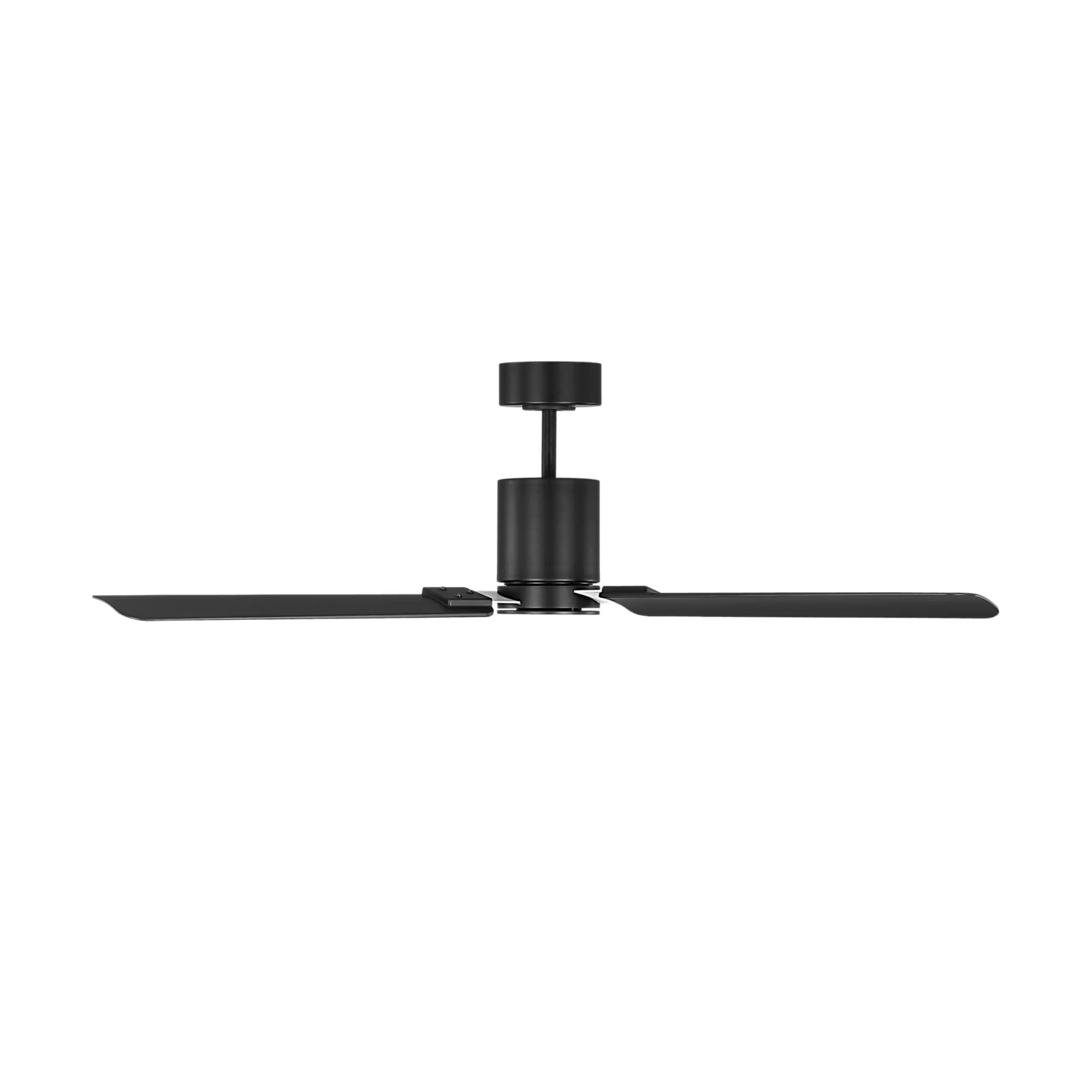

Visual Comfort Fan Cleancut Smart, model 3CCSM54MBKD, features a 54 in span with 3 ABS blades and a DC motor rated at 125 x 16. It delivers 5,322 CFM at high speed at 28.9W, with 184 CFM/W efficiency. The fan includes an integrated LED array rated at 19.2W maximum and is Damp Rated for indoor and covered outdoor spaces.

• Blade Span: 54 in, 3 ABS blades, Midnight Black finish
• Motor: 125 x 16 DC motor, 6 speeds, remote-controlled reverse
• Airflow: 5,322 CFM high at 28.9W, 2,438 CFM low at 3.82W
• Location Rating: Damp rated for indoor and covered outdoor spaces
• Certification: ENERGY STAR Qualified
• Integrated LED: 19.2W maximum, 120V, included
• Controls: Handheld remote included, Bond Home App control, Wi-Fi features, voice control and smart-home integrations
• Mounting: Sloped ceiling compatible with included 6 in downrod
• Canopy: 5.5 in diameter, 2.25 in height
• Weight: 15.2 lbs

The included hand-held transmitter works without Wi-Fi and provides six speeds and reverse. Connect to Wi-Fi to use scheduling, Dusk to Dawn, and Natural Breeze with the Bond Home App. Voice control works through the Bond Home skill for Alexa and Bond Home Action for Google Home. Additional smart-home integration includes SmartThings, Control4, ELAN, Hubitat, and others.

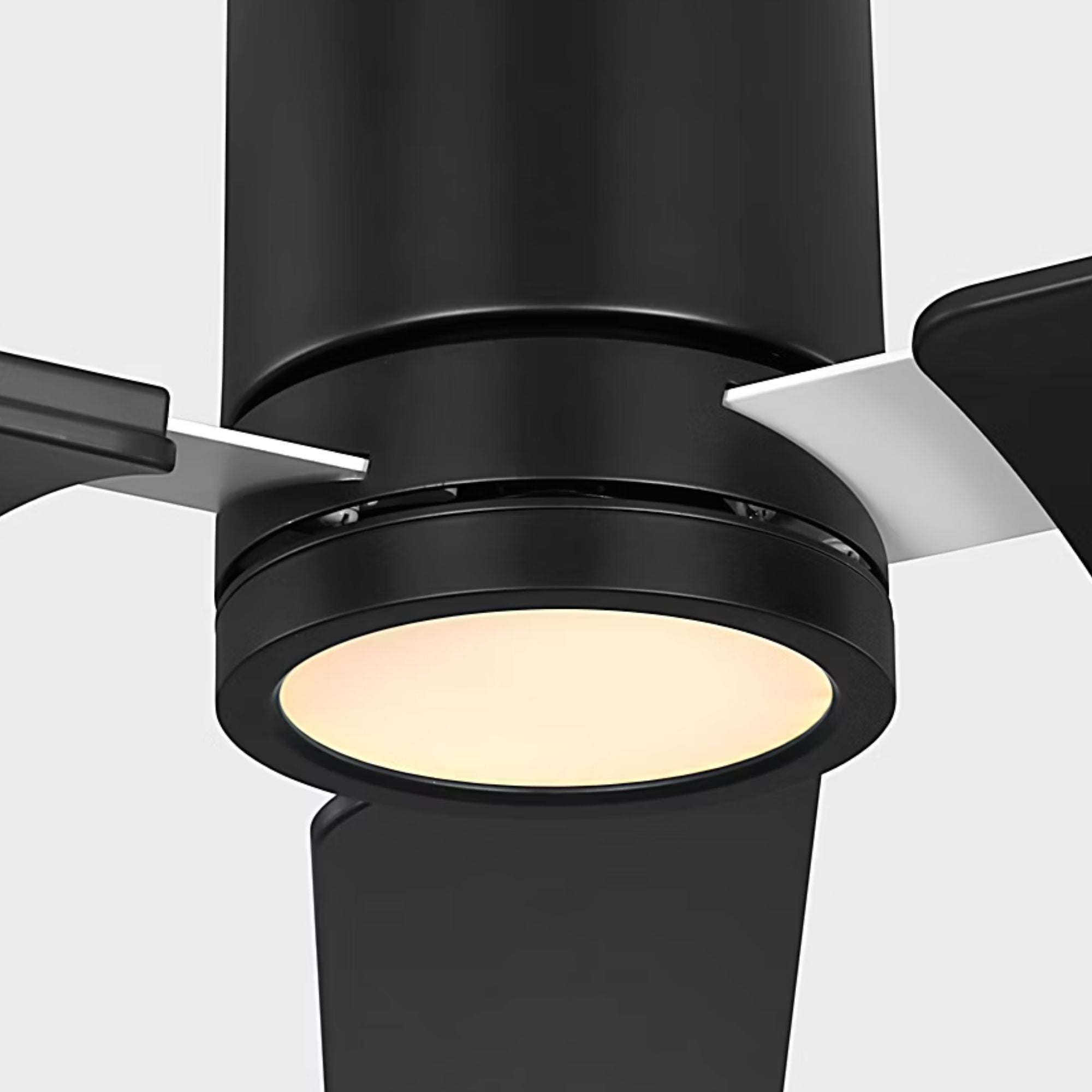

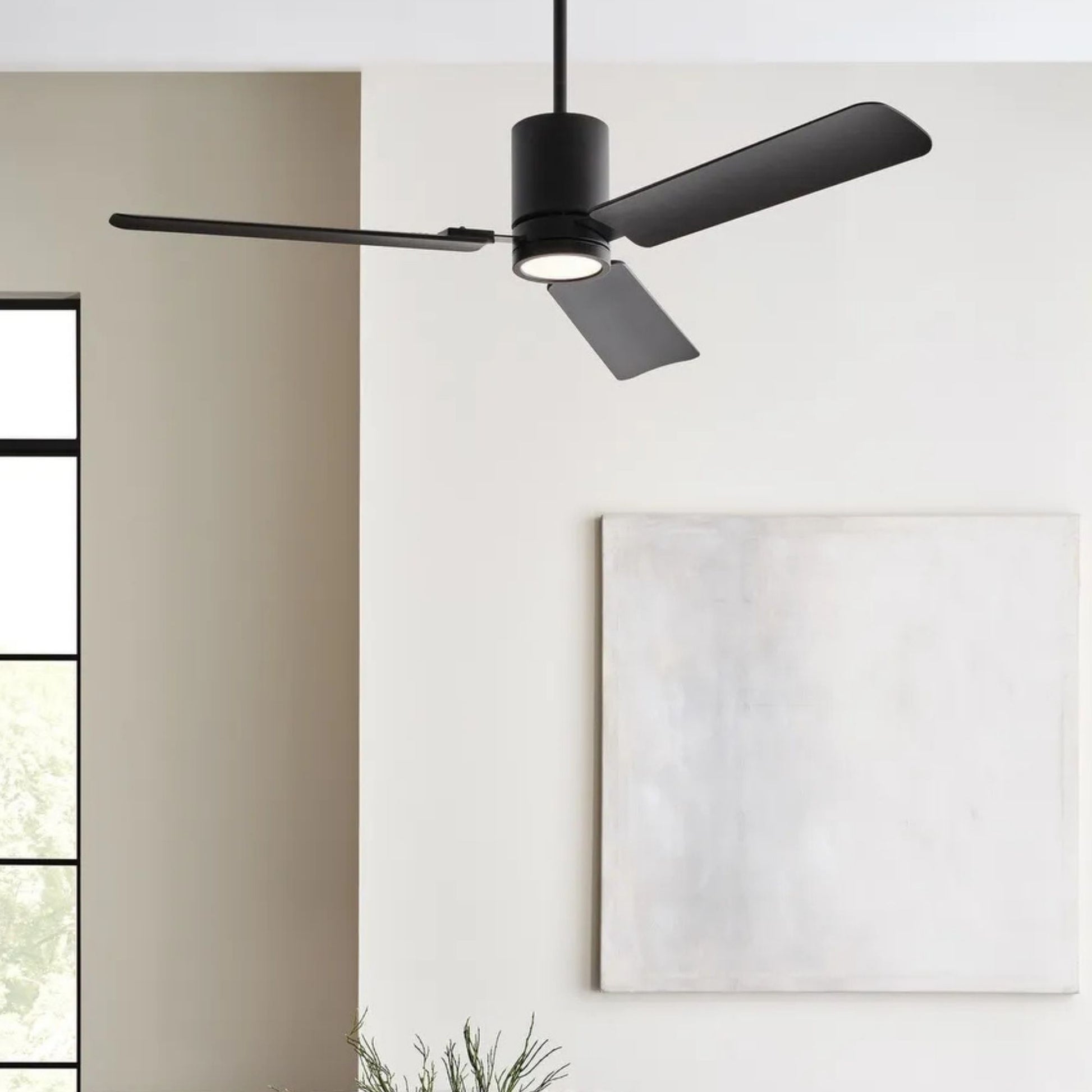

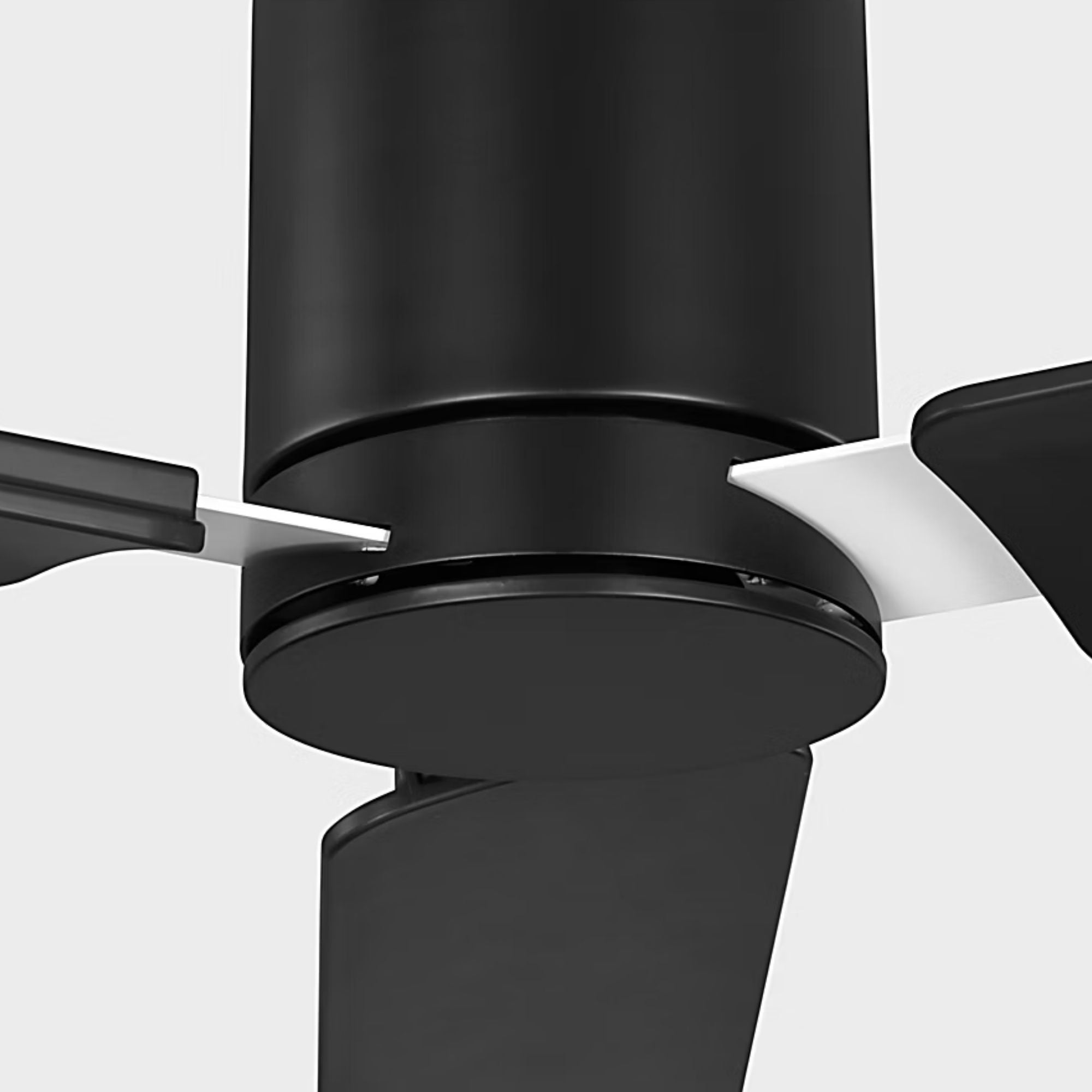

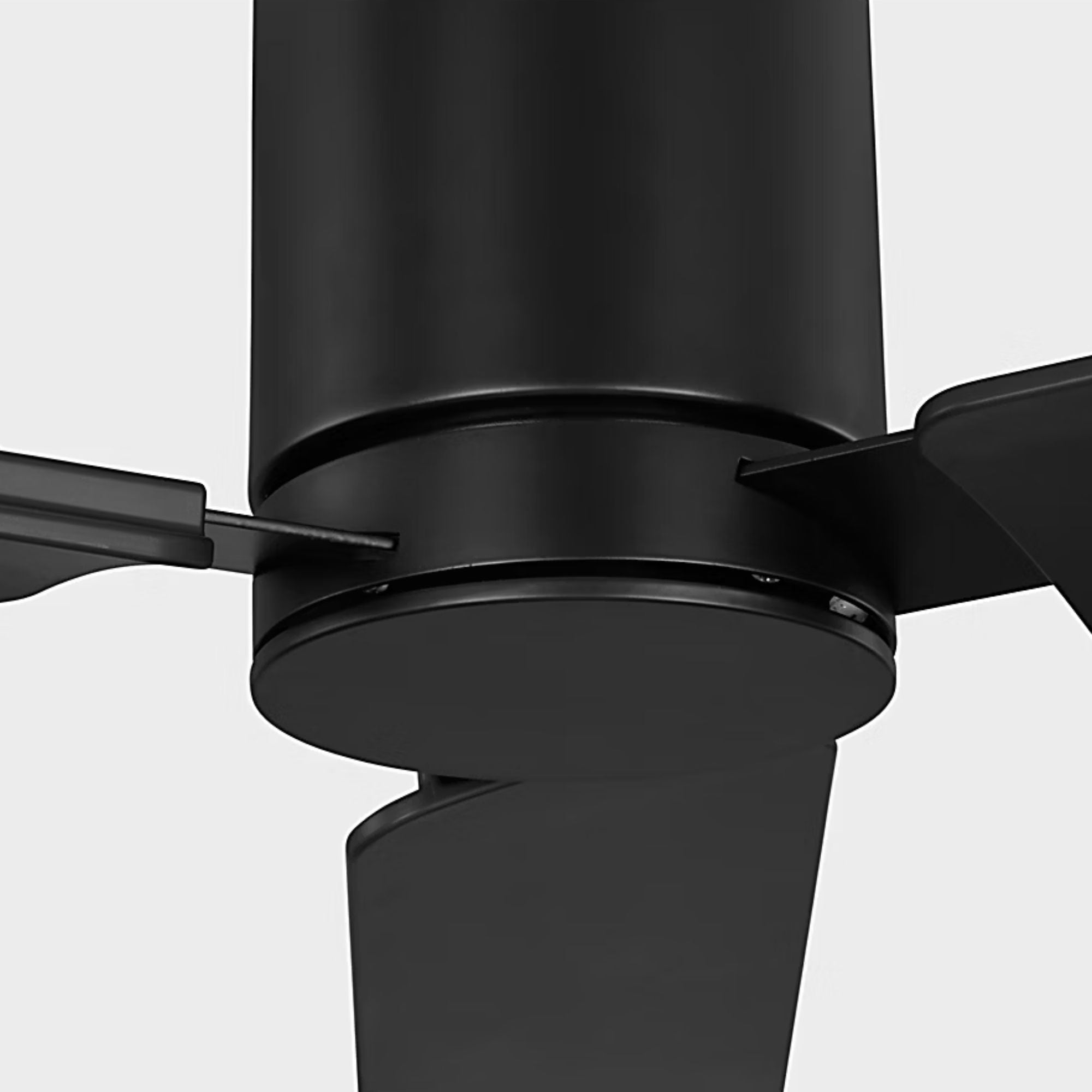

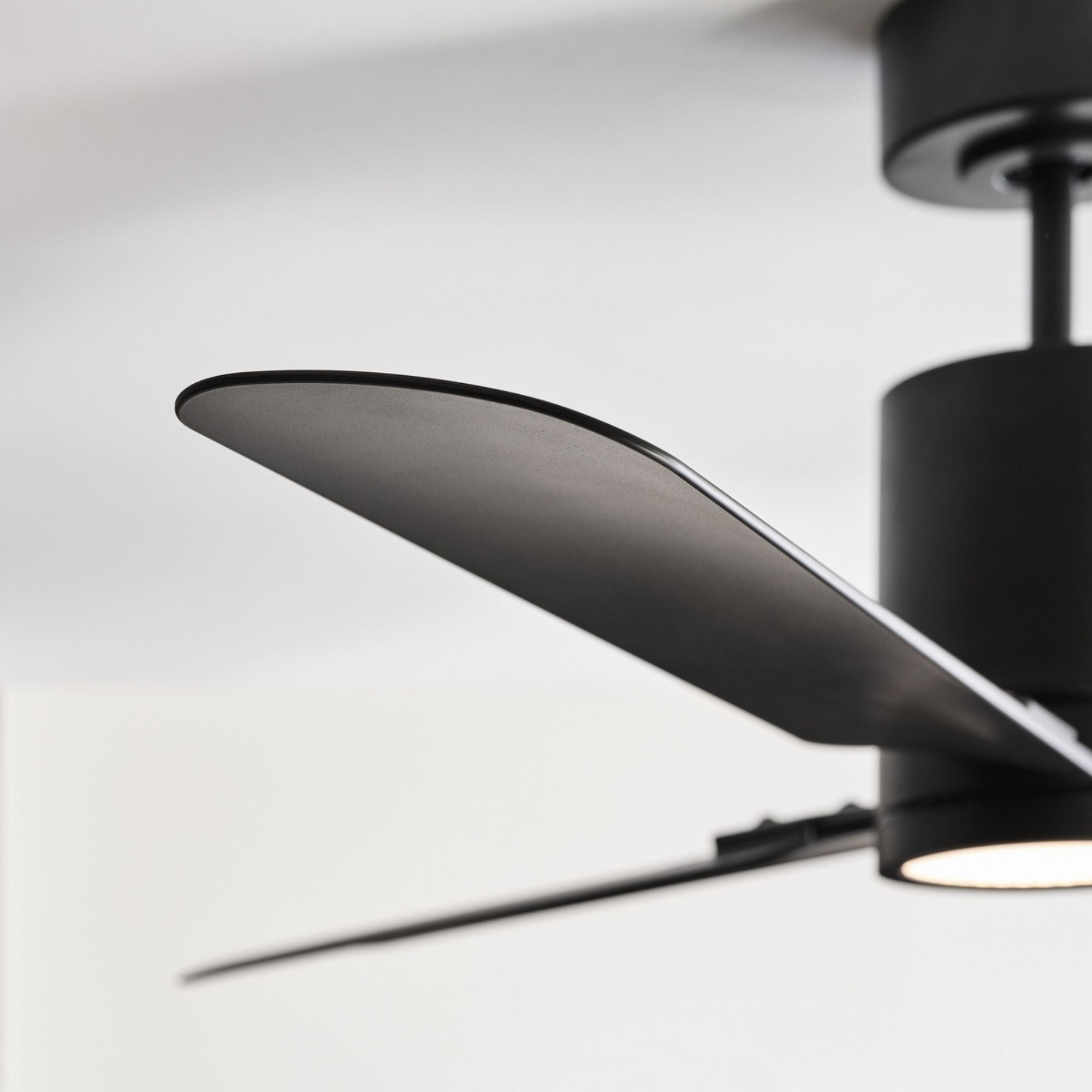

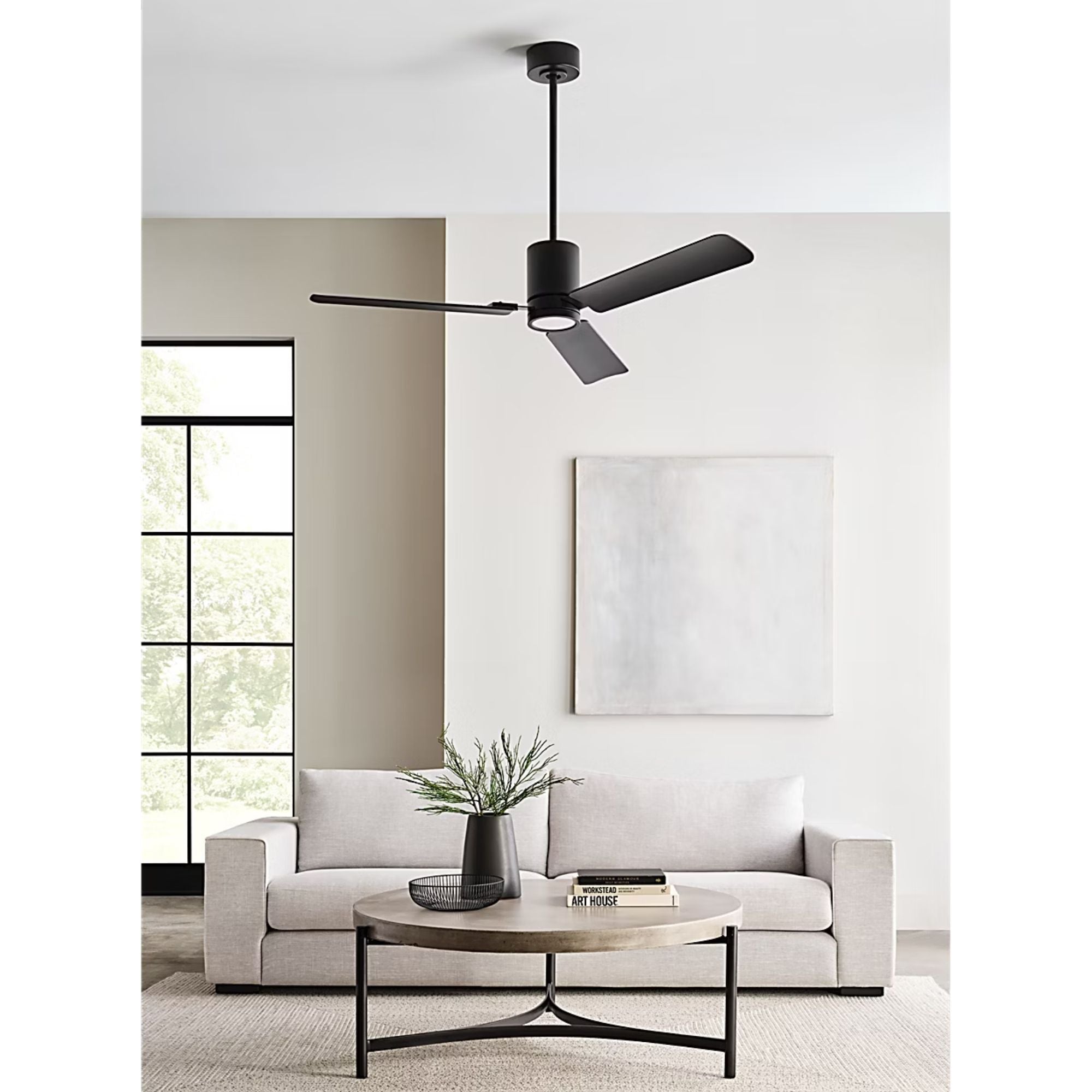

Barbara Barry's clean-lined silhouette gives this 54 in fan an architectural presence without visual clutter. The all Midnight Black finish creates a crisp, contemporary look, and the blade irons may be installed in black or white to create a contrasting accent.

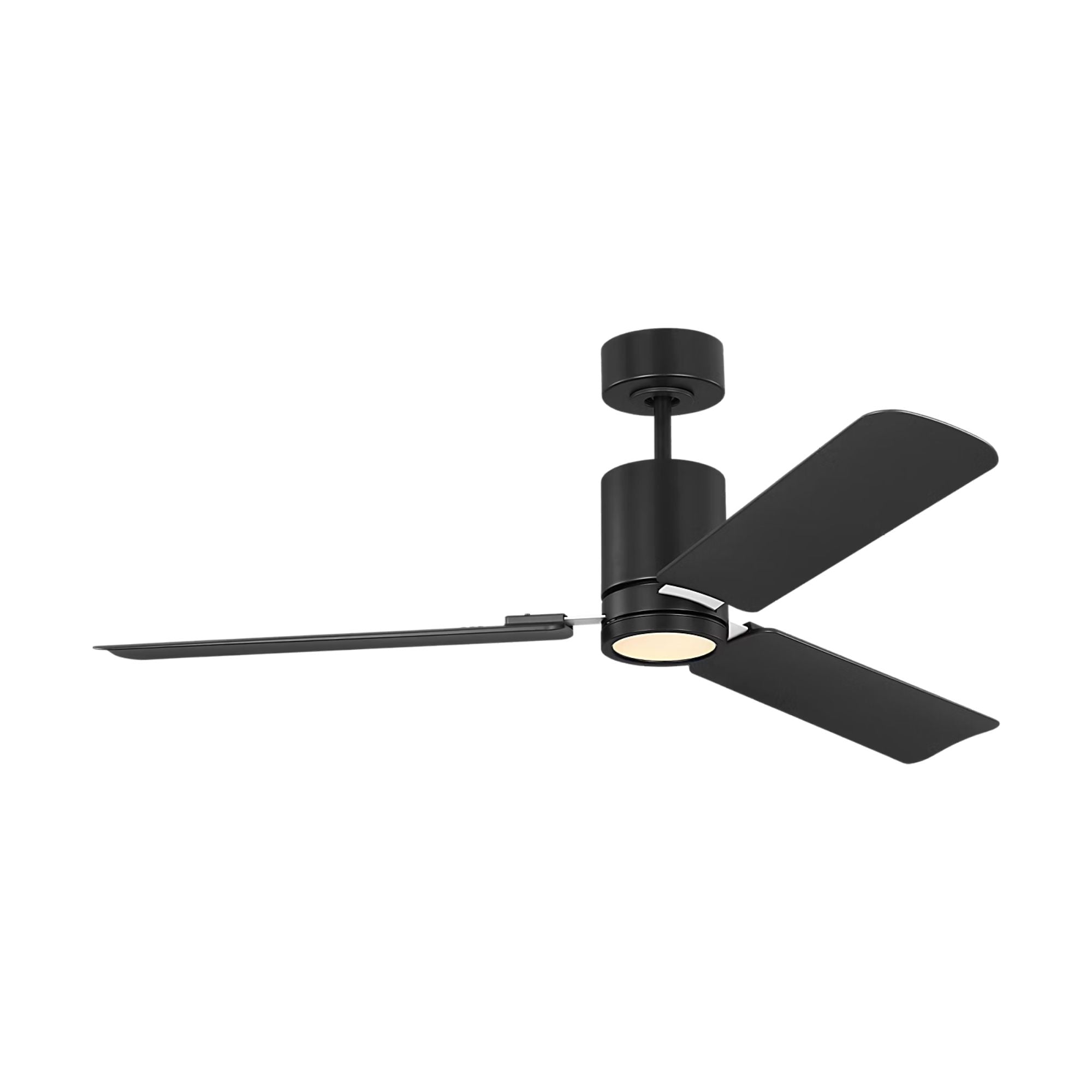

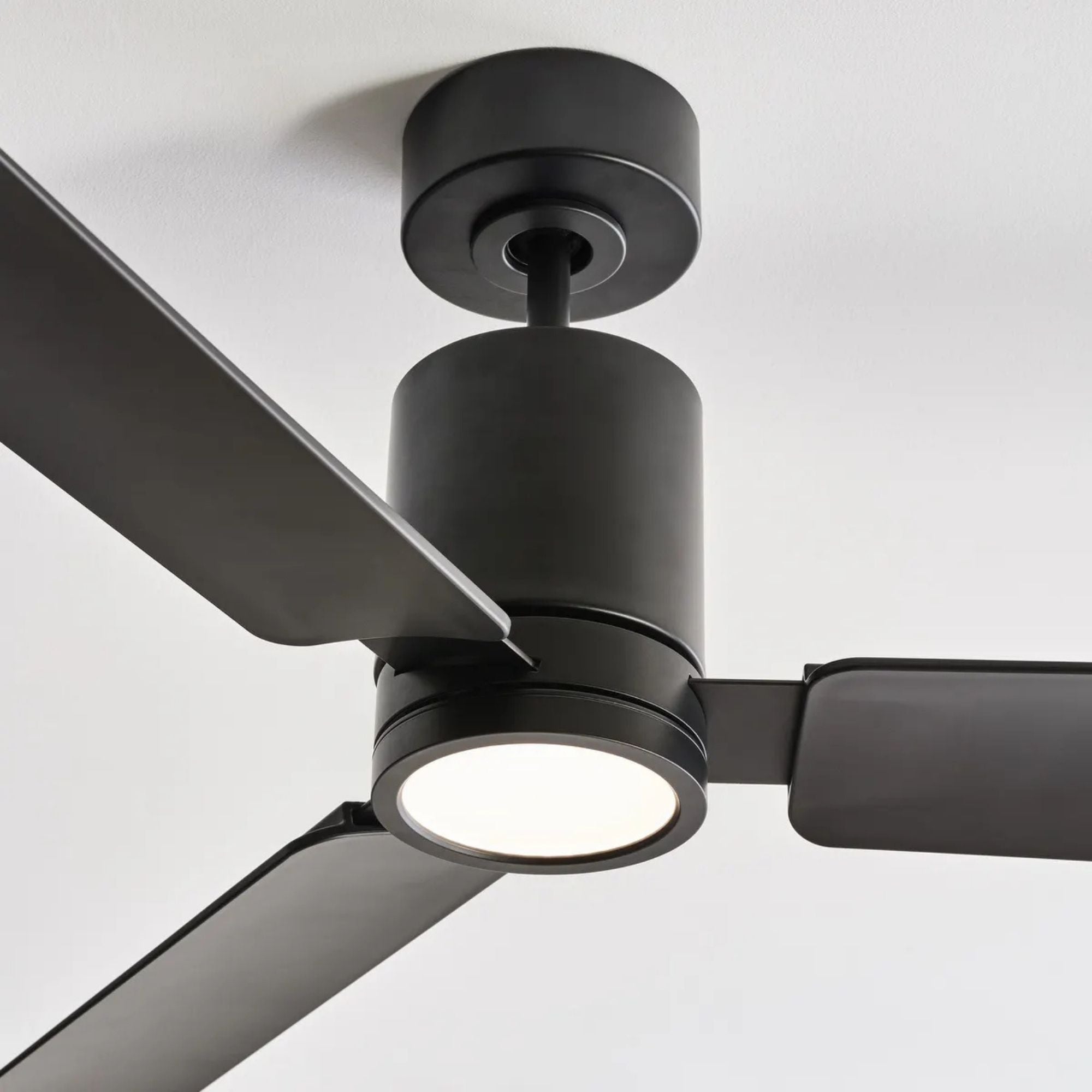

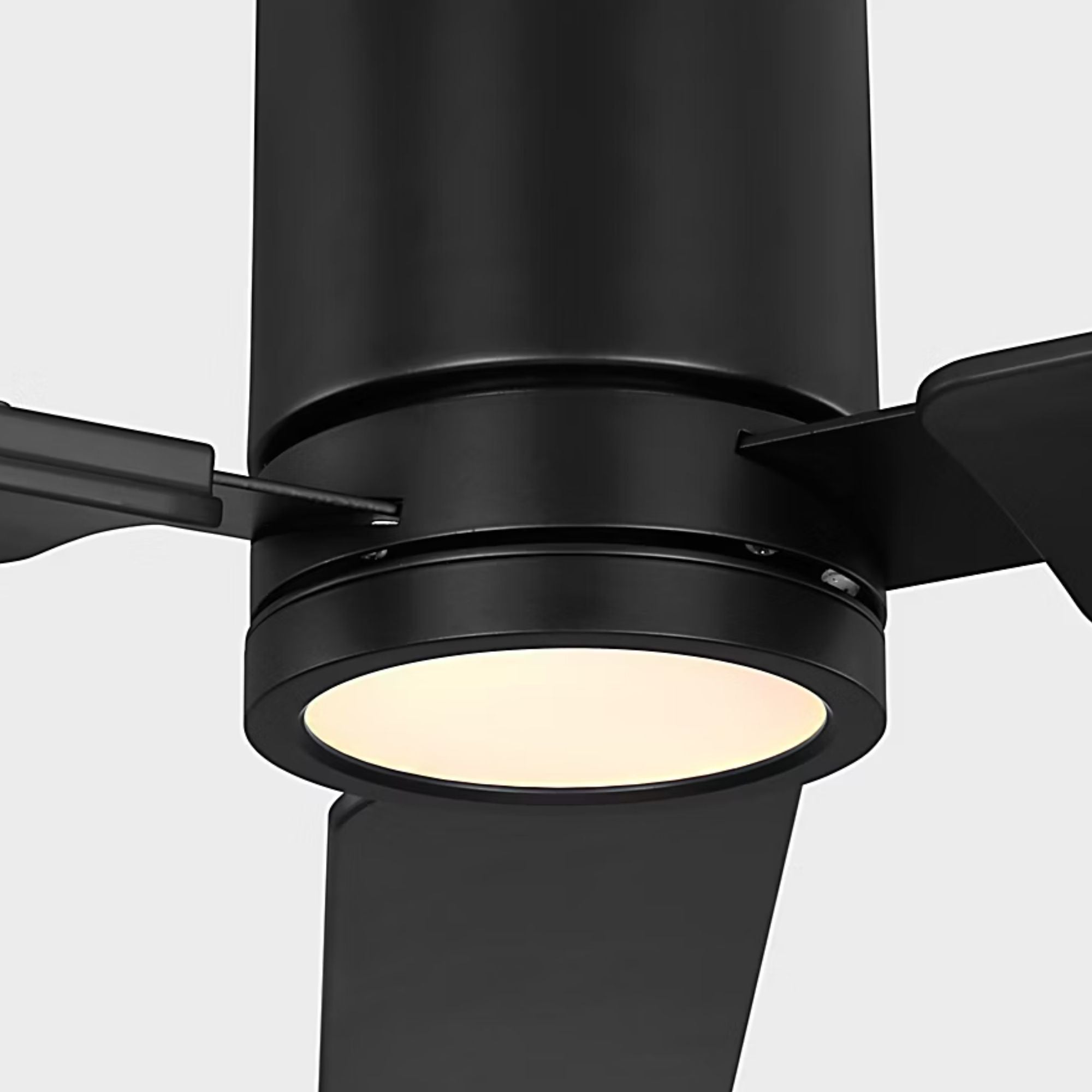

The integrated LED array is rated at 19.2W maximum on 120V with a frosted acrylic diffuser. The fan moves 5,322 CFM on high at 28.9W and 2,438 CFM on low at 3.82W, about 184 CFM/W on high, and its 54 in span suits medium to large rooms.

Input voltage: 120V AC, 60Hz. Total wattage: up to 48.1W at high fan speed with the LED at maximum, combining 28.9W fan motor and 19.2W LED. Reversible motor: yes, remote-controlled reverse. Included downrod: 6 in x 0.5 in. The fan supports sloped-ceiling mounting. Canopy: 5.5 in diameter x 2.25 in high. Lead wire: 78 in. Minimum ceiling height is 8.23 ft, with 14.8 in from ceiling to blade and at least 7 ft floor-to-blade clearance.

The fan includes a 6 in downrod. Minimum floor-to-blade clearance is 7 ft.

• 8 ft ceiling, flush mount or hugger recommended
• 8 to 10 ft ceiling, 4 to 8 in downrod for a close-to-ceiling installation
• 10 ft and above, extended downrod recommended, available in 12, 18, 24, 36, 48, 60, and 72 in

• 3CCSM54MBKD fan with Midnight Black finish
• 3 Midnight Black ABS blades
• Integrated LED array and frosted acrylic diffuser
• Handheld remote
• 6 in downrod
• Mounting hardware
