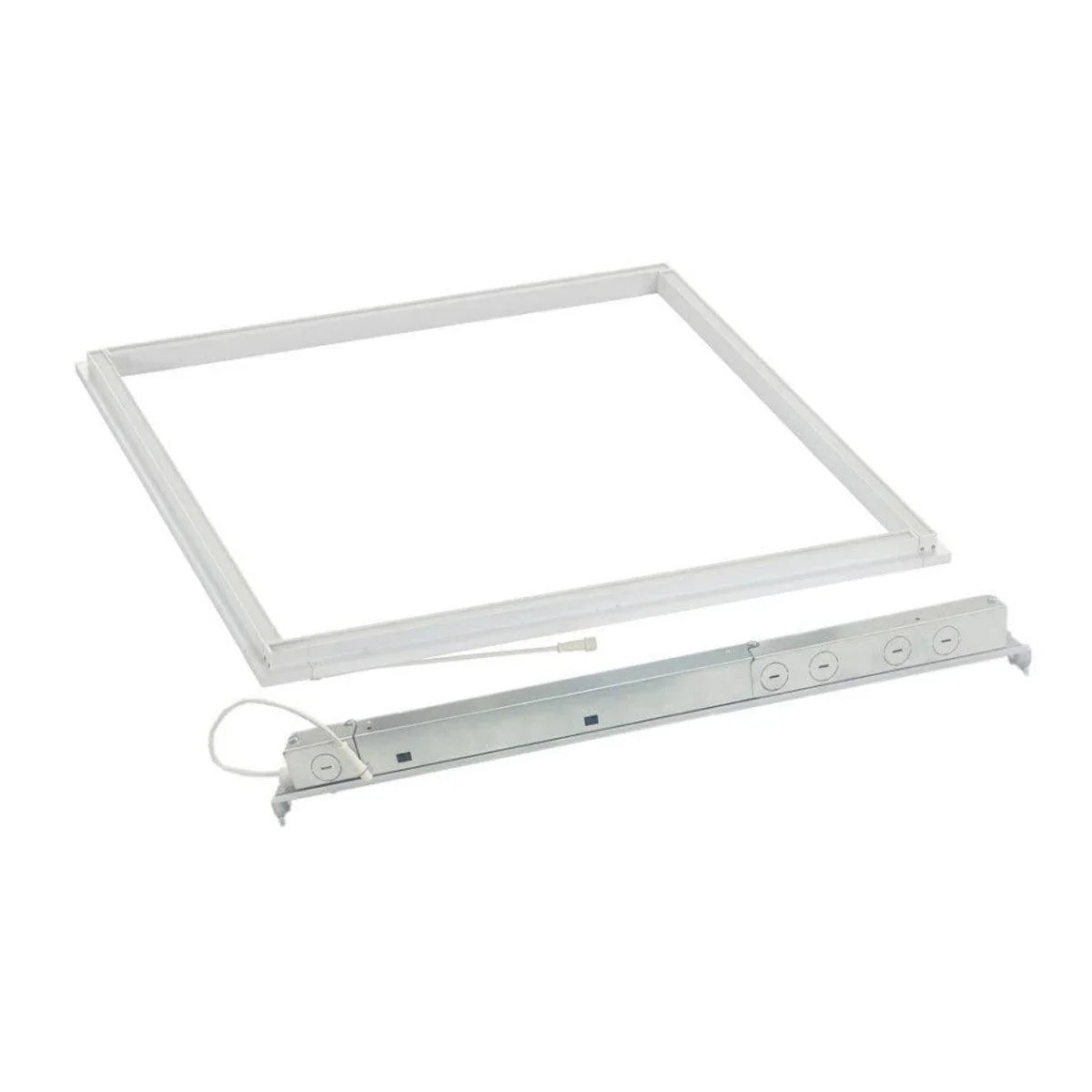

LEDVANCE Sylvania Dual Selectable T-FIT LED Panel Bars — 25–45W Selectable — 3500K/4000K/5000K — White

The LEDVANCE Sylvania Dual Selectable T-FIT LED Panel Bars are an innovative four-bar frame system available in two sizes — 2×2 (62961) and 2×4 (62962) — that install directly into existing T-grid ceilings, maintaining or replacing the existing ceiling tile. Wattage and color temperature are field-selectable via switches on the driver. The 2×2 supports 25W, 30W, and 35W (up to 3,950 lumens); the 2×4 supports 35W, 40W, and 45W (up to 4,950 lumens). Both sizes support 3500K, 4000K, and 5000K selectable CCT, 0–10V dimming, and operate on 120–347V. Both are cETLus Listed for IC and damp locations, DLC 5.1 Listed, and TAA Compliant, with a 5-year limited warranty backed by the NLB Trusted Warranty Program.

Key Features

• Dual Selectable Wattage: Field-selectable via switches on the driver — 25/30/35W on 2×2; 35/40/45W on 2×4. No rewiring required.
• Wattage Equivalency: 2×2 replaces 2×28W T8 (49W) with up to 49% energy savings at 25W. 2×4 replaces 3×32W T8 (75W) with up to 60% energy savings at 35W.
• Maximum Lumen Output: Up to 3,950 lumens at 35W (2×2); up to 4,950 lumens at 45W (2×4).
• Peak Efficacy: Up to 113 lm/W (2×2); up to 110 lm/W (2×4).
• CRI: >80.
• Selectable CCT: Field-selectable between 3500K, 4000K, and 5000K via switches on the driver — no tools required.
• Lens & Optics: Open frame bar design — light distributed directly from LED bars into the ceiling grid opening; existing or replacement ceiling tile serves as reflective backdrop.
• Dimming: 0–10V continuous dimming. Compatible dimmer required, sold separately.
• Voltage: 120–347V universal voltage driver — covers U.S. and Canadian electrical systems.
• Location Rating: cETLus Listed for IC (insulated ceiling) and damp locations.
• Operating Temperature: −20°C to +40°C (−4°F to +104°F).
• Certifications: cETLus Listed (IC and damp) — DLC 5.1 Listed — TAA Compliant — FCC — RoHS.
• Rated Life: L70 50,000 hours.
• Warranty: 5-year limited warranty — NLB Trusted Warranty Program.
• Earthquake Clip Compatible: Compatible with Cooper B-line BA-SFC and Nvent Caddy SFCLT CF after-market earthquake clips.

Performance & Light Output

2×2 (62961) — 25/30/35W: At 25W, delivers 2,900 lumens, replacing a 2×28W T8 system (49W) with up to 49% energy savings. At 30W, output reaches 3,450 lumens, replacing a 2×32W T8 system (56W) with up to 46% energy savings. At maximum 35W, output is 3,950 lumens, replacing a 3×17W T8 or 2U31 T8 system (48W) with up to 27% energy savings. Peak efficacy: 113 lm/W.

2×4 (62962) — 35/40/45W: At 35W, delivers 3,950 lumens, replacing a 2×28W T8 system (49W) with up to 29% energy savings. At 40W, output reaches 4,450 lumens, replacing a 2×32W T8 system (56W) with up to 29% energy savings. At maximum 45W, output is 4,950 lumens, replacing a 3×32W T8 system (75W) with up to 60% energy savings. Peak efficacy: 110 lm/W.

All wattage settings on both sizes support 3500K, 4000K, and 5000K selectable CCT. CRI: >80. L70 rated life: 50,000 hours. Power factor: >0.9. THD: <20%.

Smart & Control Features

Both sizes support 0–10V continuous dimming via the onboard driver. A compatible 0–10V dimmer is required, sold separately.

Electrical

Input voltage: 120–347V. Dimming: 0–10V. Power factor: >0.9. THD: <20%. Operating temperature: −20°C to +40°C (−4°F to +104°F). Mercury-free.

Construction

Housing & Thermal: Four-bar LED panel frame system. Low-profile 0.944″ (24mm) depth on both sizes — maintains ceiling plane flush with T-grid.

Lens & Optics: Open frame bar design — light is distributed directly from the LED bars into the ceiling grid opening, maintaining or using the existing ceiling tile as a reflective backdrop.

Finish: White.

Environmental & Safety: cETLus Listed for IC and damp locations. Compatible with Cooper B-line BA-SFC and Nvent Caddy SFCLT CF earthquake clips. Operating temperature −20°C to +40°C. Mercury-free.

Dimensions by Size:

• 2×2 (62961): 23.7″ L × 23.7″ W × 0.944″ H (603 × 603 × 24mm)
• 2×4 (62962): 47.7″ L × 23.7″ W × 0.944″ H (1212 × 603 × 24mm)

Installation & Mounting

Standard Mounting: Four bars click together and mount directly into standard T-grid ceiling systems — 2×2 into 2×2 grids, 2×4 into 2×4 grids. Maintains the existing ceiling tile or accepts a decorative replacement tile (sold separately). No tools required for bar assembly.

Accessories (Sold Separately):

• 2×2 Replacement Tile: 63051 (PANELBAR1APLATE2X2) — decorative ceiling tile; sold in units of 2
• 2×4 Replacement Tile: 63052 (PANELBAR1APLATE2X4) — decorative ceiling tile; sold in units of 2
• Emergency Battery Backup Unit: 60888 (EMBB1A8WDC) — field-installable, provides illumination for at least 90 minutes; sold individually
• EMBB Metal Bridge: 63217 (PANELBAR1AEMBBBBRACKET) — metal bridge for installing emergency battery backup unit; compatible with all sizes; sold individually

Certifications & Rebates

• cETLus Listed — IC Rated and Damp Rated
• DLC 5.1 Listed — qualifies for utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search by item number: 62961 (2×2) or 62962 (2×4).
• TAA Compliant — eligible for U.S. government and GSA procurement.
• FCC Compliant
• RoHS Compliant

Typical Applications

• Corporate offices and conference rooms — T-FIT four-bar system installs into existing T-grid without removing ceiling tile, minimizing disruption during retrofit
• Restaurants and retail spaces — selectable CCT between 3500K, 4000K, and 5000K allows tuning to match brand ambiance without re-ordering
• Educational facilities — selectable wattage and CCT support varied classroom lighting needs; 120–347V driver covers both U.S. and Canadian electrical systems
• Healthcare and institutional spaces — IC and damp rated with TAA compliance for qualifying government and GSA procurement
• Seismic zones — compatible with Cooper B-line BA-SFC and Nvent Caddy SFCLT CF earthquake clips for code-compliant installations
• Fluorescent retrofit projects — replaces 2×28W T8 through 3×32W T8 systems with up to 60% energy savings

What’s Included

• LEDVANCE Sylvania Dual Selectable T-FIT LED Panel Bars fixture — White — 4 individual bars (size per selection: 2×2 — item 62961, 2×4 — item 62962)
