Sylvania 75910 LED Driver | 30/45/60W Selectable | 3-4 Magnetic Bar Strips | 120-347V
Available in stock (100)
About this item
About this item
- Maximum Output — Powers 3–4 Magnetic Bar Strips: Drives 3 to 4 LEDVANCE magnetic retrofit bars (items 42346/42347/42348) at up to 60W — the highest-output driver in the family for large-format fixture retrofits.
- Selectable 30/45/60W Output: Field-adjustable wattage lets you right-size light output and energy use to the space without changing hardware — one SKU covers multiple high-output project specs.
- 0-10V Dimming + 12V Aux for Sensors: Full 20–100% dimming range with 12V auxiliary output for wired or wireless sensor and control integration, including LEDVANCE EMBB (61097).
- Universal 120-347V Input: Compatible with virtually all North American commercial wiring configurations — single voltage SKU covers the full project scope.
- TAA Compliant + 5-Year Warranty: Meets Buy American requirements for government and institutional projects. Covered by LEDVANCE’s 5-year limited warranty on driver and bars.
We process payments securely and do not store credit card information.
Description
Description

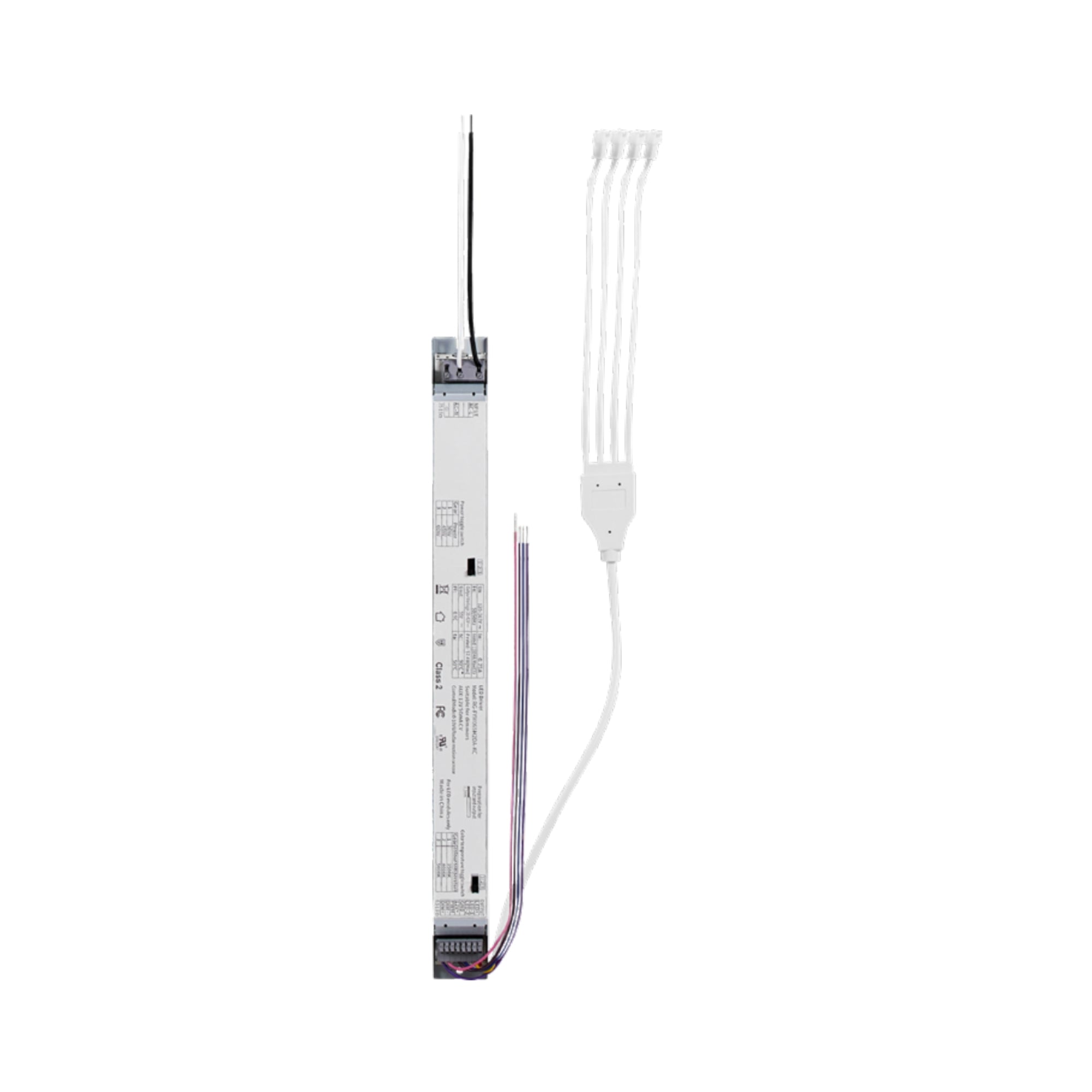

Sylvania 75910 LED Driver — 30/45/60W Selectable | 3–4 Magnetic Bar Strips | 120-347V
The Sylvania 75910 is the high-output driver in the LEDVANCE Magnetic Bar Retrofit Kit system, powering 3 to 4 magnetic bar strips at selectable wattages of 30W, 45W, or 60W. Universal 120-347V input and 0-10V dimming from 20–100% cover virtually all North American commercial wiring configurations. The integrated 12V auxiliary output enables occupancy sensors and wireless controls without additional power wiring. TAA Compliant with a 5-year warranty on the complete driver-and-bar system.
Key Features
- Compatible Bars: 3 to 4 LEDVANCE Magnetic Bar Strips (items 42346, 42347, 42348)
- Selectable Wattage: 30W / 45W / 60W (system input power)
- Input Voltage: 120-347V Universal
- Dimming: 0-10V, 20–100%
- Power Factor: >0.9 | THD: <20%
- 12V Aux Output: Yes — wired/wireless sensors and controls
- Controls Compatibility: LEDVANCE EMBB (61097)
- Frequency: 50/60 Hz
- Certifications: TAA Compliant, cETLus, RoHS, FCC
- Warranty: 5 Years (driver + bars)
- Driver Abbreviation: LEDvr-MAGBAR34UNH30-60WDIM
💡 System Note — For 1–3 bar systems, see driver item 75908 (13/17/20W). For 2–4 bar mid-range systems, see item 75909 (20/30/40W). Magnetic bars sold separately.
Typical Applications
- 3-lamp and 4-lamp fluorescent fixture retrofits requiring maximum output
- Large open-plan office and warehouse aisle lighting
- Gymnasium, cafeteria, and high-ceiling institutional spaces
- Retail big-box and industrial facility lighting
- TAA-compliant government and institutional high-output projects
Performance & Light Output
System lumen output scales with bar count and wattage selection. At 60W with 4 bars: up to 19,200 lm without lens / 16,800 lm with lens at 160 LPW. At 30W with 3 bars: 14,400 lm without lens / 12,600 lm with lens. All configurations maintain 160 LPW (without lens) / 140 LPW (with lens) efficacy. Bars rated 65,000 hours L⁰.
Electrical & Controls
Universal 120-347V input. 0-10V dimming from 20–100%. Power Factor >0.9, THD <20%, 50/60 Hz. 12V auxiliary output enables wired or wireless control and sensor integration. Compatible with LEDVANCE EMBB wireless module (item 61097) for occupancy and daylight harvesting control.
Construction & Durability
Designed for North American commercial retrofit installations. TAA Compliant housing. Operating temperature range matches bar spec: -40°F to +104°F (-40°C to +40°C). cETLus listed.
Installation & Mounting
Mounts inside existing fluorescent fixture housing alongside the magnetic bar strips. Supports 3 to 4 bar connections — the highest-output configuration in the LEDVANCE magnetic bar system. For 2–4 bar mid-range systems use driver item 75909. For 1–3 bar lower-wattage systems use item 75908. All magnetic bar strips (items 42346, 42347, 42348) sold separately.
What's Included
- 1× Sylvania 75910 LED Driver (LEDvr-MAGBAR34UNH30-60WDIM)
- Wiring leads
