Sylvania 75908 LED Driver | 13/17/20W Selectable | 1-3 Magnetic Bar Strips | 120-347V
Available in stock (100)
About this item
About this item
- Powers 1–3 Magnetic Bar Strips: Drives up to 3 LEDVANCE magnetic retrofit bars (items 42346/42347/42348) — ideal for single-lamp and small multi-lamp fluorescent fixture retrofits.
- Selectable 13/17/20W Output: Field-adjustable wattage lets you right-size light output and energy use to the space without changing hardware — one SKU covers multiple project specs.
- 0-10V Dimming + 12V Aux for Sensors: Full 20–100% dimming range with 12V auxiliary output for wired or wireless sensor and control integration, including LEDVANCE EMBB (61097).
- Universal 120-347V Input: Compatible with virtually all North American commercial wiring configurations — single voltage SKU covers the full project scope.
- TAA Compliant + 5-Year Warranty: Meets Buy American requirements for government and institutional projects. Covered by LEDVANCE’s 5-year limited warranty on driver and bars.
We process payments securely and do not store credit card information.
Description
Description

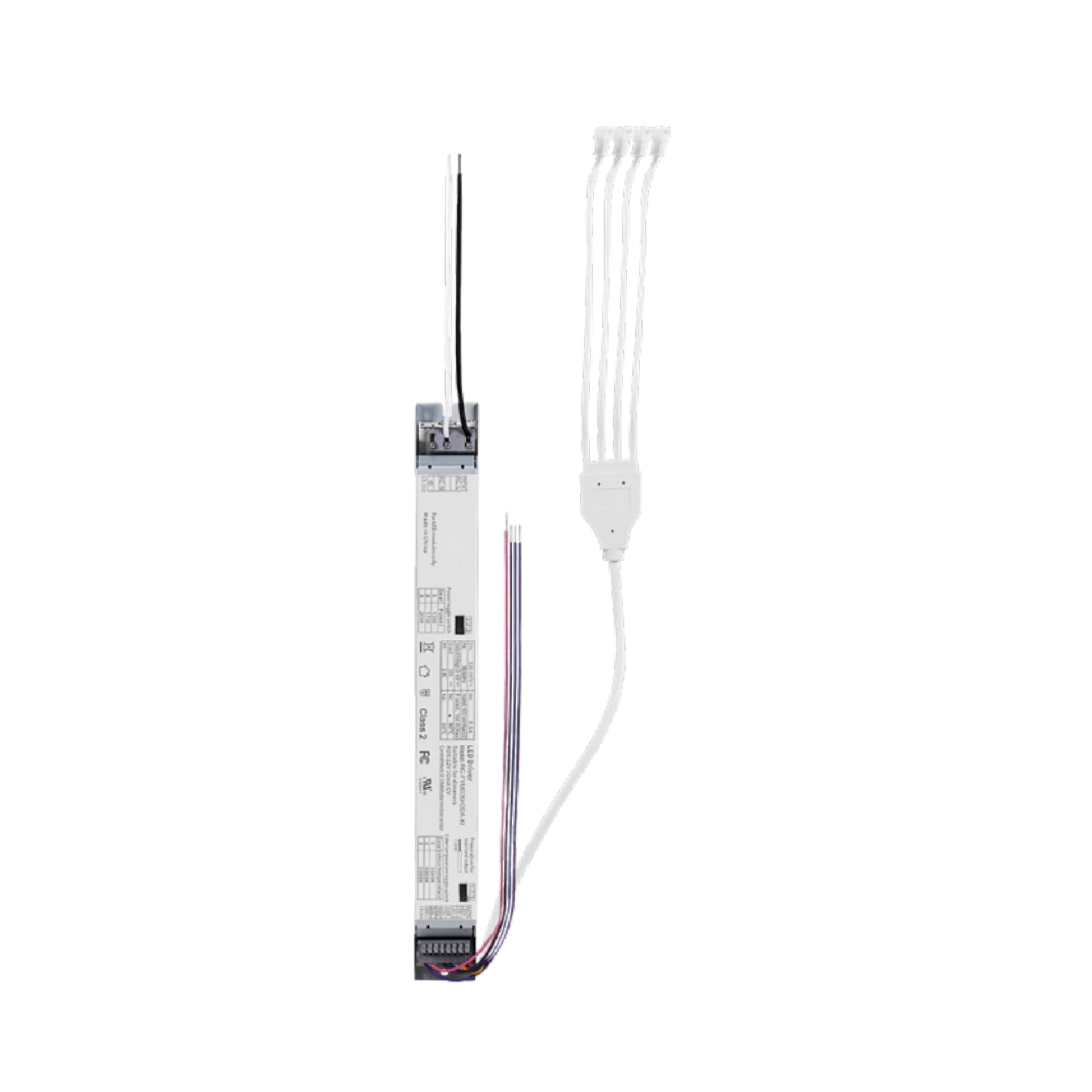

Sylvania 75908 LED Driver — 13/17/20W Selectable | 1–3 Magnetic Bar Strips | 120-347V
The Sylvania 75908 is the entry-level driver in the LEDVANCE Magnetic Bar Retrofit Kit system, powering 1 to 3 magnetic bar strips at selectable wattages of 13W, 17W, or 20W. Universal 120-347V input and 0-10V dimming from 20–100% cover virtually all North American commercial wiring configurations. The integrated 12V auxiliary output enables occupancy sensors and wireless controls without additional power wiring. TAA Compliant with a 5-year warranty on the complete driver-and-bar system.
Key Features
- Compatible Bars: 1 to 3 LEDVANCE Magnetic Bar Strips (items 42346, 42347, 42348)
- Selectable Wattage: 13W / 17W / 20W (system input power)
- Input Voltage: 120-347V Universal
- Dimming: 0-10V, 20–100%
- Power Factor: >0.9 | THD: <20%
- 12V Aux Output: Yes — wired/wireless sensors and controls
- Controls Compatibility: LEDVANCE EMBB (61097)
- Frequency: 50/60 Hz
- Certifications: TAA Compliant, cETLus, RoHS, FCC
- Warranty: 5 Years (driver + bars)
- Driver Abbreviation: LEDvr-MAGBAR13UNH10-20WDIM
💡 System Note — For 2–4 bar mid-range systems, see driver item 75909 (20/30/40W). For maximum-output 3–4 bar systems, see item 75910 (30/45/60W). Magnetic bars sold separately.
Typical Applications
- Single-lamp and 2-lamp fluorescent fixture retrofits
- Office, classroom, and retail corridor lighting
- Small bay and low-ceiling commercial spaces
- Projects requiring 0-10V dimming and occupancy sensor integration
- TAA-compliant government and institutional projects
Performance & Light Output
System lumen output scales with bar count and wattage selection. At 20W with 3 bars: up to 9,600 lm without lens / 8,400 lm with lens at 160 LPW. At 13W with 1 bar: 2,080 lm without lens / 1,820 lm with lens. All configurations maintain 160 LPW (without lens) / 140 LPW (with lens) efficacy. Bars rated 65,000 hours L⁰.
Electrical & Controls
Universal 120-347V input. 0-10V dimming from 20–100%. Power Factor >0.9, THD <20%, 50/60 Hz. 12V auxiliary output enables wired or wireless control and sensor integration. Compatible with LEDVANCE EMBB wireless module (item 61097) for occupancy and daylight harvesting control.
Construction & Durability
Designed for North American commercial retrofit installations. TAA Compliant housing. Operating temperature range matches bar spec: -40°F to +104°F (-40°C to +40°C). cETLus listed.
Installation & Mounting
Mounts inside existing fluorescent fixture housing alongside the magnetic bar strips. Supports 1 to 3 bar connections. For 2–4 bar mid-range systems use driver item 75909. For maximum-output 3–4 bar systems at 30/45/60W use item 75910. All magnetic bar strips (items 42346, 42347, 42348) sold separately.
What's Included
- 1× Sylvania 75908 LED Driver (LEDvr-MAGBAR13UNH10-20WDIM)
- Wiring leads
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What makes the 75908 different from the 75909 and 75910 drivers?
What makes the 75908 different from the 75909 and 75910 drivers?
Can I adjust the wattage output after the driver is installed?
Can I adjust the wattage output after the driver is installed?
What dimming systems and sensors are compatible with the 75908?
What dimming systems and sensors are compatible with the 75908?
What voltage does the 75908 require?
What voltage does the 75908 require?
Is the 75908 TAA compliant, and does it carry a warranty? What bars does it work with?
Is the 75908 TAA compliant, and does it carry a warranty? What bars does it work with?
