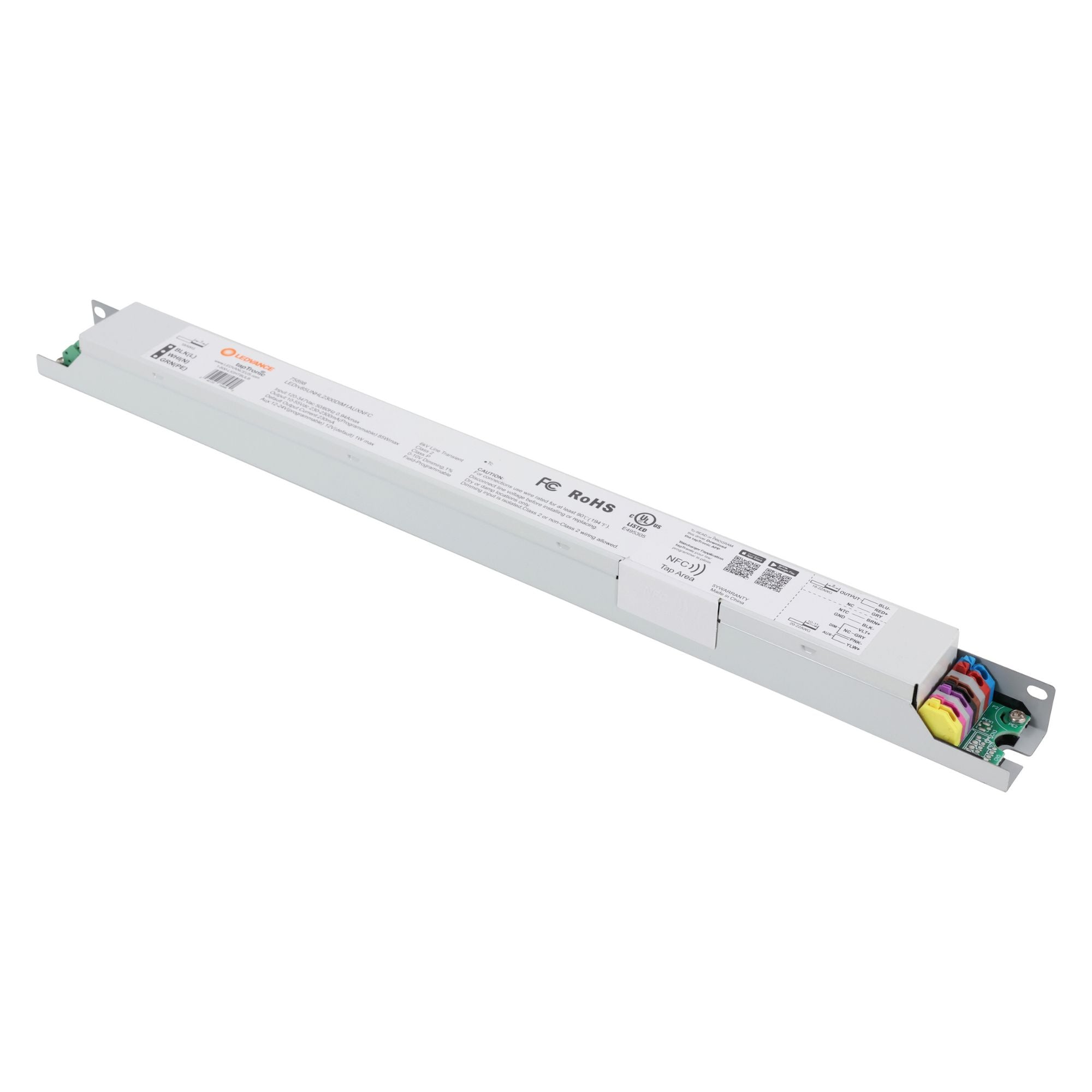

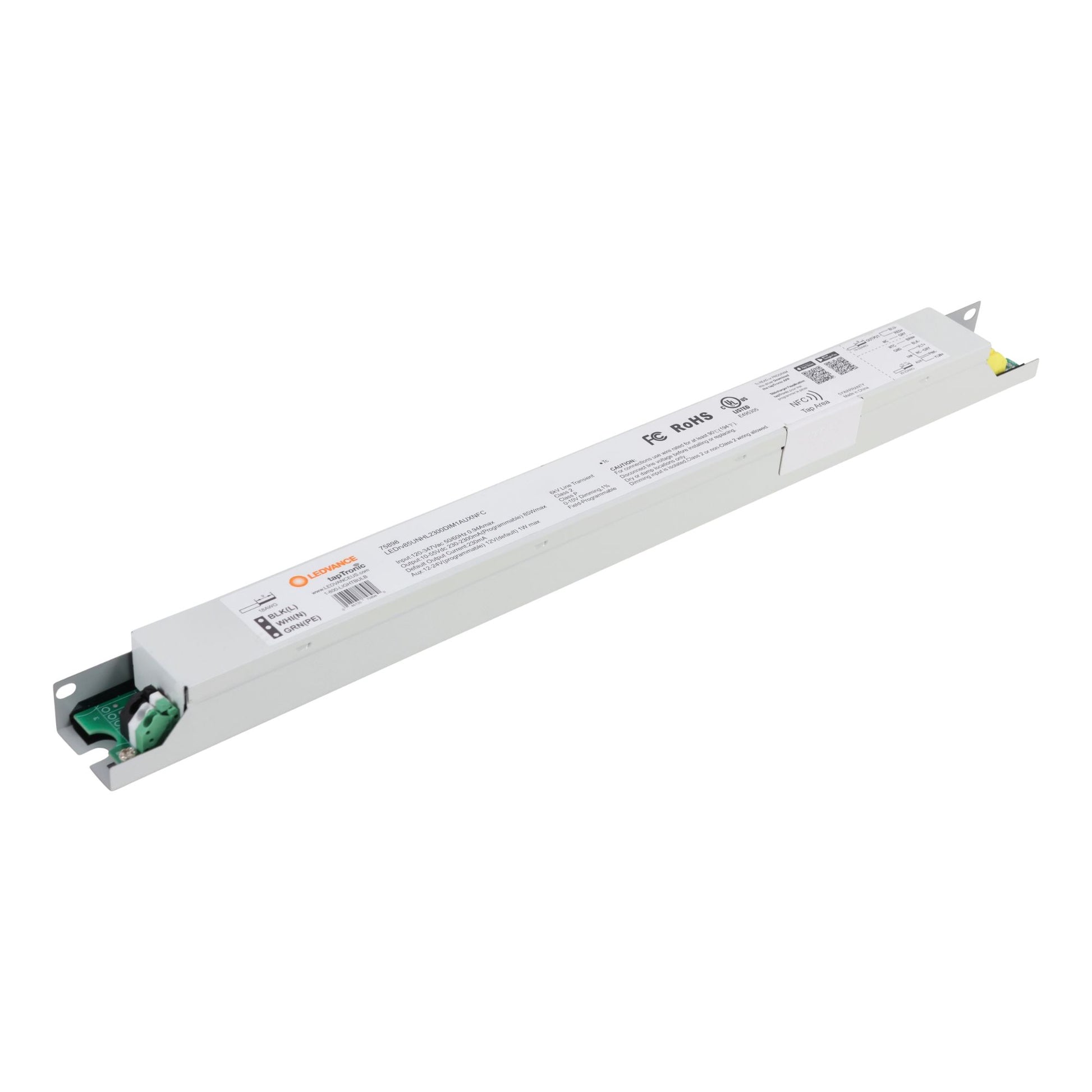

LEDVANCE Sylvania 75898 tapTronic NFC LED Driver 85W Linear 2300mA Programmable 0-10V
LEDVANCE Sylvania 75898 tapTronic NFC LED Driver 85W Linear 2300mA Programmable 0-10V
Available in stock (96)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Powerful Performance: Supports 85W output with a current range of 230 to 2300mA, ensuring compatibility with various LED fixtures
- Versatile Voltage Input: Operates within a range of 120-347V and outputs from 5-88Vdc for unmatched flexibility
- Dimming Capability: Enjoy smooth 0-10V dimming, allowing you to effortlessly set the ambiance to your liking

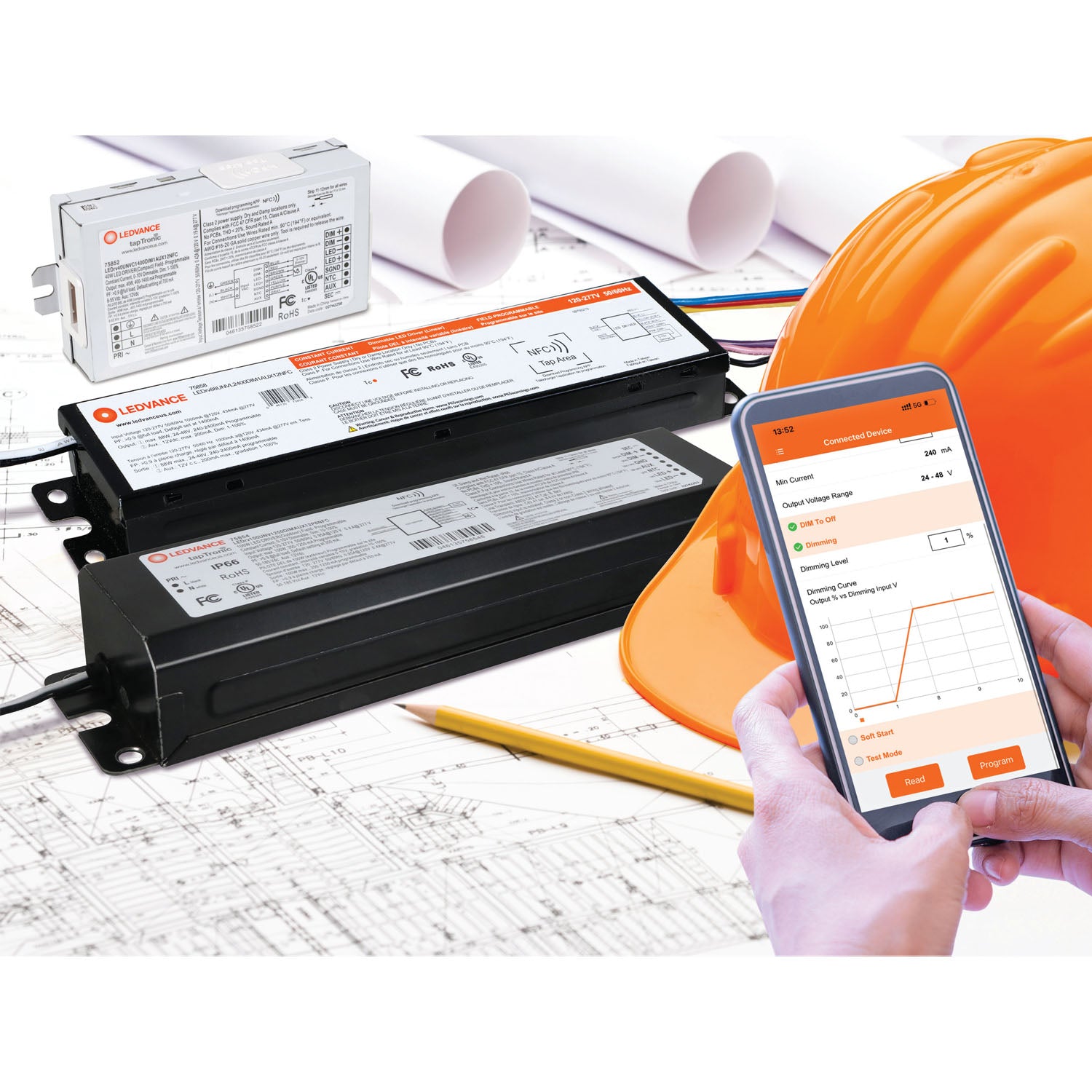

- Field Programmable via NFC: Customize your driver settings effortlessly using the free app, making adjustments on-the-go
- Auxiliary Output: Features a 12, 24V Auxiliary Output for additional versatility
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

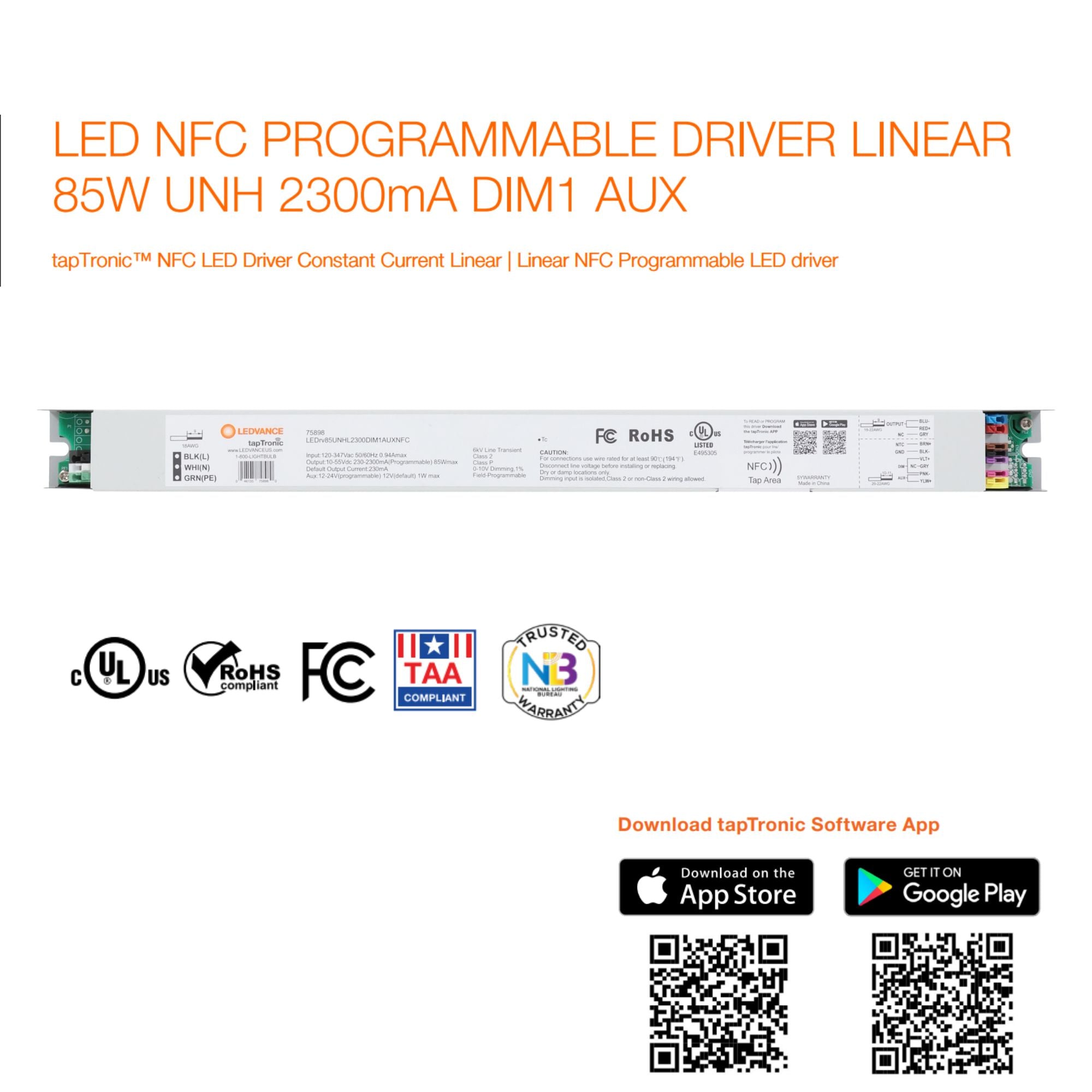

tapTronic 75898 LED NFC Programmable Driver Linear 85W UNH 2300mA DIM1 AUX
The 75898 is a LEDVANCE Sylvania tapTronic NFC LED driver constant current linear designed for wall, ceiling, recessed, and suspended luminaires. Experience superior flexibility with field-programmable output from 230-2300mA via the free tapTronic smartphone app—no power required for programming. Advanced constant current technology with 0-10V dimming (1-100% range), soft start, thermal protection, and DC auxiliary output delivers professional-grade performance for residential and commercial LED installations.
tapTronic LED Driver Features
- Field-Programmable via Free App: Customize output current (230-2300mA) in seconds using NFC smartphone technology—programming does not require driver to be powered up
- Near-Field Communication (NFC): Quick and easy output customization using tapTronic software on iOS or Android devices
- Programmable Current Range: Large programmable range from each driver, ideal when consolidating your on-hand inventory from in-house or in a service truck
- Constant Lumen Output: Maintains consistent light output throughout the dimming range
- 0-10V Dimming: Dim to off with 1-100% dimming range for precise light level control
- Soft Start: Gradual power-up extends LED life and reduces inrush current
- End of Life Protection: Automatic shutdown when LED load reaches end of useful life
- Thermal Protection: Built-in over-temperature safeguards ensure safe, reliable operation
- DC Auxiliary Output: Powers additional low-voltage components or controls

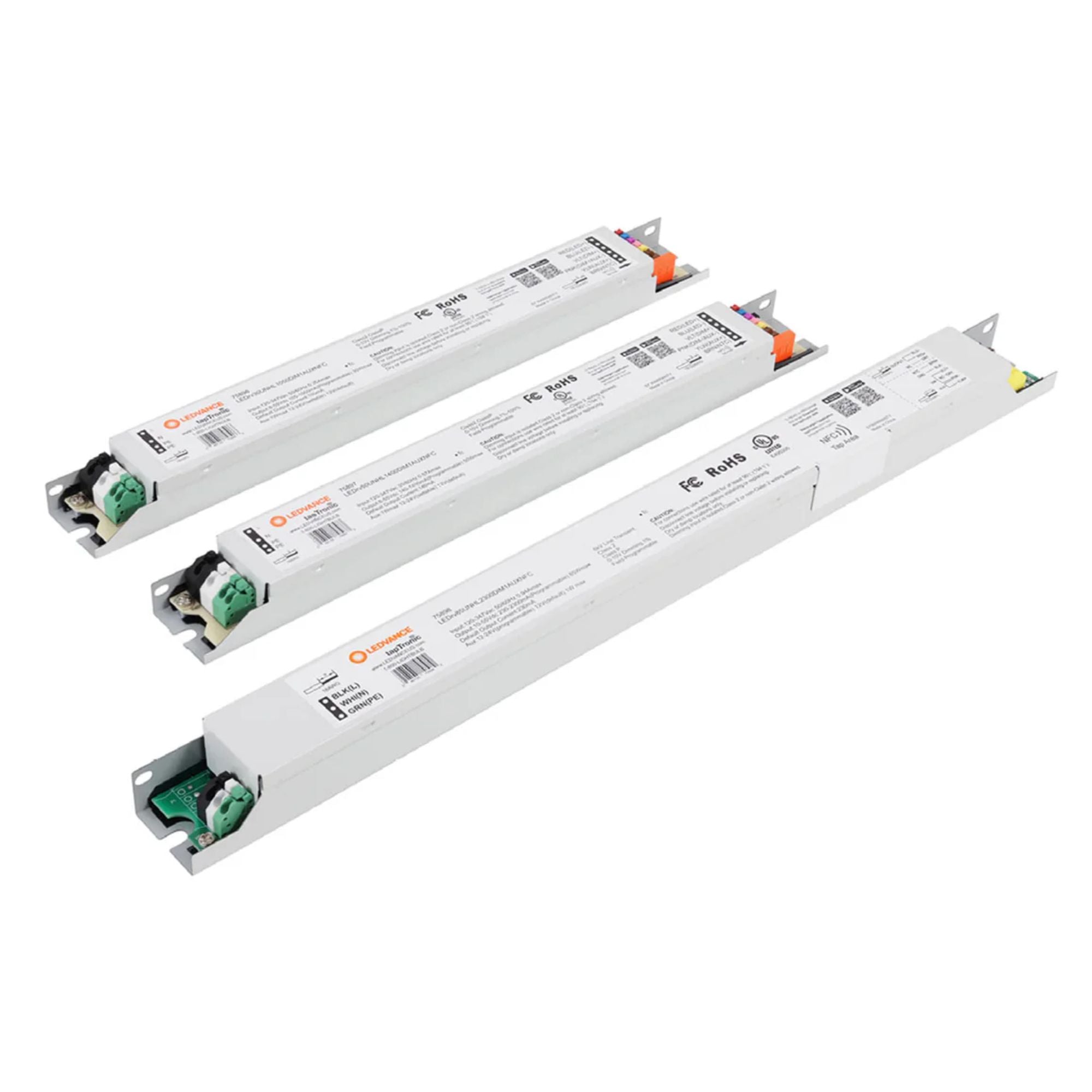

- Compact Linear Design: 280mm length fits easily in narrow luminaire housings
- Universal Input Voltage: 120-347V AC, 50/60 Hz for broad application compatibility
- No Neutral Wire Required: Simplifies installation in retrofit applications
- RoHS / FCC Compliant: Meets environmental and electromagnetic interference standards
- 5-Year Warranty: NLB Trusted Warranty Program for peace of mind
tapTronic LED Driver Applications
- Wall and ceiling luminaires
- Recessed and surface-mounted ceiling fixtures
- Suspended linear and pendant lighting
- Residential living rooms, bedrooms, and kitchens
- Commercial offices and conference rooms
- Retail displays and showrooms
- Hospitality guest rooms and corridors
- Educational facilities and libraries
- Healthcare patient rooms and common areas
Installation & Operation

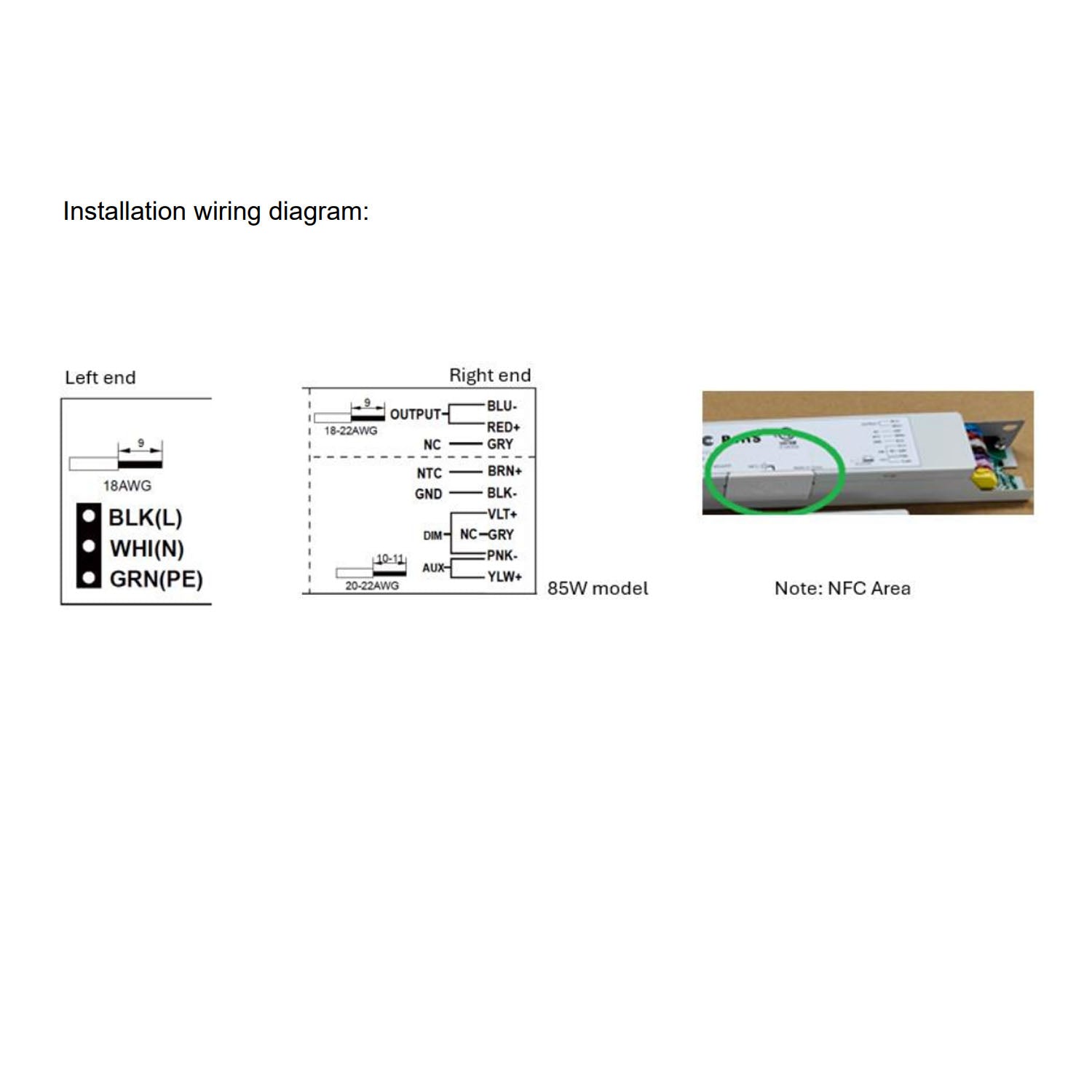

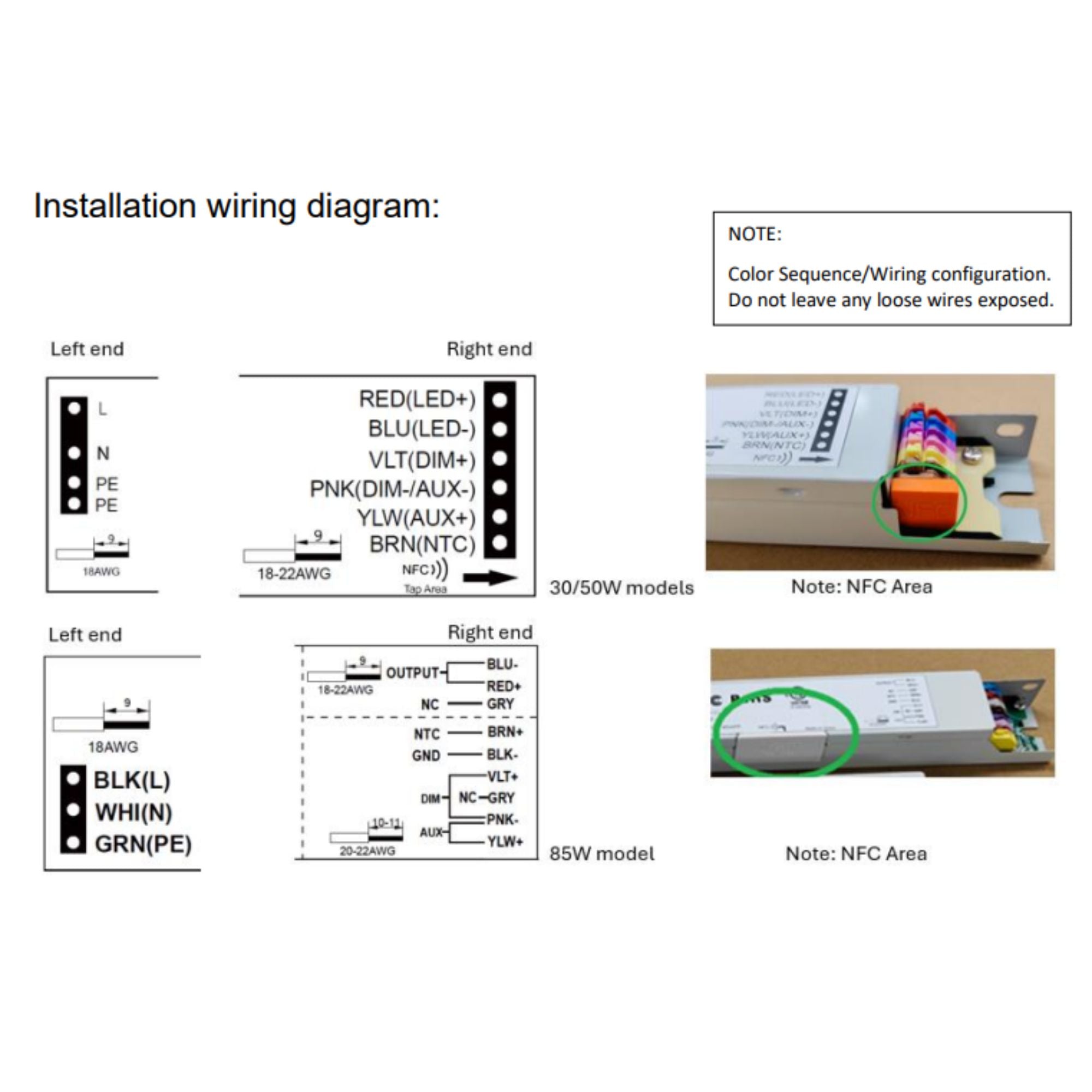

The LEDVANCE Sylvania 75898 tapTronic driver (LEDrv85UNHL2300DIM1AUXNFC) installs easily in standard luminaire housings without requiring a neutral wire, ideal for retrofit applications. The compact linear form factor (280mm × 30mm × 21mm) fits narrow ceiling and wall fixtures. Download the free tapTronic app (iOS or Android) and program your desired output current before installation—no power required. Hold your smartphone near the driver's NFC interface, select your target current (230-2300mA), and confirm. Connect to your 120-347V AC supply and LED load, then wire the 0-10V dimming leads to a compatible dimmer. The driver features soft start for gradual LED power-up and maintains constant lumen output throughout the 1-100% dimming range. The DC auxiliary output powers additional low-voltage components. Built-in thermal protection and end-of-life shutdown ensure safe operation in dry and damp environments.
Compatible Products
- Dimmable LED Modules: Constant current LED arrays rated for 230-2300mA operation
- LED Strip Lights: Constant current LED tape compatible with programmable output range
- 0-10V Dimmers: Standard 0-10V wall dimmers and control systems for 1-100% dimming
- Lighting Control Systems: Building automation and smart lighting platforms with 0-10V dimming interface
- Sensors & Controls: Occupancy sensors, daylight sensors, and timers with 0-10V output
- Note: Only use with dimmable LED loads rated for constant current operation. Verify LED load compatibility with driver output range (230-2300mA) before installation.
Why Choose LEDVANCE Sylvania tapTronic NFC LED Drivers
LEDVANCE Sylvania is a global leader in innovative lighting solutions with decades of LED driver expertise. The tapTronic NFC series combines near-field communication technology with advanced constant current circuitry for smooth, flicker-free LED performance. The free smartphone app eliminates multiple driver SKUs—customize output current in seconds to match your exact LED load, simplifying inventory management and reducing truck stock for installers. With 0-10V dimming, soft start, thermal protection, and DC auxiliary output, the 75898 delivers professional-grade control for residential and commercial applications. Backed by a 5-year warranty and compliant with RoHS/FCC standards.
Why Buy From Us: As an authorized LEDVANCE Sylvania dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.

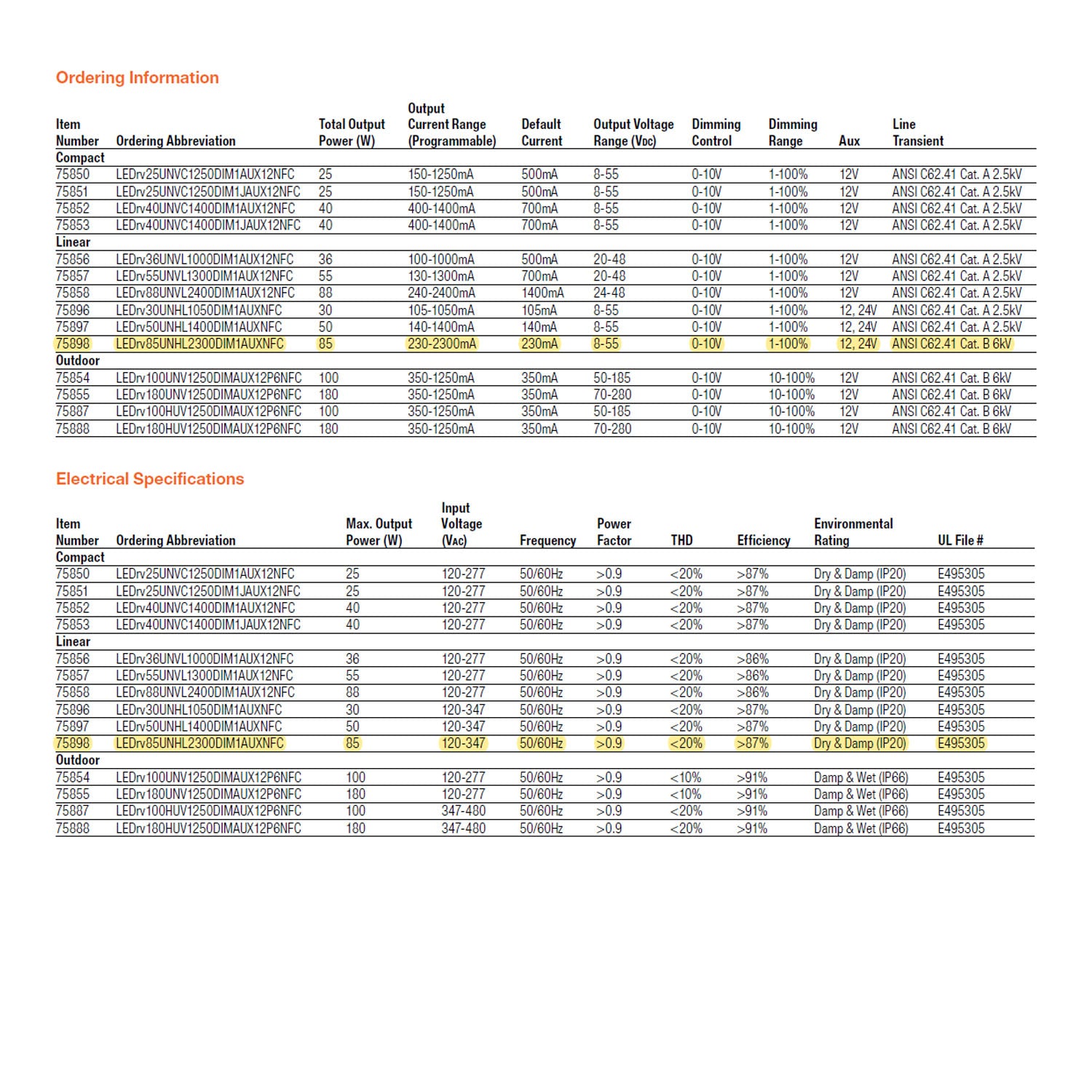

Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
