LEDVANCE Sylvania 67048 High Temp UFO LED High Bay — 100/120/150W Selectable — 3500K/4000K/5000K — 277–480V — Black

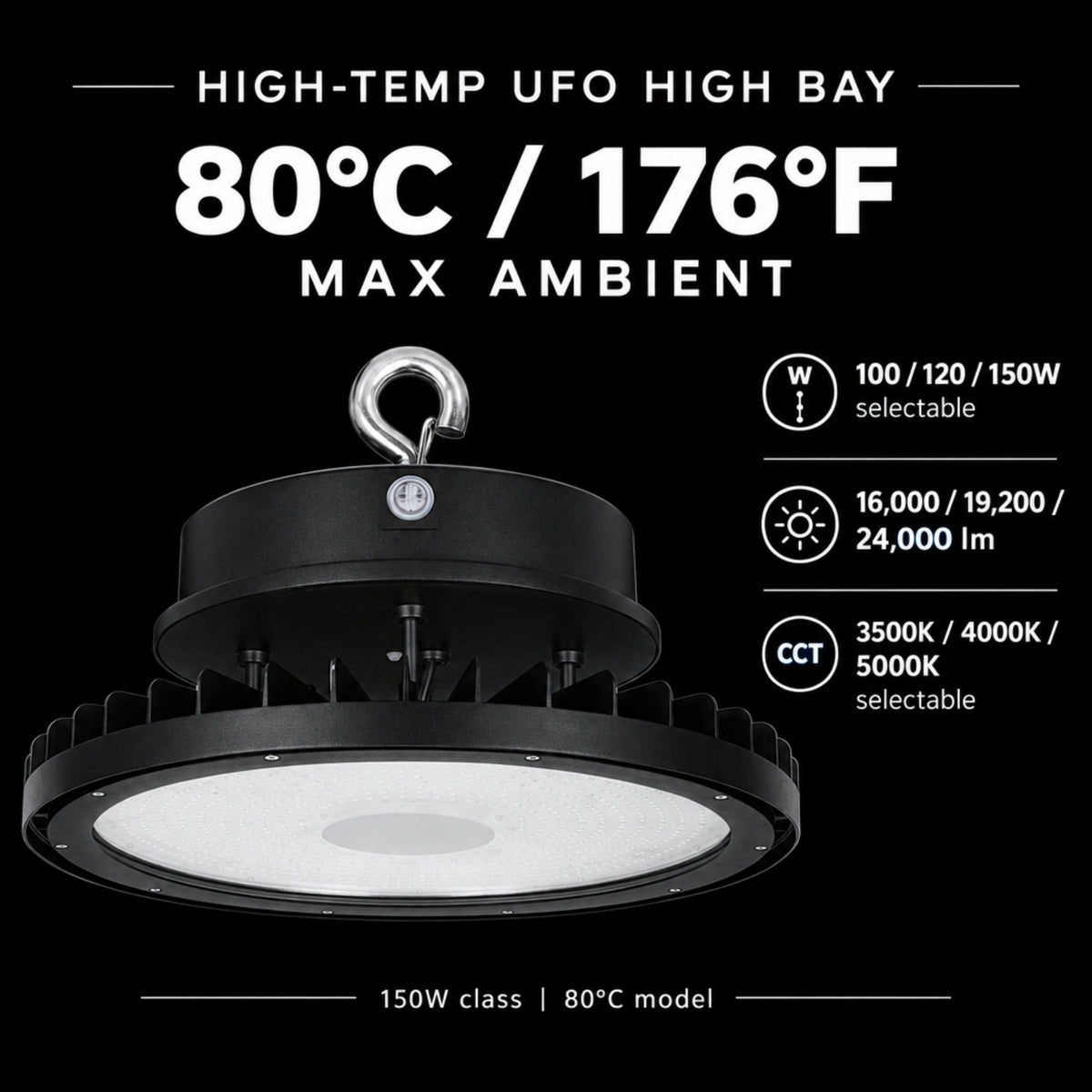

The LEDVANCE Sylvania 67048 is a commercial round UFO LED high bay engineered to deliver up to 24,000 lumens with field-adjustable 100W / 120W / 150W power settings and switchable 3500K / 4000K / 5000K color temperatures. Operating on 277–480V electrical systems with 0–10V continuous dimming, this luminaire provides energy-efficient replacement for legacy fixtures up to 400W HPS. Built with an IP65 wet location rating, NEMA 4X enclosure, and UL Listing, it is qualified for commercial utility rebates under DLC standards and is specifically engineered to withstand elevated ambient temperatures up to 176°F (80°C).

Key Features

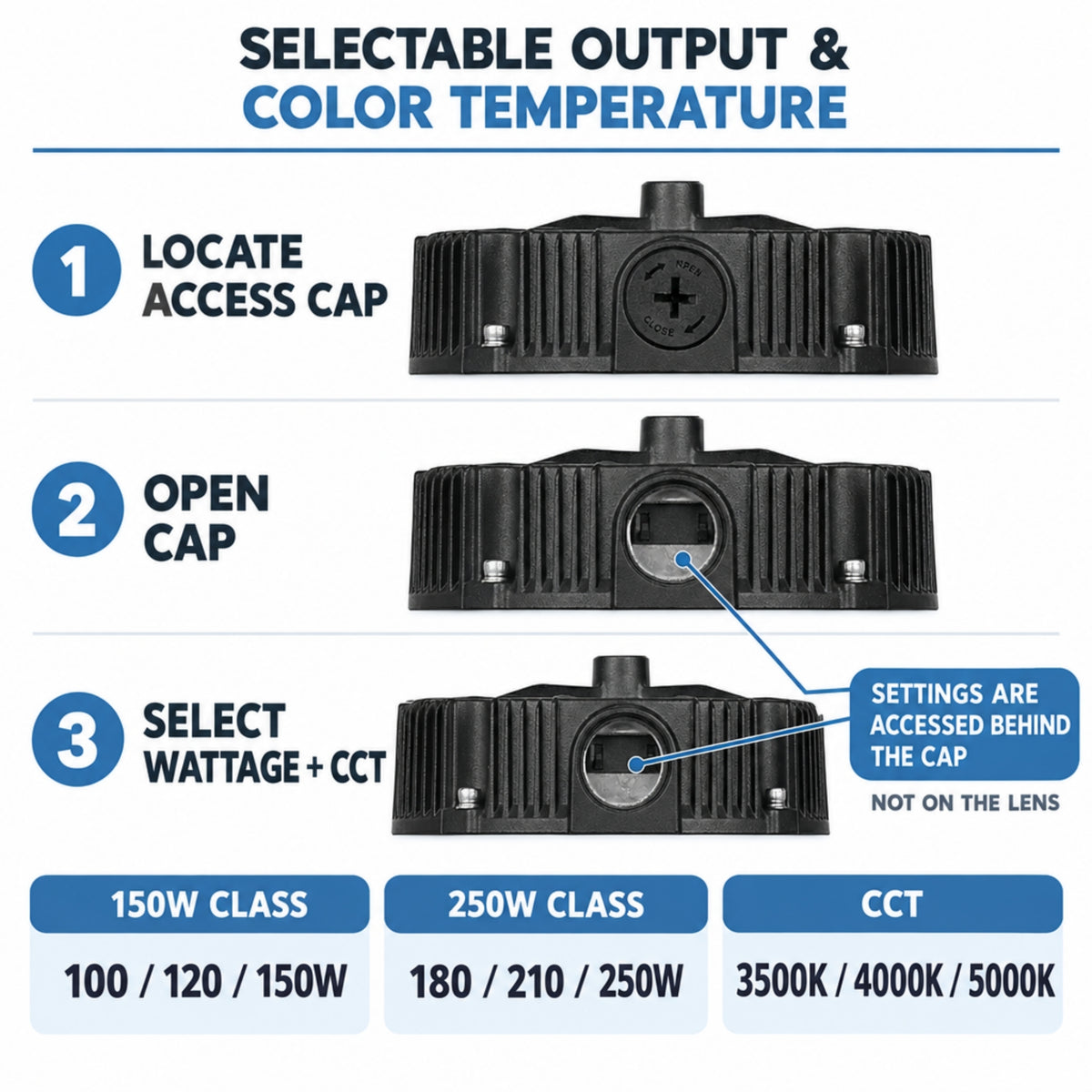

• Selectable Wattage: 100W / 120W / 150W — field-adjustable
• Wattage Equivalency: Replaces legacy 250W to 400W HID fixtures for up to 59% energy savings
• Maximum Lumen Output: 24,000 lm at 150W
• Peak Efficacy: 160 lm/W for high-efficiency commercial operation
• Selectable CCT: 3500K / 4000K / 5000K — tunable to application
• Dimming: 0–10V continuous dimming standard (down to 10%)
• Voltage: Universal 277–480V AC, 50/60Hz constant current driver
• Location Rating: UL Listed for wet locations; IP65 ingress rated and NEMA 4X certified
• Operating Temperature: −40°F (−40°C) to 176°F (80°C) ambient range
• Certifications: DLC, UL Listed, FCC Compliant, RoHS Compliant, IK08 Impact Rated
• Rated Life: L70 >100,000 hours at 77°F (25°C)
• Warranty: 5-year limited warranty — LEDVANCE Sylvania

Performance & Light Output

Rated life 100,000 hours (L70). Delivers direct energy reduction compared to traditional high-intensity discharge systems.

Electrical

Powered by a constant current driver operating on 277–480V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) ≤20%. Integrated 6kV surge protection protects internal electronics against line-to-line and line-to-ground transient voltage spikes. Includes standard 0–10V dimming. RoHS compliant.

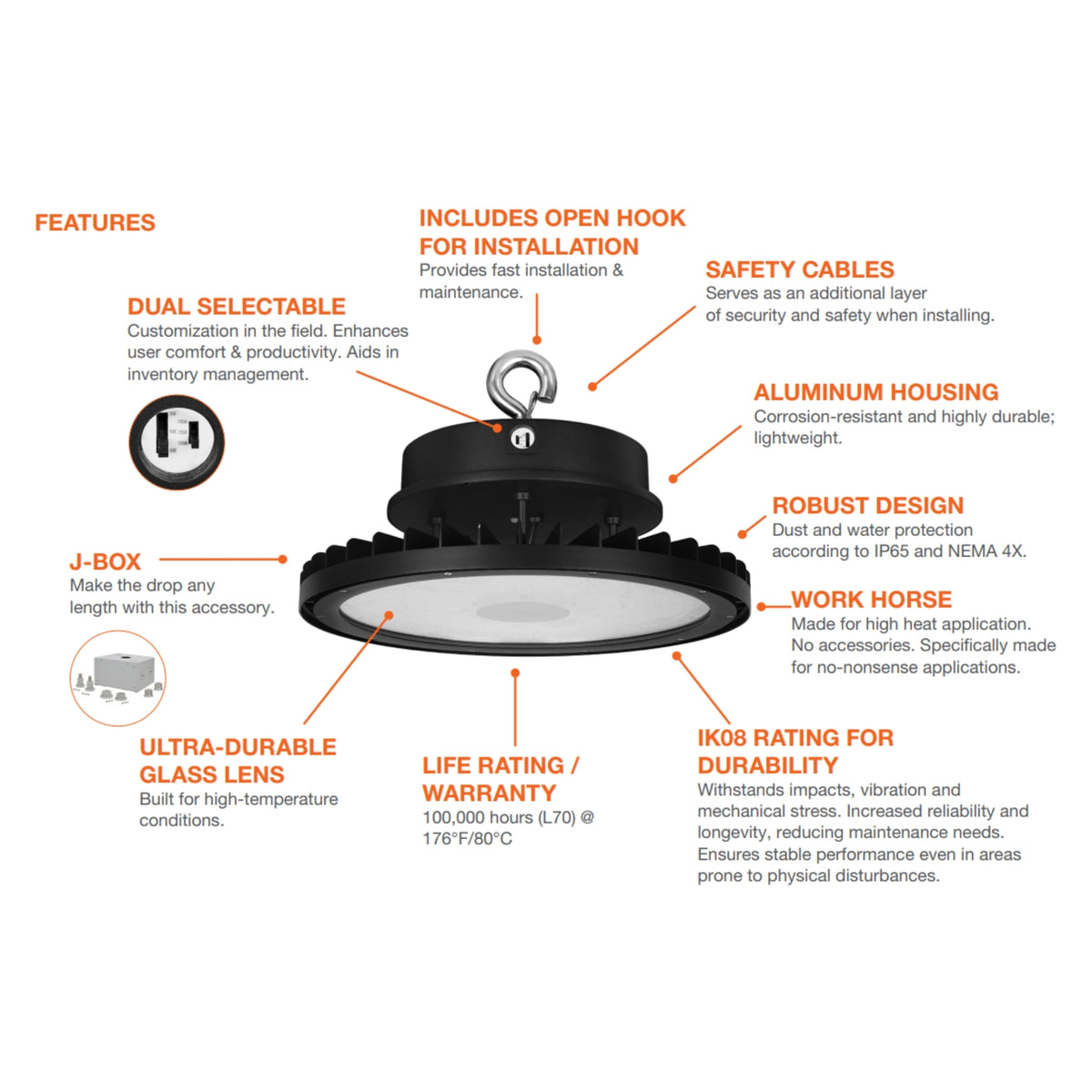

Construction

Housing & Thermal: Precision aluminum housing engineered with radial convection cooling fins. The lightweight, corrosion-resistant housing functions as a high-efficiency passive heatsink, dissipating heat away from LED arrays to preserve lumen maintenance across the rated lifespan in high ambient temperature environments.

Lens & Optics: Features an ultra-durable glass lens built for high-temperature conditions and enduring optical clarity.

Finish: Commercial finish in Black.

Environmental Sealing: IP65 and NEMA 4X rated and UL Listed for wet locations, providing a sealed barrier resistant to dust, moisture, and corrosion. Ambient operating temperature range: −40°F (−40°C) to 176°F (80°C).

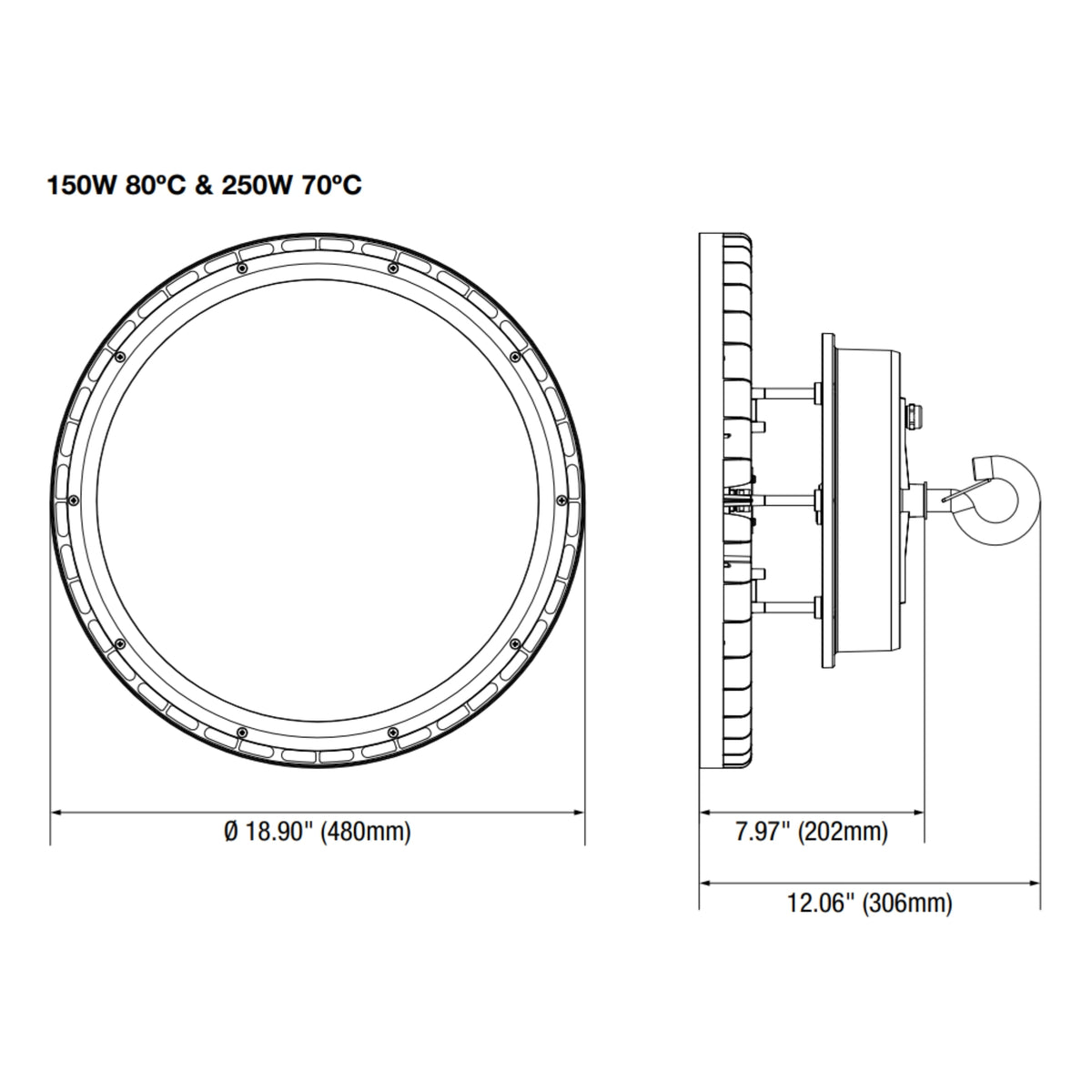

Dimensions & Weight: 18.90" Dia × 12.06" H. Fixture weight: 17.2 lbs.

Installation & Mounting

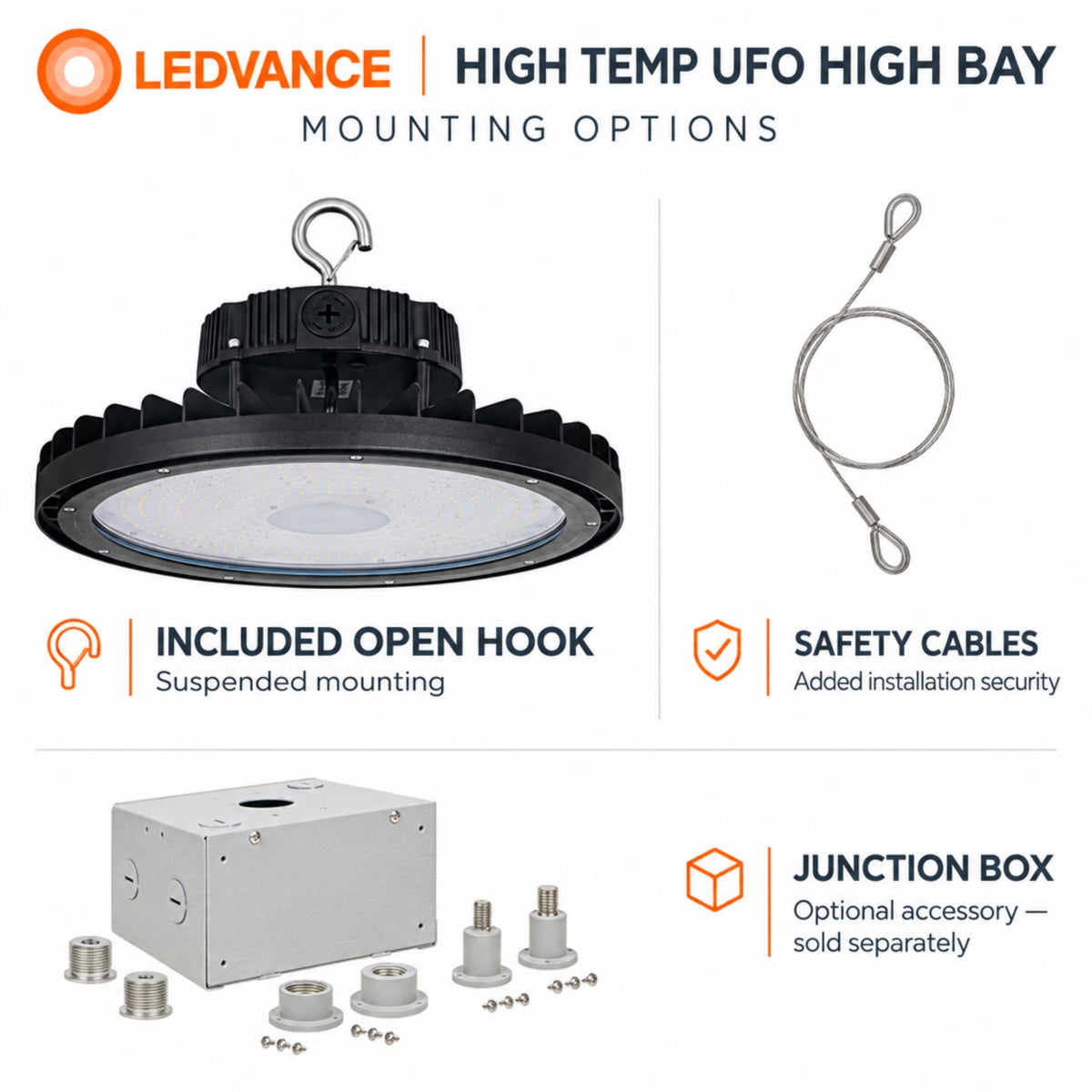

Standard Hardware: Ships standard with an included open hook for quick suspended installation, alongside safety cables for an added layer of security.

Wiring: Setup for 277–480V AC input.

Certifications & Rebates

• DLC: Qualifies for commercial lighting utility rebate programs nationwide
• UL Listed: Certified for US & Canada wet locations
• RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals
• FCC Compliant: Meets electromagnetic interference standards

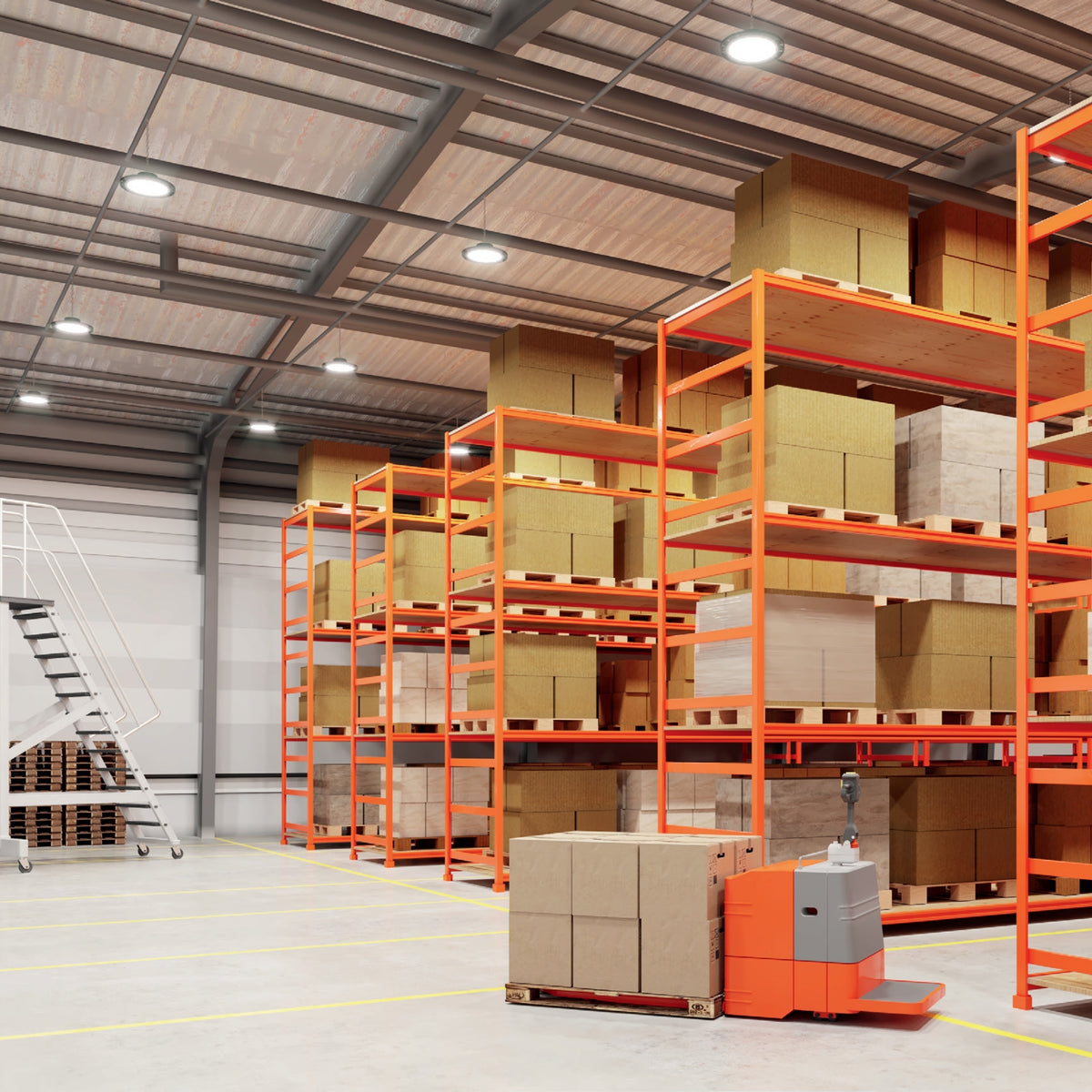

Typical Applications

• Heavy Industrial Facilities — high-temperature passive heatsink enables continuous operation in elevated ambient environments
• Manufacturing Plants & Production Areas — provides durable overhead illumination with resilient thermal management
• Special Thermal Requirements — engineered specifically for extreme temperature requirements

What's Included

• LEDVANCE Sylvania 67048 High Temp UFO LED High Bay
• Open mounting hook
• Safety cables
• Installation and operation instructions
