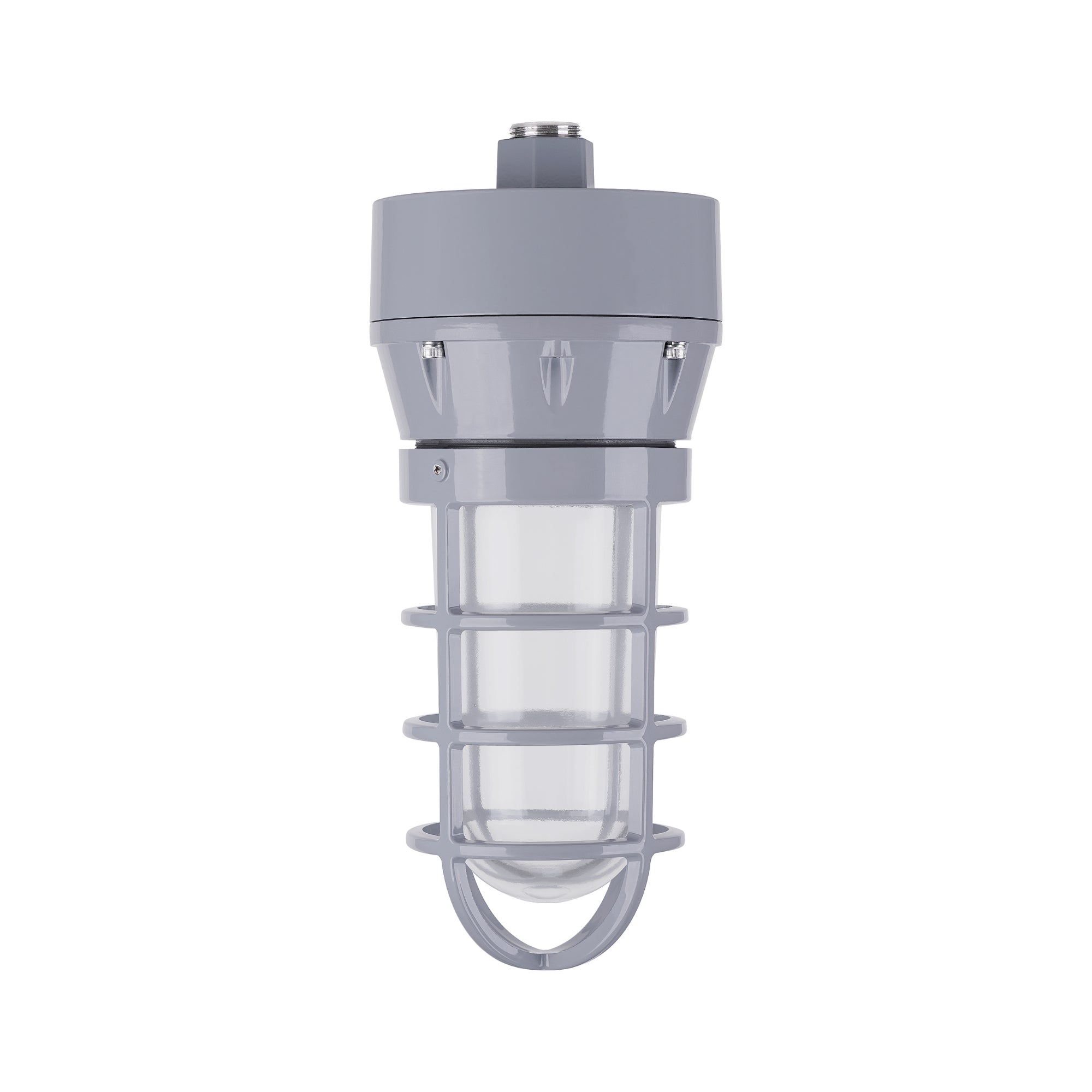

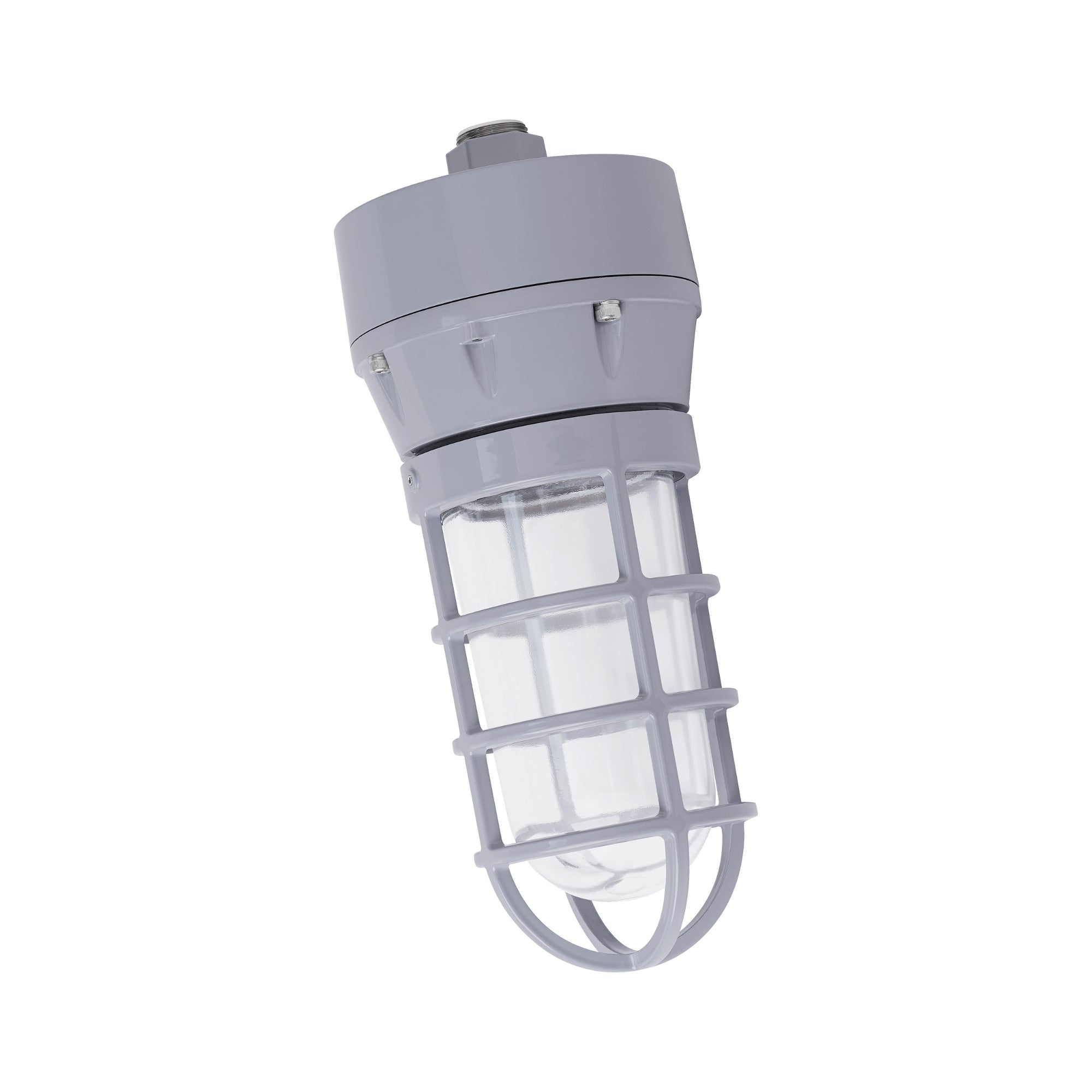

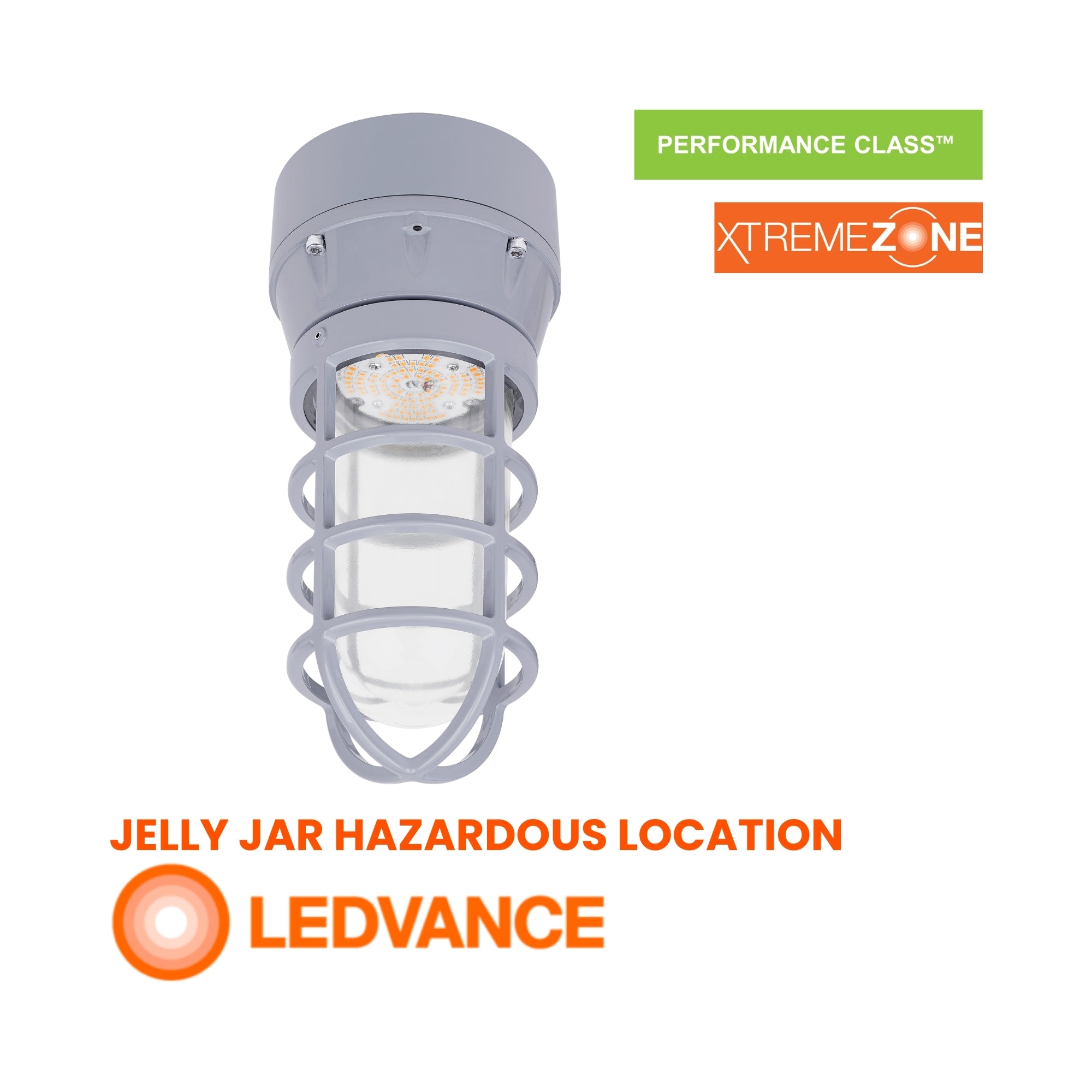

LEDVANCE Sylvania 66822 Hazardous Location Jelly Jar — 20W Performance Series

The LEDVANCE Sylvania 66822 is a professional-grade hazardous location jelly jar engineered for extreme industrial environments. Operating at 20W to produce 2,200 lumens, this fixture utilizes a 120-347V universal driver. It is specifically designed to meet rigorous compliance standards for facilities requiring reliable explosion-proof illumination.

Key Features

• Power Consumption: 20W system designed for highly efficient industrial lighting.
• Housing Material: Explosion-proof, copper-free aluminum housing with a robust metal guard.
• Lens Material: Tempered glass lens provides superior heat resistance and durability.
• Input Voltage: Universal 120-347V input voltage.
• Dimming Protocol: Standard 0-10V continuous dimming.
• Environmental Ratings: IP66 and IK08 rated for superior dust, water, and impact resistance.
• Lifespan: 100,000-hour L70 rated lifespan for reduced maintenance.
• Operating Temperature: Wide operating temperature range of -4°F to 104°F.
• Safety Certifications: Class I, Div 2 and Class II, Div 1/2 hazardous location certified.

Typical Applications

• Petrochemical refineries and processing plants.
• Grain milling and agricultural storage.
• Heavy manufacturing and foundry floors.
• Wastewater treatment facilities.
• Marine and offshore drilling platforms.

Performance & Light Output

This fixture generates 2,000 lumens with a warm 3000K color temperature, maximizing visual acuity for critical tasks while minimizing glare. With a CRI of 80+, it ensures accurate color representation for detailed inspections and safety checks. The advanced LED array maintains exceptional lumen depreciation standards, offering a 100,000-hour L70 lifespan with high luminous efficacy.

Electrical & Controls

Equipped with a highly efficient 120-347V universal driver, this jelly jar luminaire ensures stable operation across standard commercial and industrial power grids. It features standard 0-10V dimming capabilities, allowing for integration with automated facility lighting systems. The internal electrical components are engineered to handle industrial power fluctuations safely.

Construction & Durability

The housing is constructed from rugged, copper-free aluminum to resist corrosion in caustic chemical environments. A high-durability tempered glass lens, protected by a robust metal guard, shields the internal components from the high-vibration stress common in heavy industrial applications. The complete luminaire is IP66 and IK08 rated, sealing it against heavy dust and direct high-pressure water streams while operating reliably between -4°F and 104°F.

Installation & Mounting

This specific configuration is designed for versatile installation in hazardous zones. It supports standard ceiling and pendant mounting methods, ensuring a rigid installation that mitigates vibration and prevents shifting over time in demanding operational environments.

What's Included

• Hazardous Location Jelly Jar Fixture
• Protective Metal Guard
