LEDVANCE Sylvania 66811 Hazardous Location Linear — 40W 4FT Series

The LEDVANCE Sylvania 66811 is a professional-grade hazardous location linear fixture engineered for extreme industrial environments. Operating at 40W to produce 6,800 lumens, this fixture utilizes a 120-277V universal driver. It is specifically designed to meet rigorous compliance standards for facilities requiring reliable explosion-proof illumination.

Key Features

• Power Consumption: 40W system designed for highly efficient industrial lighting.
• Housing Material: Explosion-proof, SUS304 stainless steel housing.
• Lens Material: UV-stabilized, fiberglass reinforced polycarbonate.
• Input Voltage: Universal 120-277V input voltage.
• Dimming Protocol: Standard 0-10V continuous dimming.
• Environmental Ratings: IP66 and IK08 rated for superior dust, water, and impact resistance.
• Lifespan: 100,000-hour L70 rated lifespan for reduced maintenance.
• Operating Temperature: Wide operating temperature range of -40°F to 122°F.
• Safety Certifications: Class I, Div 2 and Class II, Div 1/2 hazardous location certified.

Typical Applications

• Petrochemical refineries and processing plants.
• Grain milling and agricultural storage.
• Heavy manufacturing and foundry floors.
• Wastewater treatment facilities.
• Marine and offshore drilling platforms.

Performance & Light Output

This fixture generates 6,000 lumens with a crisp 5000K daylight color temperature, maximizing visual acuity for critical tasks. With a CRI of 80+, it ensures accurate color representation for detailed inspections and safety checks. The advanced LED array maintains exceptional lumen depreciation standards, offering a 100,000-hour L70 lifespan with high luminous efficacy.

Electrical & Controls

Equipped with a highly efficient 120-277V universal driver, this linear luminaire ensures stable operation across standard commercial and industrial power grids. It features standard 0-10V dimming capabilities, allowing for integration with automated facility lighting systems. The internal electrical components are engineered to handle industrial power fluctuations safely.

Construction & Durability

The housing is constructed from rugged SUS304 stainless steel to resist corrosion in caustic chemical environments. A UV-stabilized, impact-resistant polycarbonate lens protects the internal components from the high-vibration stress common in heavy industrial applications. The complete luminaire is IP66 and IK08 rated, sealing it against heavy dust and direct high-pressure water streams while operating reliably between -40°F and 122°F.

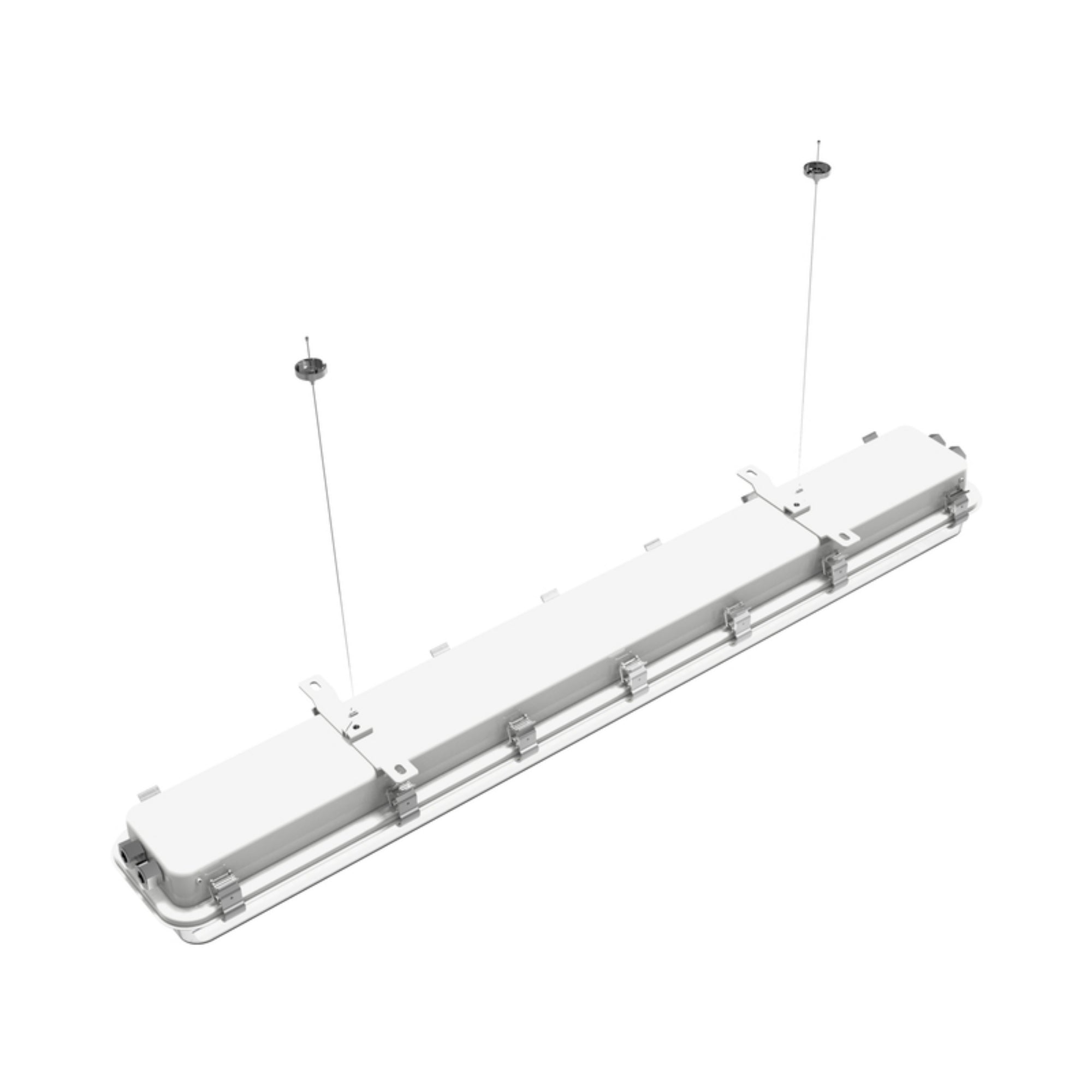

Installation & Mounting

This specific configuration is designed for versatile installation in hazardous zones. It supports suspended or continuous superimposed assemblies using standard conduit pipe, ensuring a rigid installation that mitigates vibration and prevents shifting over time in demanding operational environments.

What's Included

• Hazardous Location Linear Fixture
• Mounting Hardware Kit
