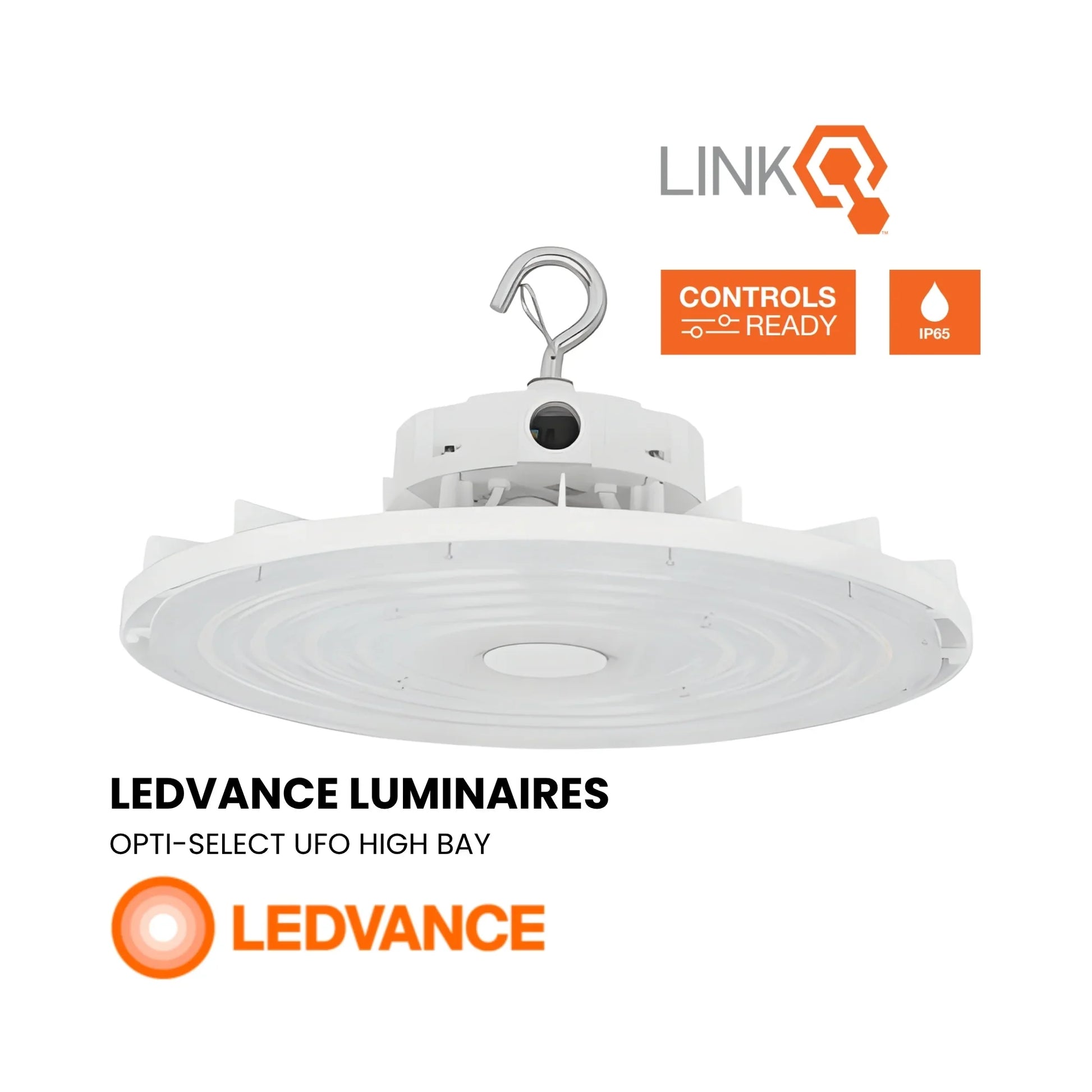

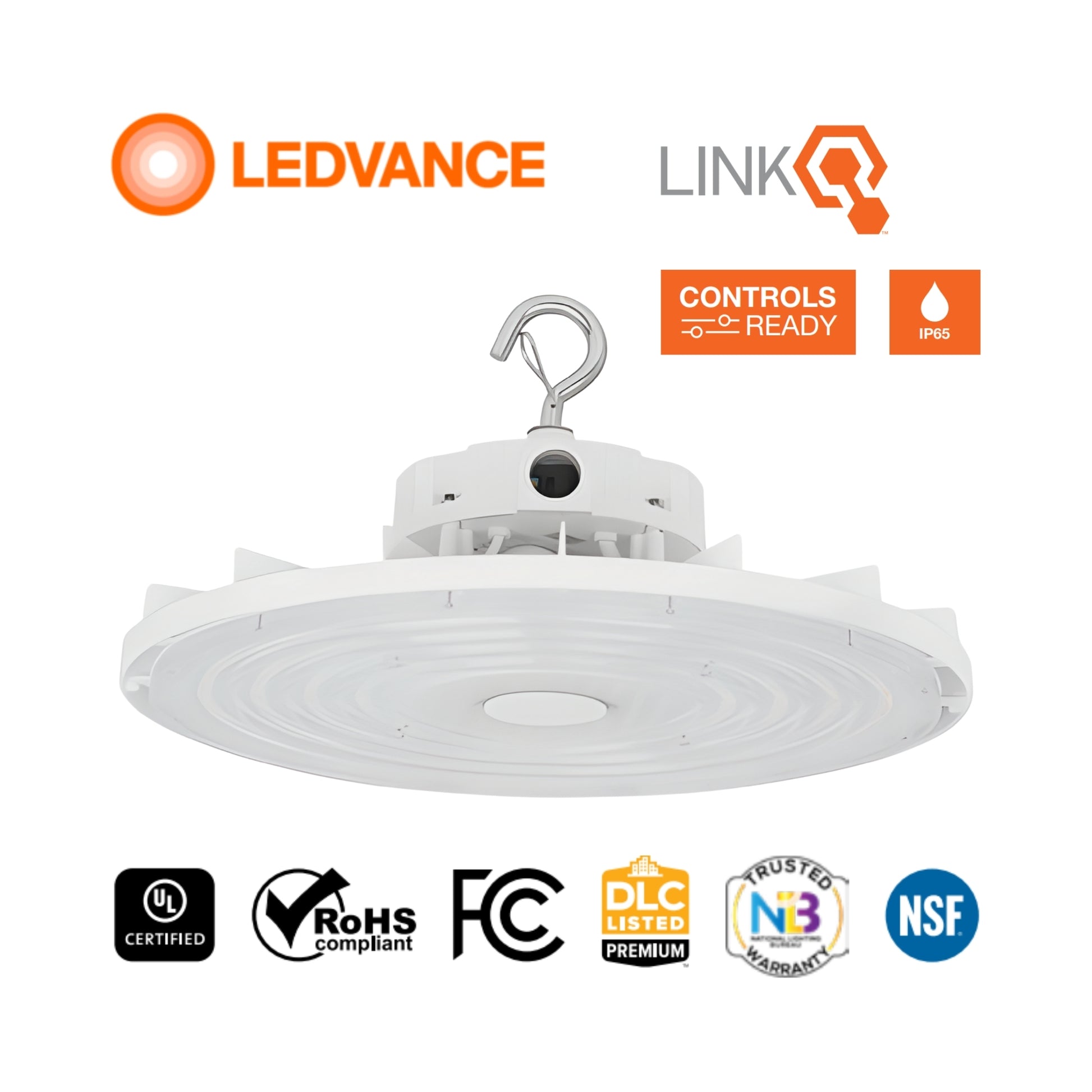

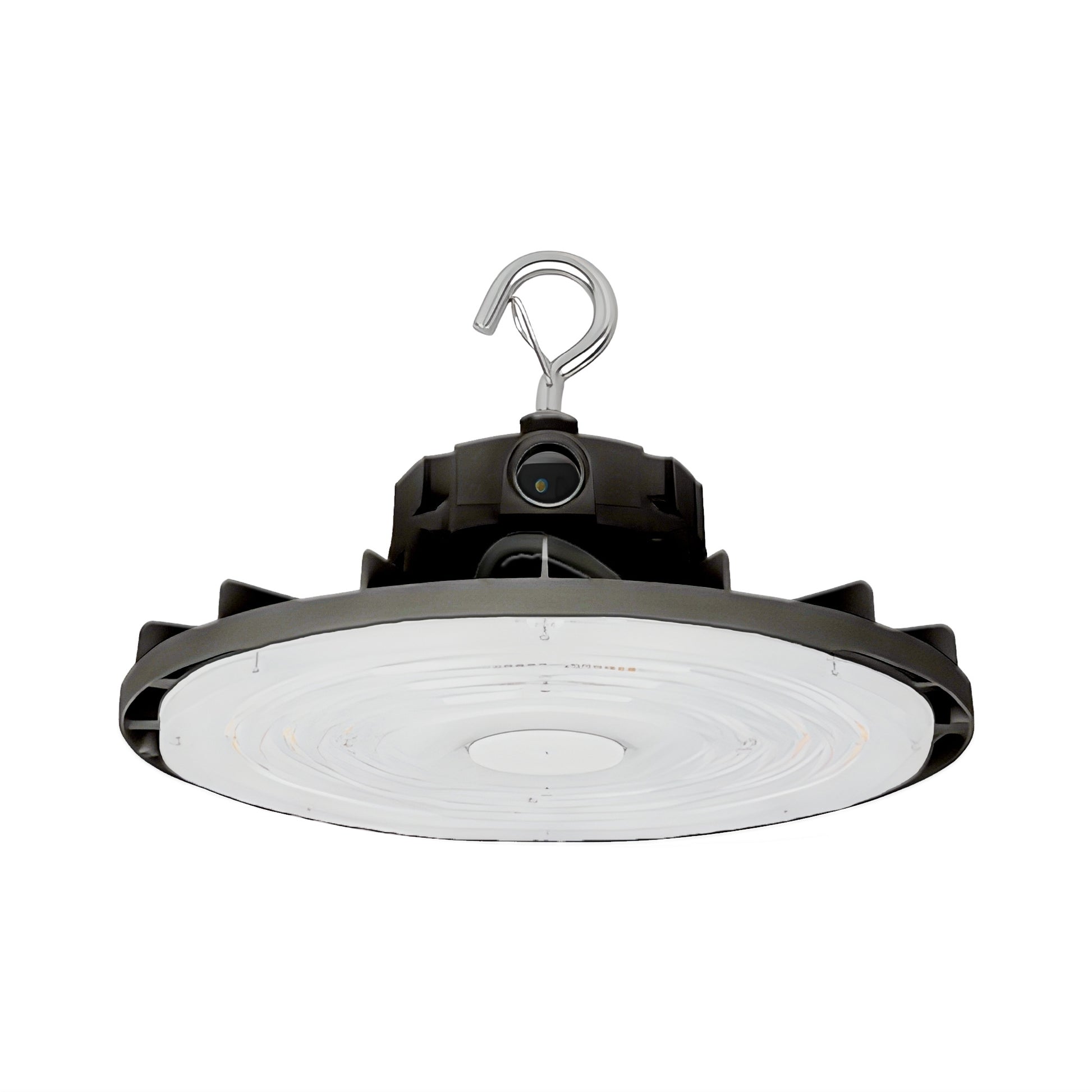

LEDVANCE Sylvania 66491 Opti-Select 5A UFO LED High Bay — 60W / 80W / 100W Selectable

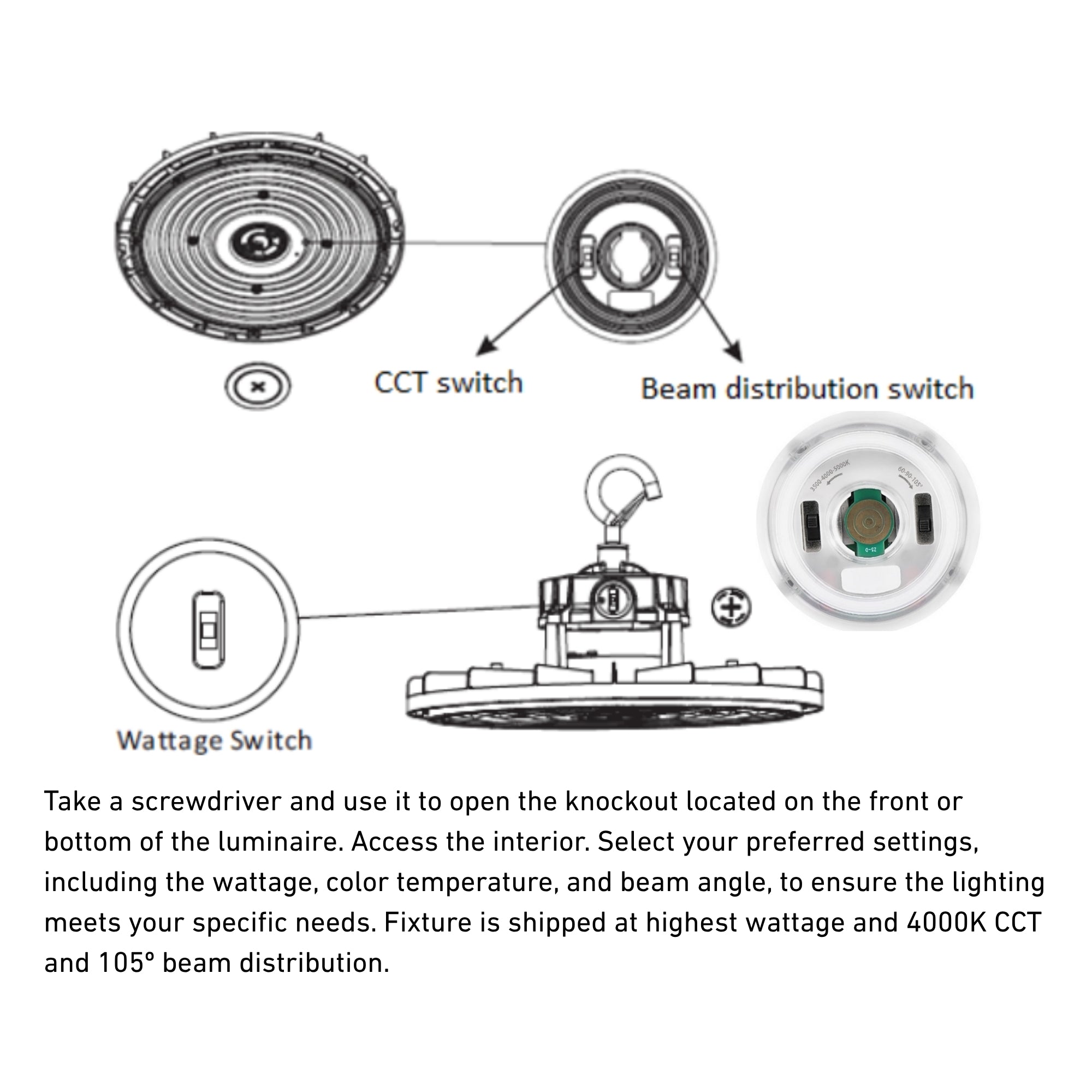

The LEDVANCE Sylvania 66491 is a field-adjustable UFO LED high bay delivering up to 15,000 lumens with selectable wattage options of 60W, 80W, and 100W, selectable CCT of 3500K / 4000K / 5000K, and adjustable beam angles of 60° / 90° / 105°. The fixture operates on 120–347V with integrated 0–10V dimming and is finished in black. It is UL Wet Location Listed, IP65 rated, NEMA 4X rated, and DLC 5.1 Premium listed. Designed for warehouses, distribution centers, manufacturing facilities, and other industrial environments requiring configurable output and optical control.
Key Features
- Selectable Wattage: 60W / 80W / 100W
- Selectable CCT: 3500K / 4000K / 5000K
- Adjustable Optics: 60° / 90° / 105° beam selection
- Light Output: 9,000 / 12,000 / 15,000 lumens
- Voltage: 120–347V, 50/60Hz
- Dimming: 0–10V dimmable driver
- Surge Protection: 6kV
- Environmental Rating: UL Wet Location; IP65; NEMA 4X
- Certifications: DLC 5.1 Premium; cULus; NSF
- Rated Life: 125,000 hours (L70)
- Operating Temperature: -40°F to +122°F (-40°C to +50°C)

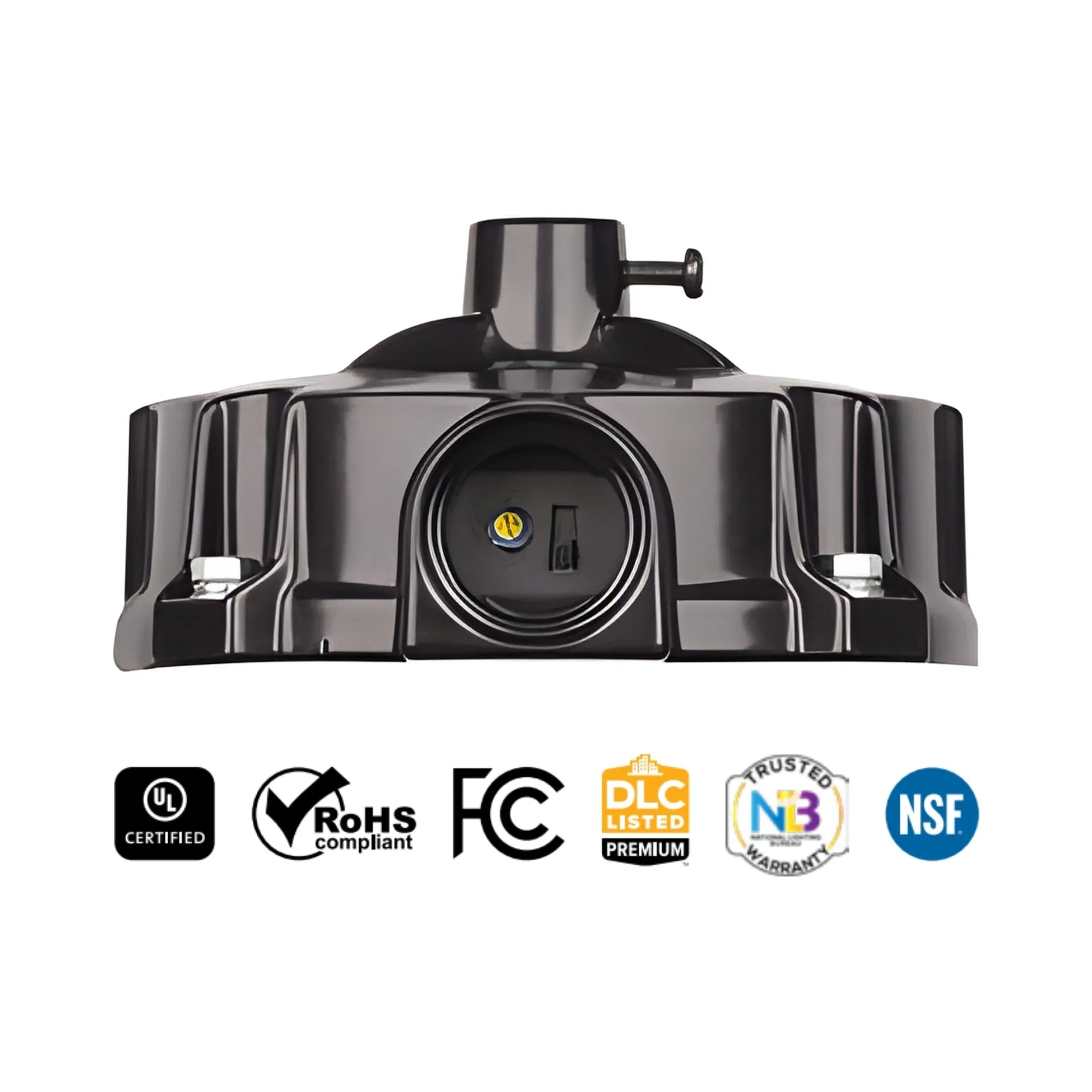

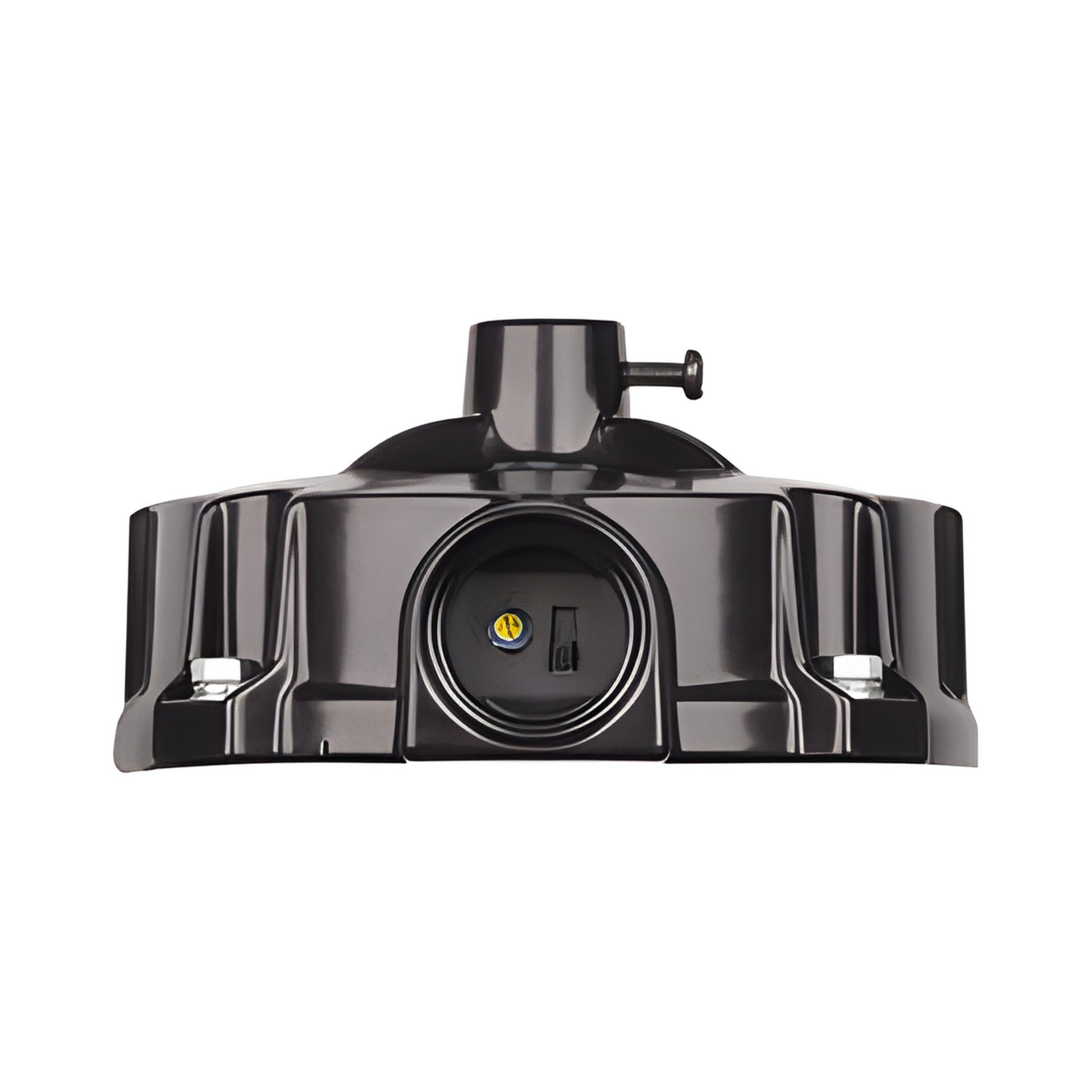

- Controls Compatibility: Pre-wired sensor base for motion/daylight or LINK™ components

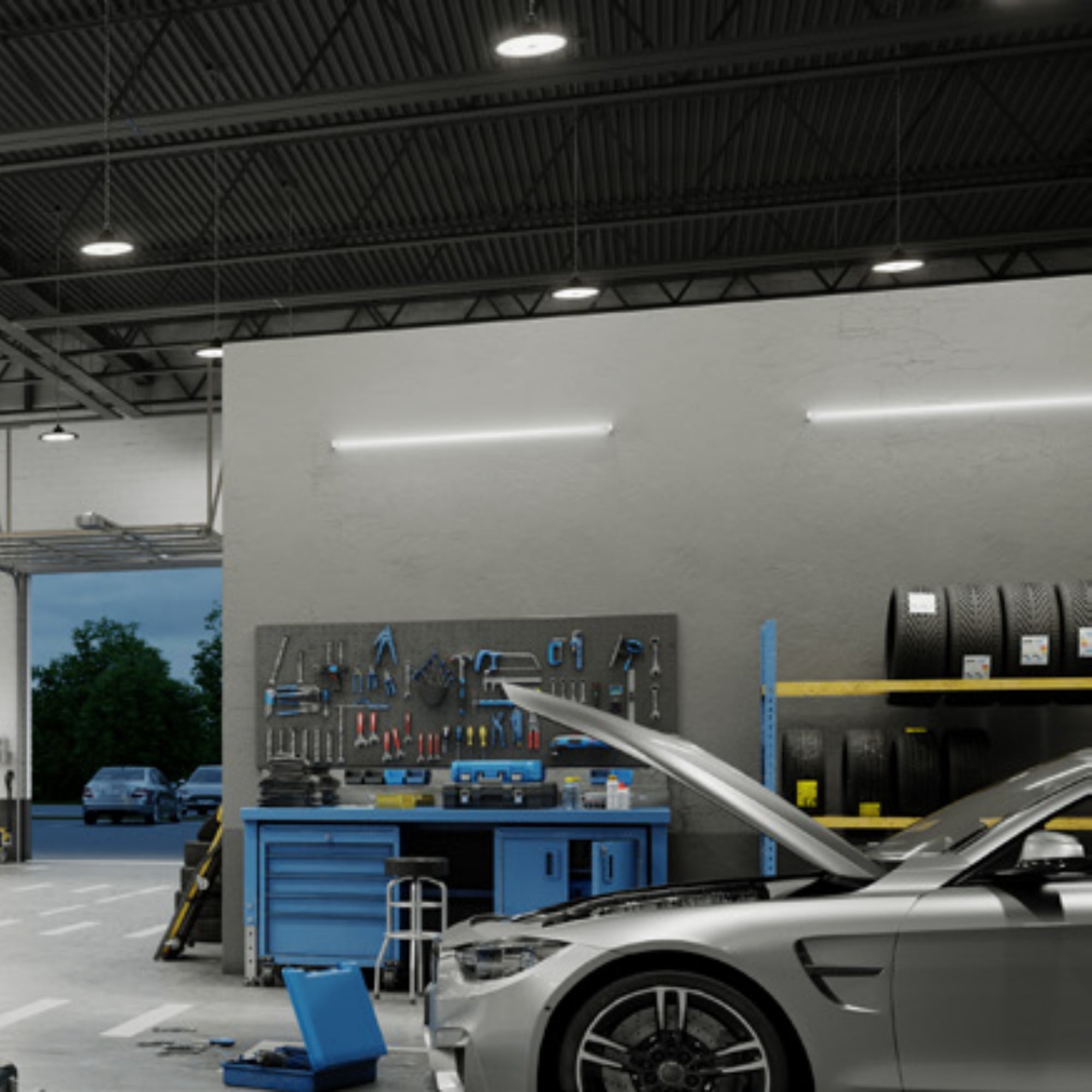

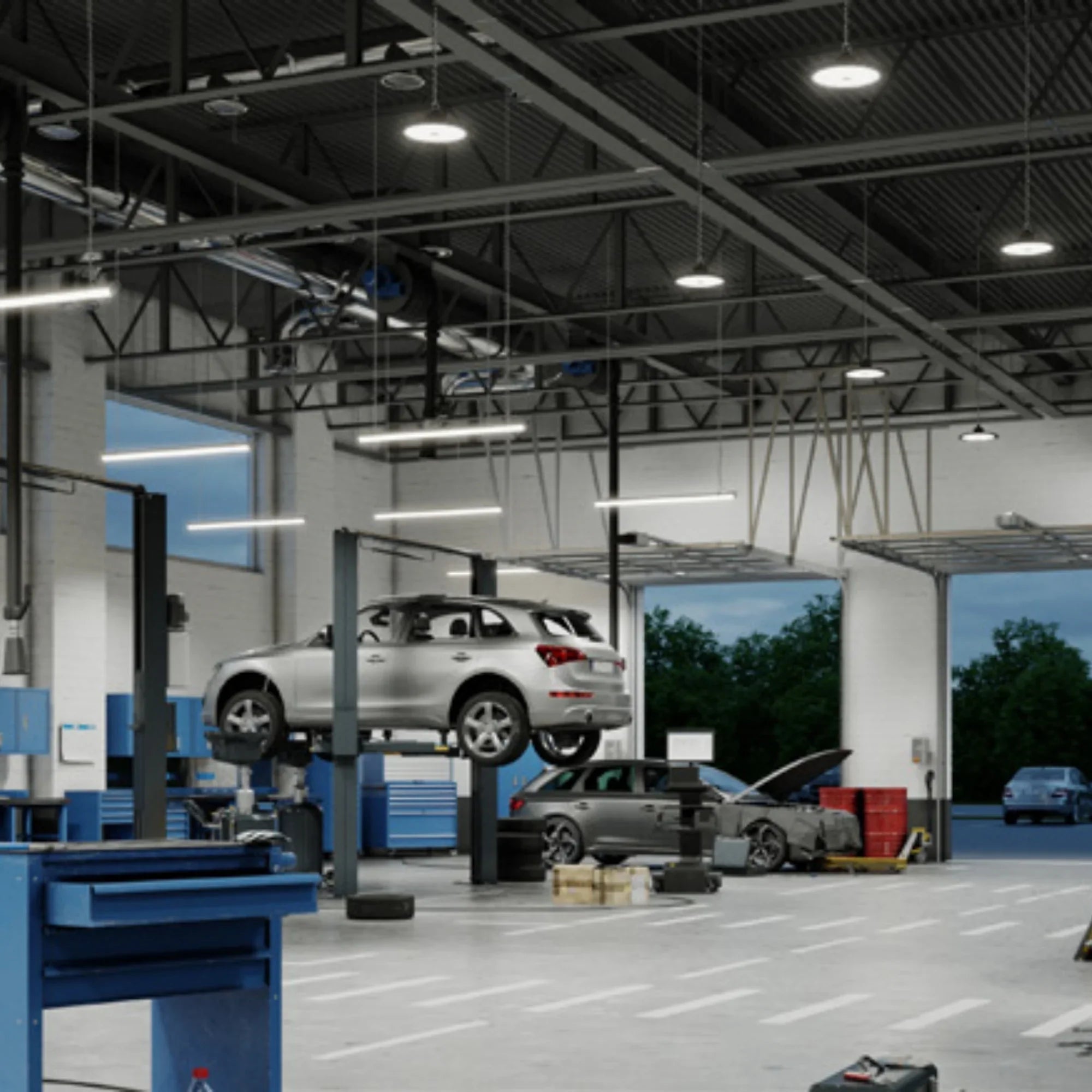

Typical Applications
- Warehouses
- Distribution centers
- Manufacturing facilities
- Narrow aisle layouts
- Open industrial areas
Performance & Light Output:

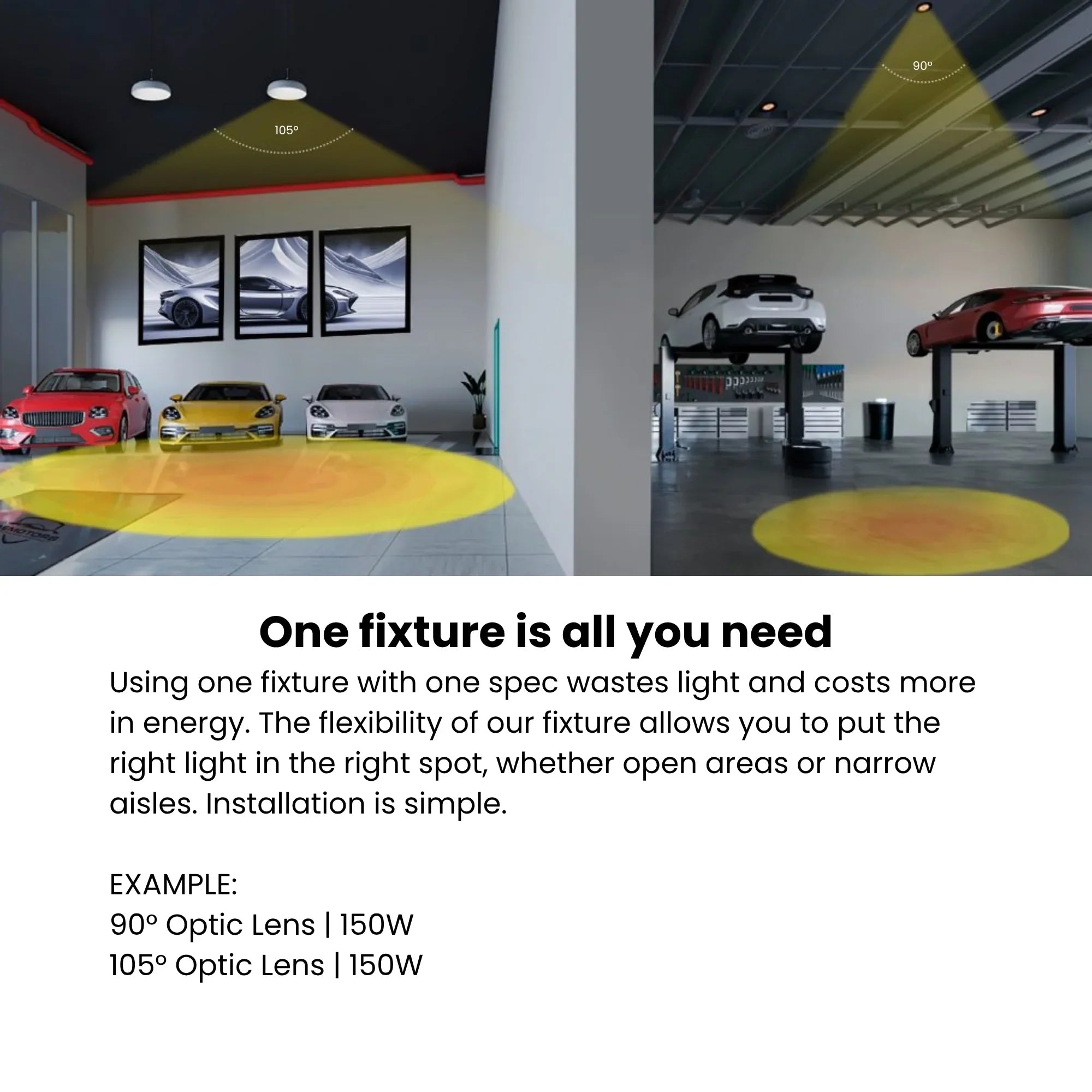

Delivered lumen output ranges from 9,000 to 15,000 lumens depending on selected wattage. Efficacy is rated up to 150 lm/W with CRI 80+. The LED system is rated for 125,000 hours (L70). Adjustable 60°, 90°, and 105° optics provide aisle or open-area distribution control.
Electrical & Controls:

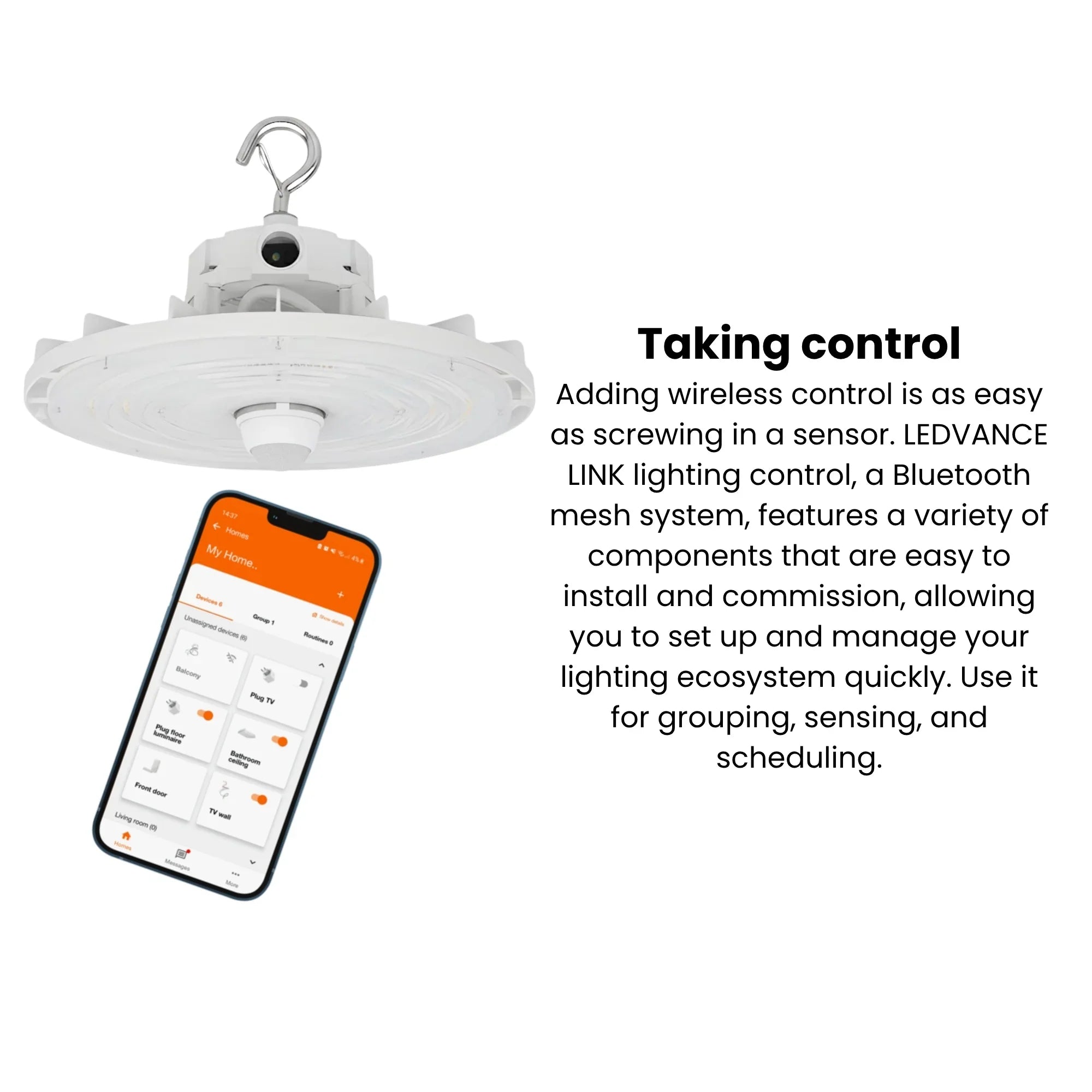

Operates on 120–347V, 50/60Hz with a constant current driver. Includes 0–10V dimming and integrated 6kV surge protection. Ships with a pre-wired sensor base compatible with motion/daylight sensors or LEDVANCE LINK™ Bluetooth® Mesh components. Optional emergency battery backup provides 90 minutes of illumination.
Construction & Durability:
Die-cast aluminum housing with integrated heat sink fins for thermal management. Polycarbonate optical system with adjustable beam selection. Rated IP65, UL Wet Location, and NEMA 4X with IK08 impact resistance. Operating temperature range -40°F to +122°F (-40°C to +50°C).
Installation & Mounting:
Includes pre-installed hook. Ships with 6' power cord and 3' dimming cable. Optional surface and pendant mounting brackets are available separately.
Included
UFO LED high bay fixture (black finish), pre-installed hook, 6' power cord, and 3' dimming cable.
Specifications
Specifications

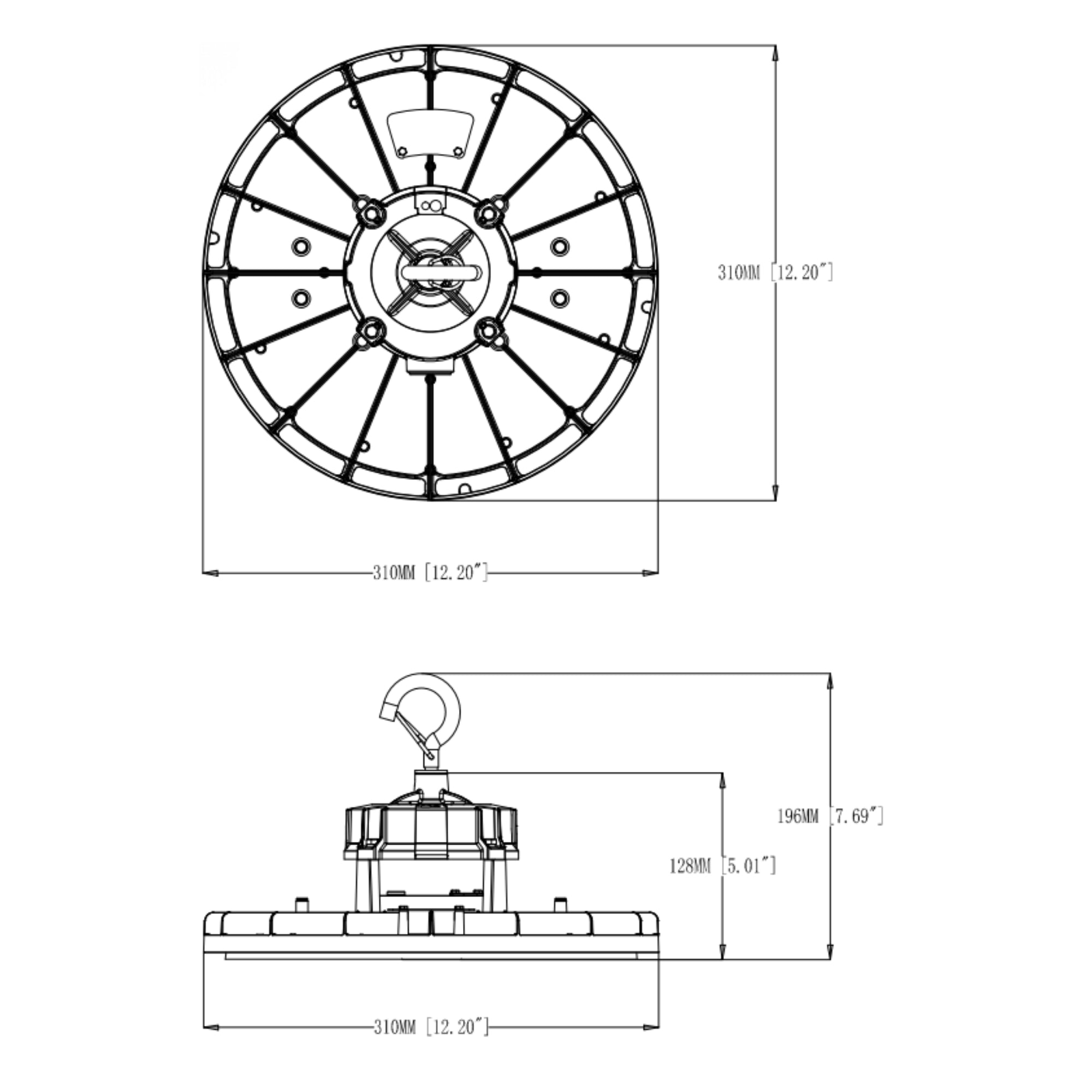

Dimensions
