LEDVANCE Sylvania 66490 OPTI-SELECT UFO High Bay — 200/240/300W Selectable — 3500K/4000K/5000K — 120–347V — White
Available in stock (300)
About this item
About this item
- Selectable Output: Field-select 300W, 240W, or 200W at the fixture — delivers up to 45,000 lumens at 150 lm/W. No rewiring required.
- OPTI-SELECT Adjustable Beam Angle: Field-select 60°, 90°, or 105° beam angle at the fixture — one SKU covers narrow spot, mid-spread, and wide distribution for any ceiling height or aisle layout.
- IP65 Wet Location — IK08 Impact Rated: UL Listed for wet locations — rated for wash-down environments, outdoor canopies, and covered industrial spaces. IK08 polycarbonate housing withstands mechanical impact.
- DLC 5.1 Premium — NSF Listed: Qualifies for the highest tier of utility rebate programs. NSF Listed for food processing and beverage splash zone compliance.
- LEDVANCE LINK™ Bluetooth® Mesh Ready: Pre-wired sensor base accepts LEDVANCE LINK Bluetooth mesh sensors and controllers for occupancy-based automation — no internal wiring required. 0–10V dimming standard.
We process payments securely and do not store credit card information.
Description
Description

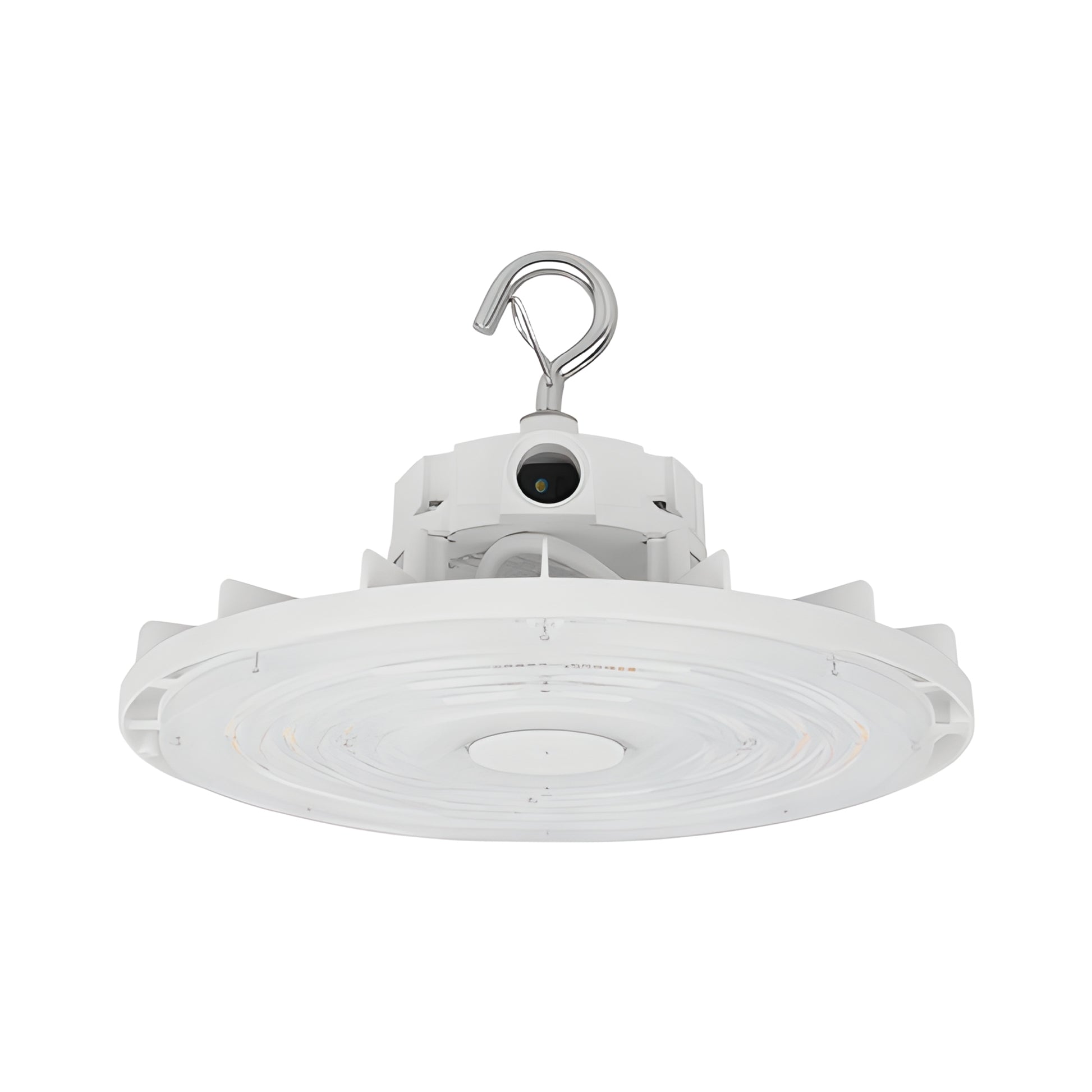

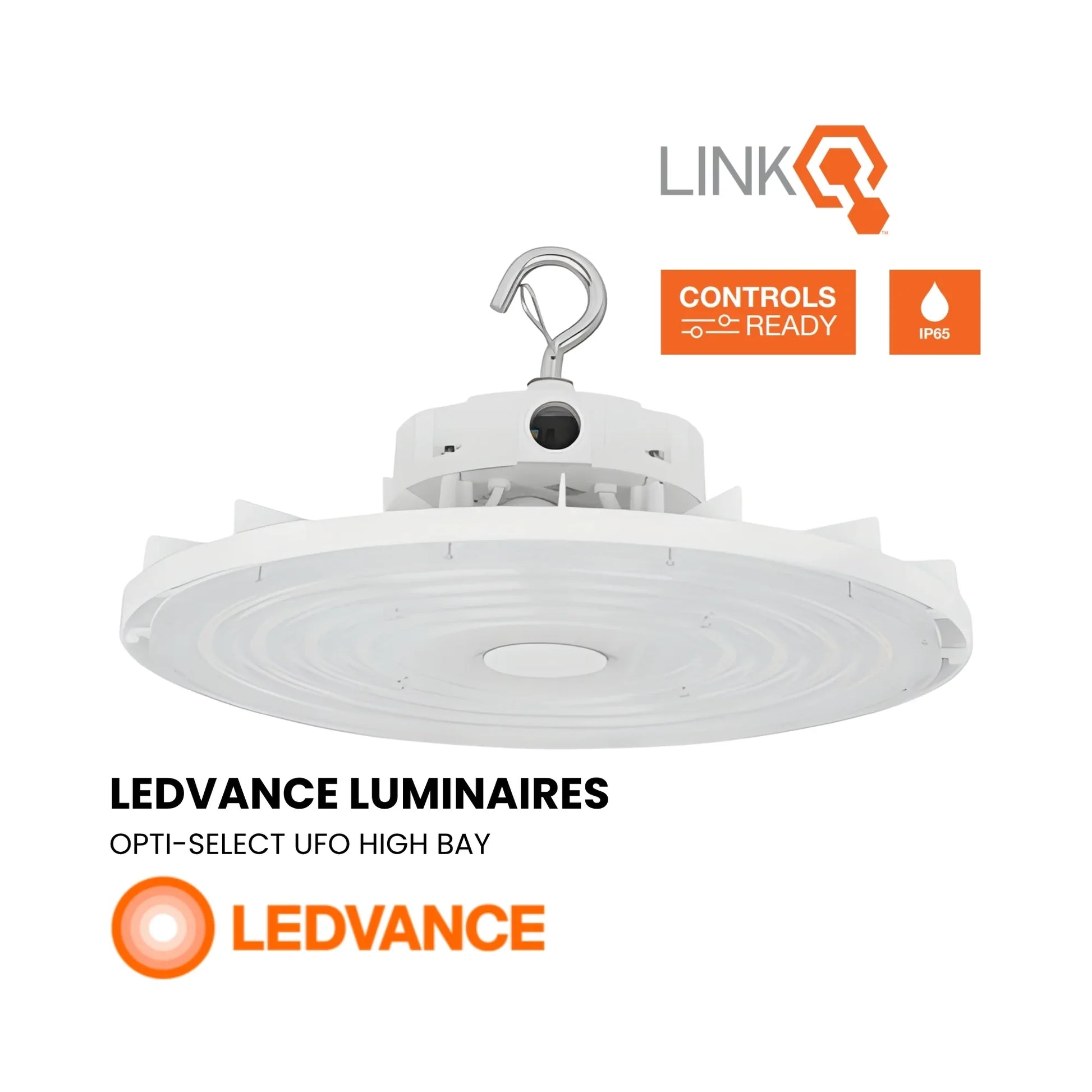

LEDVANCE Sylvania 66490 OPTI-SELECT UFO High Bay — 200W / 240W / 300W Selectable — White
The LEDVANCE Sylvania 66490 OPTI-SELECT UFO High Bay is the highest-output model in the OPTI-SELECT UFO lineup, delivering three independent field-selectable axes: wattage (200W / 240W / 300W), CCT (3500K / 4000K / 5000K), and beam angle (60° / 90° / 105°). Up to 45,000 lumens at 150 lm/W peak efficacy. Operates on 120–347V with integrated 0-10V dimming. UL Wet Location listed, IP65 and IK08 rated, NSF listed, and DLC 5.1 Premium certified. Includes a pre-wired sensor base for tool-free field installation of motion/daylight sensors or LEDVANCE LINK™ Bluetooth® Mesh wireless controls. White finish. For black finish, see the Sylvania 66495. Replaces up to 1000W MH / 750W HPS at the 300W setting.
Key Features
- Selectable Wattage: 200W / 240W / 300W — field-adjustable via built-in selector
- Selectable CCT: 3500K / 4000K / 5000K — field-adjustable
- Selectable Beam Angle (OPTI-SELECT): 60° / 90° / 105° — field-adjustable, no tools required
- Lumen Output: 30,000 lm (200W) · 36,000 lm (240W) · 45,000 lm (300W)
- Peak Efficacy: Up to 150 lm/W
- CRI: >80
- Dimming: 0-10V dimming standard
- Voltage: 120–347V, 50/60Hz; constant current driver with 6kV suppression
- Power Factor: >90% · THD: <20%
- Location Rating: UL Listed for wet locations; IP65 rated; IK08 impact rated
- NSF Listed: Suitable for food processing and food service environments
- Cold Weather Start: -40°F (-40°C) minimum; maximum 122°F (50°C)
- With emergency battery backup (EMBB): operating range 32°F to 113°F (0°C to 45°C)
- Certifications: cULus, DLC 5.1 Premium, NSF, RoHS, FCC, IK08, NEMA 4A
- Rated Life: 100,000 hours L70
- Warranty: 5-year (NLB Trusted Warranty Program)
- Wattage Equivalency: 300W replaces up to 1000W MH / 750W HPS
Performance & Light Output
| Wattage | Lumens | Efficacy |
|---|---|---|
| 200W | 30,000 lm | 150 lm/W |
| 240W | 36,000 lm | 150 lm/W |
| 300W | 45,000 lm | 150 lm/W |
CRI >80. Rated life 100,000 hours L70. CCT selection (3500K / 4000K / 5000K) does not affect lumen output at the same wattage.

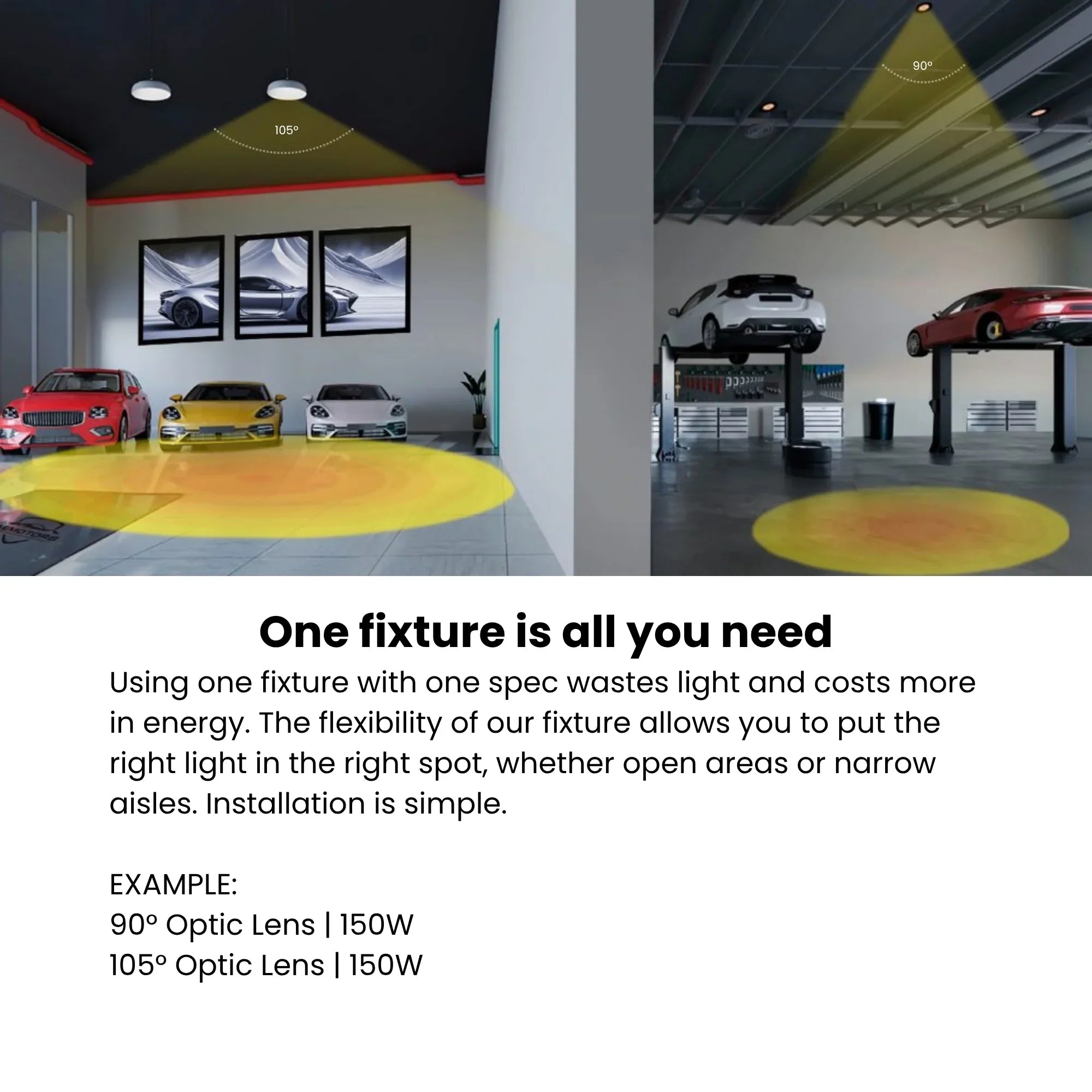

Optics & Distribution

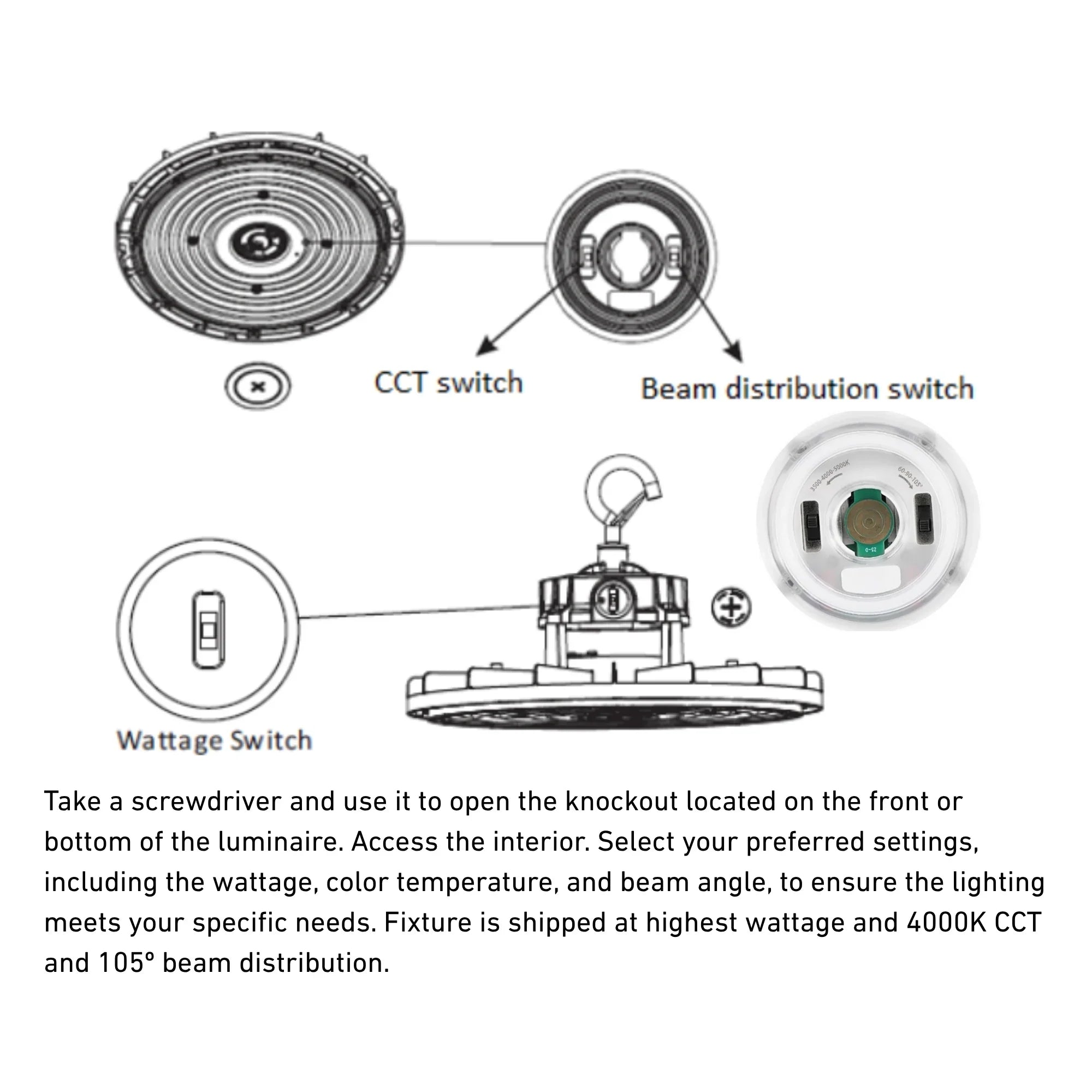

The OPTI-SELECT system provides three field-selectable beam angles via a built-in optics switch on the fixture body — no tools, no accessories, no rewiring required:
- 60° — Narrow: Concentrates 45,000 lm output for very high footcandle targets in aisle and rack applications at 30–40 ft mounting heights.
- 90° — General: Standard distribution for open-area commercial and industrial applications. Balanced horizontal and vertical spread for uniform floor illumination.
- 105° — Wide Flood: Maximum horizontal spread for large open floor areas where broad coverage from fewer fixtures is the priority.
Optional polycarbonate refractor (240/300W body size) and polycarbonate bottom lens accessories available separately for further beam shaping beyond the built-in optics range.

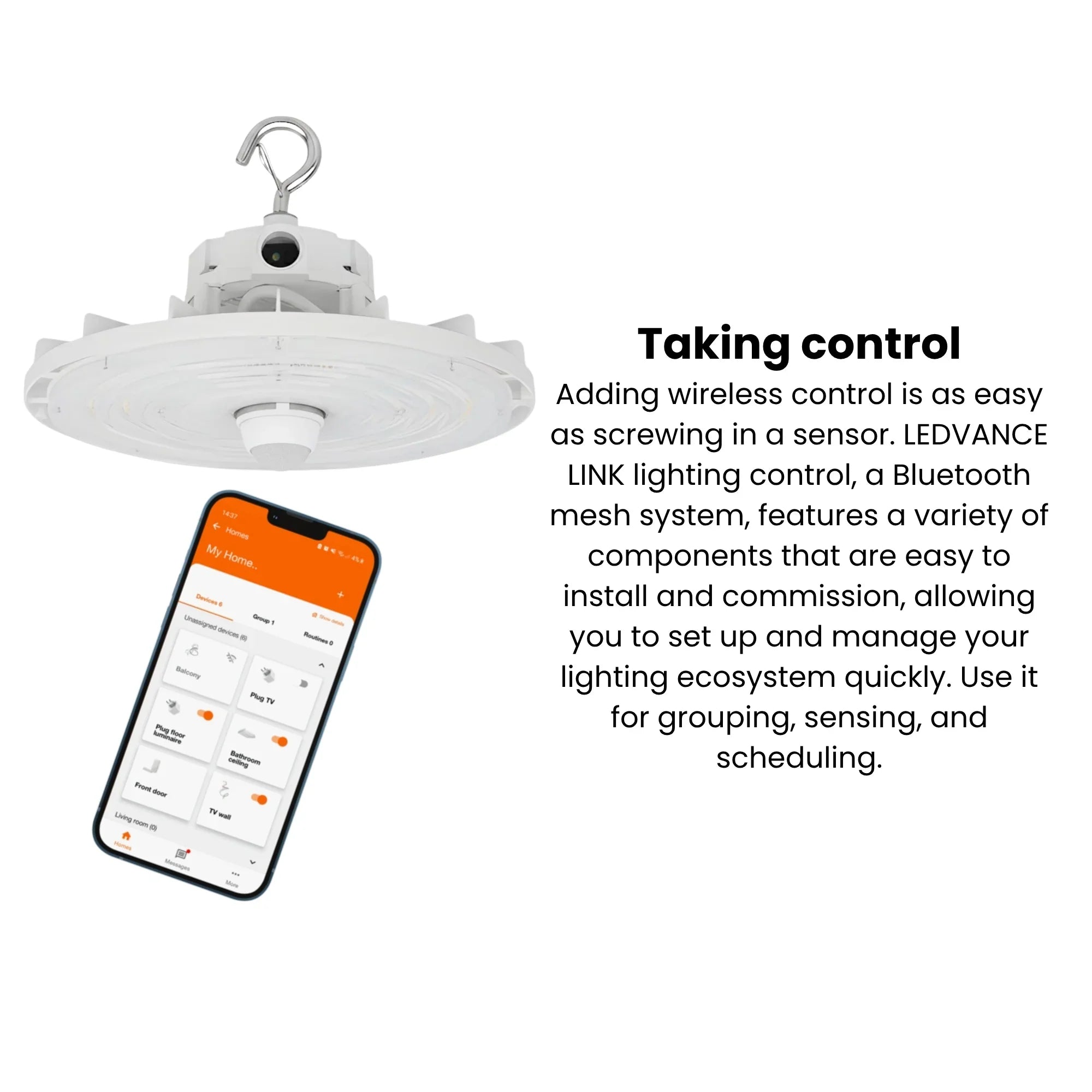

Smart & Control Features

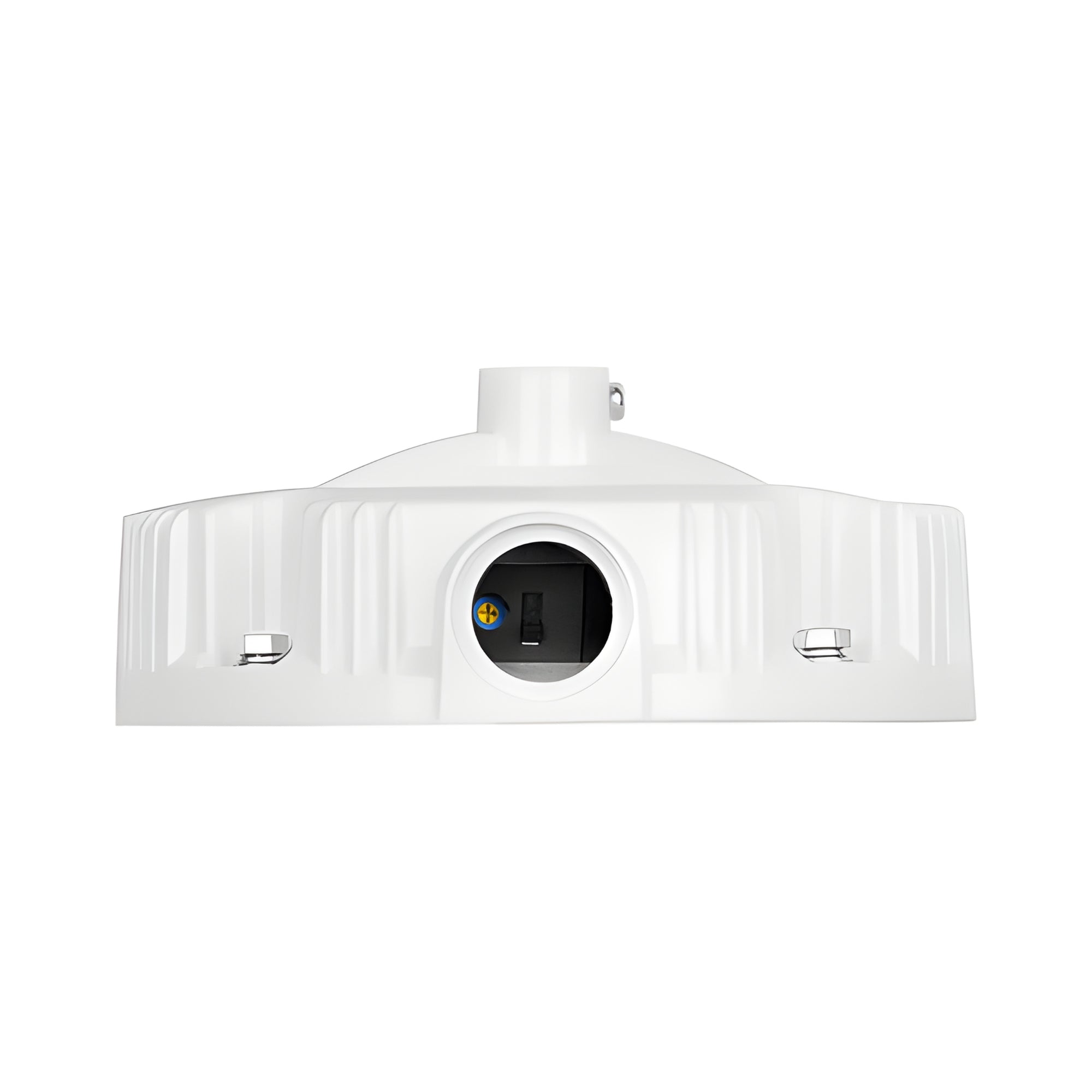

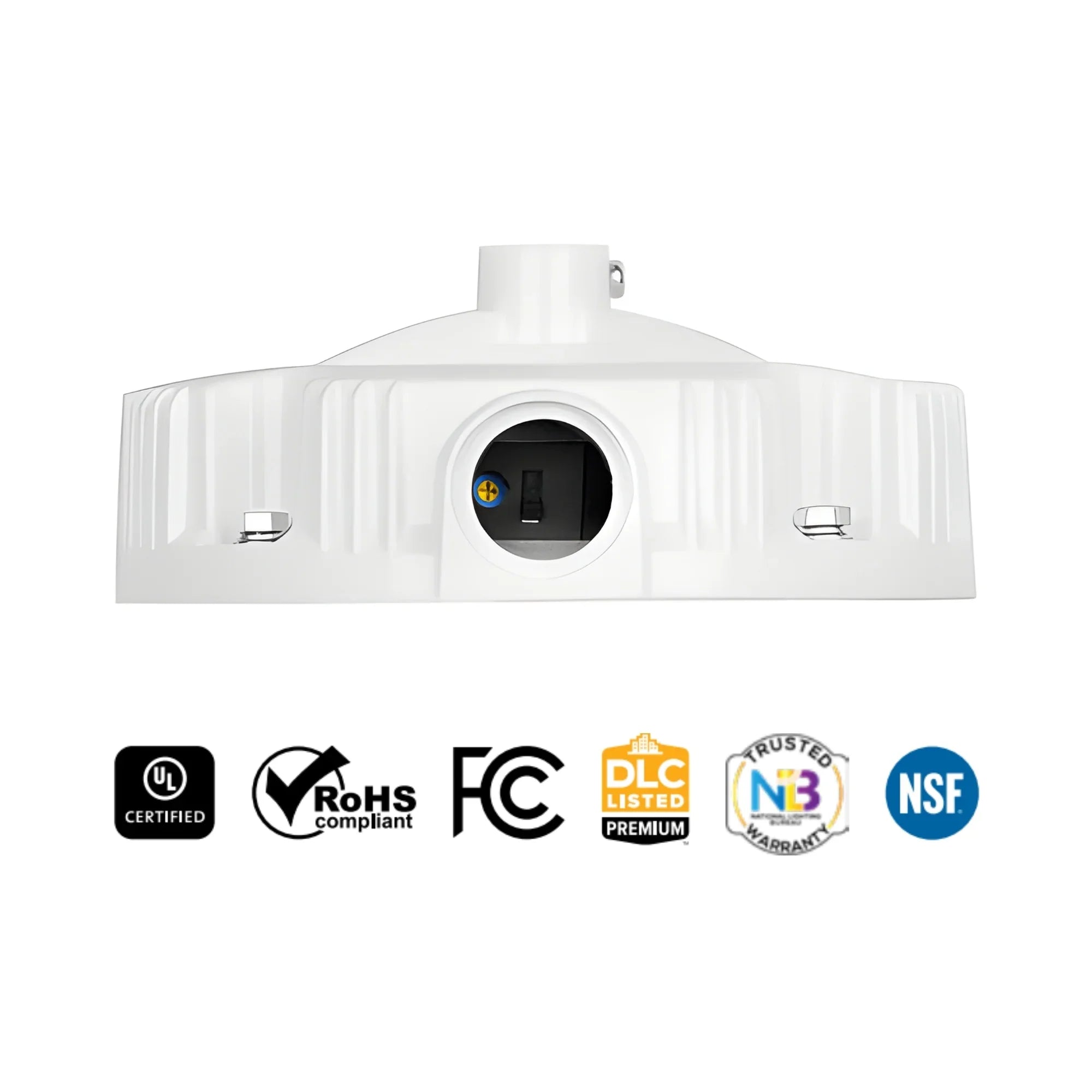

Every OPTI-SELECT fixture ships with a pre-wired sensor base — screw in an optional sensor in seconds, no wiring required. Two wireless control platforms supported:
- Standard sensors (0-10V): Model 65622 / 62664 motion/daylight sensor · Model 65623 sensor with remote — default settings: 100% detection area, 10-min hold time, 50 Lux daylight threshold, 60-min standby, 30% standby dim level (adjustable via remote 65623)
- LEDVANCE LINK™ Bluetooth® Mesh: Model 62634 sensor+controller · Model 62630 BLE controller · Model 63652 adapter (required for 3-pin socket) · Model 62636 5-button wall controller — app or wall controller, up to 40 ft ceiling height
Electrical
Constant current LED driver. Input: 120–347V, 50/60Hz. Power Factor: >90%. THD: <20%. Surge protection: 6kV. Includes 6-foot power cable and 3-foot dimming cable.
Construction
Die-cast aluminum housing in white finish. IP65 rated for dust and water ingress. IK08 impact rated. NEMA 4A rated. Weight: 7.1 lbs. Dimensions: 15.36 in dia × 5.13 in H (larger body shared with 66489/66494).
Installation & Mounting
Comes standard with pre-installed hook, 6-foot power cable, and 3-foot dimming cable. Optional accessories (sold separately):
- Polycarbonate Refractor: For 240/300W body
- Polycarbonate Bottom Lens for Refractor: For 240/300W body
- U-Bracket Installation Kit: All wattages
- Pendant Mounting Bracket: All wattages
- Sensors: 65622 / 62664 motion/daylight · 65623 sensor remote
- Emergency Battery Backup: Model 61062 W/Remote (90 min runtime) · Model 61089 — note: operating temperature with EMBB limited to 32°F–113°F
- Junction Box: Model 63882
- LEDVANCE LINK™: 63652 adapter · 62630 BLE controller · 62634 BLE sensor+controller · 62636 5-button wall switch

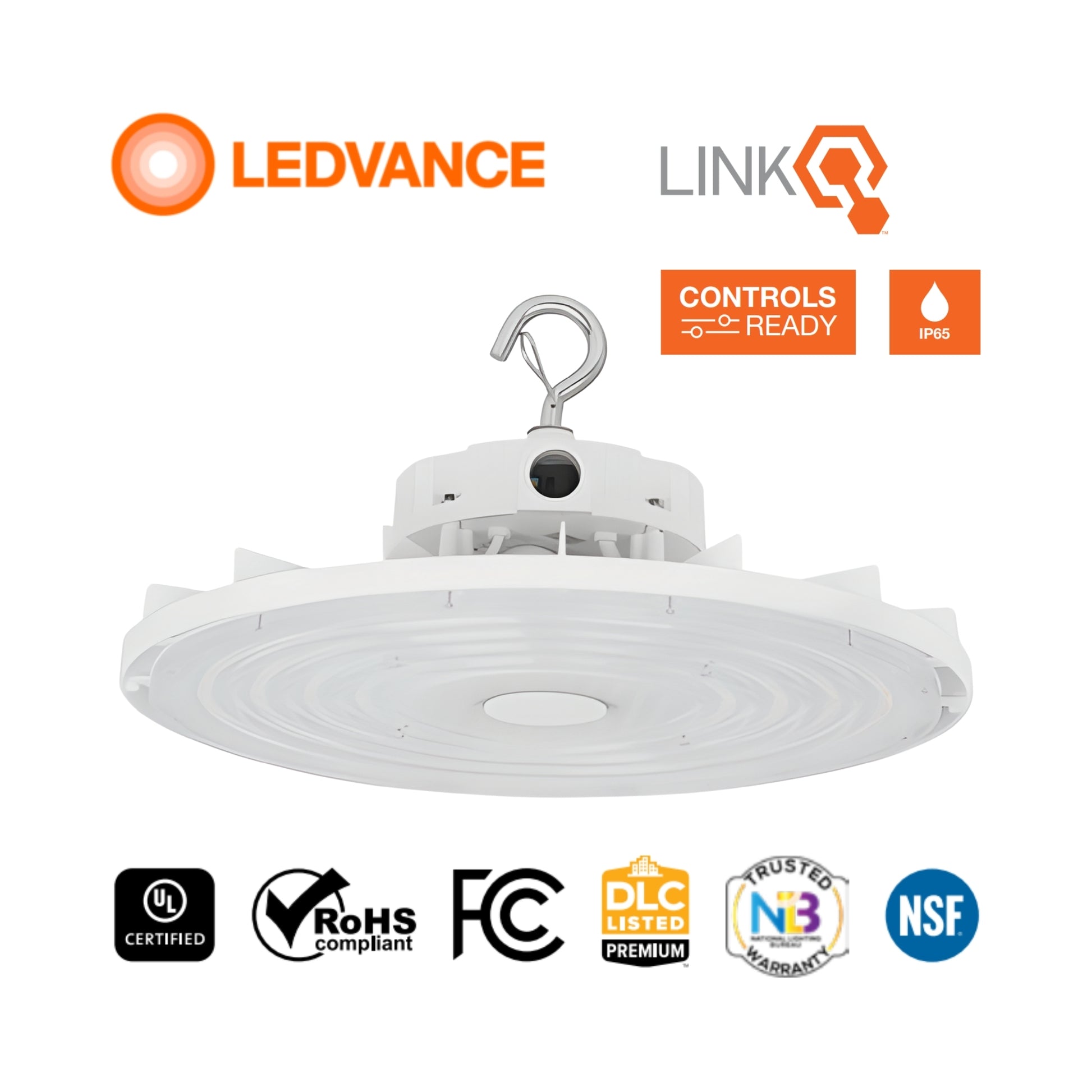

Certifications & Rebates
cULus Listed for wet locations. DLC 5.1 Premium listed — qualifies for the highest tier of utility rebate programs. NSF listed. RoHS, FCC, IK08, NEMA 4A compliant. To verify rebate eligibility with your utility provider, visit designlights.org and search catalog number UFOV/S300UNHD8SC7ADJ/WH.

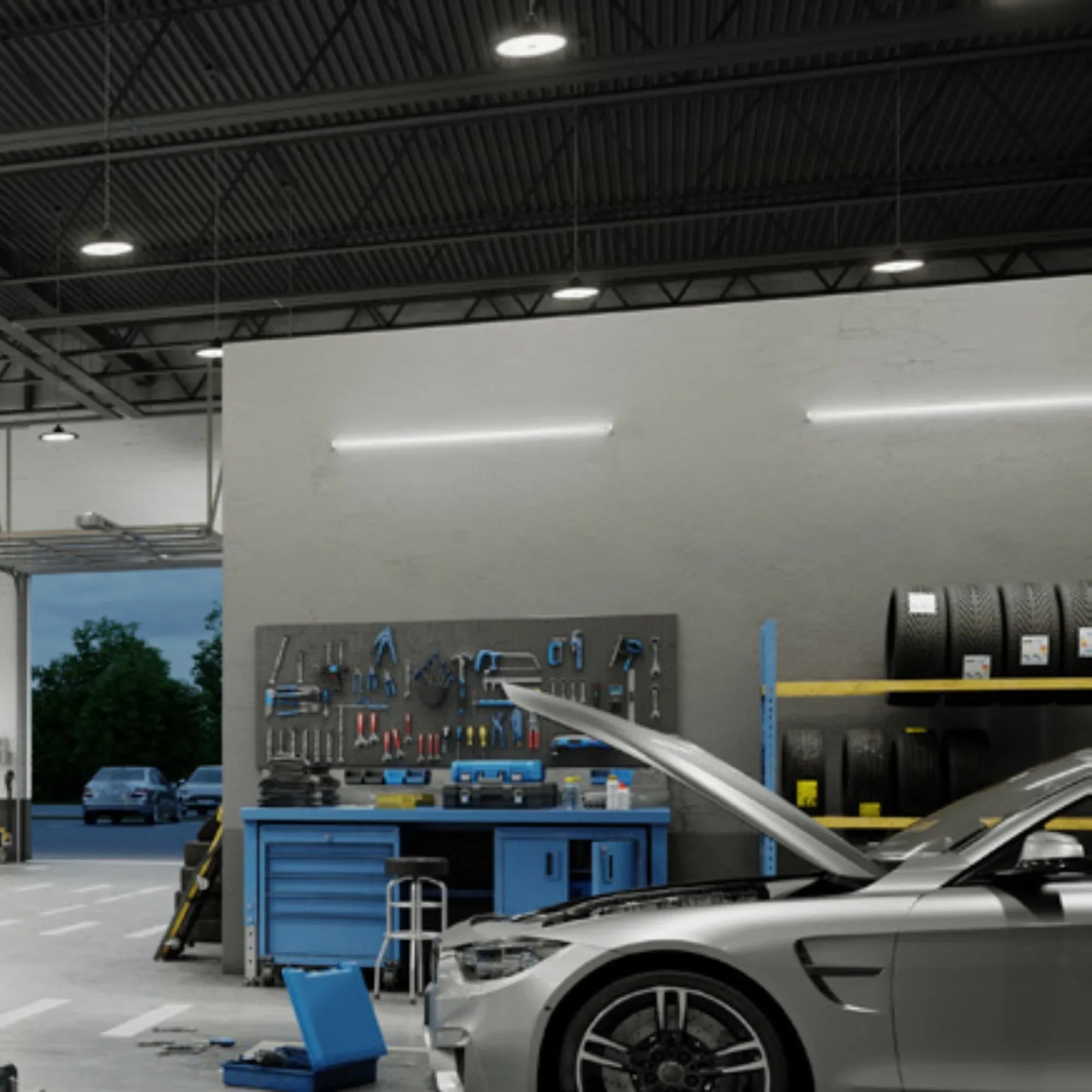

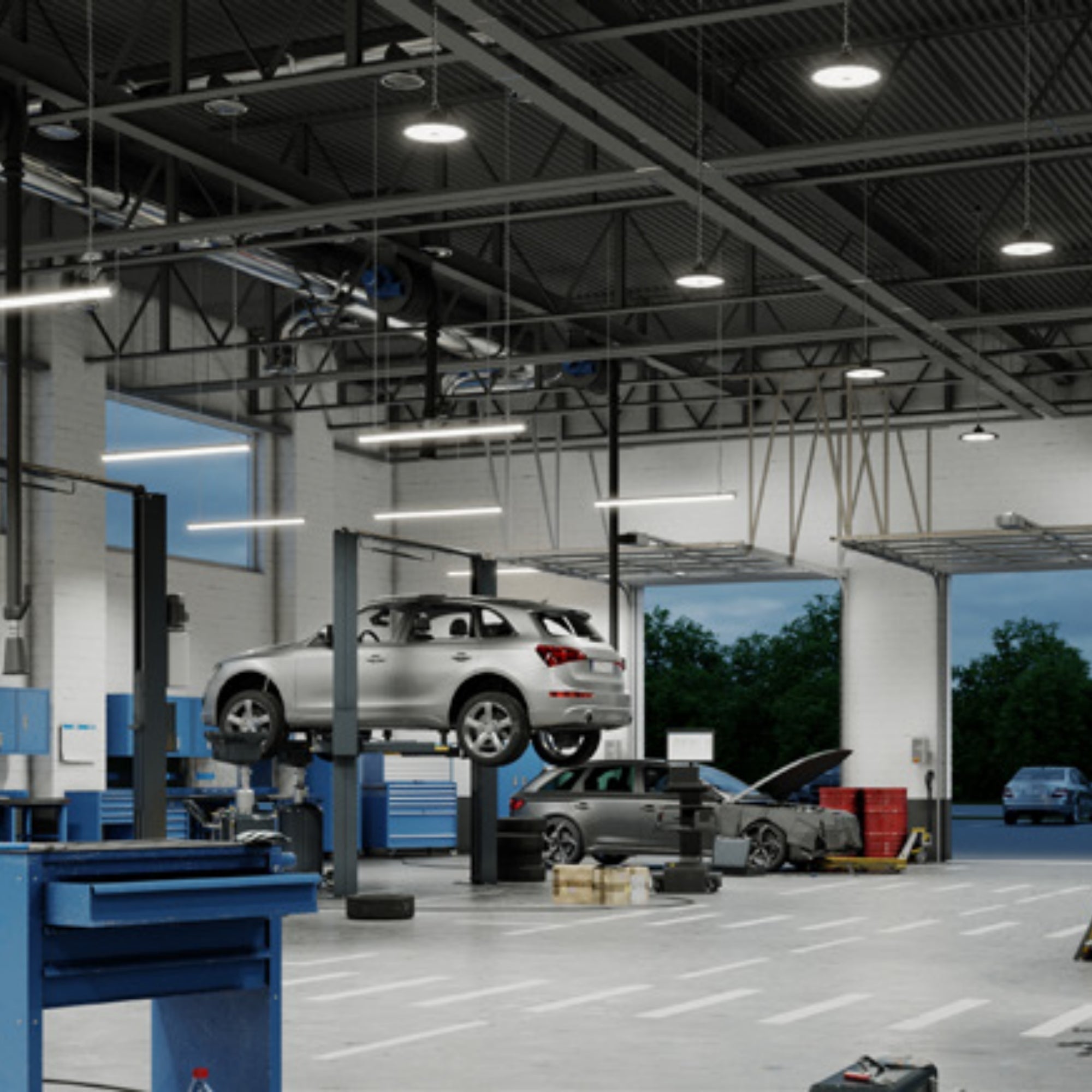

Typical Applications
- Very high-ceiling warehouses and distribution centers — 45,000 lm at 300W delivers high footcandle levels at 35–40 ft mounting heights
- Warehouse aisles — 60° beam maximizes intensity in narrow rack aisles at extreme mounting heights
- Food processing and food service facilities — NSF listing + IP65 + IK08 meet hygiene and impact requirements
- Large manufacturing and assembly plants replacing 1000W MH / 750W HPS systems
- Large open industrial storage facilities requiring maximum output from minimum fixture count
What's Included
- LEDVANCE OPTI-SELECT UFO High Bay — White
- Pre-installed hook
- 6-foot power cable
- 3-foot dimming cable
- Pre-wired sensor base (sensor sold separately)
