LEDVANCE Sylvania 66486 OPTI-SELECT UFO High Bay — 60/80/100W Selectable — 3500K/4000K/5000K — 120–347V — White
Available in stock (300)
About this item
About this item
- Output & Equivalency: Field-adjustable 60W / 80W / 100W power settings deliver up to 15,000 lumens, replacing legacy fixtures up to 250W MH.
- OPTI-SELECT Optics: Features an integrated switch for on-site beam angle selection between 60°, 90°, and 105° distribution without swapping lenses.
- Selectable Color Temperature: Integrated switch allows on-site selection between 3500K, 4000K, or 5000K without rewiring.
- Controls & Automation: Pre-wired sensor base easily accepts plug-and-play motion/daylight sensors and LEDVANCE LINK Bluetooth mesh network controllers.
- Rebates & Ingress: Certified DLC Premium for utility rebate qualification nationwide, cULus Listed for wet locations, and sealed to IP65 and NEMA 4X standards.
We process payments securely and do not store credit card information.
Description
Description
LEDVANCE Sylvania 66486 OPTI-SELECT UFO High Bay — 60/80/100W Selectable — 3500K/4000K/5000K — 120–347V — White
The LEDVANCE Sylvania 66486 (UFOV/S100UNHD8SC7ADJ/WH) is a commercial round UFO LED high bay engineered to deliver up to 15,000 lumens with field-adjustable 60W / 80W / 100W power settings and switchable 3500K / 4000K / 5000K color temperatures. Operating on 120–347V electrical systems with 0–10V continuous dimming, this OPTI-SELECT luminaire provides energy-efficient replacement for legacy fixtures up to 250W MH. Built with an IP65 wet location and NEMA 4X rating alongside a cULus Listing, it is qualified for commercial utility rebates under DLC Premium standards and features an innovative 3-axis selectability including an onboard beam angle adjustment switch.
Key Features
- Selectable Wattage: 60W / 80W / 100W — field-adjustable via onboard switch
- Wattage Equivalency: Replaces legacy HID fixtures for up to 78% energy savings
- Maximum Lumen Output: 15,000 lm at 100W
- Peak Efficacy: 150 lm/W for high-efficiency commercial operation
- CRI: >80 color rendering across all settings
- Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch
- Lens & Optics: OPTI-SELECT beam angle selection of 60°, 90°, and 105°
- Dimming: 0–10V continuous dimming standard
- Voltage: Universal 120–347V AC constant current driver
- Location Rating: cULus Listed for wet locations; IP65 and NEMA 4X ingress rated
- Operating Temperature: −40°F (−40°C) to 122°F (50°C) ambient range
- Certifications: DLC Premium, cULus Listed, FCC, NSF, IK08 Impact Rated, RoHS Compliant
- Rated Life: L70 >100,000 hours per IES TM-21 standards
- Warranty: 5-year limited warranty — LEDVANCE Sylvania
- Sensor Compatibility: Pre-wired sensor base accepts plug-and-play controls without internal wiring
Performance & Light Output
| Wattage | Total Lumens | Efficacy | Legacy Equivalent |
|---|---|---|---|
| 100W | 15,000 lm | 150 lm/W | ~250W MH |
| 80W | 12,000 lm | 150 lm/W | ~250W MH |
| 60W | 9,000 lm | 150 lm/W | ~150W MH |
CRI >80 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing. Delivers up to 78% direct energy reduction compared to traditional high-intensity discharge systems.
Lens & Optics

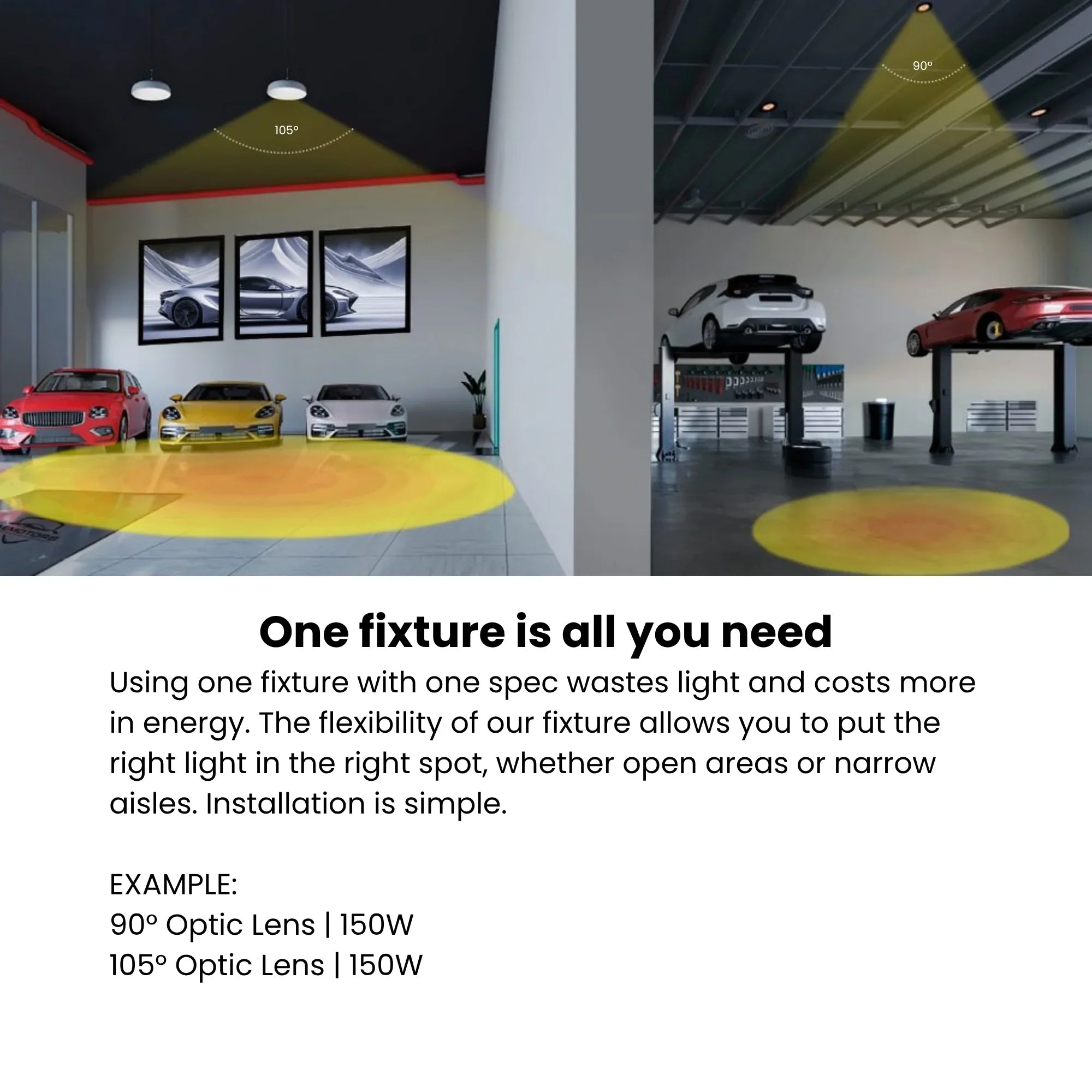

The OPTI-SELECT optical system provides interchangeable aisle and open-area optics on the job site without tools or rewiring. The built-in beam selection switch allows installers to instantly toggle between three distinct distributions:
- 60° Narrow Optic (Included): Concentrates beam distribution for narrow racking aisles, focused task areas, and elevated mounting heights.
- 90° Standard Optic (Included): Delivers balanced distribution for standard warehouse floors.
- 105° Wide Optic (Included): Delivers broad, uniform beam distribution for open warehouse floors, staging areas, and general open-ceiling commercial layouts.
All distributions are selectable natively. Optional aluminum reflectors, polycarbonate refractors, and bottom lenses are available separately (see Installation & Mounting).
Smart & Control Features

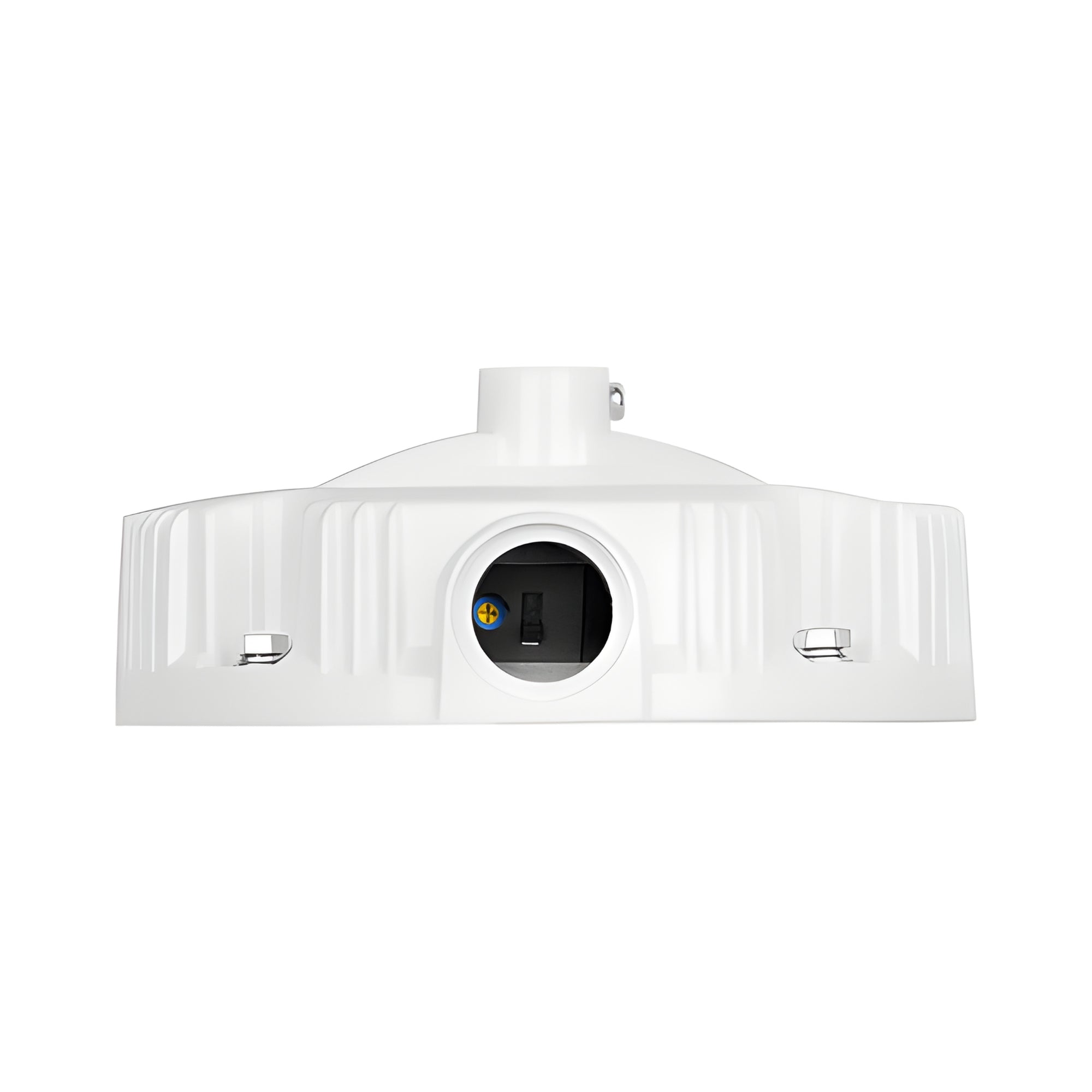

The 66486 features an integrated pre-wired sensor base supporting modular sensing and automated facility lighting control:
- 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers and centralized building automation systems (BAS).

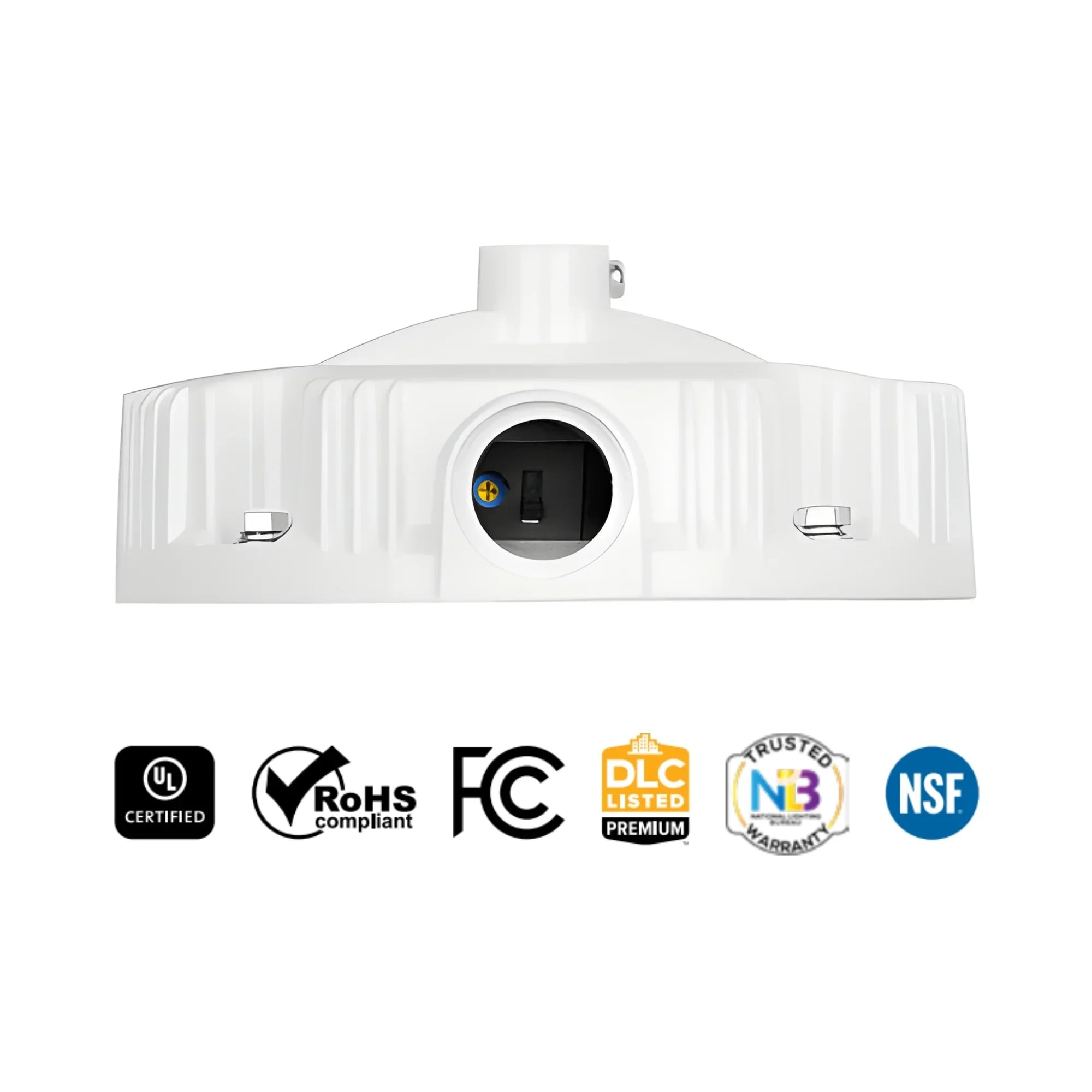

- Sensor Compatibility (Accessory): Accepts field-installable screw-in microwave and PIR motion/daylight sensors via the integrated receptacle without opening the internal driver compartment.

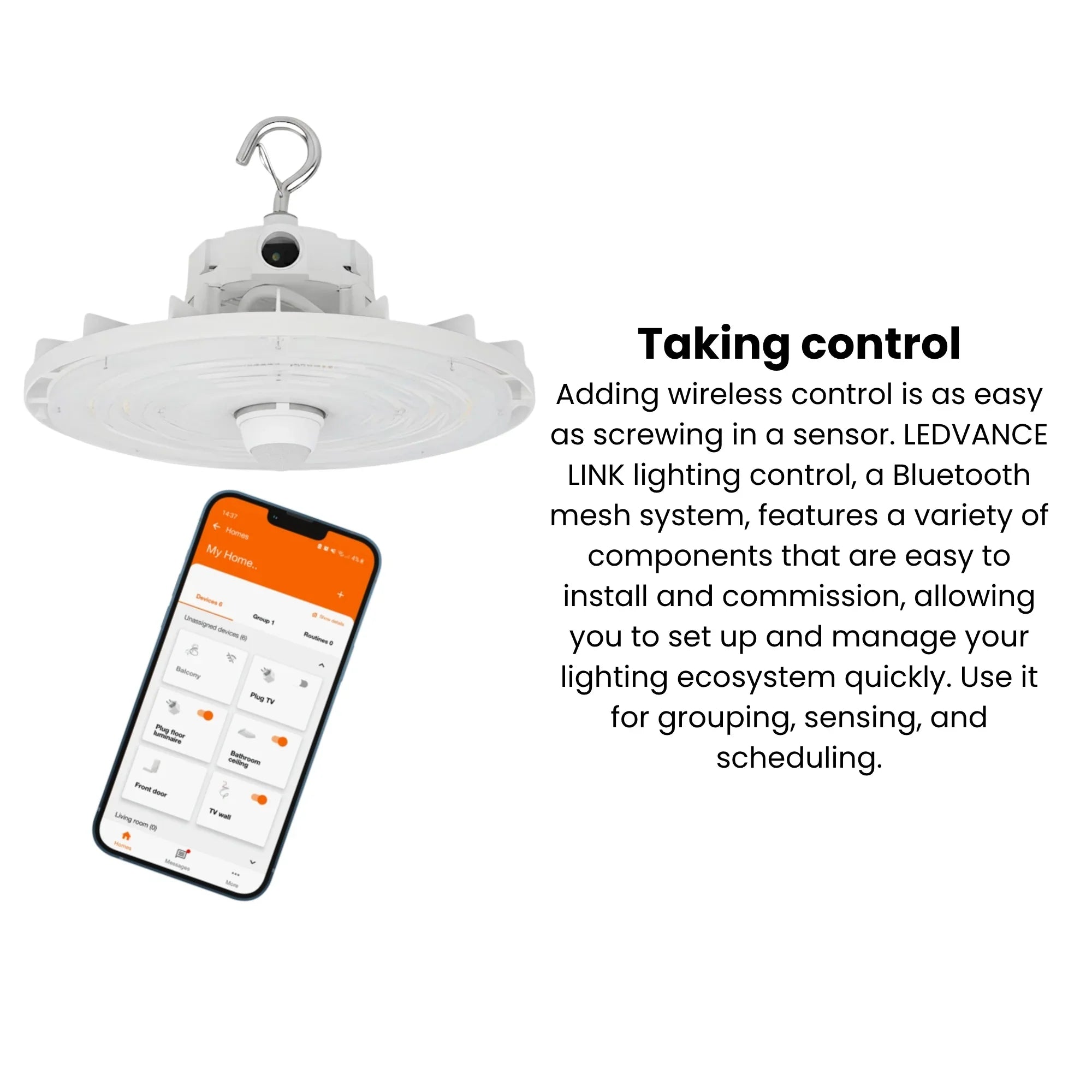

- LEDVANCE LINK™ (Accessory): Compatible with Bluetooth mesh controllers for wireless group control, automated scheduling, and occupancy sensing.
Compatible plug-and-play sensors, LINK controllers, and remotes are sold separately.
Electrical
Powered by a constant current driver operating on 120–347V AC. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge suppression protects internal electronics against line-to-line and line-to-ground transient voltage spikes. Includes pre-wired 0–10V dimming leads. Factory-equipped with a 6-foot power cable and 3-foot dimming cable. RoHS compliant.
Construction
Housing & Thermal: Lightweight aluminum body engineered to function as a high-efficiency passive heatsink, dissipating heat away from LED arrays and internal driver circuits to preserve lumen maintenance across the rated lifespan.
Lens & Optics: Features the OPTI-SELECT integrated 3-axis selection switch and a central IK08 impact-rated lens.
Finish: Commercial finish in White.
Environmental Sealing: IP65 and NEMA 4X rated and cULus Listed for wet locations, providing a sealed barrier resistant to dust, moisture, and corrosion. Ambient operating temperature range: −40°F (−40°C) to 122°F (50°C).

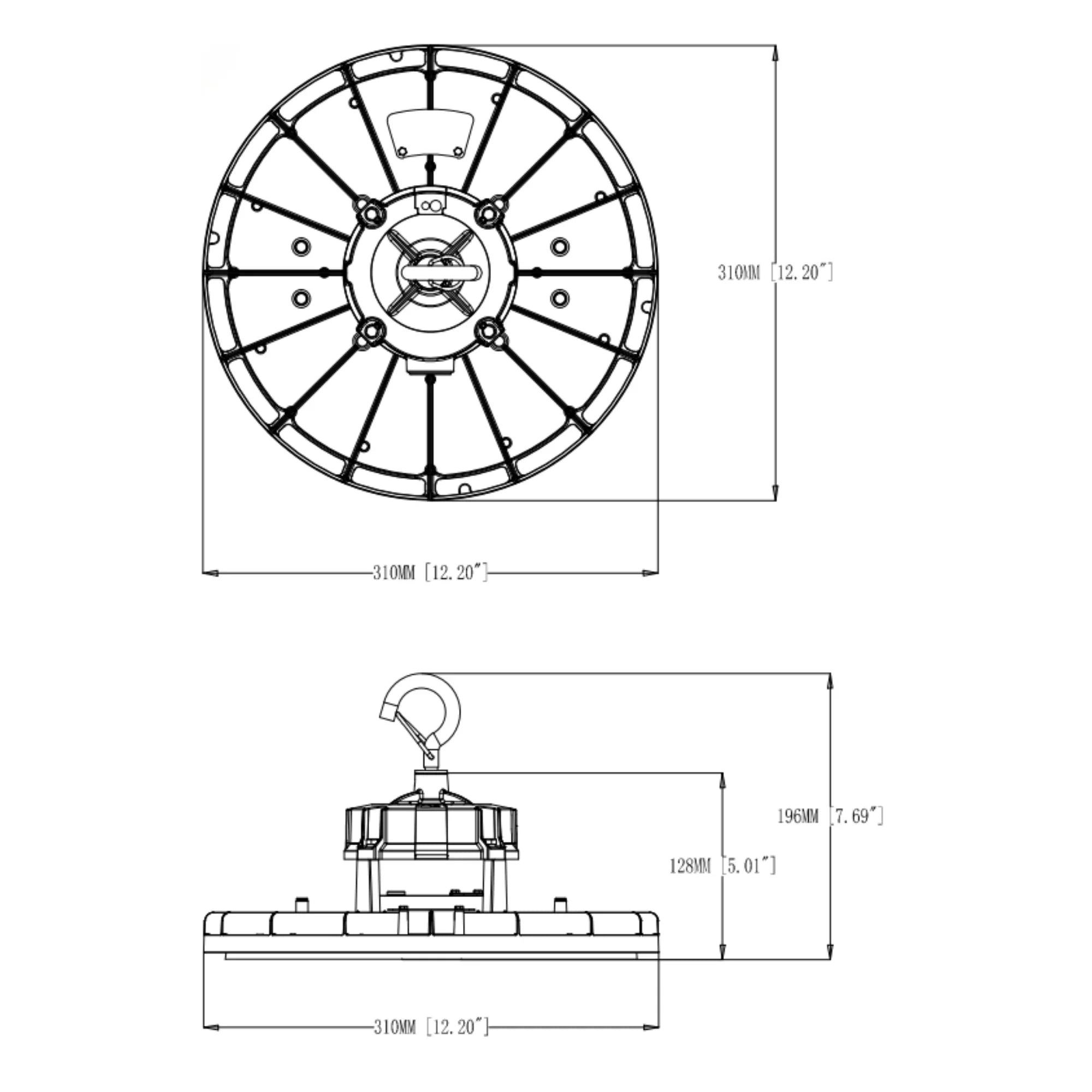

Dimensions & Weight: 12.2" Dia × 5.0" H. Fixture weight: 5.4 lbs.
Installation & Mounting
Standard Hardware: Ships standard with a hanging hook accessory for quick suspension installation.
Mounting Options: Compatible with rigid pendant mounting and direct surface mounting via dedicated U-bracket kits.
Wiring: Includes a factory-installed 6-foot power cable and 3-foot dimming cable.
Accessories (Sold Separately):
- Mounting Brackets: 66700 (Surface Mount U-Bracket, White) | 66702 (Pendant Mount, White)
- Reflectors & Lenses: 66706 (Aluminum Reflector) | 66708 (Polycarbonate Refractor) | 66710 (Bottom Lens)
- Wire Guards: 66704 (Wire Guard)
- Emergency Battery Backup: 61062 (40W EMBB, 120-347V)
- Sensors & Controls: 65622 (Microwave Sensor) | 62664 (PIR Sensor) | 65623 (Sensor Remote) | 62634 (LEDVANCE LINK Bluetooth Sensor) | 75943 (Sensor Adapter) | 62630 (LINK Controller)
- Other: 63882 (UFO Junction Box, Gray)
Certifications & Rebates
- DLC Premium: Qualifies for commercial lighting utility rebate programs nationwide
- cULus Listed: Certified for wet locations per UL standards for commercial luminaires
- NSF Certified: Meets sanitation requirements for splash zones and food processing environments
- FCC: Certified for commercial and industrial electromagnetic interference immunity
- RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals
Typical Applications
- Food Processing & Washdown — NSF certification, NEMA 4X, and IP65 sealing support strict sanitation and hose-down requirements
- Aisle Racking & Logistics Corridors — OPTI-SELECT 60° setting concentrates illumination along narrow storage rows to eliminate wasted vertical spill
- Warehouses & Distribution Centers — OPTI-SELECT 105° setting provides broad, uniform footcandle distribution for massive open floor layouts
- Gymnasiums & Athletic Facilities — IK08 impact-rated lens and optional wire guards provide robust durability against mechanical impacts
What's Included
- LEDVANCE Sylvania 66486 OPTI-SELECT UFO High Bay — White
- Hanging hook accessory
- Factory-installed 6-foot power cable
- Factory-installed 3-foot dimming cable
- Installation and operation instructions
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can the LEDVANCE Sylvania 66486 be installed in wet or unheated outdoor environments?
Can the LEDVANCE Sylvania 66486 be installed in wet or unheated outdoor environments?

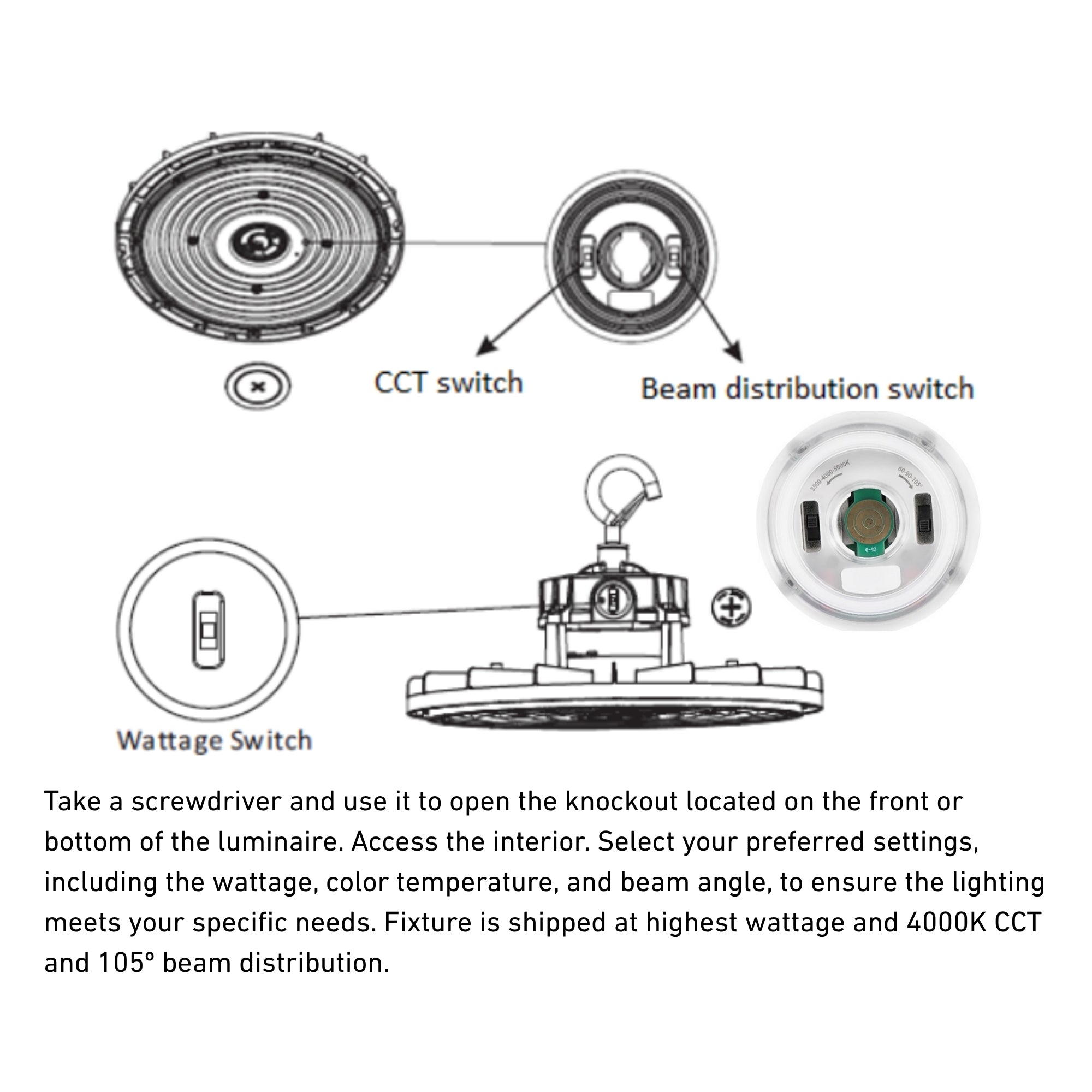

How do you adjust the wattage, color temperature, and beam angle on the fixture?
