LEDVANCE SYLVANIA 66442 Opti-Select LED Linear High Bay 24,750 Lumens 105/135/165W Selectable 35K/40K/50K 277-480V Adjustable Distribution White
Available in stock (600)
About this item
About this item
- Selectable Output: Field-adjustable 105W / 135W / 165W delivering up to 24,750 lumens to replace traditional 250W-400W HID fixtures.
- Selectable CCT: Easily switch between warm 3500K, cool 4000K, or daylight 5000K color temperatures directly on the fixture.

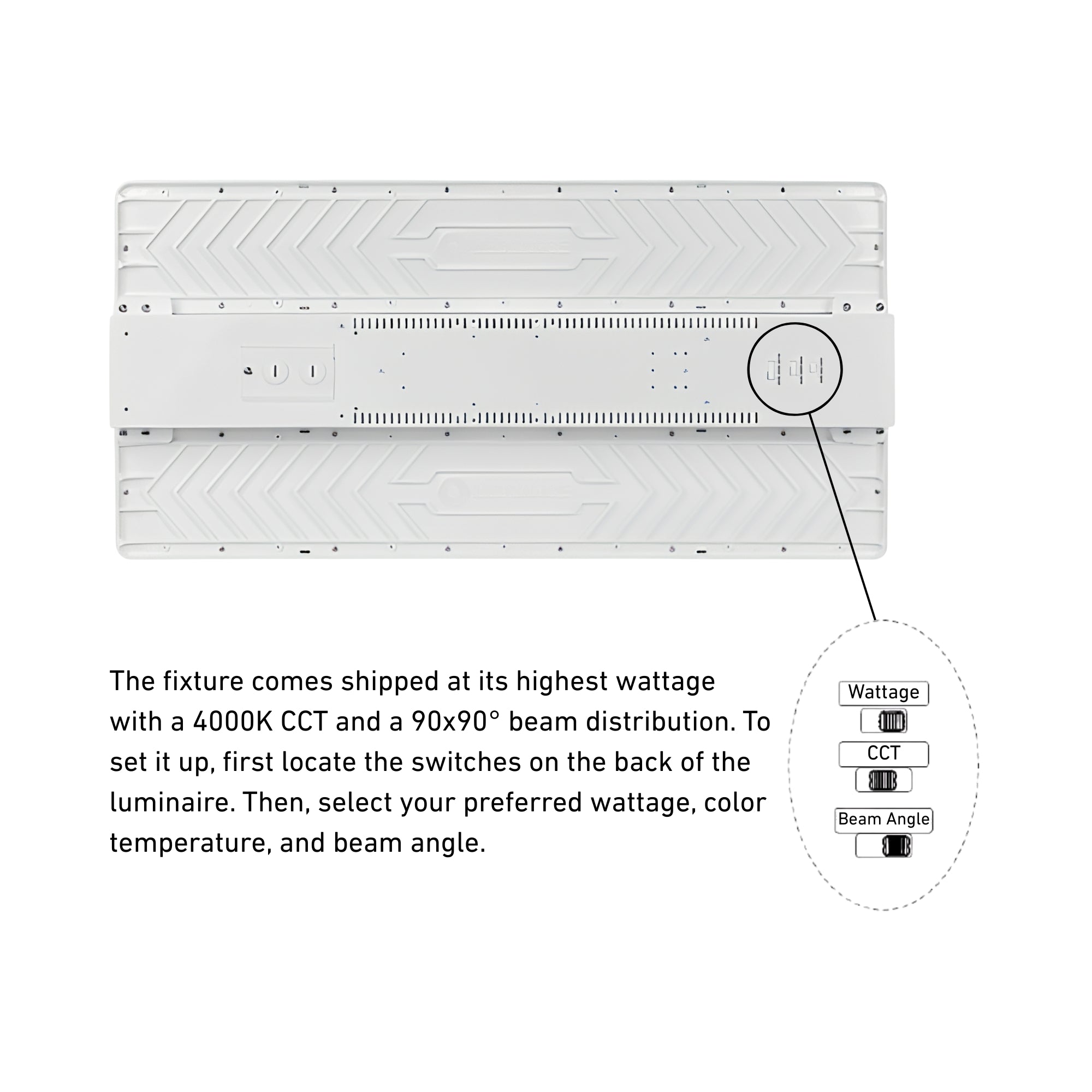

- Adjustable Distribution: Innovative optics allow you to switch between three specific distribution patterns (90x90°, 45x100°, or 65x95°) for wide or aisle illumination.
- High Voltage Power: Operates on a dedicated 277–480V commercial driver equipped with standard 0–10V dimming.
- Controls Ready: Shipped with a pre-wired sensor base ready to accept an optional field-installed screw-in motion/daylight sensor or LEDVANCE LINK components.
We process payments securely and do not store credit card information.
Description
Description

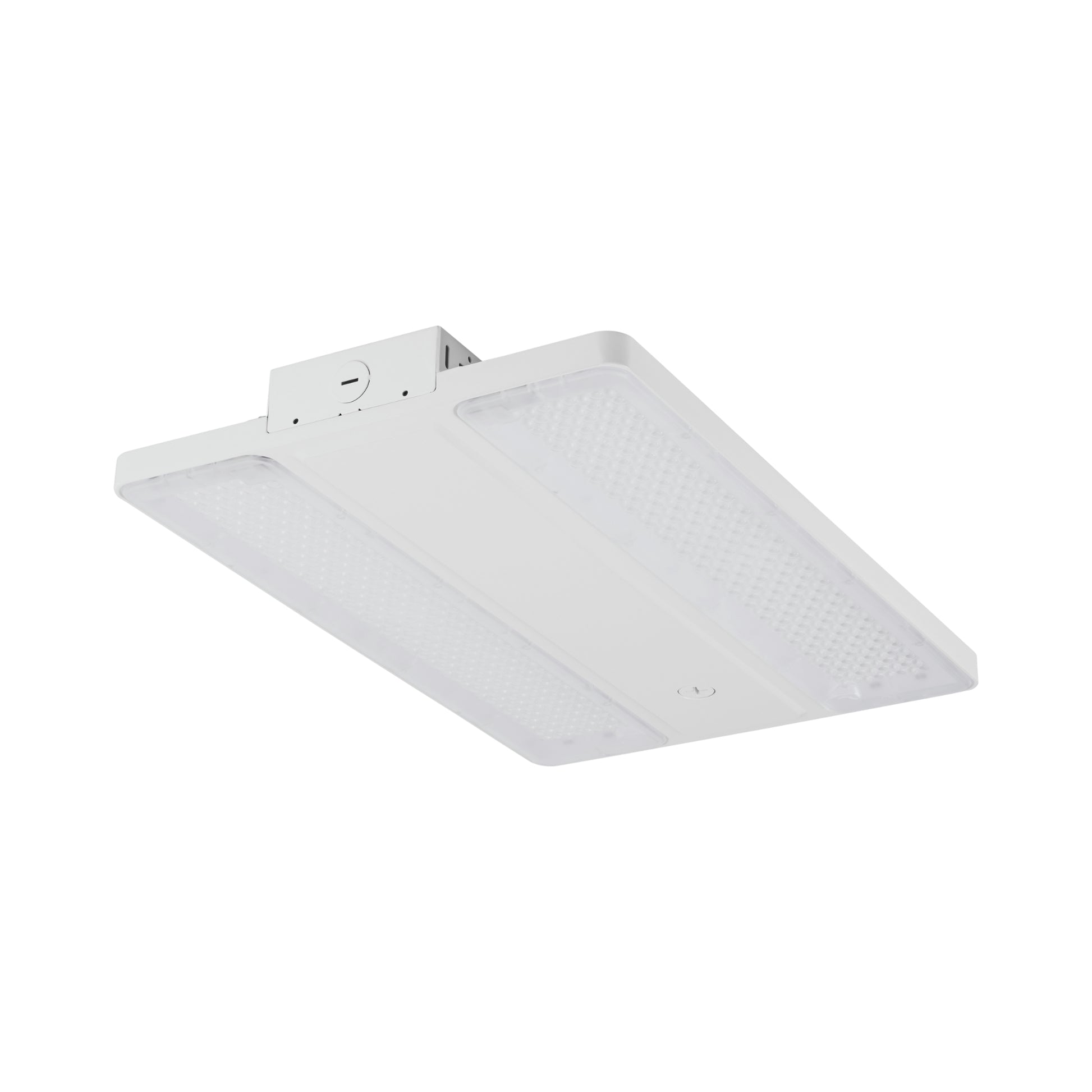

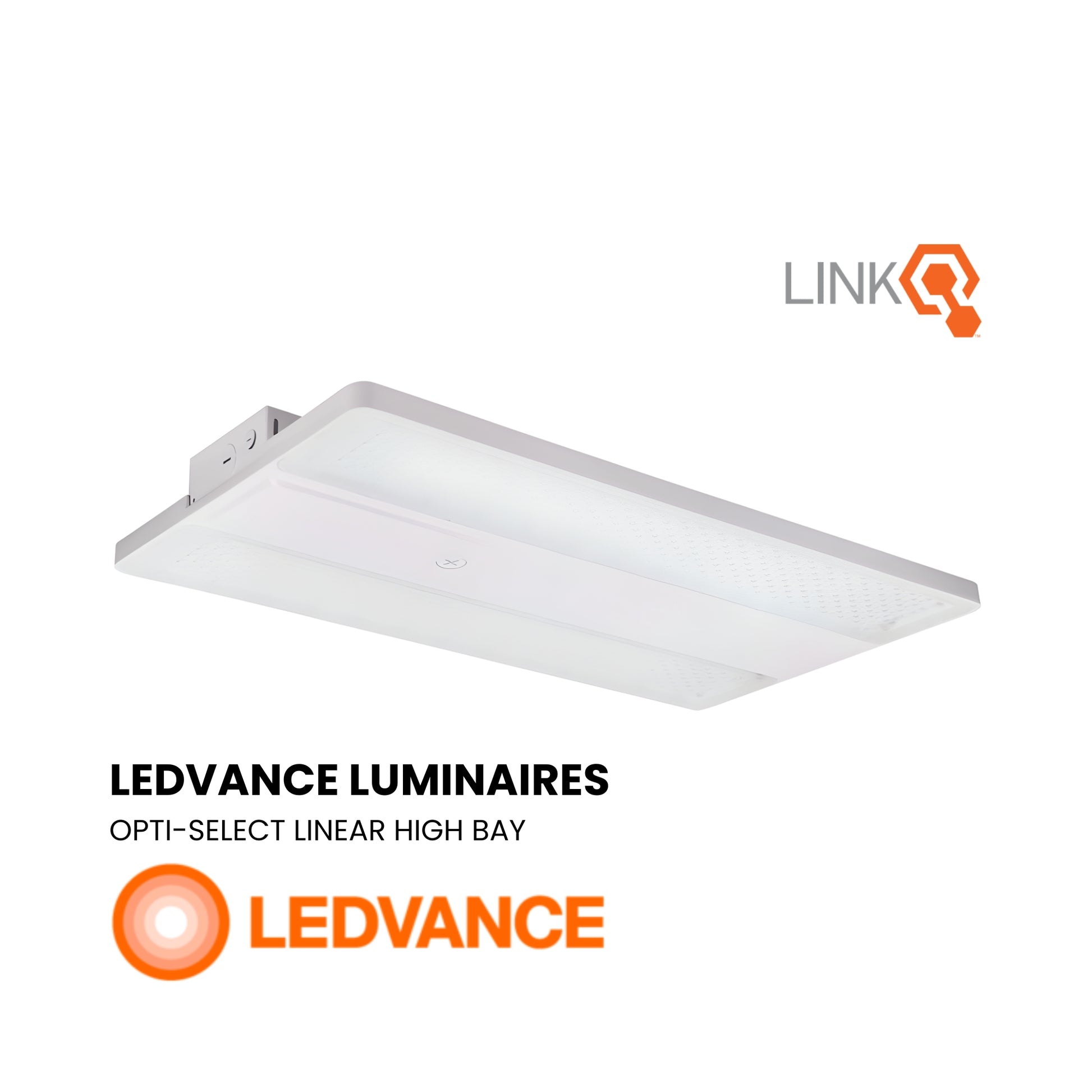

LEDVANCE SYLVANIA 66442 Opti-Select Linear High Bay — 105/135/165W Selectable, 277–480V
The LEDVANCE SYLVANIA 66442 is an all-new Opti-Select LED Linear High Bay combining ultimate flexibility into one fixture. It delivers up to 24,750 lumens with field-selectable 105W/135W/165W output and adjustable 3500K/4000K/5000K color temperatures. Operating on a 277–480V high-voltage driver, this luminaire features groundbreaking adjustable distribution that allows you to pick between wide and aisle patterns at the flip of a switch. Built with an IK09 impact rating and DLC 5.1 Premium listing, it provides an exceptionally versatile and energy-efficient solution for warehouses, gymnasiums, and municipal applications.
Key Features
- Selectable Wattage: 105W / 135W / 165W
- Selectable CCT: 3500K / 4000K / 5000K
- Delivered Lumens: 15,750 to 24,750 lumens (up to 150 LPW)
- Voltage: 277–480V high-voltage input
- Dimming: 0–10V dimmable
- Optics: Adjustable distribution (90x90° / 45x100° / 65x95°)
- CRI: >80
- Environmental Ratings: cULus Damp Location listed

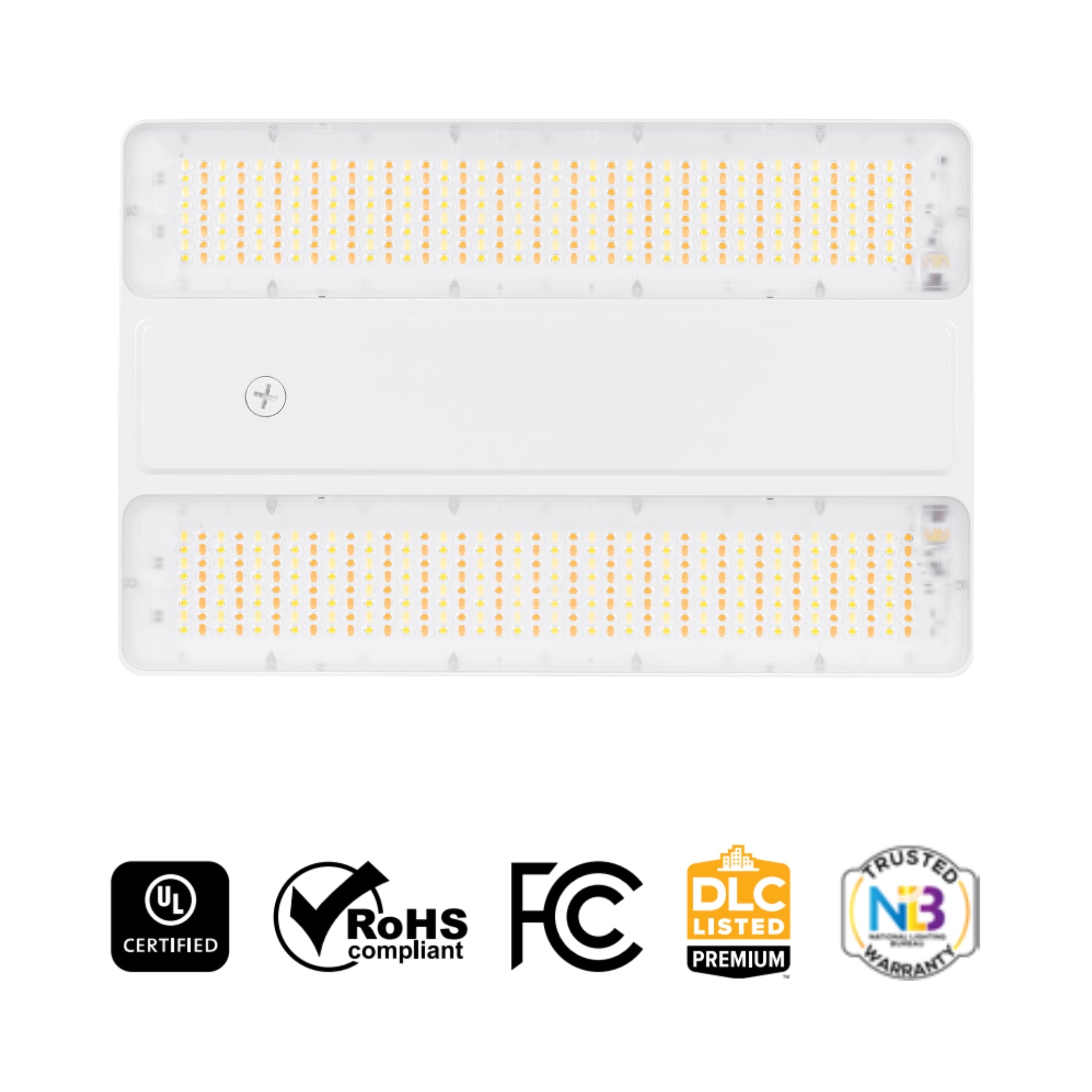

- Certifications: DLC 5.1 Premium, FCC, RoHS compliant
- Estimated Life: 100,000 hours (L70)
Typical Applications

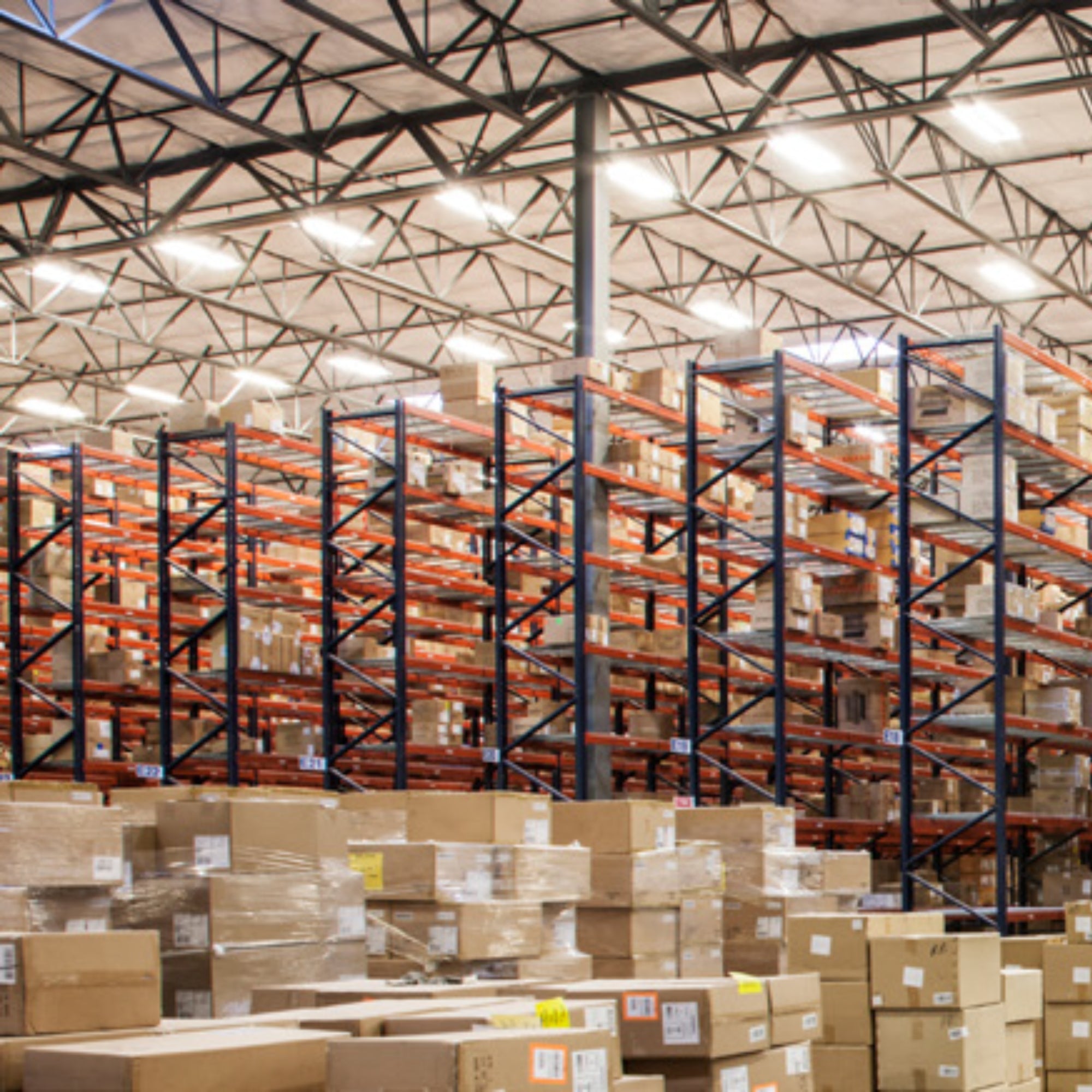

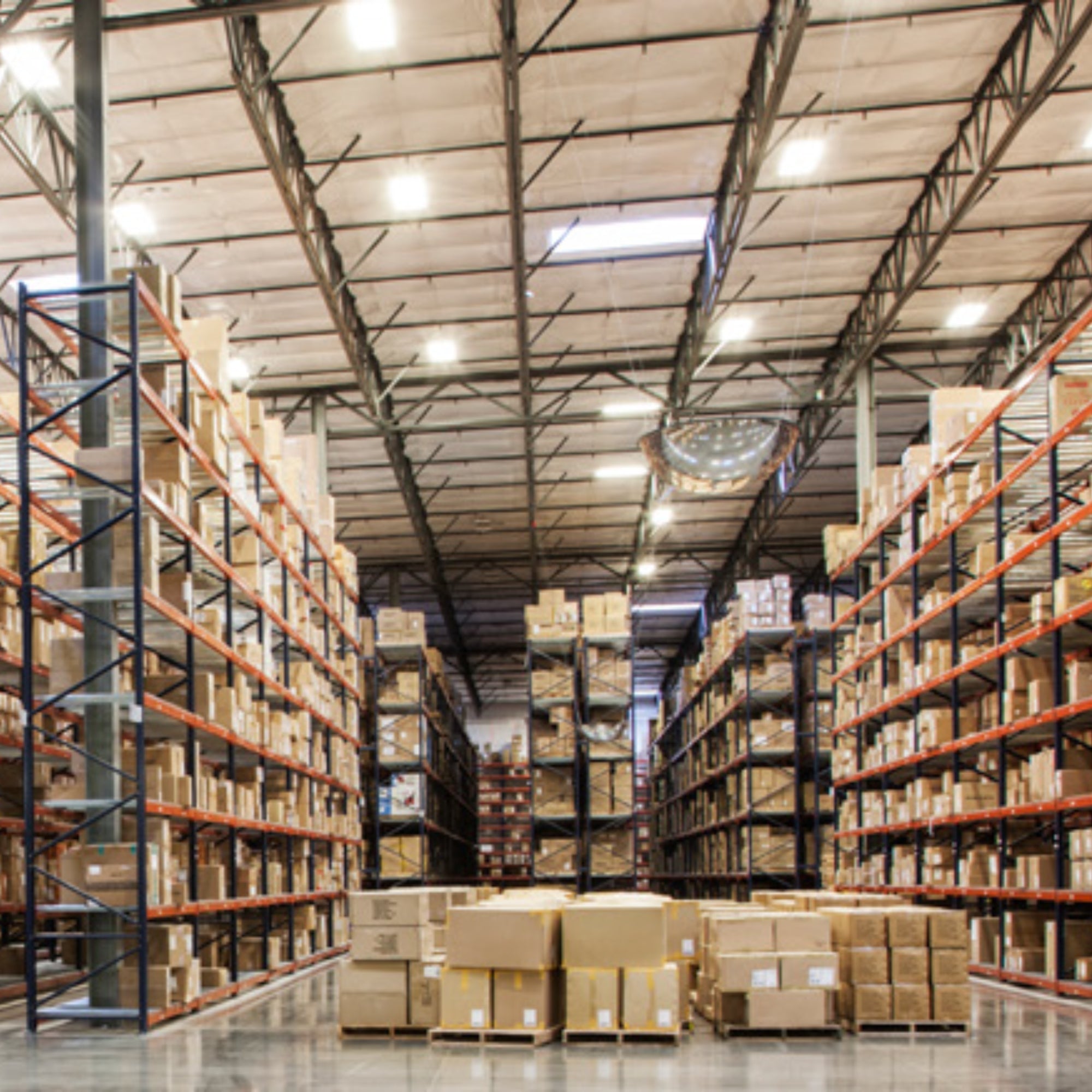

- Warehouses and distribution centers
- School gymnasiums and recreational facilities
- Municipal buildings and corridors
- Manufacturing and industrial facilities
Performance & Light Output
This linear high bay provides highly scalable illumination ranging from 15,750 to 24,750 lumens, achieving an ultra-efficient efficacy of up to 150 lumens per watt to provide up to 73% energy savings over traditional sources. The Opti-Select design allows installers to toggle between three distinct light distribution patterns (90x90°, 45x100°, or 65x95°), making it incredibly easy to switch between wide open-area lighting and narrow aisle lighting directly on the job site. The LEDs deliver a color rendering index (CRI) greater than 80 and maintain a heavily prolonged L70 rated life of 100,000 hours.
Electrical & Controls

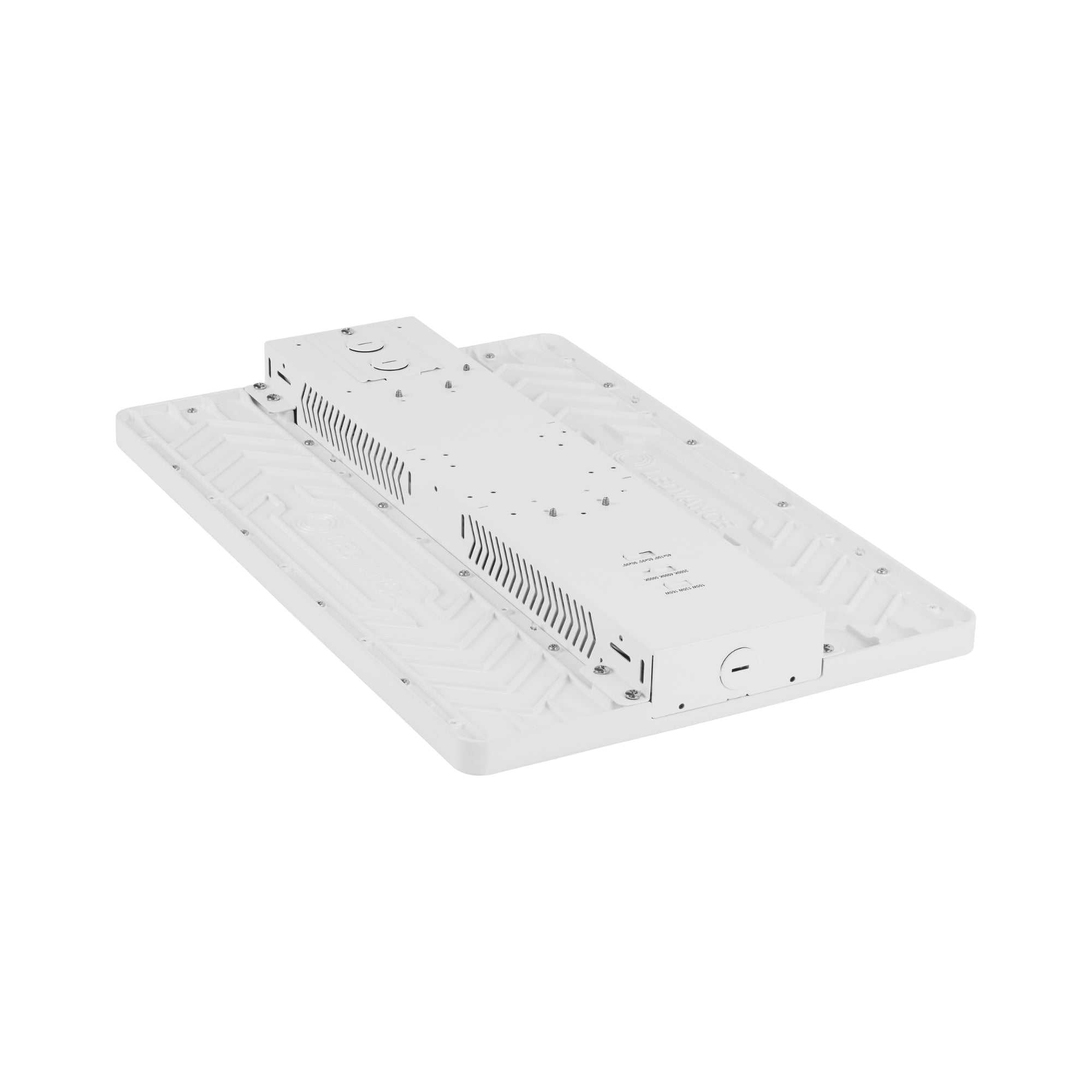

This fixture operates on a dedicated 277–480V AC driver with standard 0–10V dimming functionality. The electrical components maintain a power factor greater than 0.9 and total harmonic distortion (THD) below 20%. To maximize energy savings and simplify inventory management, all fixtures are shipped with a pre-wired sensor base. This base is ready to accept an optional screw-in motion/daylight sensor (sold separately) or field-installable LEDVANCE LINK Bluetooth Mesh network components.
Construction & Durability
Engineered for tough commercial environments, the luminaire features a durable white housing with an IK09 impact rating to protect against physical strikes. It carries a cULus Damp Location listing, ensuring reliable operation in ambient temperatures ranging from -40°C to 50°C (-40°F to 122°F).
Installation & Mounting

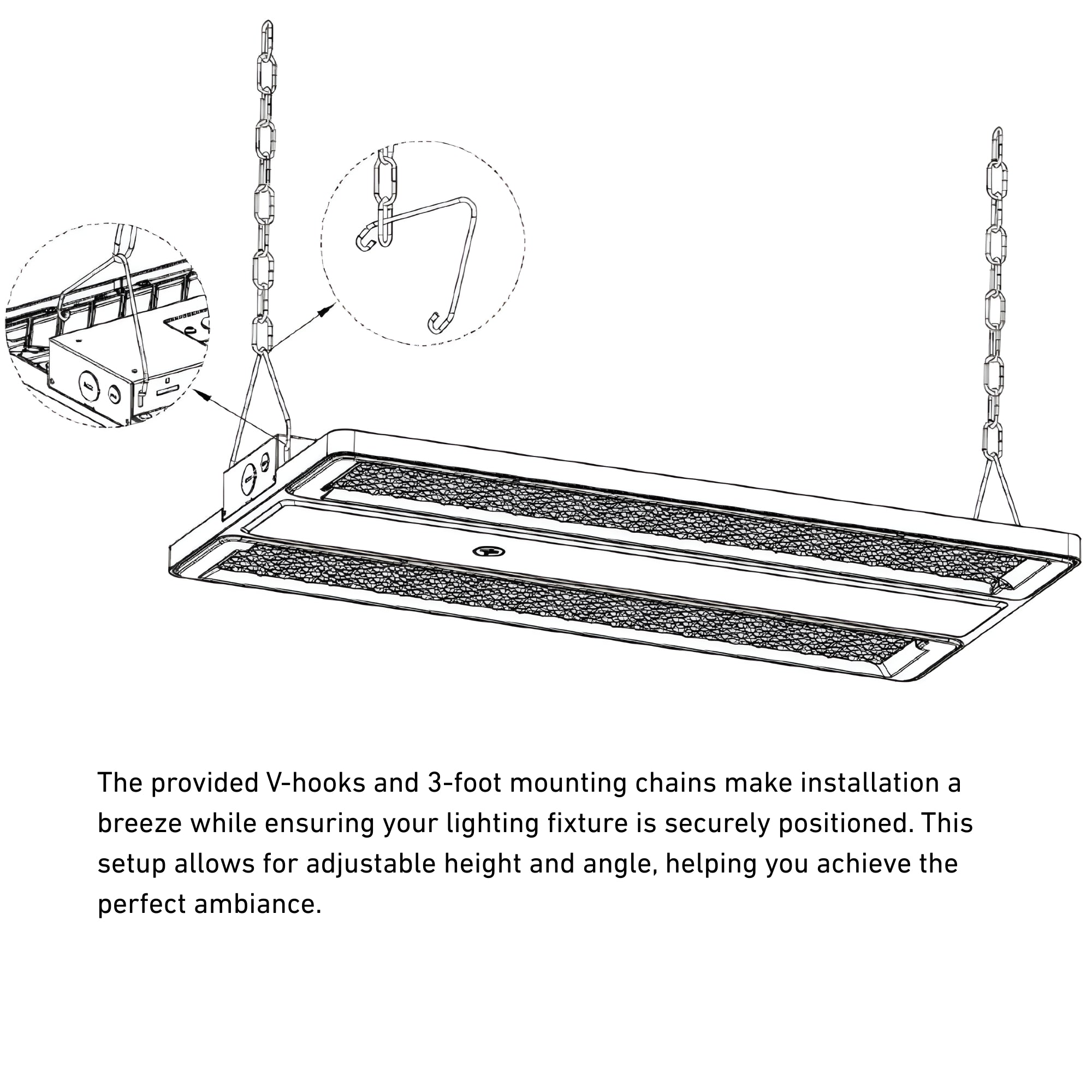

The high bay is designed for straightforward suspended mounting right out of the box, with V-hooks and 3-foot mounting chains included. For customized site applications, optional surface mounting brackets, pendant mounting brackets, and aircraft cable mounts are available (sold separately).
What's Included
- LED Opti-Select Linear High Bay (White)
- V-Hooks
- 3-Foot Mounting Chains
Specifications
Specifications

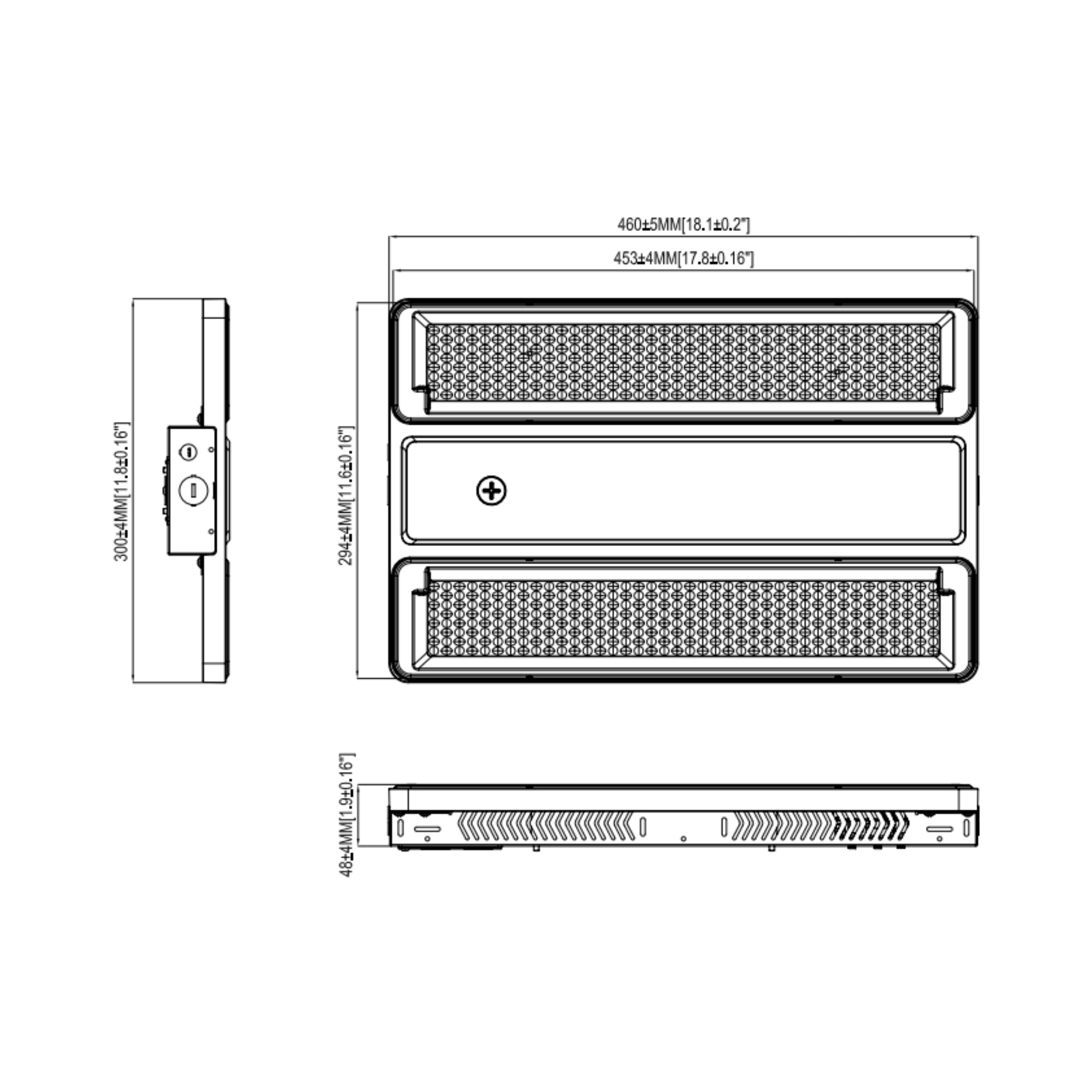

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
This specific model (66442) operates on a dedicated 277���480V high-voltage driver. It also features standard 0���10V dimming capabilities.
This specific model (66442) operates on a dedicated 277���480V high-voltage driver. It also features standard 0���10V dimming capabilities.
Does this fixture come with a motion sensor?
Does this fixture come with a motion sensor?
The fixture does not include the sensor itself, but it comes equipped with a pre-wired sensor base. This allows you to easily screw in an optional field-installed daylight/motion sensor whenever needed.
The fixture does not include the sensor itself, but it comes equipped with a pre-wired sensor base. This allows you to easily screw in an optional field-installed daylight/motion sensor whenever needed.
How is this fixture mounted?
How is this fixture mounted?
The high bay includes V-hooks and 3-foot mounting chains for standard suspended installation right out of the box. Optional surface mount and pendant brackets are available for purchase separately.
The high bay includes V-hooks and 3-foot mounting chains for standard suspended installation right out of the box. Optional surface mount and pendant brackets are available for purchase separately.
