LEDVANCE Sylvania 66439 OPTI-SELECT Linear High Bay — 175/195/220W Selectable — 3500K/4000K/5000K — 120–347V
Available in stock (300)
About this item
About this item
- Selectable Output: Field-select 220W, 195W, or 175W at the fixture — delivers up to 33,000 lumens at 150 lm/W. No rewiring required.
- OPTI-SELECT Adjustable Beam Distribution: Field-select 90×90°, 45×100°, or 65×95° distribution at the fixture — one SKU covers symmetric wide, narrow asymmetric, and mid-spread patterns for any aisle width or mounting height.
- Damp Location — IK09 Impact Rated: cULus Damp Location listed for covered outdoor and wet process environments. IK09-rated housing withstands severe mechanical impact.
- DLC 5.1 Premium: Qualifies for the highest tier of utility rebate programs in most U.S. markets.
- LEDVANCE LINK™ Bluetooth® Mesh Ready: Pre-wired sensor base accepts LEDVANCE LINK microwave, PIR, and remote sensors for occupancy-based automation — no internal wiring required. 0–10V dimming standard.
We process payments securely and do not store credit card information.
Description
Description

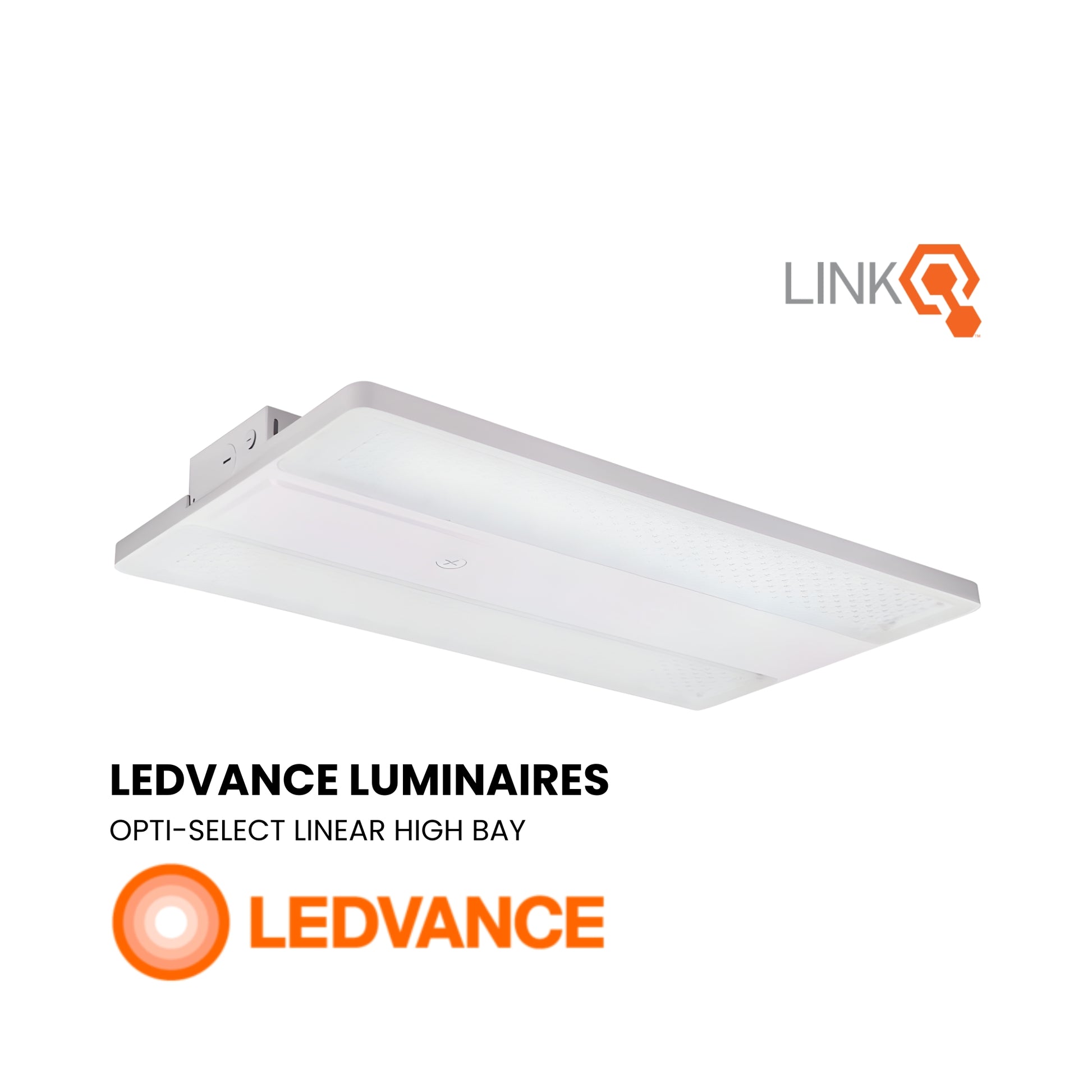

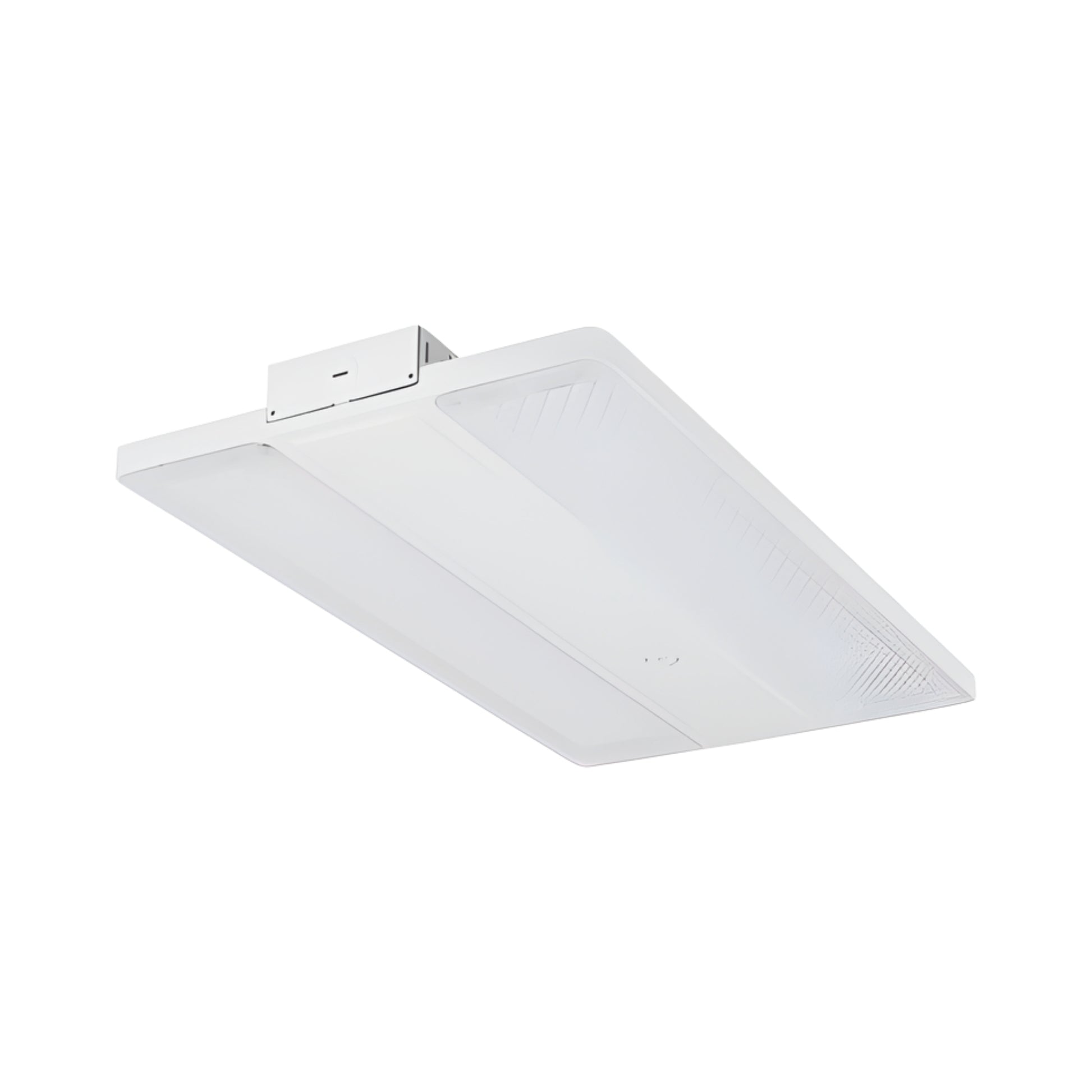

LEDVANCE Sylvania 66439 OPTI-SELECT Linear High Bay — 175W / 195W / 220W Selectable — 120–347V
The LEDVANCE Sylvania 66439 OPTI-SELECT Linear High Bay delivers three independent field-selectable axes: wattage (175W / 195W / 220W), CCT (3500K / 4000K / 5000K), and beam distribution (90×90° / 45×100° / 65×95°). Up to 33,000 lumens at 150 lm/W peak efficacy. Operates on 120–347V with integrated 0–10V dimming. cULus Damp Location listed, IK09 rated, and DLC 5.1 Premium certified. Includes a pre-wired sensor base for tool-free field installation of motion/daylight sensors or LEDVANCE LINK™ Bluetooth® Mesh wireless controls. White finish. For 277–480V, see the Sylvania 66443. Replaces 6-lamp F54T5HO or 10-lamp F32T8 fluorescent systems, or 320W MH fixtures.
Key Features
- Selectable Wattage: 175W / 195W / 220W — field-adjustable via built-in selector
- Selectable CCT: 3500K / 4000K / 5000K — field-adjustable
- Selectable Distribution (OPTI-SELECT): 90×90° / 45×100° / 65×95° — field-adjustable, no tools required
- Lumen Output: 26,250 lm (175W) · 29,250 lm (195W) · 33,000 lm (220W)
- Peak Efficacy: Up to 150 lm/W
- CRI: >80
- Dimming: 0–10V dimming standard
- Voltage: 120–347V, 50/60Hz
- Power Factor: >0.9 · THD: <20%
- Location Rating: cULus Damp Location listed; IK09 impact rated
- Operating Temperature: −40°F to +122°F (−40°C to +50°C); −22°F to +122°F (−30°C to +50°C) with sensor

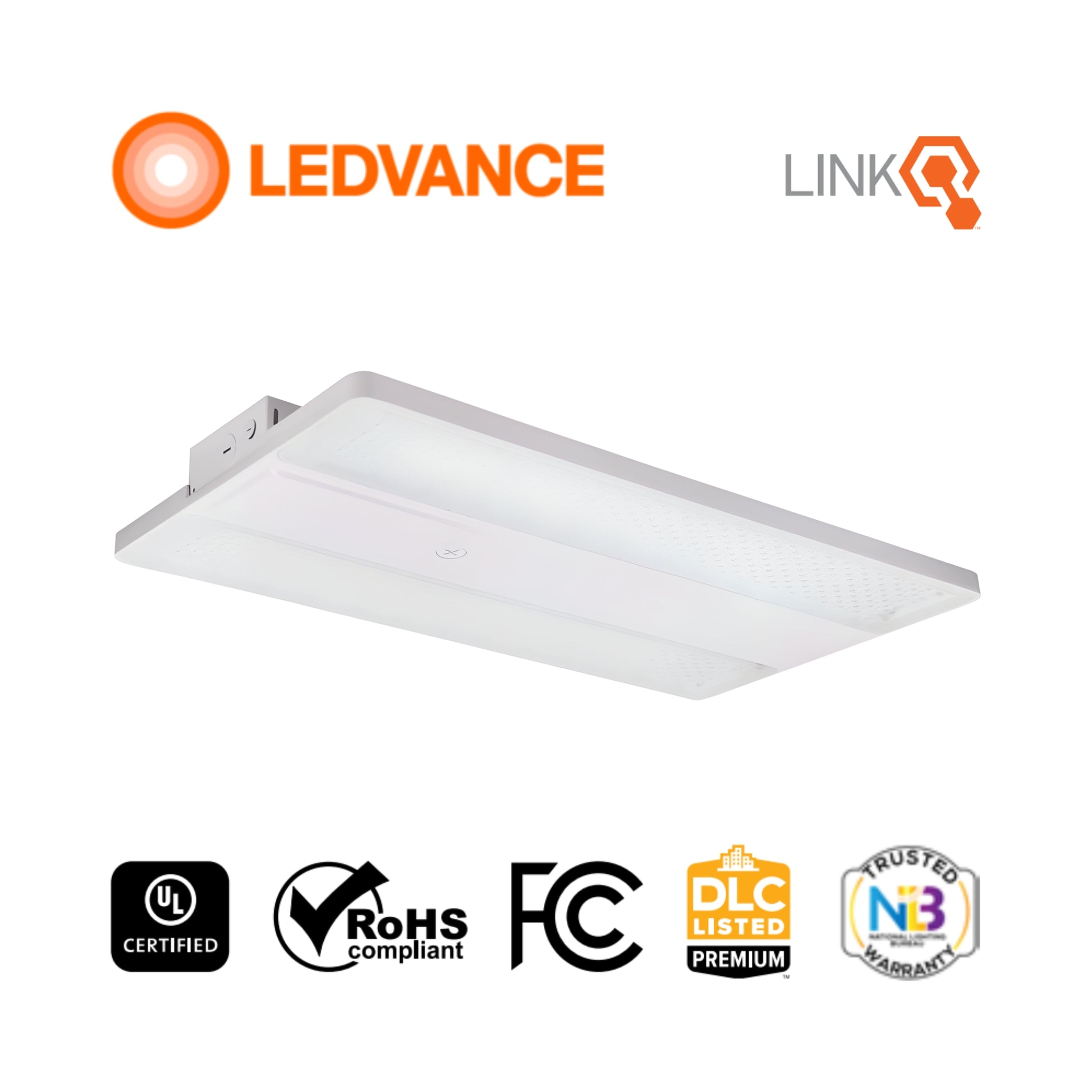

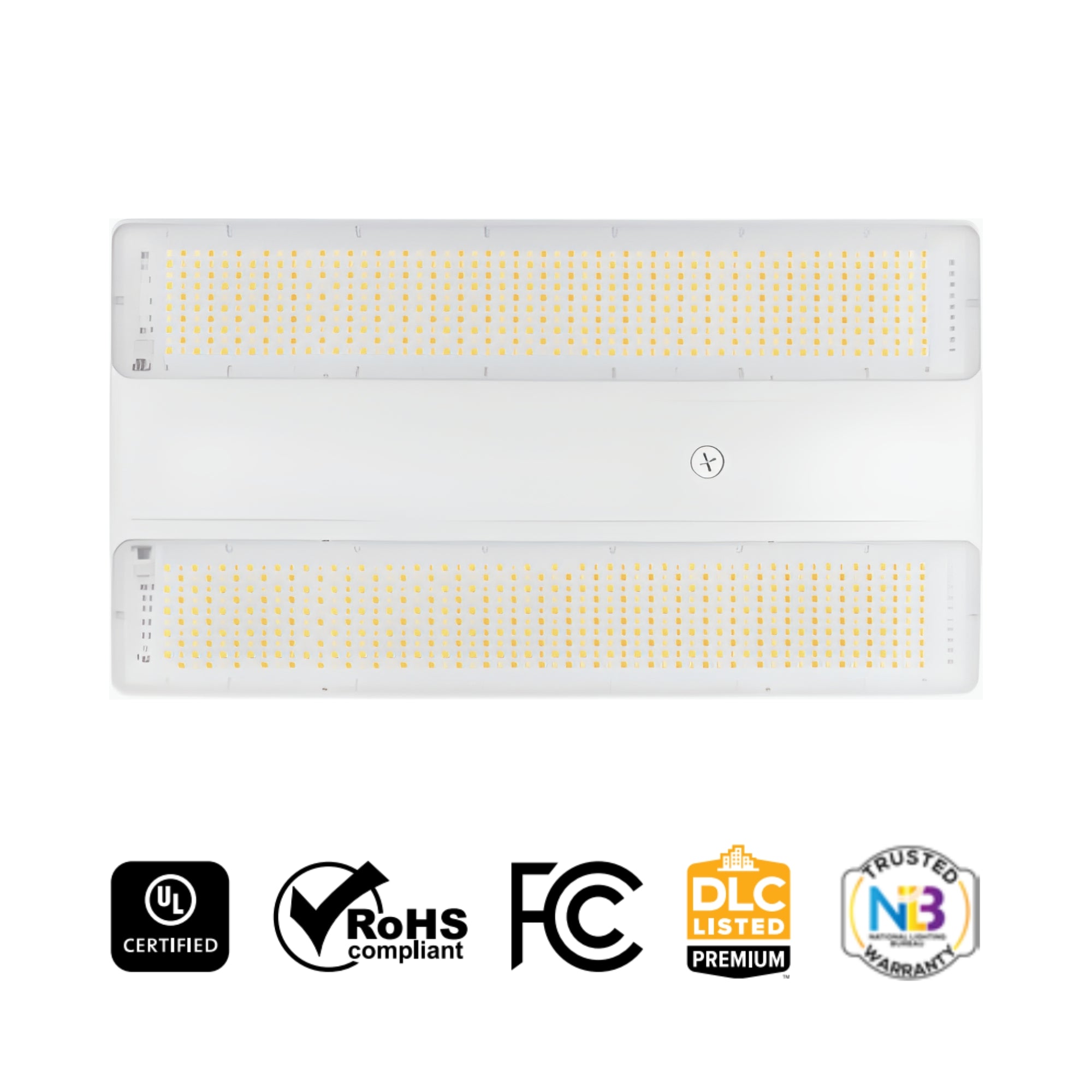

- Certifications: cULus, DLC 5.1 Premium, FCC, RoHS
- Rated Life: 100,000 hours (L70)
- Warranty: 5 Years (NLB Trusted Warranty Program)
- Wattage Equivalency: Replaces 6-lamp F54T5HO / 10-lamp F32T8 fluorescent, or 320W MH
Performance & Light Output
| Wattage | Lumens | Efficacy |
|---|---|---|
| 175W | 26,250 lm | 150 lm/W |
| 195W | 29,250 lm | 150 lm/W |
| 220W | 33,000 lm | 150 lm/W |
CRI >80. Rated life 100,000 hours (L70). CCT selection (3500K / 4000K / 5000K) does not affect lumen output at the same wattage.
Optics & Distribution

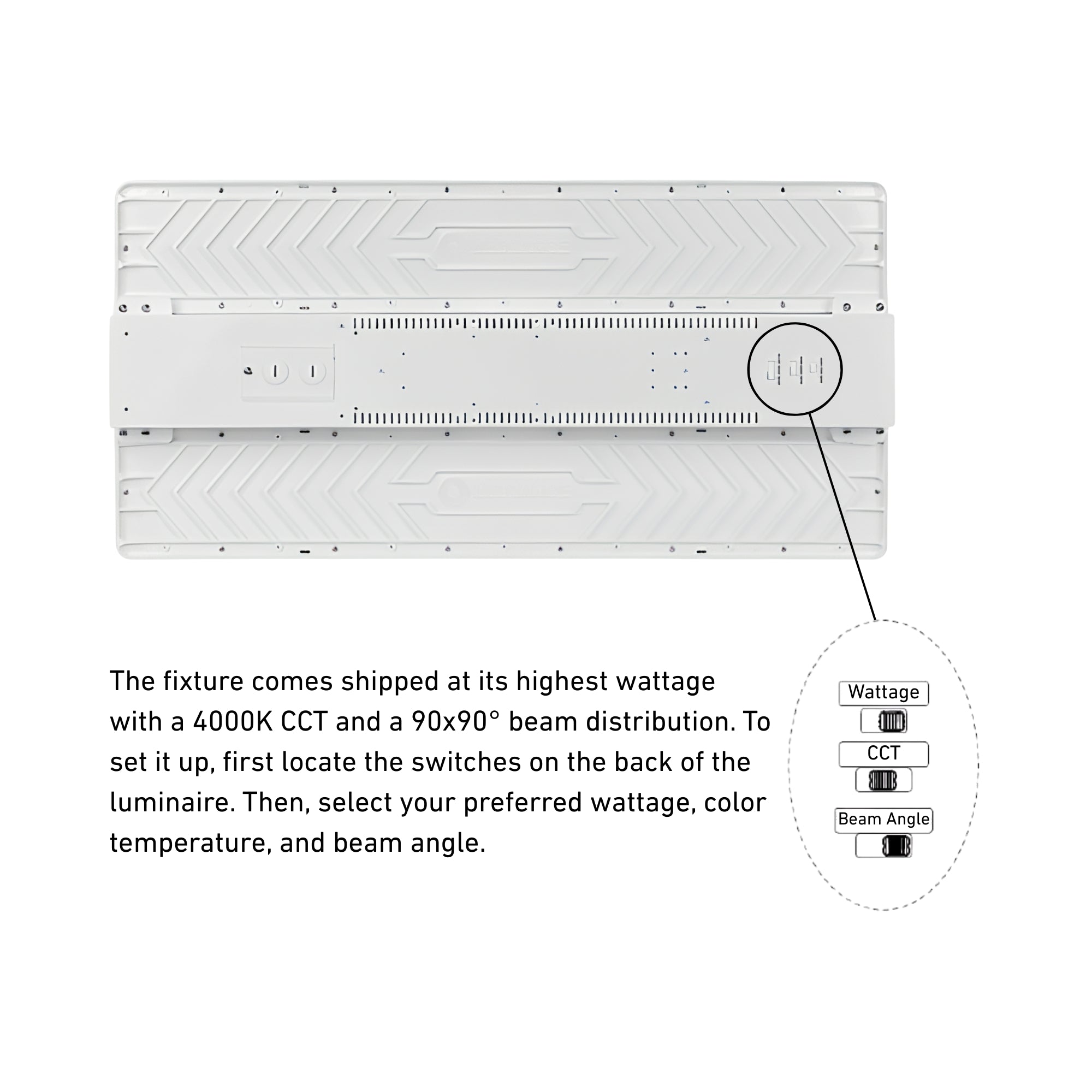

The OPTI-SELECT system provides three field-selectable beam distributions via a built-in switch on the fixture body — no tools, no accessories, no rewiring required:
- 90×90° — Wide Area: Broad symmetric distribution for open warehouse floors, gymnasiums, and large open-plan facilities. Maximizes horizontal spread for uniform illumination.
- 45×100° — Aisle: Narrow × wide asymmetric pattern optimized for rack aisles and corridor applications. Concentrates output along the aisle length with controlled spill.
- 65×95° — Mid-Spread: Balanced intermediate distribution for mixed-use spaces or transitional ceiling heights between 20–35 ft.
Smart & Control Features
Every OPTI-SELECT Linear fixture ships with a pre-wired sensor base — screw in an optional sensor in seconds, no wiring required. Two control platforms supported:
- Standard sensors (0–10V): Model 65622 microwave motion/daylight sensor (max mounting height 49 ft) · Model 62664 PIR DC motion/daylight sensor (max mounting height 39 ft) · Model 65623 remote control required to change default sensor settings
- LEDVANCE LINK™ Bluetooth® Mesh: Field-installable LINK components available separately for networked lighting control
Electrical
Input: 120–347V, 50/60Hz. Power Factor: >0.9. THD: <20%. Standard 0–10V dimming. Ships with pre-wired sensor base.
Construction

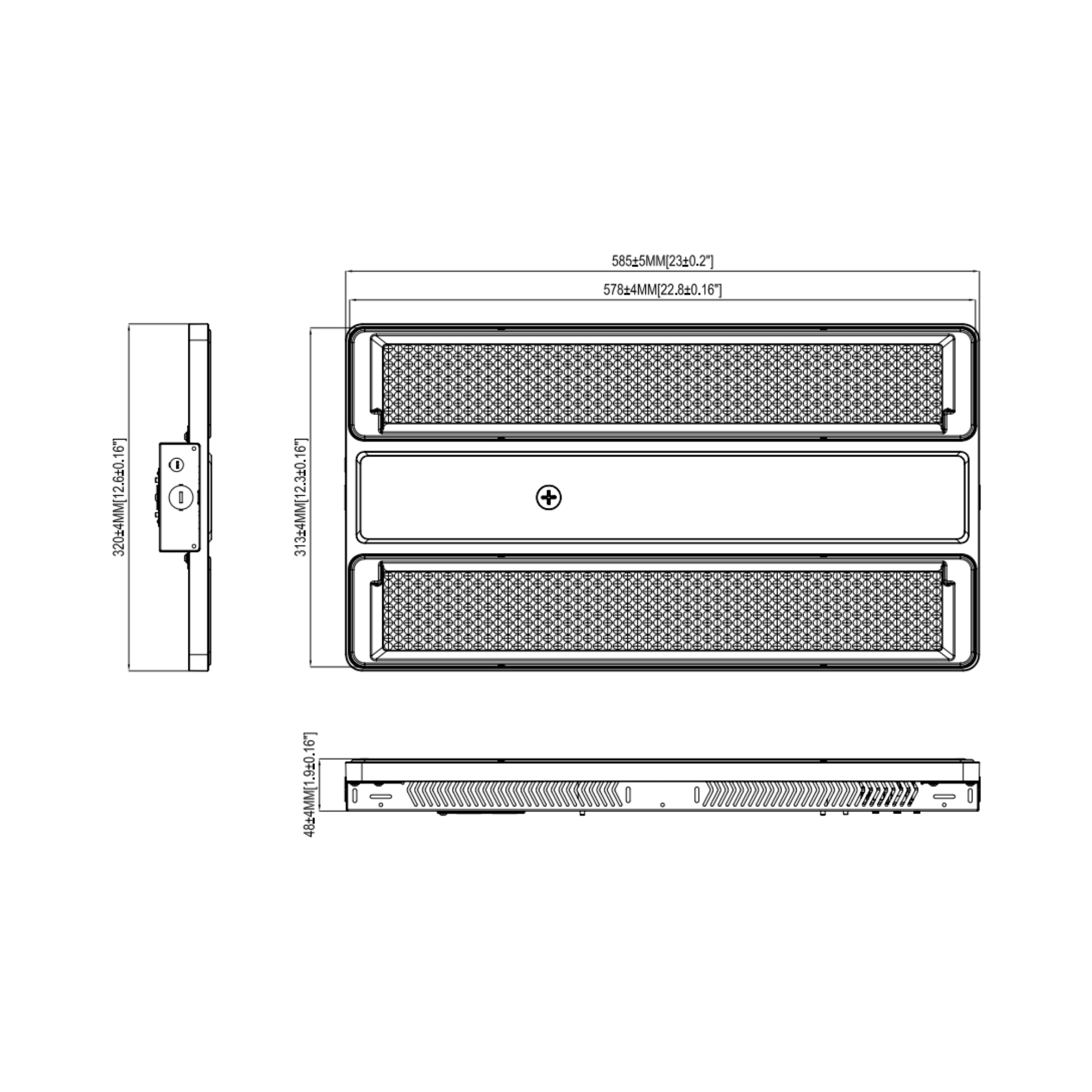

White steel housing with IK09 impact rating. cULus Damp Location listed. Operating range: −40°C to +50°C (−40°F to +122°F); −30°C to +50°C with sensor installed. Dimensions: 23″ L × 12.6″ W × 1.9″ H. Weight: TBD.
Installation & Mounting

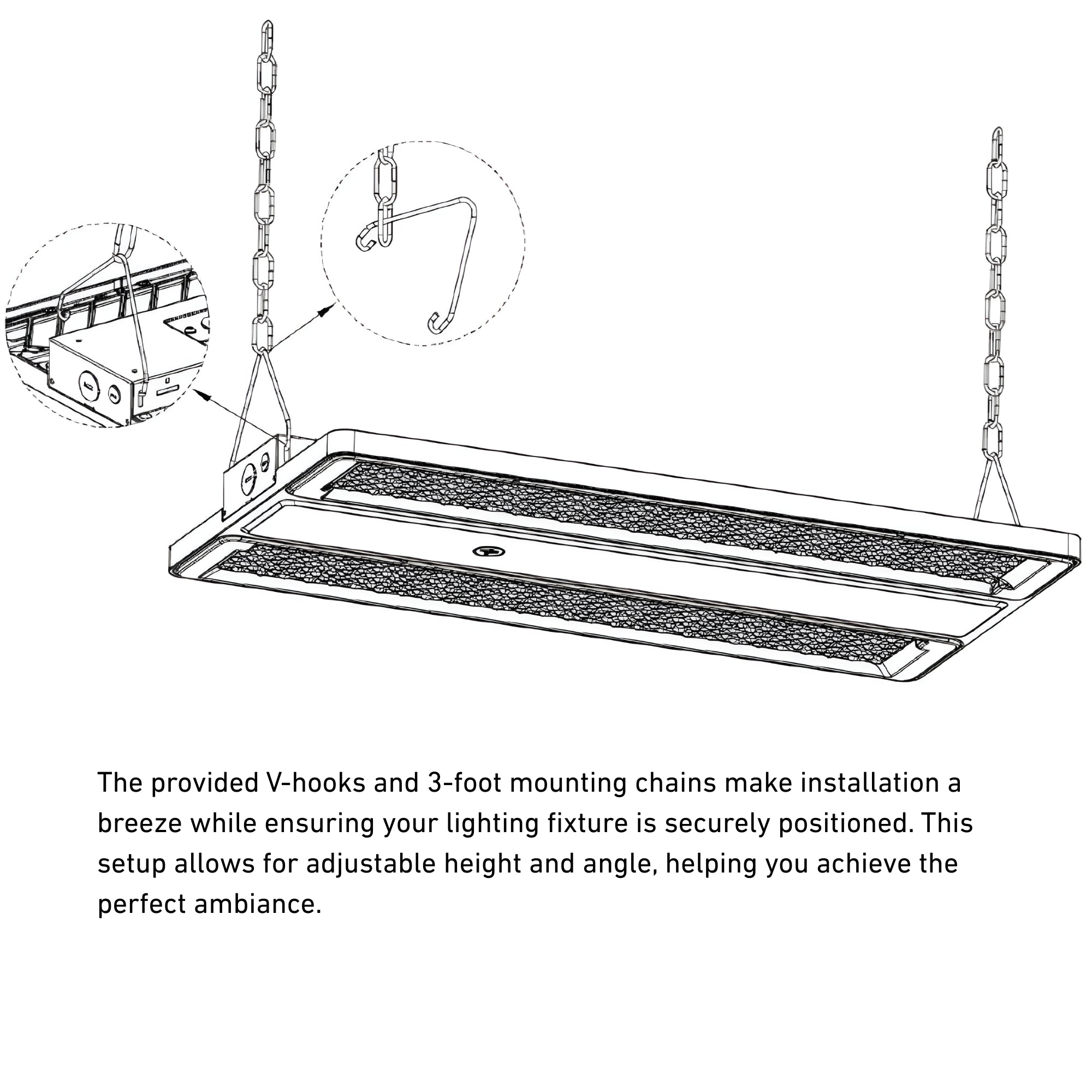

Comes standard with V-hooks and 3-foot mounting chains. Recommended mounting height: 20–40 feet. Optional accessories sold separately:
- Wire Guard (220/300W body): Item 63066
- Surface Mount Brackets: Item 63068 (order two per fixture; not compatible with EMBB driver)
- Pendant Mount Bracket: Item 63070 (one per fixture; fits 1/2″ or 3/4″ conduit; not compatible with EMBB driver)
- 5’ Chain and Hook Kit: Item 66877
- 10’ Chain and Hook Kit: Item 66878
- 5’ Cable and Hook Kit: Item 66879
- 10’ Cable and Hook Kit: Item 66880
- Replacement 3’ Chain and Hook Kit: Item 66881
- Motion/Daylight Sensors: Item 65622 (microwave) · Item 62664 (PIR DC)
- Sensor Remote: Item 65623 (required to change default settings)
Certifications & Rebates
cULus Listed for damp locations. DLC 5.1 Premium listed — qualifies for the highest tier of utility rebate programs. RoHS, FCC compliant. To verify rebate eligibility with your utility provider, visit designlights.org and search catalog number LNHIBAV/S220UNHD8SC7/ADJ/WH.
Typical Applications

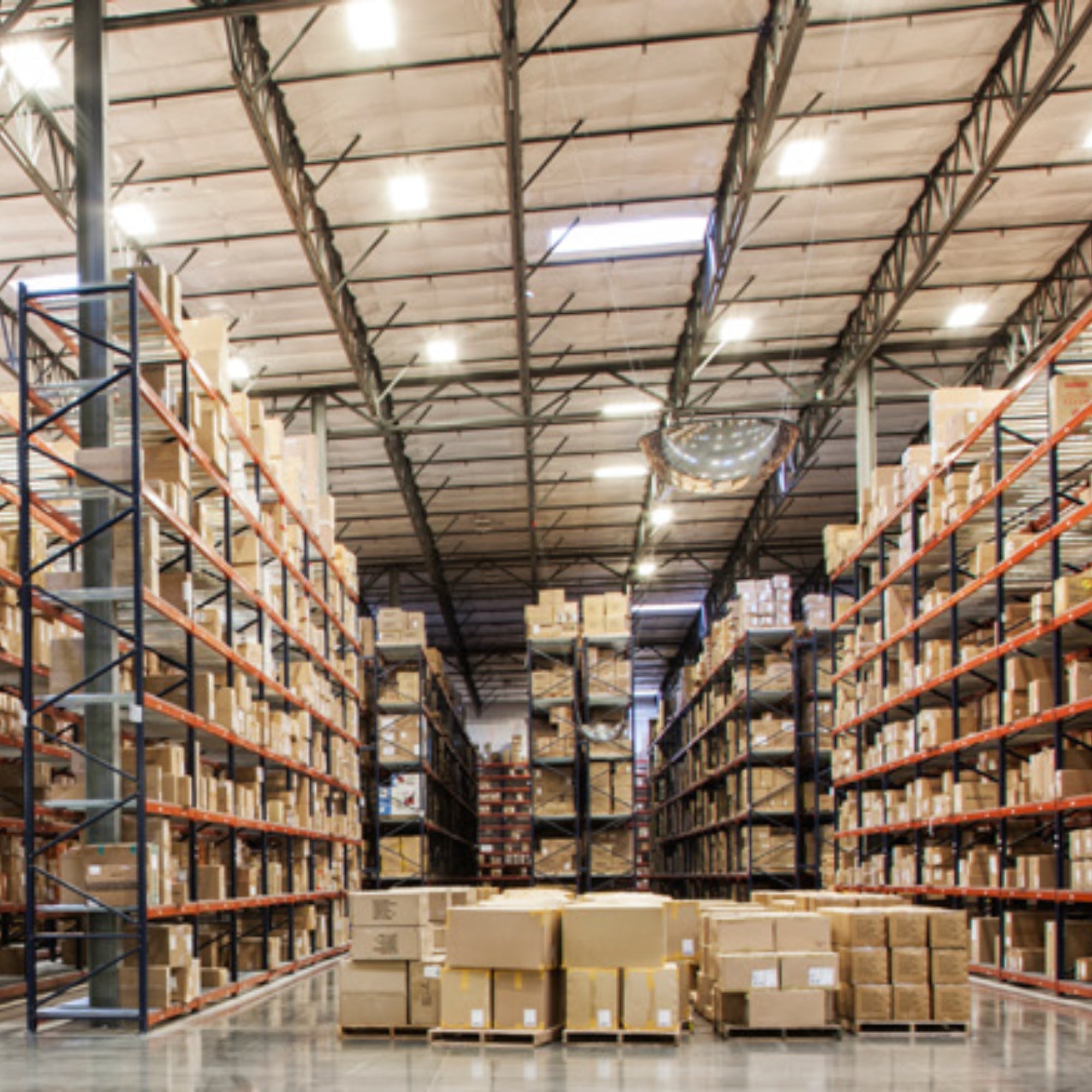

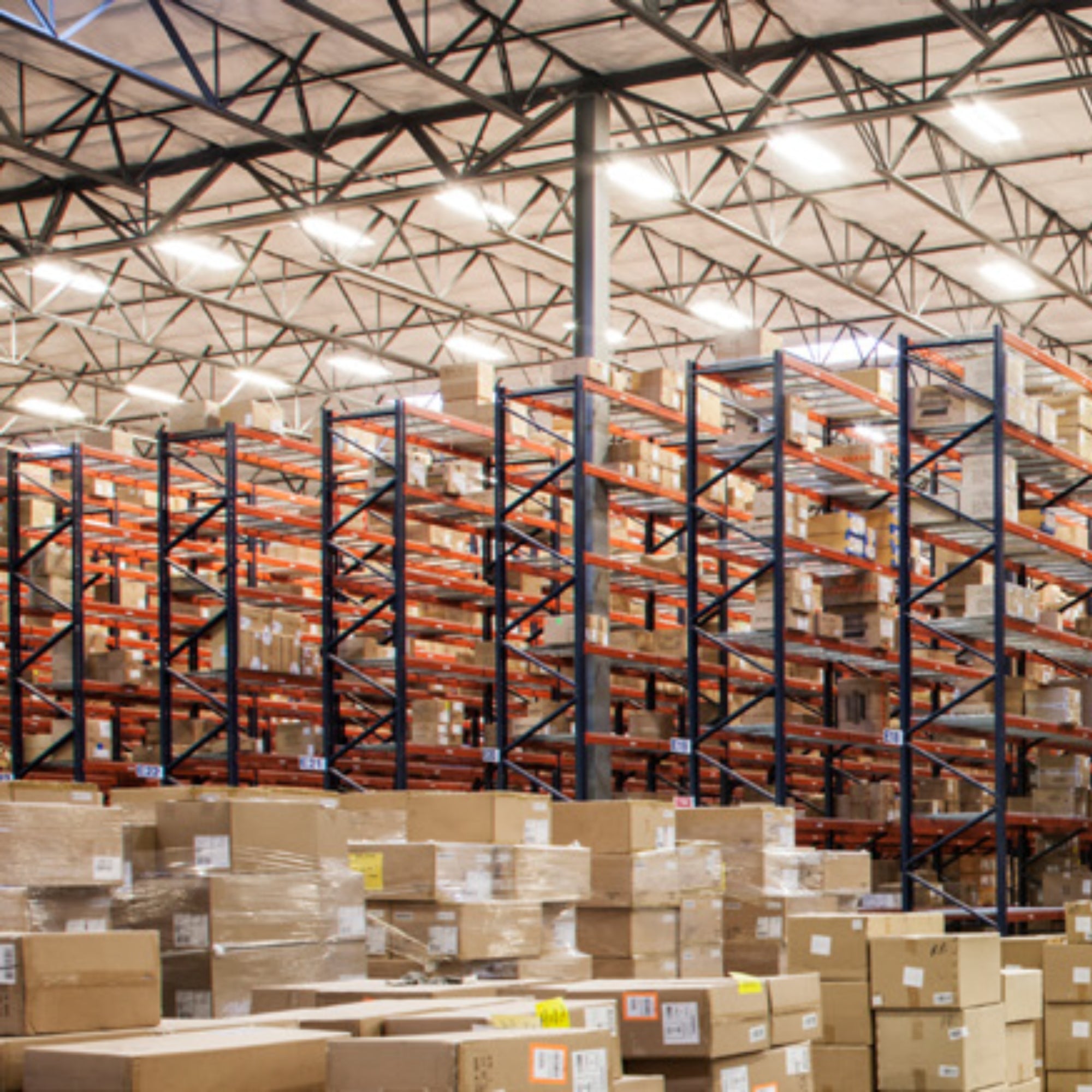

- Warehouses and distribution centers with 25–40 ft ceilings — replaces 6-lamp T5HO or 320W MH systems
- School gymnasiums and recreational facilities — 90×90° wide distribution maximizes floor uniformity
- Municipal buildings and covered corridors — 45×100° aisle pattern for long narrow spaces
- Manufacturing and light industrial facilities
- Cold storage and covered loading docks — damp location rated, −40°C cold start
What’s Included
- LEDVANCE OPTI-SELECT Linear High Bay — White
- V-Hooks
- 3-Foot Mounting Chains
