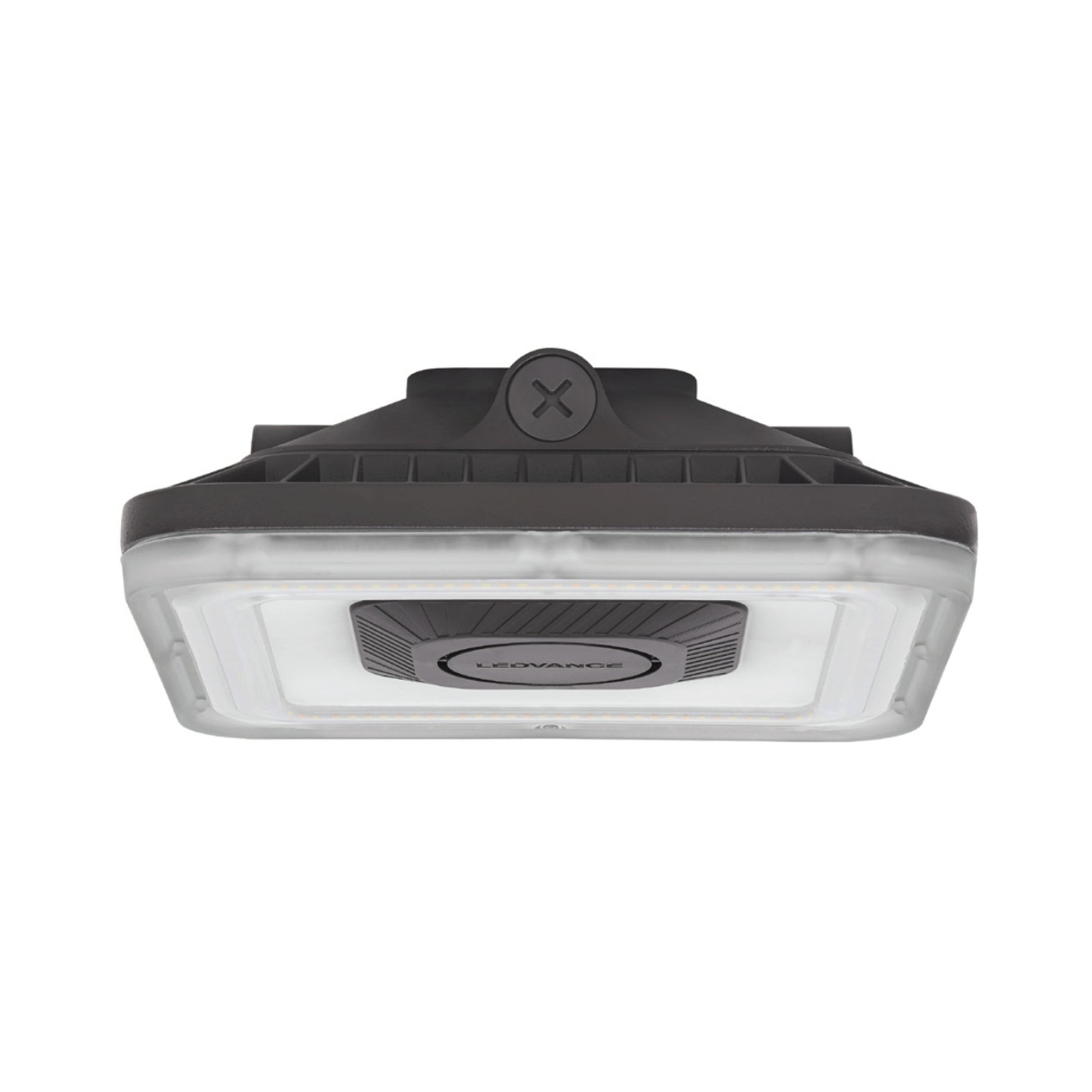

Sylvania Dual Selectable Square Canopy Light - 100W Configuration

The Sylvania SYLV-66414 is a versatile canopy light offering 100 watts of power and delivering 15000 lumens. It operates on a 120-347V input, making it suitable for a wide range of applications. This fixture is designed for both garage and canopy settings, featuring selectable CCT options of 3000K, 4000K, and 5000K, and is DLC 5.1 Premium listed for energy efficiency.

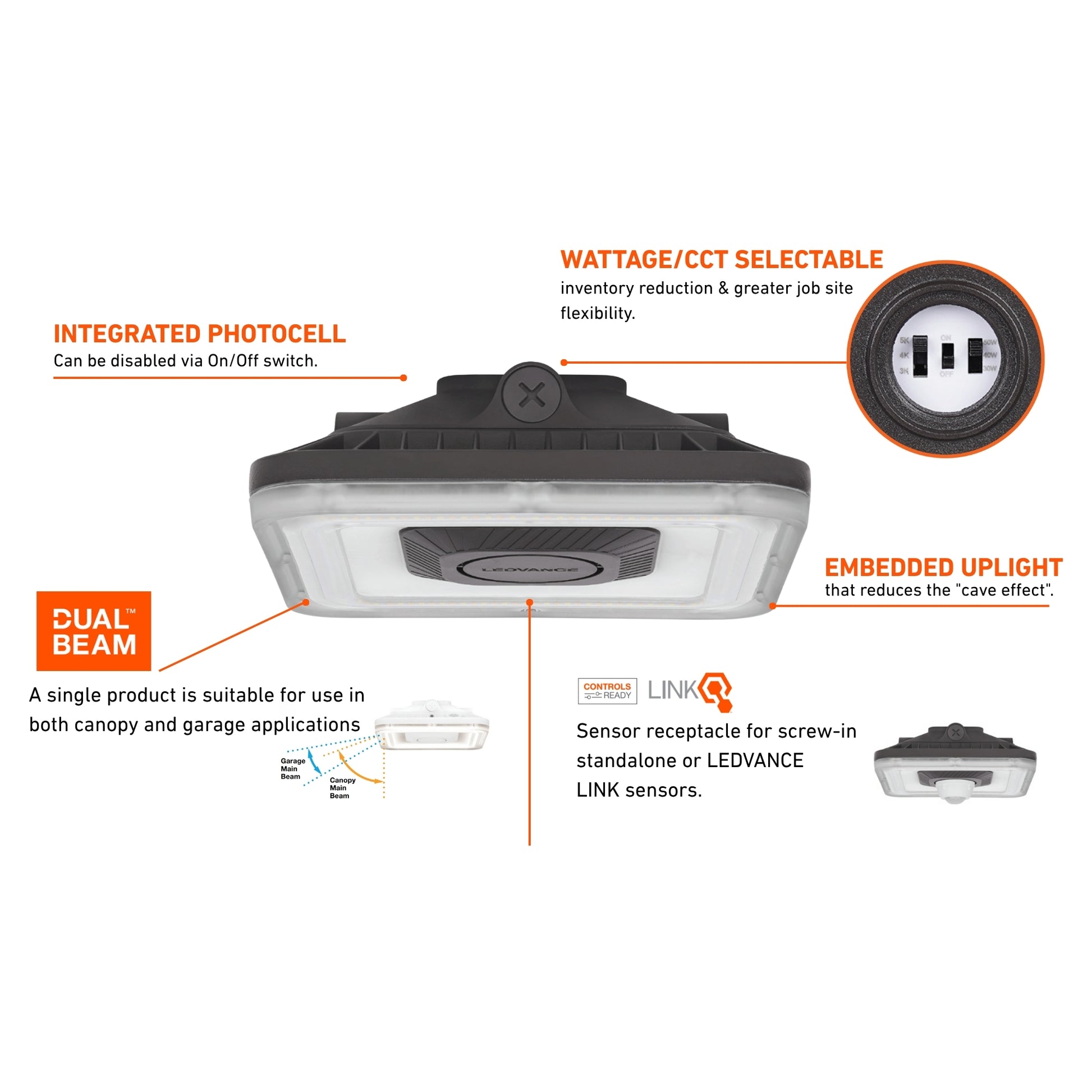

Key Features

• Dual Beam Optics: Seamlessly meets both garage and canopy lighting requirements without the need for switches or lens swaps.
• Selectable Wattage: Offers flexibility with 60/75/100W settings, providing 9000/11250/15000 lumens respectively.
• Embedded Uplight: Reduces the 'cave effect' for a more welcoming environment.

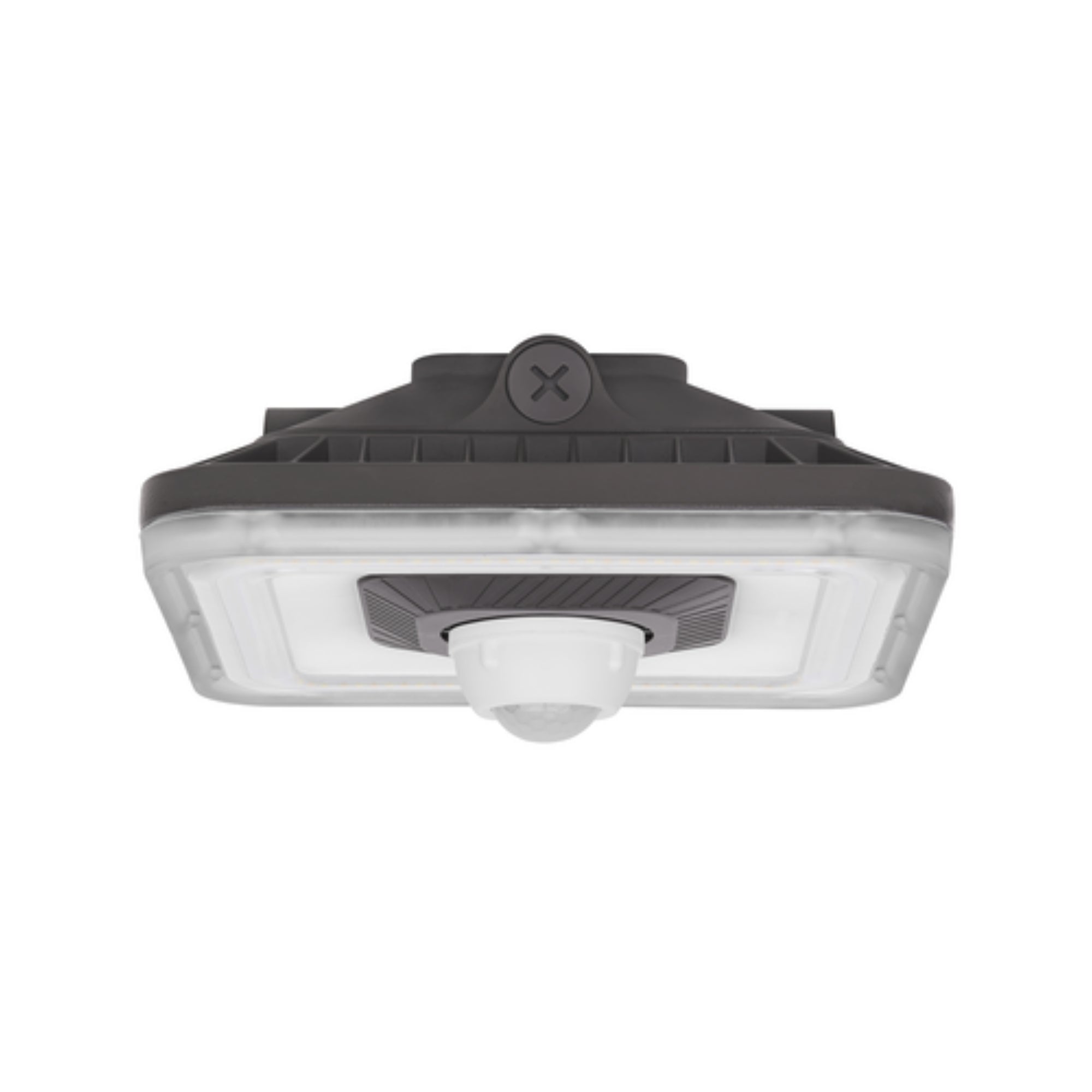

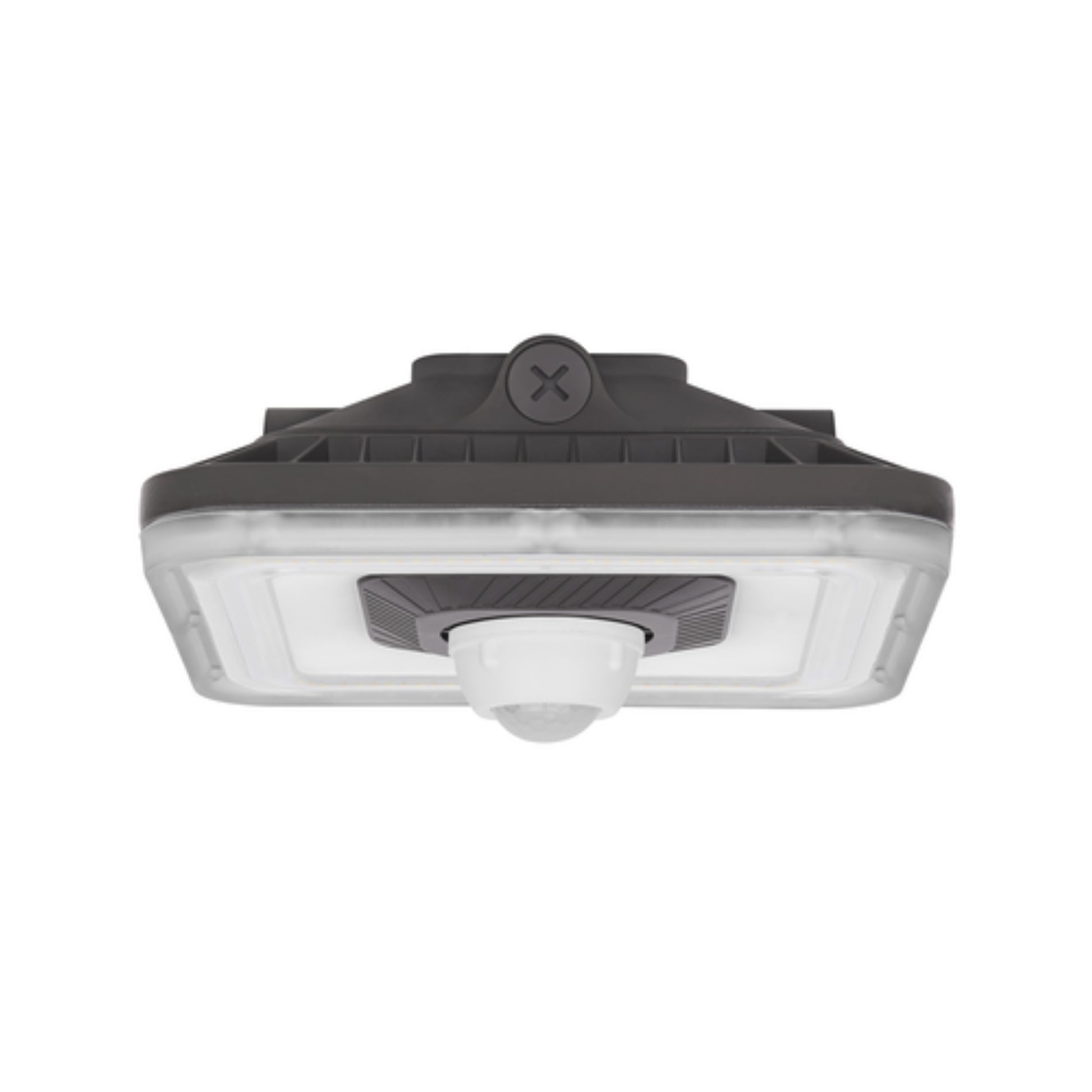

• Controls Ready: Features a sensor receptacle for field-installable standalone and LEDVANCE LINK sensors.
• Integrated Photocell: Automatically adjusts lighting based on ambient light conditions.
• Surge Protection: Equipped with 6kV surge protection for enhanced reliability.
• Long Lifespan: Rated for 100,000 hours (L70) at 25°C, ensuring longevity.
• Construction: Durable bronze finish with IP65 rating for wet locations.
• Mounting Options: Supports both surface and pendant mounting for installation flexibility.
• Optional Emergency Backup: Compatible with emergency battery backup for critical applications.

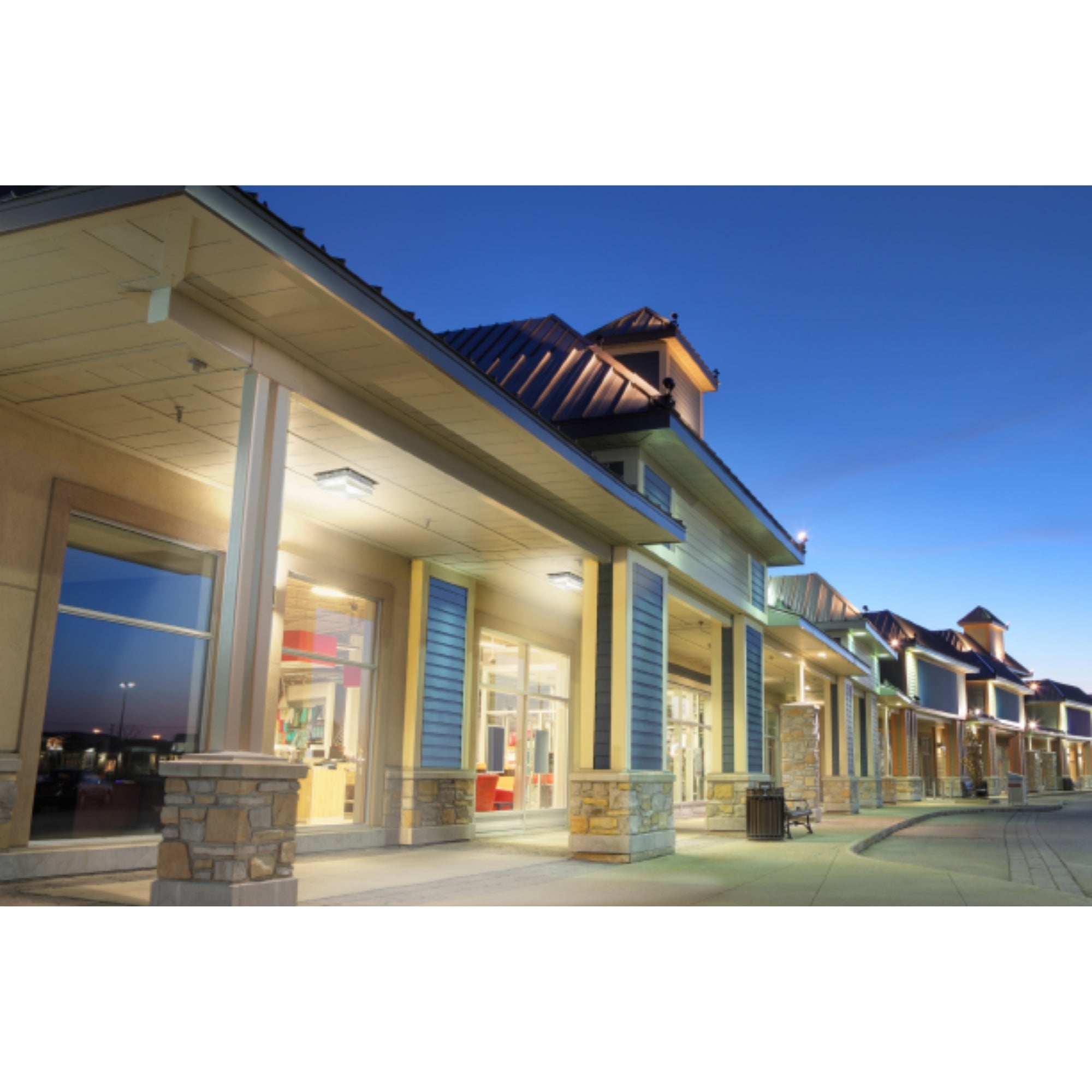

Typical Applications

• Parking Garages
• Canopy Areas
• Service Stations
• Loading Docks
• Industrial Facilities

Performance & Light Output

This fixture delivers up to 15000 lumens with an efficacy of 150 LPW. It features a CRI greater than 80, ensuring accurate color rendering. The embedded uplight minimizes the cave effect, enhancing the visual environment.

Electrical & Controls

Operating on 120-347V, this light includes a 0-10V dimmable driver with a power factor greater than 0.9 and THD less than 20%. It is compatible with optional LEDVANCE LINK sensors for advanced control.

Construction & Durability

The fixture is constructed with a robust housing and a bronze finish. It is IP65 rated for wet locations and operates in temperatures ranging from -40°F to +122°F.

Installation & Mounting

Designed for easy installation, it supports both surface and pendant mounting. Optional mounting plates are available for enhanced installation flexibility.

What's Included

• Canopy Light Fixture
• Integrated Photocell
