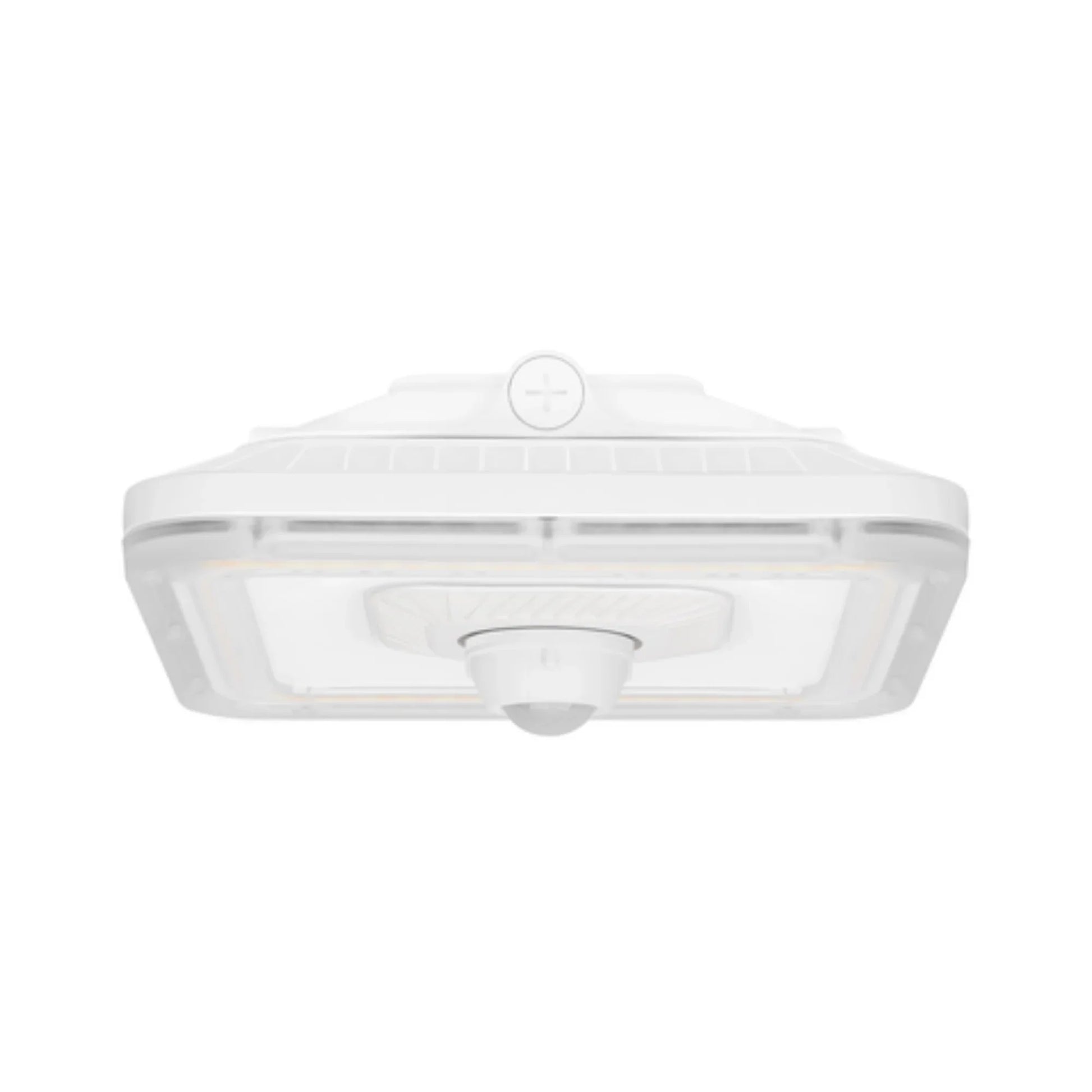

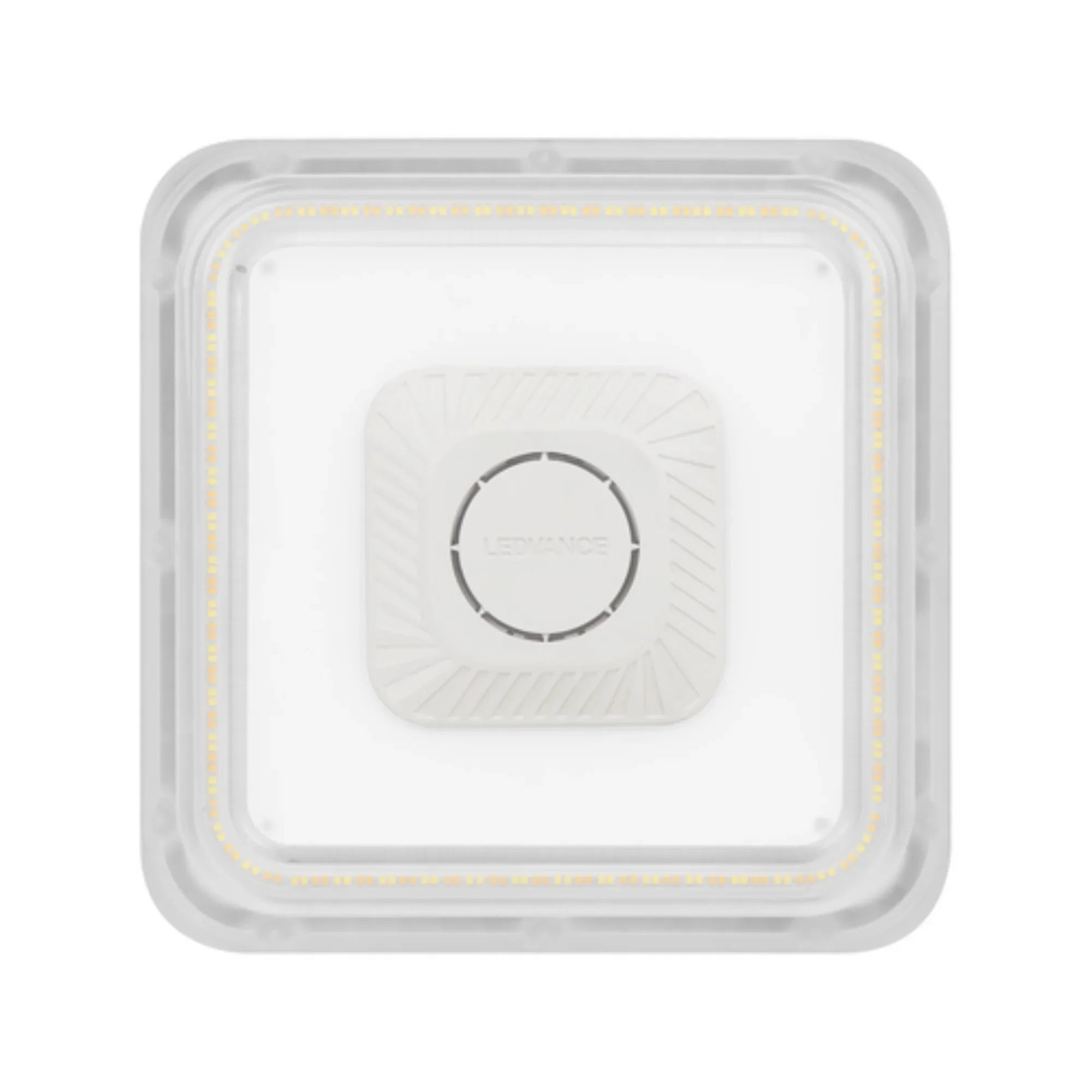

Sylvania Dual Selectable Square Canopy Light - 50W Configuration

The Sylvania SYLV-66411 is a versatile canopy light delivering 7500 lumens at 50 watts. It features selectable CCT options of 3000K, 4000K, and 5000K, and operates on 120-347V. This fixture is ideal for both garage and canopy applications, offering DLC 5.1 Premium certification for energy efficiency.

Key Features

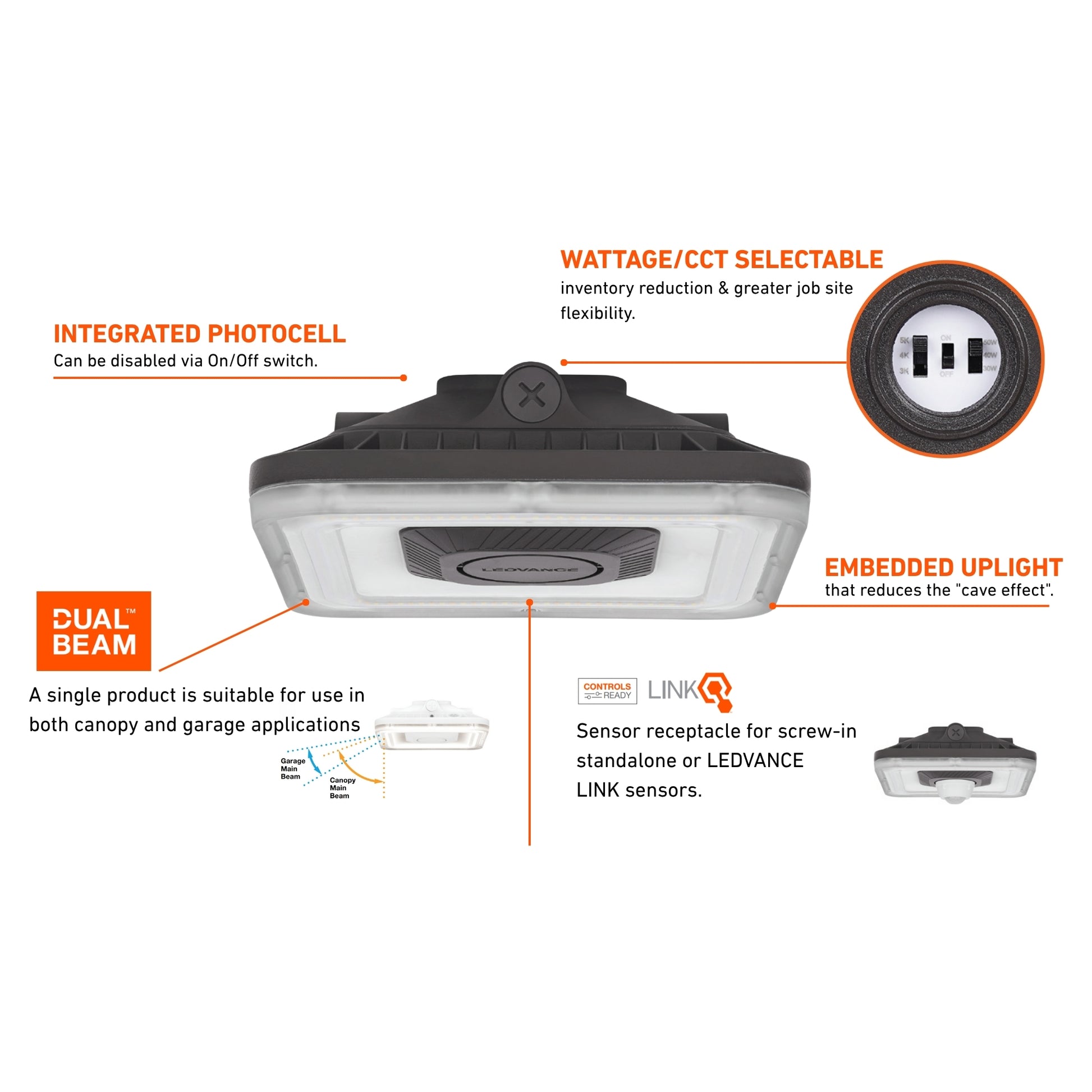

• Dual Beam Optics: Seamlessly meets both garage and canopy lighting requirements without the need for switches or lens swaps.
• High Efficacy: Achieves up to 150 lumens per watt, ensuring optimal energy savings.
• Embedded Uplight: Designed to minimize the 'cave effect' for a more welcoming environment.

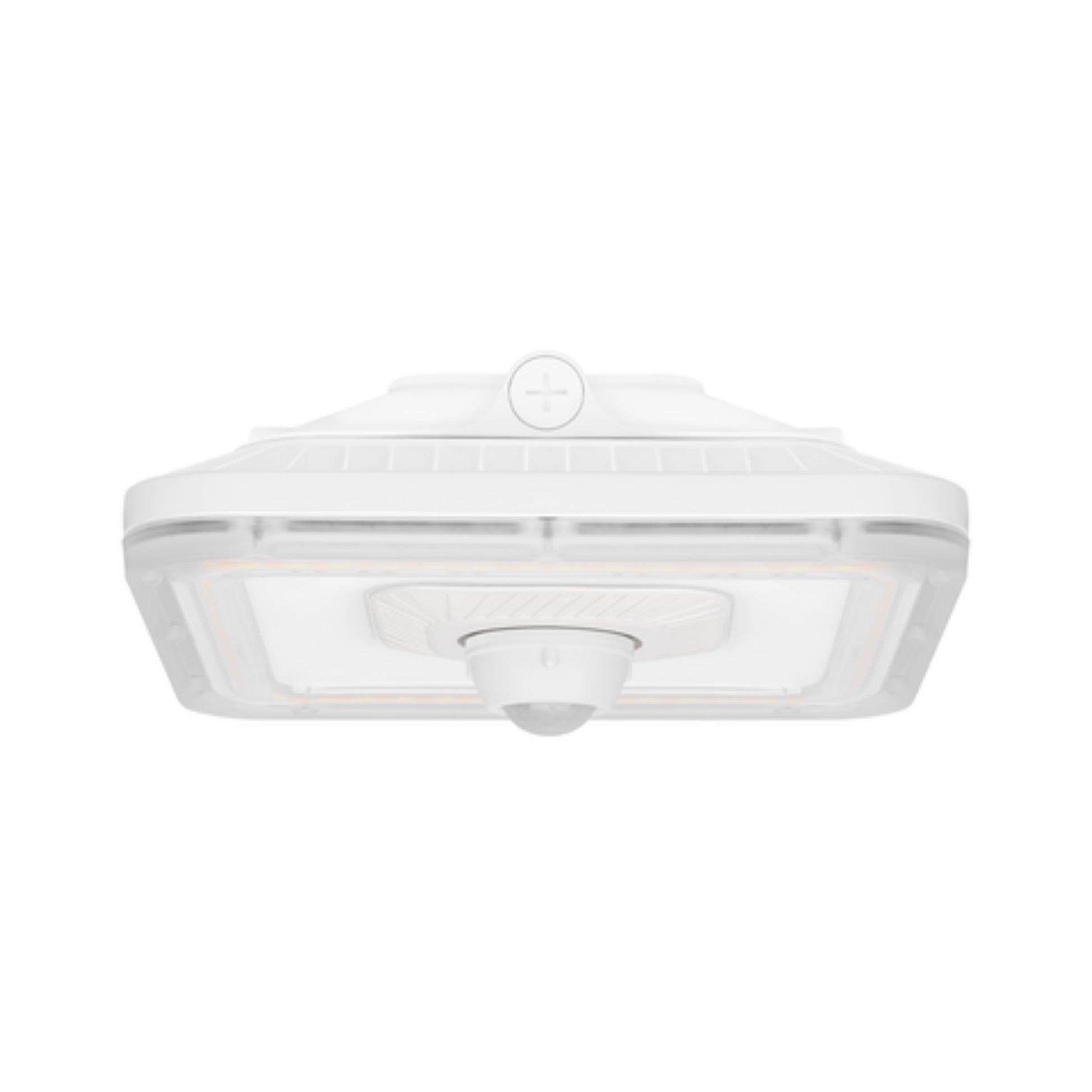

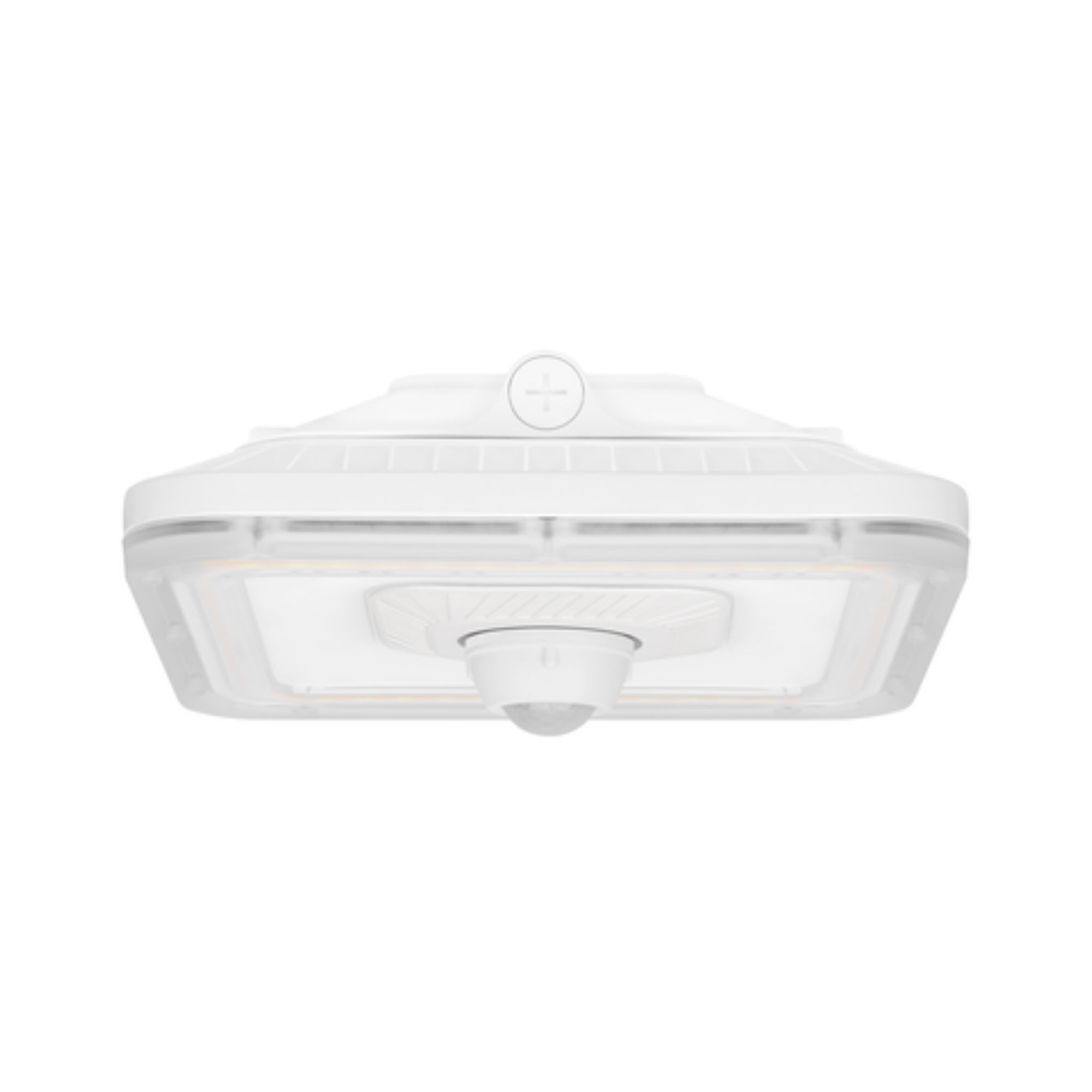

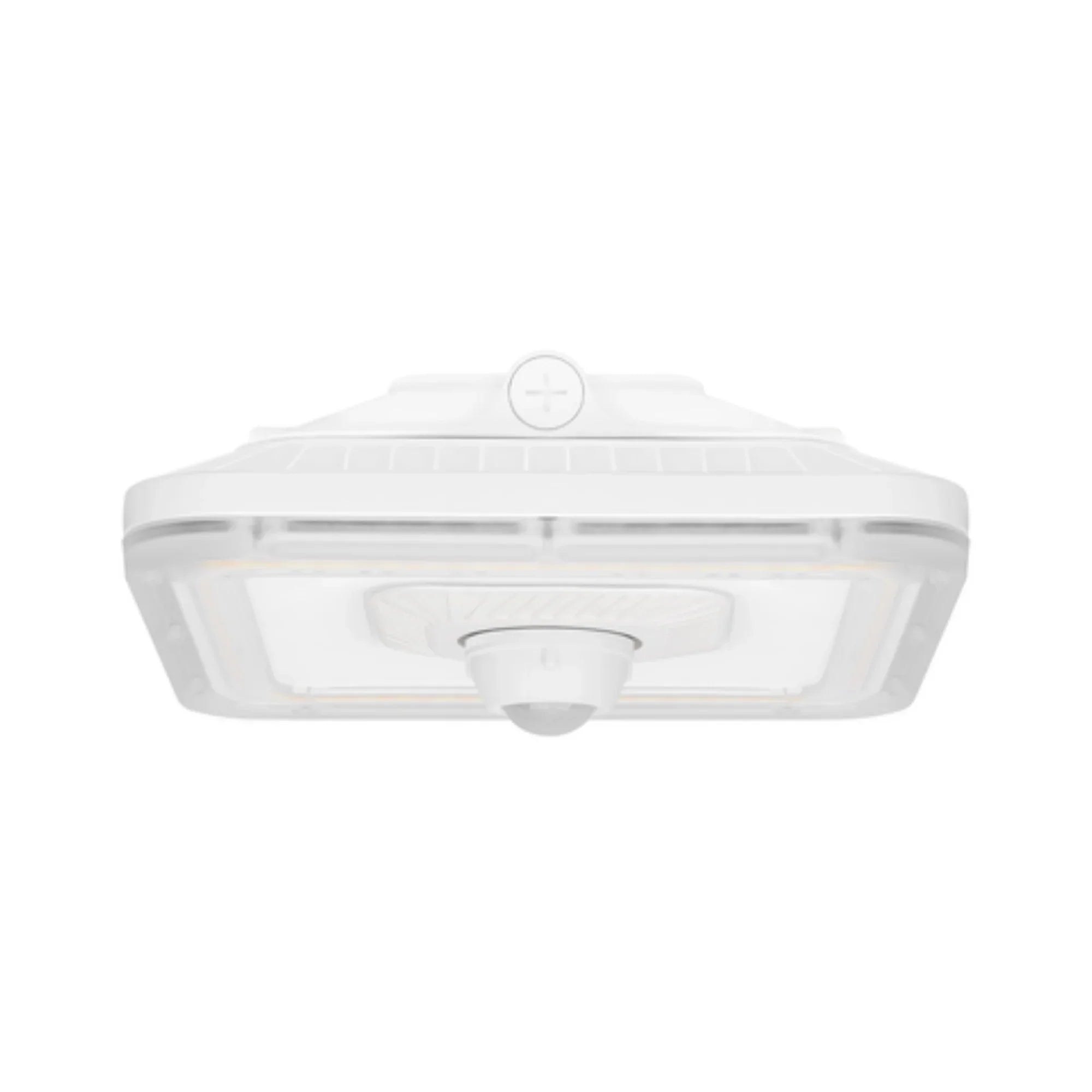

• Controls Ready: Features a sensor receptacle for field-installable standalone and LEDVANCE LINK sensors.
• Integrated Photocell: Automatically adjusts lighting based on ambient light levels.
• Dimmable: Supports 0-10V dimming for customizable light output.
• Surge Protection: Equipped with 6kV surge protection for enhanced durability.
• Long Lifespan: Rated for 100,000 hours (L70) at 25°C, reducing maintenance costs.
• Construction: Durable housing with IP65 rating, suitable for wet locations.
• Optional Emergency Backup: Available for added safety in power outages.

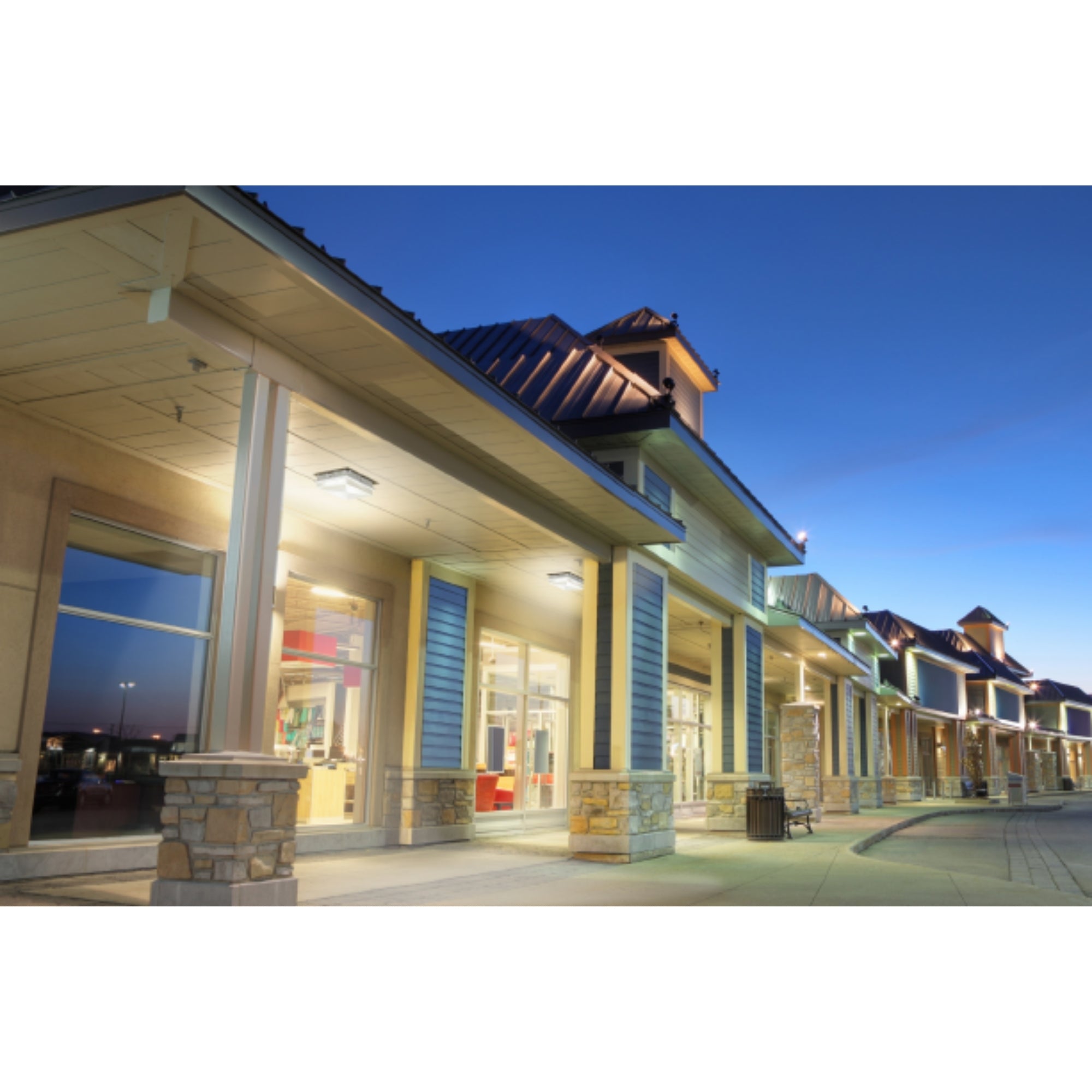

Typical Applications

• Parking Garages
• Canopy Installations
• Warehouses
• Industrial Facilities
• Commercial Buildings

Performance & Light Output

This fixture delivers a maximum of 7500 lumens with a CRI greater than 80, ensuring high-quality light output. It offers selectable color temperatures of 3000K, 4000K, and 5000K, providing flexibility for various environments.

Electrical & Controls

Compatible with 120-347V input, the fixture includes a high power factor (>0.9) and low THD (<20%). It supports 0-10V dimming and is equipped with 6kV surge protection. Optional LEDVANCE LINK sensors can be integrated for advanced control.

Construction & Durability

Constructed with a robust housing, the fixture is IP65 rated for wet locations, ensuring reliable operation in challenging environments. It is cULus listed to UL1598 standards and meets RoHS and FCC requirements.

Installation & Mounting

The fixture supports surface or pendant mounting, providing flexibility for various installation scenarios. Optional mounting plates are available for enhanced installation options.

What's Included

• Canopy Light Fixture
• Integrated Photocell
